SafetyDang DC Build/4wd Swap/Manual Trans Swap Thread

I'll just turn this thread into everything..



All Research info is at TTORA

http://ttora.com/forum/showthread.php?t=146517



Truck:
2002
Toyota Tacoma
Double Cab
V6 4 speed Auto
Prerunner


Current Parts:
5 speed Manual Transmission - $250 Birthday Gift
J-Shifting T-Case - $75
Front Drive Shaft - $50 Shipped
Rear Front Portion Drive Shaft - $75 Shipped
T-Case VSS - $75 Shipped
J-Shifter Lever -$39 Shipped
J-Shifter Knob - $10 Shipped
5 Speed Shift Knob - $25 Shipped
Clutch Pedal Assembly - $25 Shipped
Front Diff 4.30 - $264 Shipped
Non Add Diff Output Tube - $114.50 Shipped
Master Cylinder - $67.78 Shipped
Slave Cylinder - $37.78 Shipped
Marlin Twin Stick - $199 (Plus Shipping 10.51) Bought With Trans Mount
Marlin HD Transmission Mount 85.00 (Plus Tax 25.49)
2002 Toyota Tacoma ECU 89666-04010 - $125 Shipped
URD 5vz Short Shifter On Sale - $106.41 Shipped
Manual Hubs Spindles - Package Deal $500
Manual Hubs - Package Deal $500
Manual Cvs - Package Deal $500
4.10 Front Diff - Package Deal $500
Shift Boot And Plate - $39 Shipped
2004 MT V6 Flywheel - $300
Diff Drop Bolts - $31 Shipped
Clutch Hydro Lines and Brackets and Nuts/Bolts.
31481‑04030
90931‑01112
31482‑04040
31484‑35240
90461‑12413
90468‑08046
91611‑F0812
$63.32 Shipped

Current Total Cost So Far 2592.79

After Selling some of the things I don't need $2347.88



I'll Update as I go.

Helpful Links:
Auto to Manual Swap Junglecode Write Up

Drive Shaft Measurements

Double Cab to Manual Swap, Advice and Pointers

Other Members Conversion Threads

HillBilly_Young01 Auto DC to 4x4
Tacoma4Life - Auto DC to Manual 4x4 (5 speed Manual Swap)
Snorkie Auto DC to 4x4 (Output Shaft Swap)
SAR_Squid79 Auto Ext to 4x4 (Using Inchworm)
Interex Auto Ext to 4x4 (Output Shaft Swap)
iceman601 Auto 4-runner to 4x4 (Using Tacoma Trans/T-case)


FAQ


What do I need to swap to a 5 speed transmission?
R150 or R150F (4x4), Clutch, Clutch Cover, Flywheel, Transmission or T-case mount, Slave Cyl, Master Cyl, Clutch Lines, Shift Boot, Shift Cover and a few other little bolts and nuts.Source



Would a 4x4 Single Cab front portion of the rear drive shaft work for my Double Cab or Extra Cab? No Single Cabs drive shaft is shorter then a Double Cab or Extra Cab. Source


Can I use parts from a 4-Runner? For a Tacoma you can use 4-runner parts from a 3rd Gen 1996–2002. Source

If I do a Auto to Manual swap will I throw a CEL? Yes unless you swap out the ECU for a 5 Speed 4x4 Manual. Source

Can I reuse my Pre-runner Transmission for the swap? You have 2 options you can choose from. One is to swap out the 2wd output shaft for a 4x4 output shaft. Two run the Inchworm Prerunner Adapter Plate with a Gear Driven T-case or a Lefty Adapter with a Lefty T-Case. (NO Stock T-Case w/ Adapter)
Sources: Output Swap Prerunner Adapter Plate

Can I use my Prerunner Vehicle Speed Sensor? No, They are different. Source

Can I use my Prerunner Rear Drive shaft? Yes but the front portion after the Center Carrier Bearing must be shortened 12" Inches. Source

If I use Manual Hubs will I keep my ABS? Only way to keep ABS on manual hubs is to press the Manual hubs into your ABS spindles. Source

Will a T-Case from a Manual transmission bolt to an Automatic transmission? According to ShowStop "input shafts are different lengths between auto and manual" Source 1 Source 2 *Update According to js_iron "They are the exact same output shaft length and they both will bolt right up to the A340F" Source


Can I use a 2.7 T-Case for my 3.4 Transmission.
Quote:
Originally Posted by hytenor View Post
I believe 2.7 T-cases are the same, manual/AT. The difference in shaft length is in the tranny, not the tcase.

Can I use ADD CV's with my Manual Hubs? No, the ends are different.Source

How do I wire up my clutch cancel button? "If you want the clutch start safety feature with over ride switch, best to cut it out of the wrecked truck harness and piggy back onto your DC harness." - mattm94 Source Post #18

First Collect Some Parts..

T-case

Transmission

Front Drive Shaft

Rear Drive Shaft

T-Case, Transmission, Rear Drive Shaft, Front Drive Shaft

Clutch Pedal From a 98

J-Shift lever

Some Shift Knobs



--------------------------------------------------------

Clutch Location
My Brothers 5 Speed Extra Cab (Mind The Grease)

My Double Cab


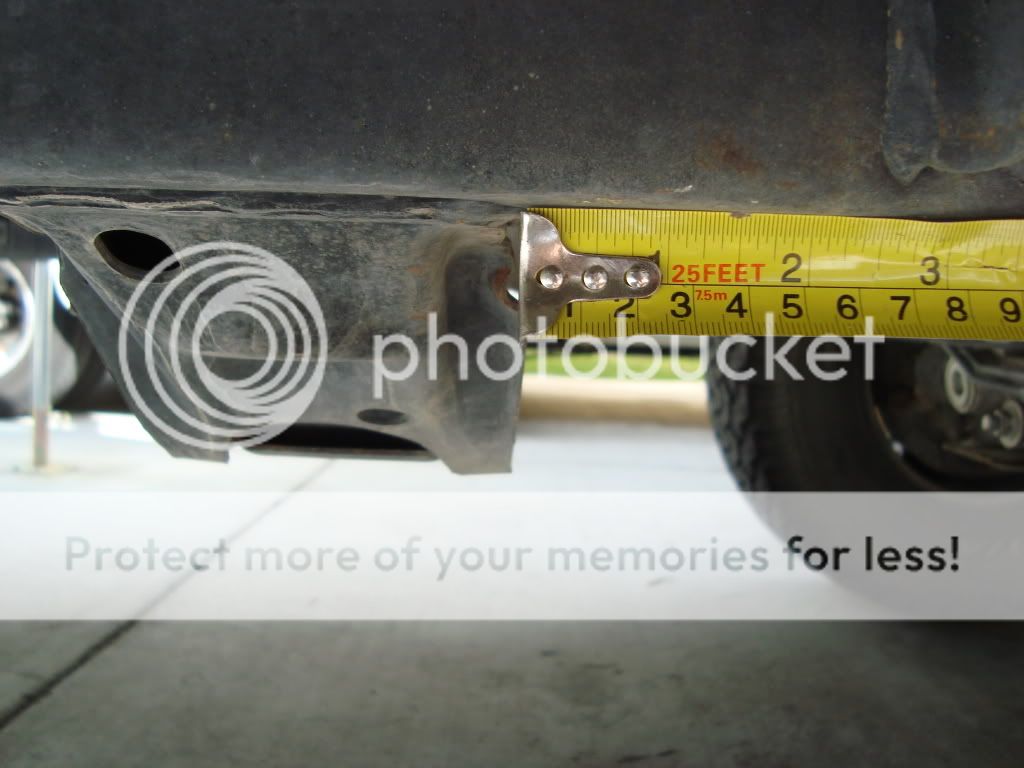

Cross Members Are in the same Locations for Double Cabs and Extra Cabs

Auto Double Cab PreRunner


5-Speed 4x4



Install Manual Hubs and Diff....





Broken.... =[



Bam!



Messing with the springs on the Hubs..



Done




Do Needed Mods...















Sealant part number.


Cleaning it up.














Shift Knobs bugging me... They never lined up right..


Off to modding them... little spacers...


Bam! Lined up!



Waiting for Amsoil Transmission fluid and my LCE 38lb Flywheel has not come yet...

Bam...





Got bored.. Eye balled it.. Luckily I got it dead on!


Cleaned the T-Case w/ Twin Sticks


Test fit, make sure I got the right T-case..


Installing URD Short Shifter





Cleaning..





Deciding where to bend or cut the Twin Sticks


Clearance Problems in Reveres and 2nd and 3rd Gears.. In low.. or 2wd
  Reply With Quote
Old 11-04-2012, 04:48 PM   #2
SafetyDang [OP] SafetyDang is online now
get your facts straight
SafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to behold

SafetyDang's Avatar
Name: Dang
Joined: Apr 2009, #15759
Location: Anaheim, CA
Gender: Male
Posts: 369
SafetyDang's Tacoma Gallery
Send a message via AIM to SafetyDang



Remove Drive shaft






Remove Transmission Drain Plug



Drain...



2wd tranny still there...


Remove Clips... Clips.. And More CLips!







Making a mess...



Flex plate



Ghetto Transmission Jack..





Cut my exhaust because mine no longer had flanges to unbolt..



Unbolt....





SuperChiem may use this for the RV... Needed a Speed Sensor.

  Reply With Quote
Old 11-04-2012, 04:48 PM   #3
SafetyDang [OP] SafetyDang is online now
get your facts straight
SafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to behold

SafetyDang's Avatar
Name: Dang
Joined: Apr 2009, #15759
Location: Anaheim, CA
Gender: Male
Posts: 369
SafetyDang's Tacoma Gallery
Send a message via AIM to SafetyDang
Removing Transmission Lines


Passenger Side







Driver Side





Removing torque converter





Got to the flex plate





OEM Clutch lines...

Master Down... I think I may have to move my Master Cyl up a little bit.. But we will see...



Moving Brake Booster Wire







Connecting the Master To the Flex Hose


Flex Hose to Slave Line



End of the Slave Line came with this plug... Hm....



Which gave me an Idea...



Condom!

  Reply With Quote
Old 11-04-2012, 04:49 PM   #4
SafetyDang [OP] SafetyDang is online now
get your facts straight
SafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to behold

SafetyDang's Avatar
Name: Dang
Joined: Apr 2009, #15759
Location: Anaheim, CA
Gender: Male
Posts: 369
SafetyDang's Tacoma Gallery
Send a message via AIM to SafetyDang
:saw:


:saw:





Found a broken stud in the bell housing..



Removed the bell housing.



Tried Vice Pliers


Drill...



Tap... didn't come out... PO had it like this as well, but I wanted to fix it...



Also Cleaned the Bell Housing

Before:


After:


Installed the LCE 38lb Flywheel.. torqued to 63 lbs



Installing the clutch pad.. Fat side is the flywheel side,



The SST should come in and out easily...






Then it rained... and I had class



What Fluid to use...

  Reply With Quote
Old 11-04-2012, 04:49 PM   #5
SafetyDang [OP] SafetyDang is online now
get your facts straight
SafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to behold

SafetyDang's Avatar
Name: Dang
Joined: Apr 2009, #15759
Location: Anaheim, CA
Gender: Male
Posts: 369
SafetyDang's Tacoma Gallery
Send a message via AIM to SafetyDang
Spot Saver
  Reply With Quote
Old 11-04-2012, 04:49 PM   #6
SafetyDang [OP] SafetyDang is online now
get your facts straight
SafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to behold

SafetyDang's Avatar
Name: Dang
Joined: Apr 2009, #15759
Location: Anaheim, CA
Gender: Male
Posts: 369
SafetyDang's Tacoma Gallery
Send a message via AIM to SafetyDang
Maybe 1 more spot saver..
  Reply With Quote
Old 11-04-2012, 05:04 PM   #7
Low and slow
dually is one of the sharper tools in the sheddually is one of the sharper tools in the sheddually is one of the sharper tools in the sheddually is one of the sharper tools in the sheddually is one of the sharper tools in the sheddually is one of the sharper tools in the sheddually is one of the sharper tools in the sheddually is one of the sharper tools in the sheddually is one of the sharper tools in the sheddually is one of the sharper tools in the sheddually is one of the sharper tools in the shed

dually's Avatar
Army: 14S
Joined: Jul 2008, #8205
Location: Interstate underpass
Age: 23
Gender: Dude
Posts: 3,127
dually's Tacoma Gallery
I just swapped my 2wd.. this looks more extensive haha
  Reply With Quote
Old 11-04-2012, 05:09 PM   #9
Slow as shit. Cute as Hell.
Steves104x4 is one of the sharper tools in the shedSteves104x4 is one of the sharper tools in the shedSteves104x4 is one of the sharper tools in the shedSteves104x4 is one of the sharper tools in the shedSteves104x4 is one of the sharper tools in the shedSteves104x4 is one of the sharper tools in the shedSteves104x4 is one of the sharper tools in the shedSteves104x4 is one of the sharper tools in the shedSteves104x4 is one of the sharper tools in the shedSteves104x4 is one of the sharper tools in the shedSteves104x4 is one of the sharper tools in the shed

Steves104x4's Avatar
Name: Steve
Joined: Apr 2010, #35468
Location: Buffalo NY
Age: 5
Gender: Male
Posts: 5,212
Steves104x4's Tacoma Gallery
Sweet.
  Reply With Quote
Old 11-04-2012, 08:57 PM   #10
Member
GentryGoon is on a distinguished road

GentryGoon's Avatar
Name: Gentry
Joined: Jul 2012, #83809
Location: Colorado
Gender: Male
Posts: 99
GentryGoon's Tacoma Gallery
sub'd
  Reply With Quote
Old 11-04-2012, 09:09 PM   #11
SafetyDang [OP] SafetyDang is online now
get your facts straight
SafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to behold

SafetyDang's Avatar
Name: Dang
Joined: Apr 2009, #15759
Location: Anaheim, CA
Gender: Male
Posts: 369
SafetyDang's Tacoma Gallery
Send a message via AIM to SafetyDang
Should finish up in the next week or so if time works with me.
  Reply With Quote
Old 11-05-2012, 05:44 AM   #12
Senior Member
85GT 79FJ40 has a brilliant future85GT 79FJ40 has a brilliant future85GT 79FJ40 has a brilliant future85GT 79FJ40 has a brilliant future85GT 79FJ40 has a brilliant future85GT 79FJ40 has a brilliant future85GT 79FJ40 has a brilliant future85GT 79FJ40 has a brilliant future85GT 79FJ40 has a brilliant future85GT 79FJ40 has a brilliant future85GT 79FJ40 has a brilliant future
Name: Ken
Joined: Dec 2010, #47768
Location: New Hampshire
Gender: Male
Posts: 738
85GT 79FJ40's Tacoma Gallery
I love the grease on the spring. I did the same thing on both the 95.5 and 98 I had previously to shut them up. Kudos for taking this on. I know a lot of people are scared of this kind of stuff and advise others to just buy another truck. If my auto tranny in my 96 starts to give me issues I'll be swapping a 5 speed into it. But mine's already 4WD so I won't have quite an extensive parts list.
  Reply With Quote
Old 11-05-2012, 05:57 AM   #13
The Rembrandt of Rattle Can
Madjik_Man is one of the sharper tools in the shedMadjik_Man is one of the sharper tools in the shedMadjik_Man is one of the sharper tools in the shedMadjik_Man is one of the sharper tools in the shedMadjik_Man is one of the sharper tools in the shedMadjik_Man is one of the sharper tools in the shedMadjik_Man is one of the sharper tools in the shedMadjik_Man is one of the sharper tools in the shedMadjik_Man is one of the sharper tools in the shedMadjik_Man is one of the sharper tools in the shedMadjik_Man is one of the sharper tools in the shed

Madjik_Man's Avatar
Joined: Dec 2009, #26893
Location: Boulder, CO
Gender: Male
Posts: 9,181
Madjik_Man's Tacoma Gallery
Now this is how you make a walkthrough. While I will never have to do this swap, thank you for taking the time to detail it.

And I agree with mbassman. Ditch that torsion spring in the clutch pedal and go with a brake return spring.

I doubt your DC has the welded tab behind the dash to hook it on to, but it seems like you might be somewhat mechanically inclined to figure something out
  Reply With Quote
Old 11-05-2012, 06:14 AM   #14
RAT Products
isu2014 is one of the sharper tools in the shedisu2014 is one of the sharper tools in the shedisu2014 is one of the sharper tools in the shedisu2014 is one of the sharper tools in the shedisu2014 is one of the sharper tools in the shedisu2014 is one of the sharper tools in the shedisu2014 is one of the sharper tools in the shedisu2014 is one of the sharper tools in the shedisu2014 is one of the sharper tools in the shedisu2014 is one of the sharper tools in the shedisu2014 is one of the sharper tools in the shed

isu2014's Avatar
Name: Ryan
Joined: Apr 2010, #35140
Location: Ames, IA
Age: 23
Gender: Dude
Posts: 10,645
isu2014's Tacoma Gallery
I'm so jelly! I want a 5 speed.
  Reply With Quote
Old 11-05-2012, 09:19 AM   #15
SafetyDang [OP] SafetyDang is online now
get your facts straight
SafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to behold

SafetyDang's Avatar
Name: Dang
Joined: Apr 2009, #15759
Location: Anaheim, CA
Gender: Male
Posts: 369
SafetyDang's Tacoma Gallery
Send a message via AIM to SafetyDang
I was planning to do the spring thing never got around to it. Doing more on Thursday...
  Reply With Quote
Old 11-05-2012, 09:54 AM   #17
SafetyDang [OP] SafetyDang is online now
get your facts straight
SafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to behold

SafetyDang's Avatar
Name: Dang
Joined: Apr 2009, #15759
Location: Anaheim, CA
Gender: Male
Posts: 369
SafetyDang's Tacoma Gallery
Send a message via AIM to SafetyDang
Quote:
Originally Posted by Madjik_Man View Post
Now this is how you make a walkthrough. While I will never have to do this swap, thank you for taking the time to detail it.

And I agree with mbassman. Ditch that torsion spring in the clutch pedal and go with a brake return spring.

I doubt your DC has the welded tab behind the dash to hook it on to, but it seems like you might be somewhat mechanically inclined to figure something out
You'd be surprise what double cabs have. They have the mounts for the clutch hydro lines and some mounting hole for the clutch peddle. I'm sure its down there.
  Reply With Quote
Old 11-08-2012, 06:16 PM   #18
SafetyDang [OP] SafetyDang is online now
get your facts straight
SafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to behold

SafetyDang's Avatar
Name: Dang
Joined: Apr 2009, #15759
Location: Anaheim, CA
Gender: Male
Posts: 369
SafetyDang's Tacoma Gallery
Send a message via AIM to SafetyDang
Updated
  Reply With Quote
Old 11-08-2012, 07:07 PM   #20
SafetyDang [OP] SafetyDang is online now
get your facts straight
SafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to beholdSafetyDang is a splendid one to behold

SafetyDang's Avatar
Name: Dang
Joined: Apr 2009, #15759
Location: Anaheim, CA
Gender: Male
Posts: 369
SafetyDang's Tacoma Gallery
Send a message via AIM to SafetyDang
Quote:
Originally Posted by Blackdawg View Post
I also found that my 2wd I4 cab had a lot of stuff for the 4wd V6 cab..some..was missing a lot too..
Wouldn't make sense for them to change the cab.. Especially since Toyotas all about flow in the factory. Having 2-3+ lines for different cab configurations. IE ( Manual/Auto ) would slow them down especially if its just a different mounting bracket. This is the Toyota Production System (TPS) at work.. "Producing high-quality vehicles as efficiently as possible".. or so they say.
  Reply With Quote
Reply

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Similar Threads
Thread Thread Starter Forum Replies Last Post
W59 trans swap question a8ksh4 4 Cylinder 1 06-01-2013 12:09 AM
Prerunner to 4wd swap. TRANS and TCase FOR SALE LocalTacoma 1st Gen Tacoma Marketplace 17 01-11-2013 04:38 PM
trans swap auto to 5 speed joernoel 2nd Gen. Tacomas 0 06-13-2012 10:48 AM
So im trying to swap trans Idrivetoys 1st Gen. Tacomas 3 11-09-2010 06:31 AM
2003 Tacoma Trans swap? SmokeyDP 1st Gen. Tacomas 31 07-30-2010 05:23 AM


Copyright © 2014 Tacoma Forum. Tacoma World is not owned by, or affiliated with Toyota Motor Corporation.
