Amp Research Bed Extender

10/14/13

One can never have enough bed space (especially when a tire carrier takes up half of it).

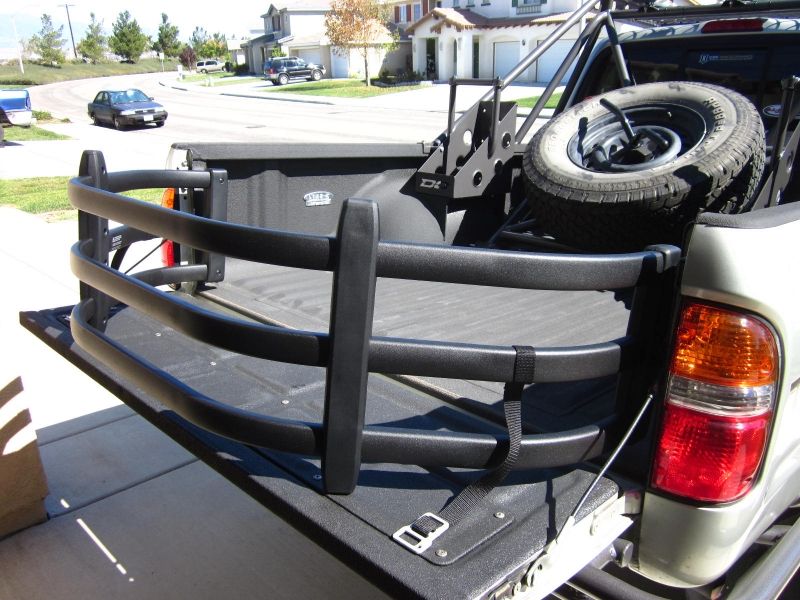

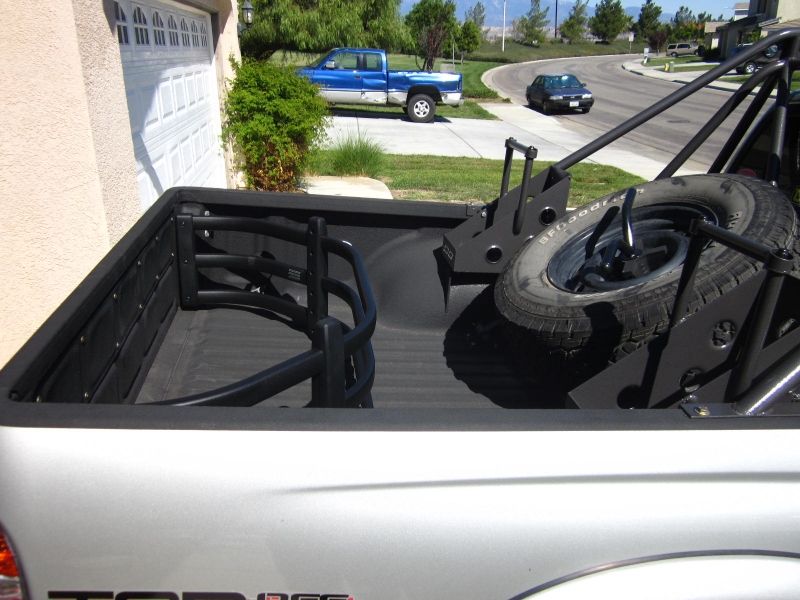

Amp Research BedXTender HD installed today.

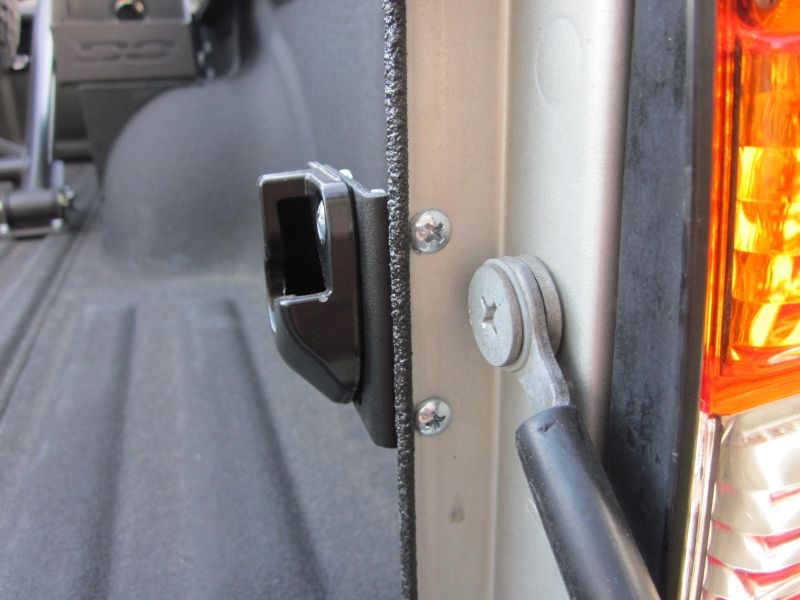

Some drilling was involved; but the provided template made it an easy install.
