HOW TO: Change Your Spark Plugs and Wires (2.7 liter 3RZ-FE engine)

I couldn't find a good write-up on how to change the spark plugs on a 2.7 liter Tacoma so I decided to tackle the project myself.
It's actually VERY easy and straight forward.
I just changed the plugs on my 4Runner with the 3.4 liter V6 engine yesterday so I can say it is MUCH easier to change the plugs on the 2.7 liter than on the 3.4 liter.

Parts and Tools
4 Spark Plugs (I used Denso Platinum plugs)
1 set of 4 Spark Plug Wires (I used NGK wires)
5/8" Spark Plug Socket
Ratchet
Socket extension
Anti-seize
Dielectric grease





NOTE: Each spark plug wire is a different length and is designed to go to a specific plug. My set was numbered so you could easily tell which wire went to which plug.

NOTE: Please check the gap on each spark plug to make sure it is correct!

NOTE: PLEASE! PLEASE! PLEASE! Put a little bit of dielectric grease inside the spark plug boot when you are installing the spark plug wires. It will make it so much easier to pull the spark plug boot off the next time you change your plugs. You have been warned!

NOTE: Distributor cap Plug order

4 1
3 2

FRONT TWO PLUGS:


REAR TWO PLUGS:


NOTE: Everything I have read says to remove the stock air intake system as the first step. I found that I was able to access all of the spark plugs without removing the stock air intake system. The rear two plugs (shown above-directly behind the air intake system) are not that hard to get to from the top. This saves approximately 30 minutes of time.

+++++++++++++++++++++++++++++++++++++++
STEP ONE: INSTALLING SPARK PLUG #1

+++++++++++++++++++++++++++++++++++++++
Pull the boot off of plug #1 and remove the spark plug from the hole using a ratchet with an extension and a 5/8 spark plug socket.

Put some anti-seize on the threads of the new spark plug and install it.

Put some dielectric grease in the end of the spark plug boot and slide it back in the hole connecting it to the top of the spark plug.

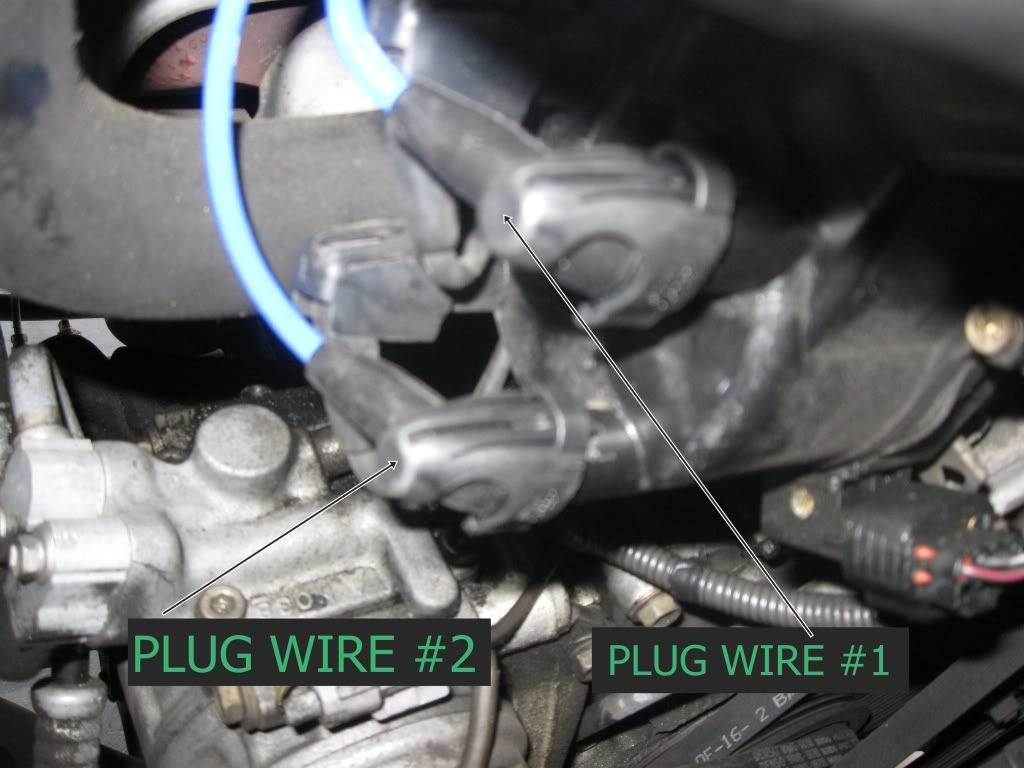

Route the spark plug wire around to the distributor cap and install it. Make sure you hear it CLICK so you know it is connected. The wire goes in the top right spot on the distributor cap (see diagram at beginning of write up).




+++++++++++++++++++++++++++++++++++++++
STEP TWO: INSTALLING SPARK PLUG #2

Pull the boot off of plug #2 and remove the spark plug from the hole using a ratchet with an extension and a 5/8 spark plug socket.

Put some anti-seize on the threads of the new spark plug and install it.

Put some dielectric grease in the end of the spark plug boot and slide it back in the hole connecting it to the top of the spark plug.

Route the spark plug wire around to the distributor cap and install it. Make sure you hear it CLICK so you know it is connected. The wire goes in the bottom right spot on the distributor cap (see diagram at beginning of write up).


AFTER INSTALLING FIRST TWO PLUGS AND WIRES





Now you are 50% of the way finished.


+++++++++++++++++++++++++++++++++++++++
STEP THREE: INSTALLING SPARK PLUG #4 (or #3 depending on which order you go)

Pull the boot off of plug #4 and remove the spark plug from the hole using a ratchet with an extension and a 5/8 spark plug socket. NOTE: You can choose to do plug #3 or 4 at this point. I chose to do plug #4 because it was easier (I left the hard one for last).

Put some anti-seize on the threads of the new spark plug and install it.

Put some dielectric grease in the end of the spark plug boot and slide it back in the hole connecting it to the top of the spark plug.

Route the spark plug wire around to the distributor cap and install it. Make sure you hear it CLICK so you know it is connected. The wire goes in the top left spot on the distributor cap (see diagram at beginning of write up).



+++++++++++++++++++++++++++++++++++++++
STEP ONE: INSTALLING SPARK PLUG #3

+++++++++++++++++++++++++++++++++++++++

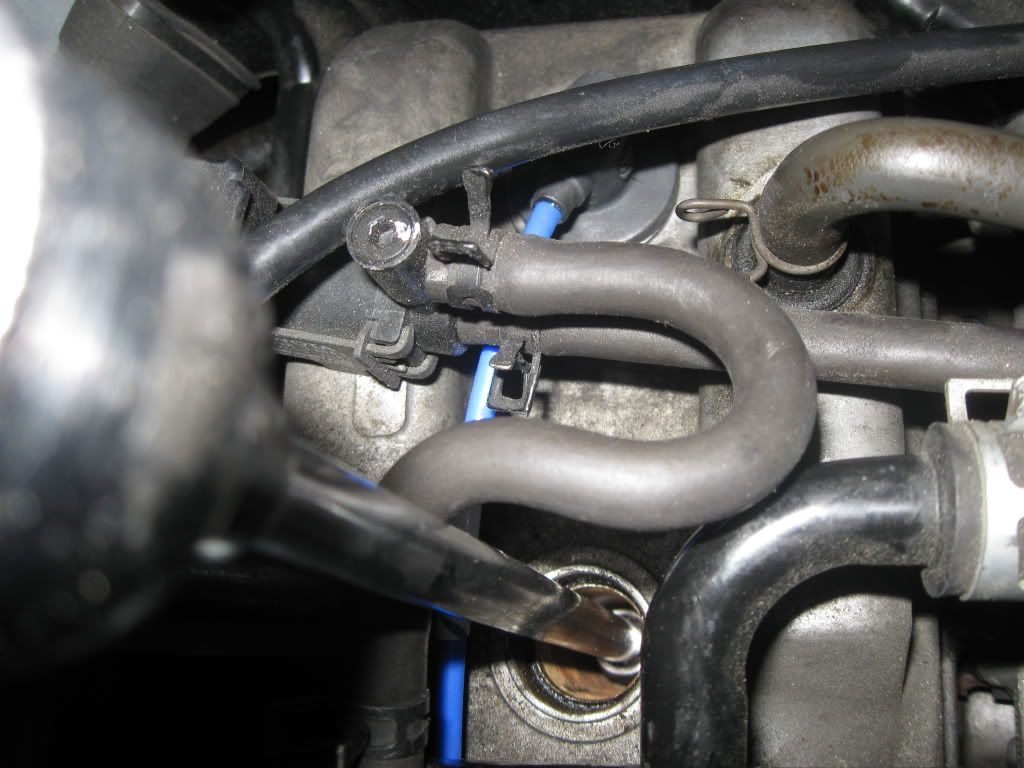

Pull the boot off of plug #3 and remove the spark plug using a ratchet with an extension and a 5/8 spark plug socket.

NOTE: You can do plug #3 or 4 first. I chose to do #3 last because it was the most difficult to get to. Of course you could take the factory air intake off and it would be easier to get to but that adds another 10-30 minutes to the job.

Put some anti-seize on the threads of the new spark plug and install it.

Put some dielectric grease in the end of the spark plug boot and slide it back in the hole connecting it to the top of the spark plug.

Route the spark plug wire around to the distributor cap and install it. Make sure you hear it CLICK so you know it is connected. The wire goes in the bottom right spot on the distributor cap (see diagram at beginning of write up).


NOTE: There is just enough room to get plug #3 without having to remove the factory air intake.

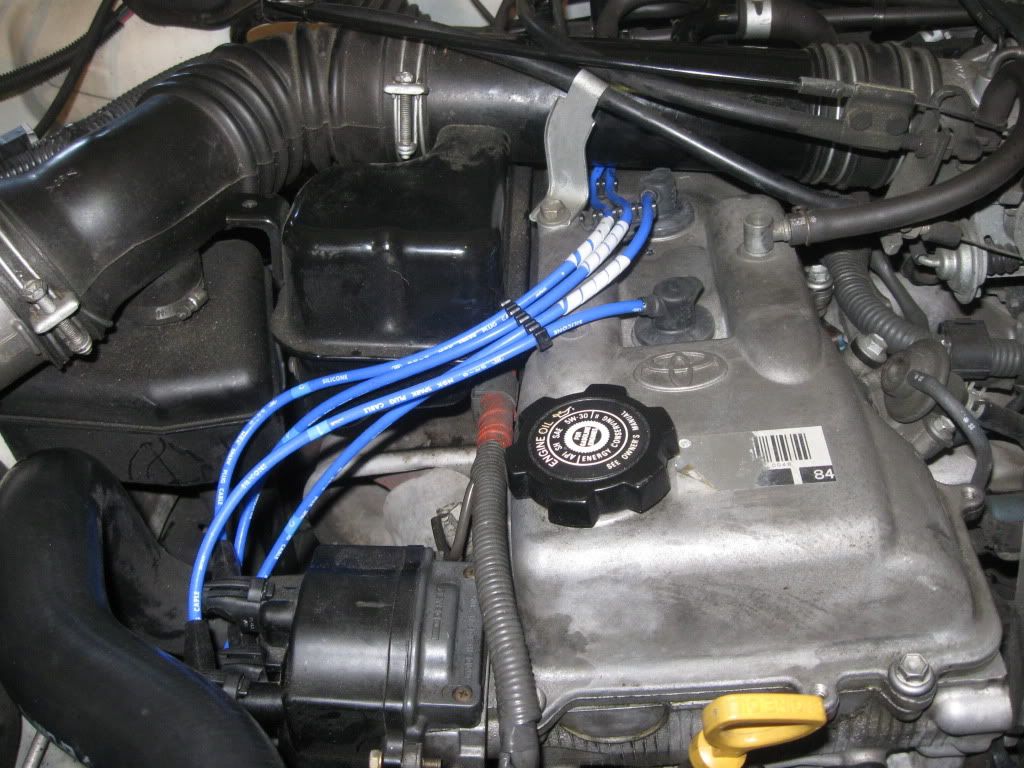

DONE!!!!
That’s all there is too it. You have now successfully changed all four spark plugs and wires. Give yourself a pat on the back or treat yourself to a beer.
