SATOSHI MOD --- 1st gen. write-up (lots of pics)

Alright so here is my Satoshi Mod!

first off id like to give a special thanks to HOMERTACO for supplying the M1 mesh grill and making it look that much more badass.

also all the other write-ups that inspired me with this mod

I wanted to make a good write-up for all the 01-04 tacos since i could NOT find a solid write-up for it

so here it goes...





Satoshi Mod Links:

HomerTaco Satoshi and Mesh Grills: http://www.tacomaworld.com/forum/homertaco/

Original Satoshi: http://satoshigrill.blogspot.com/200...grill-mod.html

01-04 Satoshi: http://www.customtacos.com/forum/showthread.php?t=61042-

98-00 Satoshi: http://www.tacomaworld.com/forum/1st...gen-style.html

Best Write-up I found and followed: http://www.tacomaworld.com/forum/2nd...-write-up.html






Tips:

Before you get started i have a few things that you might want to keep in mind while doing this mod:

-BE PATIENT.

-When applying the fiberglass, make sure to try and get the fiber glass as close to the surface where you want it to be covering. this means you need LESS bondo

-LESS bondo the better

-let bondo dry!

-fiberglass is really sticky. use gloves. i used my bare hands and it burns... and you have to scrub your hands ALOT to get it off

-sand everything before you paint it.

-go slow and take your time. i did mind in 4 days. took breaks and let things dry when needed.

-you can do this mod but be aware there is a lot of time invested with waiting on things to dry like fiberglass, bondo, paint, waiting for mesh material coming in the mail.... (i know that doesnt dry)

-you dont have to follow every step i made. you can do your own thing. take what you like from other write-ups or ideas and make your own process.

-SAND AFTER THE FILLER PRIMER. it will be bumpy and ugly. so sand a little bit after you do a few coats of filler primer to cover the bondo.

-01Tacoma- to anyone looking to do this it's a very easy project to just dive into as log a you take your time and pay attention to detail... And for the recor idiot 7" lights behind mine if anyone was wondering about what size will fit

-im sure there will be more in the future... dont hesitate to ask me











NOW...


Step 1: Remove the Grill


Supplies:


philips screw driver = to screw off the two screws on the corners of the grill

long screw driver = to disengage all the plastic anchor points






here's a good link with the steps to remove the grill


http://ebayba.uniqueautodepot.net/20...toy-1945-s.pdf

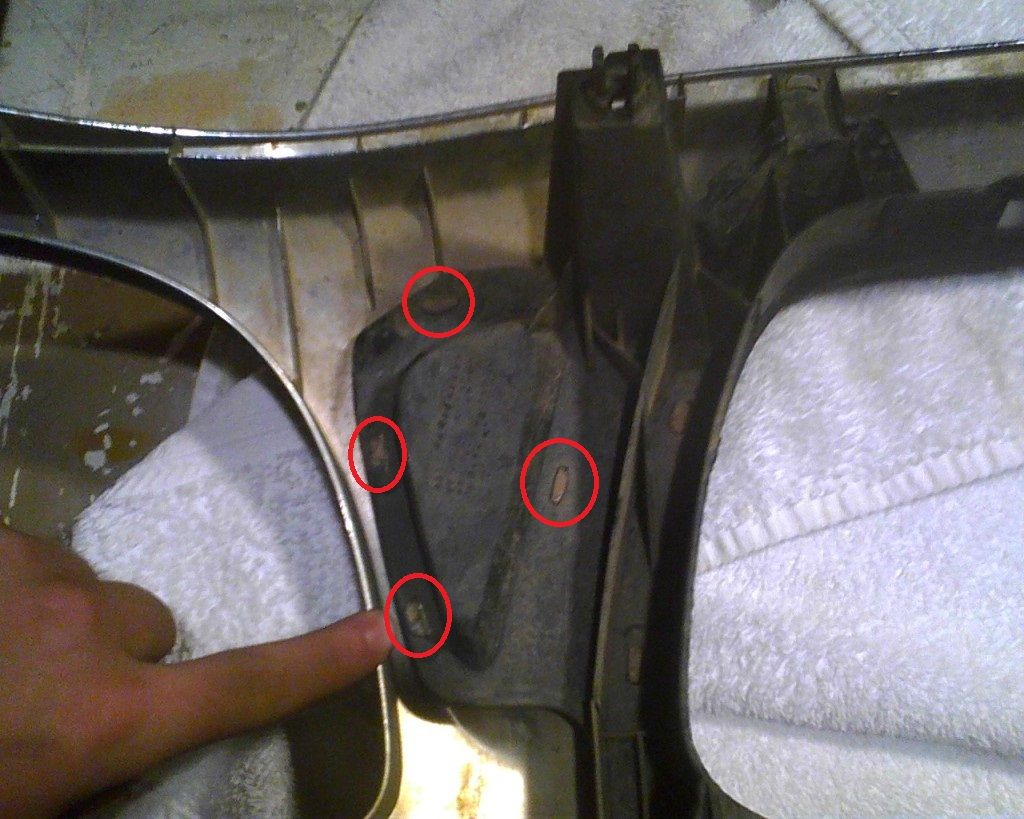

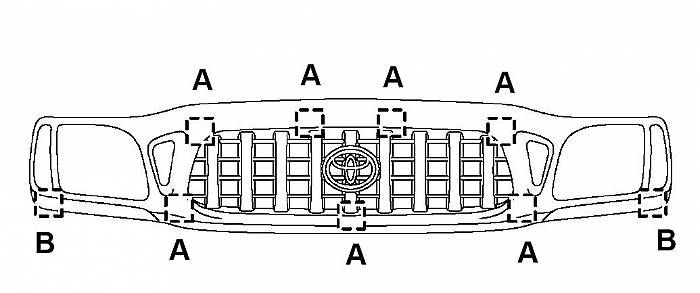

the clips are shown in the figure below


















Remove the grill from the truck




















Step 2: Cut out the center piece


Supplies:

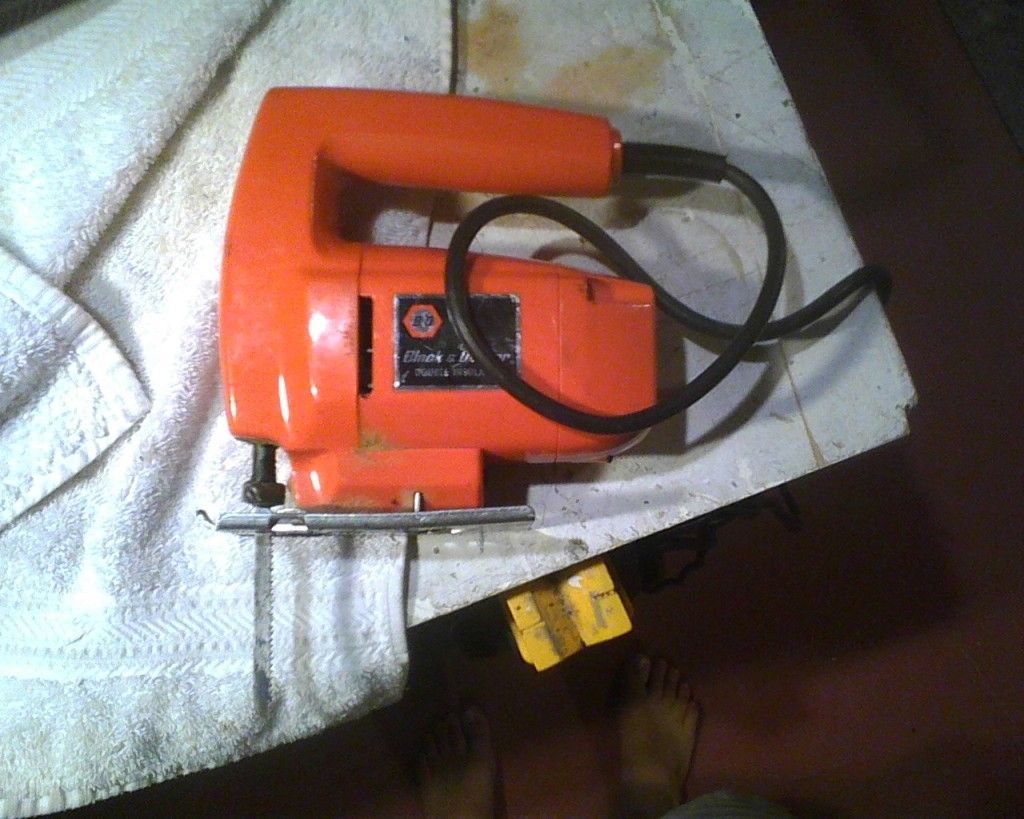

electric power jigsaw = to cut out the inside plastic

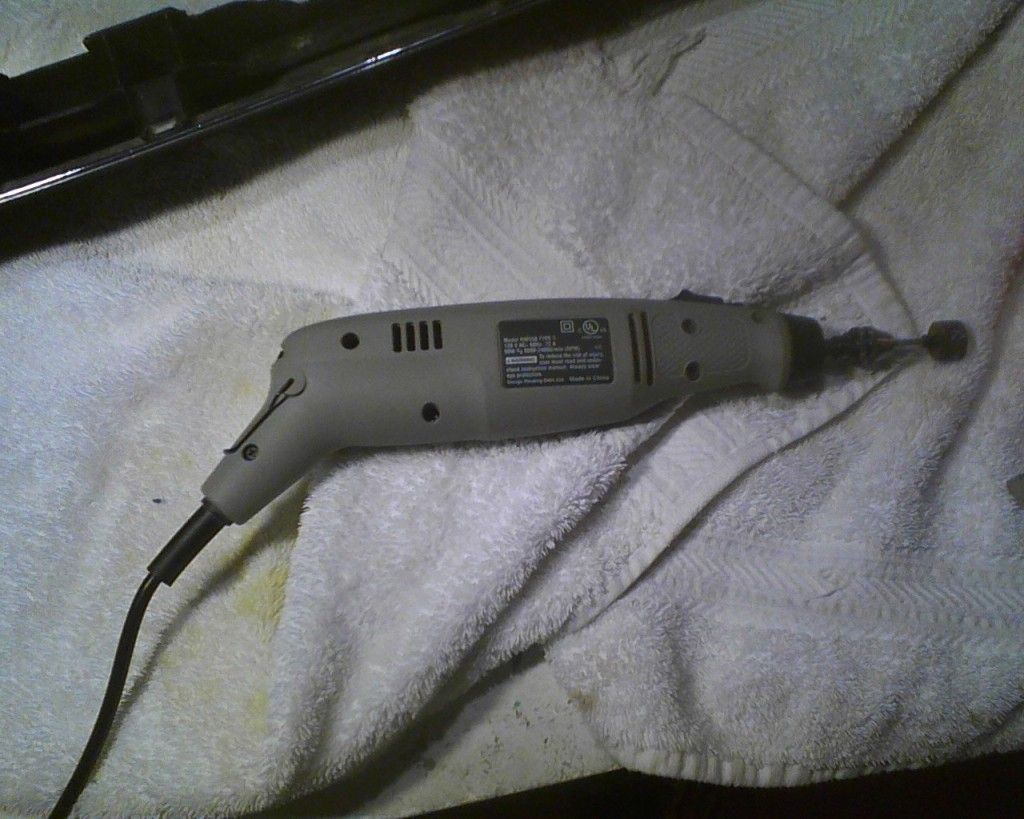

dremel = to cut off excess plastic

sandpaper = to sand down and make the inside portion smooth

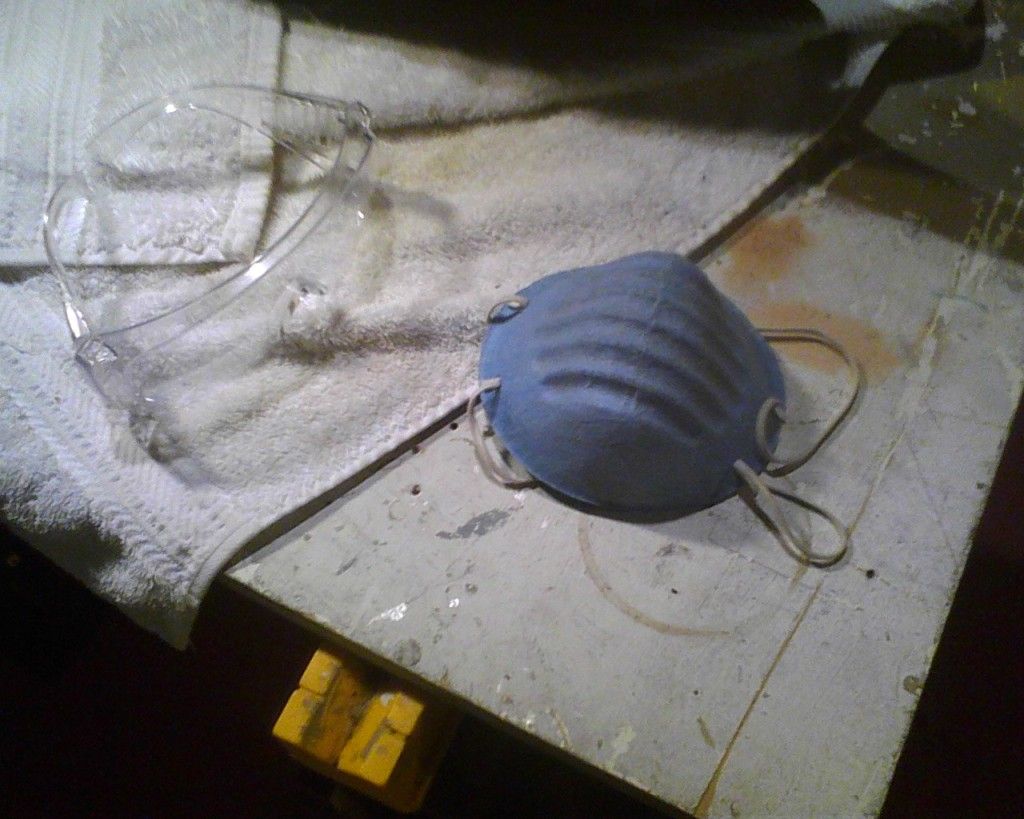

goggles = to protect them eyes!

breathing mask = the dremel heats up the plastic and gives off fumes

































Alright... NOW to begin!!!

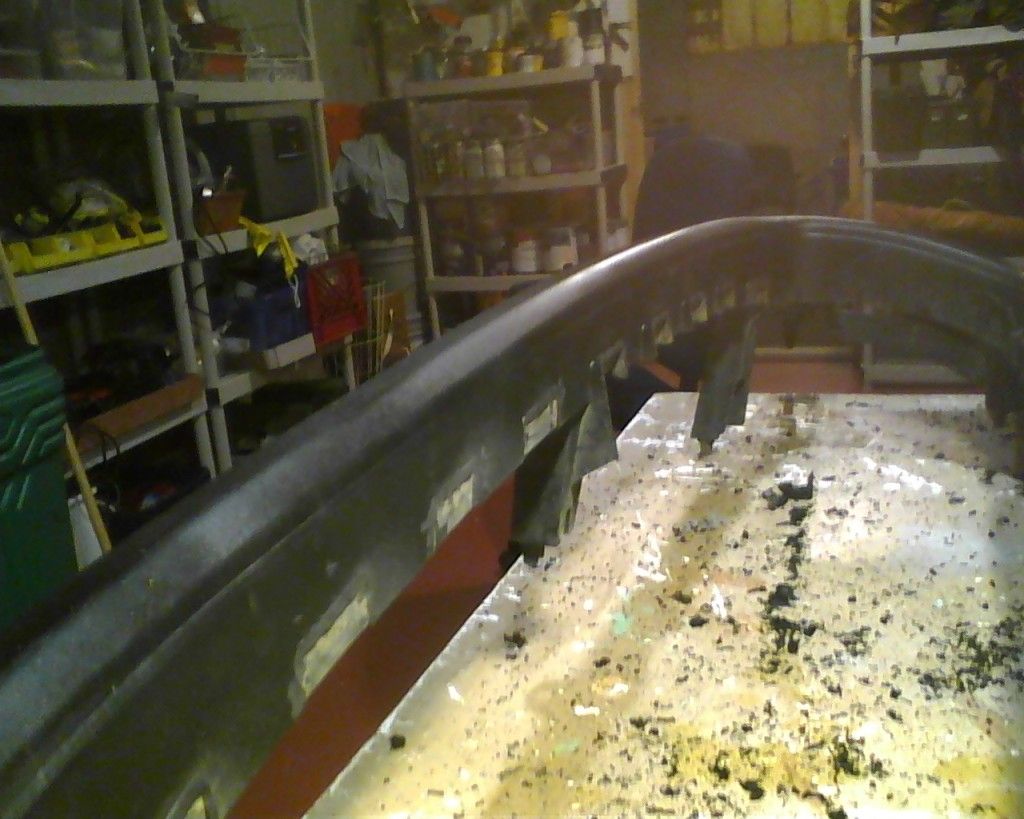

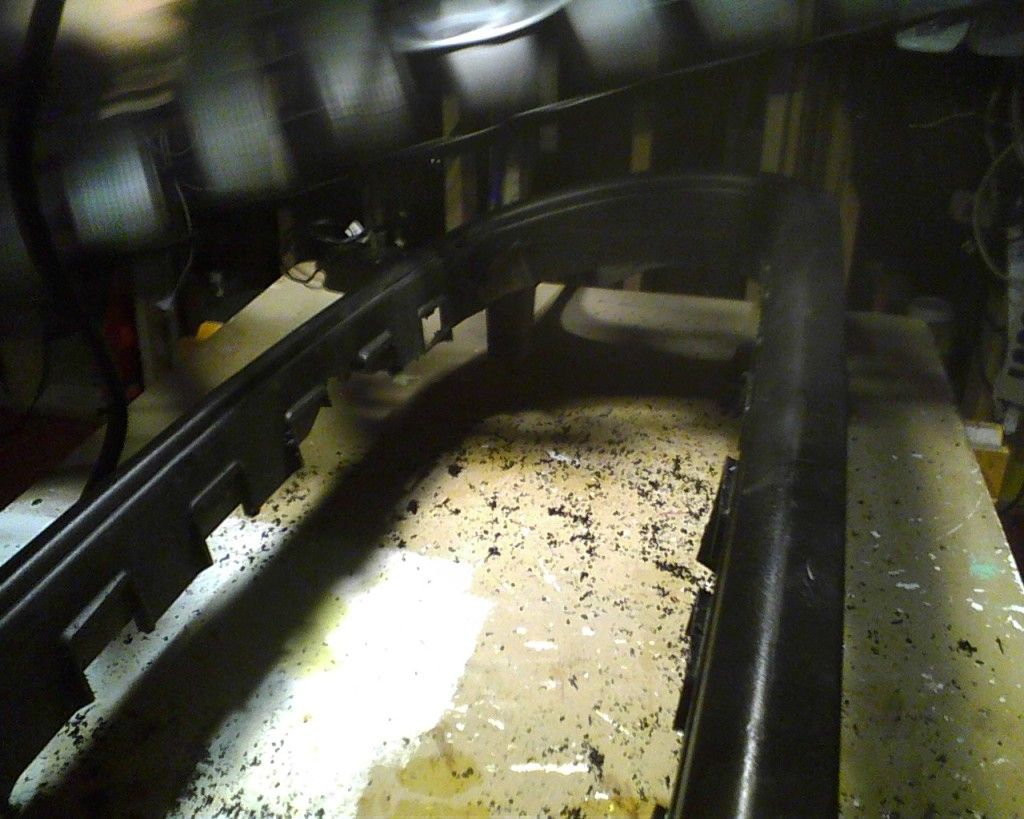

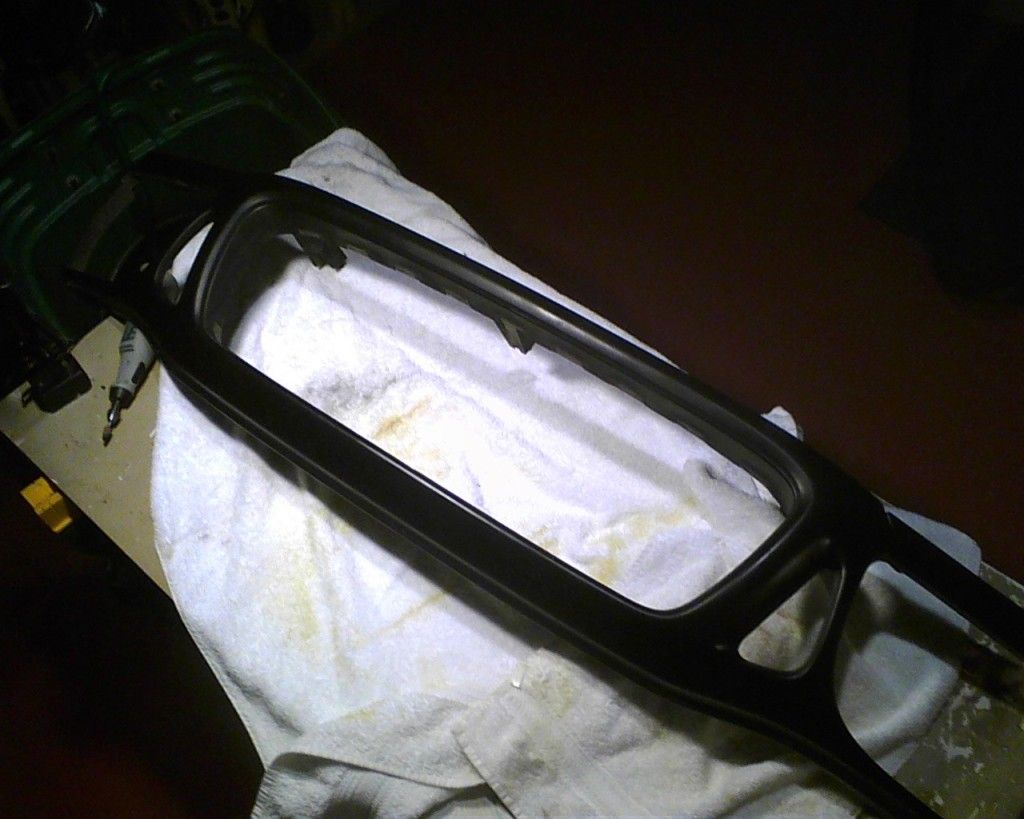

begin with the jigsaw and cut away at the center piece

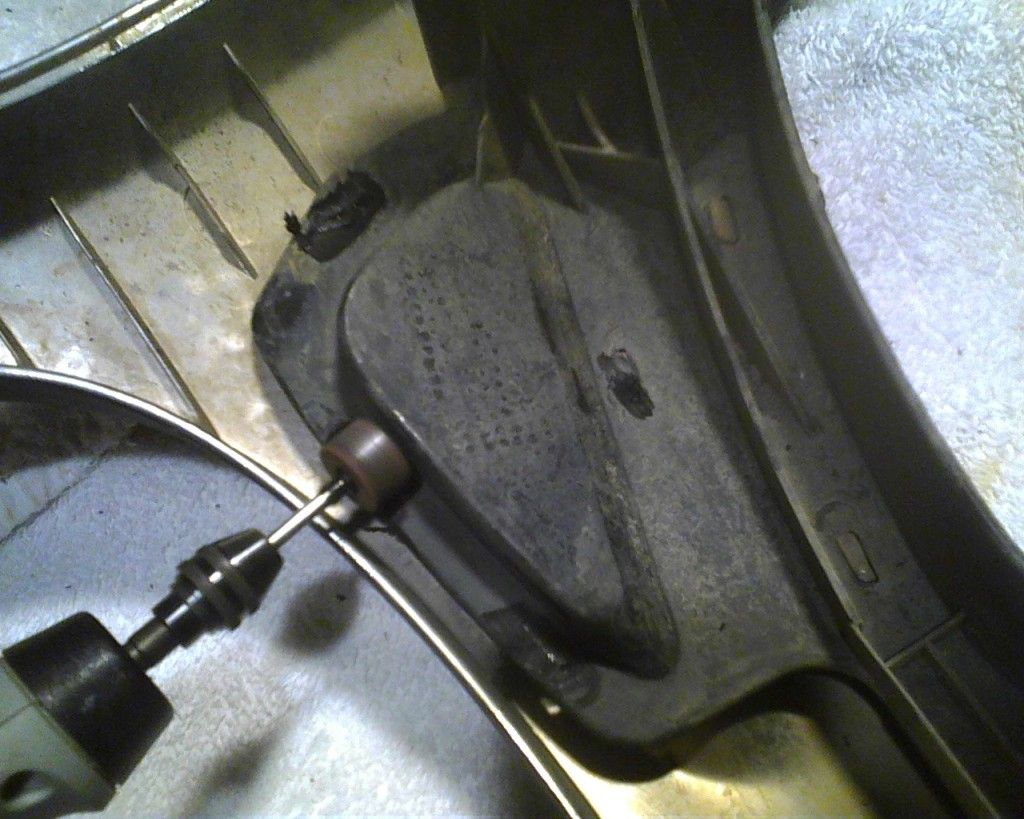

use the dremel to cut and smooth down the remaining plastic

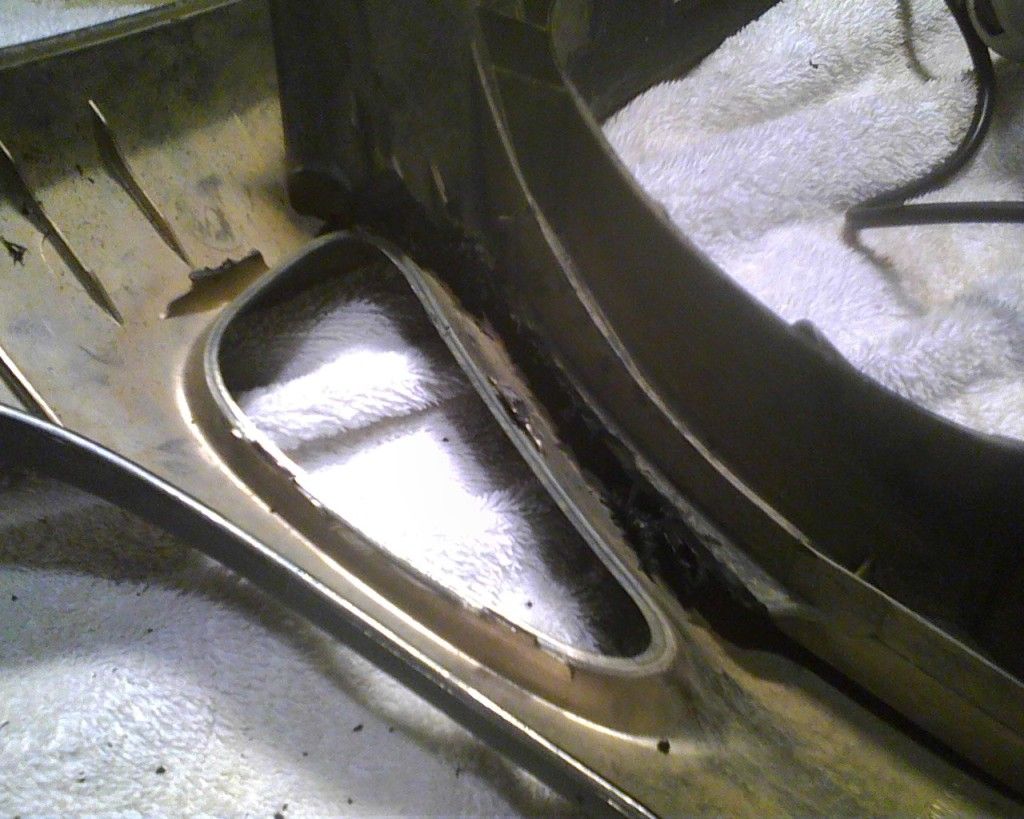

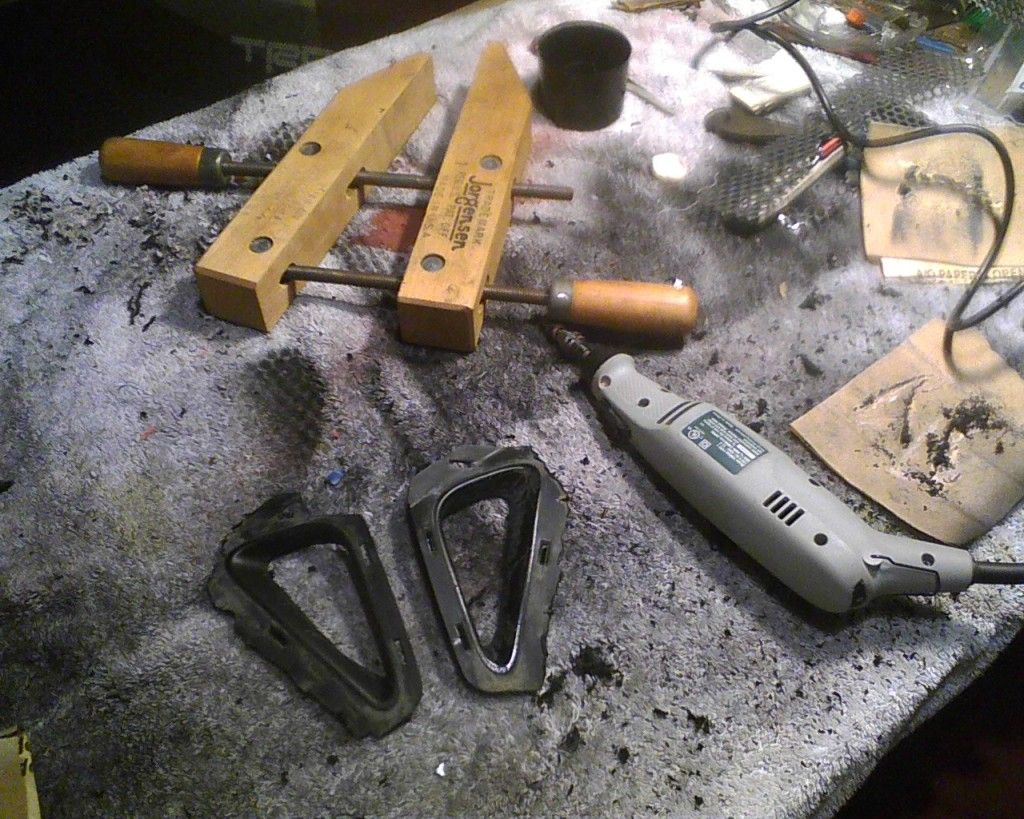

Now to cut out the small triangles inserts

(this part is optional to your choosing.)

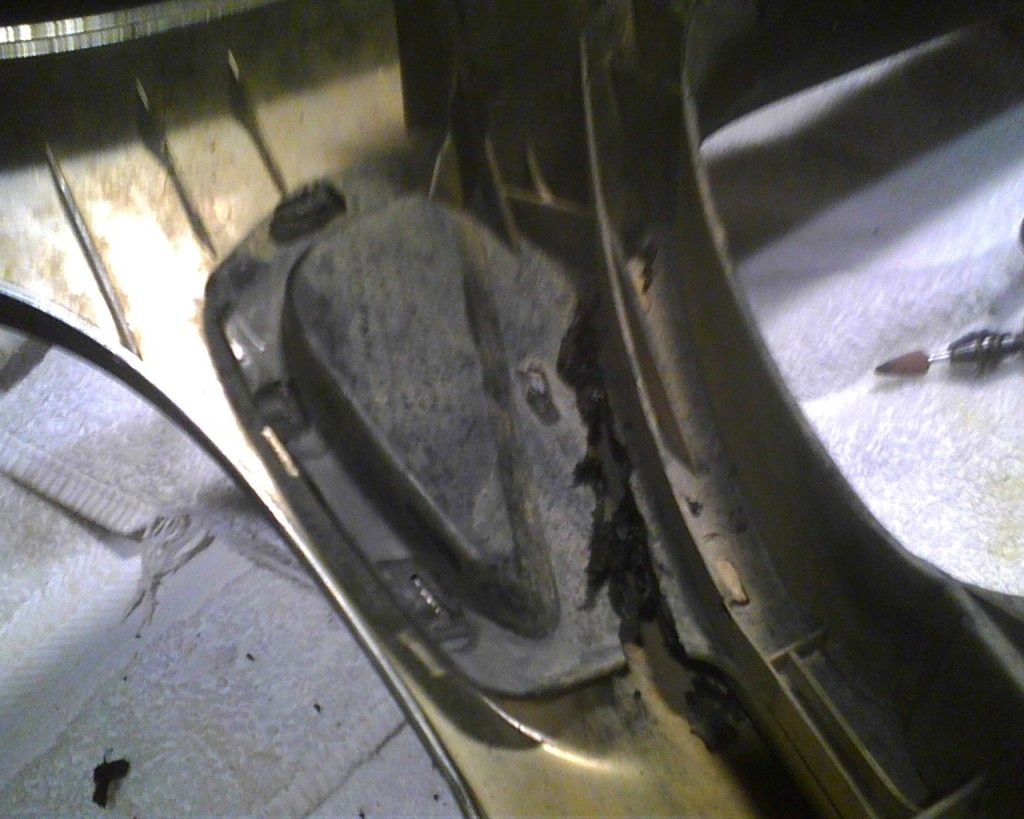

cut away at the tabs that secure it

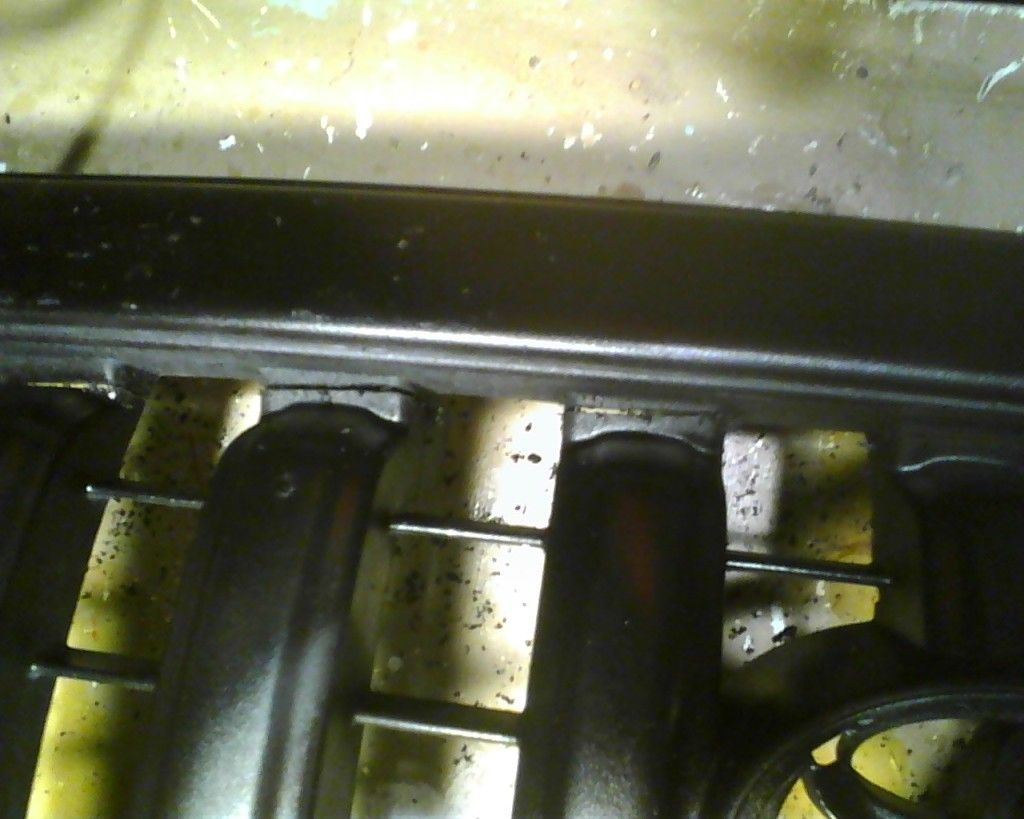

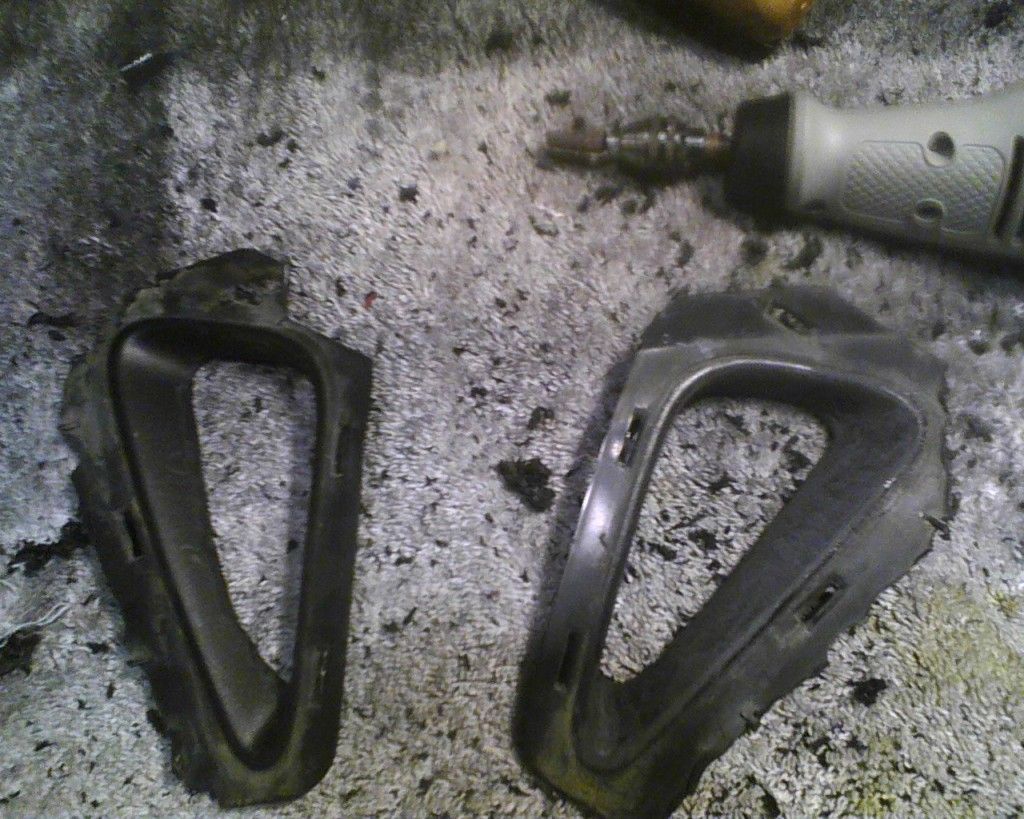

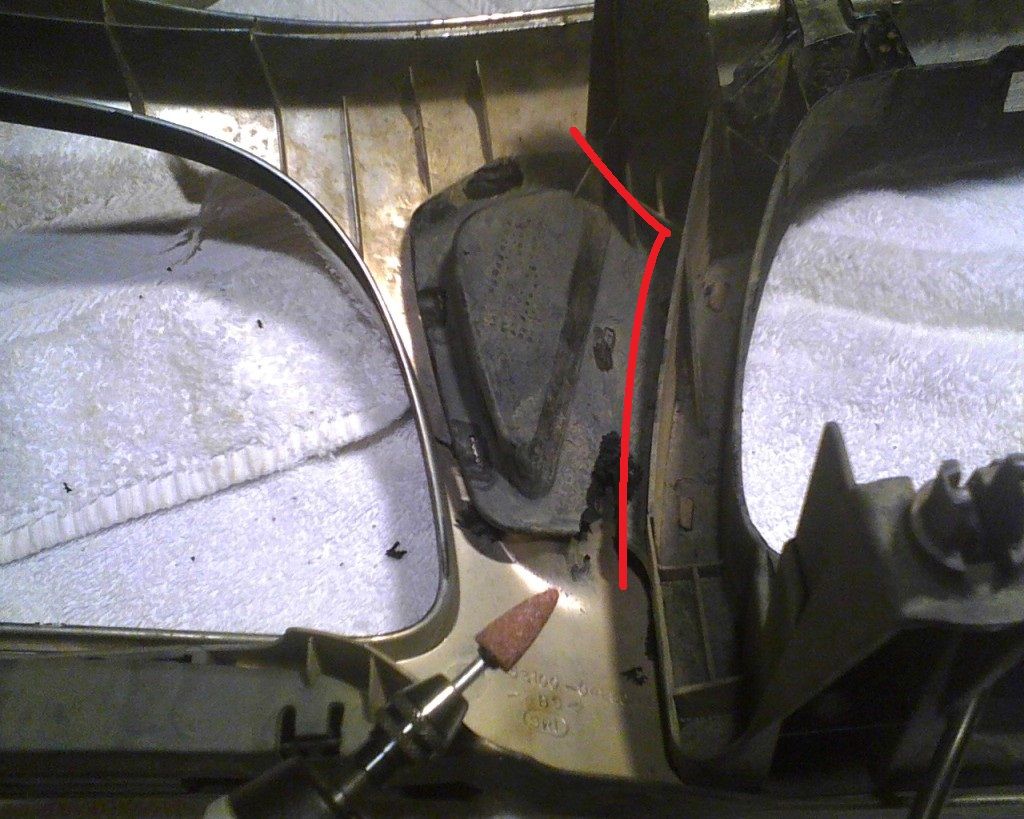

The use a smaller tip to get in there and cut the triangle off of the grill


























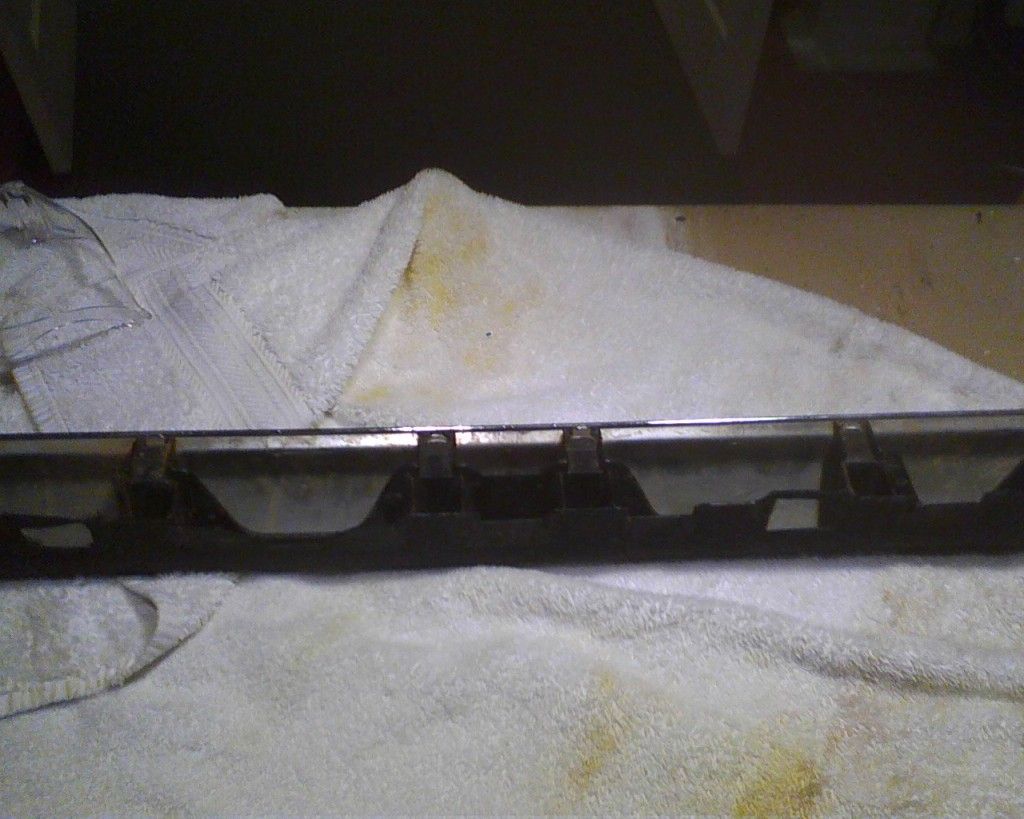

Now use the sandpaper to smooth out the inside

start with a low grit and work your way up to a higher grit.

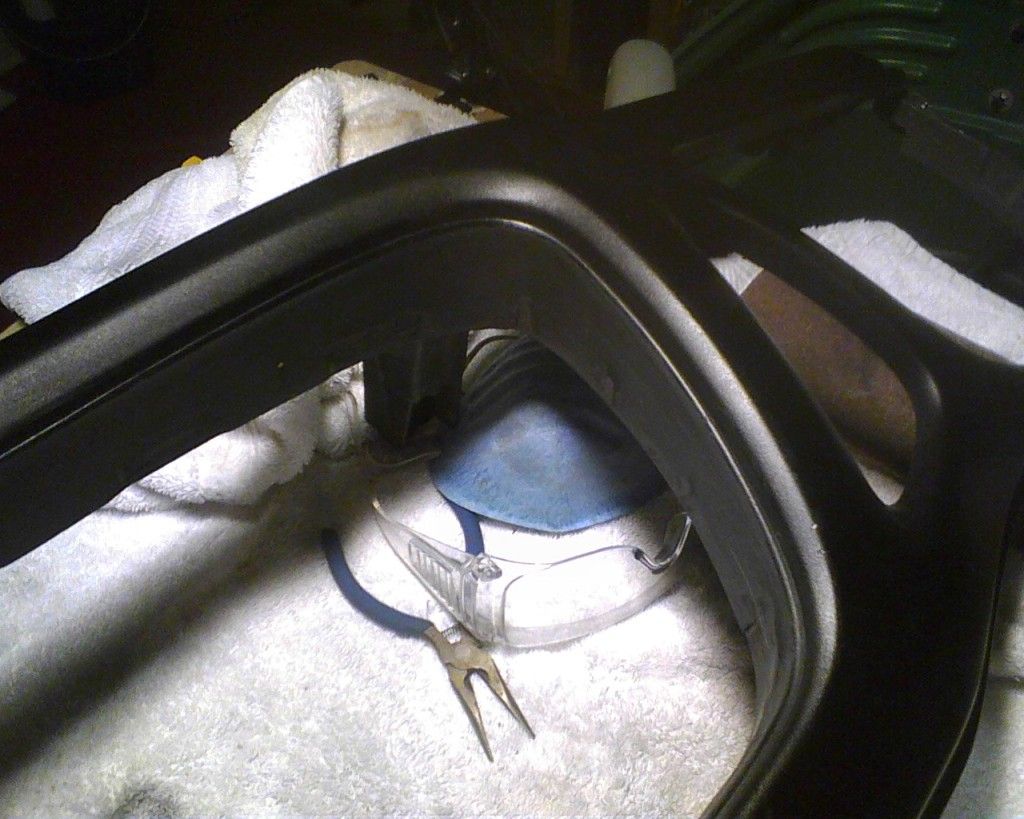

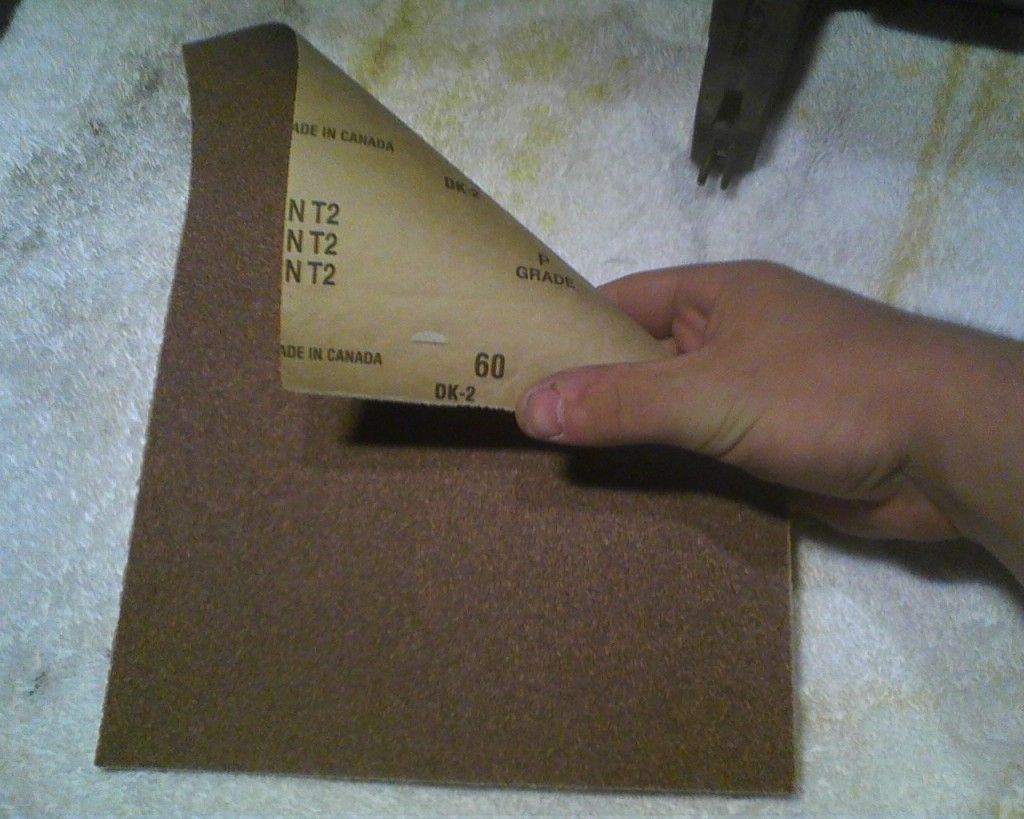

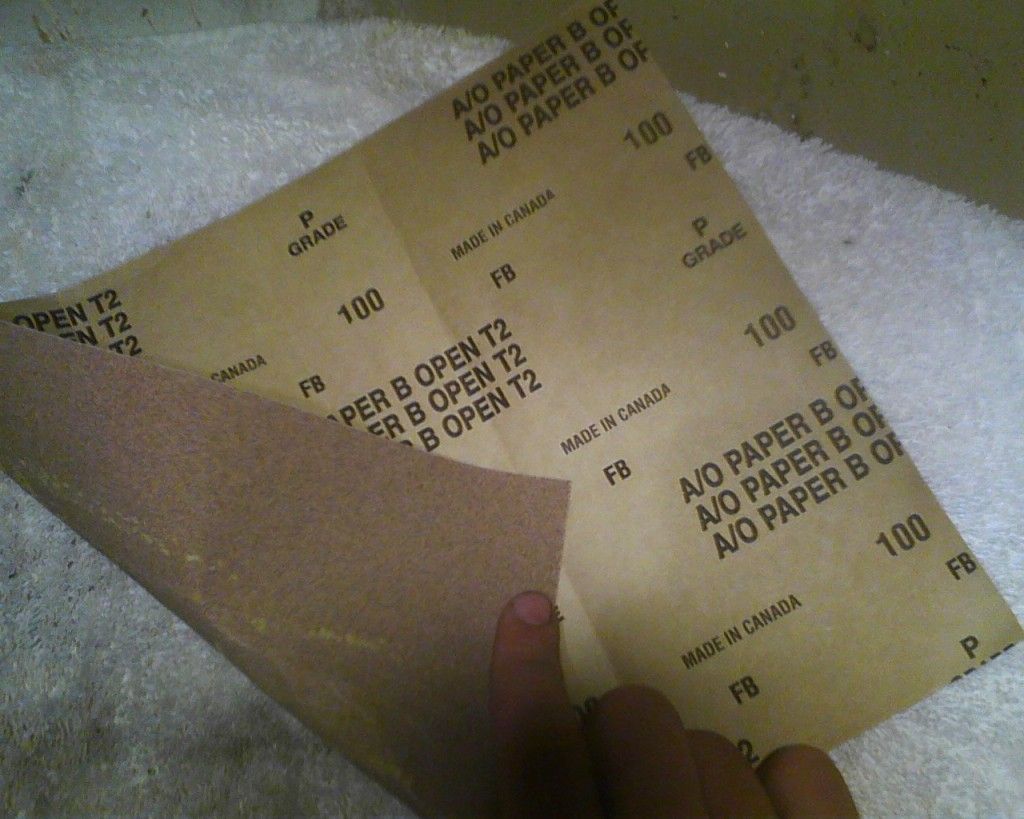

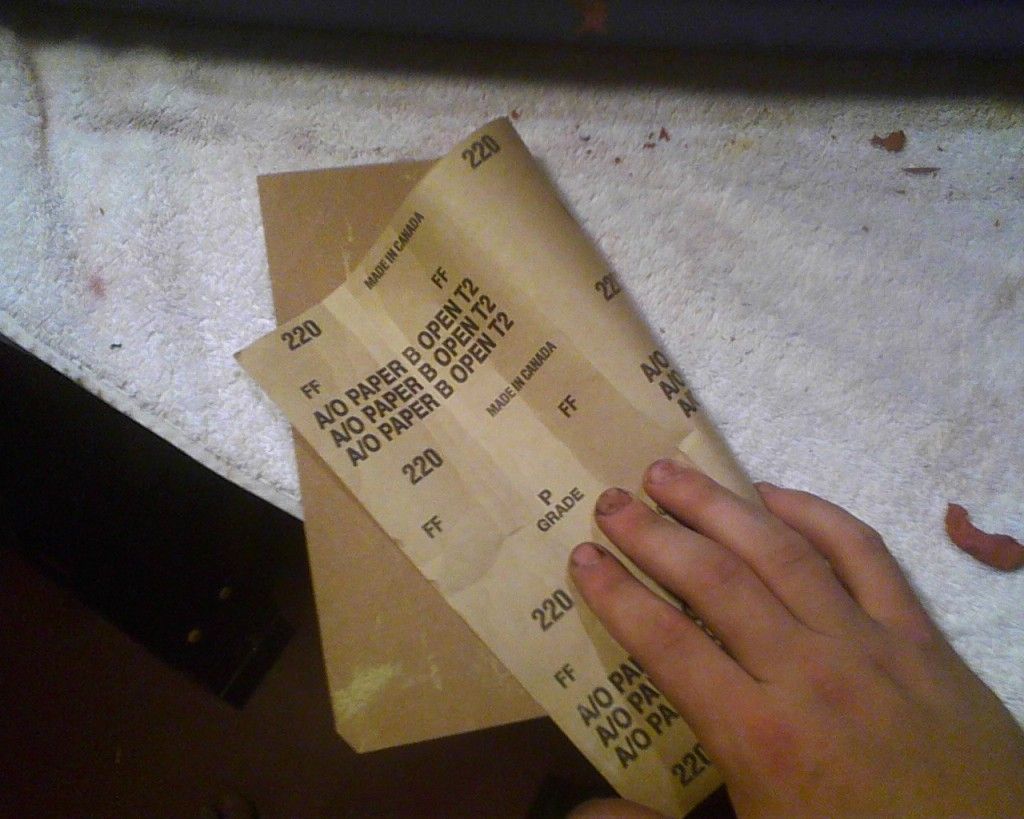

I used 60 - 100 - 220




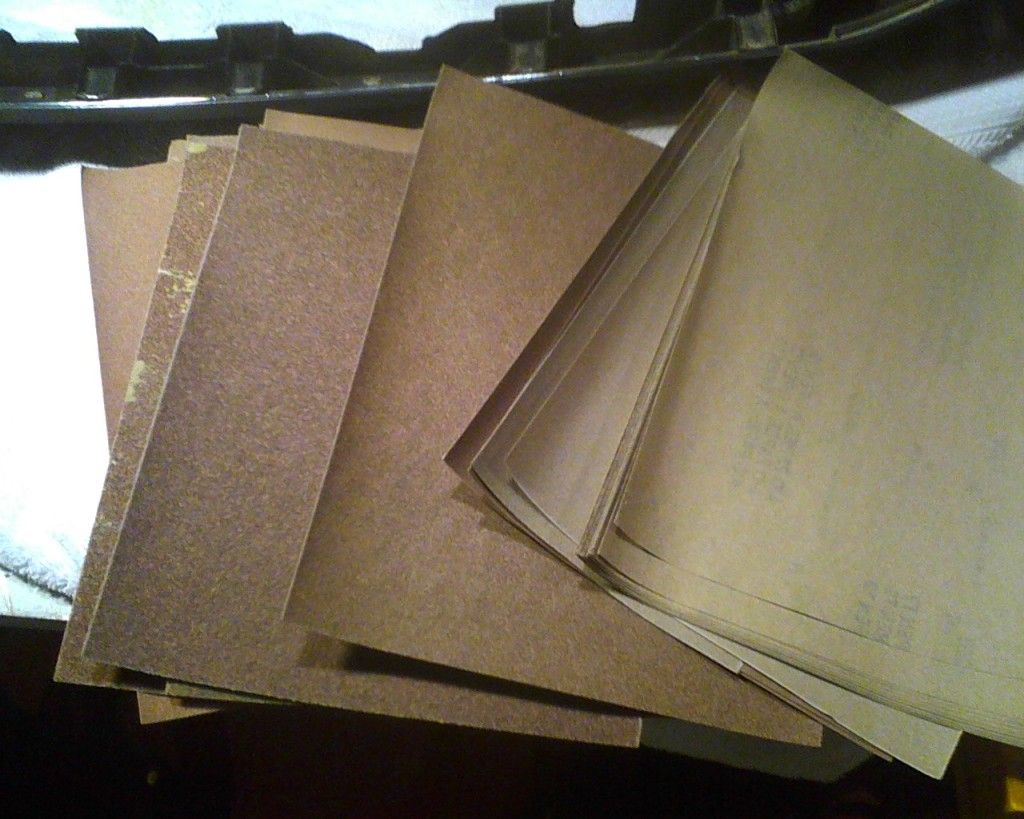

60 Grit













100 Grit













220 grit
























Step 3: Fiberglass Application



Supplies:

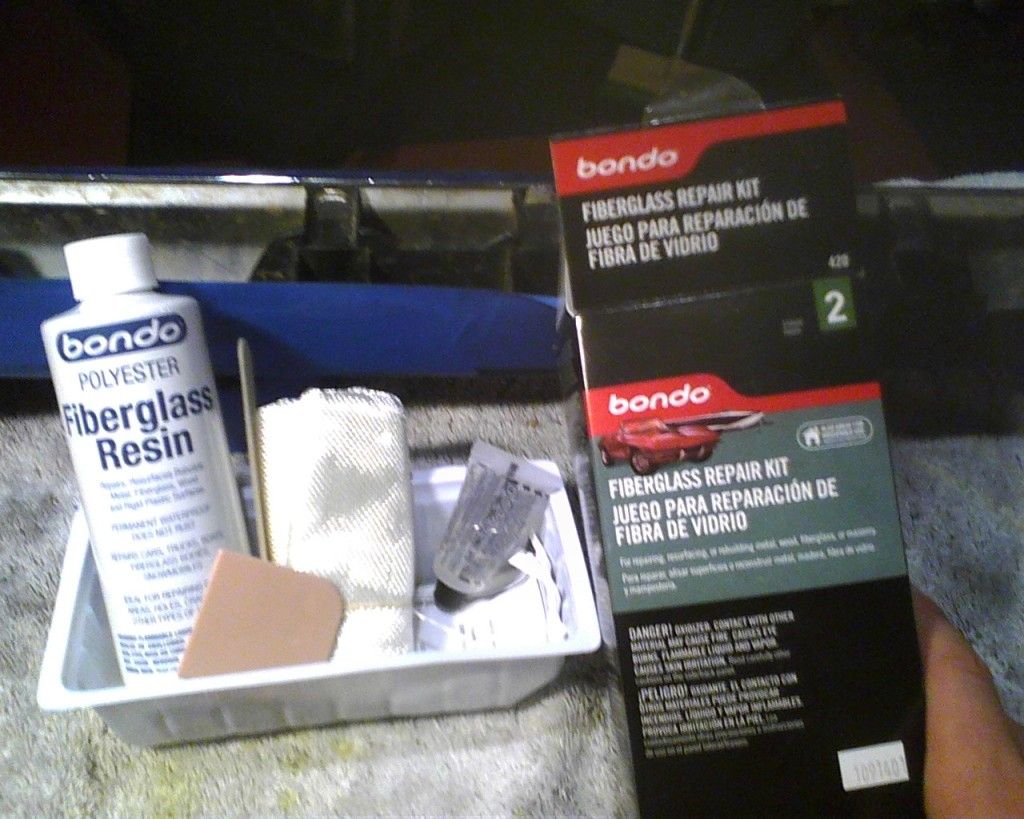

Bondo fiberglass repair kit = comes with all the tools needed with instuctions

painters tape = to make a guide for the fiberglass application

dremel with cutting edge OR sissors = to cut away the excess fiberglass when it dries

paper towels and good soap = this stuff is messy!!!

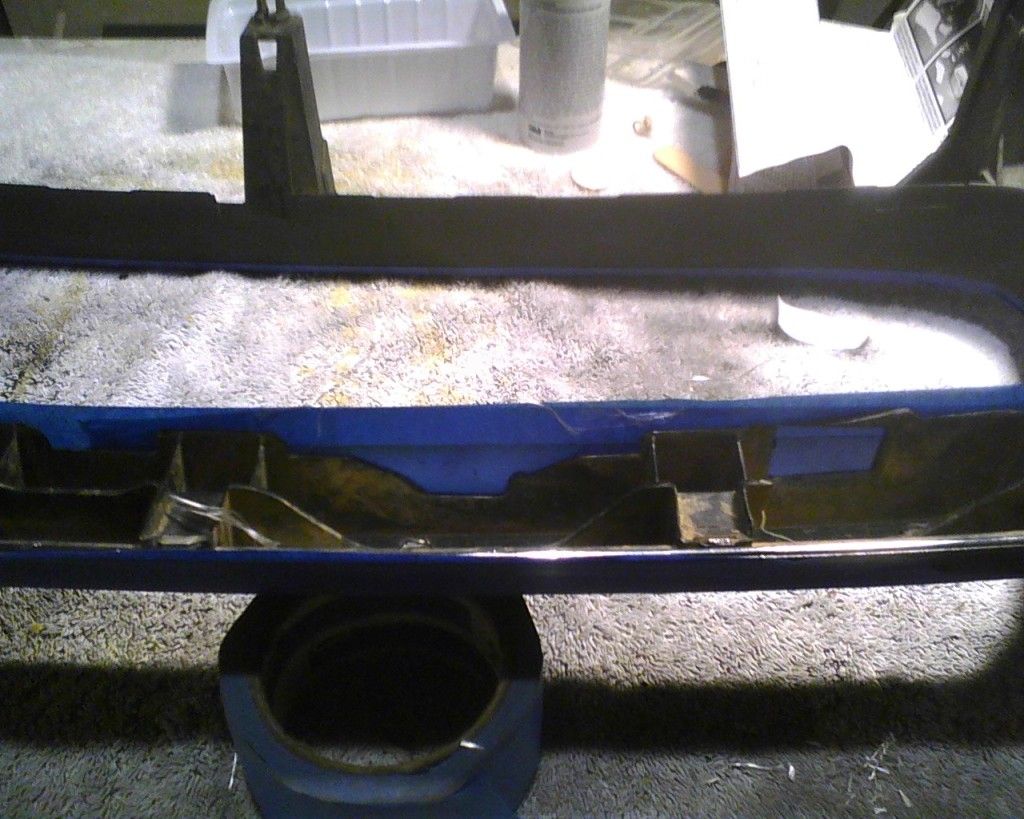

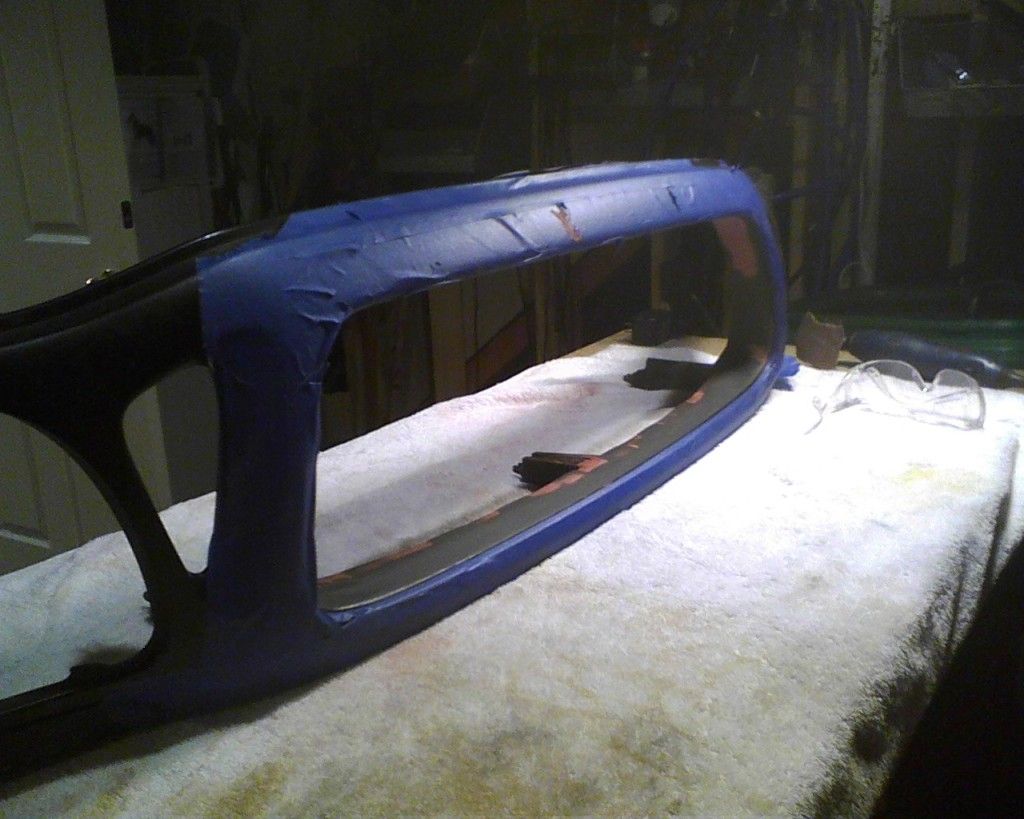

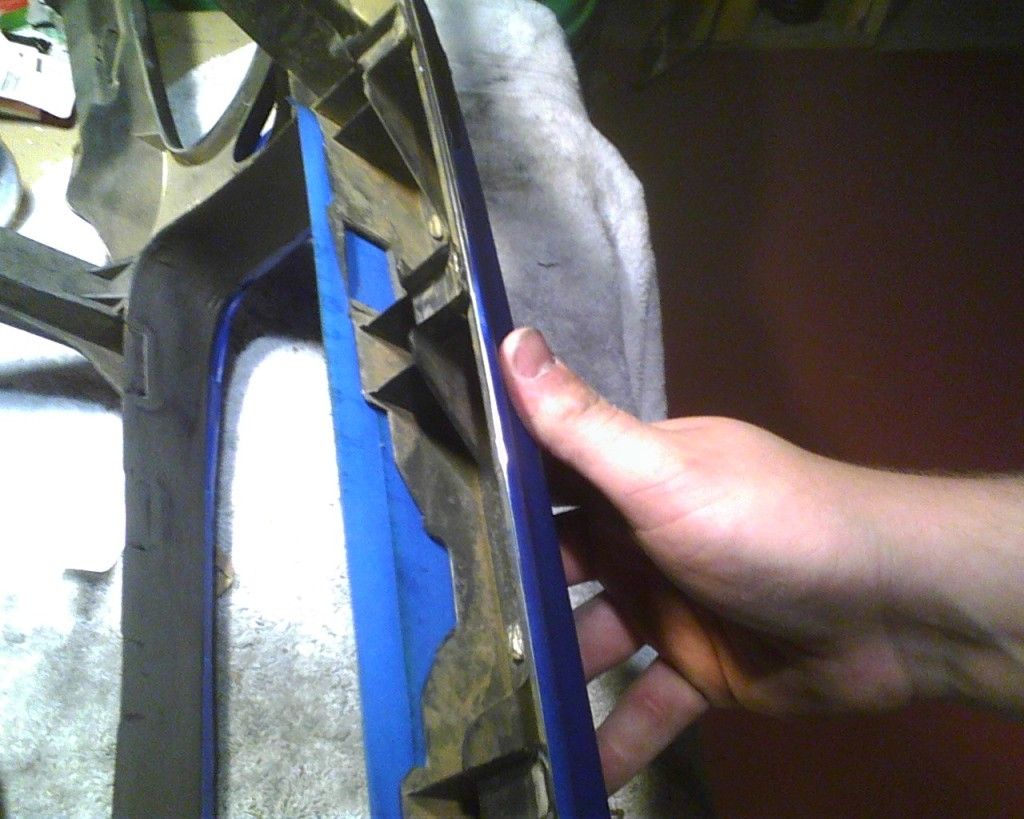

i taped off the grill to keep the resin off the grill

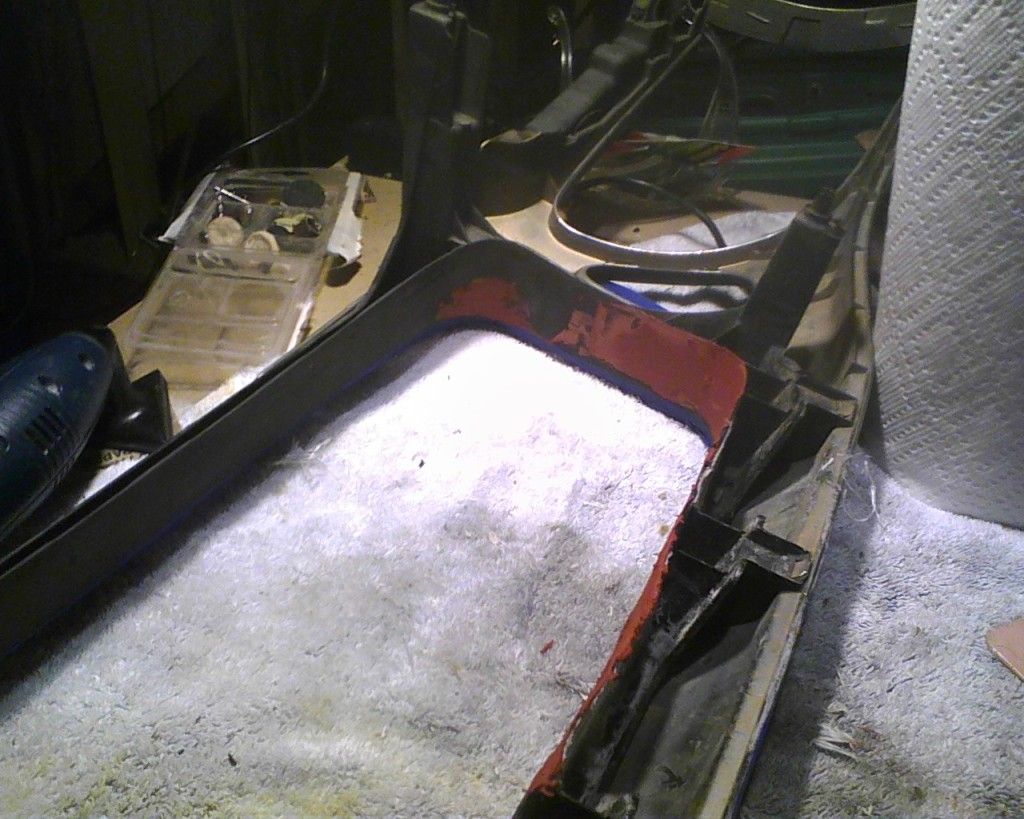

this is the area that the fiberglass is going to be applied

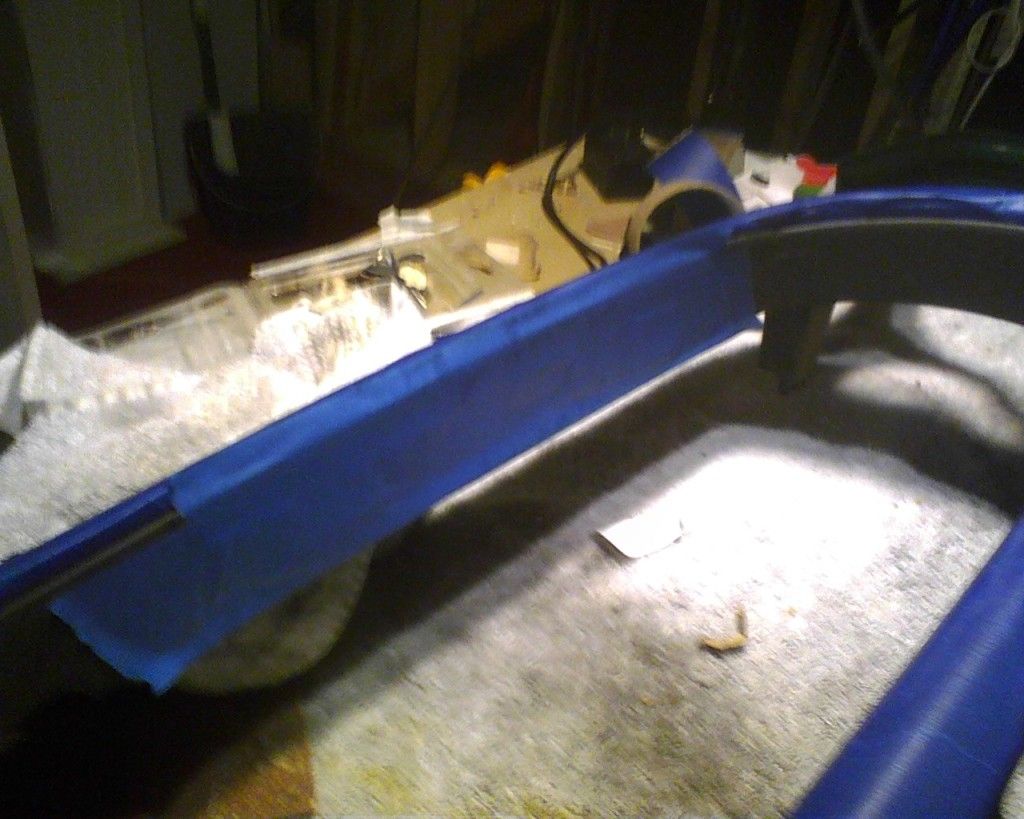

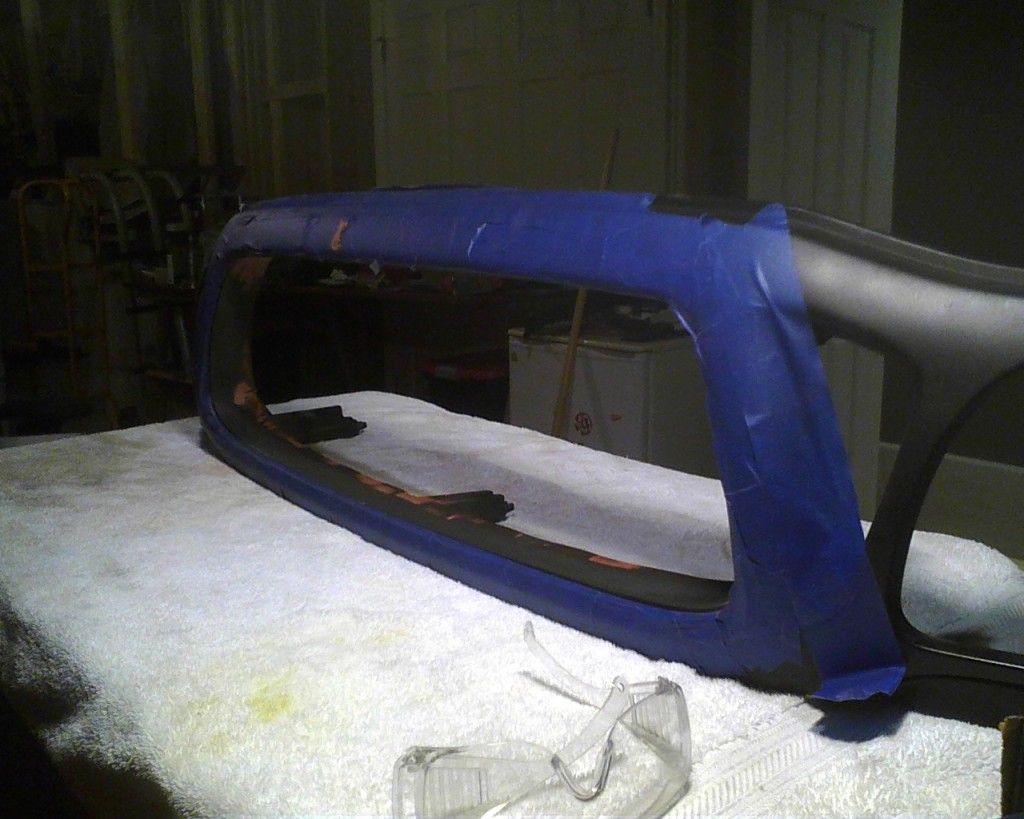

apply the painters tape on the area that is going to have the fiberglass

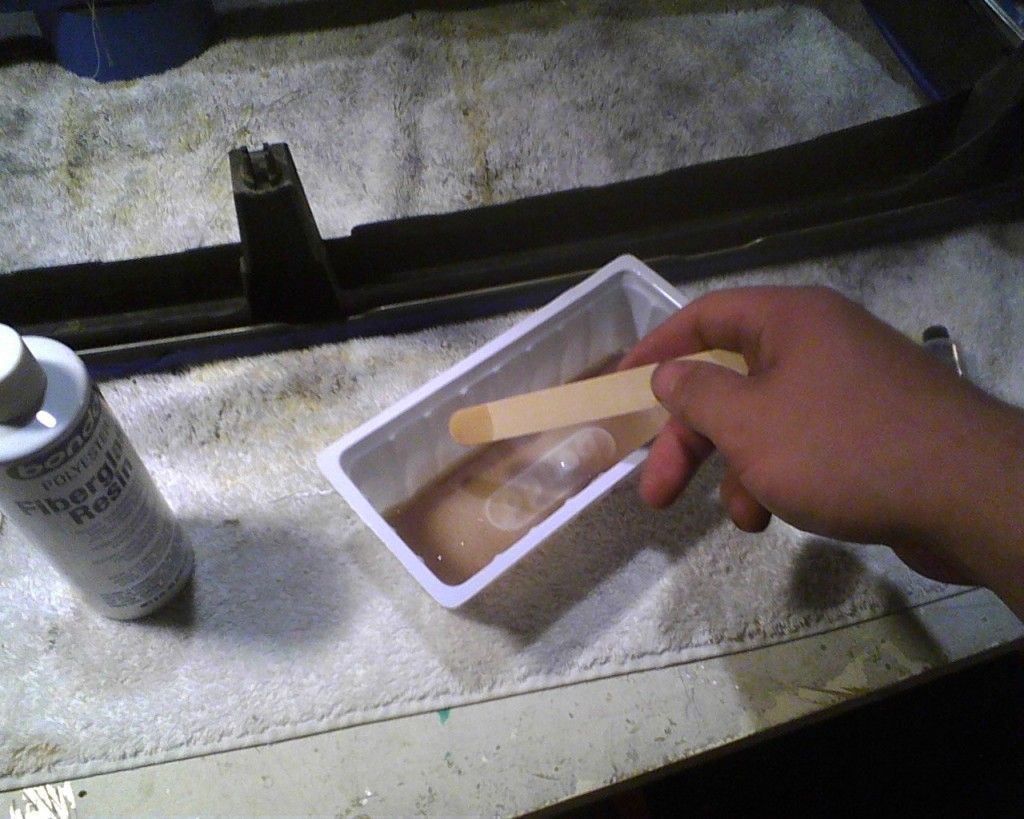

Follow the instructions given and mix up the fiberglass resin

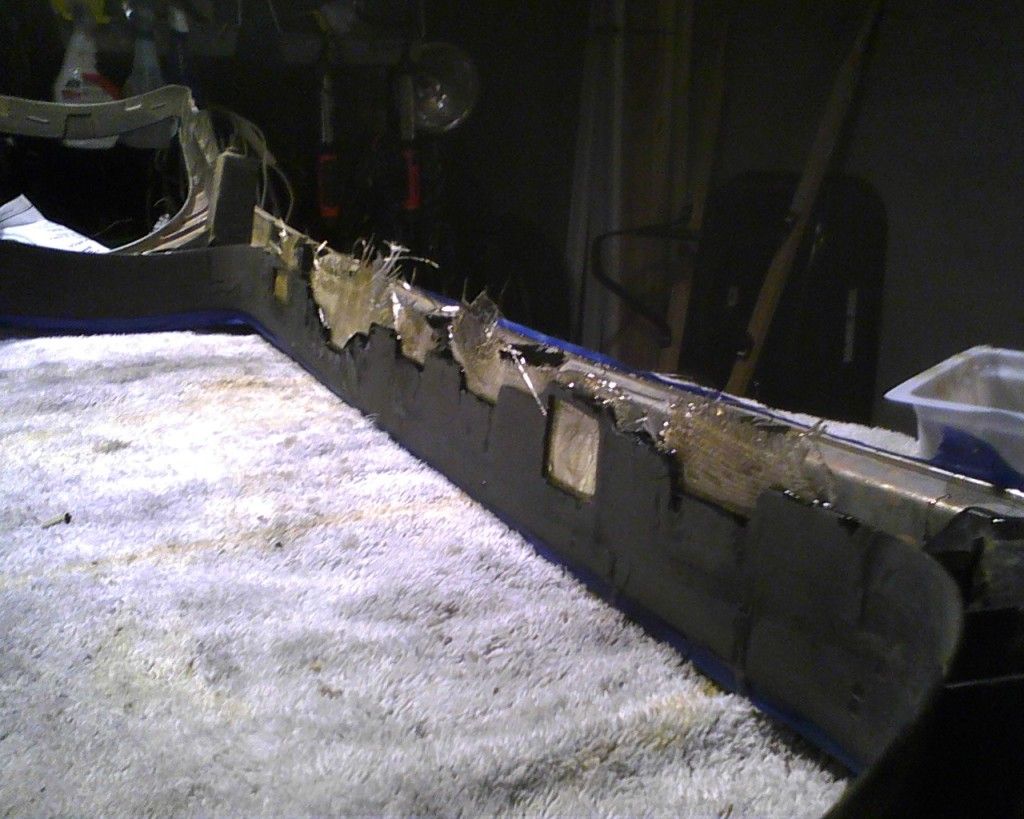

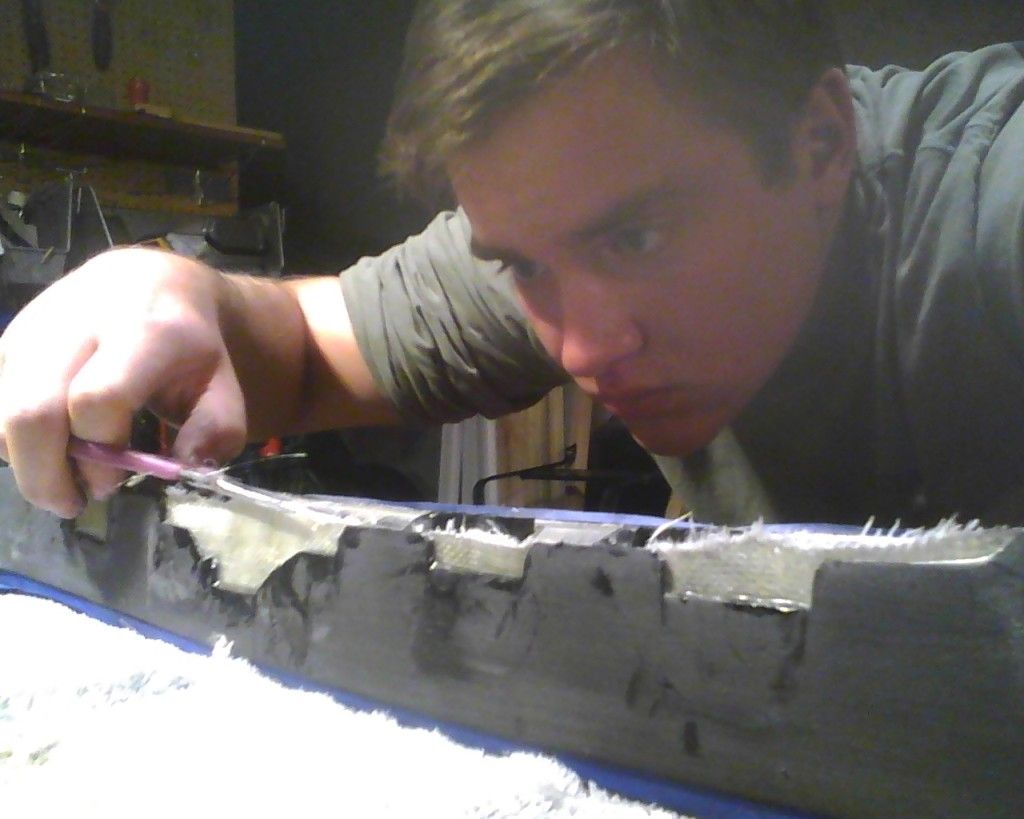

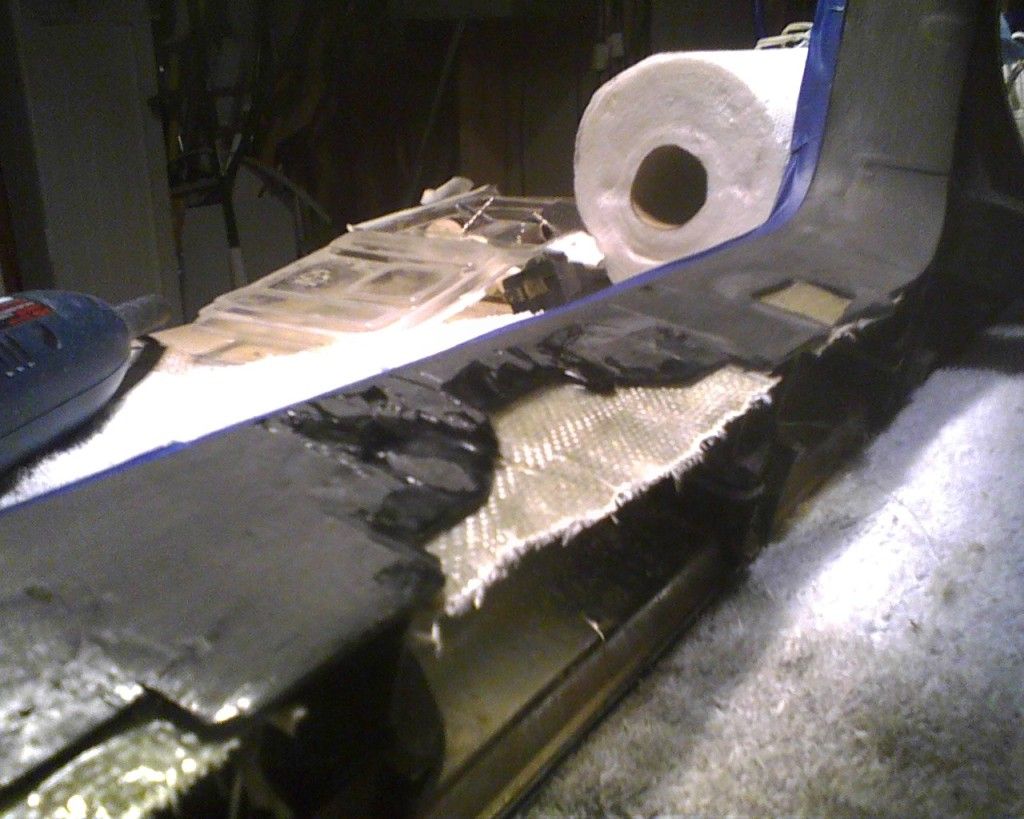

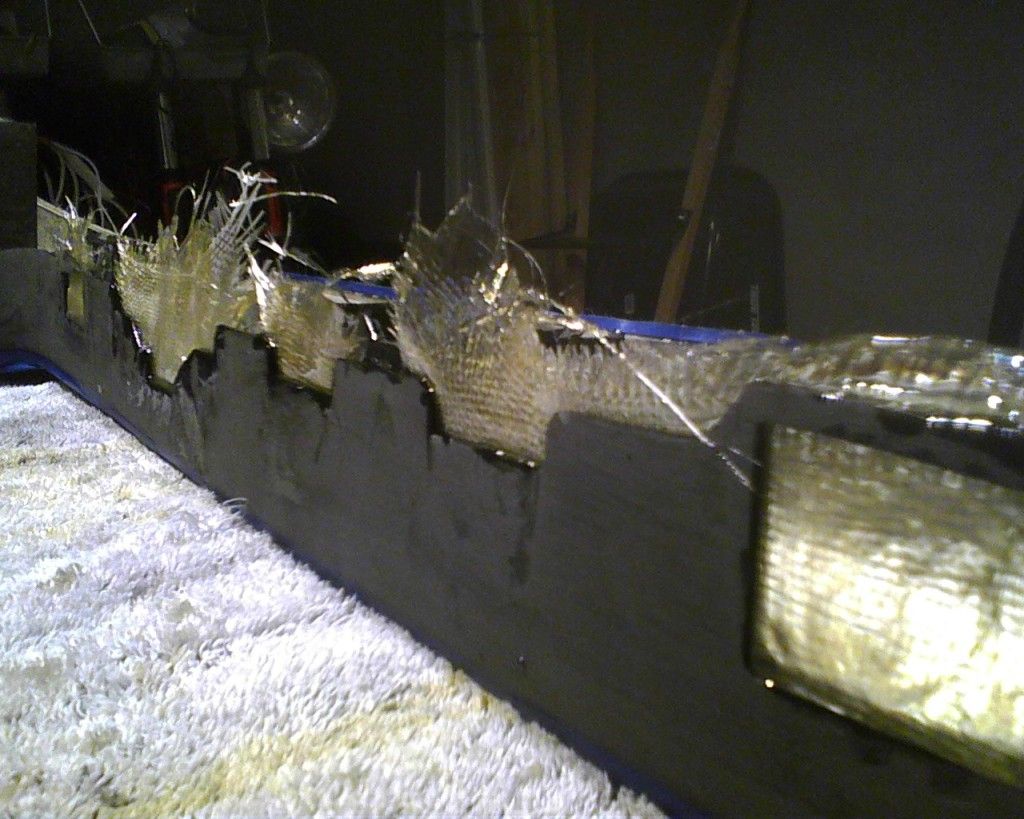

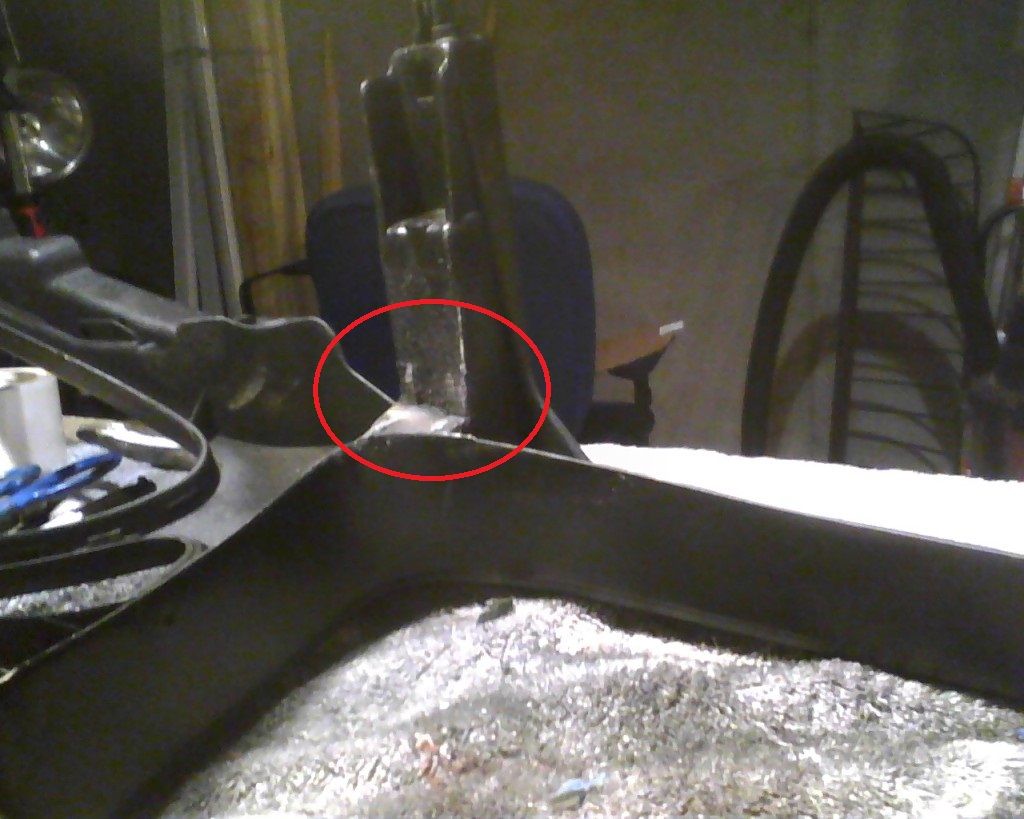

Cover the cloth fiberglass in the resin and Now apply the Fiberglass

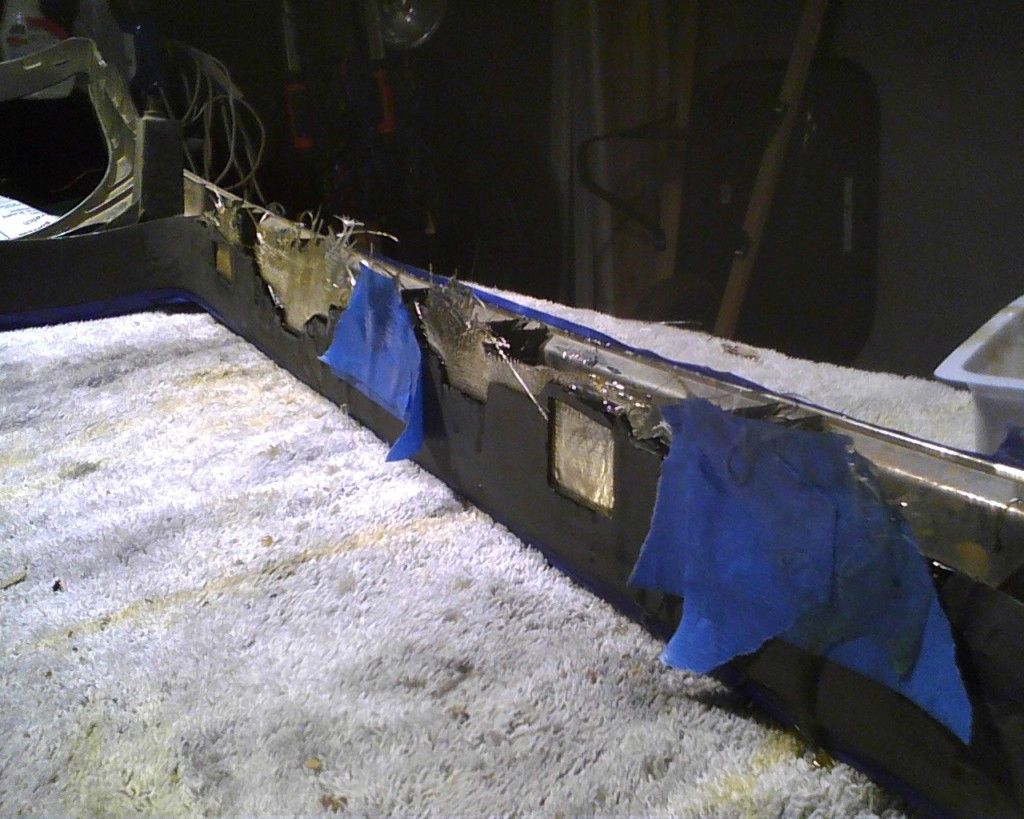

let the fiberglass sit for about 5 minutes and then remove the painters tape















Let the fiberglass dry for 90 minutes!

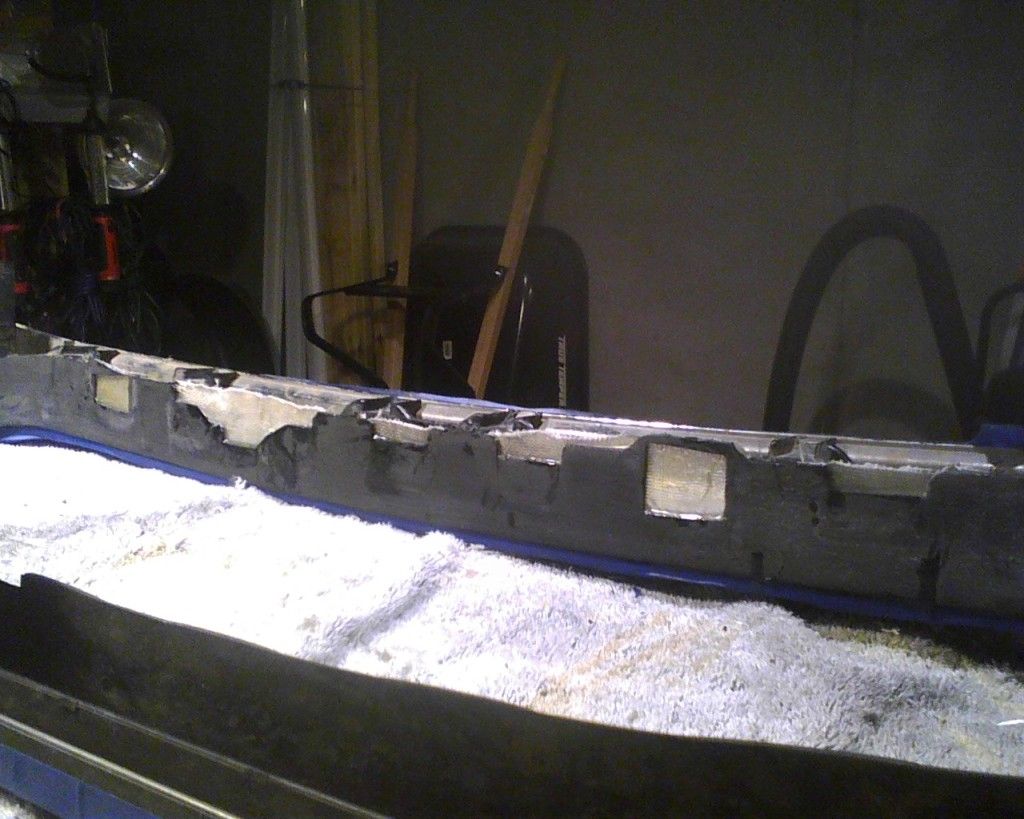

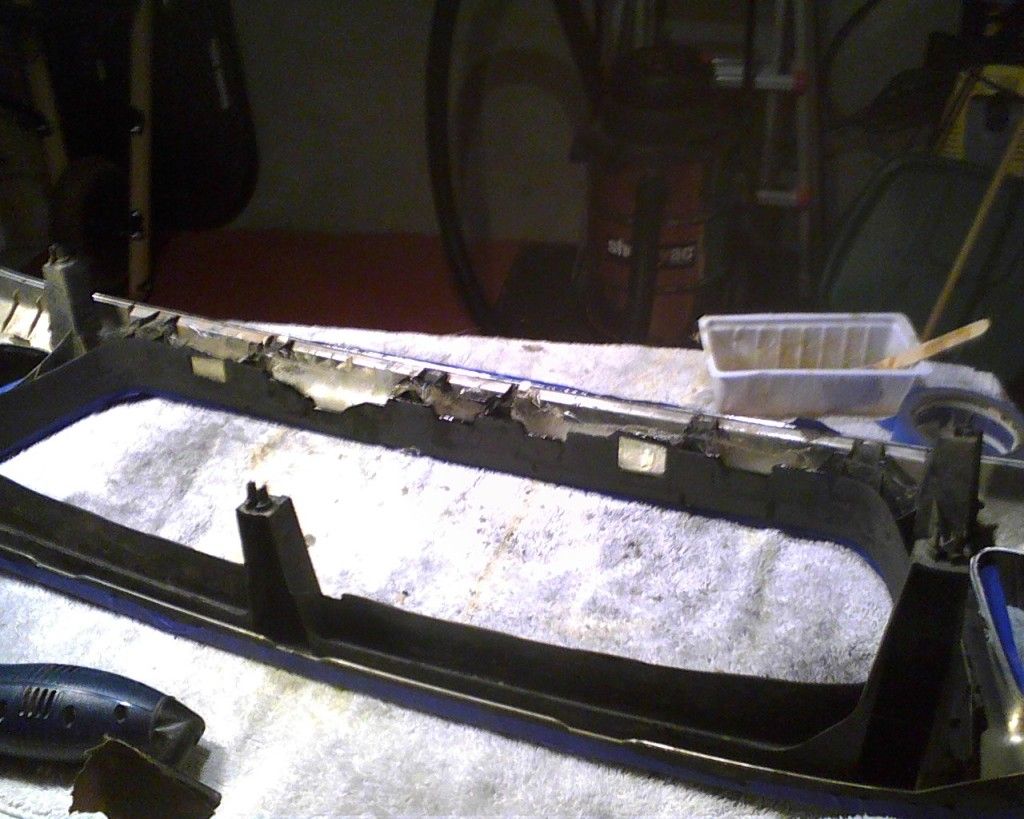

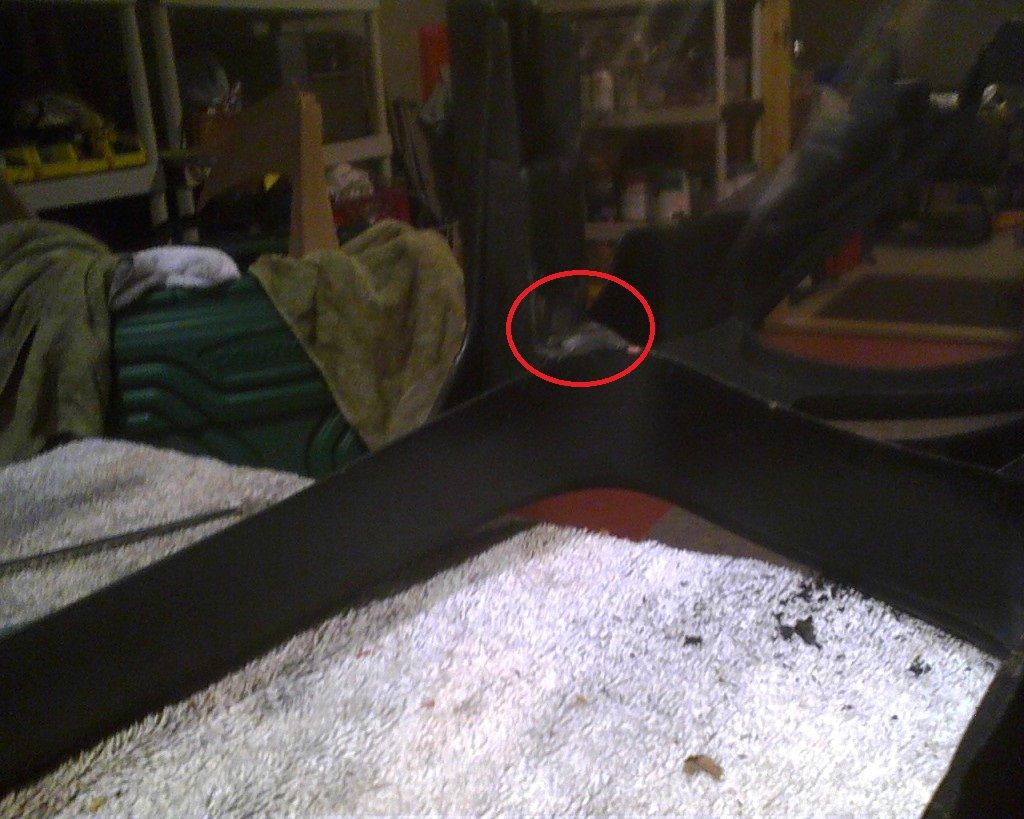

cut away the extra fiberglass




































Step 4: Bondo Application



Supplies:

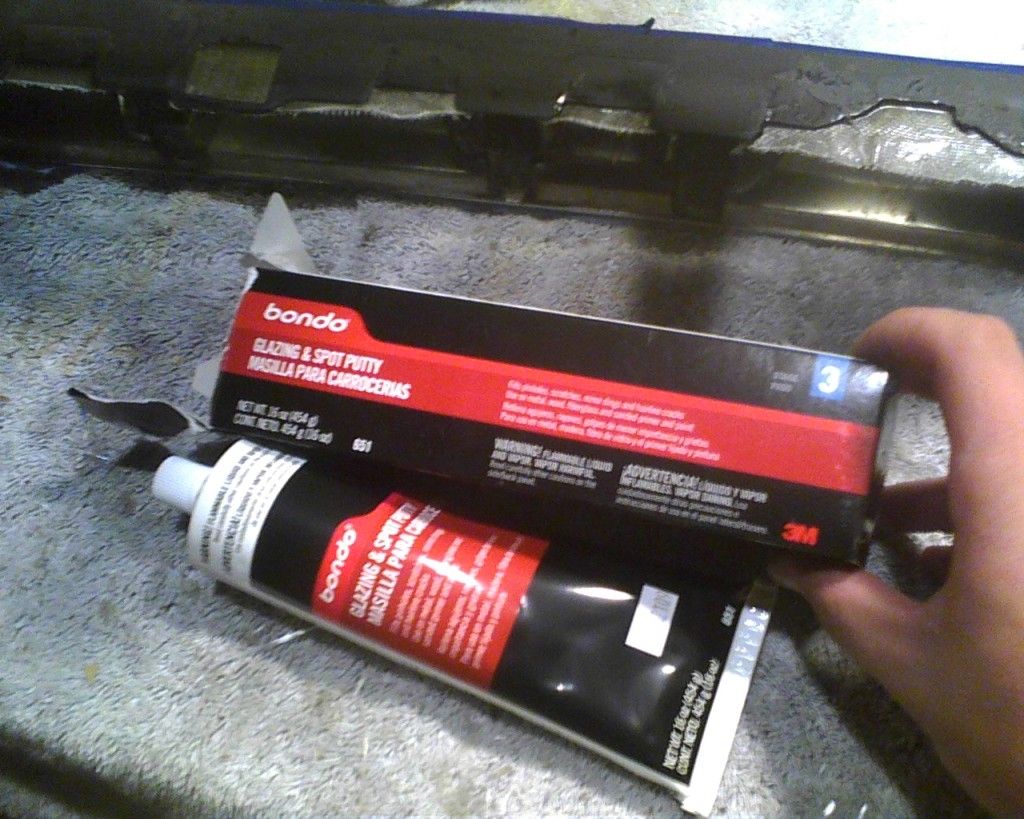

Tube of Bondo = for filling in the areas that are backed with fiberglass

sand paper = for smoothing out the bondo when dry

flat edge = to smooth out the bondo

a big fan = if you're as impatient as i am

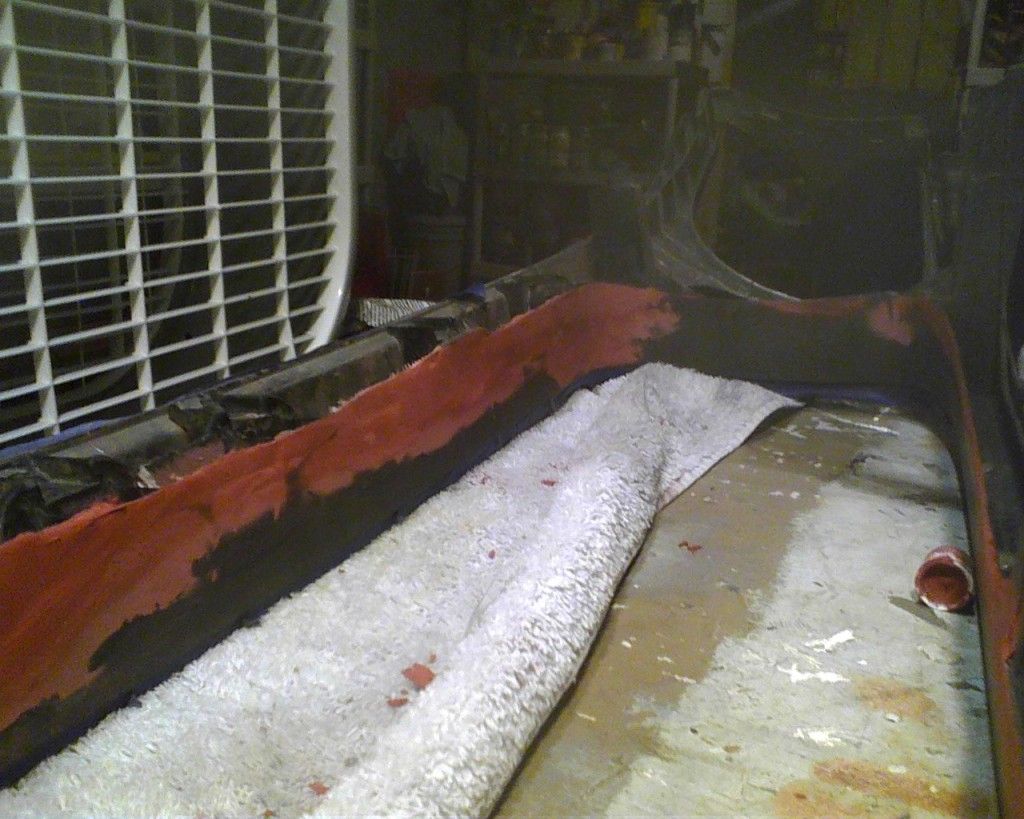

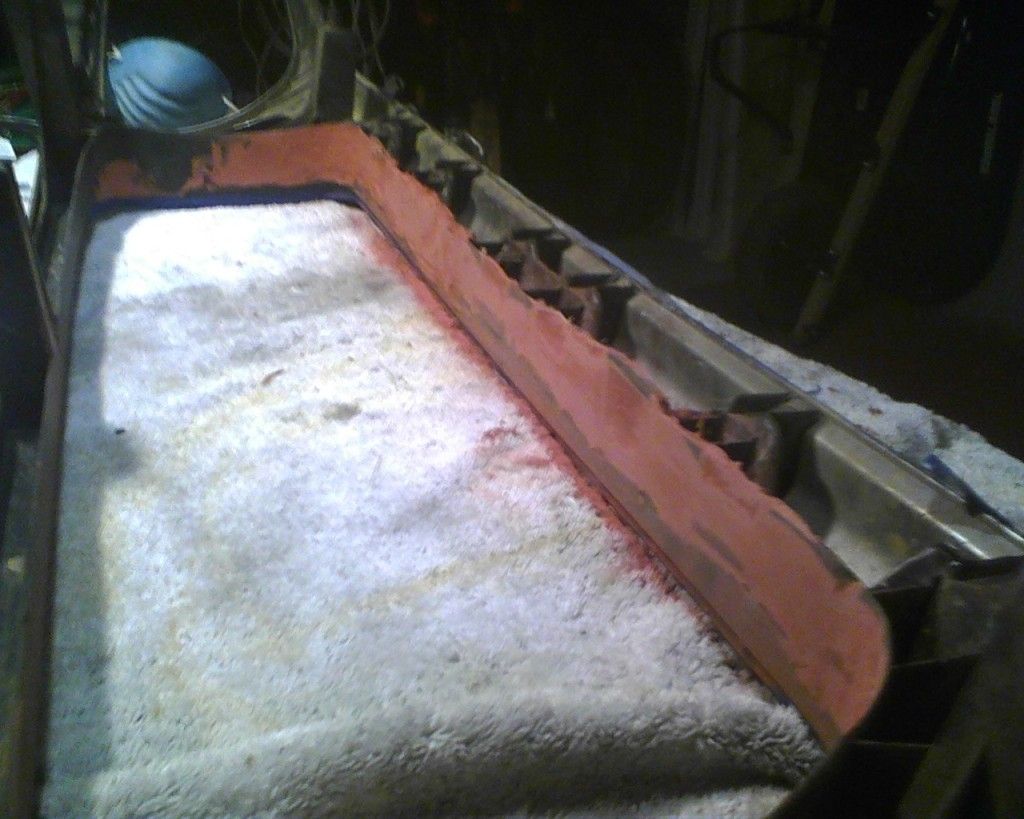

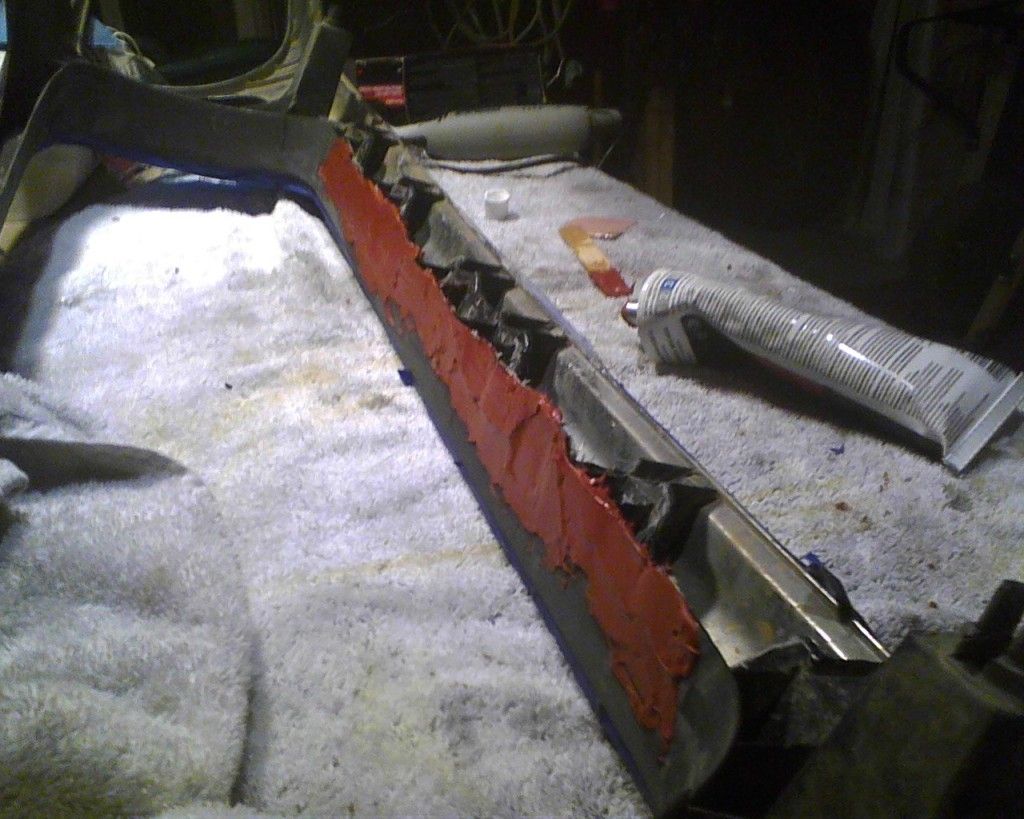

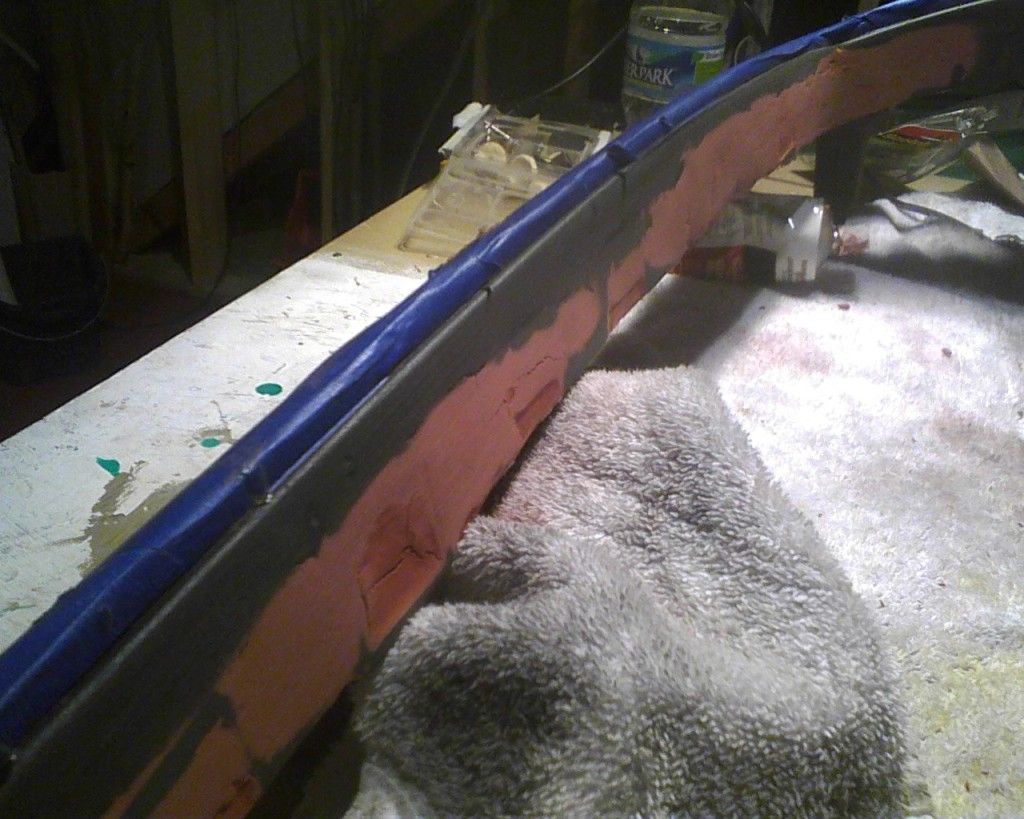

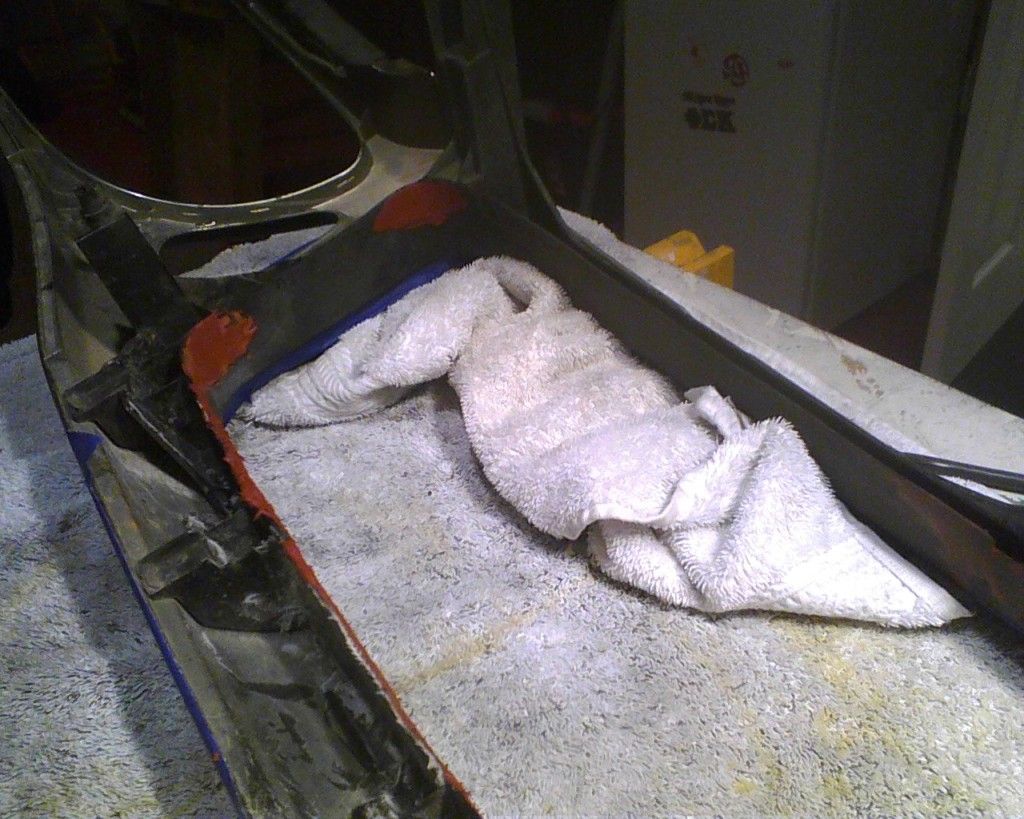

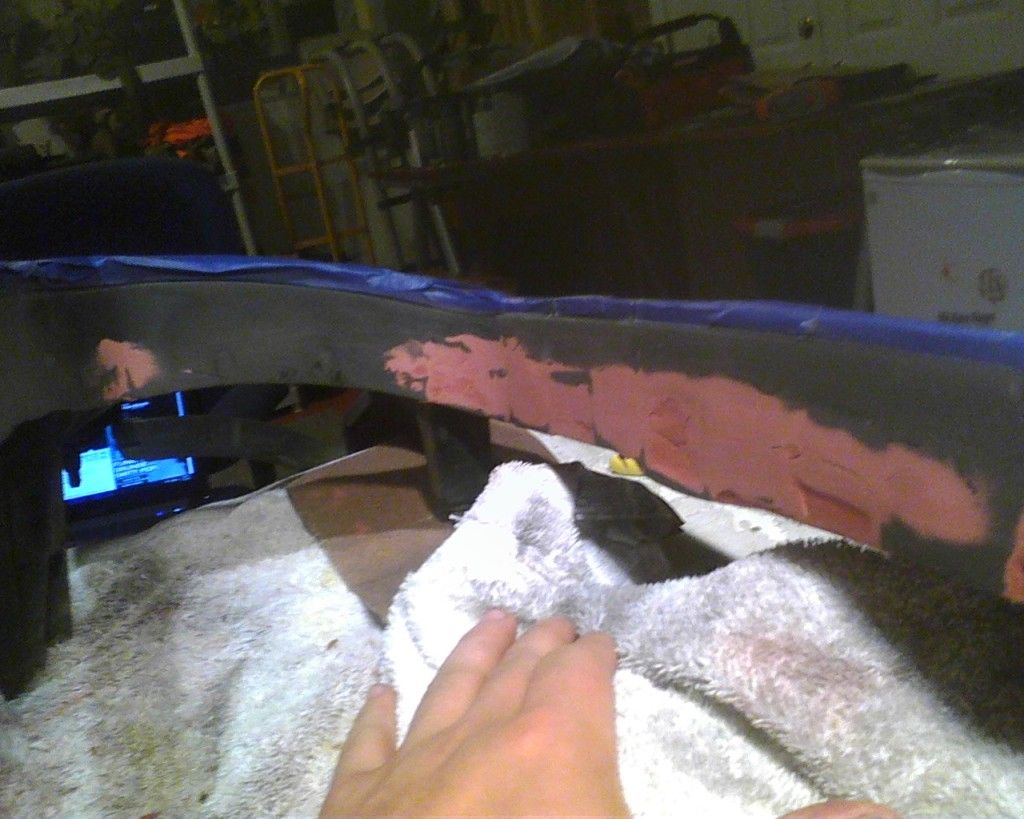

apply the bondo

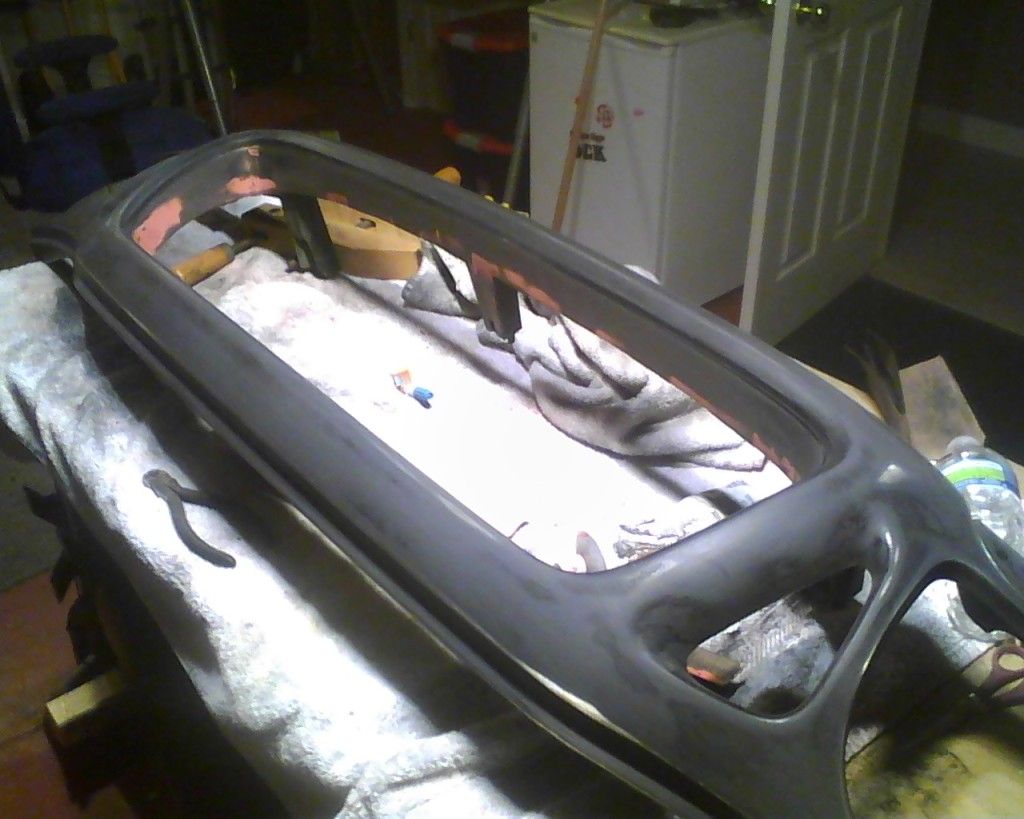

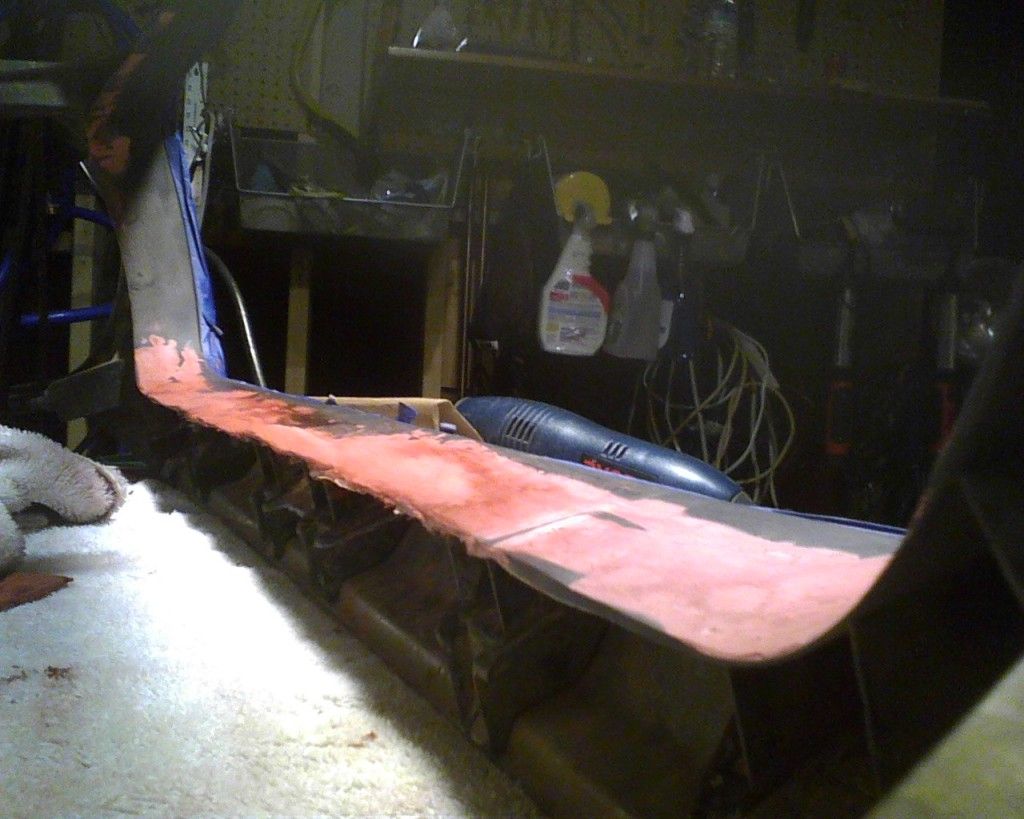

to say the least, i didnt use the bondo sparingly! i used a lot but i wanted my inside edges really smooth

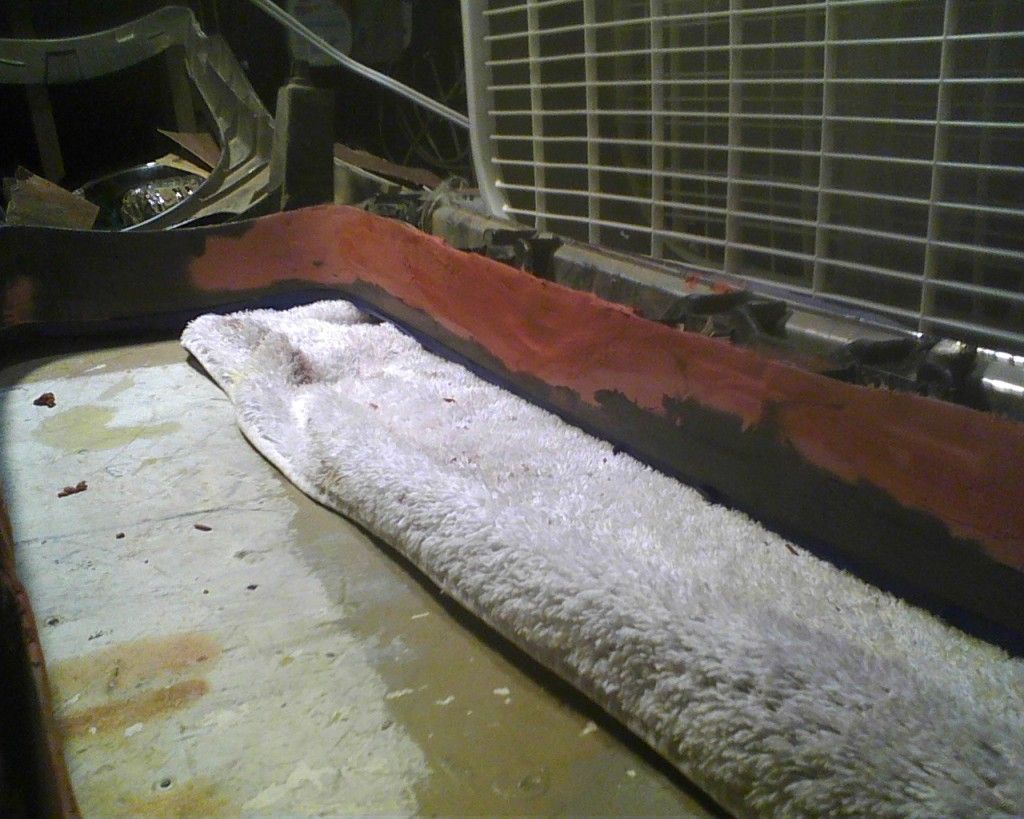

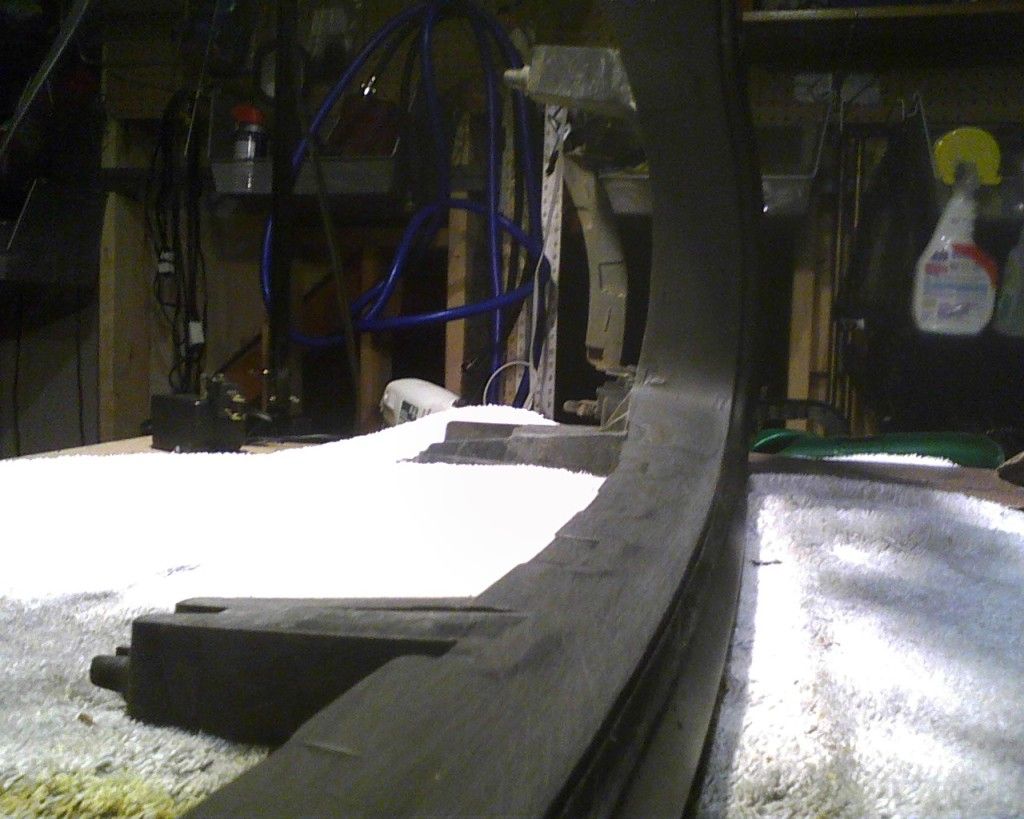

sand it down




















If it shows signs of cracking you might want to reset that area and apply thinner layers of bondo.

(i had to do this on one area)












One more layer of bondo






































ALMOST DONE!!!!!!!!!!!!


























Step 5: Spray Paint Application





Supplies:

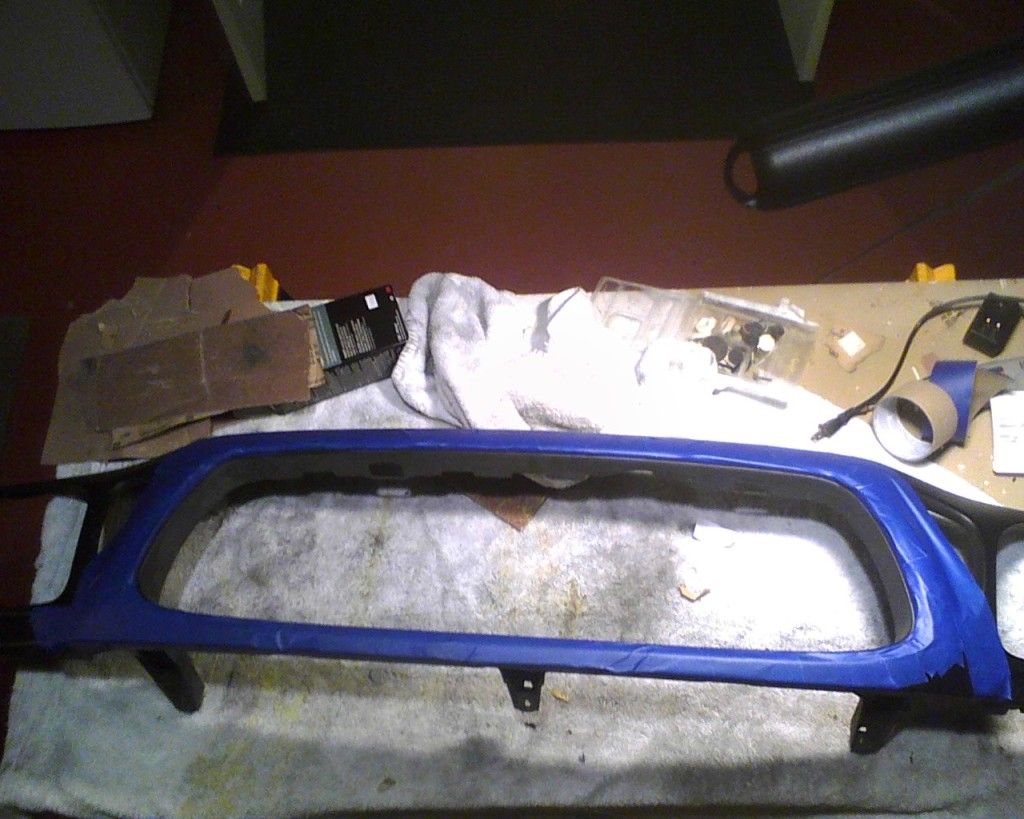

Sand paper = more sanding! i sanded the entire grill to paint it all black (i used 220 grit for this)

Filler Primer = spray your first coat on the inner rim on the grill with filler FIRST

Spray Automotive Primer = spray the inner rim with normal primer too (and entire grill if you wish to do so)

Desired color of spray paint = well... you do want to spray paint it so... pick a color

painters tape = to tape off sections that are not being painted












Sand down everything you want spray painted with a high grit paper

which for me, was everything

more sanding...

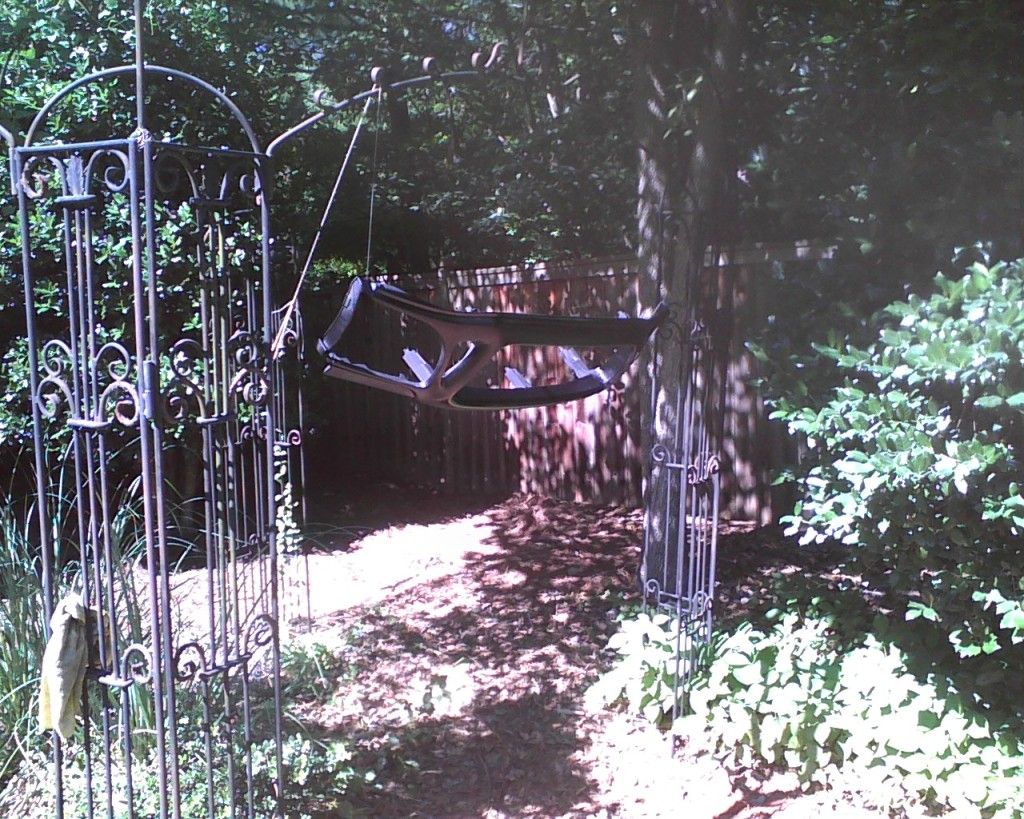

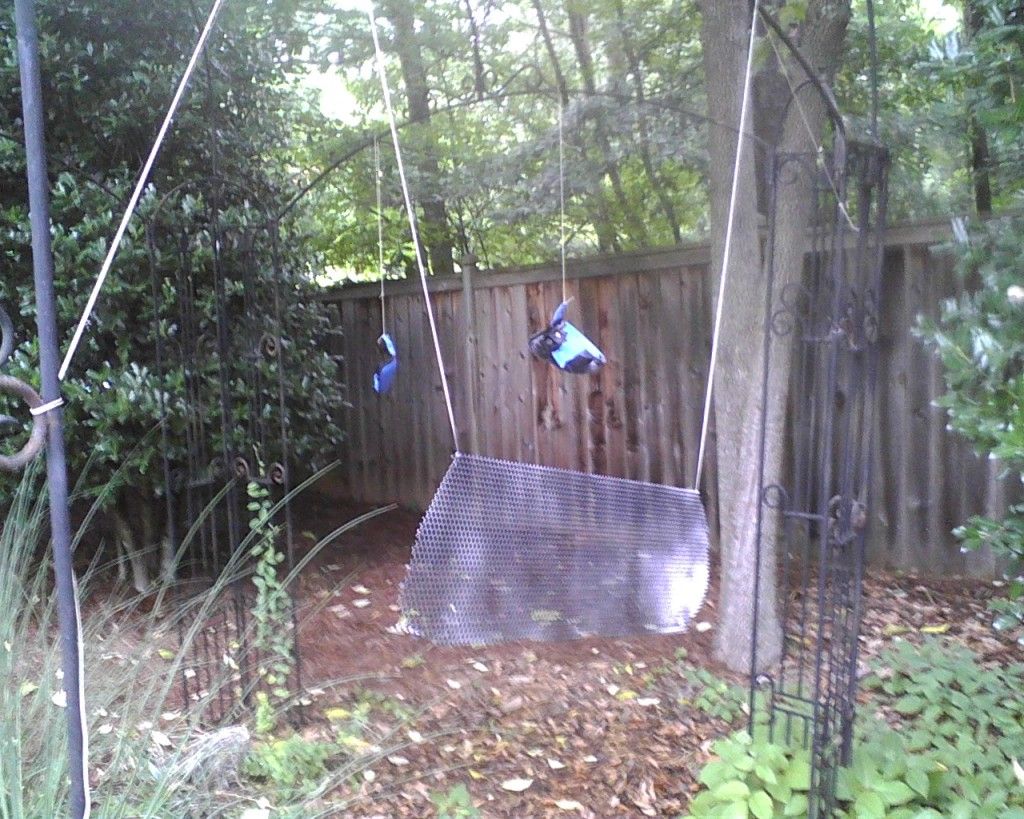

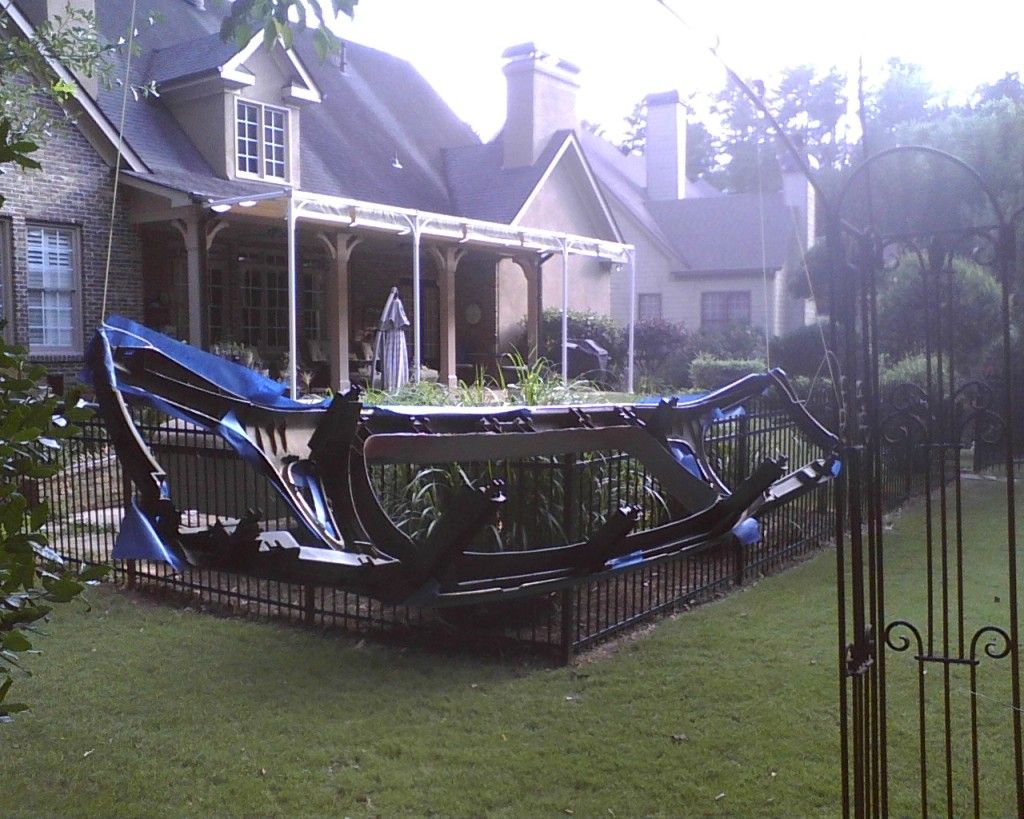

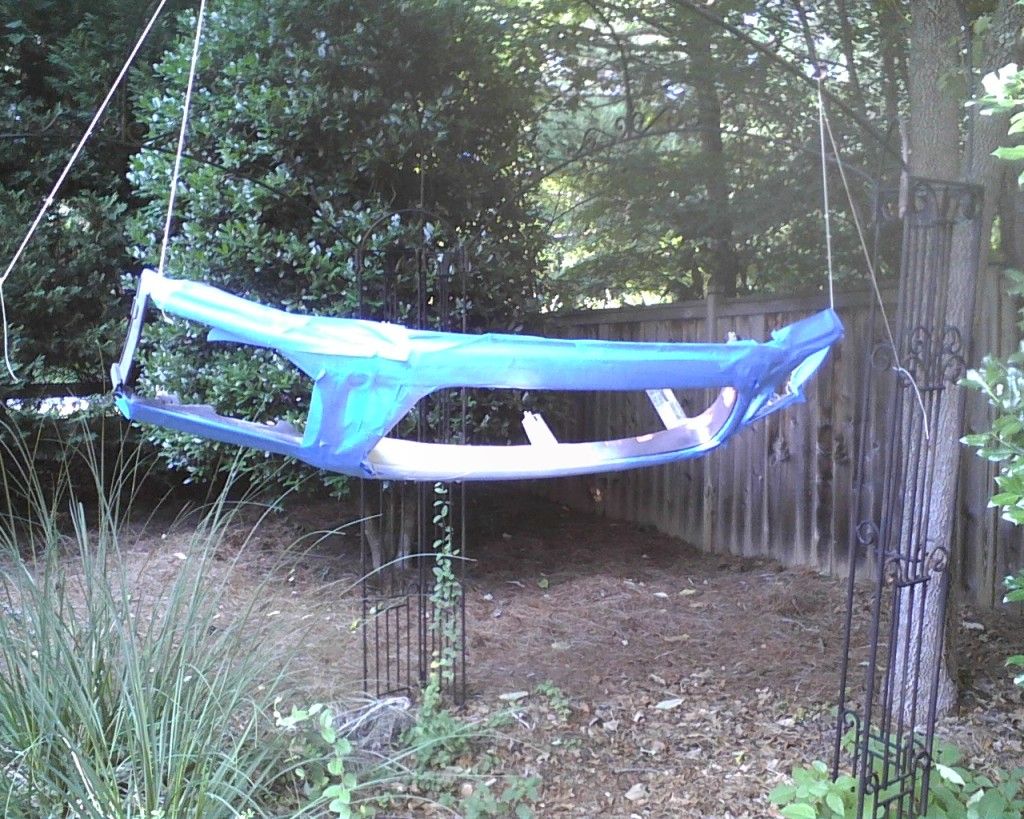

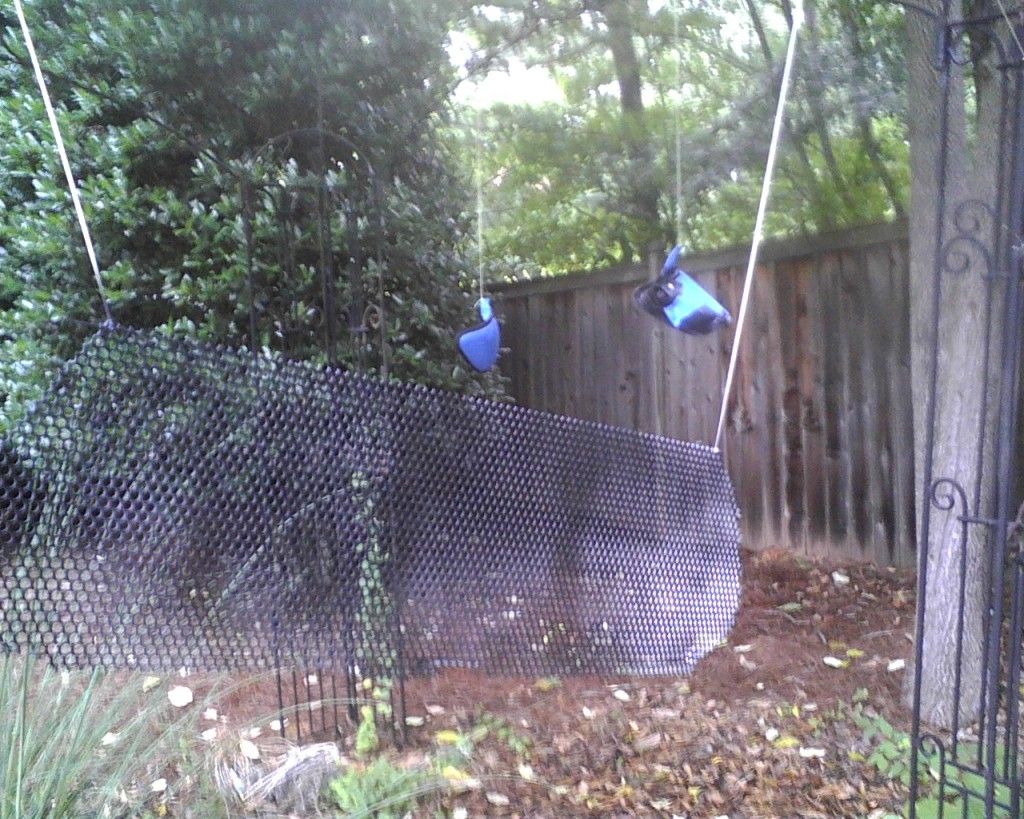

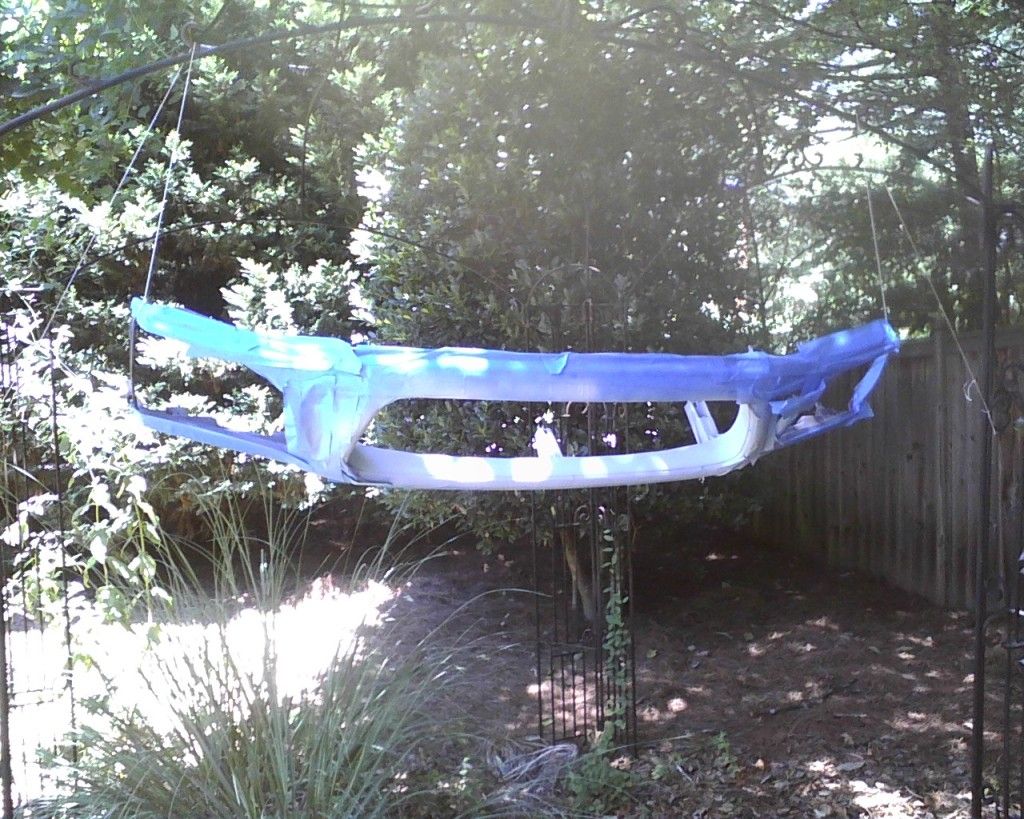

I hung the grill up in my backyard on a trellis that is black, so it was perfect














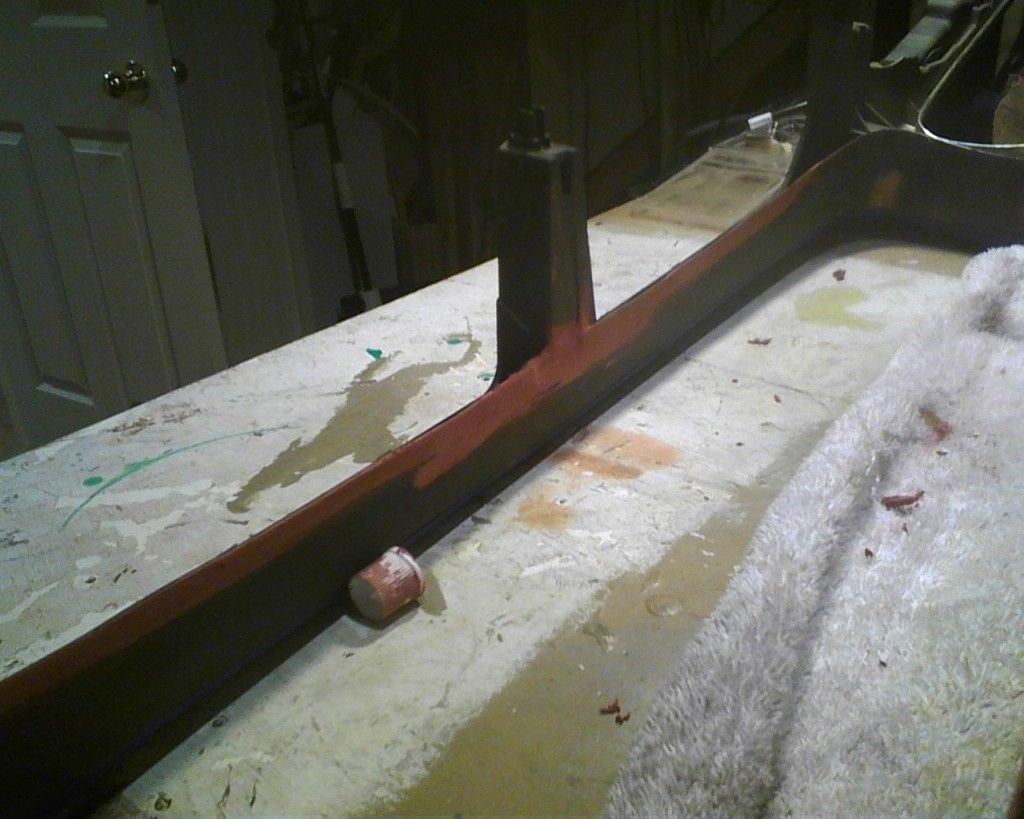

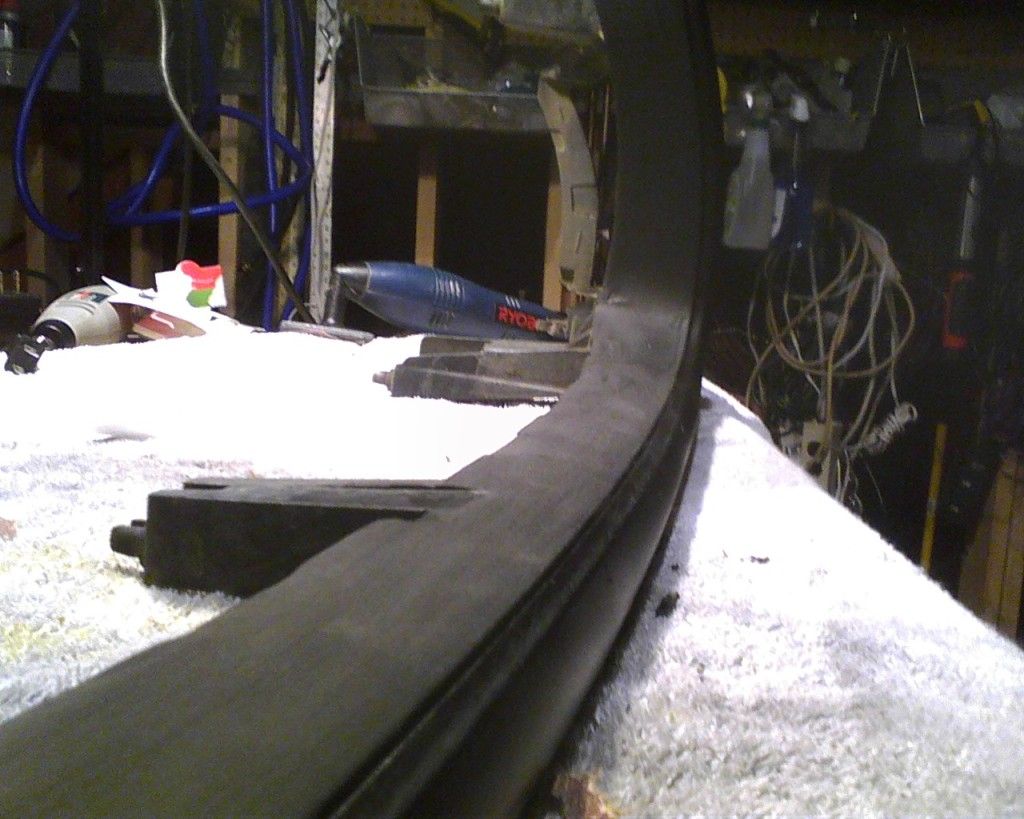

first you'll want to apply the Filler Primer to the inner rim where you have bondo. I did the entire inner rim with two coats of filler primer

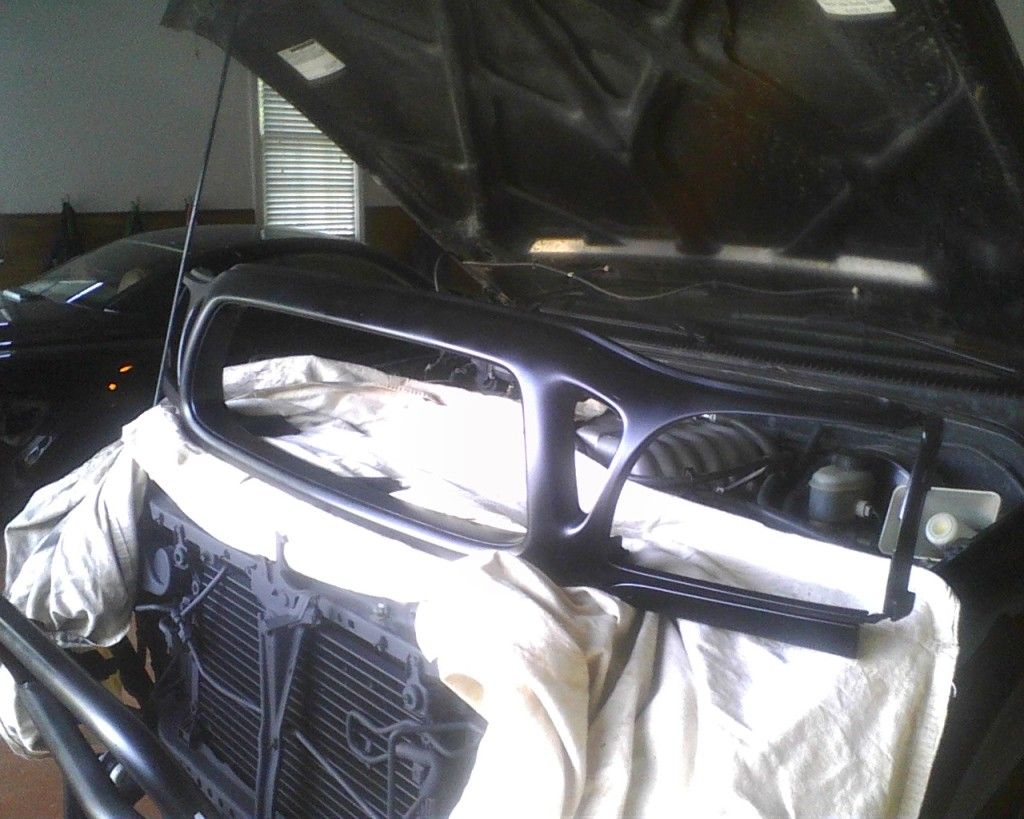

after the filler primer apply the primer!

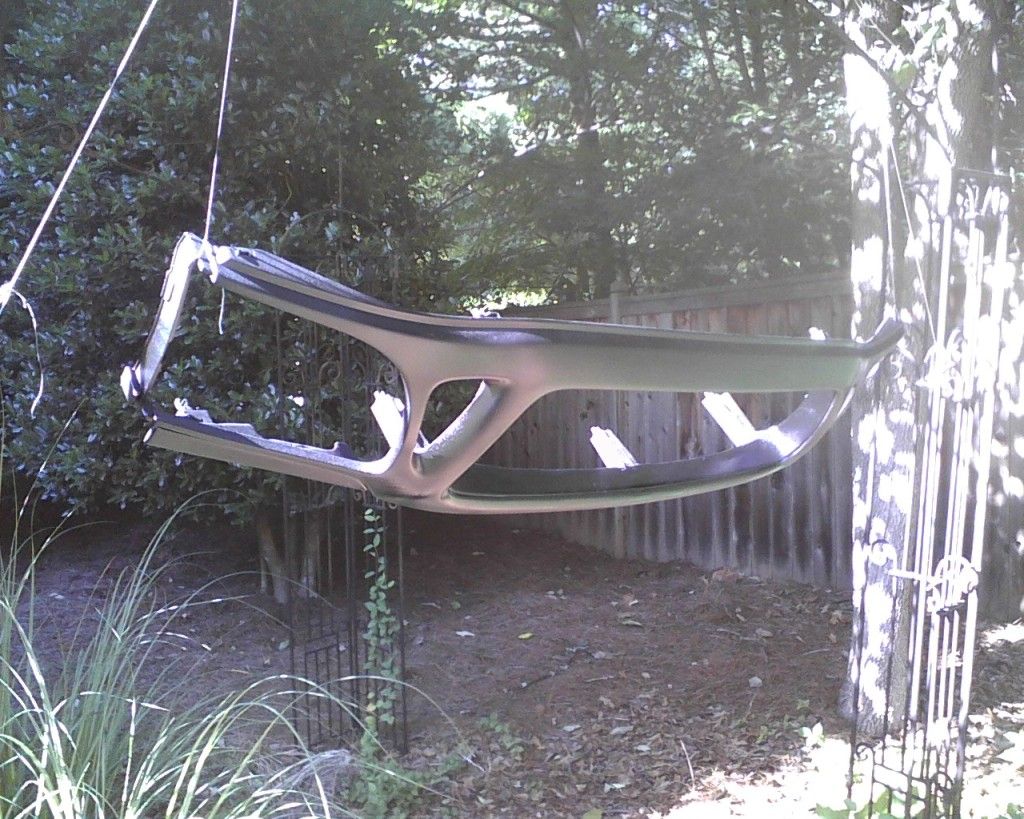

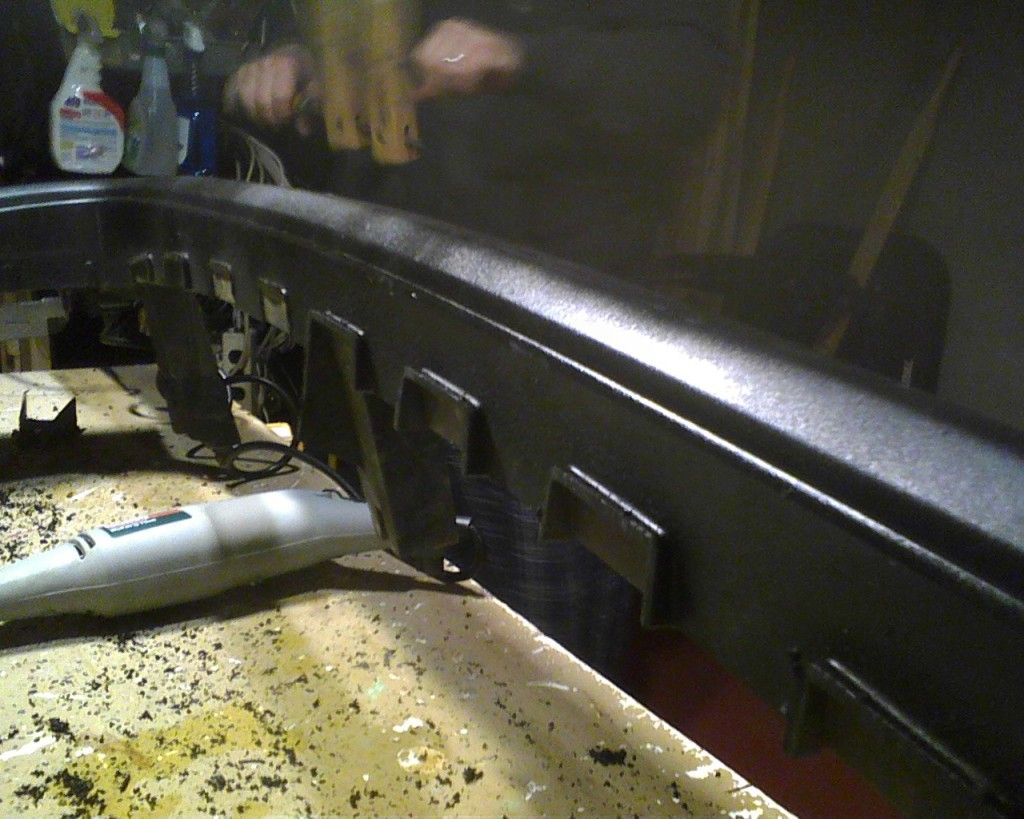

After the primer was all dry i removed the painters tape and put on the 2 coat of primer to entire grill

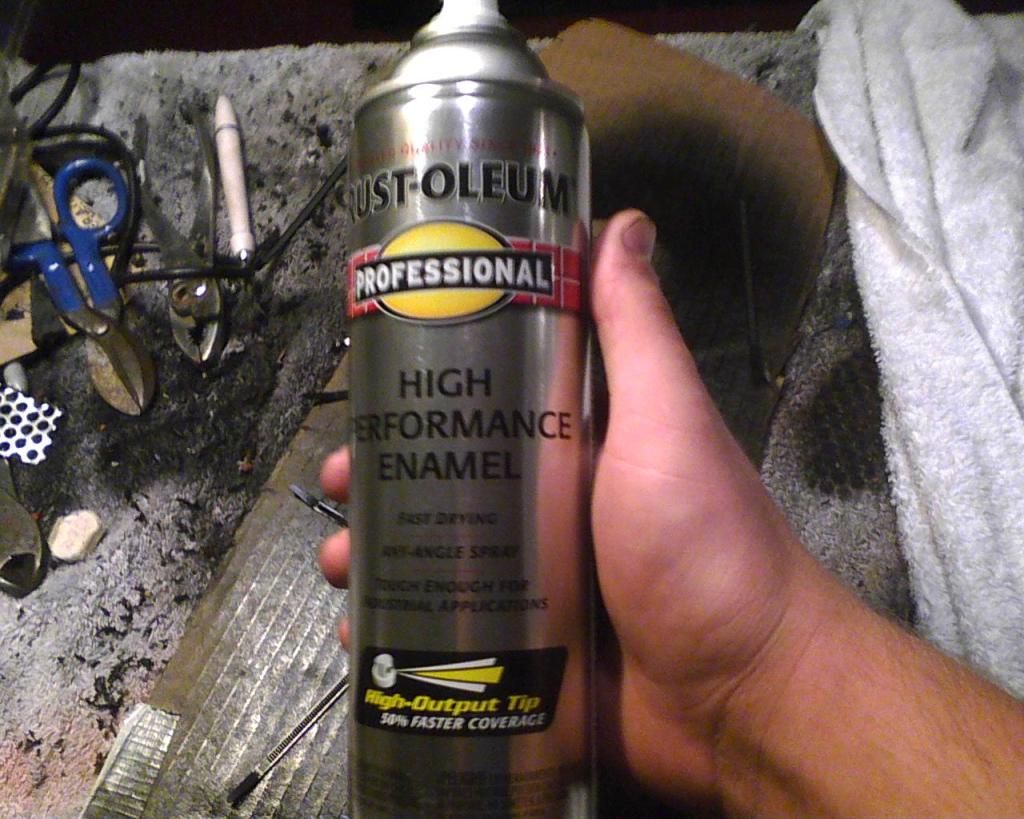

then applied 3 coats of semi-gloss rustoleum to the entire grill

















Letting it sit for the night in my basement and will mount it up tomorrow

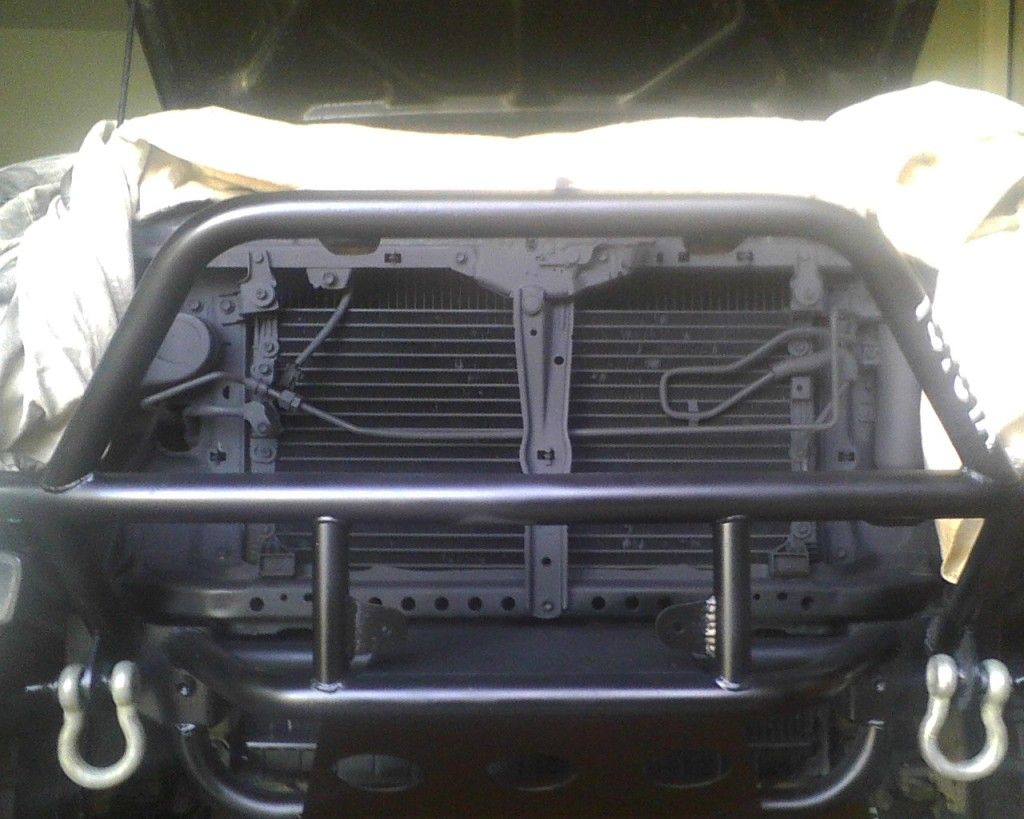

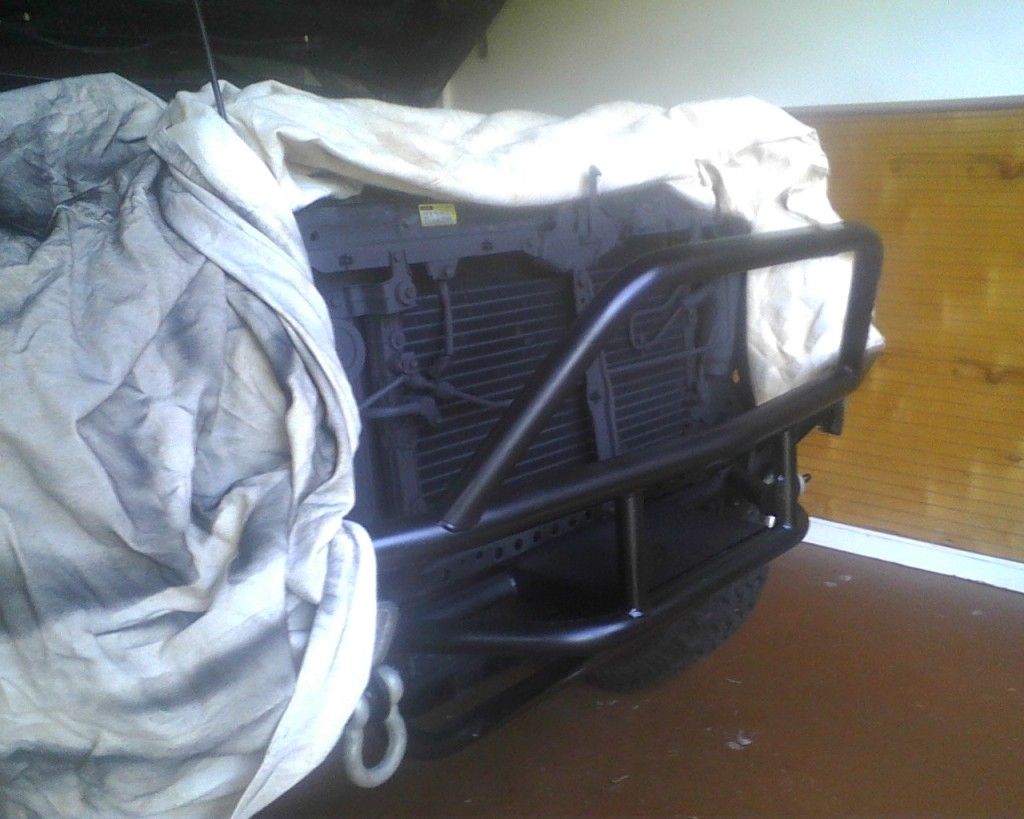

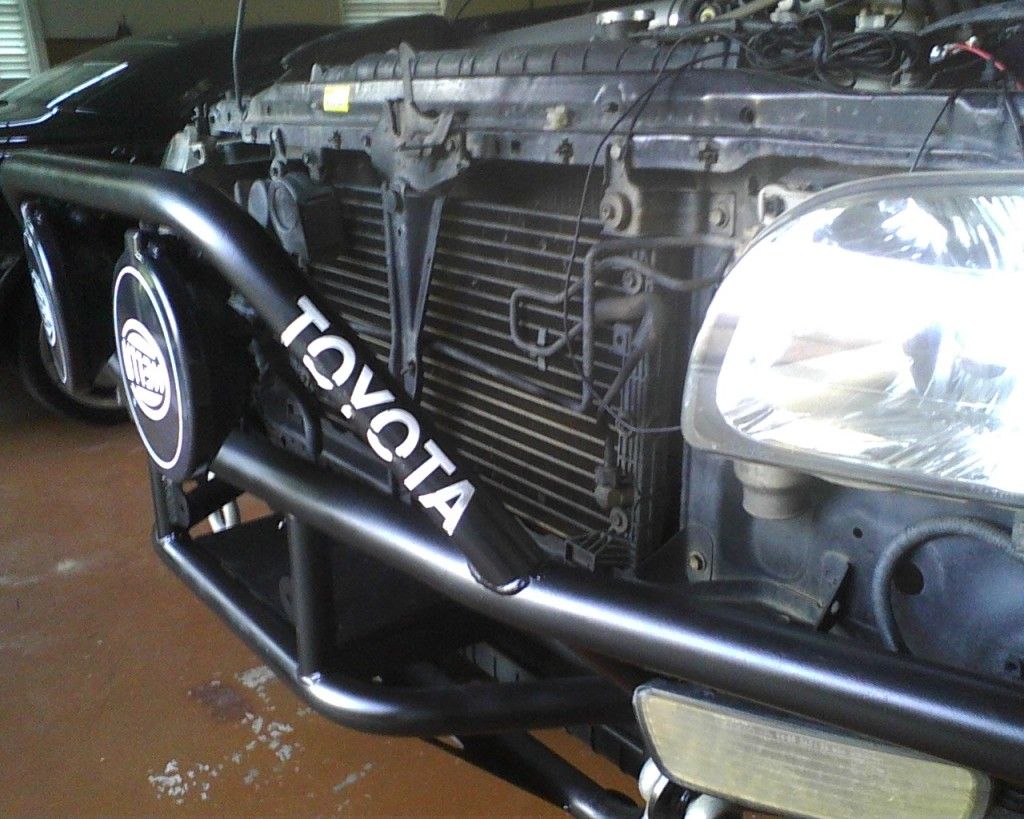

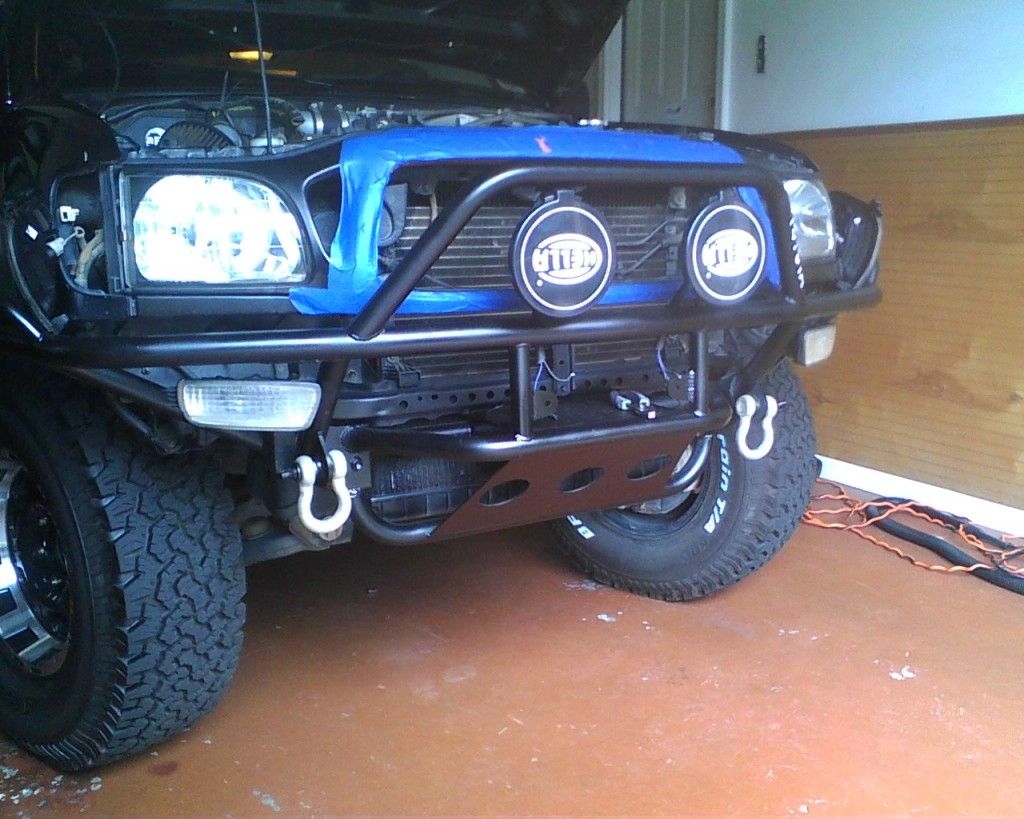

Sprayed the Radiator and all the other junk that will be visible behind the grill with High Heat Resistant Spray Paint

I also removed one of the horns that is right in front of the radiator. it will look ugly if i left it there. I may relocated it... eventually...













OH BOY MY HOMERTACO MESH ARRIVED

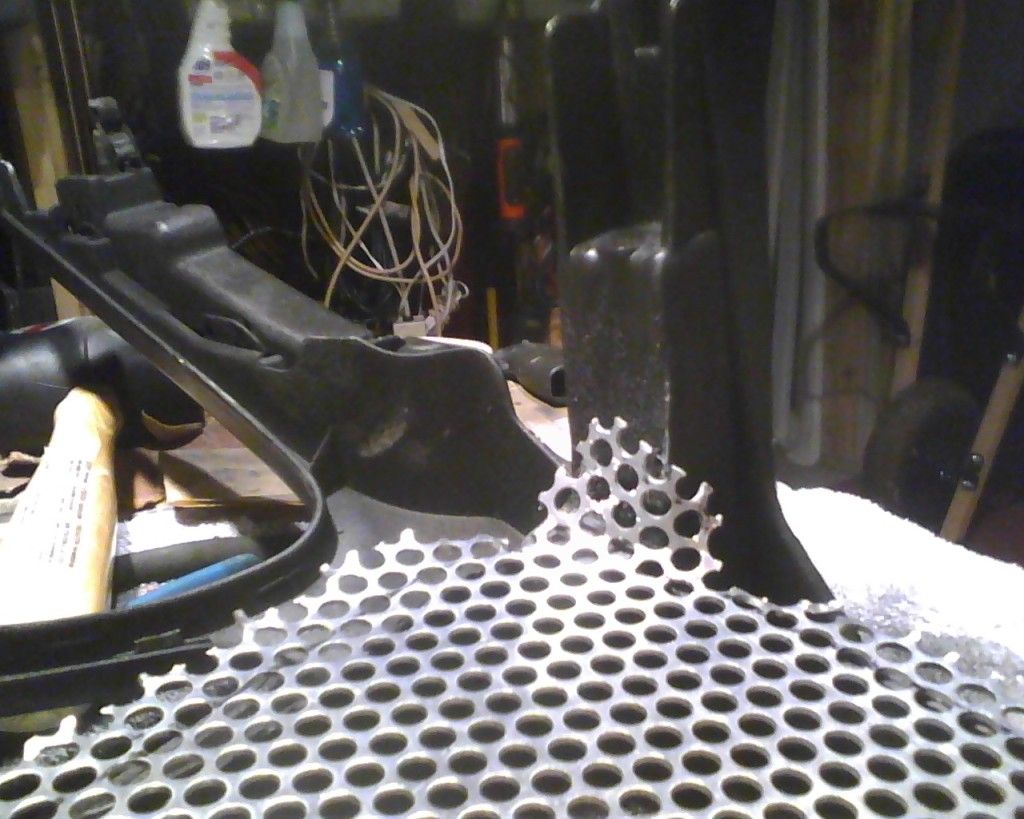

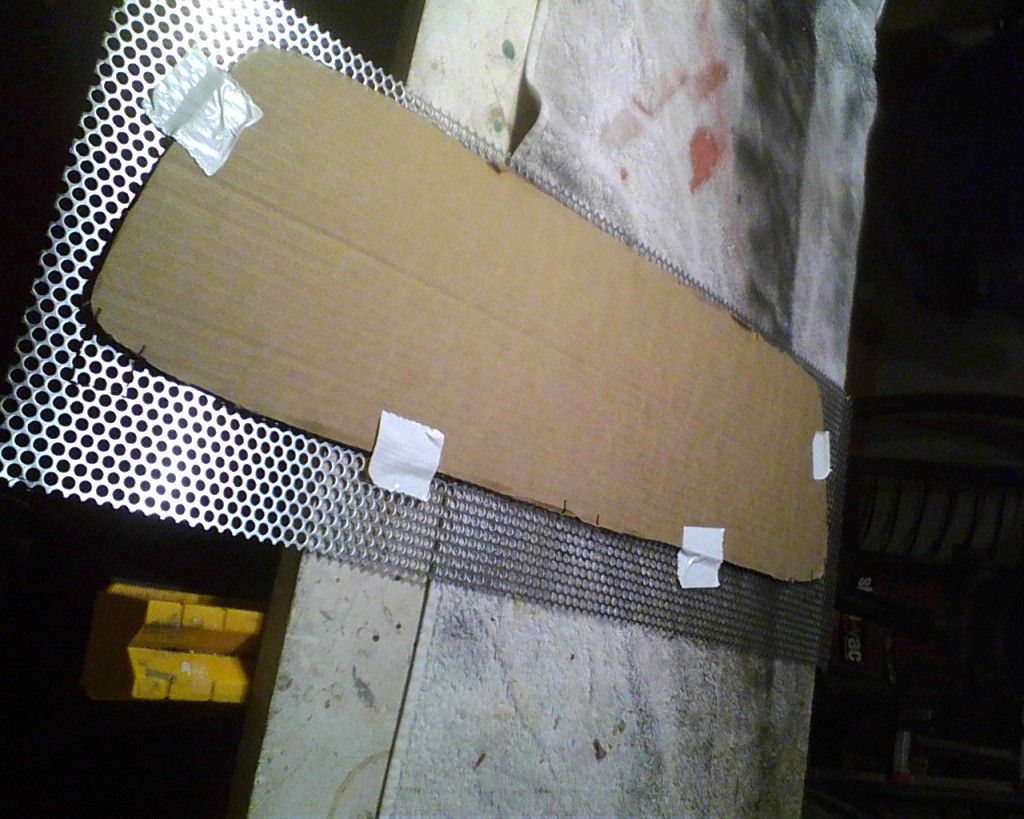

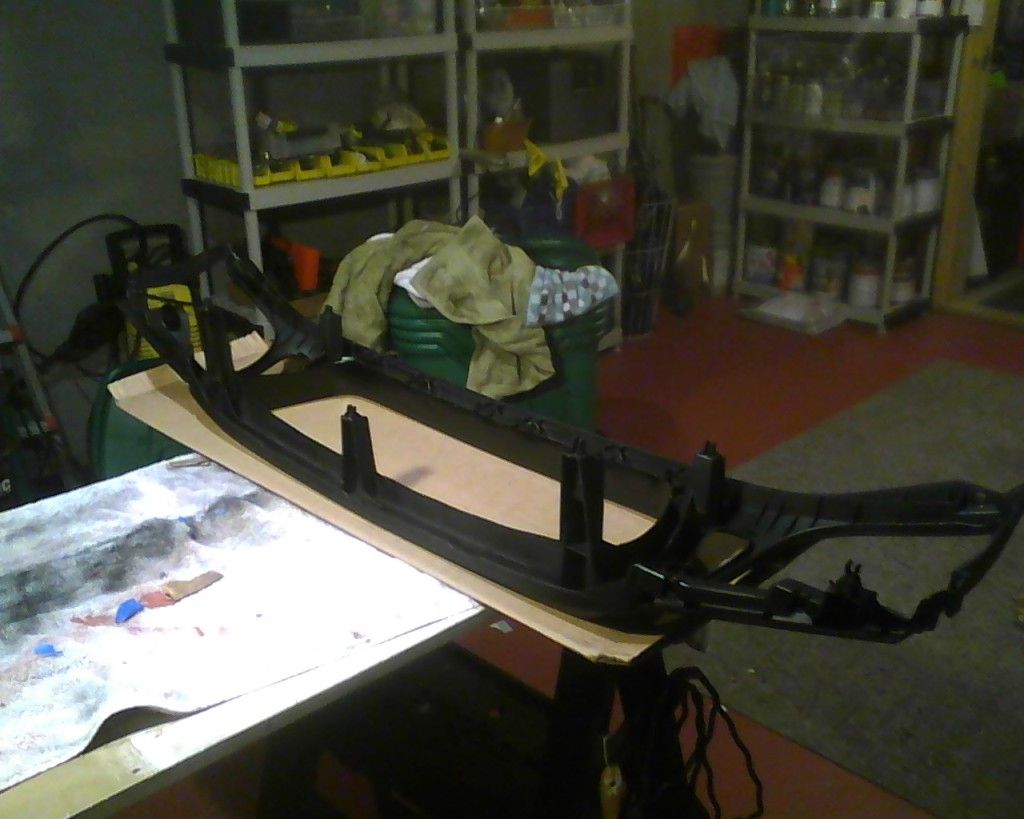

SO. start by measuring out where you need to cut the mesh down to fit using cardboard to make a template

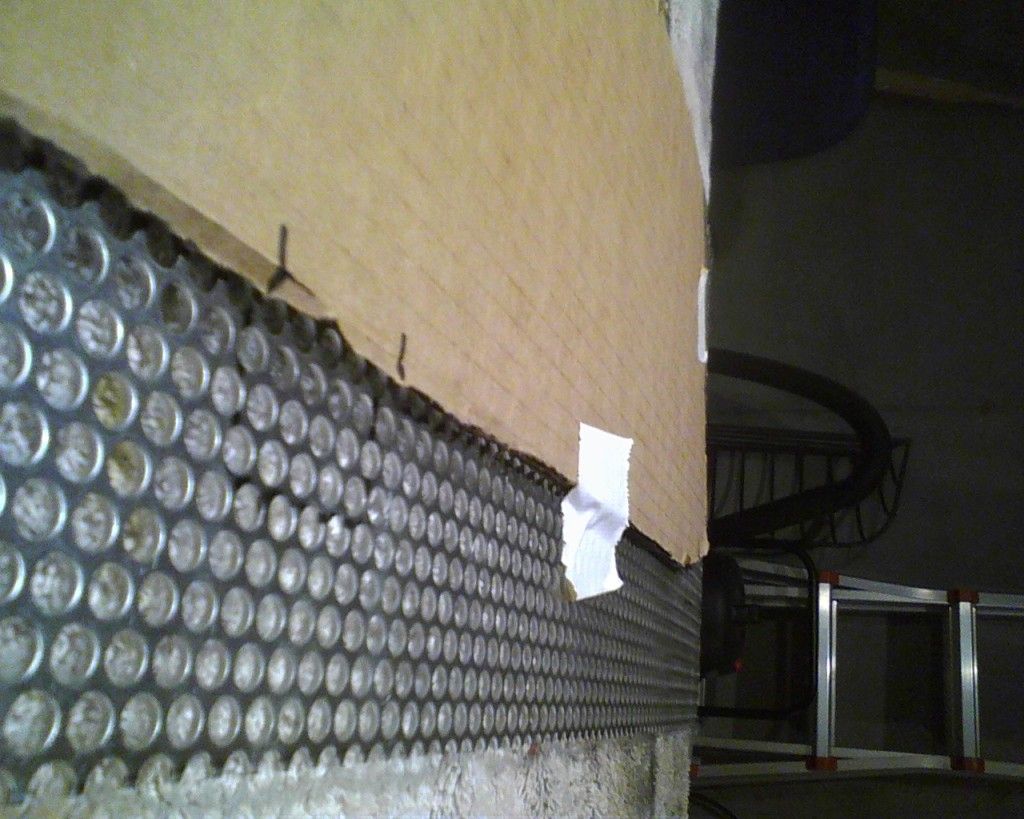

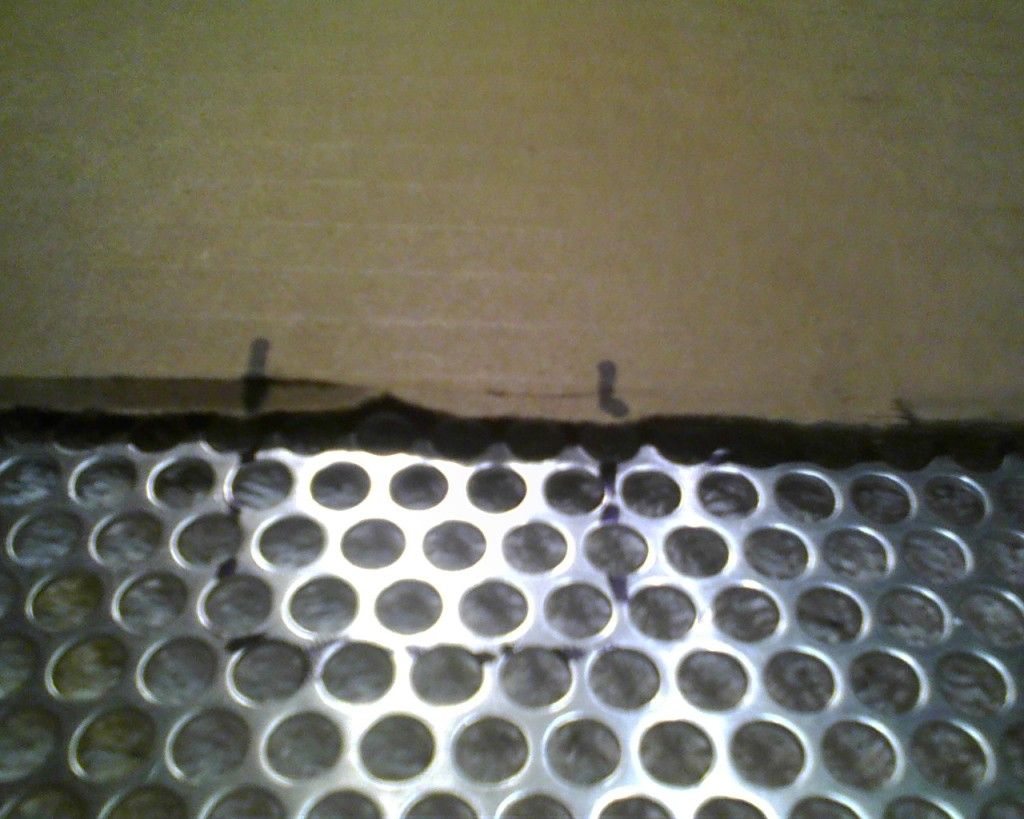

Now using the template, trace (sharpie) where you need to cut. I cut a 1/4 inch away from the line i drew

JUST IN CASE

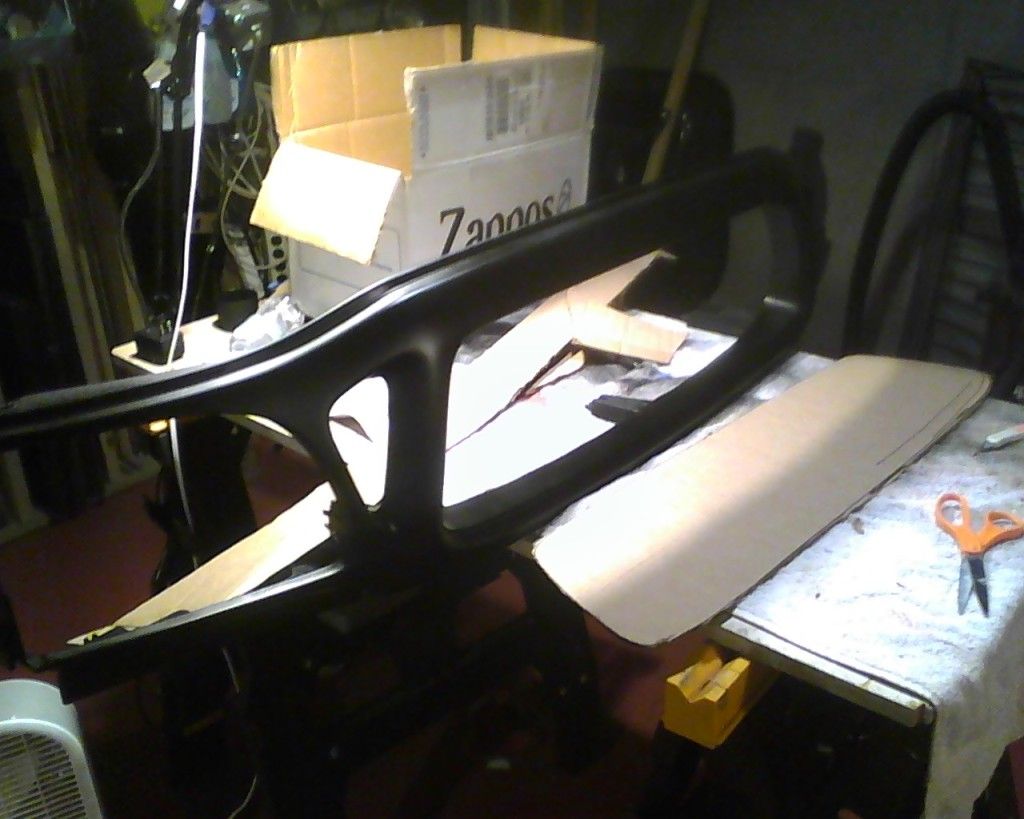

Make marks on the card board where the towers are that extend out and connect the grill to the truck.

you can utilize these towers as a area to anchor down the mesh grill with screws

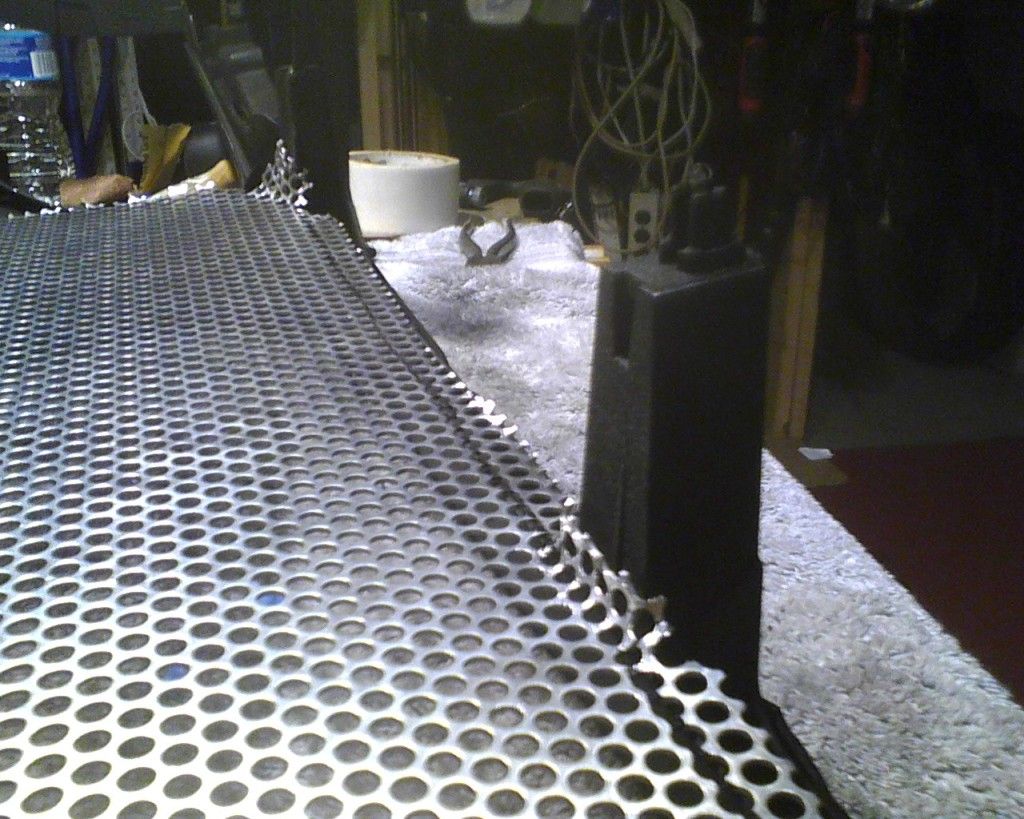

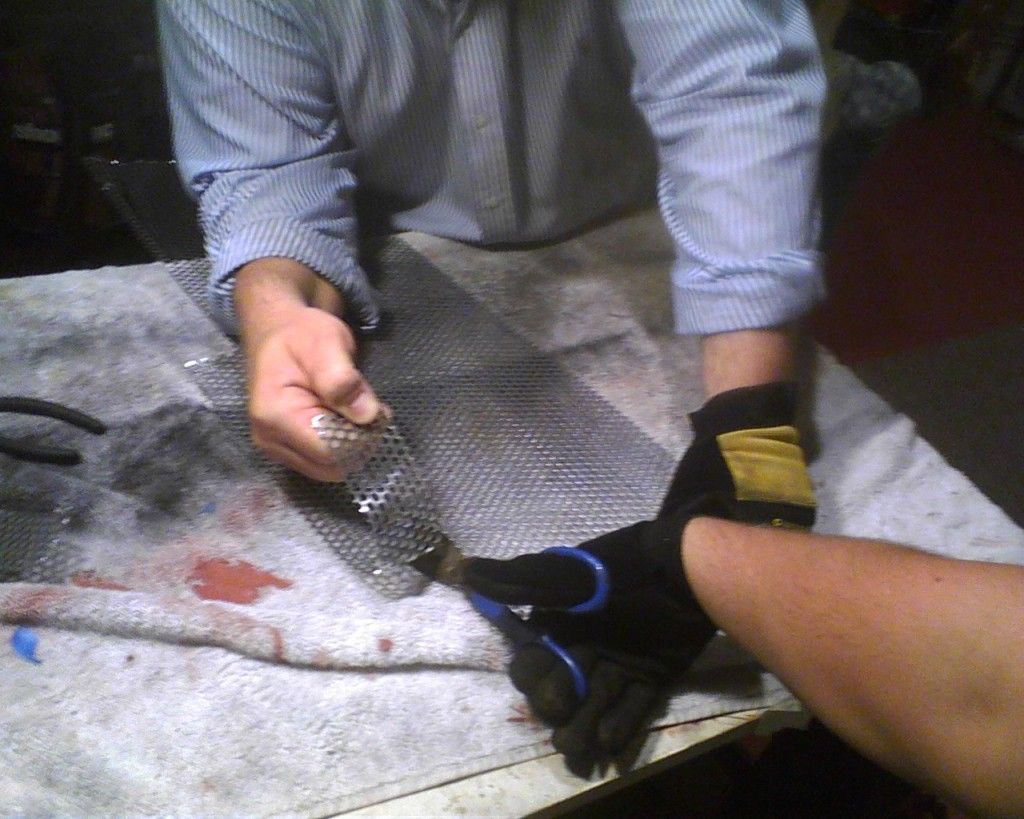

CUT and leave yourself some extra mesh so you have some room for fitting

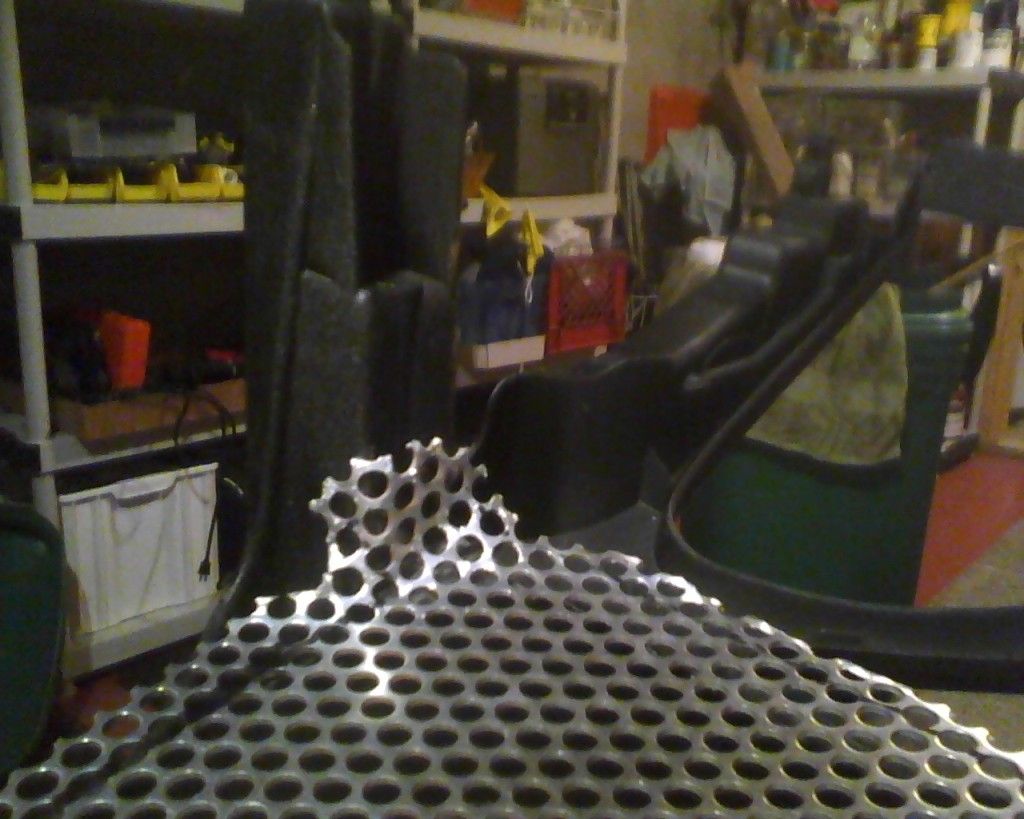

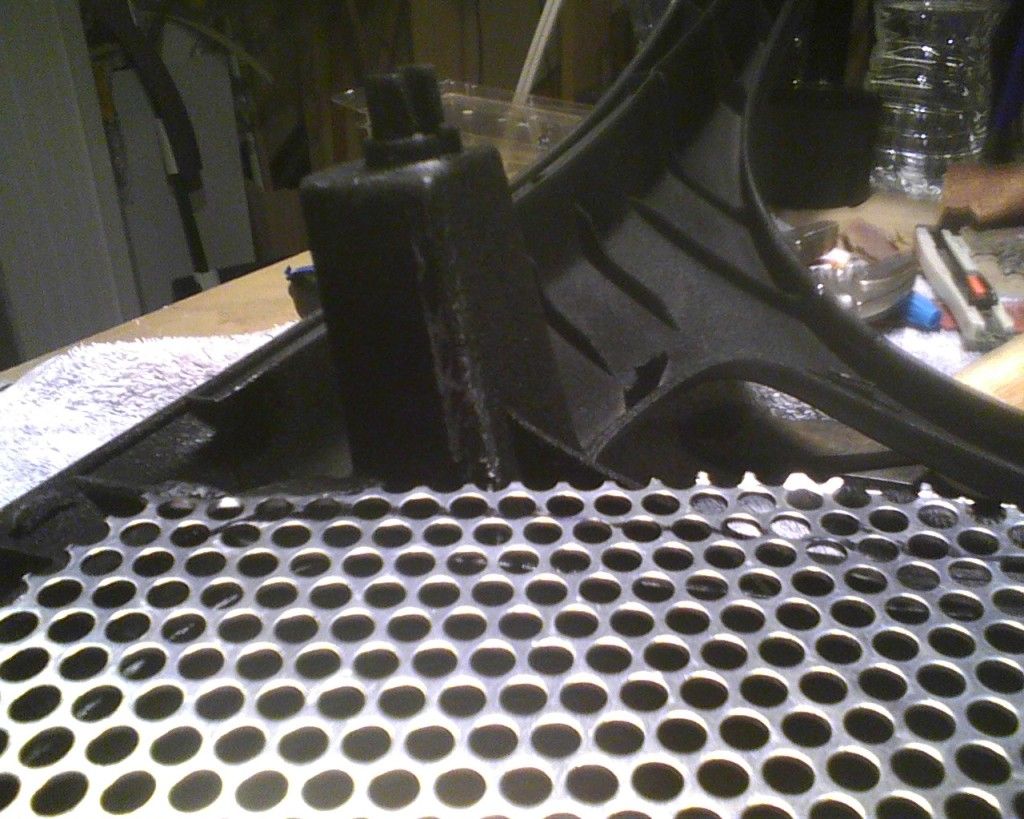

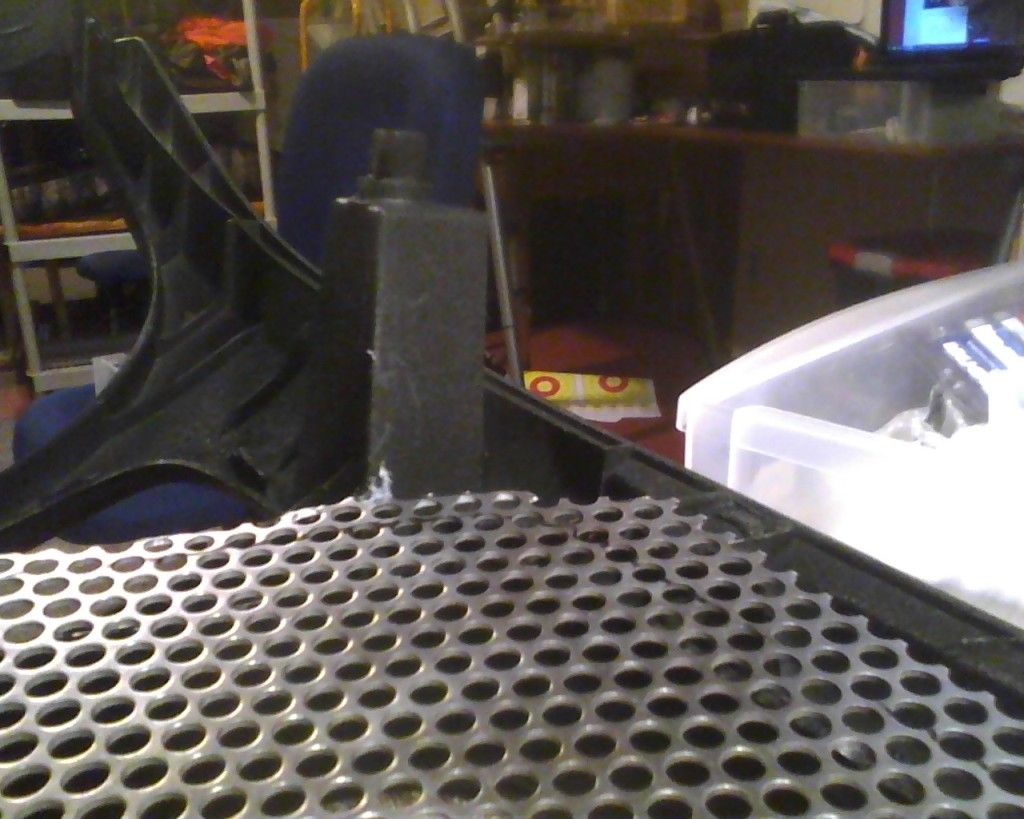

I shaved the plastic off the bottom of both outside towers so the mesh would lay and fit easier















then molded the mesh to fit around the towers so i can screw them in and secure the grill at the bottom





























NOW prime and paint it



I used this...

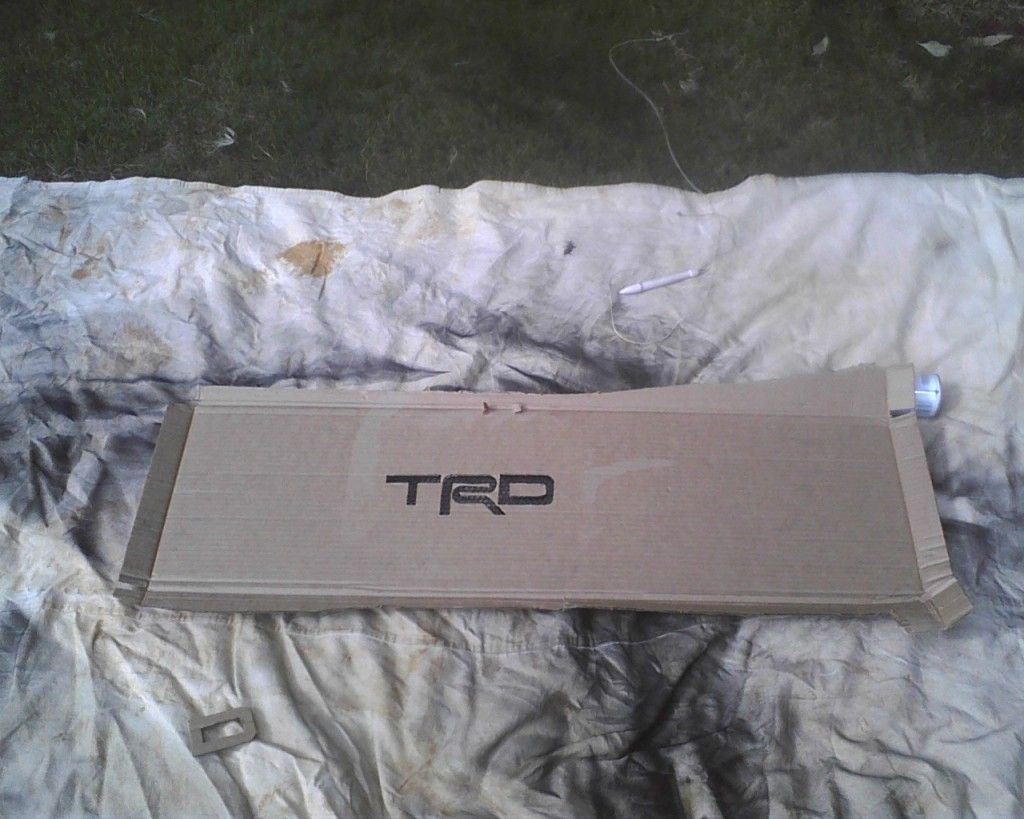

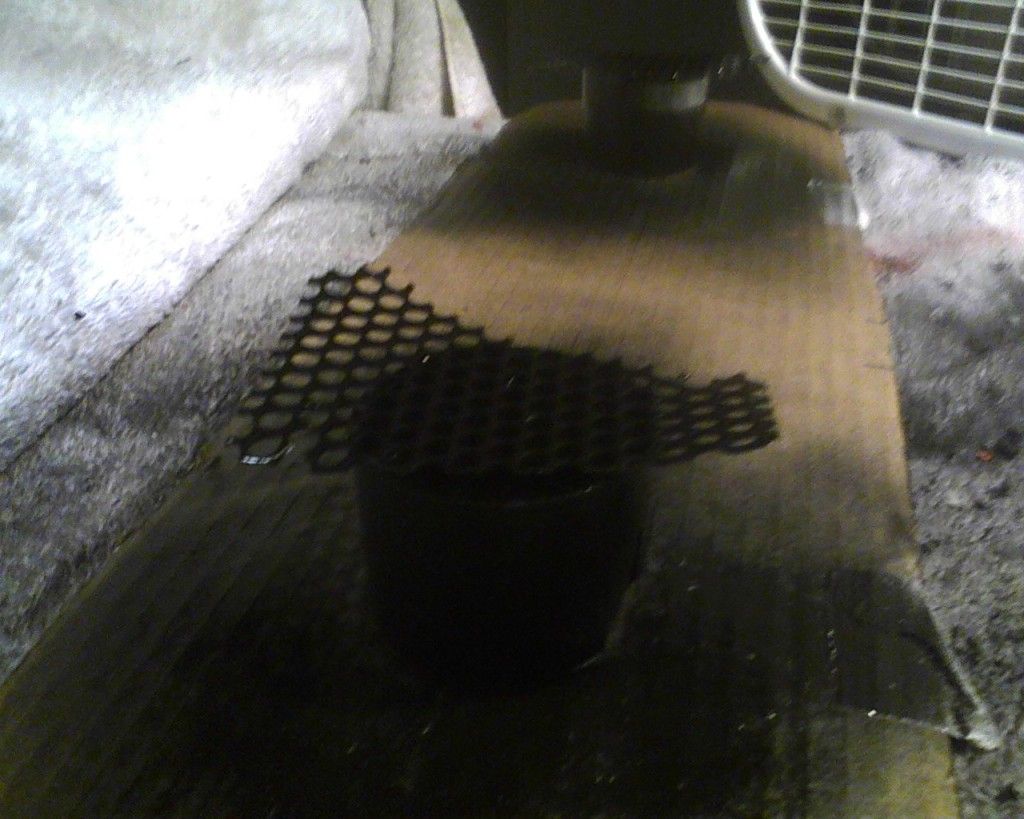

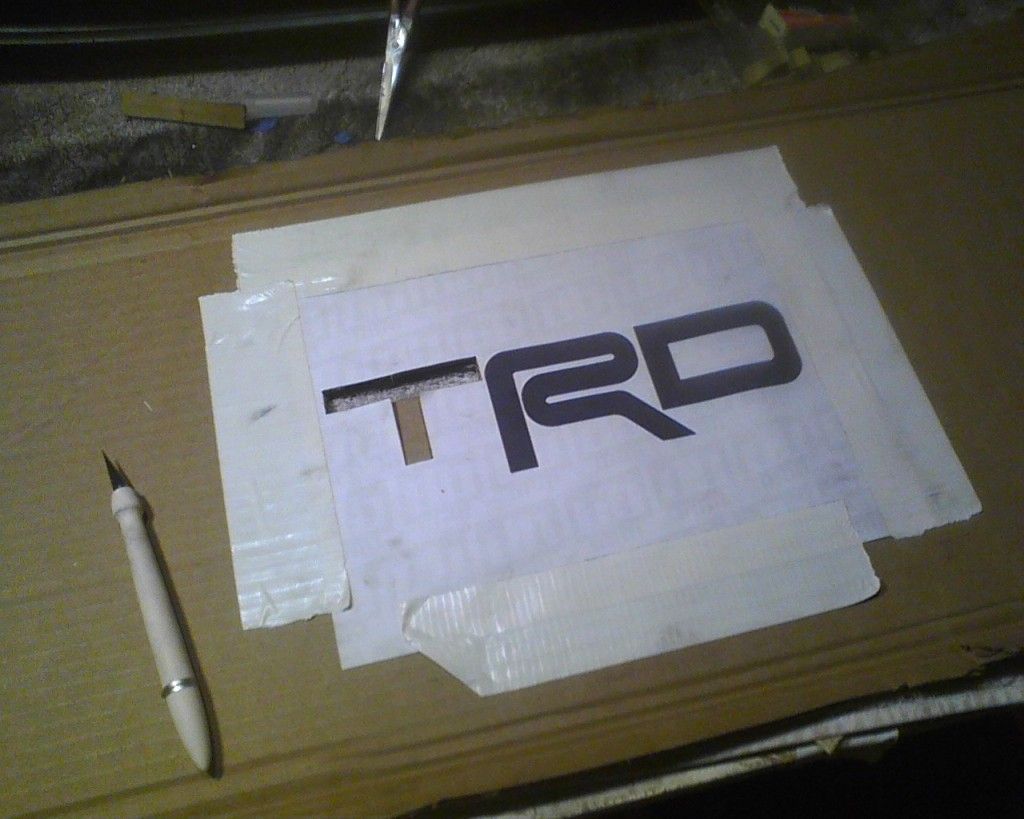

I wanted the TRD symbol in the middle so i made a stencil with cardboard!









And then spray the color of your choosing




Sorry i dont have a picture of the mesh by itself. my phone battery began to die on me.






Before you move on the next step (this is optional) finish the triangle cut outs and measure up the mesh for the triangles

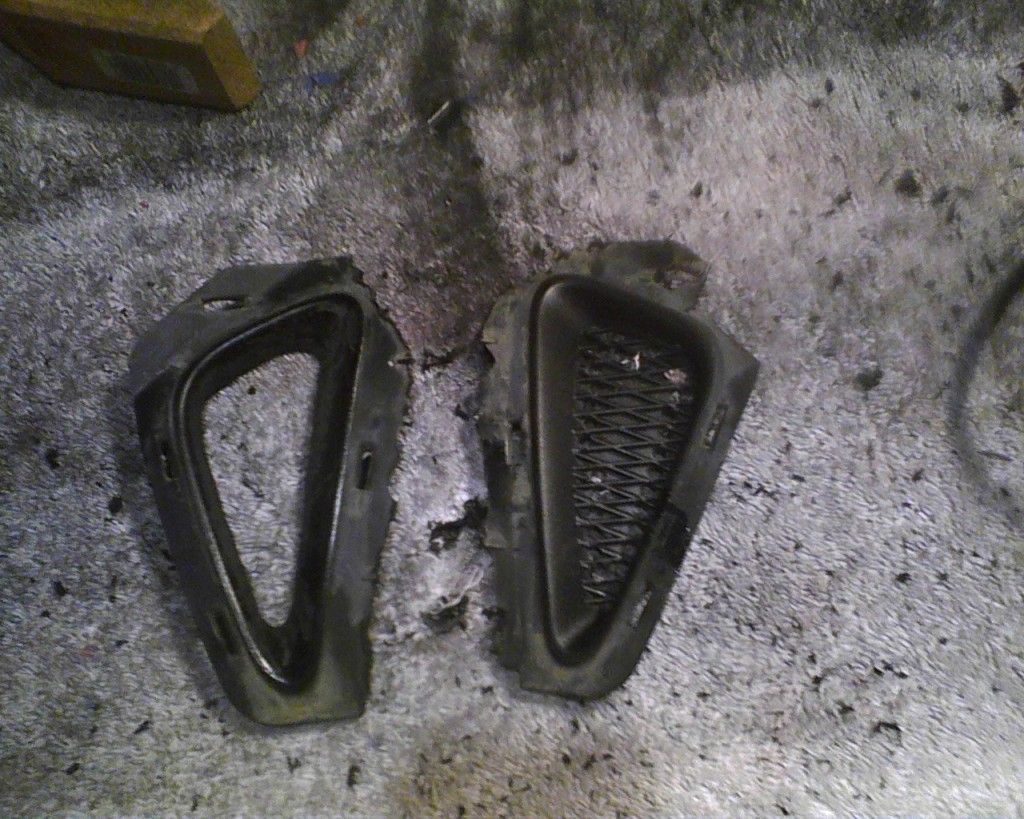

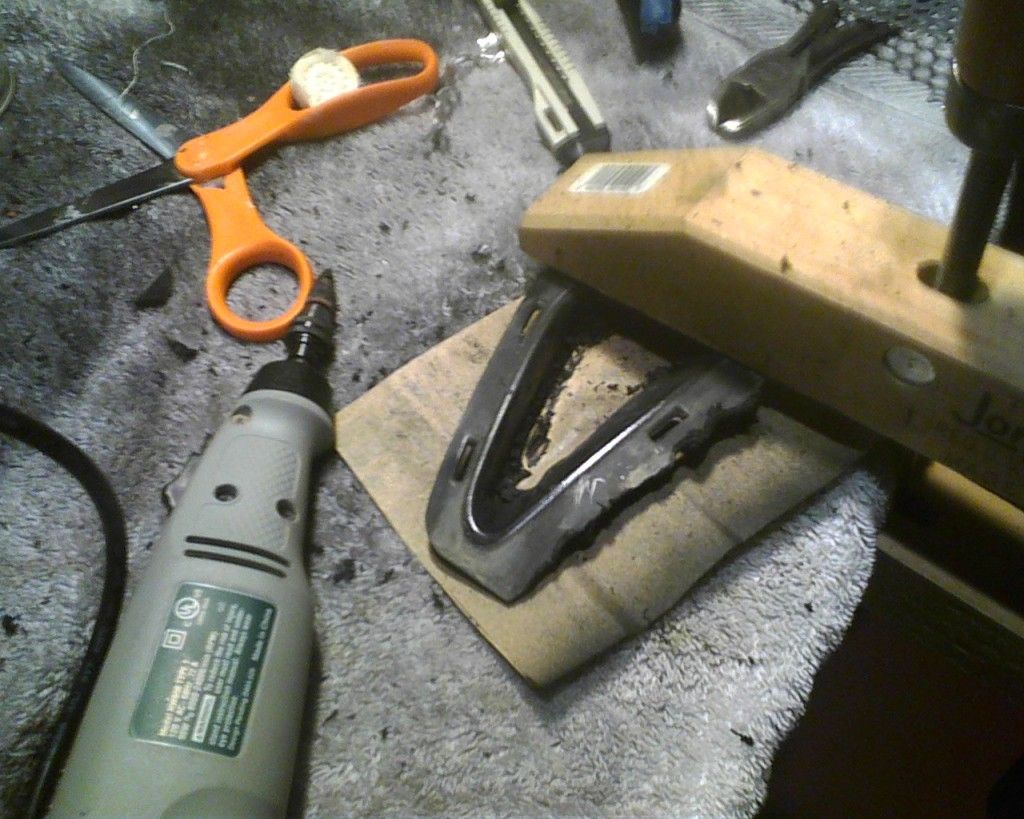

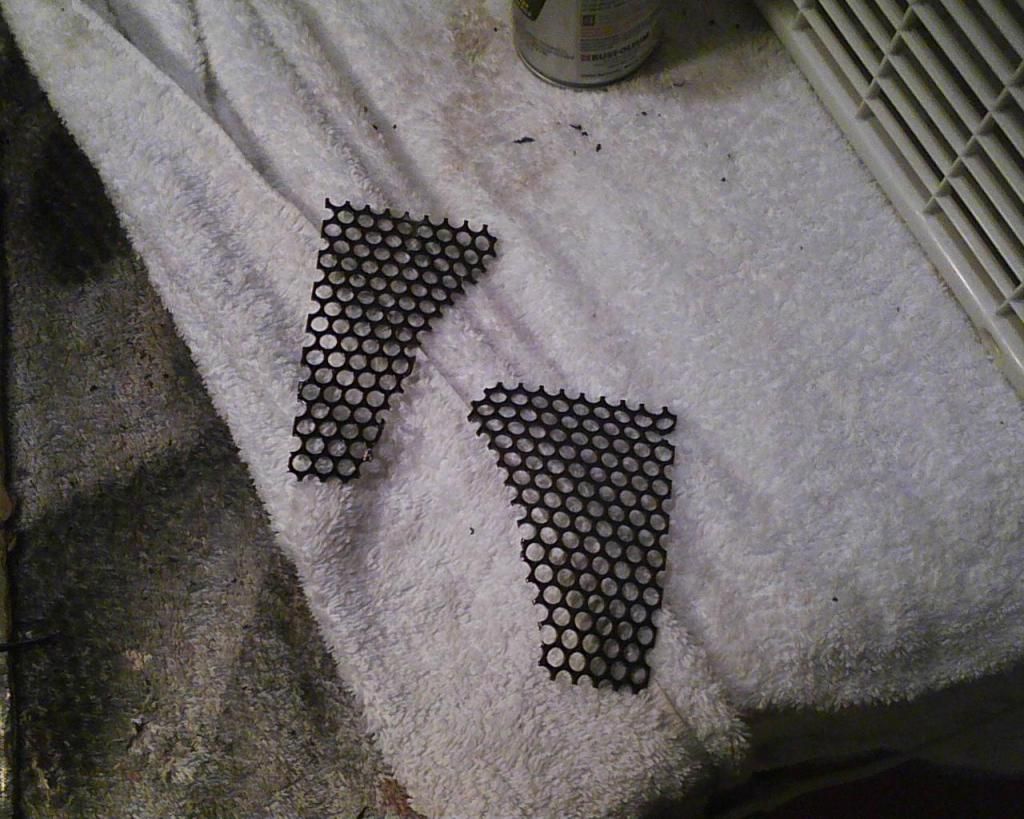

Start by cutting out the middle of the triangle plastic

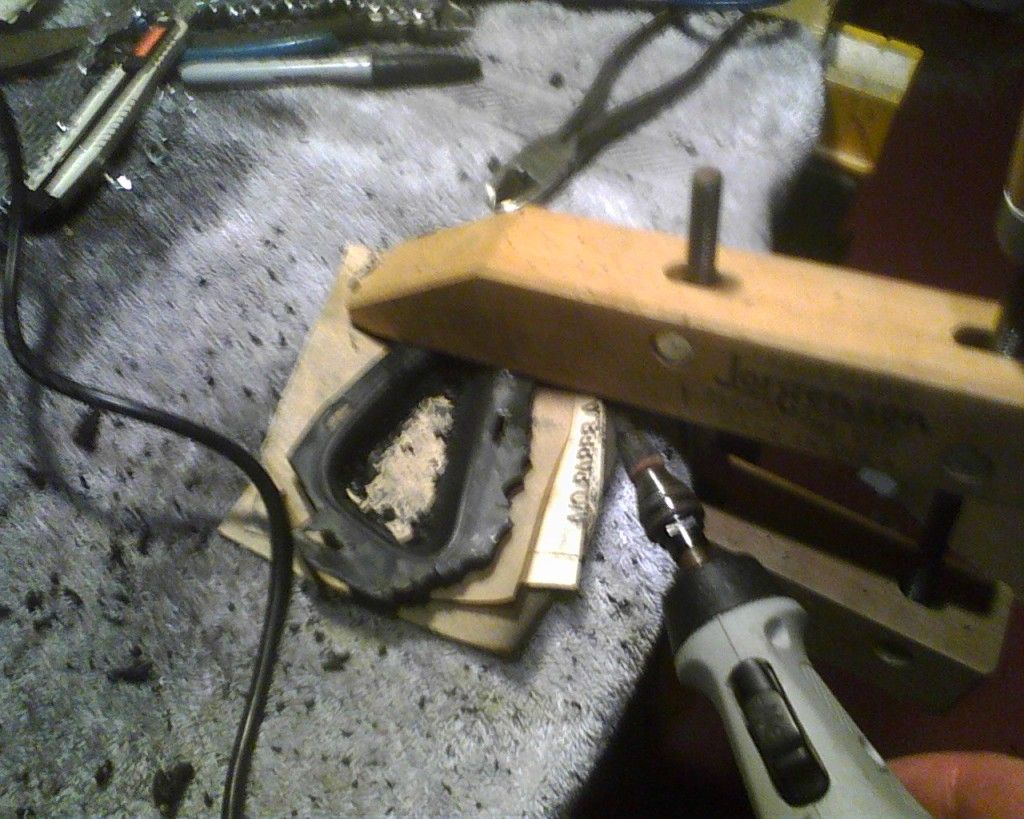

then finish off the job with a dremel and smooth out the edged


































measure up the mesh to the triangle so you can install it later

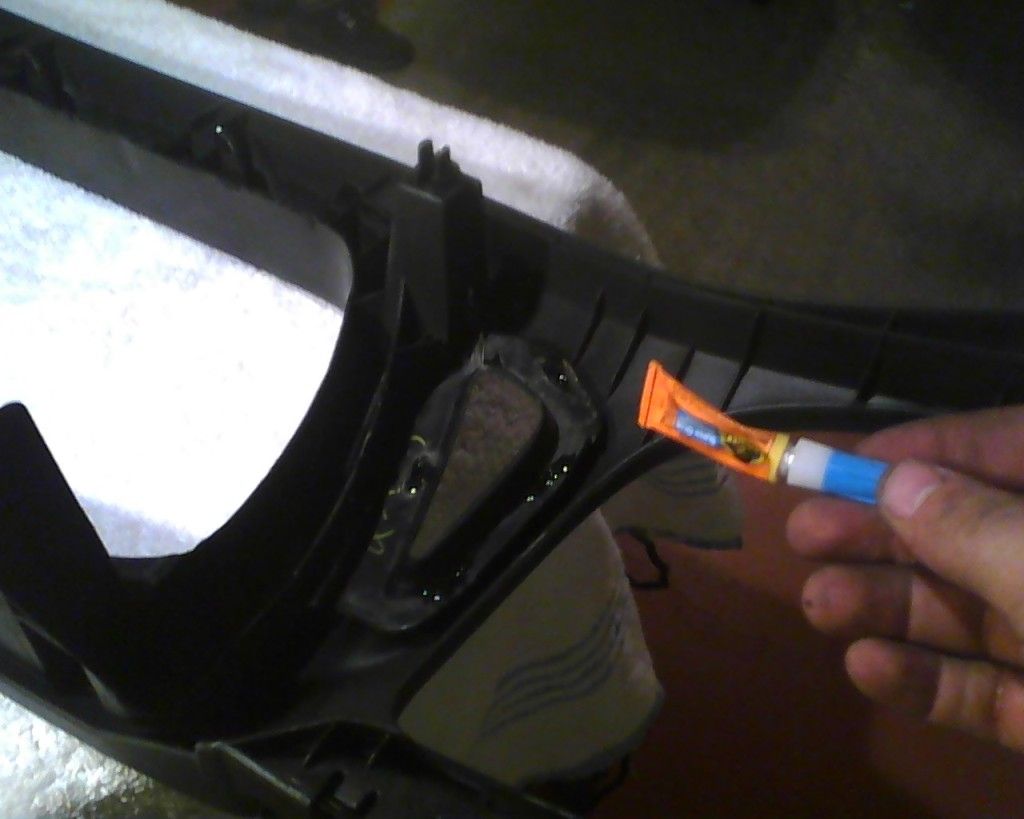

Glue the plastic inserts back onto the grill. I used gorilla glue.

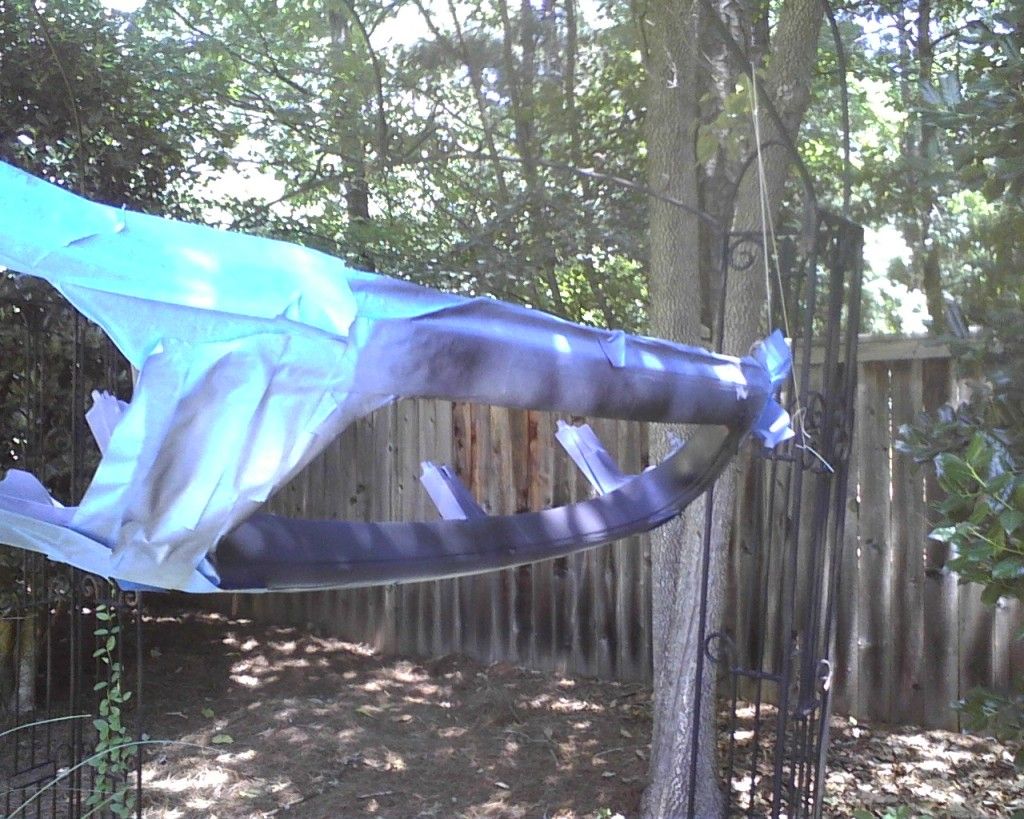

Then Paint the Triangle mesh so they can be installed

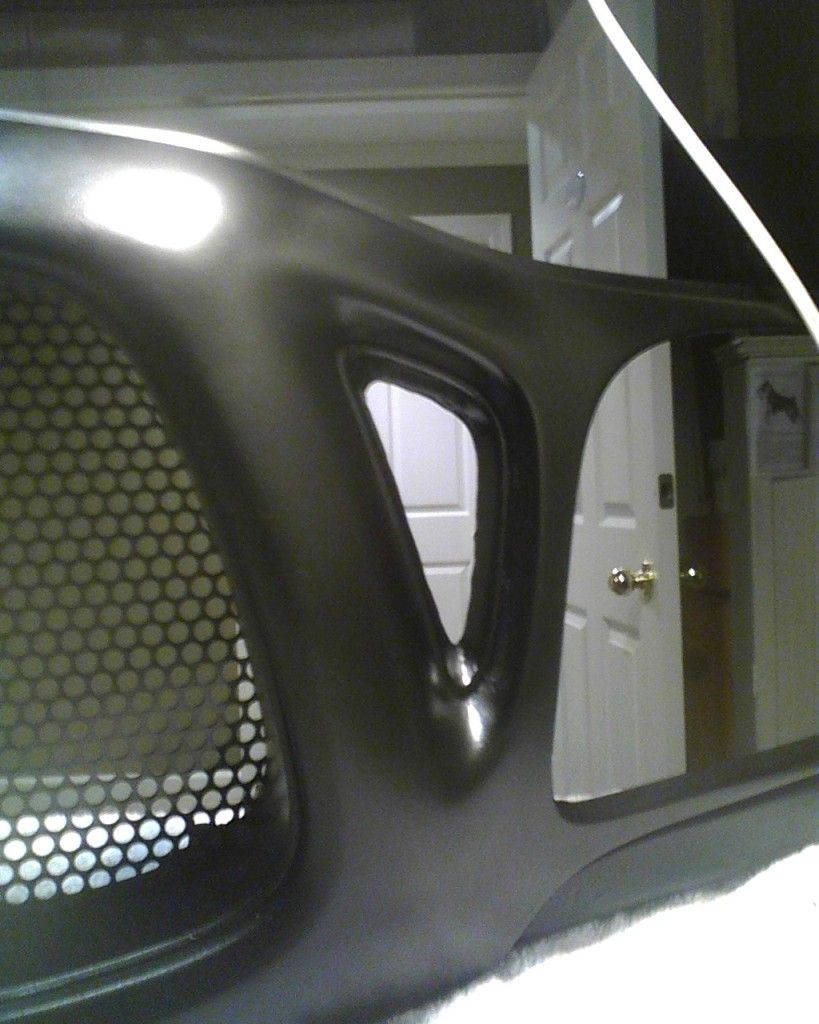

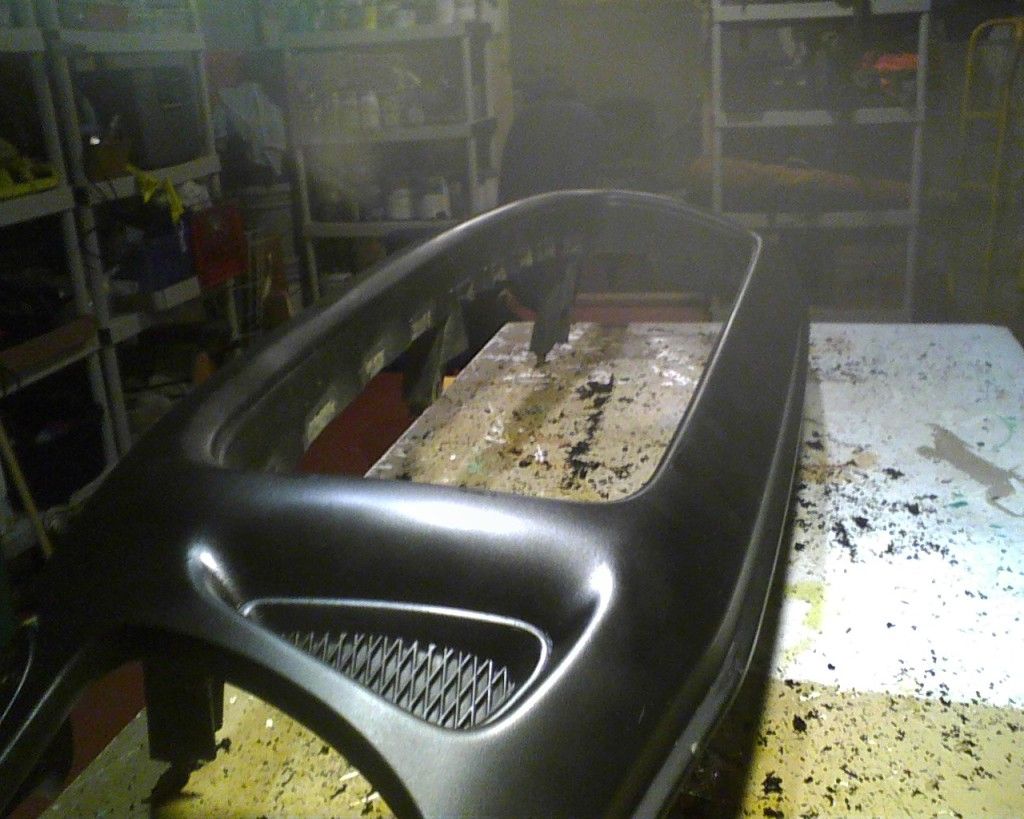

Then spray paint the triangle plastic inserts to match the grill








CONTINUED........ NEXT POST








  Reply With Quote
Old 05-31-2012, 12:01 AM   #2
"Change is inevitable, but growth is optional."
tacomarotto is one of the sharper tools in the shedtacomarotto is one of the sharper tools in the shedtacomarotto is one of the sharper tools in the shedtacomarotto is one of the sharper tools in the shedtacomarotto is one of the sharper tools in the shedtacomarotto is one of the sharper tools in the shedtacomarotto is one of the sharper tools in the shedtacomarotto is one of the sharper tools in the shedtacomarotto is one of the sharper tools in the shedtacomarotto is one of the sharper tools in the shedtacomarotto is one of the sharper tools in the shed

tacomarotto's Avatar
Name: Jon
Joined: Jan 2010, #30187
Location: New Orleans, LA
Age: 23
Gender: Male
Posts: 4,030
tacomarotto's Tacoma Gallery
Step 6:MESH Application






Supplies:



Drill = to make holes in the grill to install zip ties and also make holes for the three screws to secure the mesh

Screwdriver = To screw in the screws that secure the grill at the bottom

3 small plastic screws = to secure the grill at the tower points at the bottom

Zip Ties = secure the mesh in various areas









Once your mesh is dry, prepare the grill to install the mesh. drill holes in the plastic where you will zip-tie as follows


















Screw the Grill into place at the three areas shown












you can make holes for zip ties where ever you see fit! i added a lot of holes. I wanted my grill to be VERY SNUG















ALMOST DONE! hang in there. almost time for a ice cold beer











Now to get the triangle mesh to cover these holes (remember the triangles are a optional step)

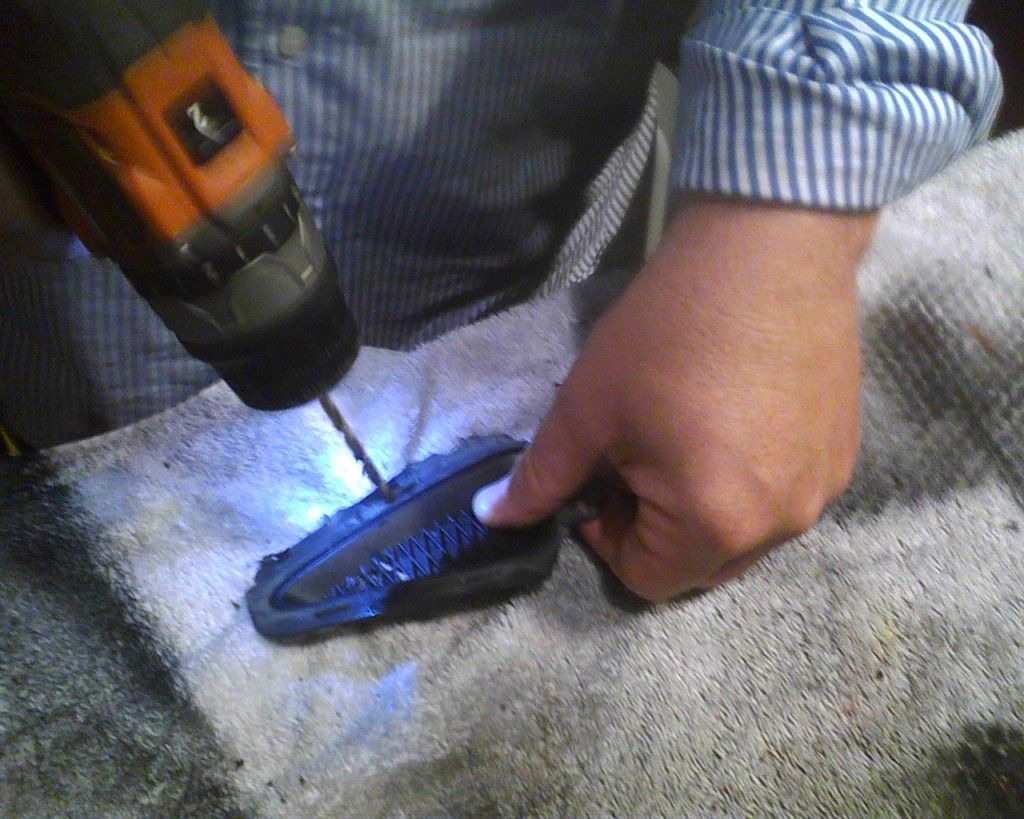

Drill around the triangle area small holes to anchor it down with zip ties.

I drilled 4 holes in areas i saw fit.







thread the zipties through the mesh then through the hole. do not tighten the ziptie until you have all the others threaded as well










tighten the zip ties alternately so one does not take all the pressure. distribute the pressure evenly.

cut the excess and there you have it!








DONE!!!

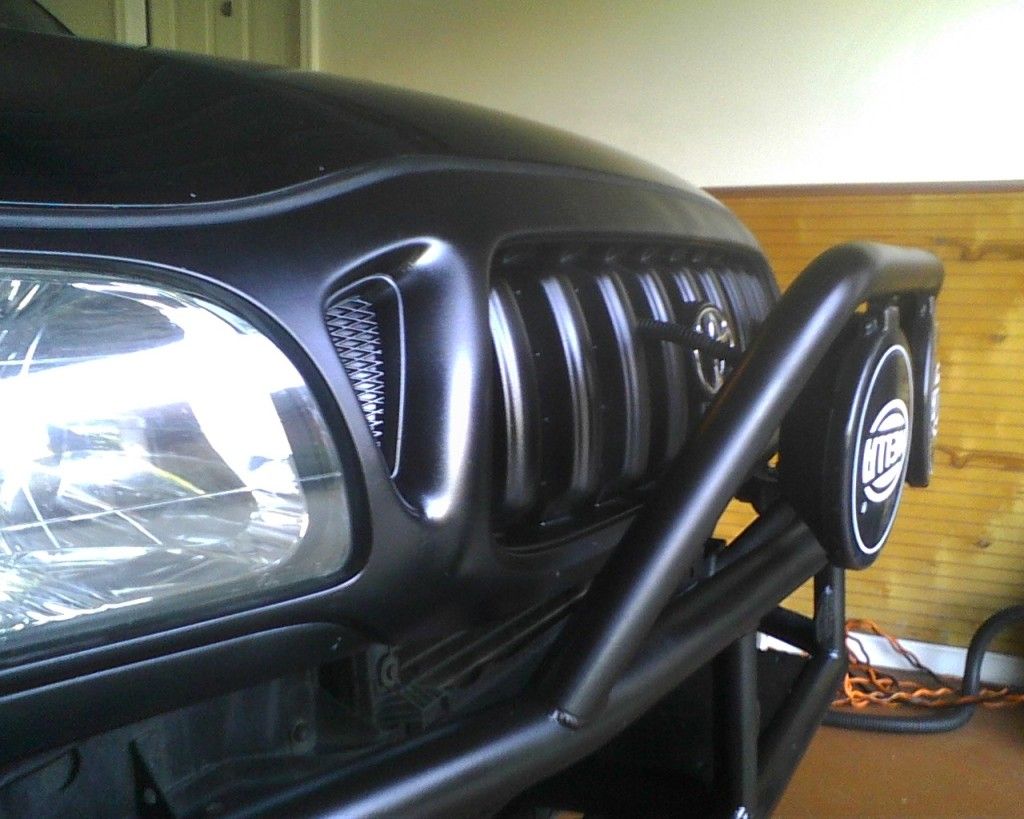

put your satoshi grill on your truck!
