Sold axle swap '14 TRD Sport on 40's, Chevy 63", Adventures, picture heavy

Current




Frame height - 24.75” below drivers door handle.

Suspension:
Dana 60
2.5x14" short body Kings
Artec high steer
Artec low profile truss
3 link
Chevy 63" rear Ruff Stuff Swap 5" shackles
ProComp 3.5 Inch Rear Leaf Spring - 13211
Bilstein 5125 14"
'93 F350 shock towers
Traction bar

Wheels and Tires:
17x9 Pro Comp Vapor Pro 2 Beadlocks
40x13.5 Mickey Thompson Baja Boss M/T
Cab relocation

Armor:
Plate Front Bumper
Plate Rear Bumper
DIY hybrid sliders w/ kick out
Ballistic Fabrication Dana 60 Shave kit

Lighting:
2x40W pods

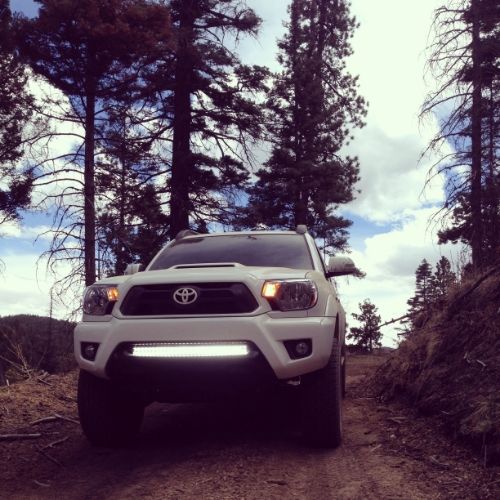

EvolvedMS 31.5" Slim LED Light bar
LED Headlight retrofit w/ RGB halos
Black & white color matched tail lights
LED interior lights

Gear:
Bed rack
EvolvedMS EMRTT Atlas roof top tent

Recovery:
12K winch
54" Smittybilt Trail jack
20' Smittybilt recovery strap
Axe
Shovel

Mechanical:
ECGS 4.88's
Spartan locker
Warn locking hubs
Thrush muffler, over axle turn down

Electrical:
Kicker 6.5x9 & 6x6 speakers
Kicker 10" Sub
Kicker amps 2,000w total

Cosmetic:
OEM roof rack
5% Tint/20% up front

Miscellaneous:
Locking bed storage doors
Rear frame reinforcement & plate

Next Additions
Secondary Stand Alone Fuse Block
______________________________________
SAS Parts list. This is just to keep track of parts and prices I've paid including shipping.

2000 Ford F350 DRW Dana 60 front axle - $750.00
Ballistic Fabrication Dana 60 Shave kit - $217.55
Ballistic Fabrication Wheel Adapters 8 x 170 to 8 x 6.5 in - $153.60
Rough Stuff 3 Link Kit w/ 1.25" Heims - $544.38
Rough Stuff 120" DOM 1.5"x.25"wall - $131.51
ARTEC low profile truss - $286.28
ARTEC top link mount for truss - $36.28
ARTEC crossover weld-on high steer - $236.28
ARTEC Coilover truss shock tabs - $23.28
ARTEC raised trackbar, lower mount - 59.99
ARTEC narrow misalignment spacers(4 pairs)(Steering) - $51.96
ARTEC 7/8" Rod End(x4)(Steering) - $110.36
ARTEC 7/8" Jam Nuts(x4)(Steering)- $8.06
ARTEC 7/8" Tube Adapter(x4)(Steering)- $47.07
CCIYU front lower and upper ball joints - $33.29
Trail Toys Master Cylinder kit - $95.00
2020 OEM Toyota Tundra 5.7L Booster - $125.00
OEM Toyota ’90-95 4Runner 4x4 power steering gear box - $120.89
Sky’s off-road flat pitman arm3/4 bore - $158.24
Front Range Off-road crossmember - $280.72 (SAVE YOUR MONEY)
KING 2.5x14", remote res, dual rate, short body(x2) - $1,630.00
Rotors/Caliper/pads - $231.44
Brake dust shield - $41.70
Wheel hubs & bearing Assy - $126.53
150 feet Copper Nickel brake lines(3/16") - $86.70
Summit 36” Telescoping collapsible steering shaft SKU#450036 - $78.40
Summit 3/4DDx11/16 - 36 spline u-joint ( 014925 ) - $79.03
Summit 11/16-36 spline x 1”DD u-joint (015225 ) - $79.03
Ruff Stuff 3 Link TUBE(48”ea) & Panhard bar (54”) - $237.58
Ruff Stuff 12” Shock Tower, 2” deep(pair) - $104.51
WFO Toyota IFS Box mount - $56.10
WFO Front frame plate - $149.72
Wits’ End M17 to -6 AN. Adapter - $19.42
Ruff Stuff 7/8" to 3/4" Safety Misalignment X4 - $60.75
1" to 3/4" Stainless Misalignment X12 - $131.40
Tri-Flow Superior Lubricant Bottle - $11.90
2.5” Remote reservoir shock tie down pack - $15.95
NAPA caliper brackets - $76.78
NAPA Caliper bolt kit - $18.98
Brake line tabs - $13.20
Dorman M390426 Dodge master cylinder - $44.45
ECGS axle seal kit - 138.38
Spartan Locker - $350.00
Yukon 4.88 Gears and master install kit - $438.00
Borgrson 700010 firewall flange - $28.78
Tom Woods Front drive shaft - $479.00
FJ transfer case - $350.00
Front Range Offroad twin stick - $242.74
PSC hydro assist kit - $407.77
Pro Comp 75 series 8x6.5, QTY 2 - $876.58
Pro Comp 3.5" lift 63's - $381.41
Misc + ~$2,057.16
_ _ _
Total- $12,271.49

____________________________________
‘05 F250 sterling rear axle - $155.99
Artec apex truss - $136.34
Ballistic shave kit - $544.72
Ballistic spring perch - $62.04


____________________________________

Here's my 2014 TRD Sport, Adding more bit by bit and will keep adding pictures.

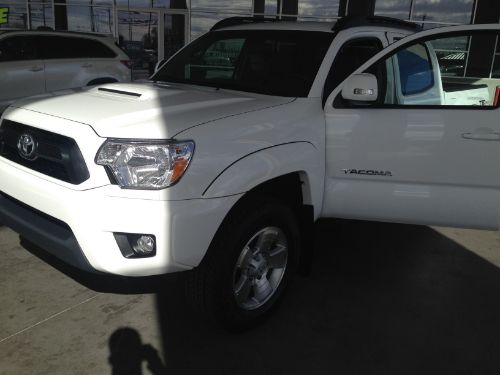

Pick Up

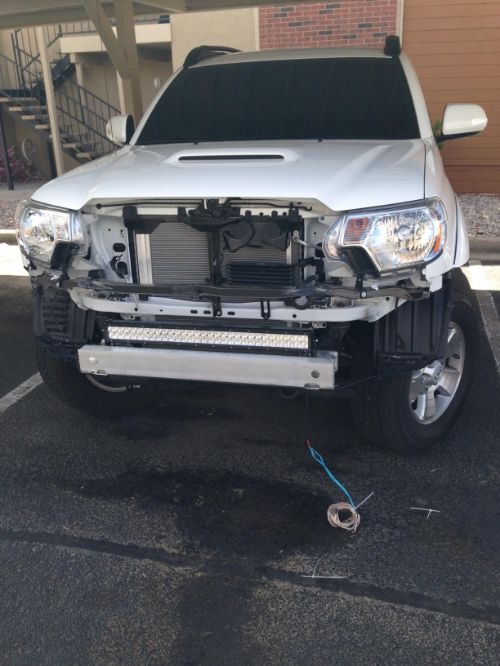

and it begins.



Nice start, lights look sweet!



I'm really digging that white headlight mod. nice twist on it. very unique



Lookin good to start!



Ya, great start already!



Thank you guys, its been a slow year as far as mods. I'm hoping to get a LT on it but I've been waiting for a particular person to come out with a 4wd kit. Hopefully this summer.



New look for my headlights, LED retrofit and angel eyes.



Just saw your LED headlights. What vehicle are those LEDs from?



Jeep, 7"



those retros are epic! i want! (oh and the hood to) haha



Nice, Im in Rio Rancho, NM be cool to meet some people and hit some trails.



a few people are meeting up this weekend… https://www.tacomaworld.com/threads/new-mexico-owners-bs-thread.32579/page-1393#post-10610939

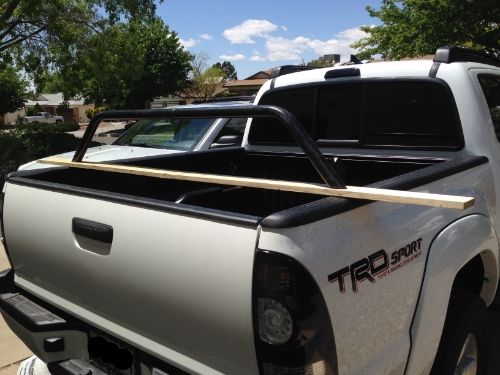

(Started cutting the bed.) I need some opinions, should I re design a little and take the bumper to the tire or do a standard bumper?



Couple new shots, slowly getting things checked of the list as I get time off.



So I've been slacking adding pictures so here are couple random ones throughout





















FXR on left and LED on right



A few from Moab and Colorado.







Canyon Lands









Arches National Park











Random





Colorado, which was a nice change from Moab heat











Sneak peak to what came in right after our trip unfortunately



I got bored so I built a new bed rack.



Took a trip to SW Colorado.

Second day of the trip on a trail off Alpine Loop we were going through a snow pass and the truck slide off the road luckily I was able to keep the front tires on the road. We ended up not being able to get back past the snow so being that it was already a little late we set up camp at near 13,000 feet so i could start shoveling in the morning, first picture is our camp that night.



After shoveling snow for a few hours we got out and on with our trip.















Stopped in Silverton, CO to take a little tour of the old 100 gold mine.



Decided the truck had enough of a beating and wanted to fish a little.



haven't post any in a while.



do/did you have a white cage? I thought I was the only one!
