Homemade tonneau cover (pics and how-to)

Well, I am planning an off road adventure, and need to keep my gear dry. I really like how the bakflip G2 tonneau cover looks and works, but I don't want to spend the $700+ on it. So, I decided I could create my own that would work until I can afford it... Here it is... I used 1" ridged foam board reinforced with 1" aluminum channel. The whole project cost around $100 and took about 5 hours (not counting the 5 trips to the hardware store). I included a write-up in case anyone is interested in how I did it...

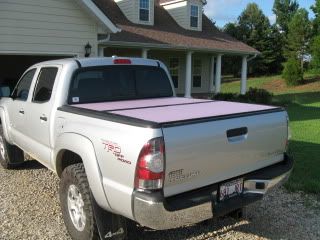

Before and After:


Cut the pieces 57 1/8" x 30 3/4":

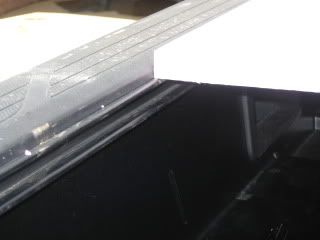

This will allow them to rest inside the bed cap on the rails:


Trace around the funky bed shape and cut with a razor blade:


As you can see, it needs to be reinforced:

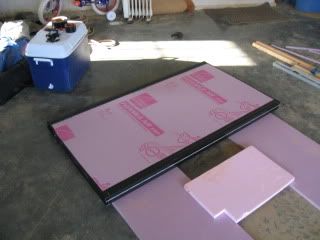

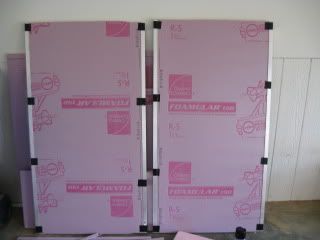

Glue on 1" aluminum channel with foam board adhesive.
Tape is to temporarily hold it while it dries:

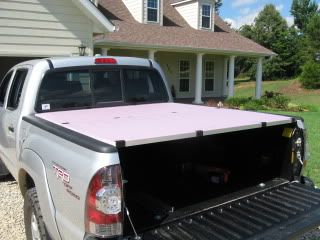

Test fit:

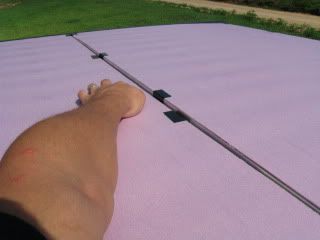

It is now much sturdier:

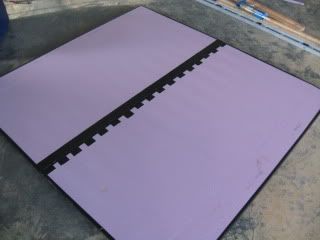

To make it hinge lay the pieces next to each other and
use gorilla tape (or other strong tape) to make the hinge:


Fold the cover over and tape the other side of the hinge:

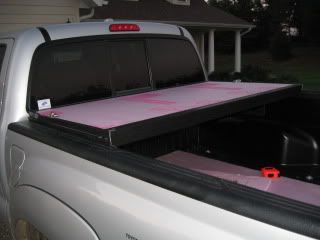

Test Fit then add hardware:

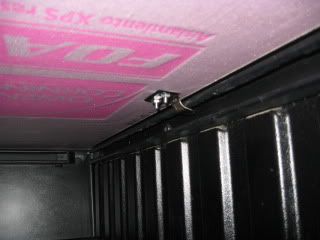

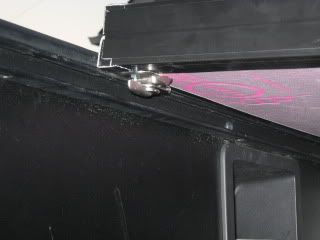

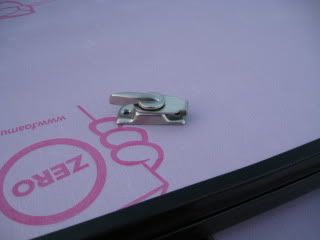

I used 4 of these to latch it down to the rails:


And 2 of these to secure it at the front of the bed.
On the left is the original and on the right is how I modified it:

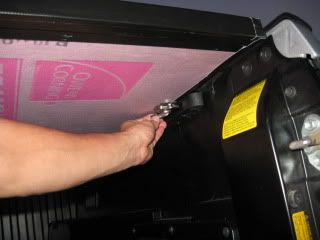

Set it in place to determine where to mount.
I had to get 1 1/2" screws and fender washers to mount:

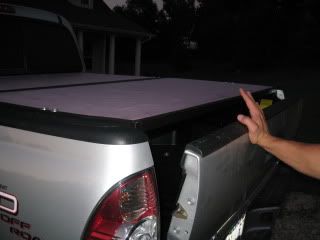

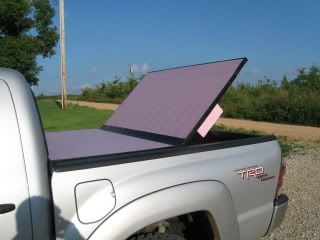

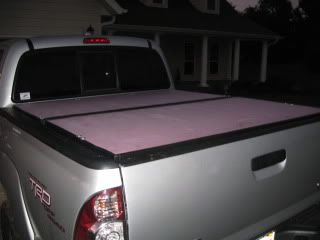

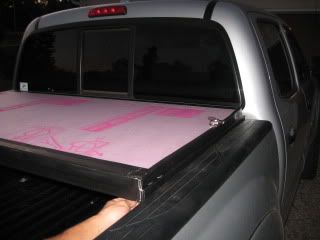

Try it out:

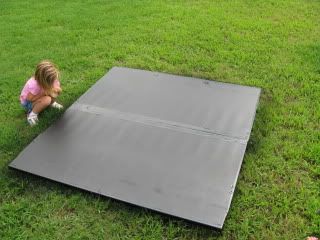

Paint it black (use paint that will not melt the foam!):


Add weather stripping and you're done!:



EDIT:

Okay! It has been several weeks, and over 3000 miles since I've made this thing... It is time for a review...

First off, this was meant to be a temporary cover used only for camping or other needs, not for everyday use, but, I must say that it would probably be fine with everyday use. Having said that, all this thing did is make me want to buy the bakflip cover even more... I will probably do that next spring when I get my tax return money.

I will start by listing the good:
1. While it is not 100% water tight, it did keep my gear dry in HEAVY rains. I put a 5x7 tarp down in my bed and placed my gear on top of that so any water that did get in would run down the sides of the bed and under the tarp.
2. It looks good! I am actually shocked at how well it turned out!
3. It is VERY easy to put on and take off... Only about 30 seconds to remove or install!
4. There is a lot of satisfaction in knowing you made it yourself... (I'm sure there are more good things, but that is all I can think of for now)

Now for the bad (not really that bad, just things I wish I would have done sooner or different):
1. When I first made it, the heat made the tape start to come unglued... I went to Lowes and bought some special glue that is weatherproof and works on foam (see pictures following this review) I put a small bead of glue at the seams of the tape and it has held it down great since (over 2500 miles with the glue).
2. After I got the glue on there I had to paint it... I wish I had gone with the Krylon H2O black paint for the 2nd coat also, (that paint worked and looked great on the foam). But, instead I let the salesman talk me into a different flat black paint... It was supposed to be good on the foam, but it ended up causing the foam to melt SLIGHTLY in some places... It really isn't bad, but just a regret that I have. NOTE: I RECOMEND USING KRYLON H2O SPRAY PAINT!!!
3. The last foot of the foam was not supported since the bed rails don't extend all the way to the tailgate, and I noticed the back would move up and down when driving at high speeds. I used some leftover aluminum channel to make supports for it near the tailgate (see pictures).

Final Thoughts...
Overall I am very happy with it and would do it again. If I wanted it to be more permanent I would probably wrap all 4 sides in the aluminum channel, not just the long sides. Several people have recommended various covers for the foam, but I like the way the foam looks. I looked into covering it with vinyl and had a hard time finding pieces that were big enough to cover the whole thing with one piece... I found one site that has the marine grade vinyl large enough to do this....
http://www.seattlefabrics.com/vinyl.html

People have recommended using different materials also, such as wood or plastic, or metal, but the reason I chose the foam is because it is VERY easy to work with and shape. I would definitely use the foam again.

I am looking forward to seeing any pictures if anyone else has tried this... I'm sure others will modify it to their liking...

Now for the pictures:

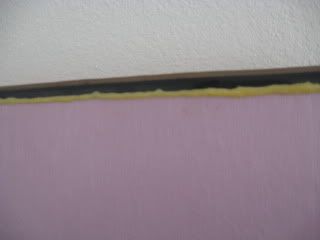

This is the glue I used where the tape meets the foam. The cover is a little dirty, but you will get the idea:

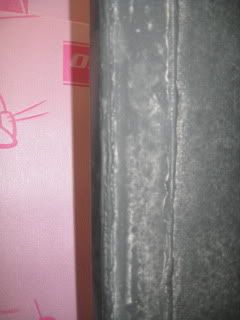

Here is the support I made for the last foot. I taped the top of the angle so there won't be any sharp edges, and I used the bolts that are already in the truck to hold them:


As stated earlier, I have had this thing on for over 3000 miles with no problems. The only time I was concerned about it is when we were driving through a storm that had very strong gusts of wind coming at the truck from the side... But It held up good. I drove across the country from Arkansas to Colorado and back without any problems... Here is a link to another post I made with pictures from the trip (note the tonneau cover).
http://www.tacomaworld.com/forum/off...-pictures.html
  Reply With Quote
Old 07-15-2010, 11:31 AM   #2
Senior Member
whitebread is one of the sharper tools in the shedwhitebread is one of the sharper tools in the shedwhitebread is one of the sharper tools in the shedwhitebread is one of the sharper tools in the shedwhitebread is one of the sharper tools in the shedwhitebread is one of the sharper tools in the shedwhitebread is one of the sharper tools in the shedwhitebread is one of the sharper tools in the shedwhitebread is one of the sharper tools in the shedwhitebread is one of the sharper tools in the shedwhitebread is one of the sharper tools in the shed

whitebread's Avatar
Name: Chris
Joined: Jan 2009, #12489
Location: Raleigh, NC
Age: 32
Gender: Male
Posts: 828
whitebread's Tacoma Gallery
Great job!
  Reply With Quote
Old 07-15-2010, 11:31 AM   #3
Banned
ShaShasBoo is one of the sharper tools in the shedShaShasBoo is one of the sharper tools in the shedShaShasBoo is one of the sharper tools in the shedShaShasBoo is one of the sharper tools in the shedShaShasBoo is one of the sharper tools in the shedShaShasBoo is one of the sharper tools in the shedShaShasBoo is one of the sharper tools in the shedShaShasBoo is one of the sharper tools in the shedShaShasBoo is one of the sharper tools in the shedShaShasBoo is one of the sharper tools in the shedShaShasBoo is one of the sharper tools in the shed
Army: Forward Observer
Name: Casey
Joined: Feb 2010, #30953
Location: Lexington, KY
Age: 34
Gender: Male
Posts: 192
ShaShasBoo's Tacoma Gallery
Damn. Looks good.
  Reply With Quote
Old 07-15-2010, 11:32 AM   #4
Senior Member
Snowmang is a splendid one to beholdSnowmang is a splendid one to beholdSnowmang is a splendid one to beholdSnowmang is a splendid one to beholdSnowmang is a splendid one to beholdSnowmang is a splendid one to beholdSnowmang is a splendid one to behold

Snowmang's Avatar
Name: Jacob
Joined: Nov 2009, #26488
Gender: Male
Posts: 302
Snowmang's Tacoma Gallery
good job mang!
  Reply With Quote
Old 07-15-2010, 11:48 AM   #5
Senior Member
cmack cmack cmack cmack cmack cmack cmack cmack cmack cmack cmack
Joined: Jun 2009, #18119
Gender: Male
Posts: 3,506
cmack's Tacoma Gallery
Awesome idea!
  Reply With Quote
Old 07-15-2010, 12:03 PM   #6
Junior Member
toemoss is on a distinguished road

toemoss's Avatar
Army: E-4 Specialist 389th Eng BN C co
Name: Thomas
Joined: May 2010, #37367
Location: Iowa
Gender: Male
Posts: 21
toemoss's Tacoma Gallery
I know what I am trying this week
  Reply With Quote
Old 07-15-2010, 12:05 PM   #7
1st gen > 2nd gen
Rucas is one of the sharper tools in the shedRucas is one of the sharper tools in the shedRucas is one of the sharper tools in the shedRucas is one of the sharper tools in the shedRucas is one of the sharper tools in the shedRucas is one of the sharper tools in the shedRucas is one of the sharper tools in the shedRucas is one of the sharper tools in the shedRucas is one of the sharper tools in the shedRucas is one of the sharper tools in the shedRucas is one of the sharper tools in the shed

Rucas's Avatar
Name: Lucas
Joined: Dec 2009, #27040
Location: The Burning State.
Gender: Dude
Posts: 3,883
Rucas's Tacoma Gallery
ive been wondering if this was possible....now i just have to get a day free and a hundi bucks.
  Reply With Quote
Old 07-15-2010, 12:11 PM   #8
I've got so much soul in me that I'm barely alive.
Zombie Runner is one of the sharper tools in the shedZombie Runner is one of the sharper tools in the shedZombie Runner is one of the sharper tools in the shedZombie Runner is one of the sharper tools in the shedZombie Runner is one of the sharper tools in the shedZombie Runner is one of the sharper tools in the shedZombie Runner is one of the sharper tools in the shedZombie Runner is one of the sharper tools in the shedZombie Runner is one of the sharper tools in the shedZombie Runner is one of the sharper tools in the shedZombie Runner is one of the sharper tools in the shed

Zombie Runner's Avatar
Air Force: AMMO (2W0)
Name: Kevin
Joined: Mar 2008, #5246
Location: Wichita Falls, TX
Age: 28
Gender: Male
Posts: 14,919
Zombie Runner's Tacoma Gallery
wow, cheap, simple, effective. I like.
  Reply With Quote
Old 07-15-2010, 12:12 PM   #9
Senior Member
afd23a is one of the sharper tools in the shedafd23a is one of the sharper tools in the shedafd23a is one of the sharper tools in the shedafd23a is one of the sharper tools in the shedafd23a is one of the sharper tools in the shedafd23a is one of the sharper tools in the shedafd23a is one of the sharper tools in the shedafd23a is one of the sharper tools in the shedafd23a is one of the sharper tools in the shedafd23a is one of the sharper tools in the shedafd23a is one of the sharper tools in the shed

afd23a's Avatar
Joined: Sep 2008, #9483
Location: The Dynamo of Dixie
Gender: Male
Posts: 1,798
afd23a's Tacoma Gallery
Nice work. Maybe this should go in the cheap/free mods.
  Reply With Quote
Old 07-15-2010, 12:15 PM   #10
SoCal Tacomas
Jerez is one of the sharper tools in the shedJerez is one of the sharper tools in the shedJerez is one of the sharper tools in the shedJerez is one of the sharper tools in the shedJerez is one of the sharper tools in the shedJerez is one of the sharper tools in the shedJerez is one of the sharper tools in the shedJerez is one of the sharper tools in the shedJerez is one of the sharper tools in the shedJerez is one of the sharper tools in the shedJerez is one of the sharper tools in the shed

Jerez's Avatar
Name: Roderick
Joined: Feb 2010, #30488
Location: Ontario/Chino Area (CALI)
Gender: Male
Posts: 14,693
Jerez's Tacoma Gallery
thats flippen awesome.
never thought about that.
  Reply With Quote
Old 07-15-2010, 12:17 PM   #12
Senior Member
Dr. Pepper is a splendid one to beholdDr. Pepper is a splendid one to beholdDr. Pepper is a splendid one to beholdDr. Pepper is a splendid one to beholdDr. Pepper is a splendid one to beholdDr. Pepper is a splendid one to behold

Dr. Pepper's Avatar
Name: Matt
Joined: Jan 2010, #28720
Location: Tampa, Florida
Age: 23
Gender: Dude
Posts: 660
Dr. Pepper's Tacoma Gallery
Thats cool man, great job..looks good!
  Reply With Quote
Old 07-15-2010, 12:52 PM   #14
Machine gun shits
paintdiddy is one of the sharper tools in the shedpaintdiddy is one of the sharper tools in the shedpaintdiddy is one of the sharper tools in the shedpaintdiddy is one of the sharper tools in the shedpaintdiddy is one of the sharper tools in the shedpaintdiddy is one of the sharper tools in the shedpaintdiddy is one of the sharper tools in the shedpaintdiddy is one of the sharper tools in the shedpaintdiddy is one of the sharper tools in the shedpaintdiddy is one of the sharper tools in the shedpaintdiddy is one of the sharper tools in the shed

paintdiddy's Avatar
Name: shithead
Joined: Oct 2008, #9924
Location: nj and not from "the jersey shore"
Gender: Male
Posts: 10,357
paintdiddy's Tacoma Gallery
pretty neat job
  Reply With Quote
Old 07-15-2010, 12:54 PM   #15
Join the NRA! Protect your freedom!
NraFan is one of the sharper tools in the shedNraFan is one of the sharper tools in the shedNraFan is one of the sharper tools in the shedNraFan is one of the sharper tools in the shedNraFan is one of the sharper tools in the shedNraFan is one of the sharper tools in the shedNraFan is one of the sharper tools in the shedNraFan is one of the sharper tools in the shedNraFan is one of the sharper tools in the shedNraFan is one of the sharper tools in the shedNraFan is one of the sharper tools in the shed

NraFan's Avatar
Name: JT
Joined: Sep 2009, #22703
Location: SoCal
Age: 32
Gender: Male
Posts: 1,580
NraFan's Tacoma Gallery
Not too bad. Let us know how that foam holds up at highway speeds!
  Reply With Quote
Old 07-15-2010, 12:56 PM   #16
Senior Member
iSTIZO99 is one of the sharper tools in the shediSTIZO99 is one of the sharper tools in the shediSTIZO99 is one of the sharper tools in the shediSTIZO99 is one of the sharper tools in the shediSTIZO99 is one of the sharper tools in the shediSTIZO99 is one of the sharper tools in the shediSTIZO99 is one of the sharper tools in the shediSTIZO99 is one of the sharper tools in the shediSTIZO99 is one of the sharper tools in the shediSTIZO99 is one of the sharper tools in the shediSTIZO99 is one of the sharper tools in the shed

iSTIZO99's Avatar
Name: Mike
Joined: Jun 2010, #38297
Location: Jax, FL
Gender: Male
Posts: 1,802
iSTIZO99's Tacoma Gallery
Props on the workmanship! Thanks for the write up.
  Reply With Quote
Old 07-15-2010, 12:56 PM   #17
DizzyZ [OP] DizzyZ is offline
Senior Member
DizzyZ has a brilliant futureDizzyZ has a brilliant futureDizzyZ has a brilliant futureDizzyZ has a brilliant futureDizzyZ has a brilliant futureDizzyZ has a brilliant futureDizzyZ has a brilliant futureDizzyZ has a brilliant futureDizzyZ has a brilliant futureDizzyZ has a brilliant futureDizzyZ has a brilliant future
Navy:
Name: Dennis
Joined: Jun 2010, #39284
Location: Paragould, AR
Age: 33
Gender: Male
Posts: 107
DizzyZ's Tacoma Gallery
Quote:
Originally Posted by NraFan View Post
Not too bad. Let us know how that foam holds up at highway speeds!
Yeah! That is the only thing I'm worried about, but it is pretty sturdy... I've had it up to 60mph without any problems... Those latches hold it down pretty tight, and the aluminum channel keeps it pretty rigid.
  Reply With Quote
Old 07-15-2010, 12:58 PM   #18
Join the NRA! Protect your freedom!
NraFan is one of the sharper tools in the shedNraFan is one of the sharper tools in the shedNraFan is one of the sharper tools in the shedNraFan is one of the sharper tools in the shedNraFan is one of the sharper tools in the shedNraFan is one of the sharper tools in the shedNraFan is one of the sharper tools in the shedNraFan is one of the sharper tools in the shedNraFan is one of the sharper tools in the shedNraFan is one of the sharper tools in the shedNraFan is one of the sharper tools in the shed

NraFan's Avatar
Name: JT
Joined: Sep 2009, #22703
Location: SoCal
Age: 32
Gender: Male
Posts: 1,580
NraFan's Tacoma Gallery
Quote:
Originally Posted by DizzyZ View Post
Yeah! That is the only thing I'm worried about, but it is pretty sturdy... I've had it up to 60mph without any problems... Those latches hold it down pretty tight, and the aluminum channel keeps it pretty rigid.
Thats good. I hope it lasts. Pretty good idea and nice job!
  Reply With Quote
Old 07-15-2010, 01:01 PM   #19
DizzyZ [OP] DizzyZ is offline
Senior Member
DizzyZ has a brilliant futureDizzyZ has a brilliant futureDizzyZ has a brilliant futureDizzyZ has a brilliant futureDizzyZ has a brilliant futureDizzyZ has a brilliant futureDizzyZ has a brilliant futureDizzyZ has a brilliant futureDizzyZ has a brilliant futureDizzyZ has a brilliant futureDizzyZ has a brilliant future
Navy:
Name: Dennis
Joined: Jun 2010, #39284
Location: Paragould, AR
Age: 33
Gender: Male
Posts: 107
DizzyZ's Tacoma Gallery
I'll be taking it on a trip from Arkansas to Colorado and back in the first week of August... I'll let you know how it performs when I get back.
  Reply With Quote
Old 07-15-2010, 01:04 PM   #20
Senior Member
Dimonback is one of the sharper tools in the shedDimonback is one of the sharper tools in the shedDimonback is one of the sharper tools in the shedDimonback is one of the sharper tools in the shedDimonback is one of the sharper tools in the shedDimonback is one of the sharper tools in the shedDimonback is one of the sharper tools in the shedDimonback is one of the sharper tools in the shedDimonback is one of the sharper tools in the shedDimonback is one of the sharper tools in the shedDimonback is one of the sharper tools in the shed
Name: Patrick
Joined: Mar 2010, #32964
Location: Austin, Tx, from all over hell and back
Gender: Male
Posts: 861
Dimonback's Tacoma Gallery
Nice job- why not get some vinyl at the fabric store and glue that on to make it more permanent? I'm sure you can find a color match as well...?
