Oil Catch Can Install Guide

Disclaimer: I am not responsible for any damage you may do to yourself or your engine/truck while following this guide.

Well don't know where to put this thread so into the 2nd gen section with everything else.

Anyways with some help from members i got my catch can in, but i didnt find an install guide so i thought id make one.

Here it is, dont be afraid to point something out. I'm no expert at this.

Tools Needed:
10mm socket
12mm socket
Philips Screw driver
Flat head Screw driver
Mounting Hardware
Oil Catch Can
2 Hose Clamps
5-10 Ft of 3/8 Fuel Line

UPDATE: Before you start make sure the catch can is air tight. Whether this means running caulking or whatever you want to do make sure it is air tight when assembled. If not your truck will start throwing codes and piss you off. Trust me I learned the hard way, after trying to figure out why my truck was running lean; small air leak in the oil catch can. Ran some Caulking and whammmo no more codes.

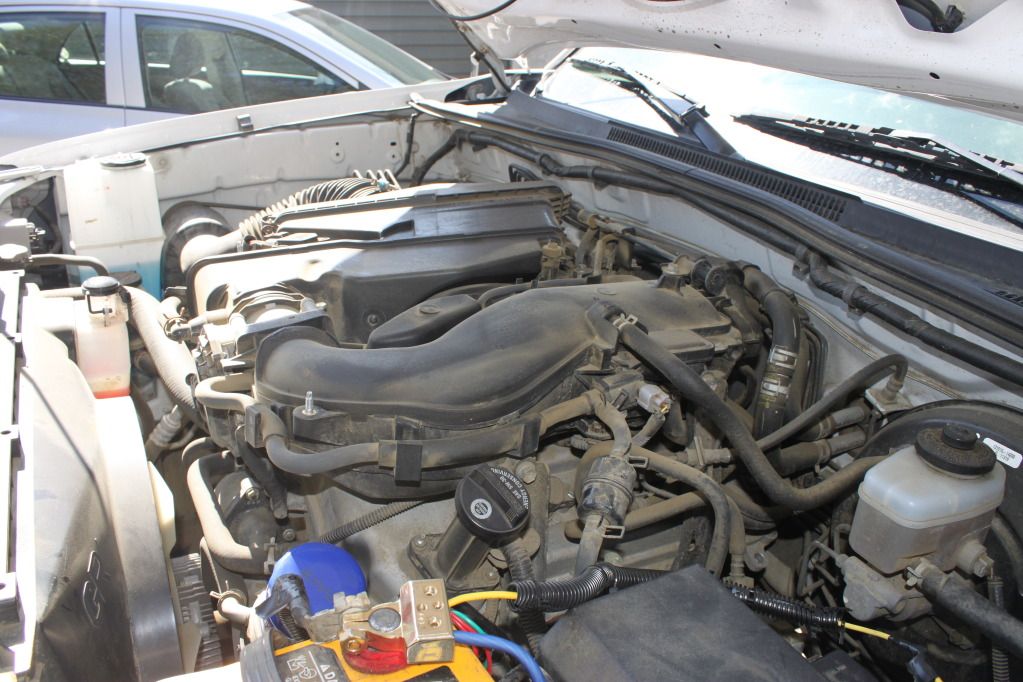

First Remove your engine cover. remove 2 10mm screws and pull off. This gives you a lot more room to work with the necessary lines.

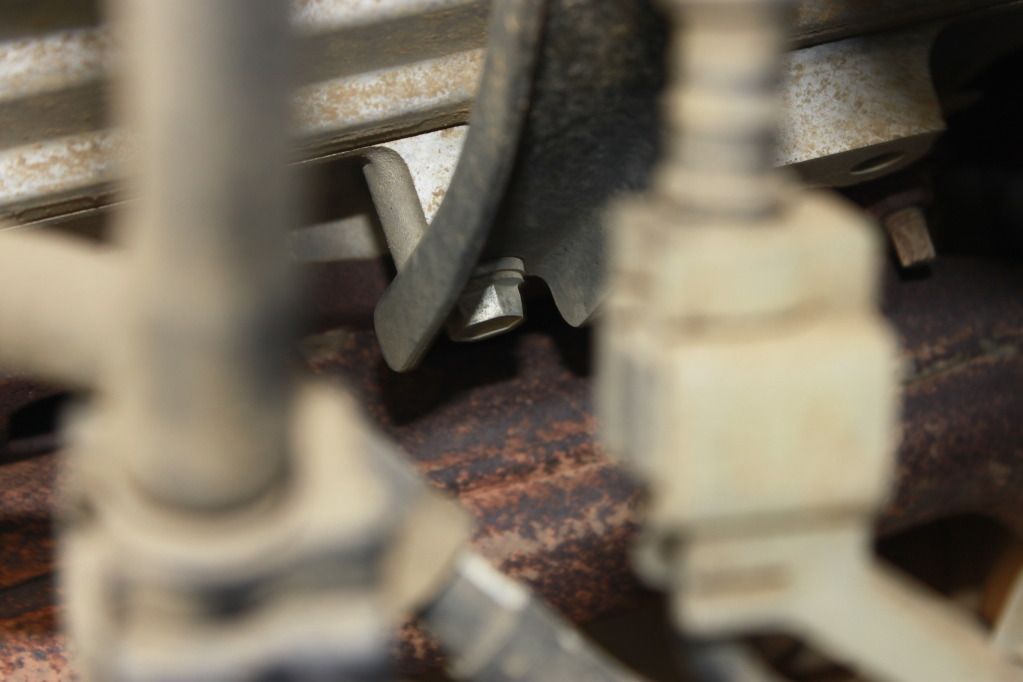

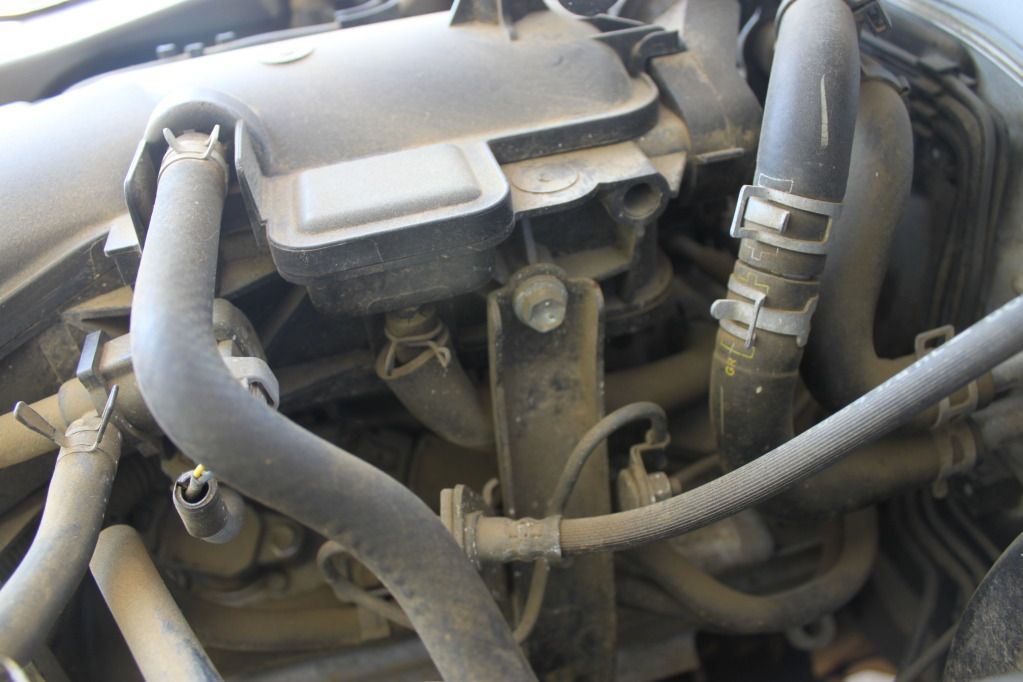

Then undue the bolts on the supporting beam. 2 12mm bolts. This once again gives you more room to work.

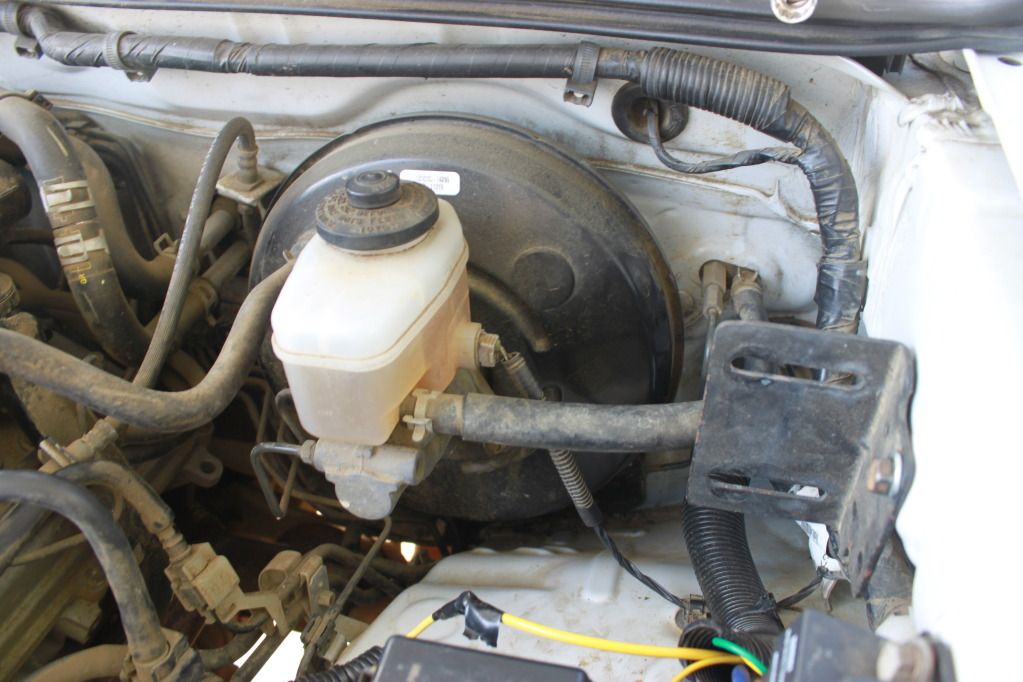

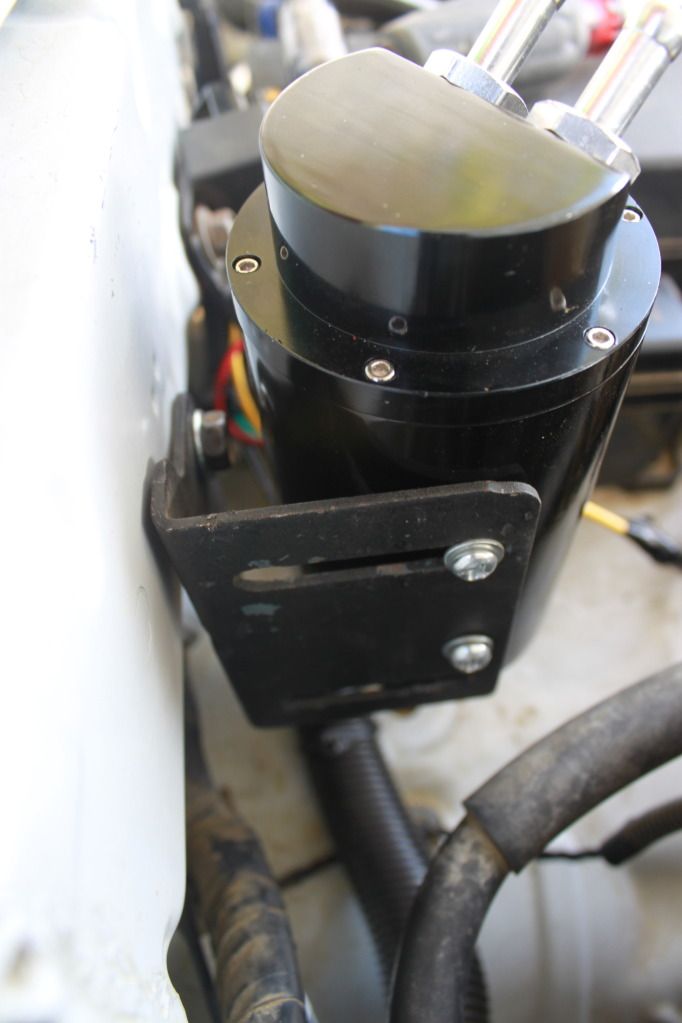

Find your desired location, and mount. I used an existing hole in the engine bay, and a homemade bracket.

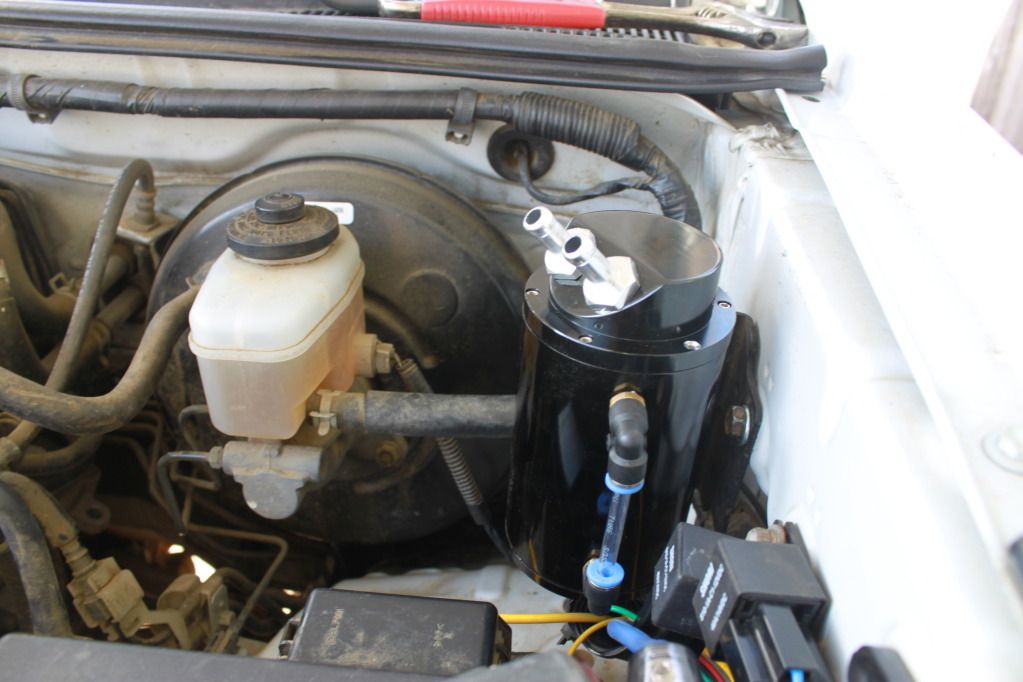

Then attach your Catch can to the mount.

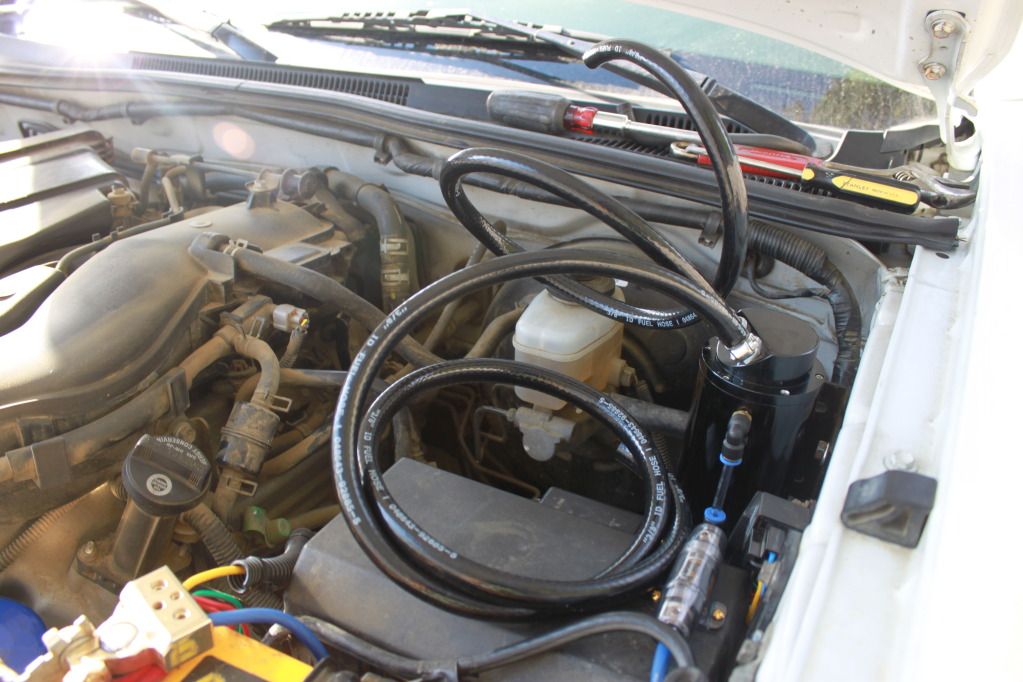

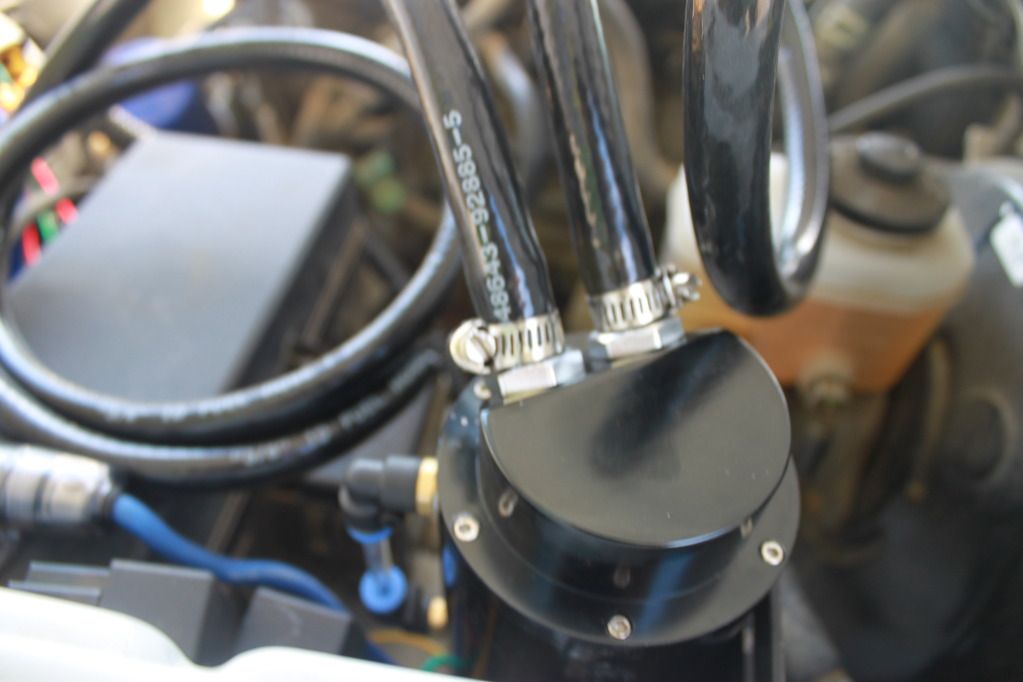

Attach the fuel lines to the catch can and tighten down with a flat head and a hose clamp.

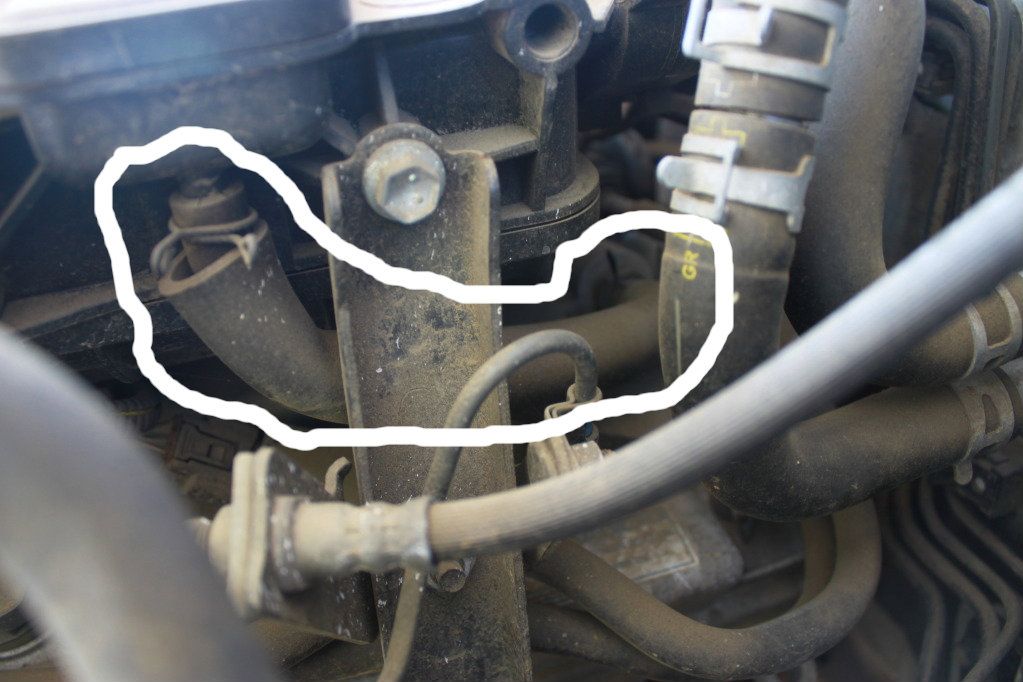

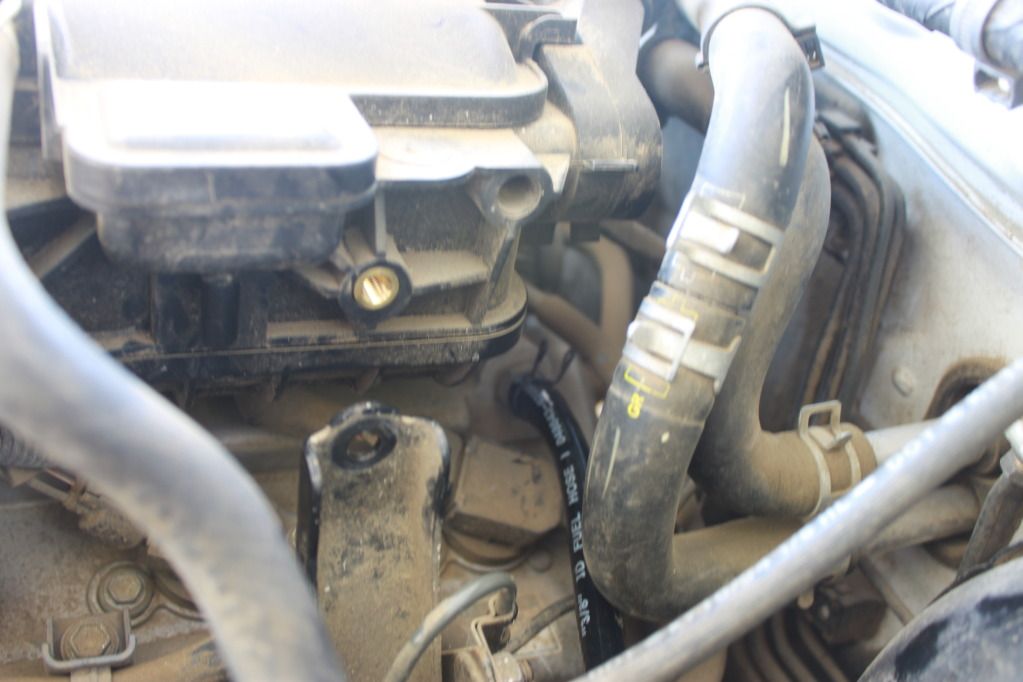

Remove the stock hose.

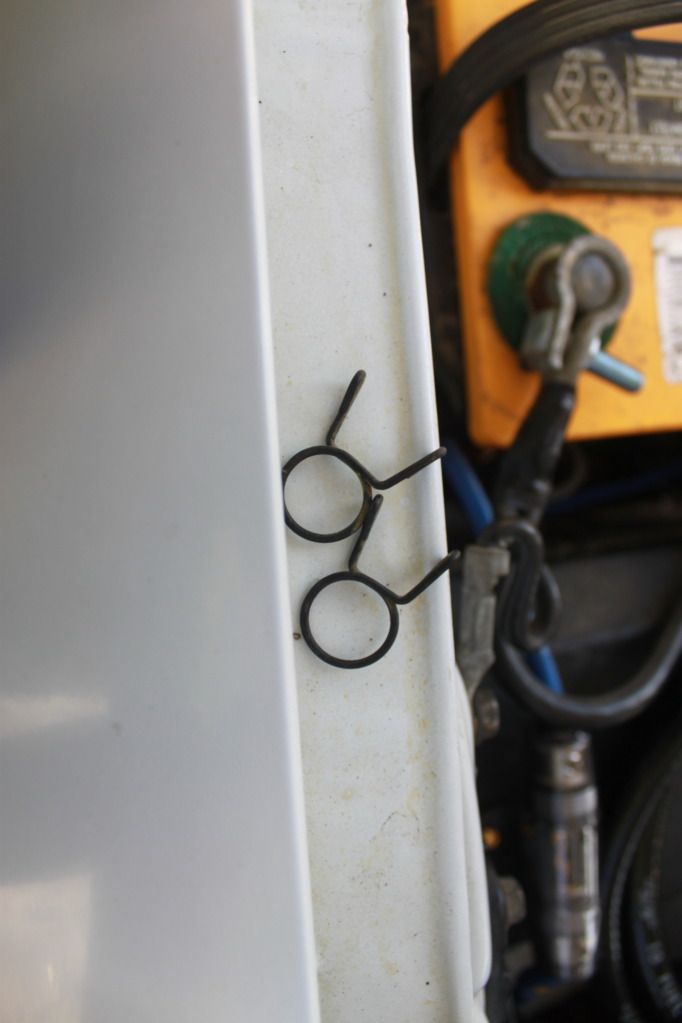

Grab the stock squeeze pins and slide them over the other end of the fuel hose.

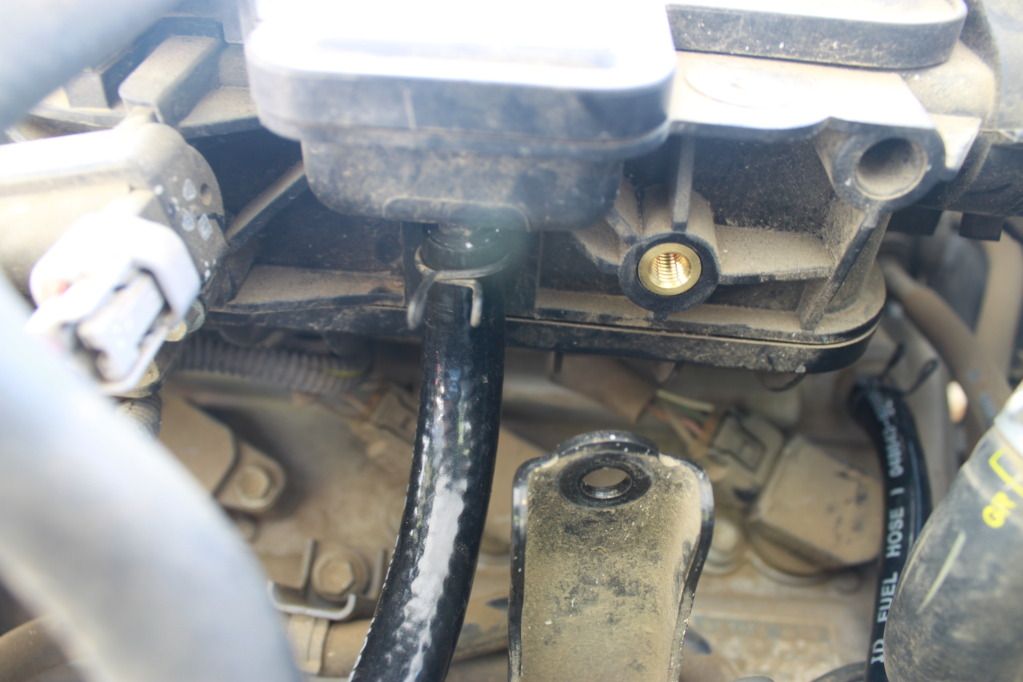

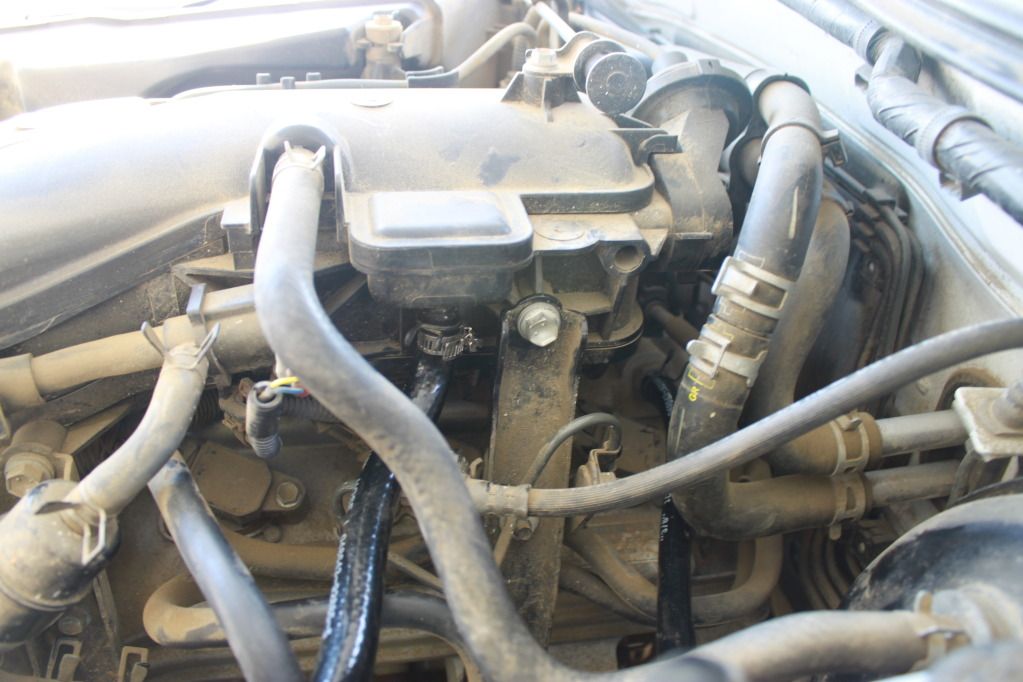

Attach one end of the fuel hose into the first location. Then squeeze the clip onto the hose.



Repeat the above step with the other end


Make sure the hoses are tight, then reattach the cross support with the 2 12mm bolts

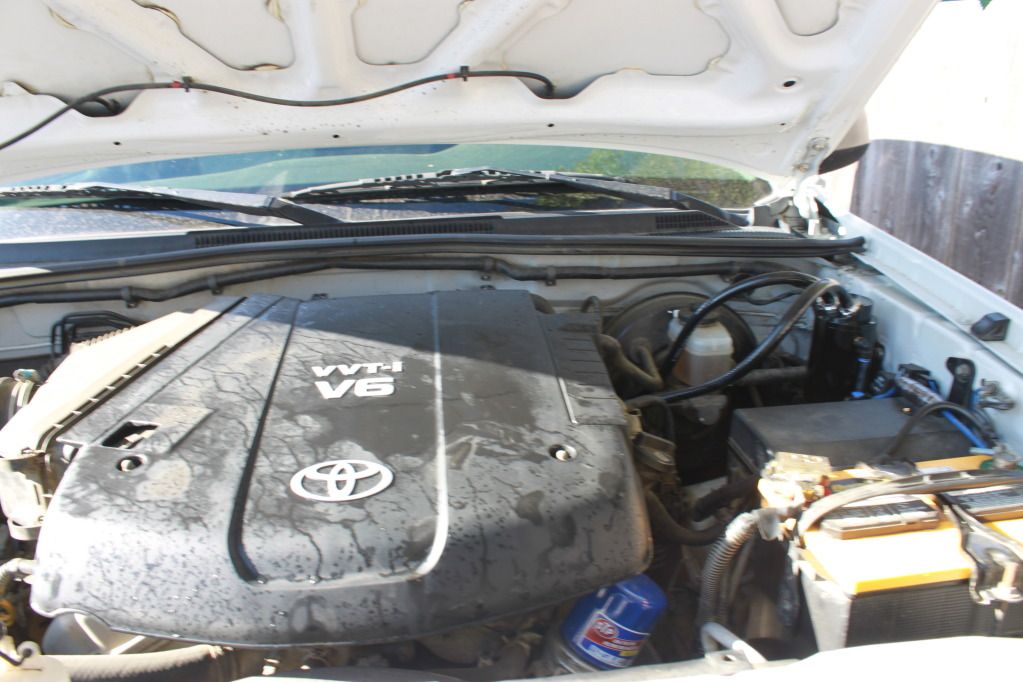

Reattach the engine cover with 2 10mm bolts.

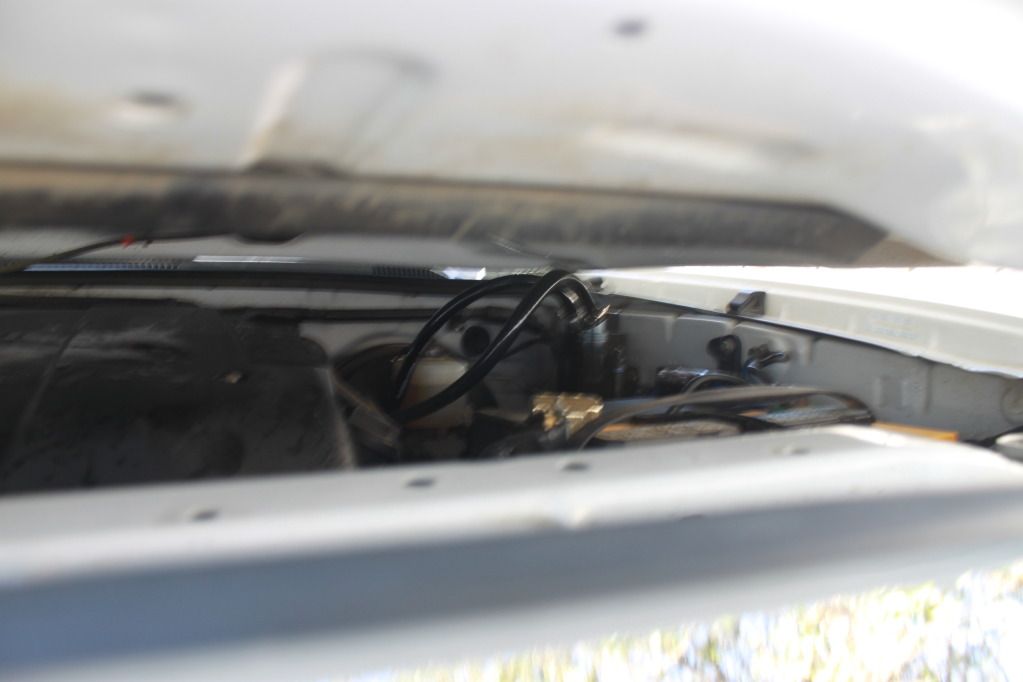

Slightly close the engine hood and make sure the hoses clear the hood.


Make sure all the tools are out of the engine bay, and then start the engine. Make sure everything works and go for a test drive.

And now you have successfully attached an oil catch can to your engine.

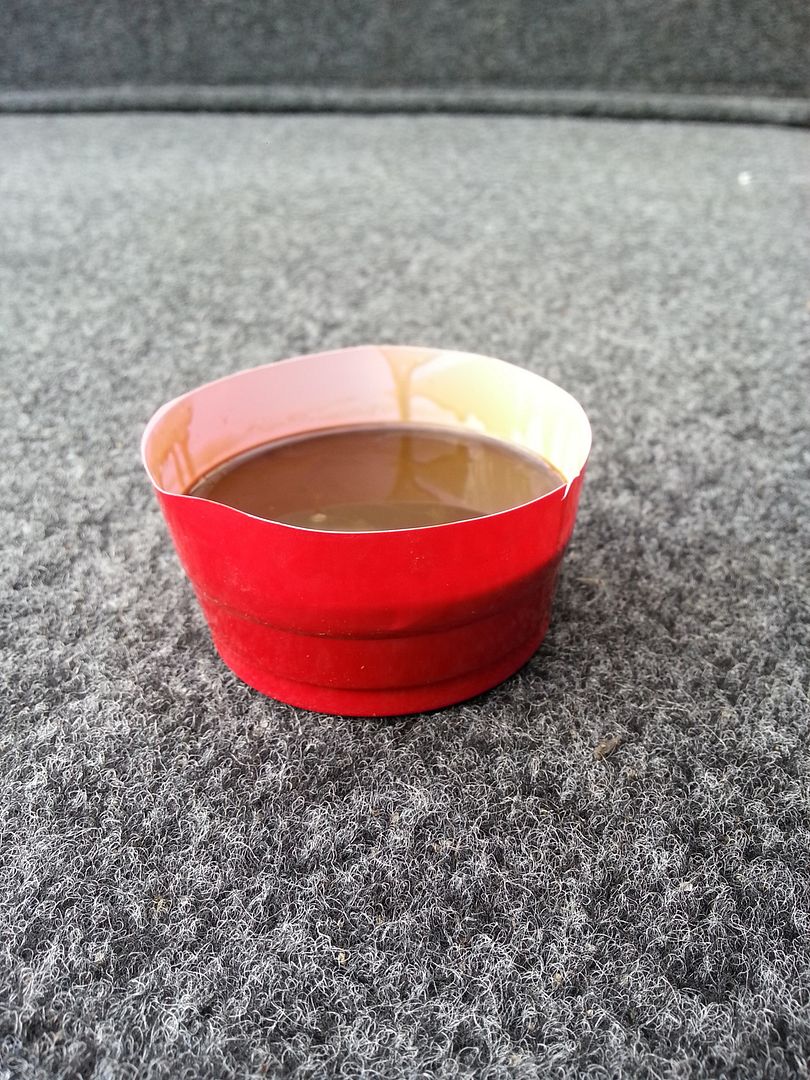

400 Miles of driving.


1000-1250 Miles of Driving.


2000 miles


Some other members:

356 Miles



300 Miles


500 Miles


1400 Miles


5000 miles


1000 miles.


3000 Miles


600 miles


1300


2816 miles of use.

  Reply With Quote
Old 07-25-2012, 07:17 PM   #2
Ditch Doctor
medic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shed

medic2230's Avatar
EMS:
Name: Murph
Joined: Oct 2008, #9942
Location: Columbus, Ga
Age: 41
Gender: Male
Posts: 7,178
medic2230's Tacoma Gallery
Nice job on the write up!!! What exactly is this used for? I know it catches oil but from where and why is this better than where it normally is routed to?
  Reply With Quote
Old 07-25-2012, 07:20 PM   #3
Just think outside the Yota
CayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shed

CayucosTacoma's Avatar
Name: Chris
Joined: Mar 2012, #74580
Location: San Luis Obispo/Santa Barbara CA
Age: 20
Gender: Guy
Posts: 4,553
CayucosTacoma's Tacoma Gallery
stole the answer of wiki:
Gives a good answer

An oil catch can is used in turbo applications, or high-performance race applications where excessive blow-by (leakage past the piston rings) of air and fuel vapor occurs. This creates a positive pressure in the crankcase. Engine manufactures have placed a valve on the engine block which releases this pressure. This valve is known as a PCV (Positive Crankcase Ventilation) valve. During engine operation, blow-by gases, as well as oil mist from the rotating components of the engine, pass through the PCV valve and are routed back into the intake for the engine to burn off. However, some of the oil mist and other products settle along the engine intake and over time form a "gunk." The oil catch can collects the oil mist and condenses the fuel vapors while allowing "cleaner" gases to be passed back into the intake. Typically the blow-by gasses are passed through a wire mesh, which give the vapor droplets something to adhere to. Since the oil catch cans condense the vapor portion of the gasses, they will need to be drained periodically of all the oil, fuel and other contaminants.

  Reply With Quote
Old 07-25-2012, 07:30 PM   #4
Senior Member
black_magic2010 is on a distinguished road

black_magic2010's Avatar
Army: 644th Transcompany/1st I.D.
Joined: Apr 2010, #35195
Location: South Texas
Gender: Male
Posts: 219
black_magic2010's Tacoma Gallery
Nice write up.
  Reply With Quote
Old 07-25-2012, 07:31 PM   #5
Senior Member
yellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud of

yellowrubiu's Avatar
Joined: Dec 2011, #69678
Location: Empire State
Gender: Male
Posts: 254
yellowrubiu's Tacoma Gallery
Sub'd... I'm really curious to see how much blow-by you get on these engines.

I installed the one below on my 2011 Mustang and get about a tablespoon every 1000 miles or so.
  Reply With Quote
Old 07-25-2012, 07:31 PM   #6
Just think outside the Yota
CayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shed

CayucosTacoma's Avatar
Name: Chris
Joined: Mar 2012, #74580
Location: San Luis Obispo/Santa Barbara CA
Age: 20
Gender: Guy
Posts: 4,553
CayucosTacoma's Tacoma Gallery
Quote:
Originally Posted by black_magic2010 View Post
Nice write up.
Thanks. I couldn't find one so i thought ill contribute something to TW
  Reply With Quote
Old 07-25-2012, 07:34 PM   #7
Just think outside the Yota
CayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shed

CayucosTacoma's Avatar
Name: Chris
Joined: Mar 2012, #74580
Location: San Luis Obispo/Santa Barbara CA
Age: 20
Gender: Guy
Posts: 4,553
CayucosTacoma's Tacoma Gallery
Quote:
Originally Posted by yellowrubiu View Post
Sub'd... I'm really curious to see how much blow-by you get on these engines.

I installed the one below on my 2011 Mustang and get about a tablespoon every 1000 miles or so.
Ill keep you updated after my next few 1000 miles
  Reply With Quote
Old 07-25-2012, 07:37 PM   #8
Senior Member
yellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud of

yellowrubiu's Avatar
Joined: Dec 2011, #69678
Location: Empire State
Gender: Male
Posts: 254
yellowrubiu's Tacoma Gallery
Quote:
Originally Posted by CayucosTacoma View Post
Ill keep you updated after my next few 1000 miles
Thanks and thanks for the write up, well done.
  Reply With Quote
Old 07-25-2012, 08:06 PM   #9
Just think outside the Yota
CayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shed

CayucosTacoma's Avatar
Name: Chris
Joined: Mar 2012, #74580
Location: San Luis Obispo/Santa Barbara CA
Age: 20
Gender: Guy
Posts: 4,553
CayucosTacoma's Tacoma Gallery
Quote:
Originally Posted by yellowrubiu View Post
Thanks and thanks for the write up, well done.
No Problem. Just my small contribution.
  Reply With Quote
Old 07-25-2012, 08:26 PM   #10
Senior Member
Chepo is one of the sharper tools in the shedChepo is one of the sharper tools in the shedChepo is one of the sharper tools in the shedChepo is one of the sharper tools in the shedChepo is one of the sharper tools in the shedChepo is one of the sharper tools in the shedChepo is one of the sharper tools in the shedChepo is one of the sharper tools in the shedChepo is one of the sharper tools in the shedChepo is one of the sharper tools in the shedChepo is one of the sharper tools in the shed

Chepo's Avatar
Joined: Sep 2011, #63159
Location: Mexico City
Gender: Male
Posts: 496
Chepo's Tacoma Gallery
Great write up! After I buy my LED bar, I'm gonna install the Oil Catch Can... I think there Is enough room in the engine bay, so I can hide it... I'll put some pics later when I do the installation!


Sub'd for future reference!
  Reply With Quote
Old 07-25-2012, 08:31 PM   #11
Just think outside the Yota
CayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shed

CayucosTacoma's Avatar
Name: Chris
Joined: Mar 2012, #74580
Location: San Luis Obispo/Santa Barbara CA
Age: 20
Gender: Guy
Posts: 4,553
CayucosTacoma's Tacoma Gallery
Quote:
Originally Posted by Chepo View Post
Great write up! After I buy my LED bar, I'm gonna install the Oil Catch Can... I think there Is enough room in the engine bay, so I can hide it... I'll put some pics later when I do the installation!


Sub'd for future reference!
i thought about the location for a while, but i like where i put it. Looking forward to the hidden catch can
  Reply With Quote
Old 07-26-2012, 06:30 PM   #12
Senior Member
yellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud of

yellowrubiu's Avatar
Joined: Dec 2011, #69678
Location: Empire State
Gender: Male
Posts: 254
yellowrubiu's Tacoma Gallery
OK OP, you gave me the little push that I needed to get going on this. I had the original catch can I had purchased for my Mustang laying around so I decided to use it for the Taco. So far I've made a bracket for it and test fitted it. I'm going to try to finish it it over the weekend. Here is what I have so far.




  Reply With Quote
Old 07-26-2012, 06:33 PM   #13
Just think outside the Yota
CayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shed

CayucosTacoma's Avatar
Name: Chris
Joined: Mar 2012, #74580
Location: San Luis Obispo/Santa Barbara CA
Age: 20
Gender: Guy
Posts: 4,553
CayucosTacoma's Tacoma Gallery
Quote:
Originally Posted by yellowrubiu View Post
OK OP, you gave me the little push that I needed to get going on this. I had the original catch can I had purchased for my Mustang laying around so I decided to use it for the Taco. So far I've made a bracket for it and test fitted it. I'm going to try to finish it it over the weekend. Here is what I have so far.





Looking good so far! You have a mustang and a tacoma. I'm jelly
  Reply With Quote
Old 08-01-2012, 06:57 PM   #14
Senior Member
yellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud of

yellowrubiu's Avatar
Joined: Dec 2011, #69678
Location: Empire State
Gender: Male
Posts: 254
yellowrubiu's Tacoma Gallery
All done. Got a new fitting and better hoses from Summit Racing and finished it up today.

Second pic shows how much oil the can had collected after about a week and a half.


  Reply With Quote
Old 08-01-2012, 07:00 PM   #15
Just think outside the Yota
CayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shed

CayucosTacoma's Avatar
Name: Chris
Joined: Mar 2012, #74580
Location: San Luis Obispo/Santa Barbara CA
Age: 20
Gender: Guy
Posts: 4,553
CayucosTacoma's Tacoma Gallery
Quote:
Originally Posted by yellowrubiu View Post
All done. Got a new fitting and better hoses from Summit Racing and finished it up today.

Second pic shows how much oil the can had collected after about a week and a half.


Looks Good. Man i need some lines like those, i just picked mine up at ACE. I still havent checked mine, think i've driven like 100 miles since this write up hah
  Reply With Quote
Old 08-02-2012, 01:44 PM   #16
Senior Member
yellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud ofyellowrubiu has much to be proud of

yellowrubiu's Avatar
Joined: Dec 2011, #69678
Location: Empire State
Gender: Male
Posts: 254
yellowrubiu's Tacoma Gallery
Quote:
Originally Posted by CayucosTacoma View Post
Looks Good. Man i need some lines like those, i just picked mine up at ACE. I still havent checked mine, think i've driven like 100 miles since this write up hah
Thanks! Definitely get good hoses. I originally used some fuel line hoses I had laying around the garage and could see them compressing under vacum, to the point they would loose their round shape and be oval. You also want to get something that the oil will not affect and break down over time.
  Reply With Quote
Old 08-02-2012, 01:58 PM   #18
Must go to Mountains, Desert
Crom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shed

Crom's Avatar
Name: Mr. Sir
Joined: Jun 2009, #18782
Location: San Diego, CA
Age: 36
Gender: Dude
Posts: 3,599
Crom's Tacoma Gallery
Quote:
Originally Posted by CayucosTacoma View Post
Then attach your Catch can to the mount.
It the purpose of the clear tubing joining the upper and lower part of catch canister so you can visually see the level of collected waste oil?

Also, which brand catch can did you go with?

Thanks.
  Reply With Quote
Old 08-02-2012, 02:05 PM   #19
Just think outside the Yota
CayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shedCayucosTacoma is one of the sharper tools in the shed

CayucosTacoma's Avatar
Name: Chris
Joined: Mar 2012, #74580
Location: San Luis Obispo/Santa Barbara CA
Age: 20
Gender: Guy
Posts: 4,553
CayucosTacoma's Tacoma Gallery
Quote:
Originally Posted by Crom View Post
It the purpose of the clear tubing joining the upper and lower part of catch canister so you can visually see the level of collected waste oil?

Also, which brand catch can did you go with?

Thanks.
Yeah exactly the point of the clear tubing. I just picked mine up on Craigslist from somebody. But there is all kinds on Ebay and other companies
  Reply With Quote
Old 08-02-2012, 02:52 PM   #20
Must go to Mountains, Desert
Crom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shed

Crom's Avatar
Name: Mr. Sir
Joined: Jun 2009, #18782
Location: San Diego, CA
Age: 36
Gender: Dude
Posts: 3,599
Crom's Tacoma Gallery
Quote:
Originally Posted by CayucosTacoma View Post
Yeah exactly the point of the clear tubing. I just picked mine up on Craigslist from somebody. But there is all kinds on Ebay and other companies
Cool.

I found this image in another thread:

Quote:
Originally Posted by Amo-cat3 View Post

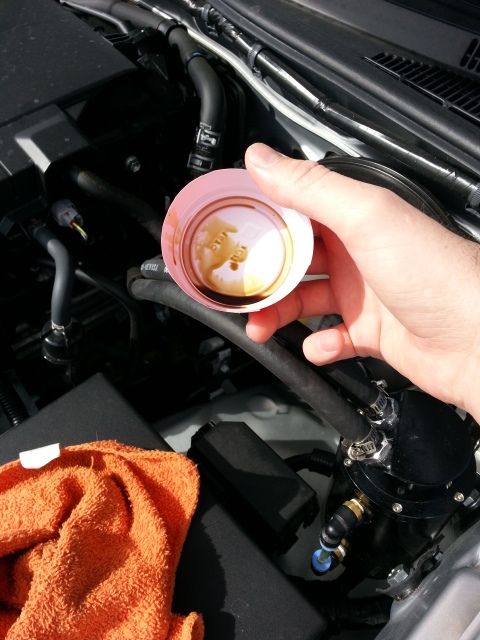

Here's some pics of oil catch can and what i drained out of it in case anyone wanted to see of these things serve a purpose. I have it mounted inside of the driver side wheel well. About a little over half a cup drained out, this is after 8000 miles since last drain.
