Building my 2005 and up 2WD Tacoma/PreRunner/4Runner front bearing assemblies

Reply

Thread Tools Search this Thread
Old 08-26-2013, 03:12 PM   #1
ASE Master Tech
BamaToy1997 is one of the sharper tools in the shedBamaToy1997 is one of the sharper tools in the shedBamaToy1997 is one of the sharper tools in the shedBamaToy1997 is one of the sharper tools in the shedBamaToy1997 is one of the sharper tools in the shedBamaToy1997 is one of the sharper tools in the shedBamaToy1997 is one of the sharper tools in the shedBamaToy1997 is one of the sharper tools in the shedBamaToy1997 is one of the sharper tools in the shedBamaToy1997 is one of the sharper tools in the shedBamaToy1997 is one of the sharper tools in the shed

BamaToy1997's Avatar
Marines: M1A2 hull/turret technician, 4th Maint Btn. 4th FSSG.
Name: Bill
Joined: Jan 2012, #71846
Location: Navarre, FL
Age: 46
Gender: Male
Posts: 8,737
BamaToy1997's Tacoma Gallery
Building my 2005 and up 2WD Tacoma/PreRunner/4Runner front bearing assemblies

After several people have suggested it, I have decided to create a thread showing how I build the 2WD hub bearing assemblies for the Tacoma, PreRunner, and 4Runner trucks.

Some people have asked WHY they should use a full unit like this, instead of pressing out their original hubs and reusing them. The answer is pretty simple. While the original hubs may be perfectly fine to reuse, getting the entire assembly saves time and as we all know, time is money. Sure, you could save yourself some money and buy the bearings and seals yourself, then take them down and get the old hub pressed out and the new bearing and seal pressed together. What you do have to concern yourself with is the condition of the wheel hub itself.

The seal contact surface must be clean and smooth (this applies to the 4WD wheel hub as well) because any pitting or wear at this location will quickly ruin the new seal, allowing water and foreign material to enter the bearing. This results in premature bearing failure, and another trip to buy a replacement bearing, seal, and of course a new hub unless you want to do this again soon. If you look at the photo below you will see a brand new Toyota factory wheel hub.

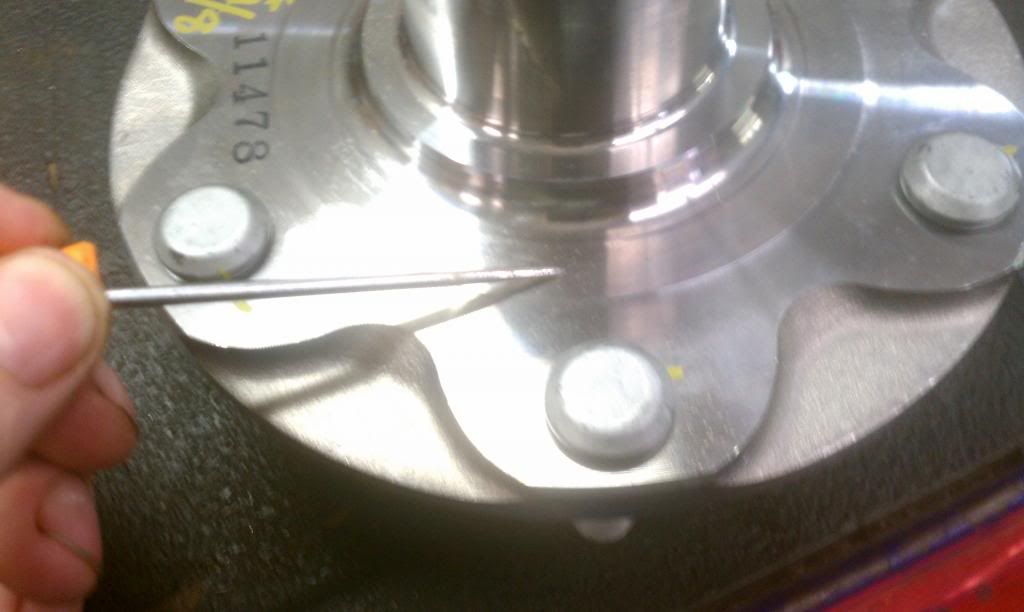

Note the silver tipped pointer. This is where your hub needs to be inspected. Many of the 2WD and 4WD hubs wear here. The reason for this is that as the bearing fails, it allows the wheel hub to wobble, putting it in contact with the metal part of the seal. This then causes damage to the wheel hub. If this damage goes unnoticed then you are going to be having bearing failure again in the near future, as this damaged area will destroy a new seal in short time.

Now that we have shown WHY you should replace the entire unit, I will show how it is assembled so that you get a quality part, at a good price.

First thing of course is to obtain and inspect all of the parts needed to build these units. The following are all of the items:

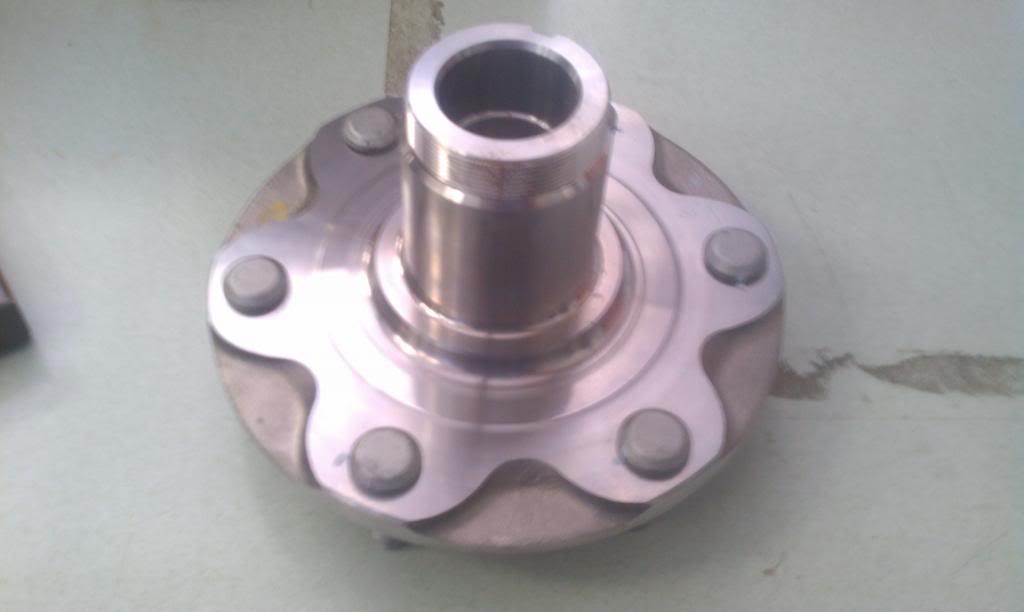

Genuine Toyota 2WD wheel hub assembly:

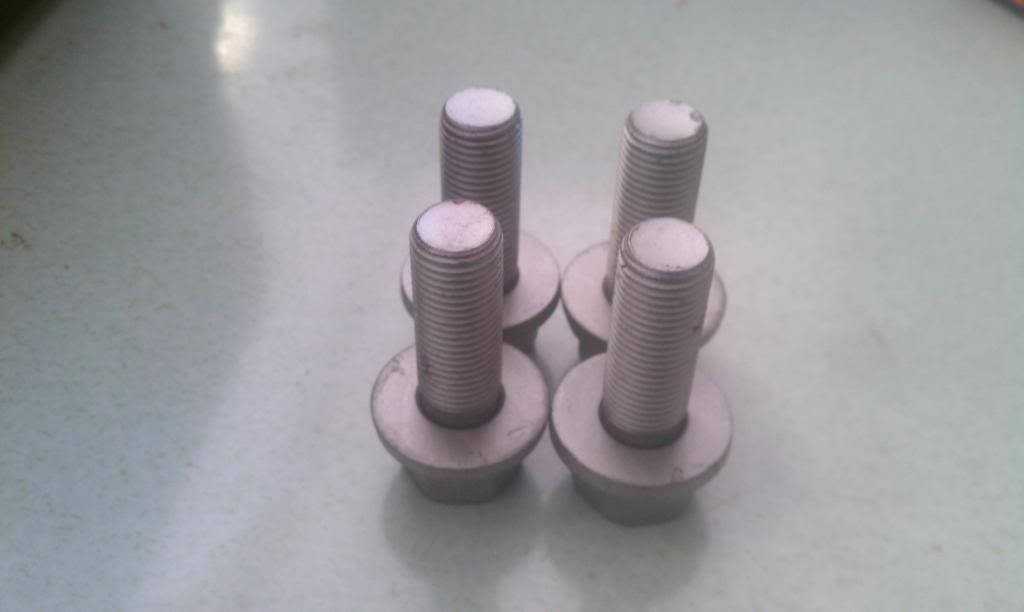

then 4 genuine Toyota hub mounting bolts:

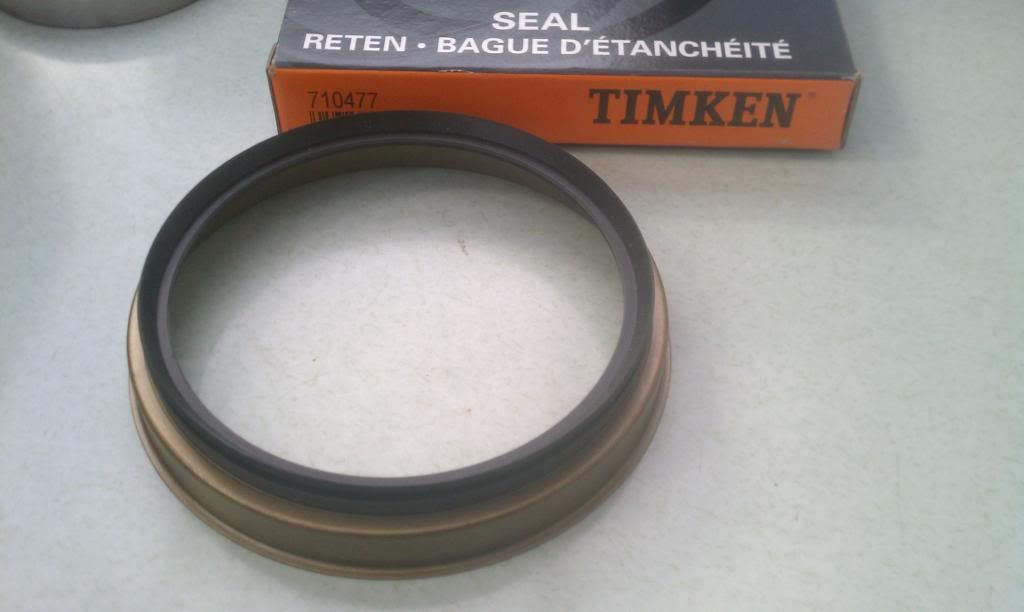

Originally I was using National brand hub seals, but I have found that the Timken seals are a faster supply for the demands. I have been ordering these in lots of 20.

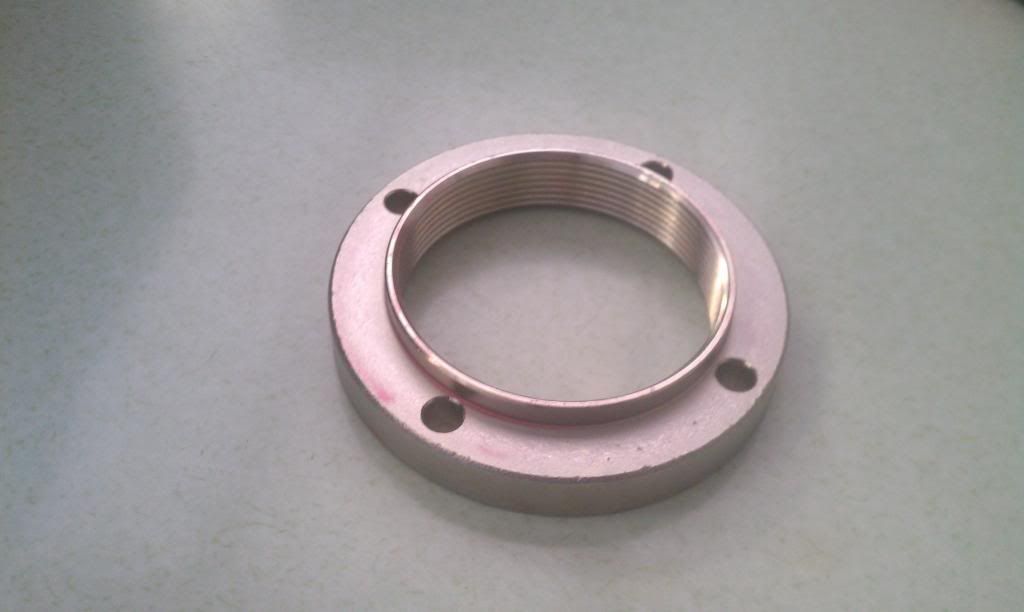

And of course you will need the genuine Toyota hub nut for the 2WD models.

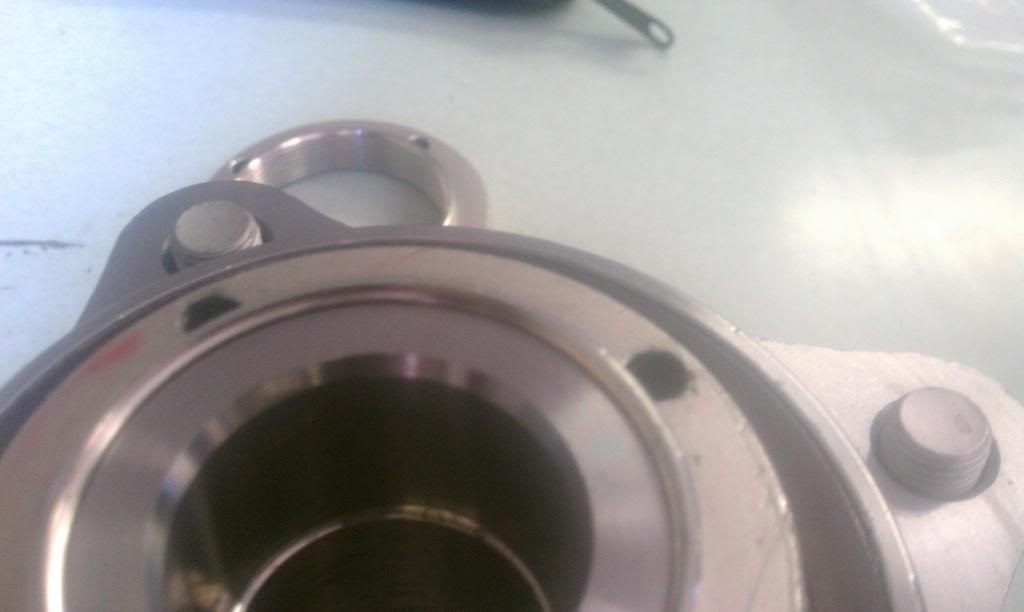

Lastly you can use your bearing of choice. Here I use either National or Koyo/Timken based on current supply. National bearings have become harder to locate with the official National stamp on them. While any bearing assembly with the same part number uses the National bearing, not all of the places that make the entire bearing/housing assembly obtain their bearings from a supplier. Many buy them direct from the bearing manufacturing plant. I have obtained a contract directly with a Koyo bearing manufacturer plant, and will be using them as my primary supplier. Once the National bearings that I have in stock are used up, I will be shifting to exclusive Koyo brand bearings except when I may run into shipping delays which will force me to order the National or NSK bearing units.

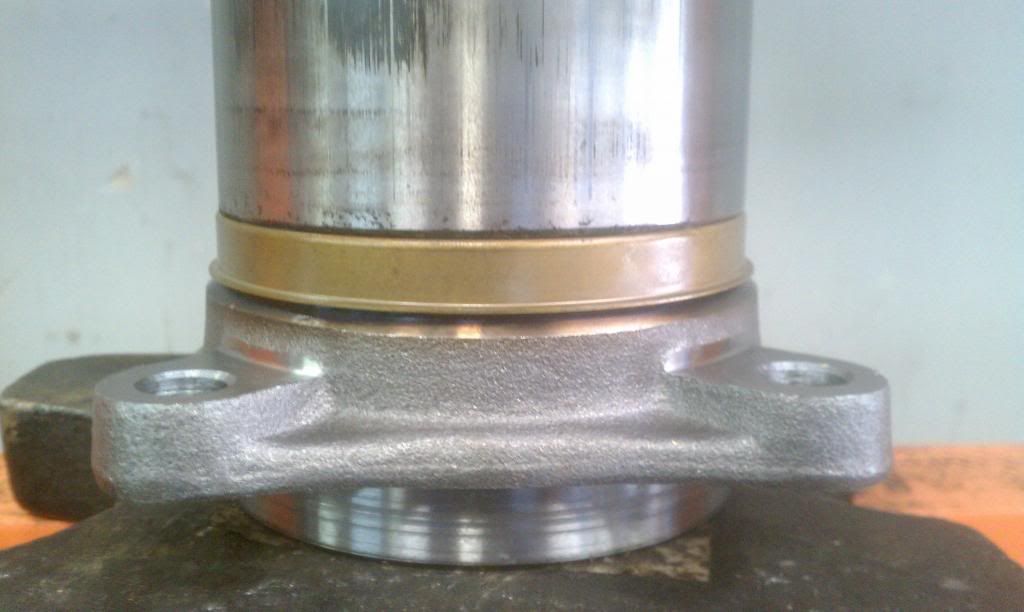

Once I have all of the parts together I first press on the seal to the bearing unit. This guarantees 100% uniform mounting with no dimples. As of this posting, I am the ONLY company that has picture proof that I install the seals in this way, which is the best way to ensure uniformity and proper installation.

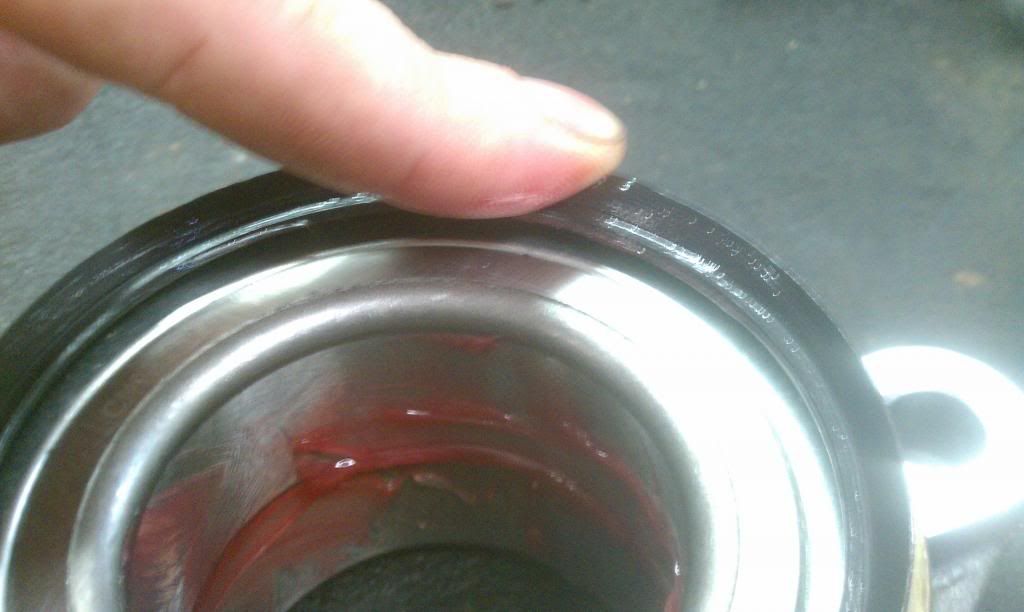

After the seal is installed I lubricate the lip of the seal with bearing grease. This is an important step, as it ensures that the seal is not dry when the hub begins to rotate. Imagine a dry seal against a piece of metal turning at 50+ MPH! Not pretty, and not good for the seal.

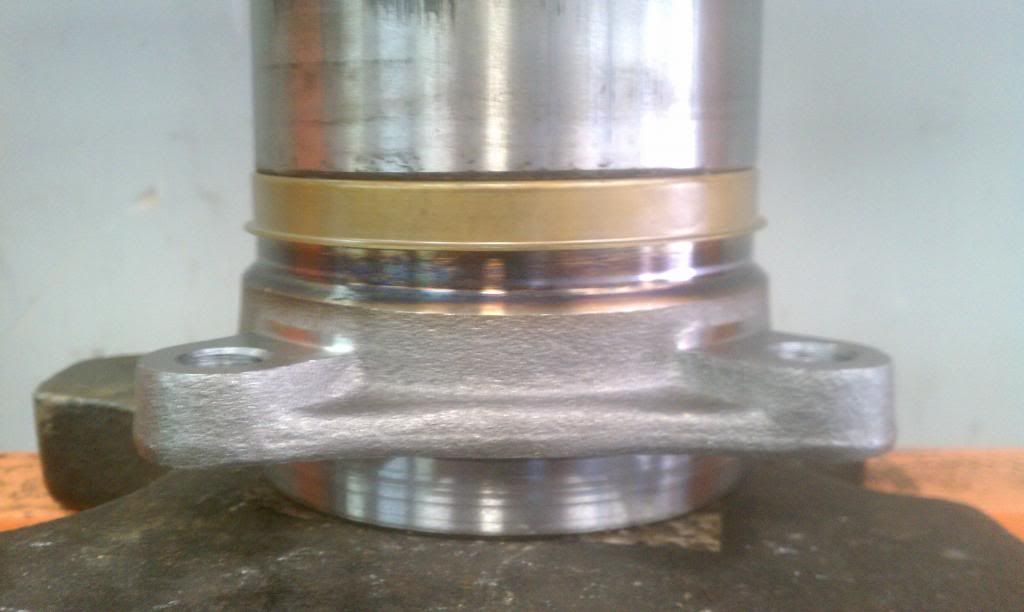

Once the seal is lubricated I place the bearing onto the adapter for the press as explained in the opening post of my thread on the bearing assemblies. This MUST be done to protect the roller bearings and the bearing cages. If pressed together improperly the bearings can chip, causing premature failure. The below video shows how to tell that the bearings are not under load when pressing in the hub. (Note that the mounting bolts are already inserted. This is because once the assembly is pressed together, the bolts are locked in)

http://www.youtube.com/watch?feature...&v=BhHbOe5SSZc

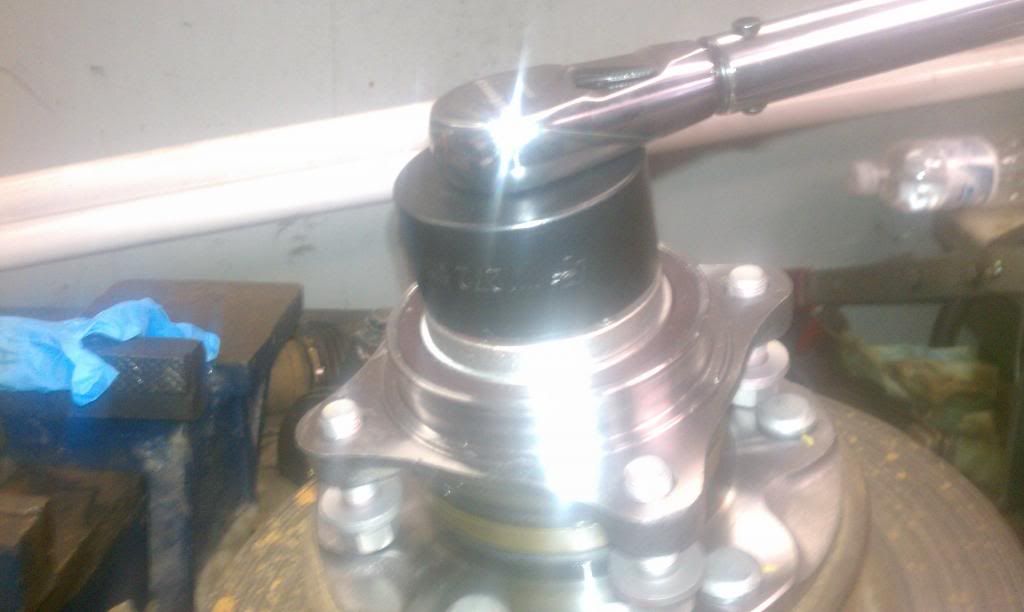

Once the hub is properly pressed into the bearing assembly you can remove the unit and install the hub nut. I am not sure where some of the information has been gathered from, but according to Toyota, the proper torque of the hub nuts on the 2WD assemblies is 203 Lbs-ft. The proper SST tool MUST be used to protect the assembly.

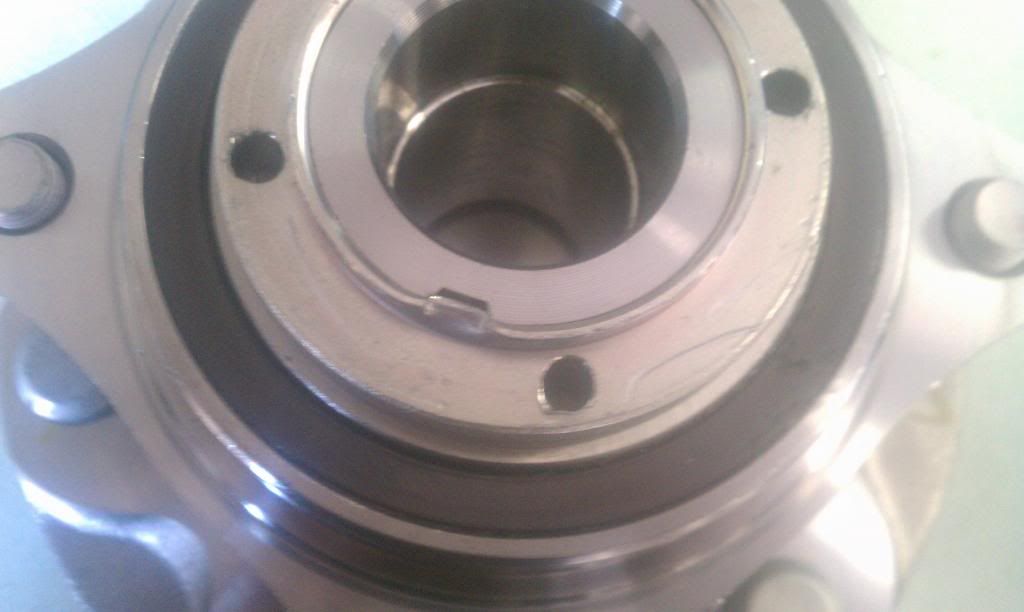

After the nut is torqued, then I locate the small indentation tab on the wheel hub and using a small drift punch I stake the edge of the nut. This is done to prevent the nut from possibly backing off during use. Also note that a properly pressed in assembly will only have one thread of the nut showing once it is torqued down. If more than one thread is showing, then something was not pressed together properly.






And there you have it! A 2WD hub assembly ready to be installed in your Tacoma, or 4Runner! Any questions feel free to ask! I hope this was informative to those who wanted to know.
