B.A.M.F Rock sliders all Trucks

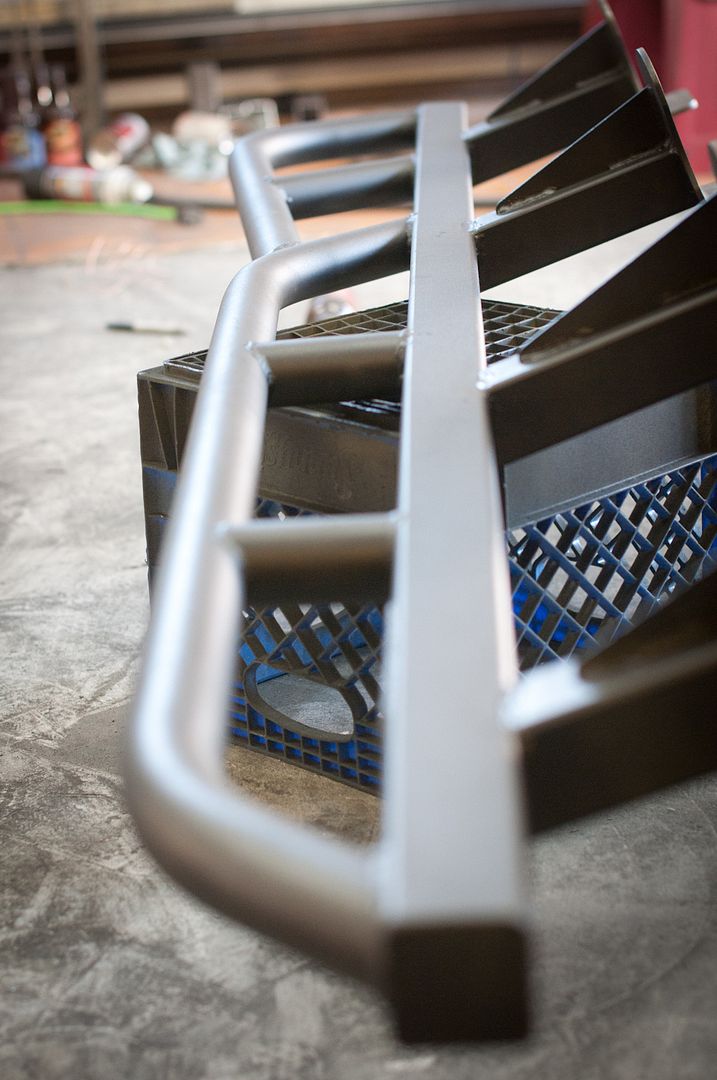

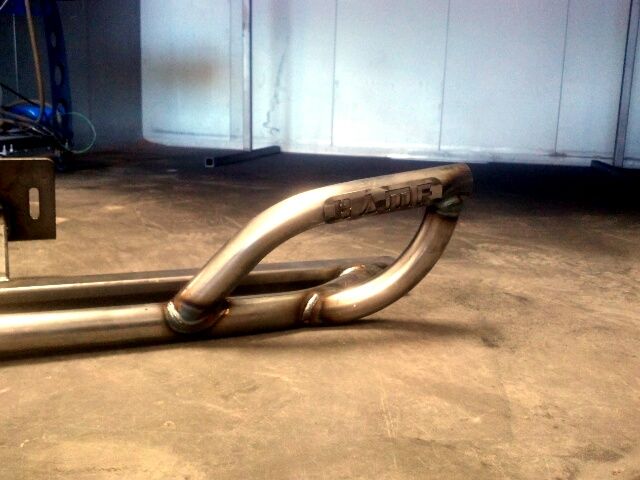

B.A.M.F rock sliders

Specs
Built from 1.75" .120 wall HREW or DOM bent, notched and fully welded to a 2x2 square tube with square legs and 3/16th frame plates and gussets. The sliders have a 1.5" taper towards the rear of the truck to aid in pushing the truck away from obstacles. With a added kick out (highly recommended for longer wheel base trucks) they will stick out 3.5" past the slider.

Some people ask why I use a square tube here is your answer
2 x 2 .120 square has nearly the same MOI (Moment of Inertia) as the 2 x 250 round, and is 35% lighter still (or 25% stronger and less than half the weight of the 1.75 x .5 round)


OD_ / ID_ = ....MOI........ Weight
.......... round square ,round square
1.5 /.120 = .125 , .212 , 1.77 , 2.25
1.5 /.188 = .170 , .289 , 2.63 , 3.35
1.5 /.250 = .199 , .339 , 3.34 , 4.11
1.5 /.375 = .233 , .... , 4.51
1.5 /.500 = .245 , .... , 5.34

1.75/.120 = .205 , .348 , 2.09
1.75/.188 = .285 , .484 , 3.14
1.75/.250 = .341 , ....., 4.01
1.75/.375 = .411 , .... , 5.51
1.75/.500 = .445 , .... , 6.68

2.0 /.120 = .314 , .534 , 2.41 , 3.05
2.0 /.188 = .444 , .754 , 3.64 , 4.32
2.0 /.250 = .537 , .911 , 4.67 , 5.41
2.0 /.375 = .666 , .... , 6.51
2.0 /.500 = .736 , .... , 8.01

2.25/.120 = .457 , .... , 2.73
2.25/.250 = .798 , .... , 5.34
2.25/.375 =1.01 , ..... , 7.51
2.25/.500 =1.138 , .... , 9.35

2.5 /.120 = .637 , .... , 3.05
2.5 /.250 =1.132 , .... , 6.01
2.5 /.375 =1.457 , .... , 8.51
2.5 /.500 =1.669 , .... ,10.68




HREW Prices PM for current DOM price

65" (Regular Cab Tacoma's ) 62" (FJ Cruisers) $275.00
Kick out add $30.00
Filler plates $125.00

67" (3rd Gen 4Runner) $290.00
Kick out add 30.00
Filler plates $125.00

80" (05 to 12 Tacoma DC) 80" (95 to 04 Tacoma's EX cab & DC) $300.00
1st Gen Extra Cab Kick Up's $125.00
Kick out add $40.00
Filler plates $165.00

96" (05 to 12 Tacoma DCLB) $350.00
Kick Up's $150.00
Kick out add $50.00
Filler plates $225.00

Bolt on is $125.00 extra for 80" and below
150.00 for 96" sliders.

For local customers PM me for installation prices.

Ordering can be done by going HERE and place your order
  Reply With Quote
Old 10-04-2011, 09:44 AM   #2
Banned
river rat 69 is one of the sharper tools in the shedriver rat 69 is one of the sharper tools in the shedriver rat 69 is one of the sharper tools in the shedriver rat 69 is one of the sharper tools in the shedriver rat 69 is one of the sharper tools in the shedriver rat 69 is one of the sharper tools in the shedriver rat 69 is one of the sharper tools in the shedriver rat 69 is one of the sharper tools in the shedriver rat 69 is one of the sharper tools in the shedriver rat 69 is one of the sharper tools in the shedriver rat 69 is one of the sharper tools in the shed
Navy: River Boats,Mike's & PBR'S Viet-Nam 68&69
Name: Jim
Joined: Dec 2010, #47249
Location: Orlando, Fla., Green side of the grass
Gender: Dude
Posts: 16,672
river rat 69's Tacoma Gallery
Nice!!!
  Reply With Quote
Old 10-04-2011, 09:49 AM   #3
ROLL TIDE
Jo Dog has much to be proud ofJo Dog has much to be proud ofJo Dog has much to be proud ofJo Dog has much to be proud ofJo Dog has much to be proud ofJo Dog has much to be proud ofJo Dog has much to be proud ofJo Dog has much to be proud ofJo Dog has much to be proud ofJo Dog has much to be proud of

Jo Dog's Avatar
Name: Jo Dog
Joined: Dec 2010, #48406
Location: Alabama
Age: 35
Gender: Male
Posts: 816
Jo Dog's Tacoma Gallery
nice
  Reply With Quote
Old 10-04-2011, 09:55 AM   #4
Senior Member
rab89 is one of the sharper tools in the shedrab89 is one of the sharper tools in the shedrab89 is one of the sharper tools in the shedrab89 is one of the sharper tools in the shedrab89 is one of the sharper tools in the shedrab89 is one of the sharper tools in the shedrab89 is one of the sharper tools in the shedrab89 is one of the sharper tools in the shedrab89 is one of the sharper tools in the shedrab89 is one of the sharper tools in the shedrab89 is one of the sharper tools in the shed

rab89's Avatar
Name: Ross
Joined: Jan 2009, #12578
Location: Kelowna b.c canada
Age: 25
Gender: Male
Posts: 5,522
rab89's Tacoma Gallery
nice
  Reply With Quote
Old 10-04-2011, 05:05 PM   #6
Another Traitor
brian is one of the sharper tools in the shedbrian is one of the sharper tools in the shedbrian is one of the sharper tools in the shedbrian is one of the sharper tools in the shedbrian is one of the sharper tools in the shedbrian is one of the sharper tools in the shedbrian is one of the sharper tools in the shedbrian is one of the sharper tools in the shedbrian is one of the sharper tools in the shedbrian is one of the sharper tools in the shedbrian is one of the sharper tools in the shed

brian's Avatar
Coast Guard: Work and Fly on the Four Fans of Freedom
Joined: Apr 2009, #16011
Location: Roseville, CA
Gender: Dude
Posts: 7,560
brian's Tacoma Gallery
Send a message via AIM to brian

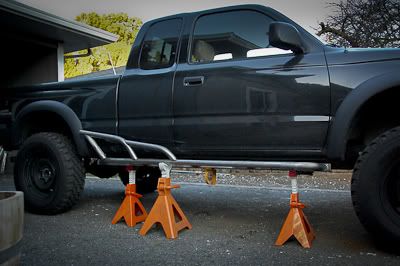

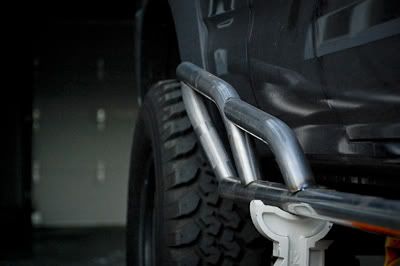

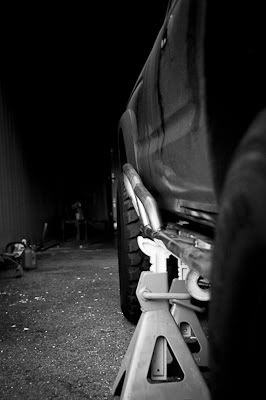

I should jack it up on one side by the sliders and take a pic Too bad I don't think my jack is tall enough. We'll figure something out this weekend.... providing Toyota Financial doesn't screw me over more.
  Reply With Quote
Old 10-04-2011, 07:30 PM   #7
BBC. Bring Back Clarkson
ForeRunner is one of the sharper tools in the shedForeRunner is one of the sharper tools in the shedForeRunner is one of the sharper tools in the shedForeRunner is one of the sharper tools in the shedForeRunner is one of the sharper tools in the shedForeRunner is one of the sharper tools in the shedForeRunner is one of the sharper tools in the shedForeRunner is one of the sharper tools in the shedForeRunner is one of the sharper tools in the shedForeRunner is one of the sharper tools in the shedForeRunner is one of the sharper tools in the shed
Coast Guard: Chief Petty Officer, ITC
Name: Drunken Sailor
Joined: Sep 2006, #7
Location: East Bay, CA
Age: 37
Gender: Dude
Posts: 6,543
ForeRunner's Tacoma Gallery
Quote:
Originally Posted by brian View Post
I should jack it up on one side by the sliders and take a pic Too bad I don't think my jack is tall enough. We'll figure something out this weekend.... providing Toyota Financial doesn't screw me over more.
I have a hi-lift. And uh oh...
  Reply With Quote
Old 10-06-2011, 07:50 PM   #8
awesome
Dole is on a distinguished road
Marines: masta gunna!!!
Joined: May 2010, #38135
Gender: Male
Posts: 44
Dole's Tacoma Gallery
Whats the pricing for these things?
  Reply With Quote
Old 10-06-2011, 07:55 PM   #10
Carolina Alliance Southwest Region Ambassador
jandrews is one of the sharper tools in the shedjandrews is one of the sharper tools in the shedjandrews is one of the sharper tools in the shedjandrews is one of the sharper tools in the shedjandrews is one of the sharper tools in the shedjandrews is one of the sharper tools in the shedjandrews is one of the sharper tools in the shedjandrews is one of the sharper tools in the shedjandrews is one of the sharper tools in the shedjandrews is one of the sharper tools in the shedjandrews is one of the sharper tools in the shed

jandrews's Avatar
Joined: Jun 2009, #18122
Gender: Guy
Posts: 12,245
jandrews's Tacoma Gallery
Yay for hybrid design. That is the correct way to do sliders.
  Reply With Quote
Old 10-06-2011, 08:14 PM   #12
JLee [OP] JLee is offline
The Man!
JLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shed

JLee's Avatar
Name: Jerry
Joined: Jul 2010, #40461
Location: Bay Area NorCal
Gender: Male
Posts: 15,014
JLee's Tacoma Gallery

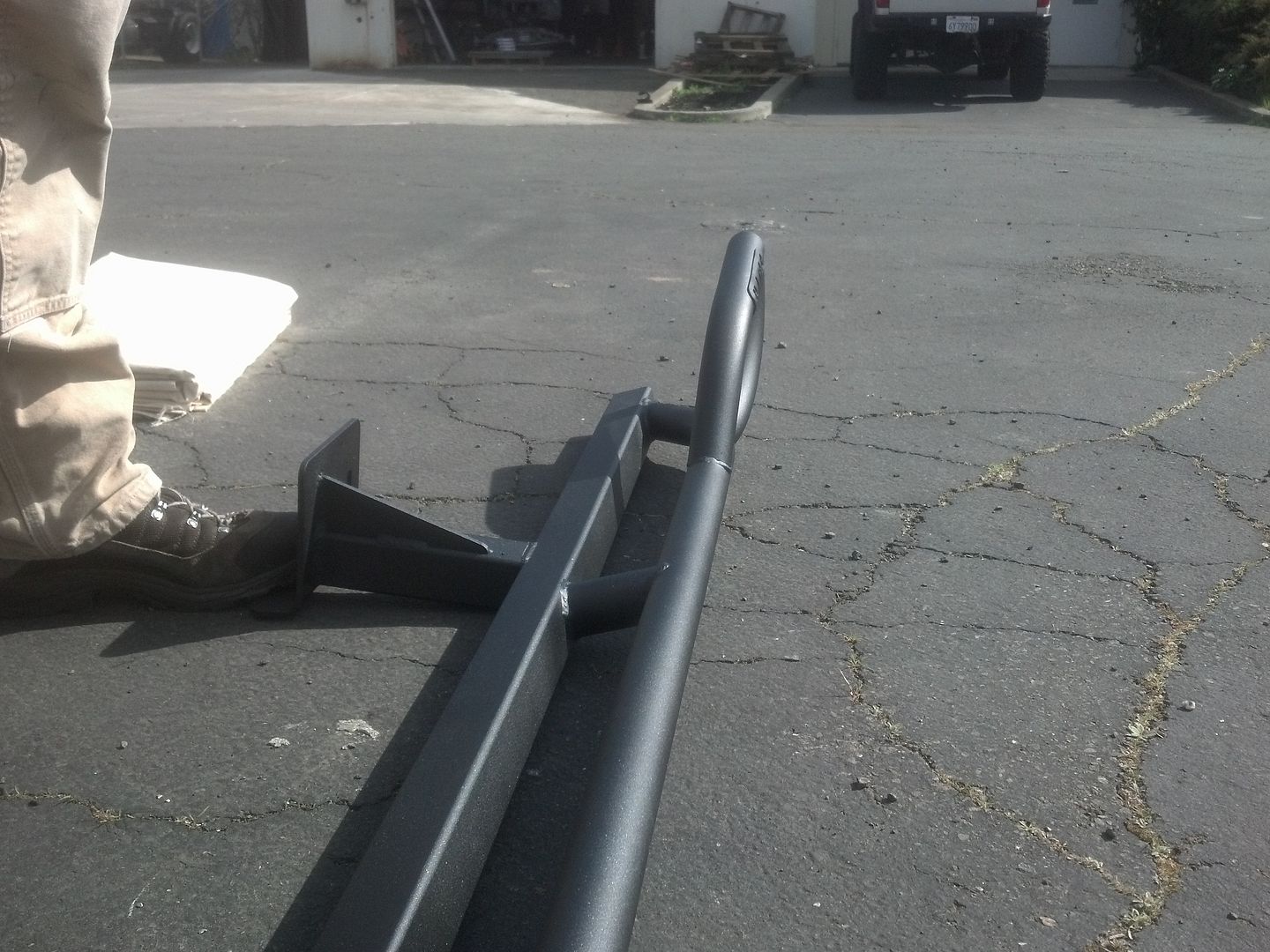

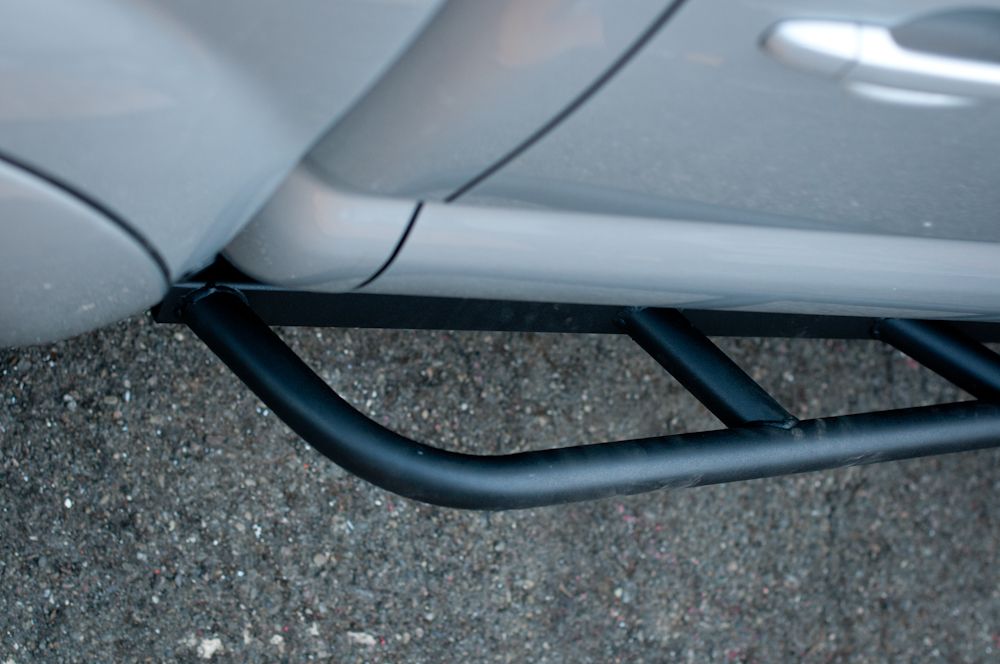

Here is a set of non kick outs im working on for a member. They get progressively wider towards the back by about 1.5"

Don't mind my remodeling in the back ground
  Reply With Quote
Old 10-17-2011, 11:57 AM   #13
JLee [OP] JLee is offline
The Man!
JLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shed

JLee's Avatar
Name: Jerry
Joined: Jul 2010, #40461
Location: Bay Area NorCal
Gender: Male
Posts: 15,014
JLee's Tacoma Gallery
B.A.M.F Gussets VS Trail Gear Gussets

  Reply With Quote
Old 10-17-2011, 12:01 PM   #14
Banned
97yota4wd is one of the sharper tools in the shed97yota4wd is one of the sharper tools in the shed97yota4wd is one of the sharper tools in the shed97yota4wd is one of the sharper tools in the shed97yota4wd is one of the sharper tools in the shed97yota4wd is one of the sharper tools in the shed97yota4wd is one of the sharper tools in the shed97yota4wd is one of the sharper tools in the shed97yota4wd is one of the sharper tools in the shed97yota4wd is one of the sharper tools in the shed97yota4wd is one of the sharper tools in the shed
Name: Eric
Joined: Aug 2010, #42280
Location: Mesa, AZ
Age: 22
Gender: Male
Posts: 13,032
97yota4wd's Tacoma Gallery
welds/sliders look great!
  Reply With Quote
Old 10-17-2011, 01:15 PM   #16
Senior Member
Capita is one of the sharper tools in the shedCapita is one of the sharper tools in the shedCapita is one of the sharper tools in the shedCapita is one of the sharper tools in the shedCapita is one of the sharper tools in the shedCapita is one of the sharper tools in the shedCapita is one of the sharper tools in the shedCapita is one of the sharper tools in the shedCapita is one of the sharper tools in the shedCapita is one of the sharper tools in the shedCapita is one of the sharper tools in the shed

Capita's Avatar
Joined: Jun 2009, #18096
Location: Corner Brook, Newfoundland, Canada
Age: 32
Gender: Male
Posts: 2,661
Capita's Tacoma Gallery
Looks to be an awesome job!
  Reply With Quote
Old 10-17-2011, 01:23 PM   #17
Pasti-Dip Free Since 1983
Pugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shed

Pugga's Avatar
Name: Mike
Joined: Jun 2010, #39131
Location: Massachusetts
Gender: Male
Posts: 28,515
Pugga's Tacoma Gallery
Quote:
Originally Posted by JLee View Post

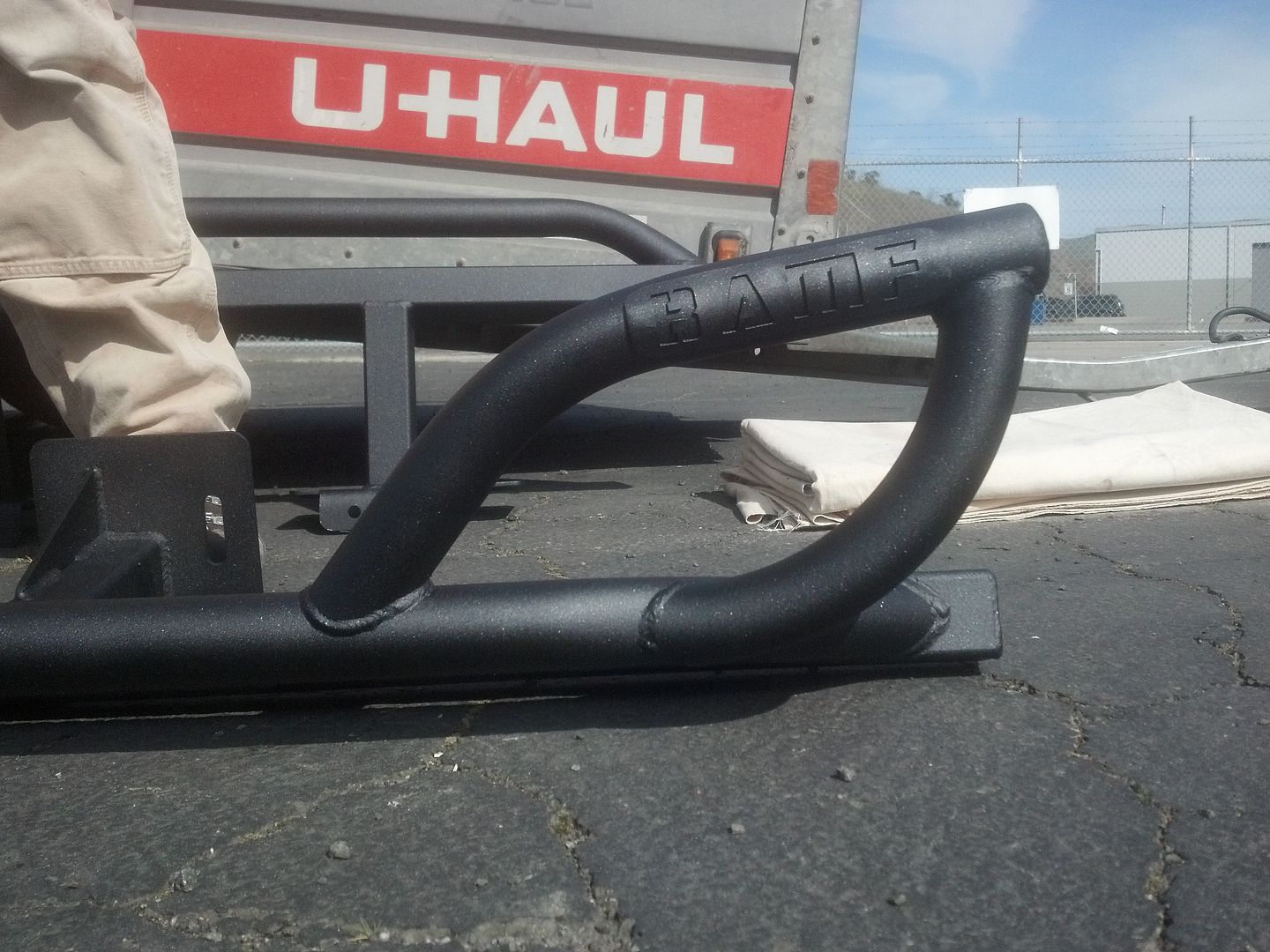

All new B.A.M.F rock sliders

Specs
Built from 1.75" .120 wall HREW or DOM bent, notched and fully welded to a 2x2 square tube with square legs and 3/16th frame plates and gussets.

2nd Gen DCLB kickout sliders. 94" long with a 8" kickout.
Looks good!

I have a general question I've been wanting to ask a fabricator about sliders. With the kick-outs, why the 2-part tubing? How come one piece starts at the front and ties back to the square tube, then a second piece makes the back kick-out, why not one single, continuous piece braced back to the square tubing every 12" or so. Just curious, I'm far from a fabricator, just a wondering mind!
  Reply With Quote
Old 10-17-2011, 01:30 PM   #18
JLee [OP] JLee is offline
The Man!
JLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shed

JLee's Avatar
Name: Jerry
Joined: Jul 2010, #40461
Location: Bay Area NorCal
Gender: Male
Posts: 15,014
JLee's Tacoma Gallery
Quote:
Originally Posted by HIYota View Post
Jerry, got to see your sliders on Brian's truck. They are sick! Nice work man! Wondering if you'd be willing to do a set for my 09 DCSB?
Thanks man and yes I'm willing to do a set for you I'll do a set for everyone

Quote:
Originally Posted by Pugga View Post
Looks good!

I have a general question I've been wanting to ask a fabricator about sliders. With the kick-outs, why the 2-part tubing? How come one piece starts at the front and ties back to the square tube, then a second piece makes the back kick-out, why not one single, continuous piece braced back to the square tubing every 12" or so. Just curious, I'm far from a fabricator, just a wondering mind!
Looks mainly I didn't like the look of one tube for the kick out sliders so I went this route. Non kick out sliders are one piece.
  Reply With Quote
Old 10-17-2011, 01:45 PM   #20
U MAD? OH U MAD
RJALLDAY702 is one of the sharper tools in the shedRJALLDAY702 is one of the sharper tools in the shedRJALLDAY702 is one of the sharper tools in the shedRJALLDAY702 is one of the sharper tools in the shedRJALLDAY702 is one of the sharper tools in the shedRJALLDAY702 is one of the sharper tools in the shedRJALLDAY702 is one of the sharper tools in the shedRJALLDAY702 is one of the sharper tools in the shedRJALLDAY702 is one of the sharper tools in the shedRJALLDAY702 is one of the sharper tools in the shedRJALLDAY702 is one of the sharper tools in the shed

RJALLDAY702's Avatar
Name: RJ
Joined: Sep 2011, #63360
Location: Hermosa Beach
Gender: Male
Posts: 14,143
RJALLDAY702's Tacoma Gallery
SICK!
  Reply With Quote
