B.A.M.F Weld on Rock Slider Install

Okay so i get a lot of requests on how to install my sliders so here is a instructional thread on how I install them here.

Tools
1. Two 6 ton jack stands
2. 4 clamps
3. 4.5" angle grinder with flap disk or wire wheel
4. pen
5. 140amp welder or above

For Painting
1. paint thinner and rags
2. 4.5" angle grinder and wire wheel or scuffing pad
3. 3 cans of primer
4. 3 cans of the paint of your choice ( I use rustoleum truck bed coating)



Step #1 Taking inventory
First things first unwrap your sliders and make sure everything is there. you should have 8 frame plates, 6 bent plates & 2 smaller flat plates. You should also have 8 gussets the gussets are located in one of the legs wrapped in tape.

Step #2 Prep for paint
Take your sliders and wipe them down with paint thinner or acetone the sliders ship with a oil coating on them to prevent rust.

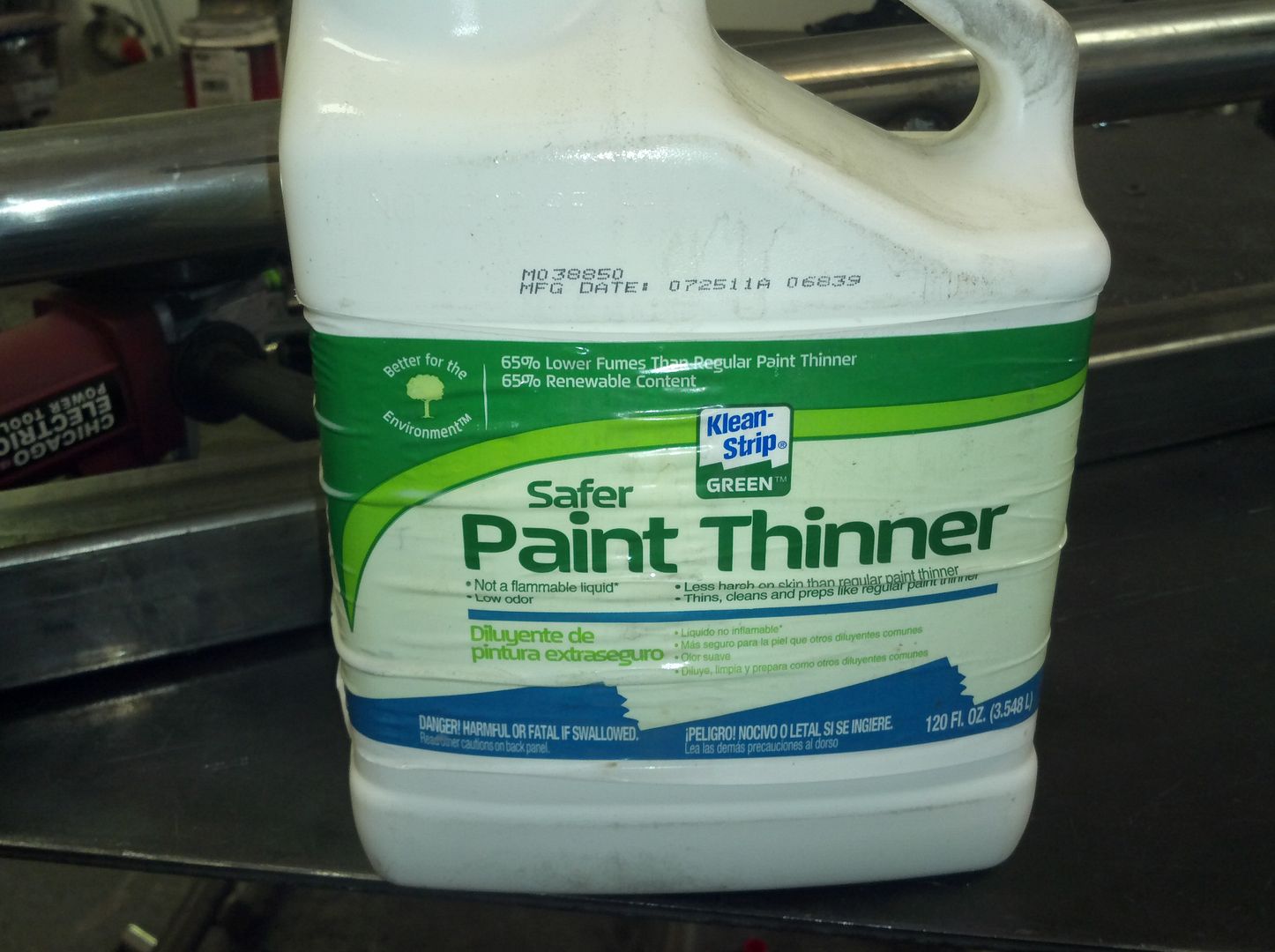

The hippy thinner I use

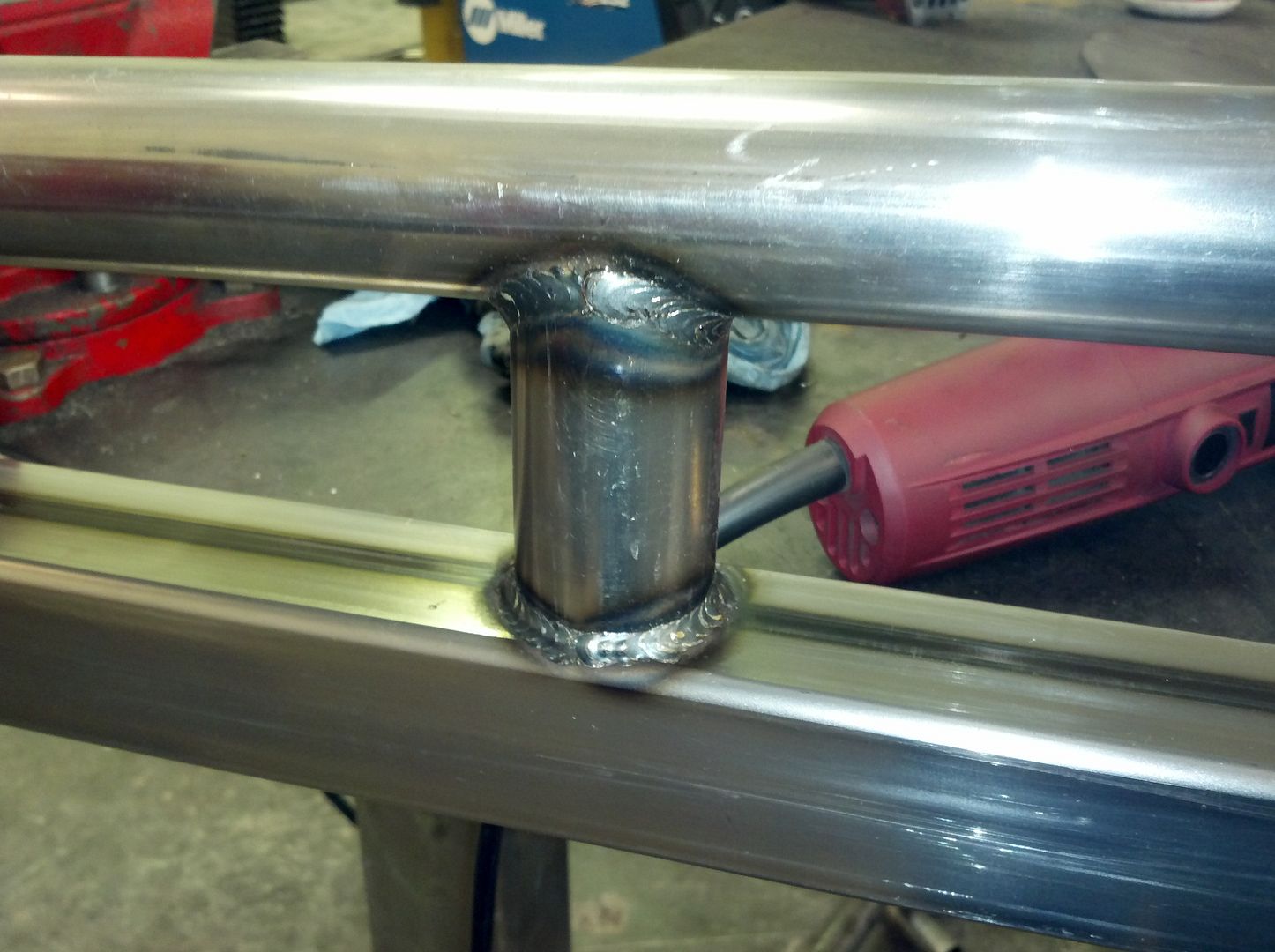

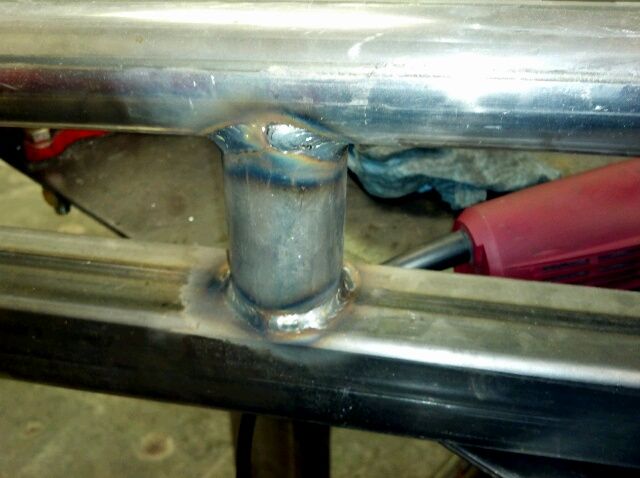

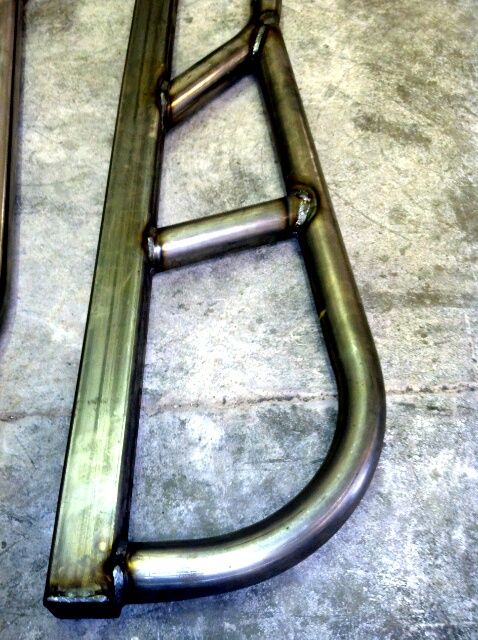

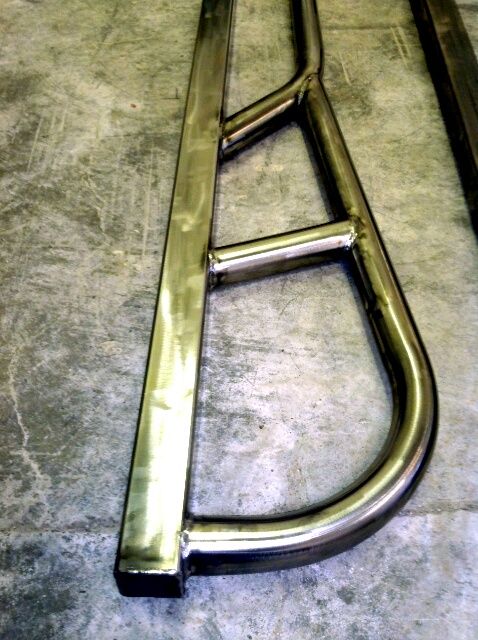

The sliders right after you unwrap them.




A quick rub down with thinner.

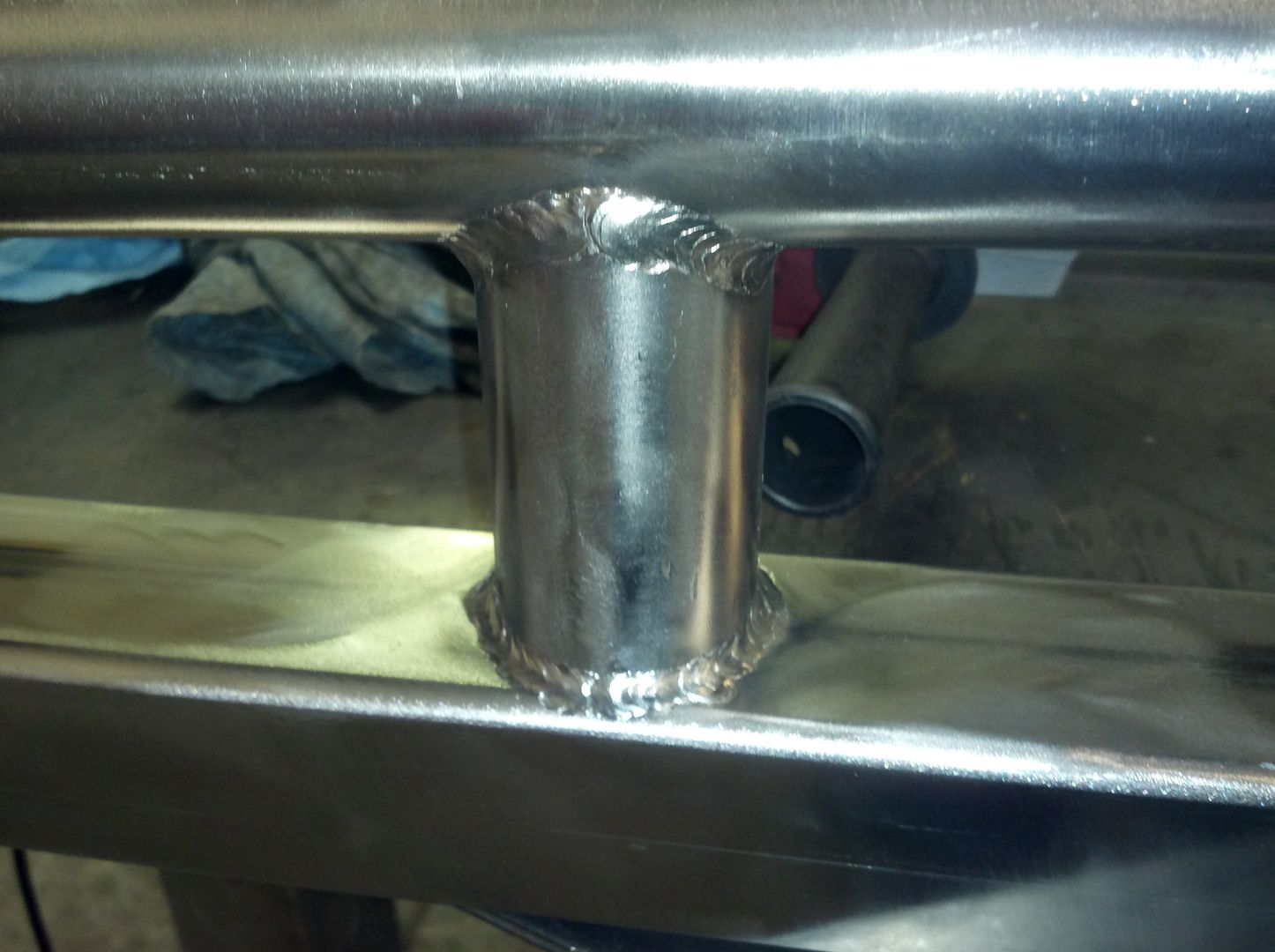

After hitting with a wire wheel




Step #3 Painting

Take your sliders and set them somewhere that your not going to get over spray on and prime them.

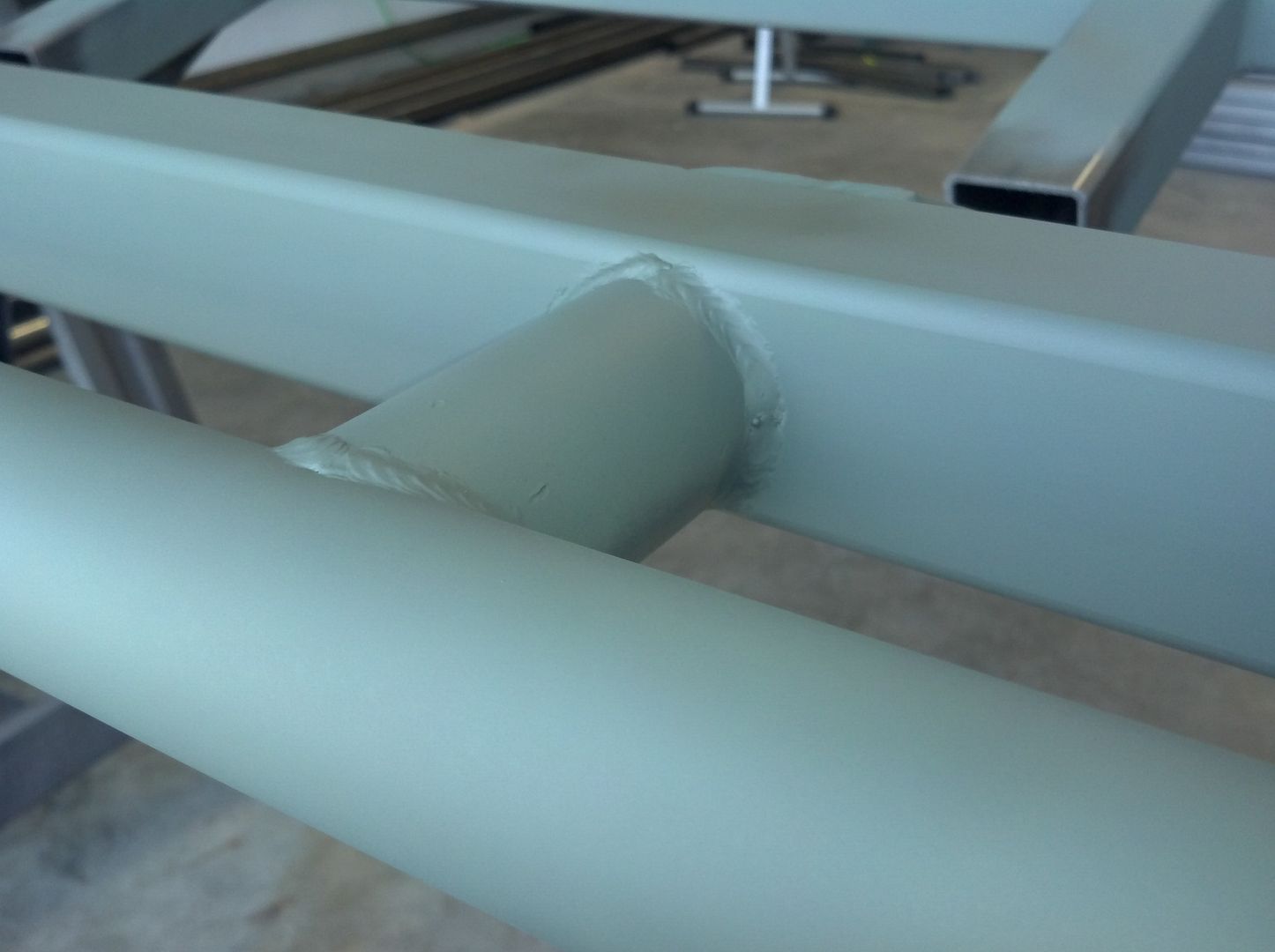

At least 2 coats of a self etching primer is recommended


DON'T paint all the way down the legs you need bare metal to weld to.

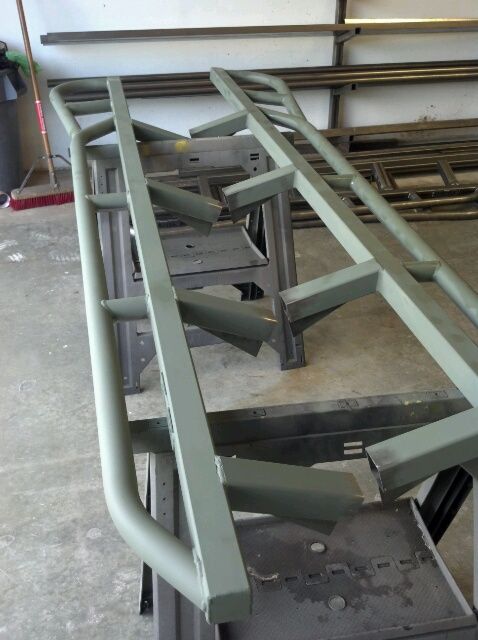

After you prime paint your sliders and allow to dry. I paint sliders 72 hours before the install allowing them to cure this will avoid chipping and scraping them up during the install "Save that for the trail "

Step #4 Installing the sliders

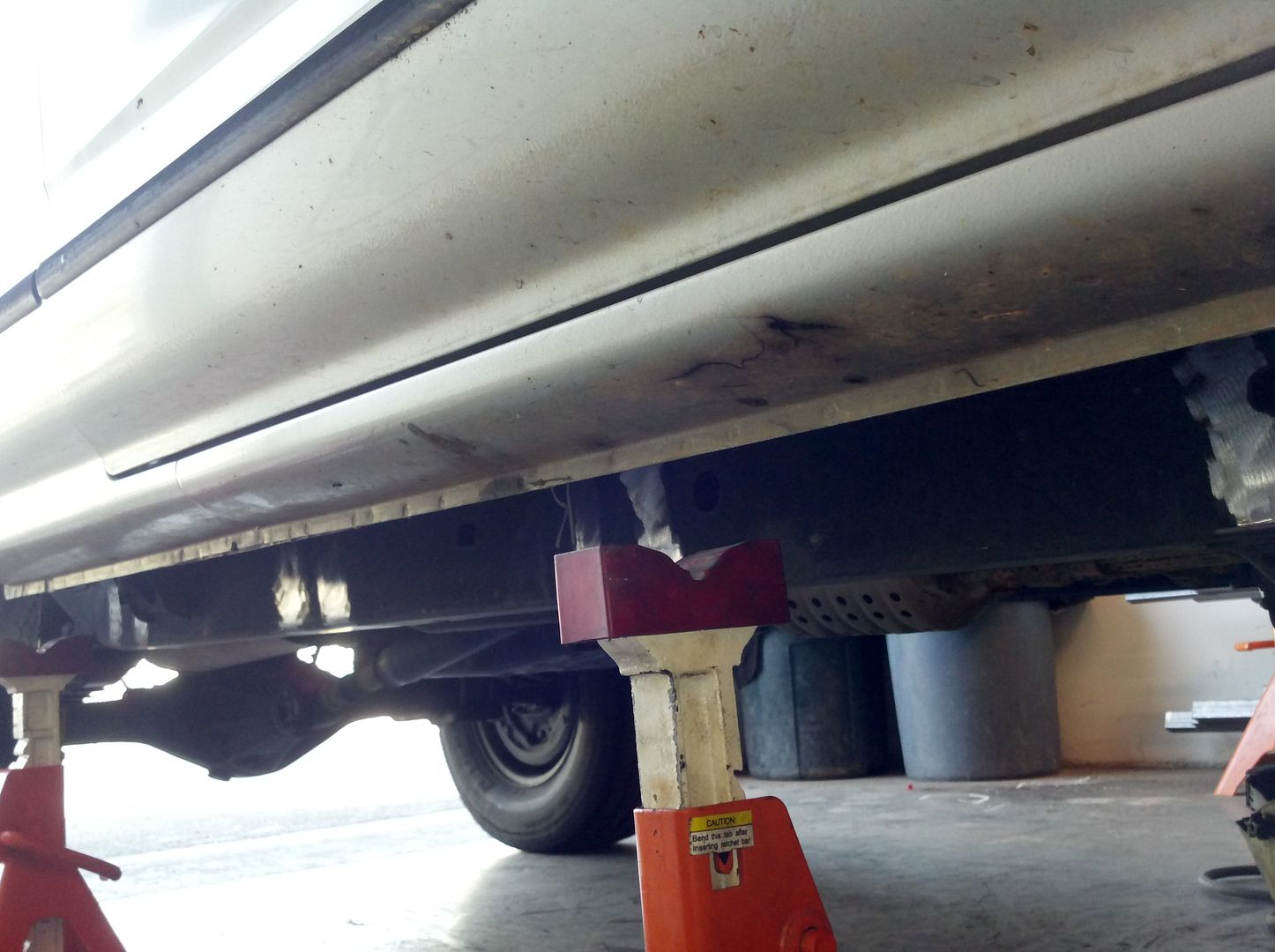

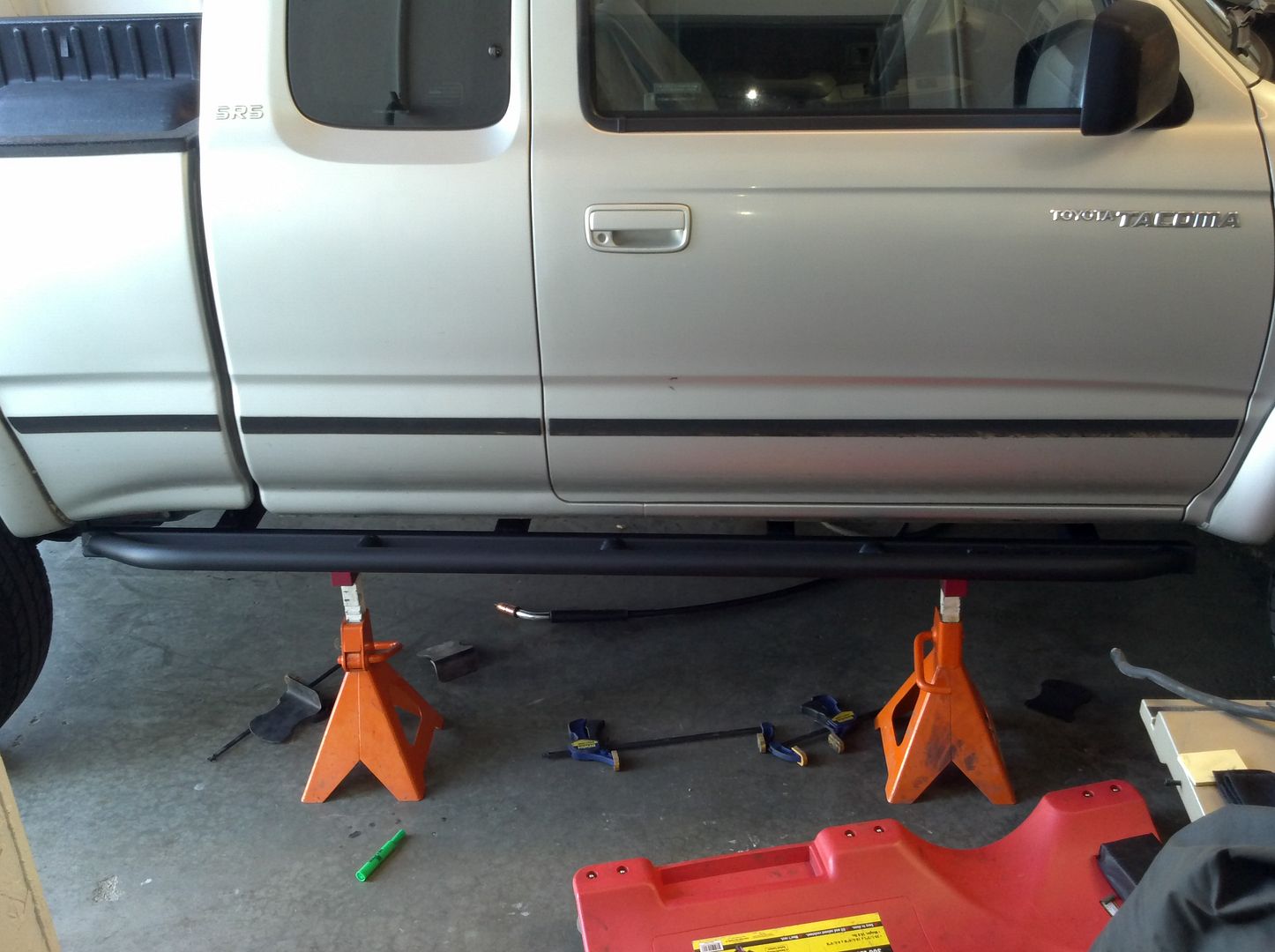

First set your jack stands along side of your truck and lay the sliders on them locating them where you want to mount them.


Then take your frame plates and place them on the frame with the clamps (pic will be added soon)

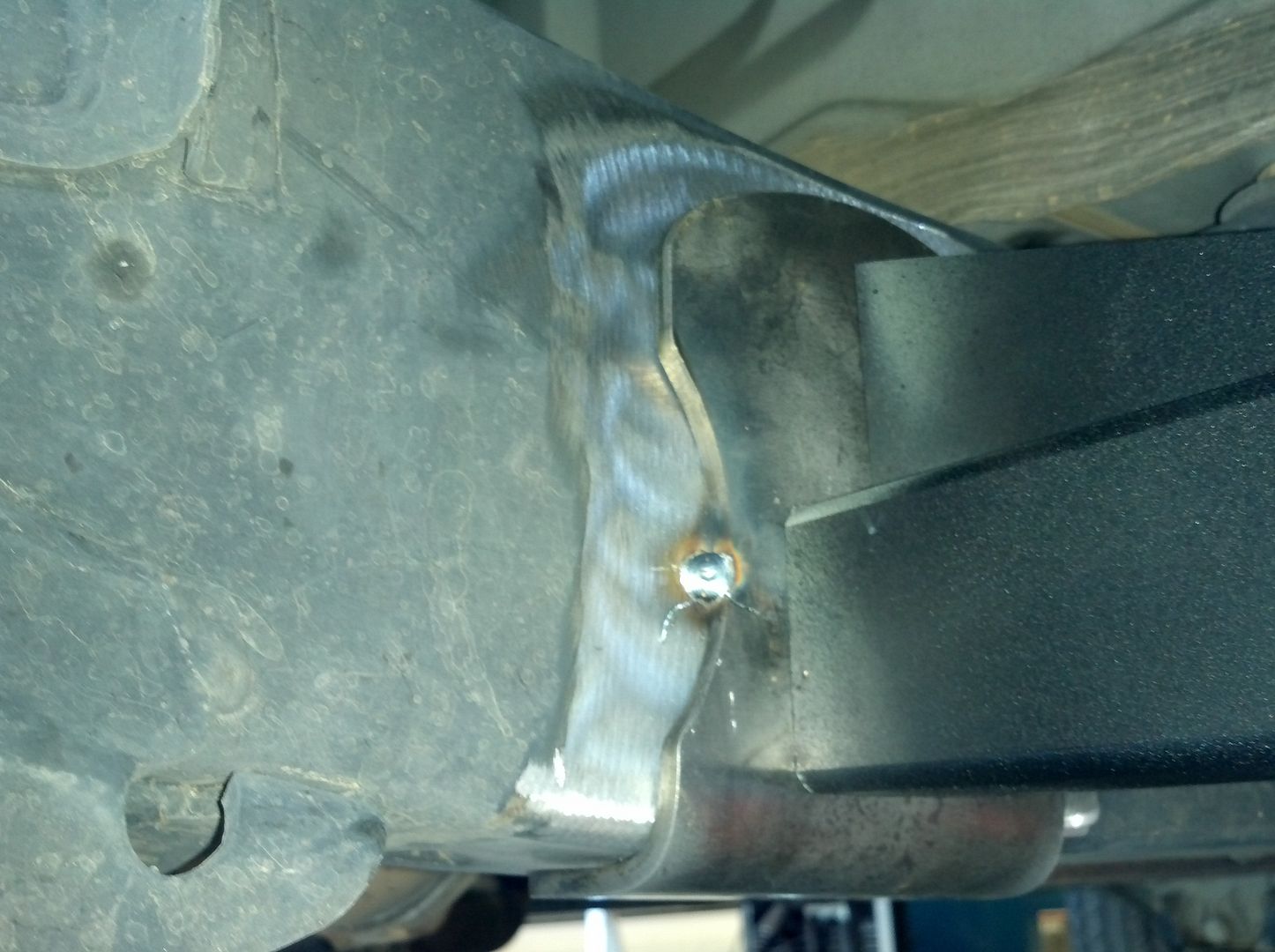

Mark your frame for cleaning NOTE some 2nd Gen models have a rivet/rivets in the way you will have to modify your frame plate to fit around this rivet/rivets.





Now this is where your choices come in. You can tack the slider to the frame plates and remove them from your frame and fully weld them. Or you can tack the frame plates to the frame and weld your sliders to them after.

Were going to show you both but for now here is the frame plates welded to the frame method.

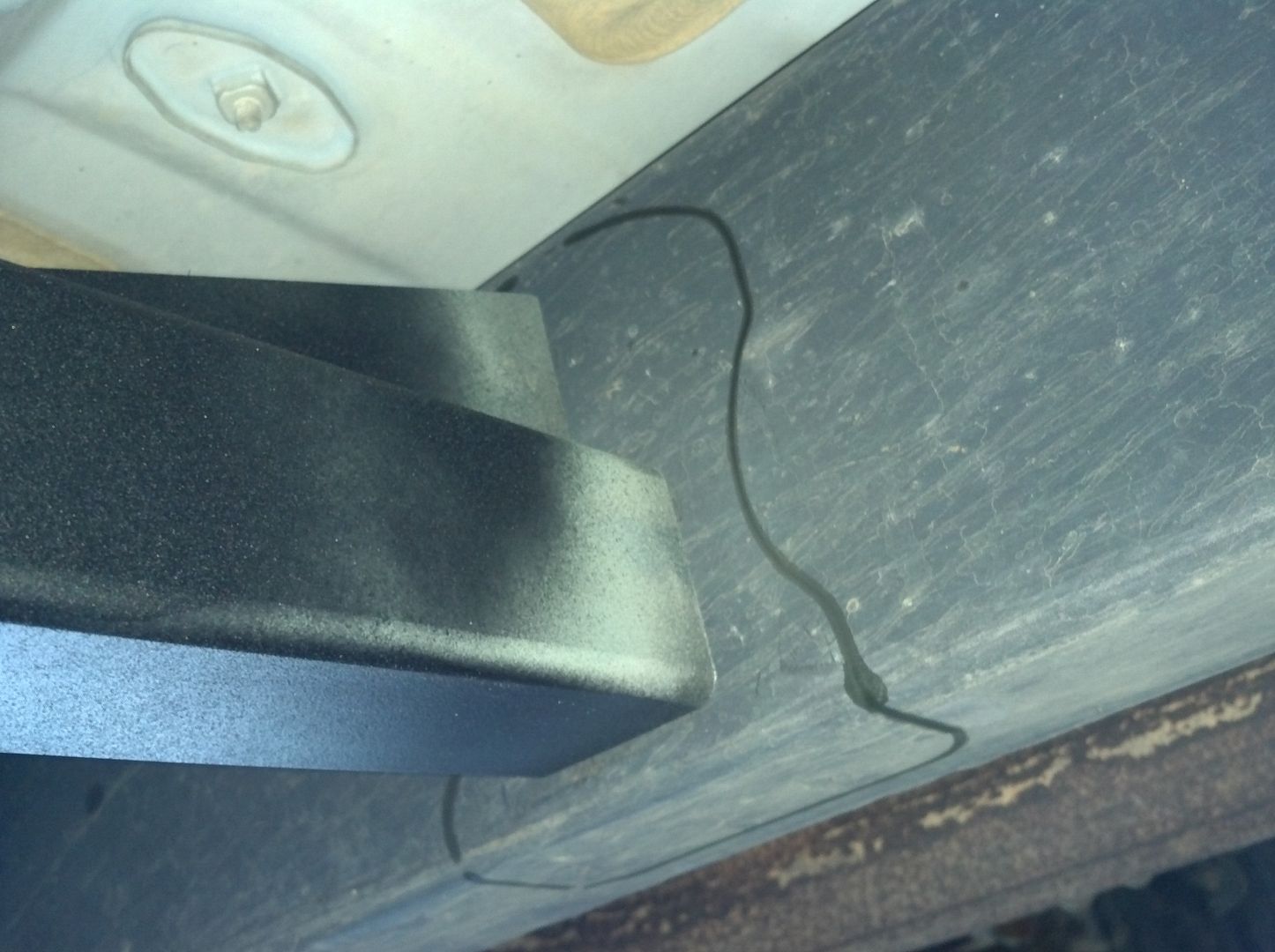

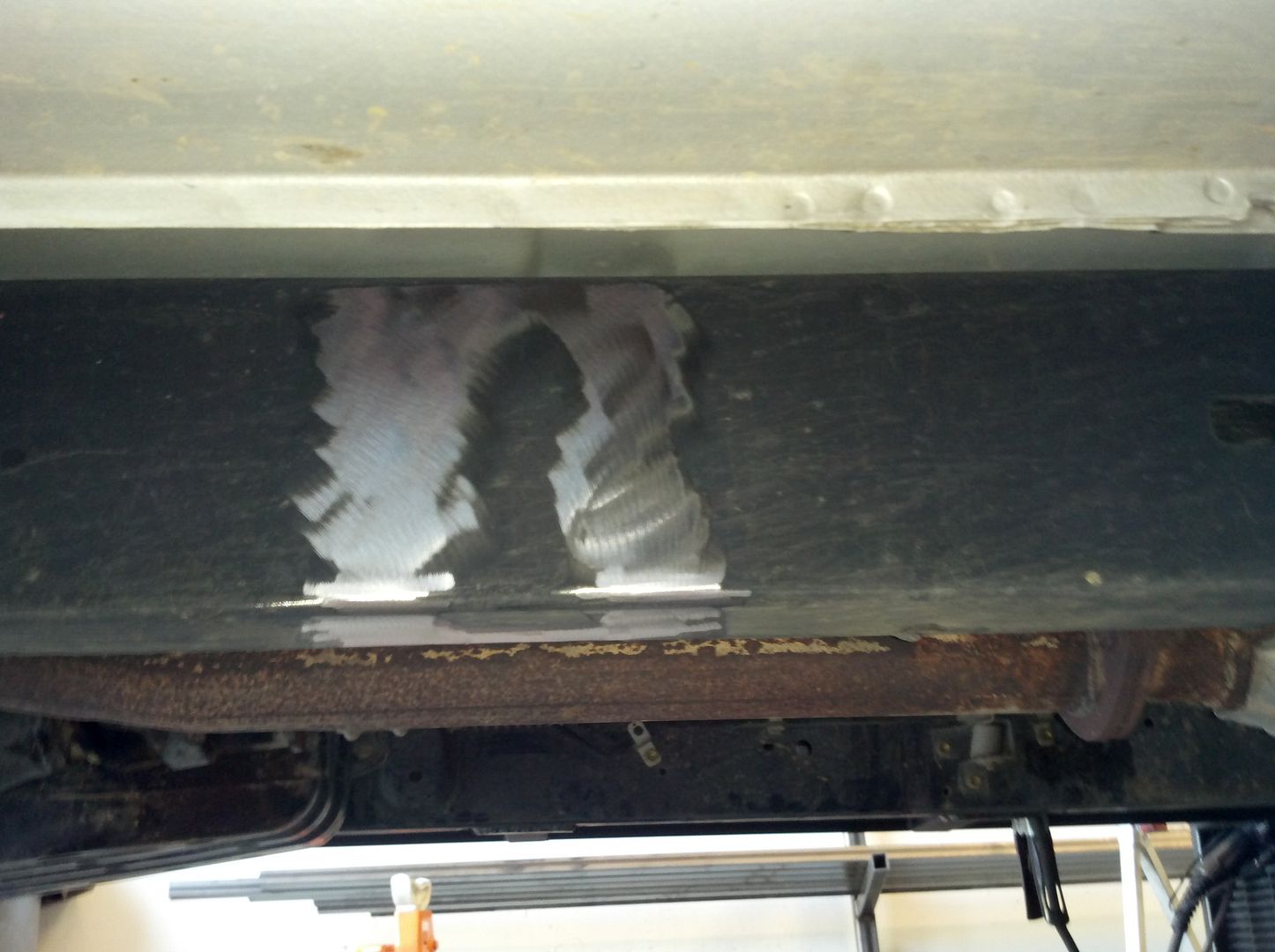

After your happy with the location of the slider mark your frame as shown above and remove the sliders from the truck. Now take your 4.5" angle grinder and flap disk and remove the line you just did on the frame like so.





Now that your frame is all clean and ready to weld tack all 4 of your frame plates to the frame (NOTE the flat plate go's on the front leg)

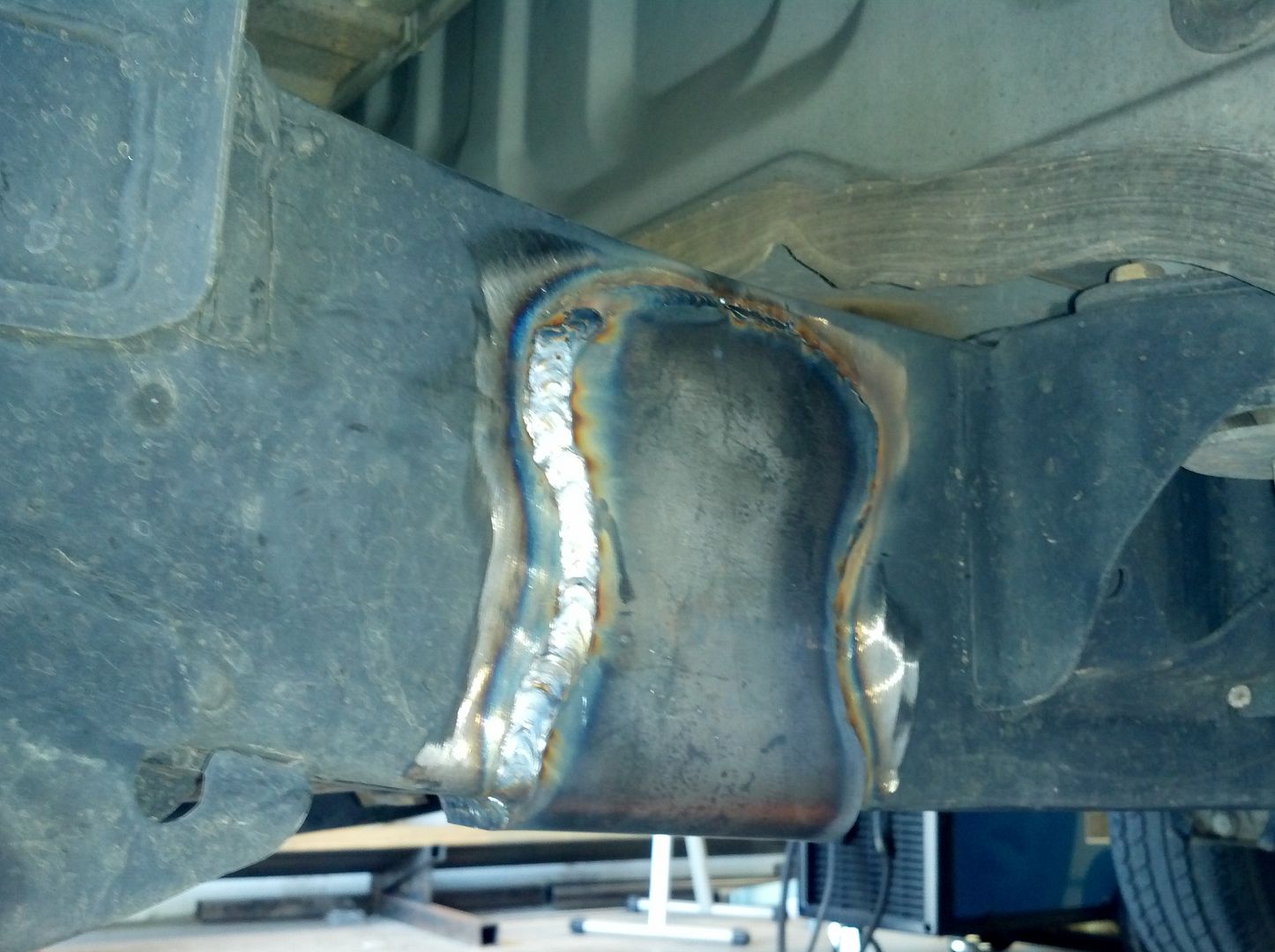

Once all 4 plates have been fitted and tacked remove the sliders and fully weld the plates to the frame. NOTE with this method it is easier to get a good weld at the top of the frame plate.


Once all 4 plates have been welded to the frame place the sliders back up to the truck and set your gap between the pinch weld. Is what I do is tack the rear leg at the desired gap and move to the front leg and tack that one so you have it even all the way down the slider. (NOTE) the leg tolerances are all on the + side as we try to cut them all the same length some may be longer or shorter. If you find this just take your grinder and sand down the leg/legs until the sliders fit tight on the frame plates.

Adding pic soon

Now that your tacked your slider in place stand back and make sure you like the location and check the gap you want at least 1/4" from the pinch weld to allow body movement. AND CHECK YOUR DOORS MAKE SURE THEY ALL OPEN BEFORE YOU FULLY WELD YOUR SLIDERS ON!!!!

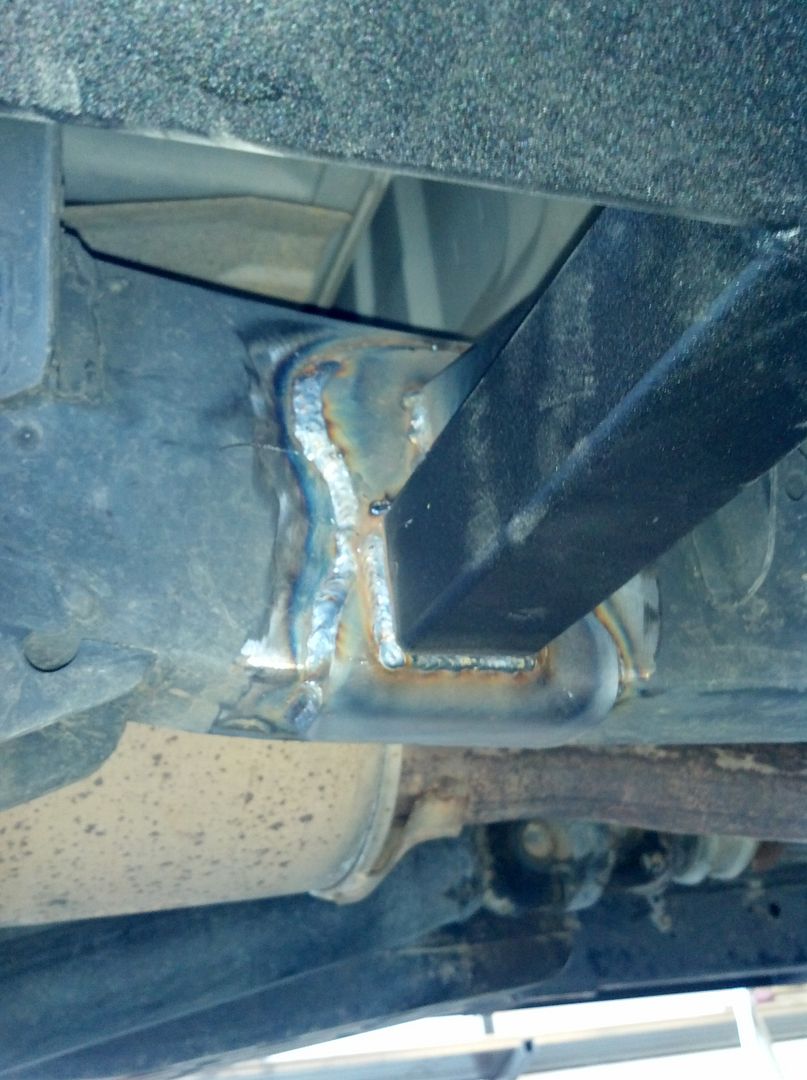

Now just fully weld your sliders on.



Let the welds cool and prime and paint your done Now do beat the hell out of them!!!!
  Reply With Quote
Old 05-02-2012, 03:09 PM   #2
The One The Only
rhion82 is one of the sharper tools in the shedrhion82 is one of the sharper tools in the shedrhion82 is one of the sharper tools in the shedrhion82 is one of the sharper tools in the shedrhion82 is one of the sharper tools in the shedrhion82 is one of the sharper tools in the shedrhion82 is one of the sharper tools in the shedrhion82 is one of the sharper tools in the shedrhion82 is one of the sharper tools in the shedrhion82 is one of the sharper tools in the shedrhion82 is one of the sharper tools in the shed

rhion82's Avatar
Name: Mitchell
Joined: Jun 2009, #19084
Location: Chattanooga
Gender: Male
Posts: 600
rhion82's Tacoma Gallery
Awesome thanks Jerry. Now I can install the sliders I just got in!!
  Reply With Quote
Old 05-02-2012, 03:20 PM   #3
Time Traveler
MartyMcfly is one of the sharper tools in the shedMartyMcfly is one of the sharper tools in the shedMartyMcfly is one of the sharper tools in the shedMartyMcfly is one of the sharper tools in the shedMartyMcfly is one of the sharper tools in the shedMartyMcfly is one of the sharper tools in the shedMartyMcfly is one of the sharper tools in the shedMartyMcfly is one of the sharper tools in the shedMartyMcfly is one of the sharper tools in the shedMartyMcfly is one of the sharper tools in the shedMartyMcfly is one of the sharper tools in the shed

MartyMcfly's Avatar
Name: ROB
Joined: Jan 2011, #49960
Location: Santa Cruz
Gender: Male
Posts: 951
MartyMcfly's Tacoma Gallery
Very well laid out.
Makes me want to buy sliders, just so I can follow these instructions.
  Reply With Quote
Old 05-02-2012, 04:09 PM   #4
JLee [OP] JLee is offline
The Man!
JLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shed

JLee's Avatar
Name: Jerry
Joined: Jul 2010, #40461
Location: Bay Area NorCal
Gender: Male
Posts: 14,438
JLee's Tacoma Gallery
Quote:
Originally Posted by MartyMcfly View Post
Very well laid out.
Makes me want to buy sliders, just so I can follow these instructions.
I will give you a 2% discount
  Reply With Quote
Old 05-02-2012, 07:41 PM   #5
Have a nice day
htuong95 is on a distinguished road

htuong95's Avatar
Joined: Oct 2010, #44686
Location: Sacramento
Gender: Male
Posts: 95
htuong95's Tacoma Gallery
My truck is now famous!
  Reply With Quote
Old 05-02-2012, 11:26 PM   #6
Member
SJginger is on a distinguished road
Name: Jerry
Joined: Jul 2011, #60566
Location: South Jersey
Gender: Male
Posts: 96
SJginger's Tacoma Gallery
About how long was the install
  Reply With Quote
Old 05-03-2012, 12:21 AM   #7
Have a nice day
htuong95 is on a distinguished road

htuong95's Avatar
Joined: Oct 2010, #44686
Location: Sacramento
Gender: Male
Posts: 95
htuong95's Tacoma Gallery
Quote:
Originally Posted by SJginger View Post
About how long was the install
About 1.5 hours.
  Reply With Quote
Old 05-03-2012, 06:32 AM   #8
JLee [OP] JLee is offline
The Man!
JLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shed

JLee's Avatar
Name: Jerry
Joined: Jul 2010, #40461
Location: Bay Area NorCal
Gender: Male
Posts: 14,438
JLee's Tacoma Gallery
Quote:
Originally Posted by SJginger View Post
About how long was the install
Quote:
Originally Posted by htuong95 View Post
About 1.5 hours.
I have done quite a few installs so don't expect 1.5 hours from just anyone . For most people expect about 2.5 to 3 hours to install sliders.
  Reply With Quote
Old 05-11-2012, 01:59 PM   #10
JLee [OP] JLee is offline
The Man!
JLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shed

JLee's Avatar
Name: Jerry
Joined: Jul 2010, #40461
Location: Bay Area NorCal
Gender: Male
Posts: 14,438
JLee's Tacoma Gallery
Quote:
Originally Posted by ffdawson View Post
any concern with melting the wires/lines that run on the backside of the frame? considering removing them for the install... kind of a PITA though.
i don't think any factory wires run in the frames. i know your hard lines are in there on the driver side but they are off the frame by about 1/4"
  Reply With Quote
Old 05-11-2012, 05:23 PM   #11
Member
SJginger is on a distinguished road
Name: Jerry
Joined: Jul 2011, #60566
Location: South Jersey
Gender: Male
Posts: 96
SJginger's Tacoma Gallery
I just did the weld up today the step by step was awesome, and those pines your talking about I had no prob of melting the only melting going on was when I had to notch the frame plate and cought my glove on fire

Awesome write up jerry, would u like finish pictures after i paint them?
  Reply With Quote
Old 05-11-2012, 05:29 PM   #12
JLee [OP] JLee is offline
The Man!
JLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shed

JLee's Avatar
Name: Jerry
Joined: Jul 2010, #40461
Location: Bay Area NorCal
Gender: Male
Posts: 14,438
JLee's Tacoma Gallery
Quote:
Originally Posted by SJginger View Post
I just did the weld up today the step by step was awesome, and those pines your talking about I had no prob of melting the only melting going on was when I had to notch the frame plate and cought my glove on fire

Awesome write up jerry, would u like finish pictures after i paint them?
Awesome man post pictures.
  Reply With Quote
Old 05-12-2012, 08:10 AM   #13
Adventurer
ffdawson is one of the sharper tools in the shedffdawson is one of the sharper tools in the shedffdawson is one of the sharper tools in the shedffdawson is one of the sharper tools in the shedffdawson is one of the sharper tools in the shedffdawson is one of the sharper tools in the shedffdawson is one of the sharper tools in the shedffdawson is one of the sharper tools in the shedffdawson is one of the sharper tools in the shedffdawson is one of the sharper tools in the shedffdawson is one of the sharper tools in the shed

ffdawson's Avatar
Firefighter:
Joined: May 2011, #56362
Location: Penngrove
Gender: Male
Posts: 999
ffdawson's Tacoma Gallery
Quote:
Originally Posted by JLee View Post
i don't think any factory wires run in the frames. i know your hard lines are in there on the driver side but they are off the frame by about 1/4"
yeah thats what i was referring to. cool, no need to remove.
heading to my buddy's shop for weld up now!!
  Reply With Quote
Old 05-12-2012, 08:16 AM   #14
JLee [OP] JLee is offline
The Man!
JLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shed

JLee's Avatar
Name: Jerry
Joined: Jul 2010, #40461
Location: Bay Area NorCal
Gender: Male
Posts: 14,438
JLee's Tacoma Gallery
Quote:
Originally Posted by ffdawson View Post
yeah thats what i was referring to. cool, no need to remove.
heading to my buddy's shop for weld up now!!

Those lines are off the frame enough you shouldn't need to move them.
  Reply With Quote
Old 05-24-2012, 07:42 PM   #15
Senior Member
NoSoup4You is one of the sharper tools in the shedNoSoup4You is one of the sharper tools in the shedNoSoup4You is one of the sharper tools in the shedNoSoup4You is one of the sharper tools in the shedNoSoup4You is one of the sharper tools in the shedNoSoup4You is one of the sharper tools in the shedNoSoup4You is one of the sharper tools in the shedNoSoup4You is one of the sharper tools in the shedNoSoup4You is one of the sharper tools in the shedNoSoup4You is one of the sharper tools in the shedNoSoup4You is one of the sharper tools in the shed

NoSoup4You's Avatar
Name: David
Joined: Jan 2012, #69909
Location: San Clemente
Gender: Male
Posts: 1,307
NoSoup4You's Tacoma Gallery
hey Jerry .. just reading through this, and it looks like you welded the gussets on before painting - did you do a full mockup to get them in place or just weld them on flat against the egde of the slider?
  Reply With Quote
Old 05-24-2012, 09:24 PM   #16
JLee [OP] JLee is offline
The Man!
JLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shed

JLee's Avatar
Name: Jerry
Joined: Jul 2010, #40461
Location: Bay Area NorCal
Gender: Male
Posts: 14,438
JLee's Tacoma Gallery
Quote:
Originally Posted by NoSoup4You View Post
hey Jerry .. just reading through this, and it looks like you welded the gussets on before painting - did you do a full mockup to get them in place or just weld them on flat against the egde of the slider?
I just bring them to the edge of the leg and weld them on.
  Reply With Quote
Old 05-24-2012, 10:01 PM   #17
Senior Member
NoSoup4You is one of the sharper tools in the shedNoSoup4You is one of the sharper tools in the shedNoSoup4You is one of the sharper tools in the shedNoSoup4You is one of the sharper tools in the shedNoSoup4You is one of the sharper tools in the shedNoSoup4You is one of the sharper tools in the shedNoSoup4You is one of the sharper tools in the shedNoSoup4You is one of the sharper tools in the shedNoSoup4You is one of the sharper tools in the shedNoSoup4You is one of the sharper tools in the shedNoSoup4You is one of the sharper tools in the shed

NoSoup4You's Avatar
Name: David
Joined: Jan 2012, #69909
Location: San Clemente
Gender: Male
Posts: 1,307
NoSoup4You's Tacoma Gallery
Quote:
Originally Posted by JLee View Post
I just bring them to the edge of the leg and weld them on.
cool .. thanks!
  Reply With Quote
Old 08-12-2012, 05:05 PM   #18
The Rembrandt of Rattle Can
Madjik_Man is one of the sharper tools in the shedMadjik_Man is one of the sharper tools in the shedMadjik_Man is one of the sharper tools in the shedMadjik_Man is one of the sharper tools in the shedMadjik_Man is one of the sharper tools in the shedMadjik_Man is one of the sharper tools in the shedMadjik_Man is one of the sharper tools in the shedMadjik_Man is one of the sharper tools in the shedMadjik_Man is one of the sharper tools in the shedMadjik_Man is one of the sharper tools in the shedMadjik_Man is one of the sharper tools in the shed

Madjik_Man's Avatar
Joined: Dec 2009, #26893
Location: Boulder, CO
Gender: Male
Posts: 9,132
Madjik_Man's Tacoma Gallery
Quote:
Originally Posted by JLee View Post
For Painting
1. paint thinner and rags
2. 4.5" angle grinder and wire wheel or scuffing pad
3. 3 cans of primer
4. 3 cans of the paint of your choice ( I use rustoleum truck bed coating)


After hitting with a wire wheel


Knob question:

I have a wire wheel that attaches to my drill. Can I use that to accomplish that step above? My only concern is the swirl marks my wire brush will put in the metal. The pics above show very minimal swirl marks, I have a feeling my wire brush would not be as fine/friendly.

For reference the thing I would use is the thing sitting on the drill case in the pic below

  Reply With Quote
Old 08-12-2012, 06:50 PM   #19
JLee [OP] JLee is offline
The Man!
JLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shed

JLee's Avatar
Name: Jerry
Joined: Jul 2010, #40461
Location: Bay Area NorCal
Gender: Male
Posts: 14,438
JLee's Tacoma Gallery
Quote:
Originally Posted by Madjik_Man View Post
Knob question:

I have a wire wheel that attaches to my drill. Can I use that to accomplish that step above? My only concern is the swirl marks my wire brush will put in the metal. The pics above show very minimal swirl marks, I have a feeling my wire brush would not be as fine/friendly.

For reference the thing I would use is the thing sitting on the drill case in the pic below

The cup brush would work fine there is a lot of marks in the tube from the wire wheel but it gives the paint something to grab. The swirl marks will not be deep if you really nice you can sand it down after the cup brush.
  Reply With Quote
Old 08-12-2012, 06:52 PM   #20
Solid Axle FTMFW!!
Supra TT is one of the sharper tools in the shedSupra TT is one of the sharper tools in the shedSupra TT is one of the sharper tools in the shedSupra TT is one of the sharper tools in the shedSupra TT is one of the sharper tools in the shedSupra TT is one of the sharper tools in the shedSupra TT is one of the sharper tools in the shedSupra TT is one of the sharper tools in the shedSupra TT is one of the sharper tools in the shedSupra TT is one of the sharper tools in the shedSupra TT is one of the sharper tools in the shed

Supra TT's Avatar
Name: Eric
Joined: Jan 2011, #48645
Location: Lafayette, Indiana
Gender: Male
Posts: 4,401
Supra TT's Tacoma Gallery
Best thing ever for cleaning metal scuffs.

http://www.amazon.com/dp/B00755XY2Y/...hvptwo=&hvqmt=
