ORI-Struts Available from BAMF

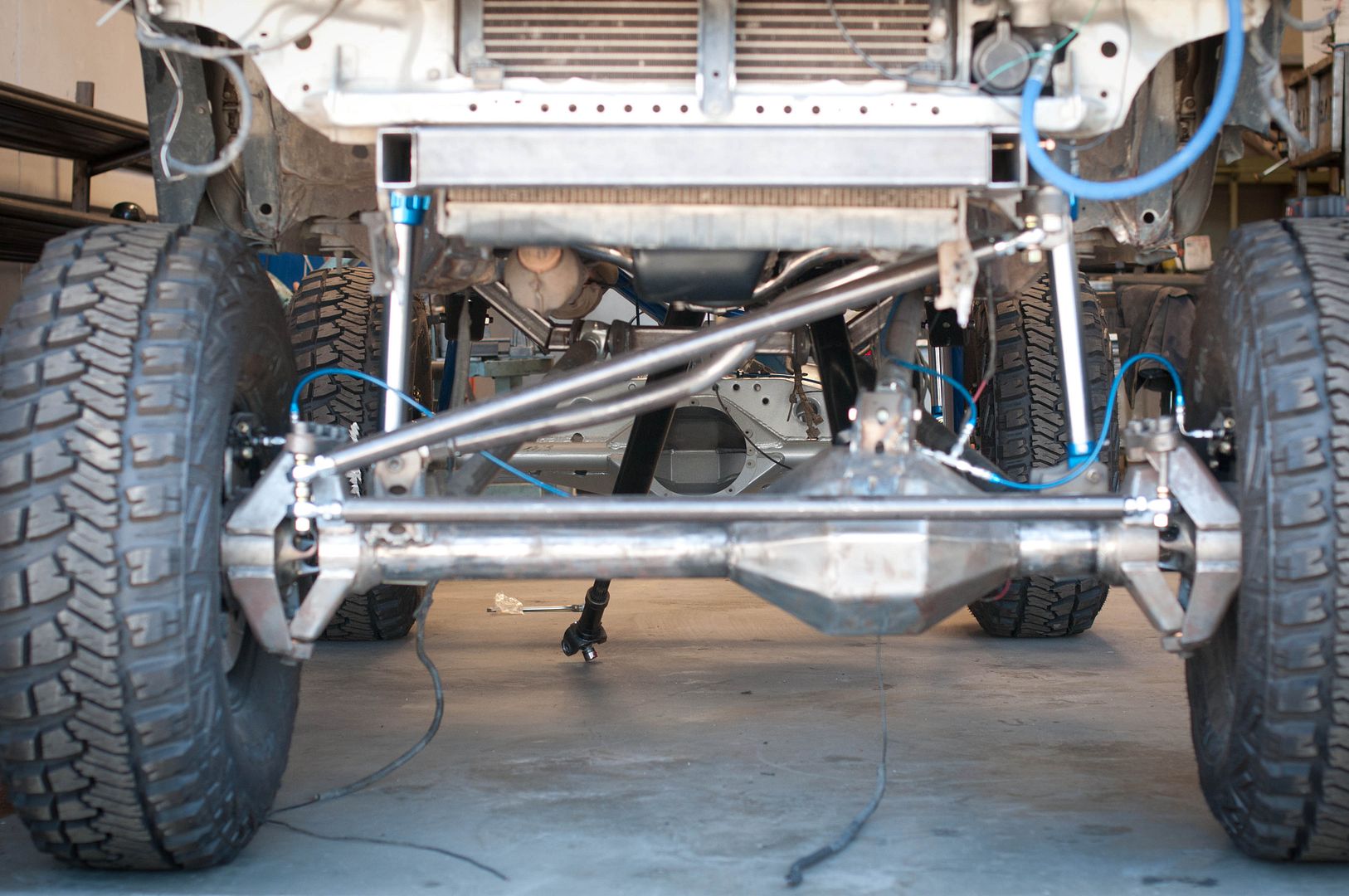

BAMF has become one of the newest ORI distributors if your doing a SAS or have a jeep or buggy then ORI-Struts are for you

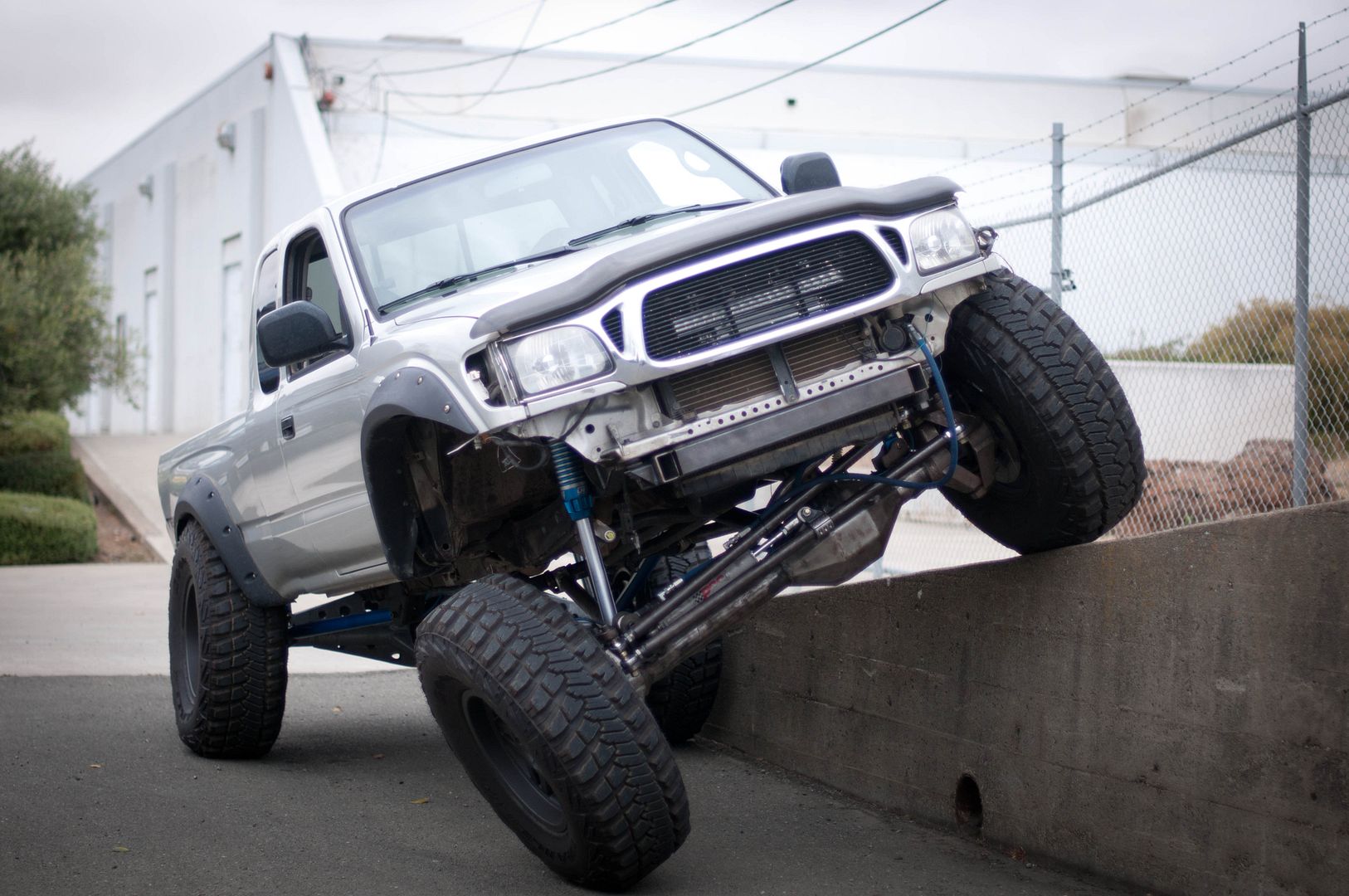

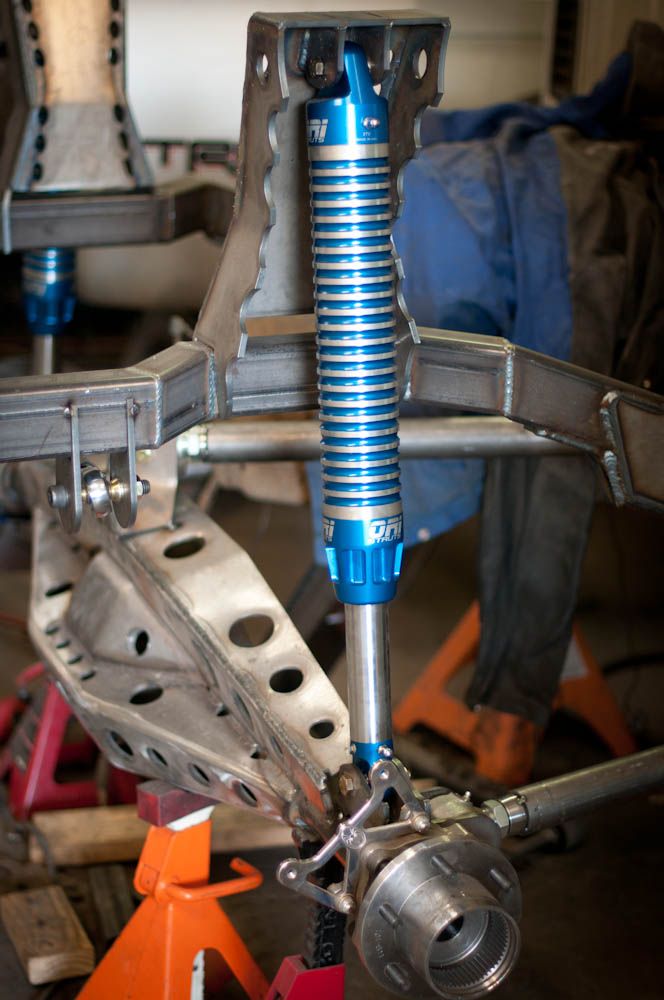

I run these struts on my rig and they are awesome! The 1st few 2nd Gen Tacoma IFS sets will be installed soon we are testing fitment on 1st Gens as well.















Specifications:
Dual pressurized chamber design for unmatched body roll stability in fast turns, and on off-camber side hills. Can be set to mid-stroke ride height and still control body roll, and not push off. Most users dump the sway bar.
With ORI’s internal features, most users also dump the external bump stops and limit straps.

3-stage velocity-sensitive compression damping Soft ride changes to firm compression damping as piston shaft speed increases.Conventional air shocks are typically set to low ride height to prevent push-off, but bottom quickly over bumps as a result. ORIs set at mid-stroke, will both suck up the bumps, and will drop out quickly over the whoops. No trade-offs in performance.Coil-Overs are set close to full extension to help reduce body roll. ORIs set at mid-stroke, are ready to react, whether to compress when hitting a bump, or to drop out in an instant over a rut, maintaining a more level, comfortable ride at speed.

Tunable anywhere from firm ride to loose articulation by simply adjusting nitrogen gas pressures.

Higher load capacity than conventional air shocks. Nitrogen gas charge over 2” piston can support up to 1900 lbs/strut.
Compact, simple installation fits tight spaces, and replaces a lot of unnecessary hardware.

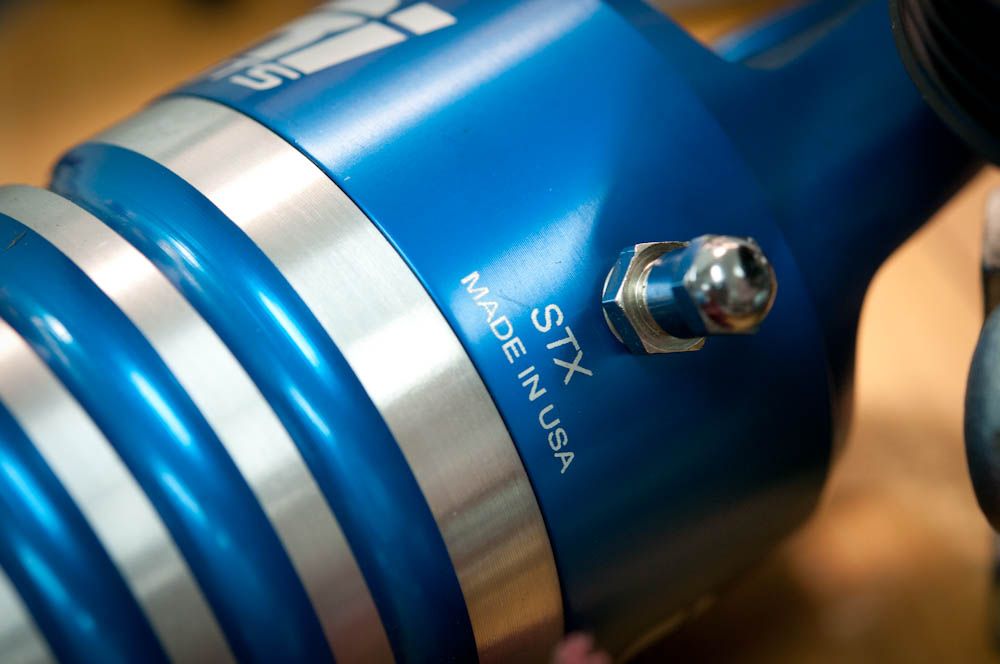

Velocity-sensitive, 7-position externally-adjustable rebound damping
Internal hydraulic bump stop on compression stroke
Hydraulic end-of-stroke cushioning at full extension

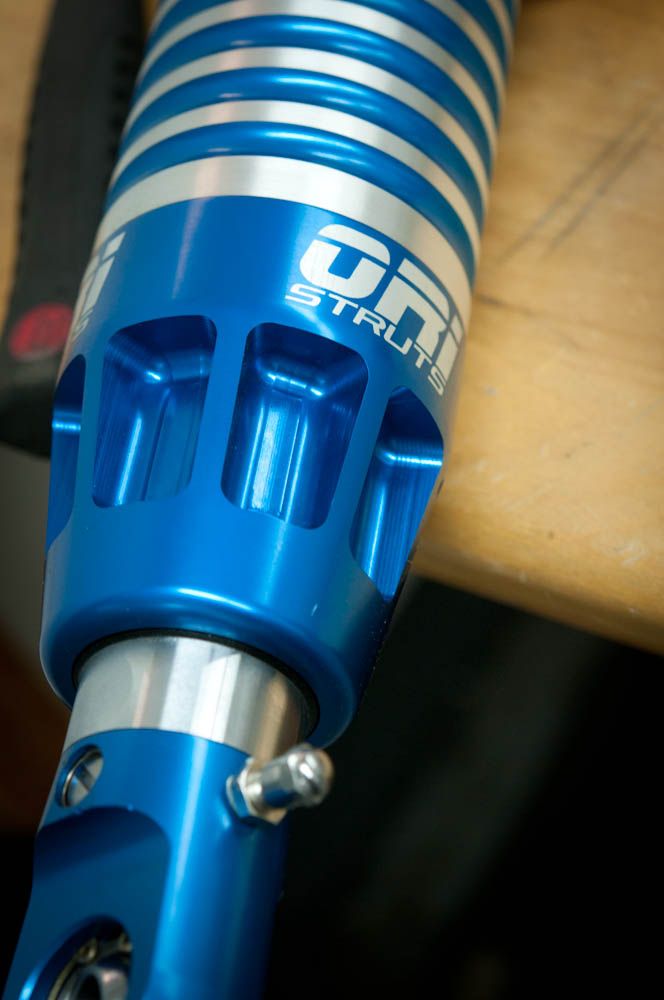

Cooling fins dissipate heat

Lightweight construction
Billet 6061 aluminum, stainless and high-strength carbon steel
Hard chrome steel cylinder and tough 1 ¾” piston shaft
Teflon-lined spherical bearings for 1/2” & 5/8” mounting bolts
High pressure 5000 psi seals for extreme off-road abuse
Corrosion resistant anodize outer coating

ORI Struts do not Unload, or Push Off
Piston shafts can be set to extend to a park position, then wheel and axle weight can still pull the struts to full extension.
  Reply With Quote
Old 02-02-2013, 11:03 AM   #2
1st gen > 2nd gen
Rucas is one of the sharper tools in the shedRucas is one of the sharper tools in the shedRucas is one of the sharper tools in the shedRucas is one of the sharper tools in the shedRucas is one of the sharper tools in the shedRucas is one of the sharper tools in the shedRucas is one of the sharper tools in the shedRucas is one of the sharper tools in the shedRucas is one of the sharper tools in the shedRucas is one of the sharper tools in the shedRucas is one of the sharper tools in the shed

Rucas's Avatar
Name: Lucas
Joined: Dec 2009, #27040
Location: The Burning State.
Gender: Dude
Posts: 4,299
Rucas's Tacoma Gallery
  Reply With Quote
Old 02-02-2013, 12:01 PM   #3
Lord of War
KenLyns is one of the sharper tools in the shedKenLyns is one of the sharper tools in the shedKenLyns is one of the sharper tools in the shedKenLyns is one of the sharper tools in the shedKenLyns is one of the sharper tools in the shedKenLyns is one of the sharper tools in the shedKenLyns is one of the sharper tools in the shedKenLyns is one of the sharper tools in the shedKenLyns is one of the sharper tools in the shedKenLyns is one of the sharper tools in the shedKenLyns is one of the sharper tools in the shed

KenLyns's Avatar
Joined: May 2010, #37674
Location: Belly of the Beast
Age: 31
Gender: Guy
Posts: 15,170
KenLyns's Tacoma Gallery
So this is a gas spring and hydraulic damper in one? What is the effective spring rate?
  Reply With Quote
Old 02-02-2013, 07:18 PM   #4
‹^› ‹(ಠ_ಠ)› ‹^›
NYCO is one of the sharper tools in the shedNYCO is one of the sharper tools in the shedNYCO is one of the sharper tools in the shedNYCO is one of the sharper tools in the shedNYCO is one of the sharper tools in the shedNYCO is one of the sharper tools in the shedNYCO is one of the sharper tools in the shedNYCO is one of the sharper tools in the shedNYCO is one of the sharper tools in the shedNYCO is one of the sharper tools in the shedNYCO is one of the sharper tools in the shed

NYCO's Avatar
Name: bOb
Joined: Jul 2010, #40842
Location: Colorado
Gender: Male
Posts: 14,281
NYCO's Tacoma Gallery
second gen here in CO is using them now too...LT w/ 4 link rear





http://www.ttora.com/forum/showthread.php?t=133171
  Reply With Quote
Old 02-05-2013, 12:19 PM   #5
JLee [OP] JLee is offline
The Man!
JLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shed

JLee's Avatar
Name: Jerry
Joined: Jul 2010, #40461
Location: Bay Area NorCal
Gender: Male
Posts: 14,409
JLee's Tacoma Gallery
Quote:
Originally Posted by KenLyns View Post
So this is a gas spring and hydraulic damper in one? What is the effective spring rate?
The spring rate depends on the gas pressure in the lower chamber.
  Reply With Quote
Old 06-24-2013, 11:07 AM   #6
JLee [OP] JLee is offline
The Man!
JLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shed

JLee's Avatar
Name: Jerry
Joined: Jul 2010, #40461
Location: Bay Area NorCal
Gender: Male
Posts: 14,409
JLee's Tacoma Gallery
Fitment has been checked ORI's will be available as a bolt on replacement for 2nd Gen IFS.
  Reply With Quote
Old 06-24-2013, 11:12 AM   #9
JLee [OP] JLee is offline
The Man!
JLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shed

JLee's Avatar
Name: Jerry
Joined: Jul 2010, #40461
Location: Bay Area NorCal
Gender: Male
Posts: 14,409
JLee's Tacoma Gallery
Quote:
Originally Posted by IDtrucks View Post
THAT is awesome!
I'm sure they will fit the 1st Gens as well I just need to check it first.
  Reply With Quote
Old 06-24-2013, 11:52 AM   #11
JLee [OP] JLee is offline
The Man!
JLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shed

JLee's Avatar
Name: Jerry
Joined: Jul 2010, #40461
Location: Bay Area NorCal
Gender: Male
Posts: 14,409
JLee's Tacoma Gallery
Quote:
Originally Posted by IDtrucks View Post
im assuming you would have to measure for the oris the same way you do for a coil over?
Kinda
  Reply With Quote
Old 06-24-2013, 12:07 PM   #12
The Mad Scientist
jberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shed

jberry813's Avatar
Name: Jason
Joined: Jan 2011, #49636
Location: Lake Tahoe
Age: 32
Gender: Guy
Posts: 11,404
jberry813's Tacoma Gallery
Quote:
Originally Posted by JLee View Post
Fitment has been checked ORI's will be available as a bolt on replacement for 2nd Gen IFS.
Are you building a top plate for them? I can kinda see the 8" working if there's a really low profile top plate.
Anyway...subbing just to see!
  Reply With Quote
Old 06-24-2013, 01:25 PM   #13
JLee [OP] JLee is offline
The Man!
JLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shed

JLee's Avatar
Name: Jerry
Joined: Jul 2010, #40461
Location: Bay Area NorCal
Gender: Male
Posts: 14,409
JLee's Tacoma Gallery
Quote:
Originally Posted by jberry813 View Post
Are you building a top plate for them? I can kinda see the 8" working if there's a really low profile top plate.
Anyway...subbing just to see!

Yes I am and the 8's will fit just fine the suspension will have to be strapped. Just from the measurements I took these will provide more travel then any mid travel set up out. With the CV joint being the limiting factor.
  Reply With Quote
Old 06-24-2013, 01:30 PM   #14
Purveyor of Fun
benbacher is one of the sharper tools in the shedbenbacher is one of the sharper tools in the shedbenbacher is one of the sharper tools in the shedbenbacher is one of the sharper tools in the shedbenbacher is one of the sharper tools in the shedbenbacher is one of the sharper tools in the shedbenbacher is one of the sharper tools in the shedbenbacher is one of the sharper tools in the shedbenbacher is one of the sharper tools in the shedbenbacher is one of the sharper tools in the shedbenbacher is one of the sharper tools in the shed

benbacher's Avatar
Name: ^
Joined: Jun 2011, #59032
Location: Anchorage, AK
Age: 27
Gender: Male
Posts: 7,883
benbacher's Tacoma Gallery
Aw man....you figured it out lol, might be giving you a call man, depending on how much fabrication there is I might have to do this
  Reply With Quote
Old 06-24-2013, 01:33 PM   #15
JLee [OP] JLee is offline
The Man!
JLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shed

JLee's Avatar
Name: Jerry
Joined: Jul 2010, #40461
Location: Bay Area NorCal
Gender: Male
Posts: 14,409
JLee's Tacoma Gallery
Quote:
Originally Posted by benbacher View Post
Aw man....you figured it out lol, might be giving you a call man, depending on how much fabrication there is I might have to do this
You were too slow and I'm going to try my hardest to make them a direct bolt on. It's the limit straps that will be tricky.
  Reply With Quote
Old 06-24-2013, 01:37 PM   #16
Purveyor of Fun
benbacher is one of the sharper tools in the shedbenbacher is one of the sharper tools in the shedbenbacher is one of the sharper tools in the shedbenbacher is one of the sharper tools in the shedbenbacher is one of the sharper tools in the shedbenbacher is one of the sharper tools in the shedbenbacher is one of the sharper tools in the shedbenbacher is one of the sharper tools in the shedbenbacher is one of the sharper tools in the shedbenbacher is one of the sharper tools in the shedbenbacher is one of the sharper tools in the shed

benbacher's Avatar
Name: ^
Joined: Jun 2011, #59032
Location: Anchorage, AK
Age: 27
Gender: Male
Posts: 7,883
benbacher's Tacoma Gallery
Lol, yeah, any idea of cost? I'm just a week or so out before pulling the trigger on front suspension. Uca's already found and purchased. And how would these handle winch, dual battery, abd heavy bumper? I was planning on the 14" 700# spring from icon so I'd need it to outperform that. Just so you know what i'm workin towards
  Reply With Quote
Old 06-24-2013, 01:40 PM   #17
Senior Member
DHwreckage is a splendid one to beholdDHwreckage is a splendid one to beholdDHwreckage is a splendid one to beholdDHwreckage is a splendid one to beholdDHwreckage is a splendid one to beholdDHwreckage is a splendid one to beholdDHwreckage is a splendid one to behold

DHwreckage's Avatar
Joined: Oct 2012, #88868
Location: Boulder, CO
Gender: Male
Posts: 402
DHwreckage's Tacoma Gallery
hmm a first gen LT with these would be sweet, what are the struts running ($)?
  Reply With Quote
Old 06-24-2013, 02:05 PM   #18
JLee [OP] JLee is offline
The Man!
JLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shed

JLee's Avatar
Name: Jerry
Joined: Jul 2010, #40461
Location: Bay Area NorCal
Gender: Male
Posts: 14,409
JLee's Tacoma Gallery
Quote:
Originally Posted by benbacher View Post
Lol, yeah, any idea of cost? I'm just a week or so out before pulling the trigger on front suspension. Uca's already found and purchased. And how would these handle winch, dual battery, abd heavy bumper? I was planning on the 14" 700# spring from icon so I'd need it to outperform that. Just so you know what i'm workin towards
I'm going to try and keep it under $1200.00 a set. And they can handle 1900lbs per corner so unless your front end is 3800lbs I think you will be good Just note ORI's have a long wait time if there is a lot of interest I'll stock them in the future but the first few orders will have at least a 8 week wait time.
  Reply With Quote
Old 06-24-2013, 02:16 PM   #19
Dolan Plz
IDtrucks is one of the sharper tools in the shedIDtrucks is one of the sharper tools in the shedIDtrucks is one of the sharper tools in the shedIDtrucks is one of the sharper tools in the shedIDtrucks is one of the sharper tools in the shedIDtrucks is one of the sharper tools in the shedIDtrucks is one of the sharper tools in the shedIDtrucks is one of the sharper tools in the shedIDtrucks is one of the sharper tools in the shedIDtrucks is one of the sharper tools in the shedIDtrucks is one of the sharper tools in the shed

IDtrucks's Avatar
Name: Mark
Joined: Jun 2010, #38254
Location: Boise ID
Gender: Guy
Posts: 17,806
IDtrucks's Tacoma Gallery
Quote:
Originally Posted by JLee View Post
I'm going to try and keep it under $1200.00 a set. And they can handle 1900lbs per corner so unless your front end is 3800lbs I think you will be good Just note ORI's have a long wait time if there is a lot of interest I'll stock them in the future but the first few orders will have at least a 8 week wait time.
dam, 1200 is a pretty good deal for something that seems to be a one shock does everything set up.

and these clear the cvs alright too?
  Reply With Quote
Old 06-24-2013, 02:26 PM   #20
JLee [OP] JLee is offline
The Man!
JLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shedJLee is one of the sharper tools in the shed

JLee's Avatar
Name: Jerry
Joined: Jul 2010, #40461
Location: Bay Area NorCal
Gender: Male
Posts: 14,409
JLee's Tacoma Gallery
Quote:
Originally Posted by IDtrucks View Post
dam, 1200 is a pretty good deal for something that seems to be a one shock does everything set up.

and these clear the cvs alright too?
Yes they are thinner then CO's at 3.25" there is plenty of room for the CV's and you guys wont be hitting them like some do on coils at full droop due to them being thinner.
