Question Trailer Leaf Spring Questions

So I've been building a trailer for our jet skis for the past few weeks and I have a few questions on the suspension since I used the old leafs off my truck.

First of all, the springs ended up being way too soft for the weight so I got some helper springs from autozone to see if they would do anything. Just putting one on each side did almost nothing so I doubled them up and put them above the overload leaf. The springs are nice and stiff now but do you guys see any problems with this in the long run?

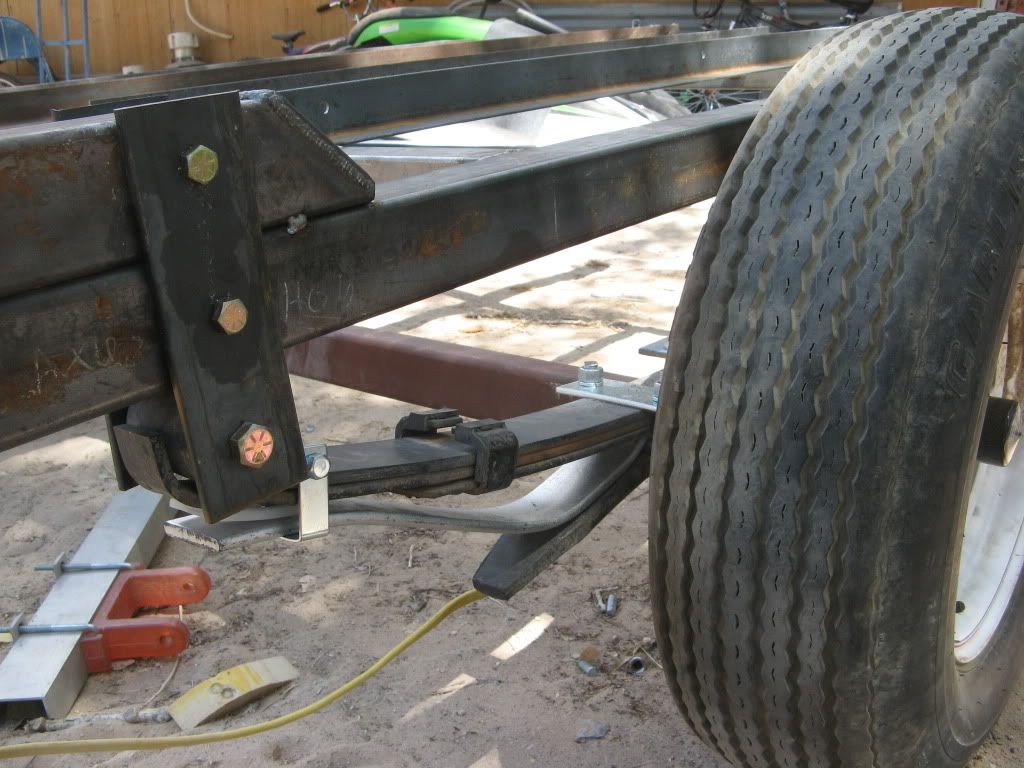

Here's some pics of the setup. There are 2 of these helpers per spring.





Also you can see the custom shackles in the first pic. I just have the top bolt going through the 1/8" steel tube with no sleeving. Do you guys think I should get some round tubing and sleeve that hole so it doesn't get elongated from the bolt pivoting on it?

Thanks, I've been learning a lot on this project lol.
  Reply With Quote
Old 07-14-2010, 11:58 PM   #2
Senior Member
cntstan is one of the sharper tools in the shedcntstan is one of the sharper tools in the shedcntstan is one of the sharper tools in the shedcntstan is one of the sharper tools in the shedcntstan is one of the sharper tools in the shedcntstan is one of the sharper tools in the shedcntstan is one of the sharper tools in the shedcntstan is one of the sharper tools in the shedcntstan is one of the sharper tools in the shedcntstan is one of the sharper tools in the shedcntstan is one of the sharper tools in the shed

cntstan's Avatar
Name: Chuck
Joined: Nov 2008, #10998
Location: Wisconsin now, North Carolina will always be HOME
Gender: Male
Posts: 606
cntstan's Tacoma Gallery
I would sleeve that hole. I know it's a pain but it will help you not to worry when you're towing that trailer down the highway. Also, how are your rear shackle angles when the trailer is under load? Do you still have room for them to move as the leaf springs settle and stretch out?
  Reply With Quote
Old 07-15-2010, 12:05 AM   #3
steve o 77 [OP] steve o 77 is offline
braaap
steve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shed

steve o 77's Avatar
Name: Steven
Joined: Nov 2009, #26726
Location: In a corn field, OH
Age: 24
Gender: Guy
Posts: 19,662
steve o 77's Tacoma Gallery
Quote:
Originally Posted by cntstan View Post
I would sleeve that hole. I know it's a pain but it will help you not to worry when you're towing that trailer down the highway. Also, how are your rear shackle angles when the trailer is under load? Do you still have room for them to move as the leaf springs settle and stretch out?
They (the ends of the leaf springs) get about 1/4" from hitting the frame when bottomed out so they're good. When I had the running boards for the skis mocked up and the skis on the trailer, I could bottom them out pretty easily with my hands. Now I can't even get them close with the helpers.

And yeah, I was thinking the same thing about sleeving. It will be a pain but oh well, I want it to be safe.
  Reply With Quote
Old 07-15-2010, 09:58 AM   #4
steve o 77 [OP] steve o 77 is offline
braaap
steve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shed

steve o 77's Avatar
Name: Steven
Joined: Nov 2009, #26726
Location: In a corn field, OH
Age: 24
Gender: Guy
Posts: 19,662
steve o 77's Tacoma Gallery
bump for more opinions.
  Reply With Quote
Old 07-15-2010, 10:04 AM   #5
Living vicariously through myself
mjp2 is one of the sharper tools in the shedmjp2 is one of the sharper tools in the shedmjp2 is one of the sharper tools in the shedmjp2 is one of the sharper tools in the shedmjp2 is one of the sharper tools in the shedmjp2 is one of the sharper tools in the shedmjp2 is one of the sharper tools in the shedmjp2 is one of the sharper tools in the shedmjp2 is one of the sharper tools in the shedmjp2 is one of the sharper tools in the shedmjp2 is one of the sharper tools in the shed

mjp2's Avatar
Name: Milton Juevos Portimous II
Joined: Feb 2007, #924
Location: NJ
Gender: Dude
Posts: 17,095
mjp2's Tacoma Gallery
Cool project! Definitely sleeve those holes.

Have you considered running wet bolts to keep everything lubricated? Having zerks to grease the pivot points could be handy for something that gets dunked in the water whenever it's used.

http://www.etrailer.com/p-126B2.html

That front hanger looks like a solid design as long as the square tubes are more than tack welded to each other. I'm assuming what's in the picture is not the only spot it's welded, and that the finished product will have some nice beads run to keep everything in place.
  Reply With Quote
Old 07-15-2010, 10:07 AM   #6
Taco Vending Machine
Beefed Taco is one of the sharper tools in the shedBeefed Taco is one of the sharper tools in the shedBeefed Taco is one of the sharper tools in the shedBeefed Taco is one of the sharper tools in the shedBeefed Taco is one of the sharper tools in the shedBeefed Taco is one of the sharper tools in the shedBeefed Taco is one of the sharper tools in the shedBeefed Taco is one of the sharper tools in the shedBeefed Taco is one of the sharper tools in the shedBeefed Taco is one of the sharper tools in the shedBeefed Taco is one of the sharper tools in the shed

Beefed Taco's Avatar
Name: Brian
Joined: Dec 2008, #11706
Location: My Metal Shop
Gender: Male
Posts: 1,309
Beefed Taco's Tacoma Gallery
I'd say you're good to go. I don't think shackles move too much when compressing either. You could try removing the helper leafs you bought and turning the overloads upside down and maybe trimming them down on the ends a bit, but if this is working to your liking may as well leave it. The sleeves for the the top of the shackles are probably a good idea since over time the holes probably will elongate since the contact area isn't much and it is mild steel. Sleeving that would be easy with 1/2" i.d. DOM..
Attached Thumbnails
Trailer Leaf Spring Questions-captured-2004-1-15-00019.jpg   Trailer Leaf Spring Questions-captured-2004-1-15-00023.jpg
  Reply With Quote
Old 07-15-2010, 10:10 AM   #7
steve o 77 [OP] steve o 77 is offline
braaap
steve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shed

steve o 77's Avatar
Name: Steven
Joined: Nov 2009, #26726
Location: In a corn field, OH
Age: 24
Gender: Guy
Posts: 19,662
steve o 77's Tacoma Gallery
Quote:
Originally Posted by mjp2 View Post
Cool project! Definitely sleeve those holes.

Have you considered running wet bolts to keep everything lubricated? Having zerks to grease the pivot points could be handy for something that gets dunked in the water whenever it's used.

http://www.etrailer.com/p-126B2.html

That front hanger looks like a solid design as long as the square tubes are more than tack welded to each other. I'm assuming what's in the picture is not the only spot it's welded, and that the finished product will have some nice beads run to keep everything in place.
Thanks for the info. I will definitely look into those bolts. Also the tubes are welded pretty good right now but Im probably going to hit them a little more. I just don't want to warp the steel by welding too much on one side of it. Also the only reason the front hangers are bolted on is so the axle can be moved easily if needed. Right now with the skis on, there is about 50 lbs of tounge weight. Once I get a toolbox and fuel tanks on the front that will go up a bit.
  Reply With Quote
Old 07-15-2010, 10:12 AM   #8
steve o 77 [OP] steve o 77 is offline
braaap
steve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shed

steve o 77's Avatar
Name: Steven
Joined: Nov 2009, #26726
Location: In a corn field, OH
Age: 24
Gender: Guy
Posts: 19,662
steve o 77's Tacoma Gallery
Quote:
Originally Posted by Beefed Taco View Post
I'd say you're good to go. I don't think shackles move too much when compressing either. You could try removing the helper leafs you bought and turning the overloads upside down and maybe trimming them down on the ends a bit, but if this is working to your liking may as well leave it. The sleeves are probably a good idea since over time the holes probably will elongate since the contact area isn't much and it is mild steel. Sleeving that would be easy with 1/2" i.d. DOM..
Cool, thanks. I think I'll leave the helper spring the way they are. I just wasn't sure if they were going to cause damage being setup like that.
  Reply With Quote
Old 07-23-2010, 10:54 AM   #9
steve o 77 [OP] steve o 77 is offline
braaap
steve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shedsteve o 77 is one of the sharper tools in the shed

steve o 77's Avatar
Name: Steven
Joined: Nov 2009, #26726
Location: In a corn field, OH
Age: 24
Gender: Guy
Posts: 19,662
steve o 77's Tacoma Gallery
Okay well I did end up sleeving those holes and it came out great. We took it out this weekend to the lake (300 mile round trip) and it did pretty good. Only problem was one of the autozone helpers is bent now and the drivers side is sagging a bit. Im going to need to rethink the suspension. It does ride like a cloud though lol.

I still need to finish painting the front box, just didn't have time.







back home, you can see how much that side is sagging.
