PIAA 510 HID Conversion

This is why I littered TWLive with pistures the other night. Sorry about that guys but I hope this is worth it.

First off, I had 3000k HIDs in my stock fogs. I got an AllPro bumper so I ended up selling the stock fogs and HIDs. I went with the PIAA 510 for the AllPro and couldn't have been more dissappointed when I flipped the switch for the first time.

That got me going...I searched a lot for a write up on converting the PIAAs to HID. I found (1) thread that gave me the basic ideas but wasn't as detailed as I would have like it to be. Therefore, I went at it and successfully converted my PIAA 510s to HID. Here is the write up!

Starting with the stock, out of the box PIAA 510. I removed the rock shield. Then you need to loosen the two Phillips head screws on either side of the housing. Do not remove them completely as there are retaining clips that will fall off.

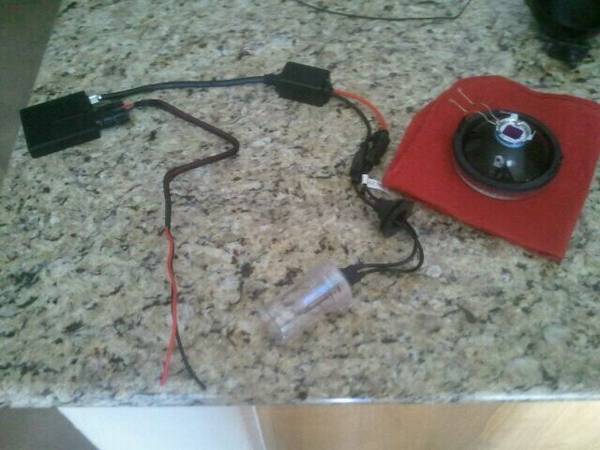

I used the DDM 35w 3000k kit. I also did my Hellas at the same time but there is already a write up for those. Test the HID bulbs before you start!

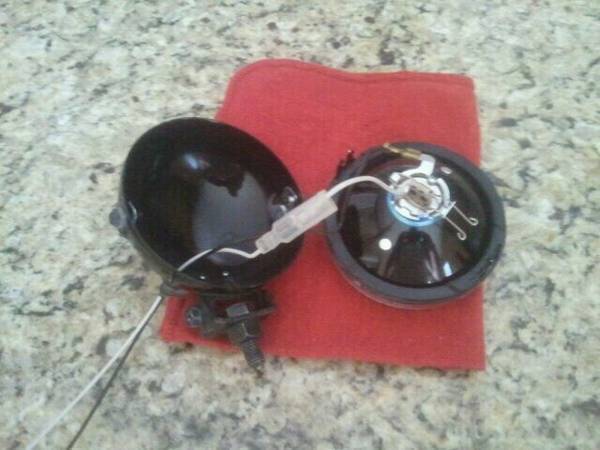

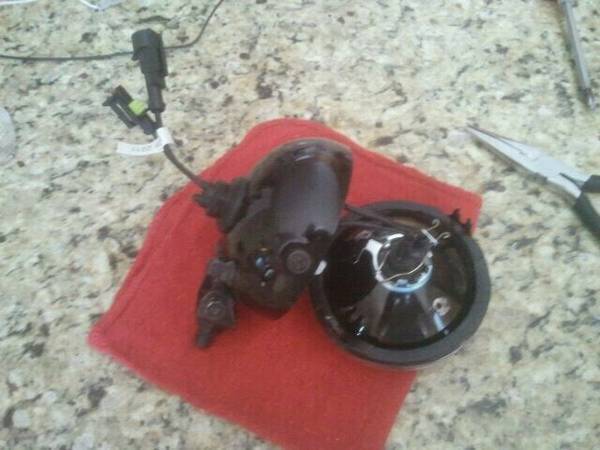

Next you remove the lens from the housing. Mine came apart with no problems, however you may need to gently pry apart with a small screwdriver, making sure the gasket goes with the lens.

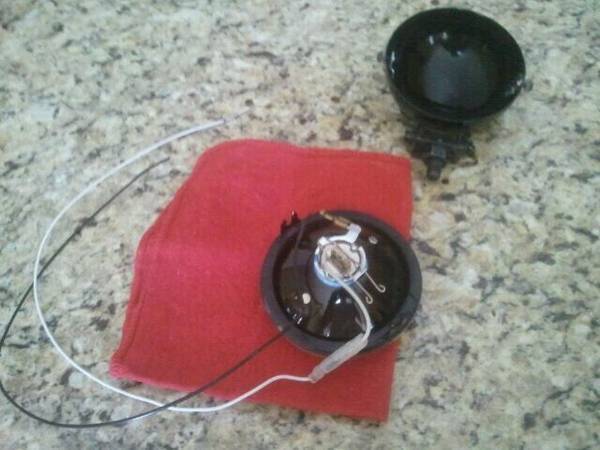

After doing so, clip the connectors on the ends of the wires and pull them through the grommet.

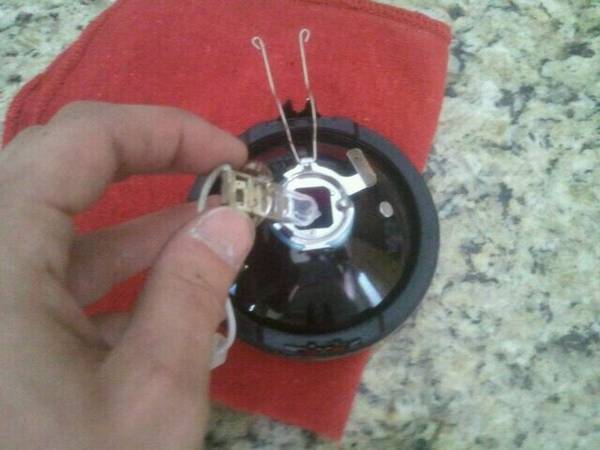

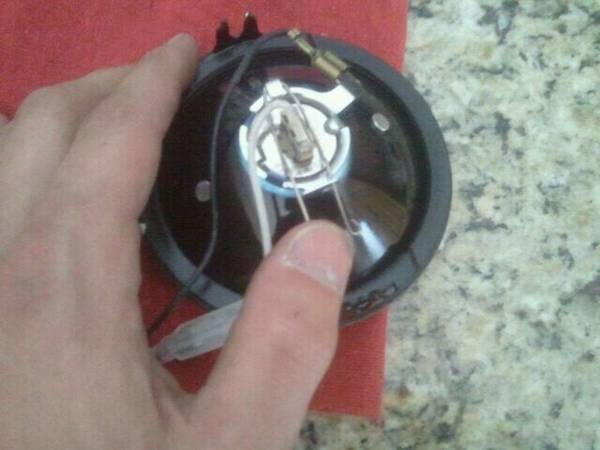

Press down on the clips holding the factory H3 bulb in.



Remove the bulb.



Next, you will need to remove this shield pictured. The HID bulb is 1mm too long to fit into it.

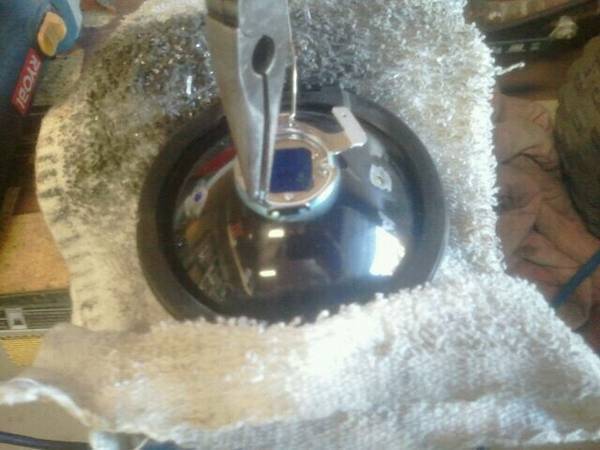

You will need to grind down these rivets with something. I chose to use a flapper wheel on my angle grinder.

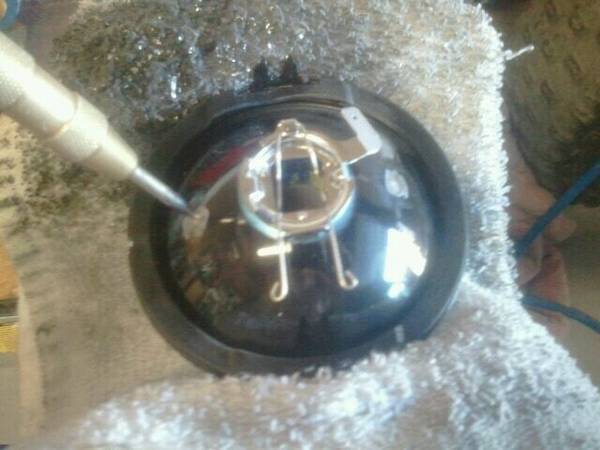

I then used my spring loaded punch to punch the rivets out. A center puch and hammer will do the same thing. No Hee-Man swings!



Now you need to remove the sheild from inside the lens. It will not fit through the bulb basket so this will have to be removed. Feel free to do this earlier on in the process. I used a pair of needle nose pliers and bent the tabs holding the basket.

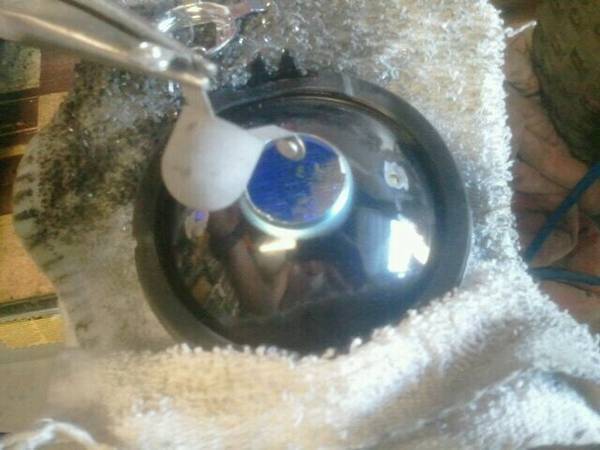

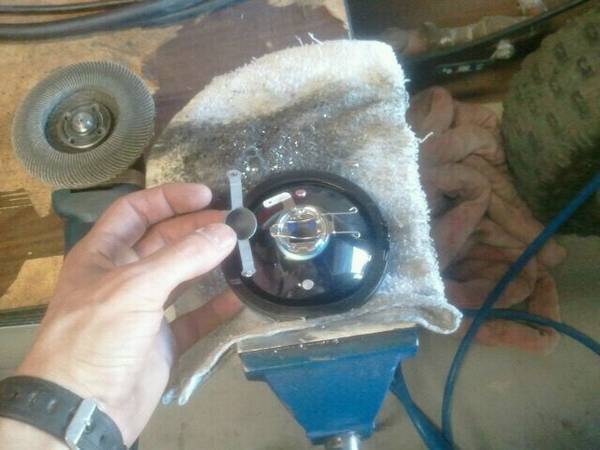

Time to go fishing. Who doesn't like fishing?



Gently remove the sheild, trying not to marr up the reflective surface in the lens.



It should now be blown out with compressed air or a firm breathe to remove debris.

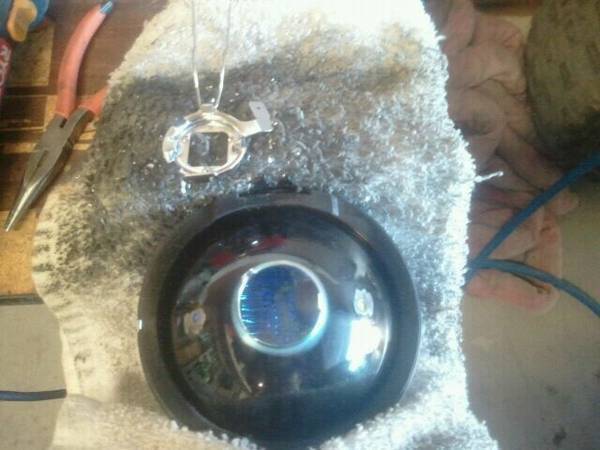

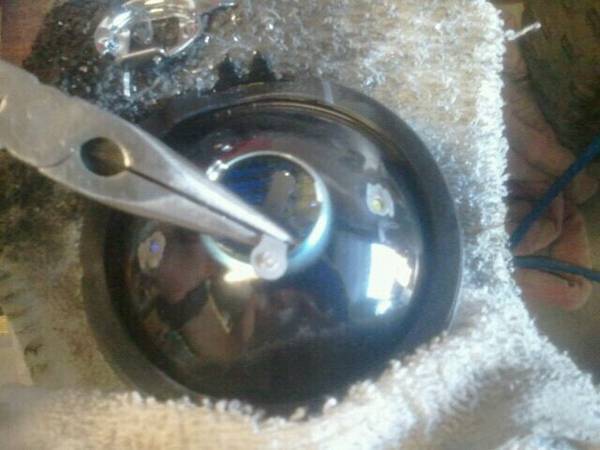

Time to put the bulb basket back on. I started bending the tabs with the pliers but finished with a small flathead screwdriver and a hammer, WITH THE LENS SITTING ON A VERY CUSHIONED SURFACE!

Everything back inside and ready to install the HID bulb.

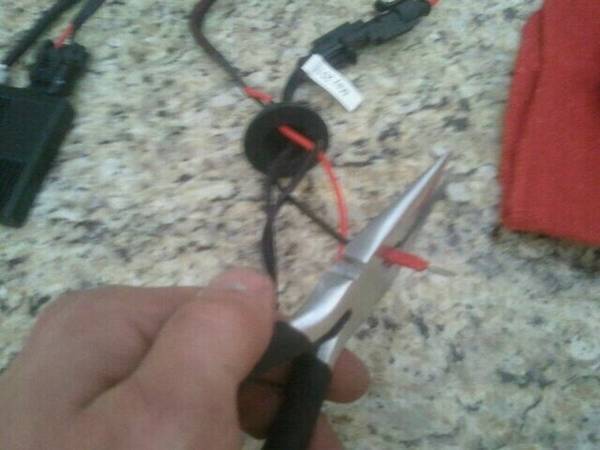

As with the light itself, you're going to want to snip the connectors off and pull these two wires through the grommet.

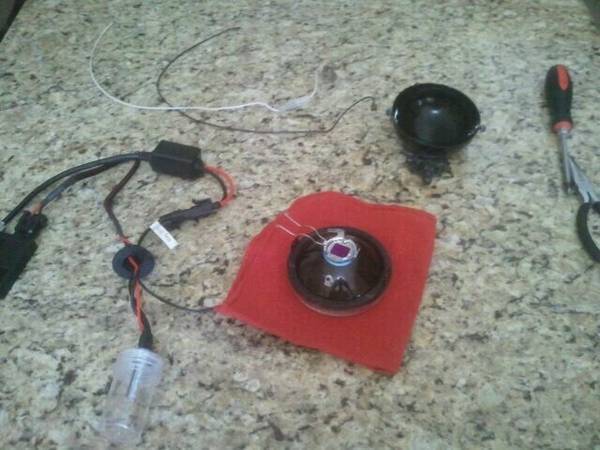

Insert the bulb into the basket and secure it using the retaining clips. Be certain to put the bulb in the correct way, one side has a square notch and the other a round notch.

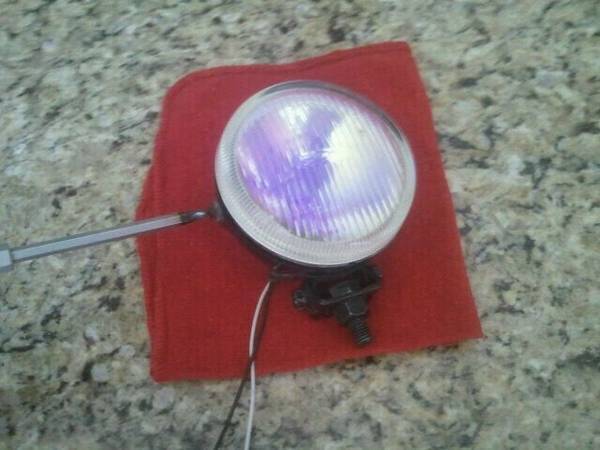

Test the HID again!

With the lens taken care of, it's time to modify the housing. Find the center of the housing and use a punch to mark and get ready for the drill bit.

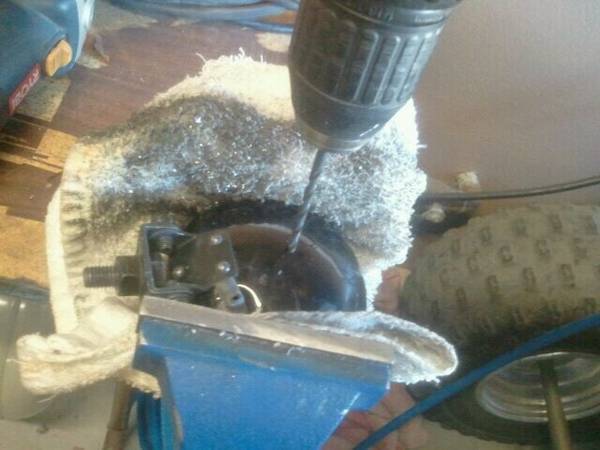

Using a vise to secure the housing during drilling, do not tighten too much, just enough to hold it. I used a 1/8" bit as a pilot hole.

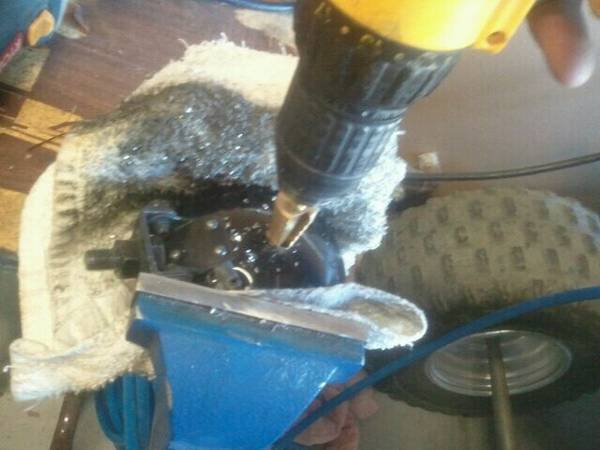

Now drill the hole out to 7/8" using a step drill bit. I used a 3/4" and it was VERY tight, I got lucky, you may not. Play it safe and drill to 7/8".

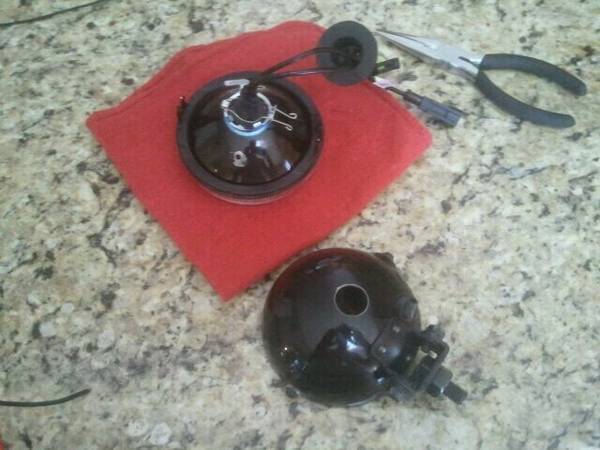

Clean the burrs off! Now it's time to assemble.

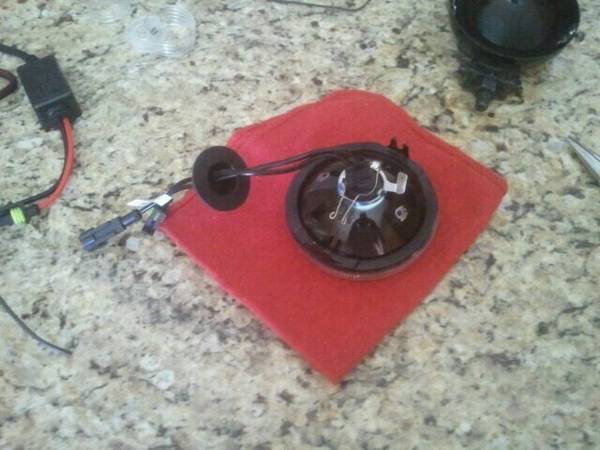

Slide the wires from the bulb through the housing and fit the grommet.



Pulling on the wires at the same time, slide the housing and grommet onto the lens and tighten the two Phillips screws. I used a little grease on the wires to make pulling them through the grommet easier.

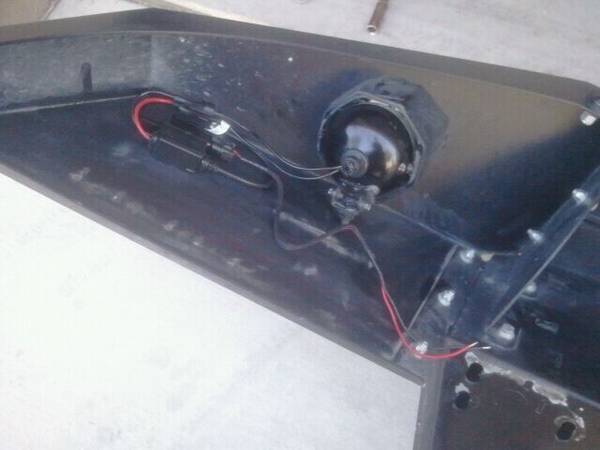

Install back into bumper. I decided to mount my ballasts using 3M double sided tape.



Before...



After...





Good luck to everyone who attempts this. I hope it helps. I know there are some guys with aftermarket bumpers who are very dissappointed in the brightness of their PIAAs.

Disclaimer; Everything I did will void the manufacturer warranty on the PIAAs. Do not attempt if you are not comfortable with your abilities. I take NO responsibilities for you destroying a $160 pair of lights.

  Reply With Quote
Old 07-03-2011, 10:04 PM   #2
Senior Member
kinkrider101 is one of the sharper tools in the shedkinkrider101 is one of the sharper tools in the shedkinkrider101 is one of the sharper tools in the shedkinkrider101 is one of the sharper tools in the shedkinkrider101 is one of the sharper tools in the shedkinkrider101 is one of the sharper tools in the shedkinkrider101 is one of the sharper tools in the shedkinkrider101 is one of the sharper tools in the shedkinkrider101 is one of the sharper tools in the shedkinkrider101 is one of the sharper tools in the shedkinkrider101 is one of the sharper tools in the shed
Joined: Sep 2009, #23497
Location: santa barbara
Gender: Male
Posts: 2,707
kinkrider101's Tacoma Gallery
Good job! Should be stickied
  Reply With Quote
Old 07-03-2011, 10:06 PM   #3
DWreck [OP] DWreck is offline
Famous Fabrication
DWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shed

DWreck's Avatar
Name: Derek
Joined: May 2010, #37368
Location: Las Vegas, NV
Age: 28
Gender: Male
Posts: 5,099
DWreck's Tacoma Gallery
Quote:
Originally Posted by kinkrider101 View Post
Good job! Should be stickied
Thanks! I made it as detailed as possible because the one I found wasn't at all.
  Reply With Quote
Old 07-03-2011, 10:16 PM   #4
ride BMX!
littledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shed

littledvl's Avatar
Name: Eric
Joined: Oct 2008, #10345
Location: PG county maryland
Age: 27
Gender: Male
Posts: 3,588
littledvl's Tacoma Gallery
Subbed for the near future

I just got my 510s and havnt wired them up yet, im coming from 6k hid stock fogs so I went with the ion yellow 510s hoping the change in color wont leave me as dissapointed..

I did reasearch a little bit on turning them into hid's before I bought them to make sure if I wanted to go back I could, best how to I could find was on a motorcycle forum, haha. Thanks for the detail, I will be doing this sometime soon.
  Reply With Quote
Old 07-03-2011, 10:30 PM   #5
DWreck [OP] DWreck is offline
Famous Fabrication
DWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shed

DWreck's Avatar
Name: Derek
Joined: May 2010, #37368
Location: Las Vegas, NV
Age: 28
Gender: Male
Posts: 5,099
DWreck's Tacoma Gallery
Quote:
Originally Posted by littledvl View Post
Subbed for the near future

I just got my 510s and havnt wired them up yet, im coming from 6k hid stock fogs so I went with the ion yellow 510s hoping the change in color wont leave me as dissapointed..

I did reasearch a little bit on turning them into hid's before I bought them to make sure if I wanted to go back I could, best how to I could find was on a motorcycle forum, haha. Thanks for the detail, I will be doing this sometime soon.
Ha! That's the write up I'm talking about. Not too good huh?
  Reply With Quote
Old 07-03-2011, 10:32 PM   #6
ride BMX!
littledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shed

littledvl's Avatar
Name: Eric
Joined: Oct 2008, #10345
Location: PG county maryland
Age: 27
Gender: Male
Posts: 3,588
littledvl's Tacoma Gallery
Quote:
Originally Posted by DWreck View Post
Ha! That's the write up I'm talking about. Not too good huh?

Nope but it was enough that I was gonna try it if I had to, haha

Yours is a big improvement
  Reply With Quote
Old 07-06-2011, 03:56 PM   #8
Senior Member
J4RR is one of the sharper tools in the shedJ4RR is one of the sharper tools in the shedJ4RR is one of the sharper tools in the shedJ4RR is one of the sharper tools in the shedJ4RR is one of the sharper tools in the shedJ4RR is one of the sharper tools in the shedJ4RR is one of the sharper tools in the shedJ4RR is one of the sharper tools in the shedJ4RR is one of the sharper tools in the shedJ4RR is one of the sharper tools in the shedJ4RR is one of the sharper tools in the shed

J4RR's Avatar
Joined: Dec 2007, #3907
Location: The OC
Gender: Male
Posts: 409
J4RR's Tacoma Gallery
Op maybe you can convert these for me next time I'm in Vegas
I thought I saw a decent write up on this at fjcruiserforums.com, I converted my Hellas but don't trust myself on the piaa's.
  Reply With Quote
Old 07-18-2011, 07:46 PM   #9
Senior Member
JLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shed

JLink's Avatar
Name: Josh
Joined: May 2010, #36795
Location: Ocean, NJ
Age: 27
Gender: Male
Posts: 10,025
JLink's Tacoma Gallery
I'm really happy I accidentally found this thread.
I will need to get a set of 510's for my bumper and have been wondering about converting them to HID

How do you like the color? I have 6000k in my head lights and had it in my factory fogs too, never tried a yellow color before.
  Reply With Quote
Old 07-18-2011, 07:48 PM   #10
scraping my emblems off my plasti-dip
crf69 is one of the sharper tools in the shedcrf69 is one of the sharper tools in the shedcrf69 is one of the sharper tools in the shedcrf69 is one of the sharper tools in the shedcrf69 is one of the sharper tools in the shedcrf69 is one of the sharper tools in the shedcrf69 is one of the sharper tools in the shedcrf69 is one of the sharper tools in the shedcrf69 is one of the sharper tools in the shedcrf69 is one of the sharper tools in the shedcrf69 is one of the sharper tools in the shed

crf69's Avatar
Name: Ryan
Joined: May 2010, #37348
Location: Ohio
Age: 33
Gender: Dude
Posts: 3,575
crf69's Tacoma Gallery
oh gee i will prolly end up doin this......

subbed.
  Reply With Quote
Old 07-18-2011, 08:49 PM   #11
DWreck [OP] DWreck is offline
Famous Fabrication
DWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shed

DWreck's Avatar
Name: Derek
Joined: May 2010, #37368
Location: Las Vegas, NV
Age: 28
Gender: Male
Posts: 5,099
DWreck's Tacoma Gallery
Quote:
Originally Posted by J4RR View Post
Op maybe you can convert these for me next time I'm in Vegas
I thought I saw a decent write up on this at fjcruiserforums.com, I converted my Hellas but don't trust myself on the piaa's.
Exactly the same! Well, only differance is you can use this bulb basket and you have to cut the rivets to pull the shield out.

Quote:
Originally Posted by JLink View Post
I'm really happy I accidentally found this thread.
I will need to get a set of 510's for my bumper and have been wondering about converting them to HID

How do you like the color? I have 6000k in my head lights and had it in my factory fogs too, never tried a yellow color before.
They are fog lights for a reason. Yellow doesn't reflect and shine back to you. 6000k would be pointless as I've learned with cutting the shield out, you cannot use them as driving lights as I'm sure you did with your stock fogs. The beam is more of a flood now it seams and every time I try to run around with only my fogs on, I get flashed. In a bad way...

Quote:
Originally Posted by crf69 View Post
oh gee i will prolly end up doin this......

subbed.
Sorry I informed you of another way to spend money...
  Reply With Quote
Old 07-24-2011, 09:21 PM   #12
ride BMX!
littledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shedlittledvl is one of the sharper tools in the shed

littledvl's Avatar
Name: Eric
Joined: Oct 2008, #10345
Location: PG county maryland
Age: 27
Gender: Male
Posts: 3,588
littledvl's Tacoma Gallery
Bumping this since its a great write up.

Anyone who has piaa's needs to do this, it is a night and day difference, and it really isnt bad to do, took me 25min or so from unbolt off the truck to re-assembled.

Thanks for the help Derek!

  Reply With Quote
Old 07-24-2011, 10:35 PM   #13
DWreck [OP] DWreck is offline
Famous Fabrication
DWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shed

DWreck's Avatar
Name: Derek
Joined: May 2010, #37368
Location: Las Vegas, NV
Age: 28
Gender: Male
Posts: 5,099
DWreck's Tacoma Gallery
Anytime! Glad you liked it!
  Reply With Quote
Old 07-25-2011, 08:43 AM   #14
Senior Member
JLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shed

JLink's Avatar
Name: Josh
Joined: May 2010, #36795
Location: Ocean, NJ
Age: 27
Gender: Male
Posts: 10,025
JLink's Tacoma Gallery
Quote:
Originally Posted by DWreck View Post
They are fog lights for a reason. Yellow doesn't reflect and shine back to you. 6000k would be pointless as I've learned with cutting the shield out, you cannot use them as driving lights as I'm sure you did with your stock fogs. The beam is more of a flood now it seams and every time I try to run around with only my fogs on, I get flashed. In a bad way...
Yea I've wondered about how the yellow would do in snow, rain, fog, whatever shitty conditions, and it seems like that's the way to go. Looks like I'll be following your lead with the 3000k hids. Thanks for the response!
  Reply With Quote
Old 07-25-2011, 10:45 AM   #15
Senior Member
iroc409 is a splendid one to beholdiroc409 is a splendid one to beholdiroc409 is a splendid one to beholdiroc409 is a splendid one to beholdiroc409 is a splendid one to beholdiroc409 is a splendid one to behold
Joined: Jul 2009, #19444
Location: Washington
Gender: Male
Posts: 446
iroc409's Tacoma Gallery
Actually, yellow does reflect and shine back. HOWEVER, the reduced-output of yellow (slightly reduced) and the fact that yellow light is much easier for the human eye to discern makes them more suited to poor driving conditions (so they do work better, but for different reasons).

YMMV.
  Reply With Quote
Old 07-25-2011, 12:46 PM   #16
Senior Member
JLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shed

JLink's Avatar
Name: Josh
Joined: May 2010, #36795
Location: Ocean, NJ
Age: 27
Gender: Male
Posts: 10,025
JLink's Tacoma Gallery
Quote:
Originally Posted by iroc409 View Post
Actually, yellow does reflect and shine back. HOWEVER, the reduced-output of yellow (slightly reduced) and the fact that yellow light is much easier for the human eye to discern makes them more suited to poor driving conditions (so they do work better, but for different reasons).

YMMV.
  Reply With Quote
Old 07-25-2011, 03:35 PM   #17
DWreck [OP] DWreck is offline
Famous Fabrication
DWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shed

DWreck's Avatar
Name: Derek
Joined: May 2010, #37368
Location: Las Vegas, NV
Age: 28
Gender: Male
Posts: 5,099
DWreck's Tacoma Gallery
Quote:
Originally Posted by iroc409 View Post
Actually, yellow does reflect and shine back. HOWEVER, the reduced-output of yellow (slightly reduced) and the fact that yellow light is much easier for the human eye to discern makes them more suited to poor driving conditions (so they do work better, but for different reasons).

YMMV.
  Reply With Quote
Old 08-24-2011, 05:42 PM   #19
DWreck [OP] DWreck is offline
Famous Fabrication
DWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shedDWreck is one of the sharper tools in the shed

DWreck's Avatar
Name: Derek
Joined: May 2010, #37368
Location: Las Vegas, NV
Age: 28
Gender: Male
Posts: 5,099
DWreck's Tacoma Gallery
Because the shield is removed they are more of a flood beam. I can still see way up the road but yes, I have been flashed running around town with them on. But then again, they're meant for fog or dust, and in those circumstances you won't be blinding people!
  Reply With Quote
Old 08-24-2011, 06:09 PM   #20
Senior Member
JasoTaco is one of the sharper tools in the shedJasoTaco is one of the sharper tools in the shedJasoTaco is one of the sharper tools in the shedJasoTaco is one of the sharper tools in the shedJasoTaco is one of the sharper tools in the shedJasoTaco is one of the sharper tools in the shedJasoTaco is one of the sharper tools in the shedJasoTaco is one of the sharper tools in the shedJasoTaco is one of the sharper tools in the shedJasoTaco is one of the sharper tools in the shedJasoTaco is one of the sharper tools in the shed

JasoTaco's Avatar
Name: Jason
Joined: Jan 2010, #30057
Location: Salt Lake City, Utah
Gender: Male
Posts: 2,020
JasoTaco's Tacoma Gallery
Quote:
Originally Posted by DWreck View Post
Because the shield is removed they are more of a flood beam. I can still see way up the road but yes, I have been flashed running around town with them on. But then again, they're meant for fog or dust, and in those circumstances you won't be blinding people!
Good point.
