Nfab Light Bar

Reply

Thread Tools Search this Thread
Old 10-11-2009, 03:00 PM   #21
Member
crooks420 is on a distinguished road

crooks420's Avatar
Name: Jesse
Joined: Oct 2009, #24135
Location: San Gabriel
Gender: Male
Posts: 70
crooks420's Tacoma Gallery
I just installed the Fab Tech light bar for 2005 up Toyota Tacomas. Install was easy and took maybe 1 hour. A pair of ramps to drive your front wheels up onto make it easy. The supplied carraige bolts did NOT fit into the slotted holes on the brackets/ light bar. I will replace them with grade 8 hex bolts and add lock washers.

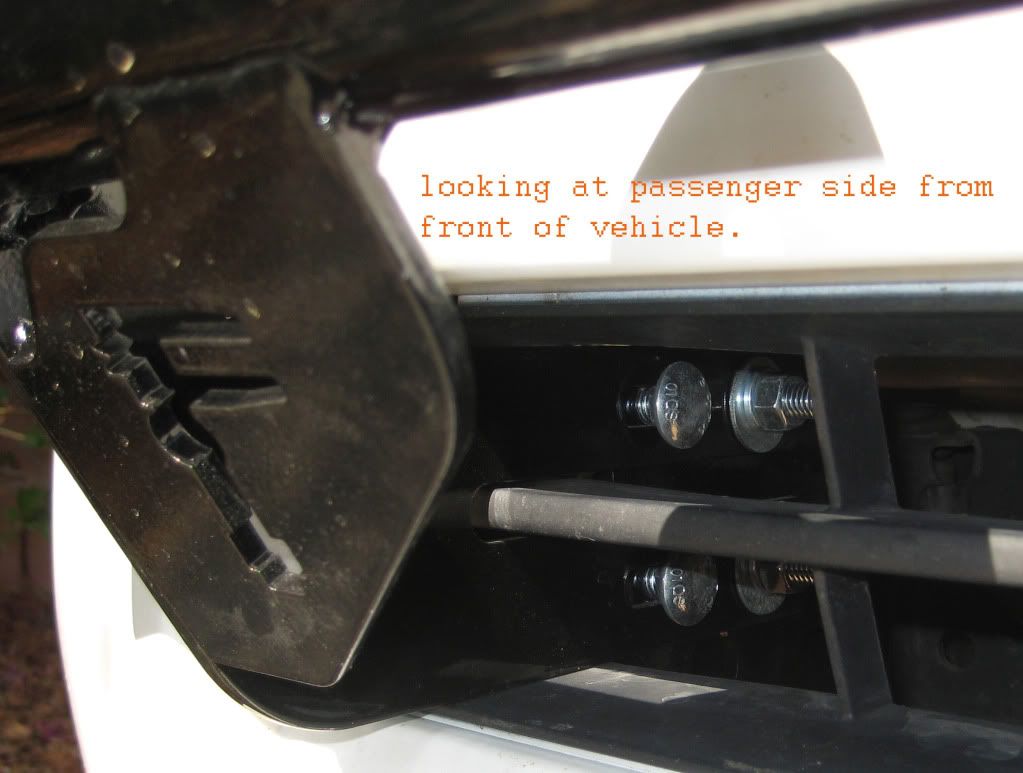

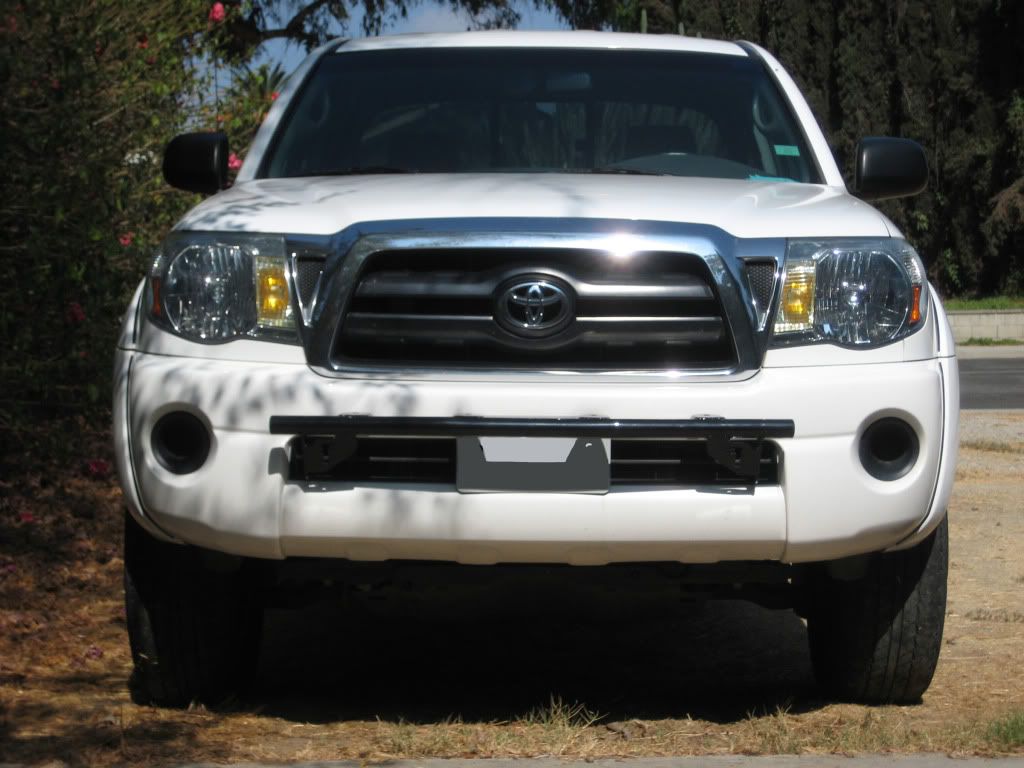

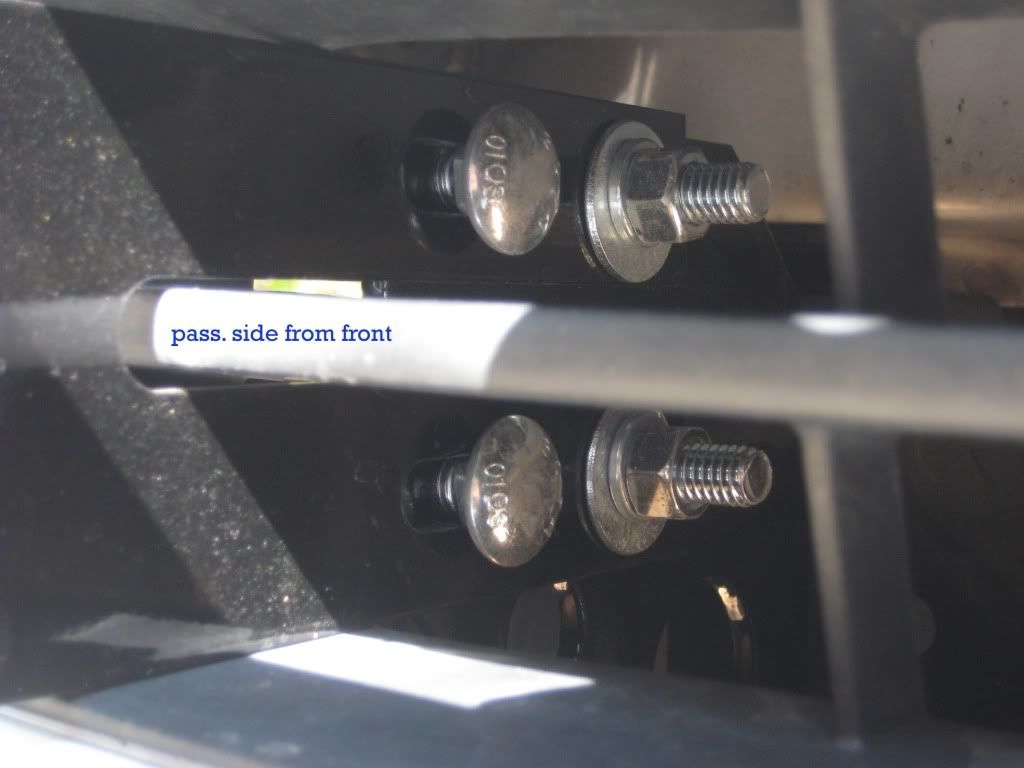

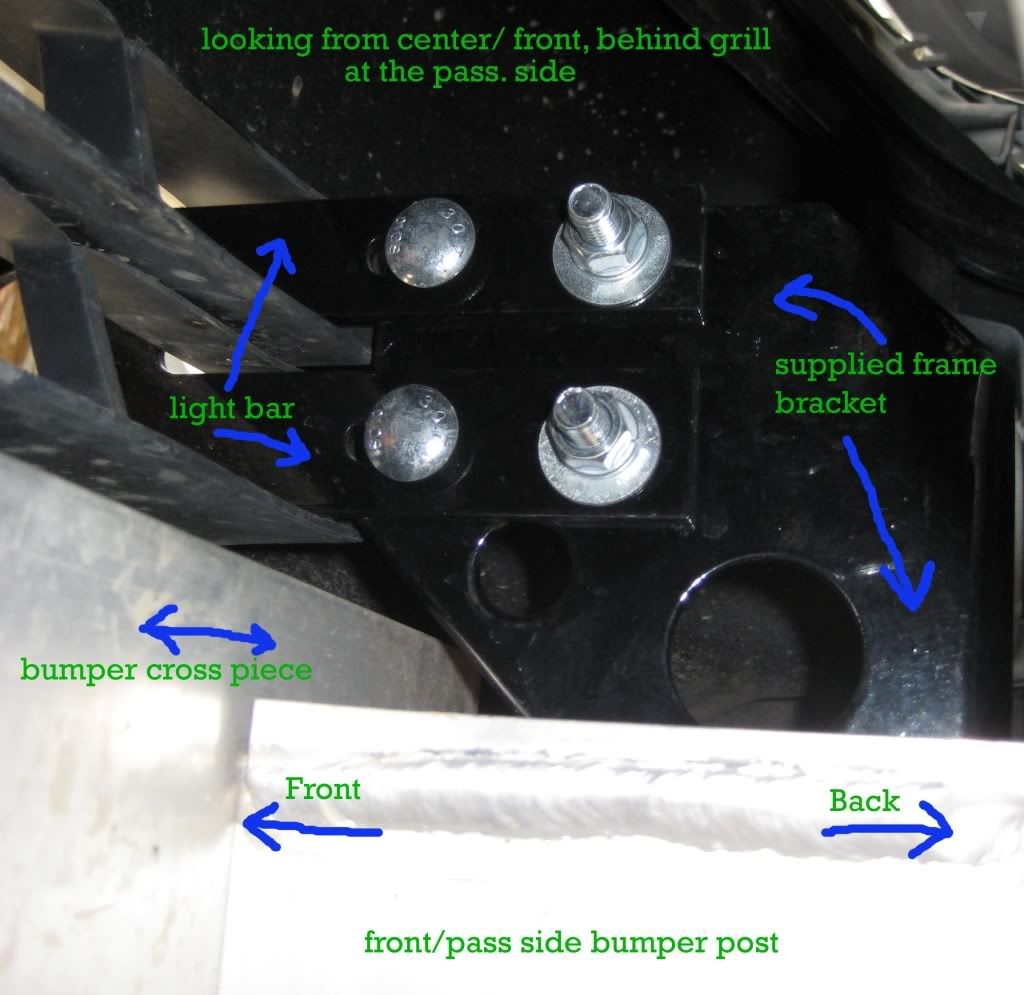

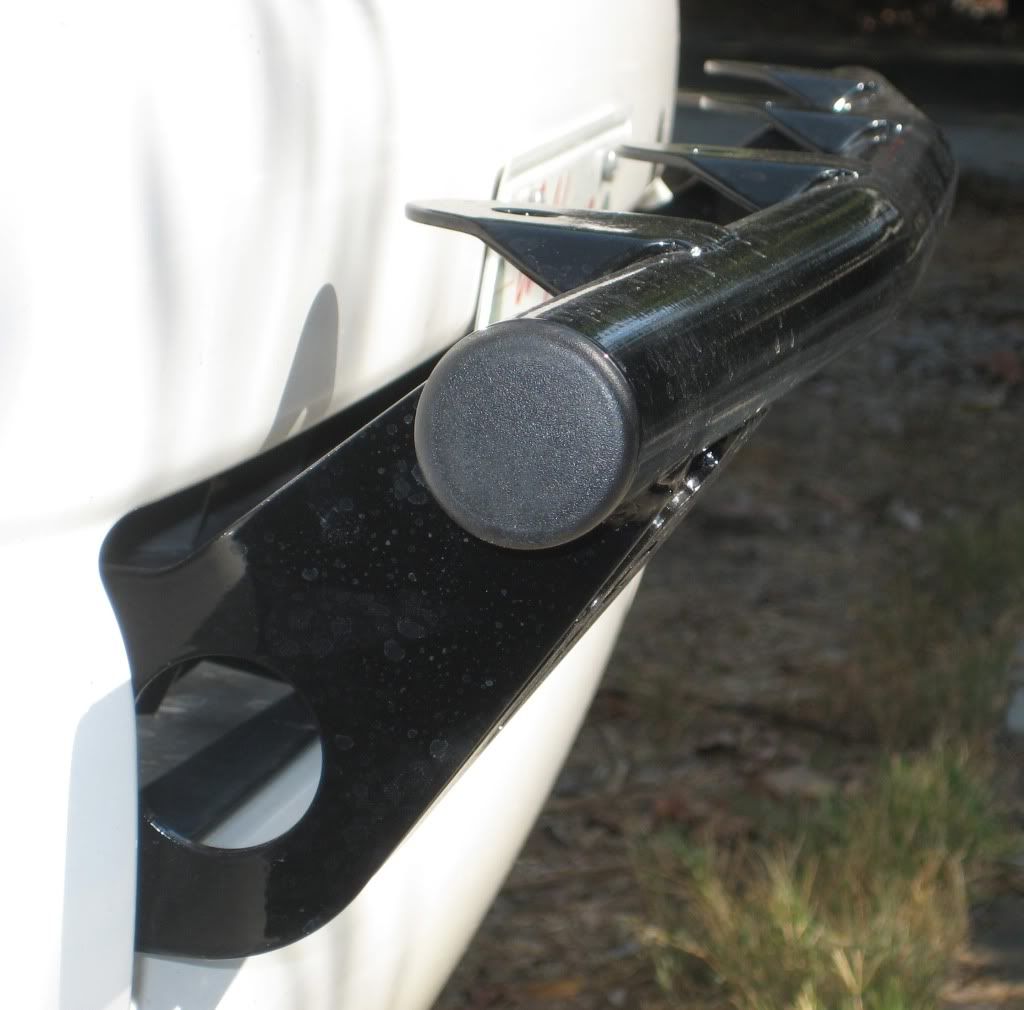

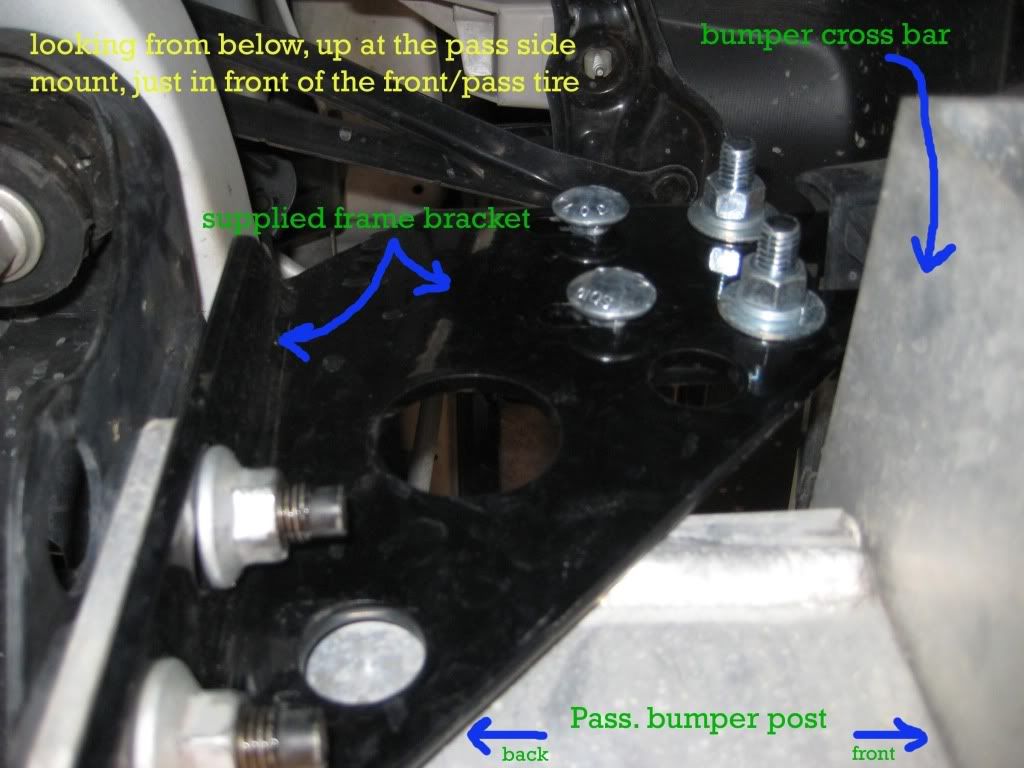

The pics below should help new installers.

Jesse












  Reply With Quote
Old 10-11-2009, 03:31 PM   #22
Senior Member
Capita is one of the sharper tools in the shedCapita is one of the sharper tools in the shedCapita is one of the sharper tools in the shedCapita is one of the sharper tools in the shedCapita is one of the sharper tools in the shedCapita is one of the sharper tools in the shedCapita is one of the sharper tools in the shedCapita is one of the sharper tools in the shedCapita is one of the sharper tools in the shedCapita is one of the sharper tools in the shedCapita is one of the sharper tools in the shed

Capita's Avatar
Joined: Jun 2009, #18096
Location: Corner Brook, Newfoundland, Canada
Age: 32
Gender: Male
Posts: 2,606
Capita's Tacoma Gallery
Thats too bad about the carraige bolts. Luckly everything went very smooth with mine. Truck looks awesome Crooks420!
  Reply With Quote
Old 10-11-2009, 04:45 PM   #23
Member
crooks420 is on a distinguished road

crooks420's Avatar
Name: Jesse
Joined: Oct 2009, #24135
Location: San Gabriel
Gender: Male
Posts: 70
crooks420's Tacoma Gallery
I just need to put the lights on : Two old school SEARS chrome/amber fog lights, and two 130W 6" clear lens lights. I will post pics of eveything when I get it done...... aux. fuse block, relays, and factory fog light switches.

Jesse



  Reply With Quote
Old 10-30-2009, 10:15 PM   #24
Senior Member
MotoXXX has a spectacular aura aboutMotoXXX has a spectacular aura aboutMotoXXX has a spectacular aura about

MotoXXX's Avatar
Joined: Oct 2009, #23632
Location: San Jose
Gender: Male
Posts: 158
MotoXXX's Tacoma Gallery
If you want to get back at them, DO NOT BUY FROM THEM! Very simple.
  Reply With Quote
Old 01-19-2010, 06:23 PM   #25
Member
crooks420 is on a distinguished road

crooks420's Avatar
Name: Jesse
Joined: Oct 2009, #24135
Location: San Gabriel
Gender: Male
Posts: 70
crooks420's Tacoma Gallery
I have had the lights installed and working for about a month now. Everything went as planned, and the factory switches work great and dim with the rest of the instrument panel. The hardest part was making my fuse block mounting bracket, and deciding where to put the relays so as to keep the wiring as clean as possible (underneath the fuse block bracket). I know, a relay for each light is a bit overkill, but why not....?

Jesse































  Reply With Quote
Old 02-06-2010, 11:52 PM   #26
Done, Retired from here :)
Veinguy is one of the sharper tools in the shedVeinguy is one of the sharper tools in the shedVeinguy is one of the sharper tools in the shedVeinguy is one of the sharper tools in the shedVeinguy is one of the sharper tools in the shedVeinguy is one of the sharper tools in the shedVeinguy is one of the sharper tools in the shedVeinguy is one of the sharper tools in the shedVeinguy is one of the sharper tools in the shedVeinguy is one of the sharper tools in the shedVeinguy is one of the sharper tools in the shed

Veinguy's Avatar
Navy: Corpsman
Name: Roy
Joined: Sep 2009, #22202
Location: Tucson
Gender: Male
Posts: 418
Veinguy's Tacoma Gallery
I have a problem, I have the N-Fab light bar with the tabs going towards the grille. I installed 4 Hella 500's and can't aim them down because they hit the bar in front. Any suggestions about what I can put under them so I can adjust them and they won't come loose after a while? Appreciate input.

  Reply With Quote
Old 02-08-2010, 10:33 AM   #27
www.EvolvedFinance.com
ccoorreeyy is one of the sharper tools in the shedccoorreeyy is one of the sharper tools in the shedccoorreeyy is one of the sharper tools in the shedccoorreeyy is one of the sharper tools in the shedccoorreeyy is one of the sharper tools in the shedccoorreeyy is one of the sharper tools in the shedccoorreeyy is one of the sharper tools in the shedccoorreeyy is one of the sharper tools in the shedccoorreeyy is one of the sharper tools in the shedccoorreeyy is one of the sharper tools in the shedccoorreeyy is one of the sharper tools in the shed

ccoorreeyy's Avatar
Name: Corey
Joined: Feb 2009, #13432
Location: Los Angeles (South Bay)
Gender: Male
Posts: 663
ccoorreeyy's Tacoma Gallery
Quote:
Originally Posted by Veinguy View Post
I have a problem, I have the N-Fab light bar with the tabs going towards the grille. I installed 4 Hella 500's and can't aim them down because they hit the bar in front. Any suggestions about what I can put under them so I can adjust them and they won't come loose after a while? Appreciate input.

I have the same exact setup and didn't have that problem. If I aim them down as far as they can go, the run like fogs...

You might be able to use washers to raise the light housing.

Good luck!
  Reply With Quote
Old 02-08-2010, 11:56 AM   #28
Senior Member
jrobson is one of the sharper tools in the shedjrobson is one of the sharper tools in the shedjrobson is one of the sharper tools in the shedjrobson is one of the sharper tools in the shedjrobson is one of the sharper tools in the shedjrobson is one of the sharper tools in the shedjrobson is one of the sharper tools in the shedjrobson is one of the sharper tools in the shedjrobson is one of the sharper tools in the shedjrobson is one of the sharper tools in the shedjrobson is one of the sharper tools in the shed

jrobson's Avatar
Joined: Jan 2009, #12211
Location: Mobile, Alabama
Gender: Male
Posts: 1,095
jrobson's Tacoma Gallery
I got mine from N-fab and did not have any problems. I got exactly what I ordered.
  Reply With Quote
Old 04-26-2011, 12:27 PM   #29
Junior Member
07tacotrd is on a distinguished road
Name: Tucker
Joined: Mar 2011, #52871
Location: Boerne tx
Gender: Male
Posts: 4
07tacotrd's Tacoma Gallery
hella 700ff lights with upgraded 100w lights and i painted the light bar flat black
Attached Thumbnails
Nfab Light Bar-dsc_0857.jpg
  Reply With Quote
Old 09-21-2011, 06:00 PM   #30
Pasti-Dip Free Since 1983
Pugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shed

Pugga's Avatar
Name: Mike
Joined: Jun 2010, #39131
Location: Massachusetts
Gender: Male
Posts: 27,332
Pugga's Tacoma Gallery
Thread revival!

Do the new Nfab bars have the light tabs pointing in toward the bumper, or forward? I'm thinking of picking one up but only want one if the tabs point in toward the truck.
  Reply With Quote
Old 09-22-2011, 04:33 AM   #32
Pasti-Dip Free Since 1983
Pugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shedPugga is one of the sharper tools in the shed

Pugga's Avatar
Name: Mike
Joined: Jun 2010, #39131
Location: Massachusetts
Gender: Male
Posts: 27,332
Pugga's Tacoma Gallery
Quote:
Originally Posted by Veinguy View Post
My tabs point towards the grille. Great pictures at the top of the page.
Thanks, sounds like the OP either got a fluke or they changed the design again in the last couple years.
  Reply With Quote
Old 02-10-2012, 05:21 PM   #33
Member
gpeet is on a distinguished road
Joined: Nov 2011, #66847
Gender: Male
Posts: 49
gpeet's Tacoma Gallery
Lets be honest, if your company is small enough that the owner is replying directly to emails from customers, he probably shouldn't be referring to himself as a CEO.
  Reply With Quote
Old 02-10-2012, 05:22 PM   #34
Member
gpeet is on a distinguished road
Joined: Nov 2011, #66847
Gender: Male
Posts: 49
gpeet's Tacoma Gallery
Quote:
Originally Posted by Veinguy View Post
I have a problem, I have the N-Fab light bar with the tabs going towards the grille. I installed 4 Hella 500's and can't aim them down because they hit the bar in front. Any suggestions about what I can put under them so I can adjust them and they won't come loose after a while? Appreciate input.

washers and lock washers?
  Reply With Quote
Old 02-08-2013, 09:27 PM   #35
Senior Member
Costa09 is on a distinguished road

Costa09's Avatar
Name: John
Joined: Jan 2011, #49441
Location: GA
Age: 23
Gender: Male
Posts: 337
Costa09's Tacoma Gallery
I know this thread is over a year old but my tabs are facing out. Just found this thread. I looks okay to me but why false advertise? The truck on there sight has them facing in.
  Reply With Quote
Old 04-15-2013, 09:28 AM   #36
Senior Member
crumf20 has a spectacular aura aboutcrumf20 has a spectacular aura aboutcrumf20 has a spectacular aura about

crumf20's Avatar
Name: Wesley
Joined: Aug 2012, #84656
Location: AZ
Gender: Male
Posts: 177
crumf20's Tacoma Gallery
Anybody know how and willing to make a light bar capable of mounting 3-5 lights for cheap price?!
  Reply With Quote
Old 11-10-2013, 08:54 AM   #37
Truck Norris
robsam is on a distinguished road

robsam's Avatar
Name: Rob
Joined: Apr 2012, #77326
Location: Surrey BC Canada
Gender: Male
Posts: 17
robsam's Tacoma Gallery
I was thinking of getting this bar, and sliders, but knowing what clowns they come across as, I will keep looking. Thanks for letting the customers know. Thats what sells... or doesnt sell.
  Reply With Quote
Old 12-13-2013, 10:24 PM   #38
Junior Member
Offduty is on a distinguished road
Name: Gary
Joined: Dec 2010, #47763
Location: Colorado
Gender: Male
Posts: 24
Offduty's Tacoma Gallery
Glad I read through this thread. I just ordered the N-Fab light bar last night and could not believe what I was reading about the light mounting tabs pointing out to the front. I had the same light bar on my 2011 DCSB OR and the tabs pointed in so can't wait to see if my new bar is like the picture reflects (tabs in)...
  Reply With Quote
Old 12-18-2013, 08:56 PM   #39
Junior Member
Offduty is on a distinguished road
Name: Gary
Joined: Dec 2010, #47763
Location: Colorado
Gender: Male
Posts: 24
Offduty's Tacoma Gallery
Just received my N-Fab light bar today very nice piece welds are clean and very well painted. Also the tabs are facing grill side (In) $118 Amazon
  Reply With Quote
