Wiring expert help with led sider markers

Reply

Thread Tools Search this Thread Display Modes
Old 06-17-2012, 03:03 PM   #1
knine00 [OP] knine00 is online now
Senior Member
knine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shed
Air Force: 4th Fighter Wing
Joined: Oct 2011, #66179
Location: Pikeville, NC
Gender: Male
Posts: 1,296
knine00's Tacoma Gallery
Wiring expert help with led sider markers

I am trying to install three 3/4" led side markers. I want to wire them to a switch and not the turning signals. Will this require a relay?

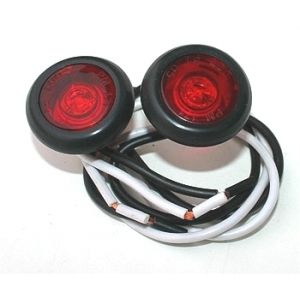

I am installing these:
  Reply With Quote
Old 06-17-2012, 03:05 PM   #3
Senior Member
nfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shed

nfs257's Avatar
Navy: GSM1
Name: Chris
Joined: Jun 2011, #58691
Location: San Diego
Age: 27
Gender: Male
Posts: 5,179
nfs257's Tacoma Gallery
What is the amp draw? If switch is rated enough should be fine... what are you going to use them for?

I use relays for everything... lol
  Reply With Quote
Old 06-17-2012, 03:08 PM   #4
knine00 [OP] knine00 is online now
Senior Member
knine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shed
Air Force: 4th Fighter Wing
Joined: Oct 2011, #66179
Location: Pikeville, NC
Gender: Male
Posts: 1,296
knine00's Tacoma Gallery
Kinda like the raptor setup! I have Contura v switches
  Reply With Quote
Old 06-17-2012, 03:14 PM   #5
Very nice how much?
Forster46 is one of the sharper tools in the shedForster46 is one of the sharper tools in the shedForster46 is one of the sharper tools in the shedForster46 is one of the sharper tools in the shedForster46 is one of the sharper tools in the shedForster46 is one of the sharper tools in the shedForster46 is one of the sharper tools in the shedForster46 is one of the sharper tools in the shedForster46 is one of the sharper tools in the shedForster46 is one of the sharper tools in the shedForster46 is one of the sharper tools in the shed

Forster46's Avatar
Firefighter: Firefighter/EMT
Name: Nick
Joined: Jul 2010, #40487
Location: Mount Vernon, WA
Gender: Male
Posts: 3,327
Forster46's Tacoma Gallery
Send a message via MSN to Forster46
Quote:
Originally Posted by knine00 View Post
Kinda like the raptor setup! I have Contura v switches
So only two red lights in the front? Or did you buy two sets?
  Reply With Quote
Old 06-17-2012, 03:17 PM   #6
knine00 [OP] knine00 is online now
Senior Member
knine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shed
Air Force: 4th Fighter Wing
Joined: Oct 2011, #66179
Location: Pikeville, NC
Gender: Male
Posts: 1,296
knine00's Tacoma Gallery
No, I am doing three white ones. I bought them from led warehouse.
  Reply With Quote
Old 06-17-2012, 03:24 PM   #7
Senior Member
nfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shed

nfs257's Avatar
Navy: GSM1
Name: Chris
Joined: Jun 2011, #58691
Location: San Diego
Age: 27
Gender: Male
Posts: 5,179
nfs257's Tacoma Gallery
3 leds should be fine in one switch. If you want to protect the dwight use a relay. Not much more work at all.
  Reply With Quote
Old 06-17-2012, 03:31 PM   #8
Very nice how much?
Forster46 is one of the sharper tools in the shedForster46 is one of the sharper tools in the shedForster46 is one of the sharper tools in the shedForster46 is one of the sharper tools in the shedForster46 is one of the sharper tools in the shedForster46 is one of the sharper tools in the shedForster46 is one of the sharper tools in the shedForster46 is one of the sharper tools in the shedForster46 is one of the sharper tools in the shedForster46 is one of the sharper tools in the shedForster46 is one of the sharper tools in the shed

Forster46's Avatar
Firefighter: Firefighter/EMT
Name: Nick
Joined: Jul 2010, #40487
Location: Mount Vernon, WA
Gender: Male
Posts: 3,327
Forster46's Tacoma Gallery
Send a message via MSN to Forster46
Quote:
Originally Posted by knine00 View Post
No, I am doing three white ones. I bought them from led warehouse.
Ohh okay. Cool
  Reply With Quote
Old 06-17-2012, 03:31 PM   #9
knine00 [OP] knine00 is online now
Senior Member
knine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shed
Air Force: 4th Fighter Wing
Joined: Oct 2011, #66179
Location: Pikeville, NC
Gender: Male
Posts: 1,296
knine00's Tacoma Gallery
Quote:
Originally Posted by nfs257 View Post
3 leds should be fine in one switch. If you want to protect the dwight use a relay. Not much more work at all.
Where is a good place to get a relay online? Is there a certain type?
  Reply With Quote
Old 06-17-2012, 03:41 PM   #10
Senior Member
nfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shed

nfs257's Avatar
Navy: GSM1
Name: Chris
Joined: Jun 2011, #58691
Location: San Diego
Age: 27
Gender: Male
Posts: 5,179
nfs257's Tacoma Gallery
Radio shack or oznium.com

A 4 pole will work most are 5 pole and you use only 4 poles...
  Reply With Quote
Old 06-17-2012, 03:43 PM   #11
knine00 [OP] knine00 is online now
Senior Member
knine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shed
Air Force: 4th Fighter Wing
Joined: Oct 2011, #66179
Location: Pikeville, NC
Gender: Male
Posts: 1,296
knine00's Tacoma Gallery
Quote:
Originally Posted by nfs257 View Post
Radio shack or oznium.com

A 4 pole will work most are 5 pole and you use only 4 poles...
Do you know where I can get a wiring diagram?
thanks for all of your help
  Reply With Quote
Old 06-17-2012, 03:48 PM   #12
Senior Member
nfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shed

nfs257's Avatar
Navy: GSM1
Name: Chris
Joined: Jun 2011, #58691
Location: San Diego
Age: 27
Gender: Male
Posts: 5,179
nfs257's Tacoma Gallery
  Reply With Quote
Old 06-17-2012, 03:48 PM   #13
Senior Member
Rich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shed

Rich91710's Avatar
Name: Rich
Joined: Feb 2012, #73470
Location: Los Angeles
Gender: Male
Posts: 15,967
Rich91710's Tacoma Gallery
Quote:
Originally Posted by nfs257 View Post
Radio shack or oznium.com

A 4 pole will work most are 5 pole and you use only 4 poles...
Not really a "4-pole".... the contacts only have one pole.
You have a N/O (87), common (30), and some have a N/C (87a)

The relays are 4 or 5 PIN. Pins 85 and 86 are the coil terminals that switch the relay.
  Reply With Quote
Old 06-17-2012, 03:50 PM   #14
Senior Member
nfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shed

nfs257's Avatar
Navy: GSM1
Name: Chris
Joined: Jun 2011, #58691
Location: San Diego
Age: 27
Gender: Male
Posts: 5,179
nfs257's Tacoma Gallery
Quote:
Originally Posted by Rich91710 View Post
Not really a "4-pole".... the contacts only have one pole.
You have a N/O (87), common (30), and some have a N/C (87a)

The relays are 4 or 5 PIN. Pins 85 and 86 are the coil terminals that switch the relay.
You are correct... sorry for the confusion.
  Reply With Quote
Old 06-17-2012, 04:04 PM   #15
knine00 [OP] knine00 is online now
Senior Member
knine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shed
Air Force: 4th Fighter Wing
Joined: Oct 2011, #66179
Location: Pikeville, NC
Gender: Male
Posts: 1,296
knine00's Tacoma Gallery
So I can use a 4 pin? That would mean its a N/O relay correct? 5 pin just gives you a choice between n/o or a n/c relay?
  Reply With Quote
Old 06-17-2012, 04:13 PM   #16
Senior Member
Rich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shed

Rich91710's Avatar
Name: Rich
Joined: Feb 2012, #73470
Location: Los Angeles
Gender: Male
Posts: 15,967
Rich91710's Tacoma Gallery
Quote:
Originally Posted by knine00 View Post
So I can use a 4 pin? That would mean its a N/O relay correct? 5 pin just gives you a choice between n/o or a n/c relay?
Correct.

Pin 87 is usually used as the output.
Personally, I prefer to reverse 87 and 30 for safety reasons IF I'm using a 5-pin. Why? 87a is the NC contact. When the relay is not energized (switch off, truck off), 87a is hot... direct connection to the battery.

This doesn't matter on the 4-pin, and really, it's not a big deal on the 5-pin as long as you put some shrink tubing over 87a.

There are some good uses for the 5-pin relay, example, you can use the 87a output to feed a 2nd relay to automatically switch between fogs and driving lights when you switch from low to high beam.


Attached Thumbnails
Wiring expert help with led sider markers-duallights2.jpg
  Reply With Quote
Old 06-17-2012, 04:17 PM   #17
knine00 [OP] knine00 is online now
Senior Member
knine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shed
Air Force: 4th Fighter Wing
Joined: Oct 2011, #66179
Location: Pikeville, NC
Gender: Male
Posts: 1,296
knine00's Tacoma Gallery
Quote:
Originally Posted by Rich91710 View Post
Correct.

Pin 87 is usually used as the output.
Personally, I prefer to reverse 87 and 30 for safety reasons IF I'm using a 5-pin. Why? 87a is the NC contact. When the relay is not energized (switch off, truck off), 87a is hot... direct connection to the battery.

This doesn't matter on the 4-pin, and really, it's not a big deal on the 5-pin as long as you put some shrink tubing over 87a.

There are some good uses for the 5-pin relay, example, you can use the 87a output to feed a 2nd relay to automatically switch between fogs and driving lights when you switch from low to high beam.



I gotcha. So a 5 pin can be used with a on/off/on 3 position switch?
  Reply With Quote
Old 06-17-2012, 04:22 PM   #18
Senior Member
Rich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shedRich91710 is one of the sharper tools in the shed

Rich91710's Avatar
Name: Rich
Joined: Feb 2012, #73470
Location: Los Angeles
Gender: Male
Posts: 15,967
Rich91710's Tacoma Gallery
Quote:
Originally Posted by knine00 View Post
I gotcha. So a 5 pin can be used with a on/off/on 3 position switch?
That's actually a 2-position switch with an indicator light.
The ground connection is the ground for the indicator.

Switch pulls in the relay that connects the battery to the rest of the system.
The switch gets it's power from the parking lights, so when the headlights are off, the whole system goes dark.

Power normally flows from the 1st relay 87 to the 2nd relay pin 30, and out pin 87a to the fog lights.
When the high beams are turned on, the hot from the high beams closes relay #2, which redirects the output of relay #1 to pin 87, to the driving lights.
  Reply With Quote
Old 06-17-2012, 04:25 PM   #19
knine00 [OP] knine00 is online now
Senior Member
knine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shedknine00 is one of the sharper tools in the shed
Air Force: 4th Fighter Wing
Joined: Oct 2011, #66179
Location: Pikeville, NC
Gender: Male
Posts: 1,296
knine00's Tacoma Gallery
Awesome thanks for the info!
  Reply With Quote
Old 06-17-2012, 04:53 PM   #20
Senior Member
nfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shed

nfs257's Avatar
Navy: GSM1
Name: Chris
Joined: Jun 2011, #58691
Location: San Diego
Age: 27
Gender: Male
Posts: 5,179
nfs257's Tacoma Gallery
Quote:
Originally Posted by Rich91710 View Post
Correct.

Pin 87 is usually used as the output.
Personally, I prefer to reverse 87 and 30 for safety reasons IF I'm using a 5-pin. Why? 87a is the NC contact. When the relay is not energized (switch off, truck off), 87a is hot... direct connection to the battery.

This doesn't matter on the 4-pin, and really, it's not a big deal on the 5-pin as long as you put some shrink tubing over 87a.

There are some good uses for the 5-pin relay, example, you can use the 87a output to feed a 2nd relay to automatically switch between fogs and driving lights when you switch from low to high beam.


That confused me... lol

I need to read and study that again...
  Reply With Quote
