Old 05-26-2013, 11:30 PM   #182
Junior Member
Torkt is on a distinguished road

Torkt's Avatar
Name: Russell
Joined: May 2013, #103797
Location: Silverdale, Washington
Age: 36
Gender: Male
Posts: 9
Torkt's Tacoma Gallery
Thanks for all the great write-ups. Got a question for those of you much smarter than I.

How would I make it so my fog lights work exactly like stock except for they stay on with my high beams? I still want my toggle switch to function and I don't want them on with the DTL. Is there an easy variation of the mods listed here?

Thank you.
  Reply With Quote
Old 11-02-2013, 11:37 AM   #184
2006 Access Cab
ALS2000 is on a distinguished road
Name: Alan
Joined: Jun 2013, #105567
Location: Marietta, GA
Gender: Male
Posts: 11
ALS2000's Tacoma Gallery
The "Foglights on anytime" mod disabled the DRL mod. Is there a way to have both work together?
  Reply With Quote
Old 11-02-2013, 11:52 AM   #185
My drinking team has a wheeling problem
V5ioV is one of the sharper tools in the shedV5ioV is one of the sharper tools in the shedV5ioV is one of the sharper tools in the shedV5ioV is one of the sharper tools in the shedV5ioV is one of the sharper tools in the shedV5ioV is one of the sharper tools in the shedV5ioV is one of the sharper tools in the shedV5ioV is one of the sharper tools in the shedV5ioV is one of the sharper tools in the shedV5ioV is one of the sharper tools in the shedV5ioV is one of the sharper tools in the shed

V5ioV's Avatar
Name: V5ioV
Joined: Sep 2012, #87502
Location: Out n 'bout
Gender: Male
Posts: 5,307
V5ioV's Tacoma Gallery
Quote:
Originally Posted by ALS2000 View Post
The "Foglights on anytime" mod disabled the DRL mod. Is there a way to have both work together?
it does NOT disable it! read the last few post here… this may be what's happening…
http://www.tacomaworld.com/forum/2nd...ml#post7650974
  Reply With Quote
Old 11-02-2013, 12:17 PM   #186
2006 Access Cab
ALS2000 is on a distinguished road
Name: Alan
Joined: Jun 2013, #105567
Location: Marietta, GA
Gender: Male
Posts: 11
ALS2000's Tacoma Gallery
Thank you for your reply - both DRL and Fog Lights do work.
  Reply With Quote
Old 11-05-2013, 09:27 AM   #188
2006 Access Cab
ALS2000 is on a distinguished road
Name: Alan
Joined: Jun 2013, #105567
Location: Marietta, GA
Gender: Male
Posts: 11
ALS2000's Tacoma Gallery
  Reply With Quote
Old 11-17-2013, 09:59 AM   #189
Senior Member
SpeedwayTaco160 is just really niceSpeedwayTaco160 is just really niceSpeedwayTaco160 is just really niceSpeedwayTaco160 is just really niceSpeedwayTaco160 is just really nice

SpeedwayTaco160's Avatar
Name: Ray
Joined: Aug 2013, #111117
Location: Clarksville TN
Gender: Male
Posts: 335
SpeedwayTaco160's Tacoma Gallery
How do I tap into the green wire without the radio pin and cutting into the wire for my 2010 Tacoma??? thanks im sure I missed it.
  Reply With Quote
Old 11-24-2013, 12:50 PM   #190
Senior Member
zk6760 is on a distinguished road
Joined: Aug 2013, #110092
Location: SLC, UT
Gender: Male
Posts: 113
zk6760's Tacoma Gallery
I used JiveWalkers method on my 2010 OR and it works as expecte.

My only question is: the male connection that I stuff into the ignition port isn't very secure/tight. I can easily pull it out myself. Should I be concerned about this and is it a fire hazard if it were to somehow slip out while driving?

The dividers within the box itself press on the wiring between the fog relay and the ignition area so that should hold it relatively in place, but wanted to ask the question.

Thanks!
  Reply With Quote
Old 11-25-2013, 07:34 PM   #191
Senior Member
ndcmack is one of the sharper tools in the shedndcmack is one of the sharper tools in the shedndcmack is one of the sharper tools in the shedndcmack is one of the sharper tools in the shedndcmack is one of the sharper tools in the shedndcmack is one of the sharper tools in the shedndcmack is one of the sharper tools in the shedndcmack is one of the sharper tools in the shedndcmack is one of the sharper tools in the shedndcmack is one of the sharper tools in the shedndcmack is one of the sharper tools in the shed

ndcmack's Avatar
Name: NICK
Joined: Mar 2013, #99735
Location: Western Washington
Gender: Dude
Posts: 1,125
ndcmack's Tacoma Gallery
Quote:
Originally Posted by Crom View Post
It's so simple that some people make it out to be harder than it is.

Here is my version:
Pop the fuse and bend the leg. ( It may take some gentle wriggling with the needle-nose pliers, and some heft to pull the fuse out. )

Route and attach the wire using the quick splice




Your done!



Your welcome. Me too!

What gauge wire are you all running for this? I've already done teh mod and love it, but was just wondering...
  Reply With Quote
Old 12-28-2013, 05:32 PM   #192
Member
baurat88 is on a distinguished road
Joined: Oct 2013, #114642
Location: California
Gender: Male
Posts: 74
baurat88's Tacoma Gallery
Is it bad to tap into that green ignition wire twice with two sets of lights? I have my anytime fog mod, but just put in an LED bar i want powered only when the ignition is on. Would it overload that wire to have both sets of lights tapped in?
  Reply With Quote
Old 02-10-2014, 12:34 AM   #193
808 Zombie Outbreak Tactical Response Team K9 Unit
DJSPEC is one of the sharper tools in the shedDJSPEC is one of the sharper tools in the shedDJSPEC is one of the sharper tools in the shedDJSPEC is one of the sharper tools in the shedDJSPEC is one of the sharper tools in the shedDJSPEC is one of the sharper tools in the shedDJSPEC is one of the sharper tools in the shedDJSPEC is one of the sharper tools in the shedDJSPEC is one of the sharper tools in the shedDJSPEC is one of the sharper tools in the shedDJSPEC is one of the sharper tools in the shed

DJSPEC's Avatar
Name: Sean
Joined: Jul 2011, #60600
Location: Kaimuki,Hawaii
Gender: Male
Posts: 745
DJSPEC's Tacoma Gallery
Quote:
Originally Posted by jivewalker View Post
I did this on my 2011. 2012 and 2013 may be different.

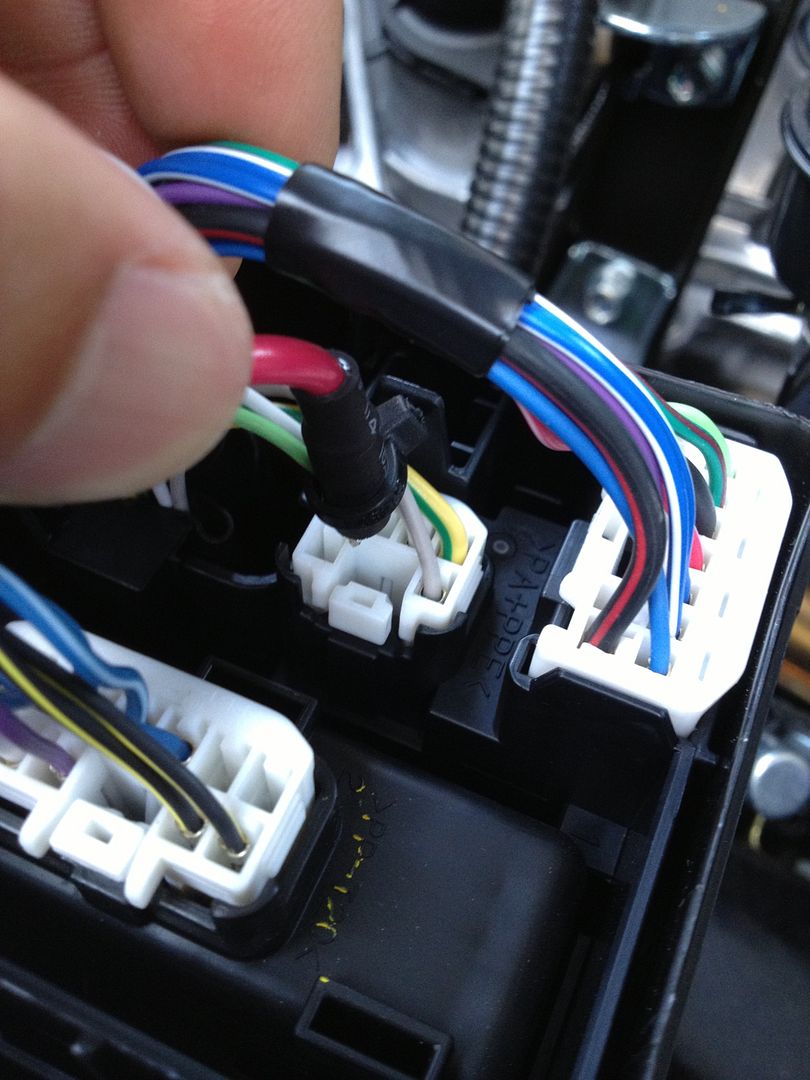

Done with fog light mod in 10 minutes! I used a male thin profile blade connector from a stereo harness and slid it into the factory harness behind the ignition wire. Didn't like the idea of cutting into the factory wire, and this is a super tight connection. Anyway, pics below and thanks for all the info! Cmatt, glad you figured it out man!

Crom, BTW, probed the block and all are hot +12v unswitched
Not to bring this back from the dead, but this method worked awesome for me. I used a connector from a left over 9004 HID harness that I had. Then zipped tied that wire to the other wires going into that harness to secure it in. Fogs lights work great, and I feel better about this method than the fuel pump relay method. Thanks!!
  Reply With Quote
Old 02-10-2014, 09:23 AM   #194
Crom [OP] Crom is online now
Time is precious; use it wisely
Crom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shed

Crom's Avatar
Name: Mr. Sir
Joined: Jun 2009, #18782
Location: San Diego, CA
Age: 36
Gender: Dude
Posts: 3,889
Crom's Tacoma Gallery
Quote:
Originally Posted by ndcmack View Post
What gauge wire are you all running for this? I've already done teh mod and love it, but was just wondering...
Don't remember, 24 AWG?
  Reply With Quote
Old 02-13-2015, 05:26 PM   #195
Junior Member
rocky100370 is on a distinguished road
Name: Kevin
Joined: Apr 2014, #128483
Location: Chicago
Gender: Male
Posts: 8
rocky100370's Tacoma Gallery
Will this work on the 2014 as well? Fuse panel looked a little bit different.

THANKS!
  Reply With Quote
Old 02-14-2015, 02:51 AM   #197
Junior Member
rocky100370 is on a distinguished road
Name: Kevin
Joined: Apr 2014, #128483
Location: Chicago
Gender: Male
Posts: 8
rocky100370's Tacoma Gallery
Quote:
Originally Posted by SpruceTaco View Post
Worked on my '12, should be the same.
Look at post #133 in this thread.

Thanks Mike. Going to do this today and will post results.
  Reply With Quote
Old 02-15-2015, 10:15 PM   #198
Junior Member
Johnny E is a name known to allJohnny E is a name known to allJohnny E is a name known to allJohnny E is a name known to allJohnny E is a name known to allJohnny E is a name known to all

Johnny E's Avatar
Joined: Mar 2012, #74638
Location: Langley, BC Canada
Gender: Guy
Posts: 27
Johnny E's Tacoma Gallery
Talking

Follow-up
Nothing but success, mod is almost 3 years old and never caused any issue. Just on an off when I want them, which is all the time. Come to think of it the bulbs have been good too considering the have been on for 36000 km
  Reply With Quote
Old 02-21-2015, 01:12 PM   #200
IRoniKdiMension
scott96929 is on a distinguished road

scott96929's Avatar
Joined: Sep 2014, #138704
Location: Phoenix, Az
Gender: Male
Posts: 67
scott96929's Tacoma Gallery
Completed Foglight Anytime Mod

This mod was so easy. I believe a fifth grader could do it........LOL

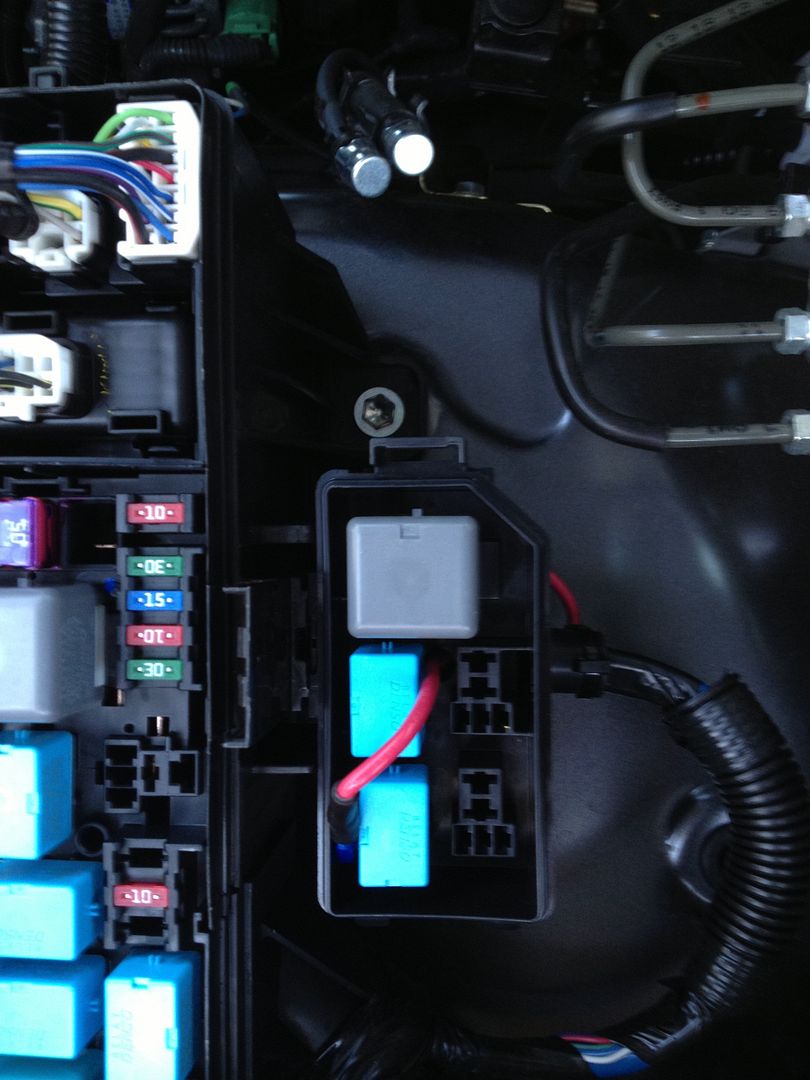

All it took was wiring the fog light relay to the ignition wire. See the RED wire.



Fog lights whenever you want them.
  Reply With Quote
