jberry's Expo Trailer Build





Frame and A-frame are 2"x3"x1/8" rectangle tube
Tongue is 2.5"x2.5"x.25" square receiver tube
Crossmembers are 2"x2"x.120 square tube
Gussets on every 90* joint
Integrated hitch recovery point (and will be used for bicycle rack) in rear bumper

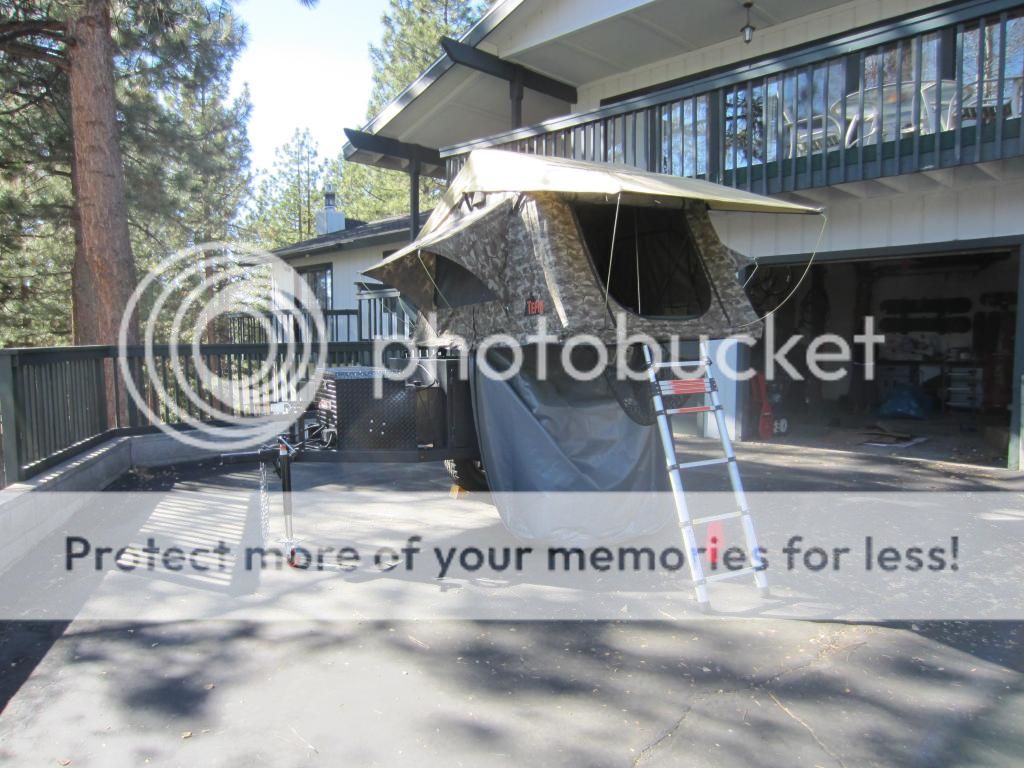

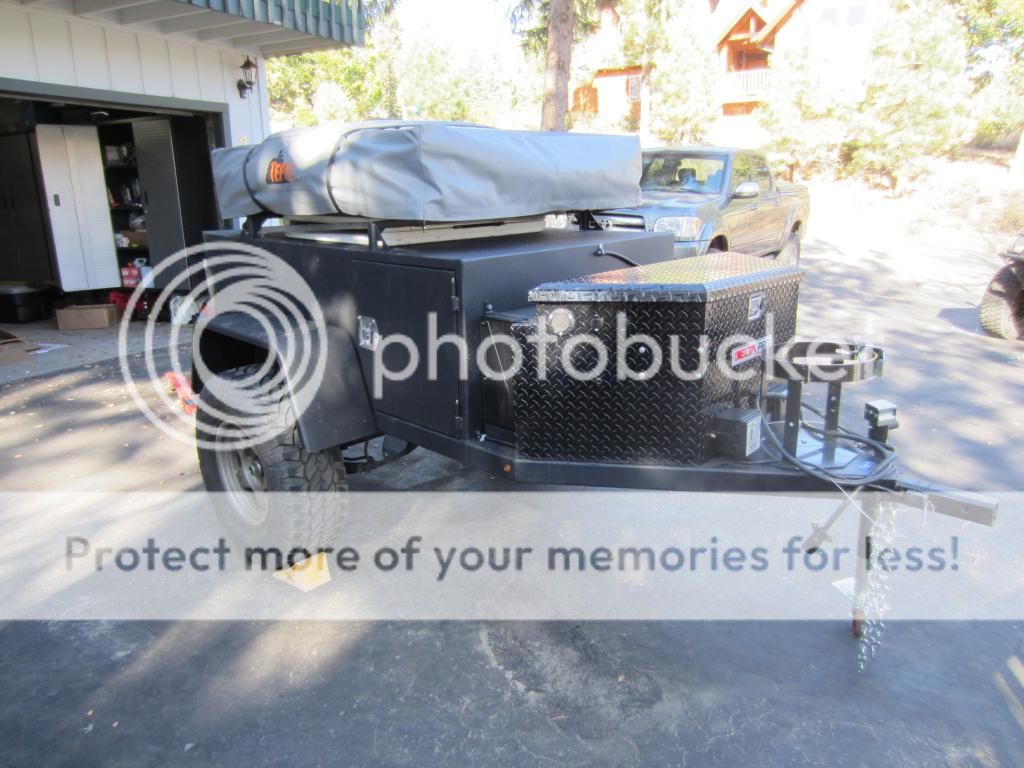

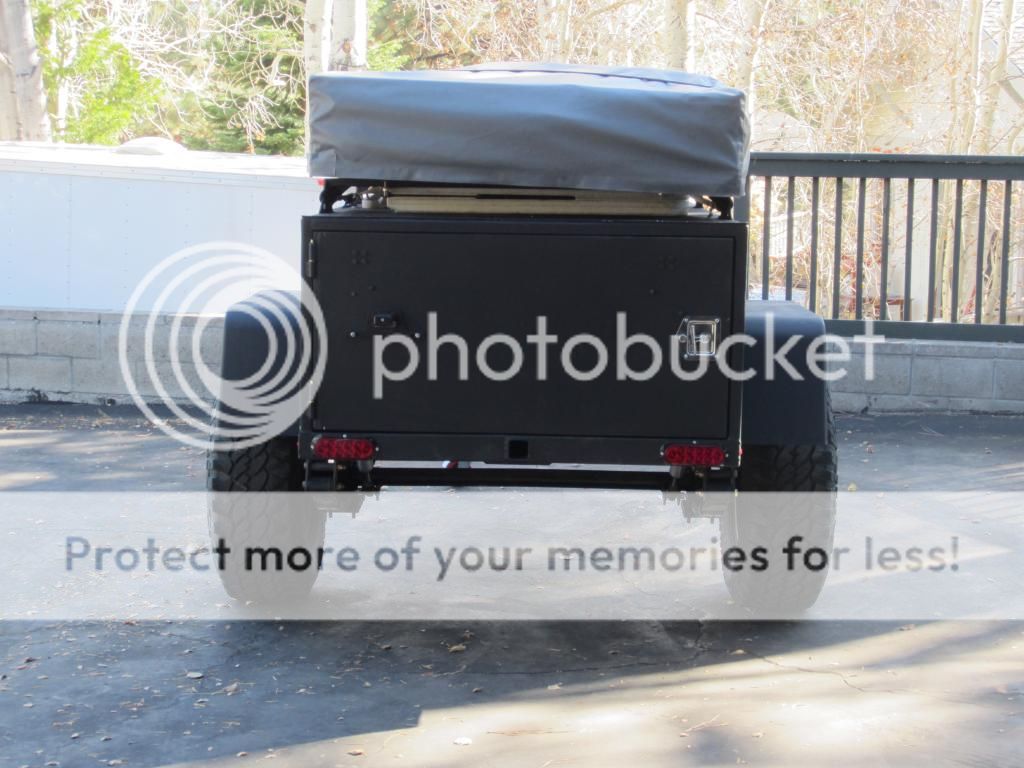

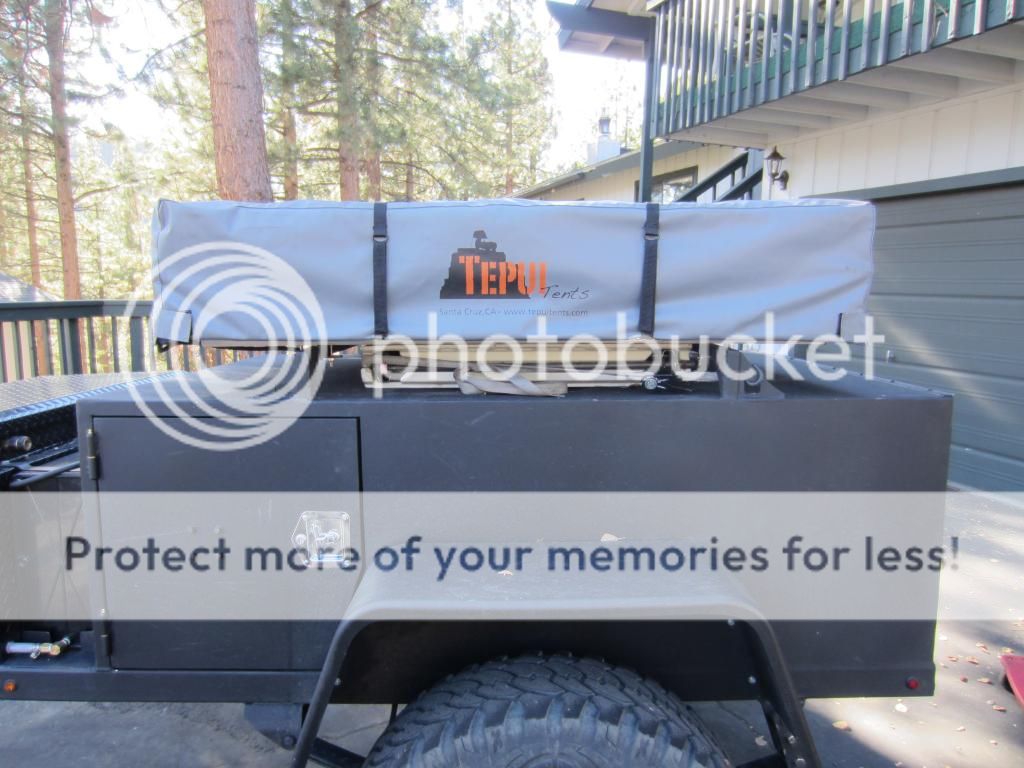

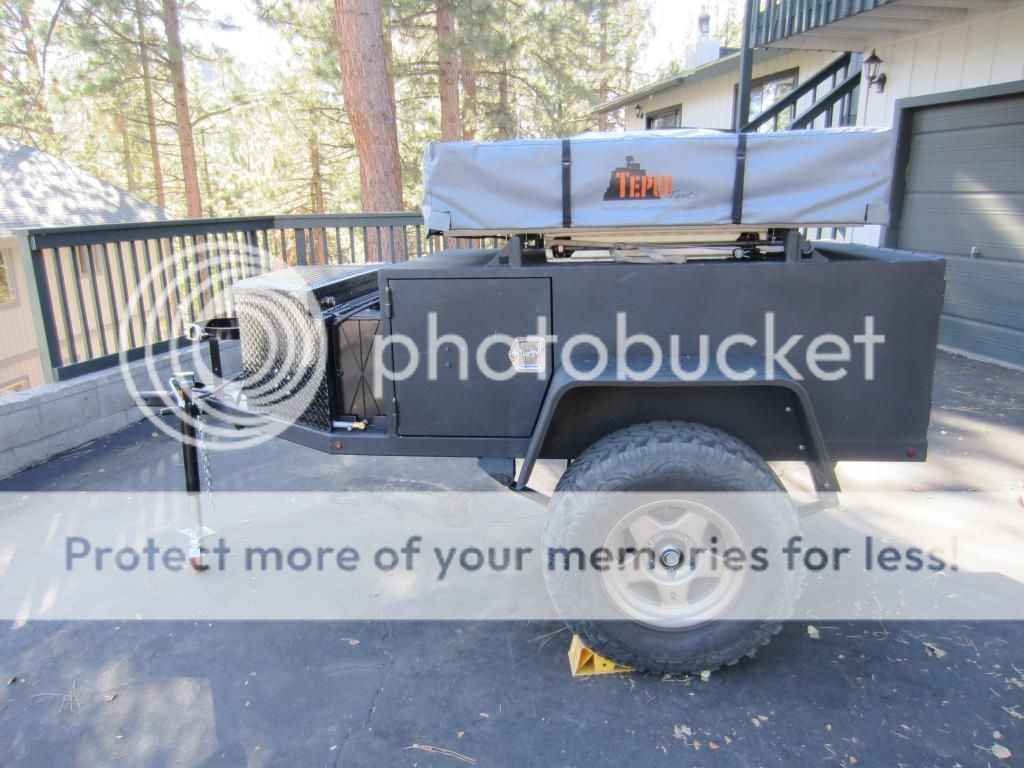

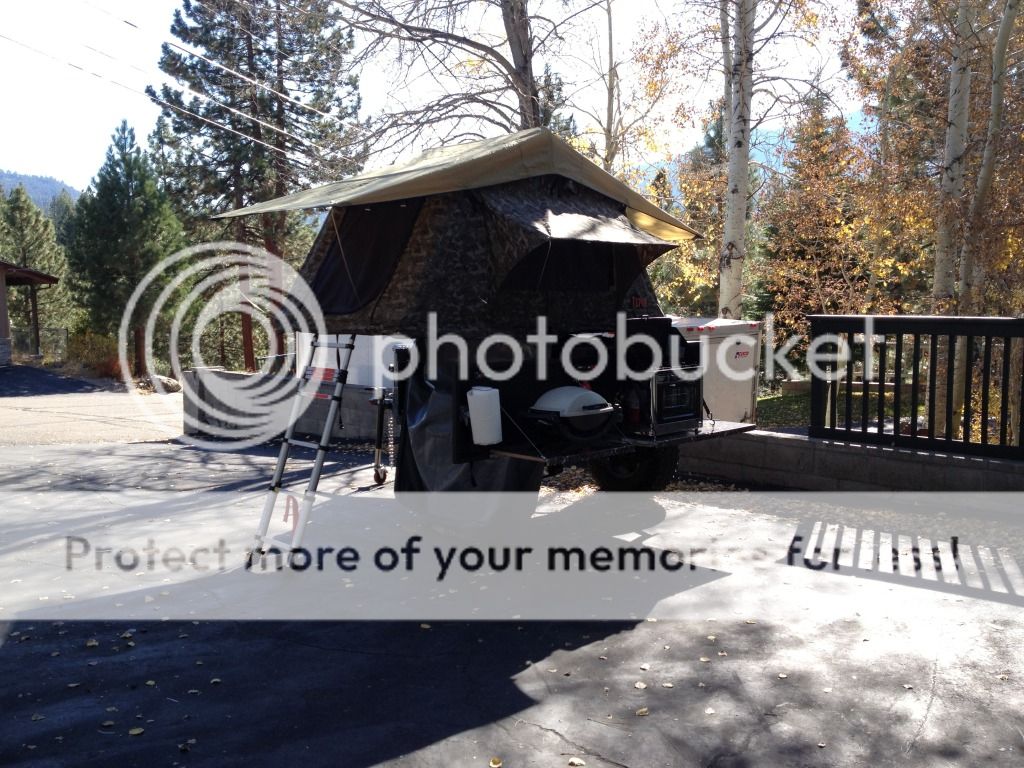

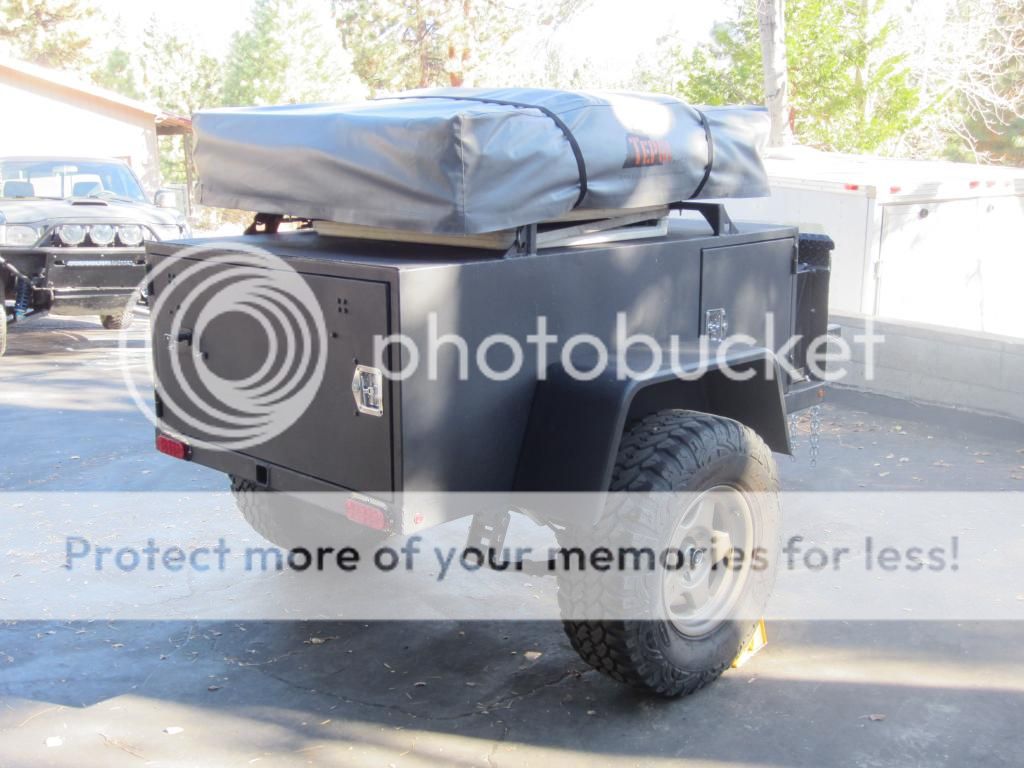

Exterior Shots:













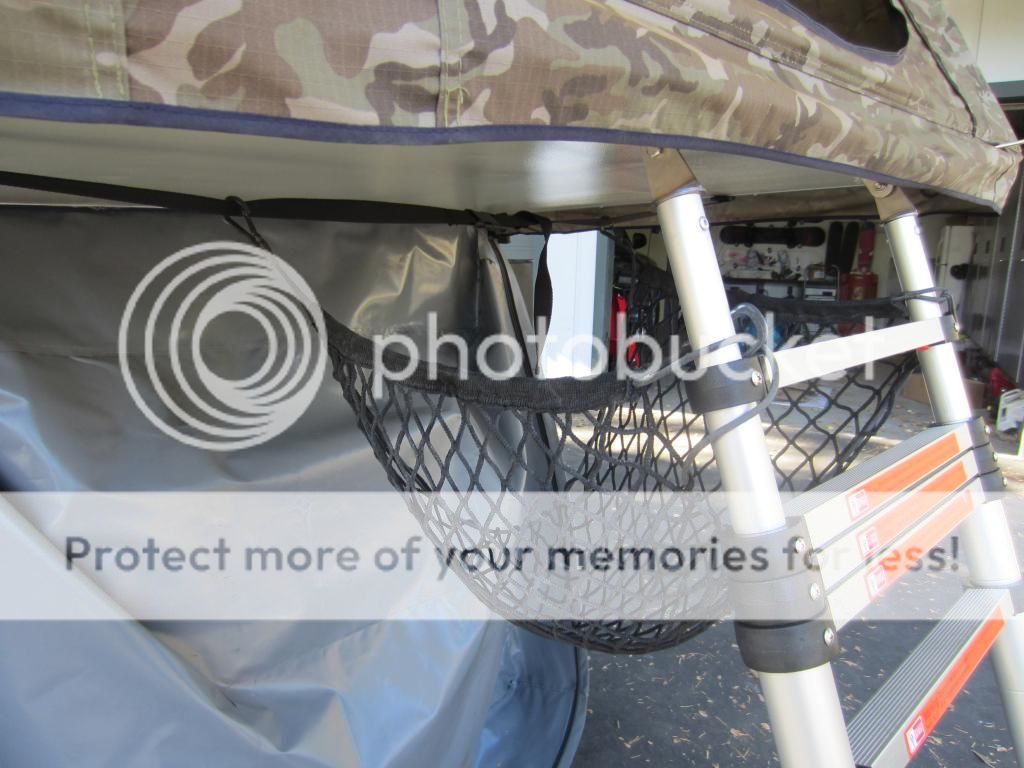

Little shoe basket using the ladder and ladder holddown:


Never need to find a bottle opener:


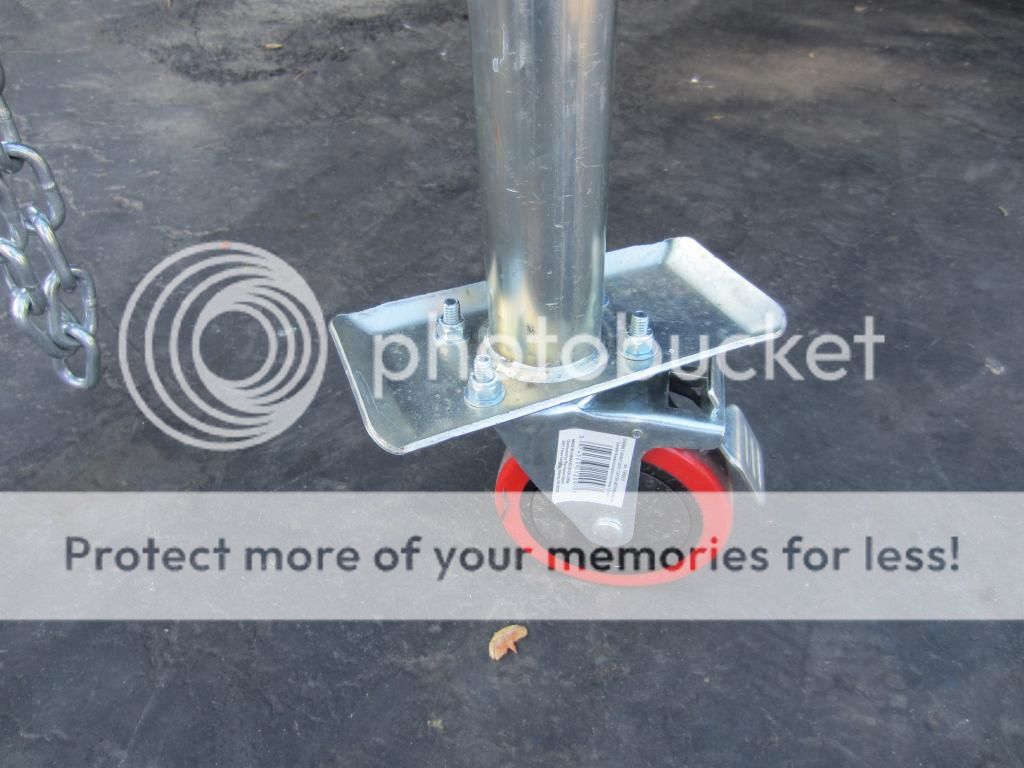

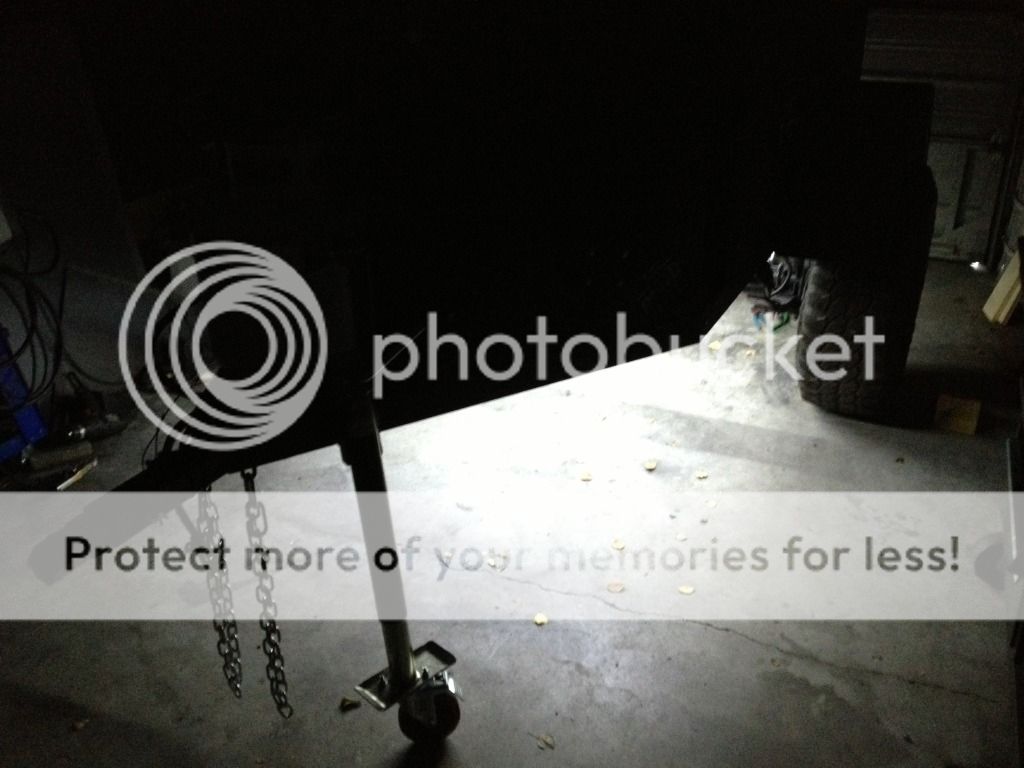

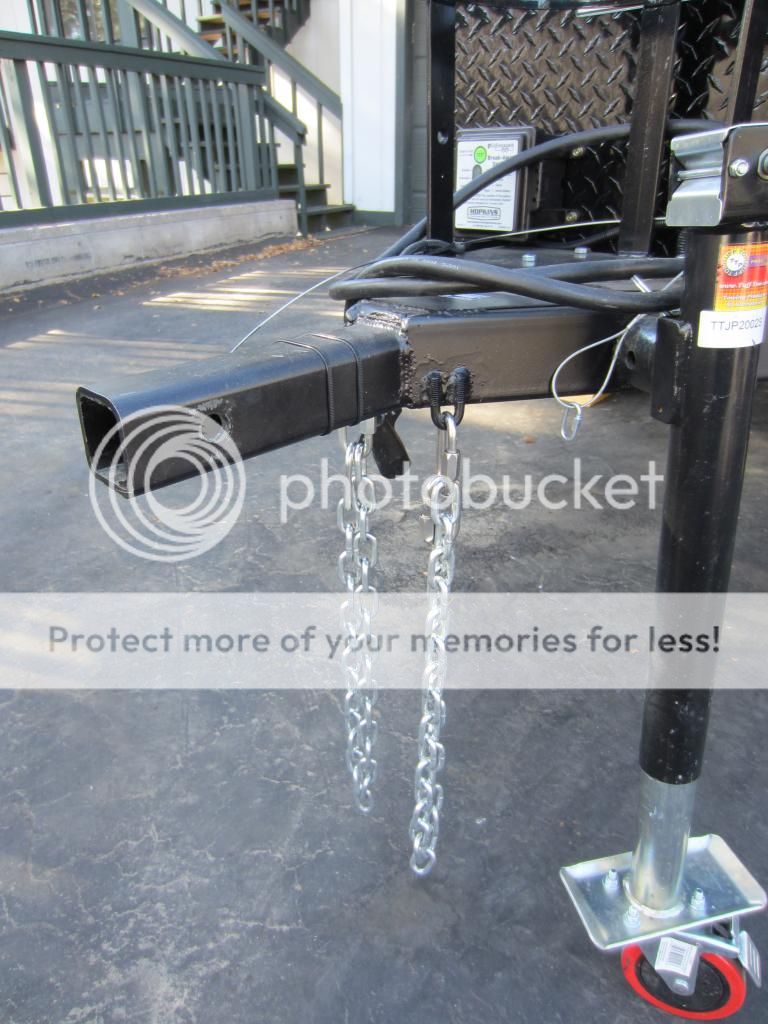

Lockable Home Depot caster I added to the tongue jack:


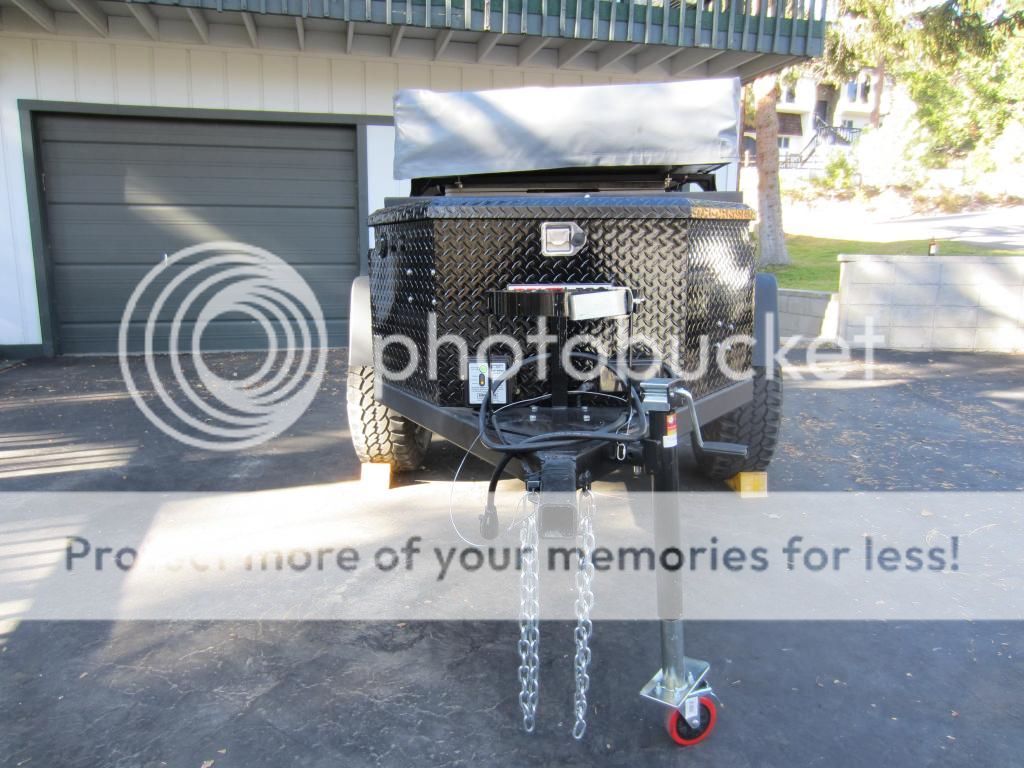

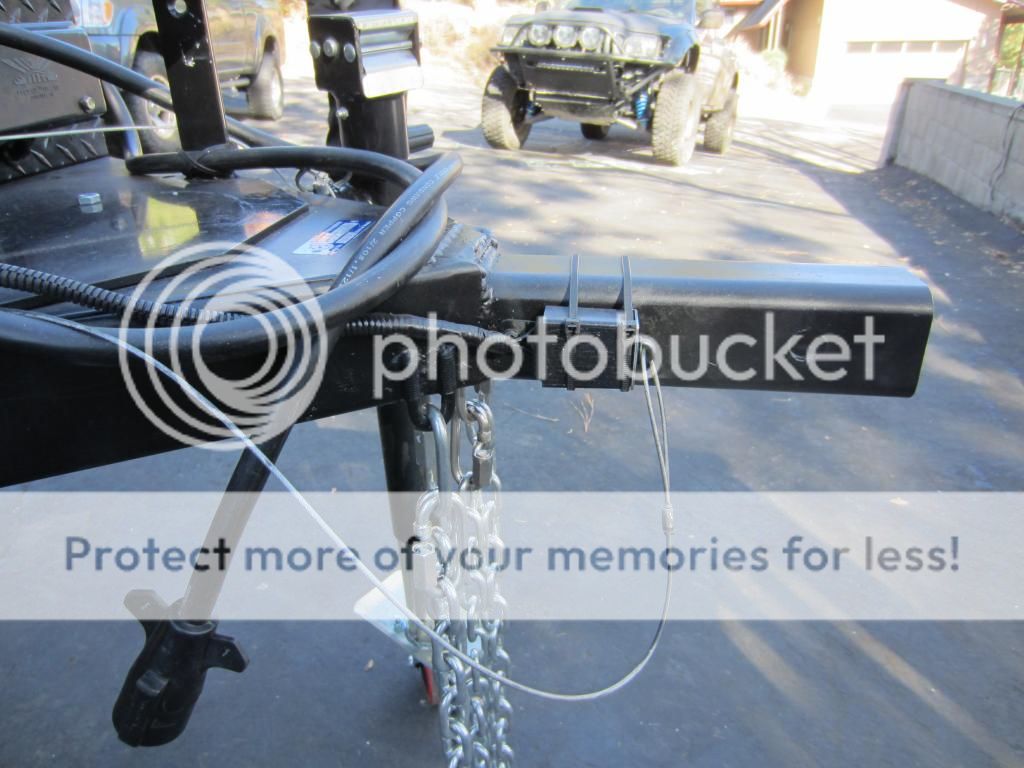

Safety Chains:


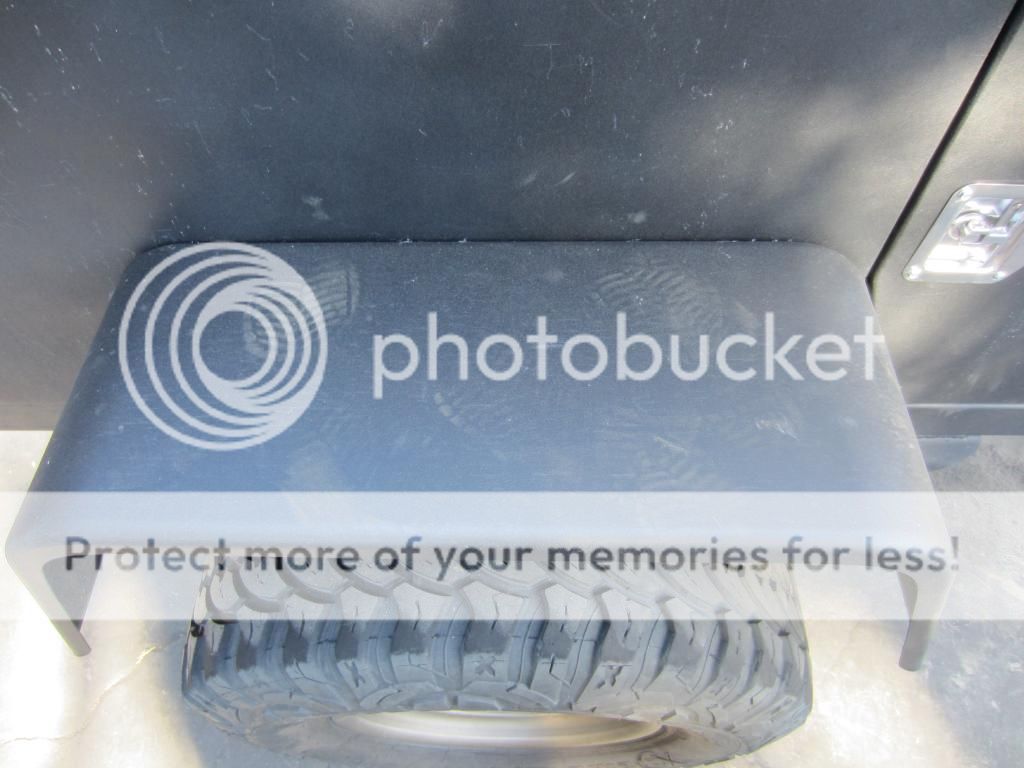

Fenders are nice and stout...can be used as steps (as you can see)


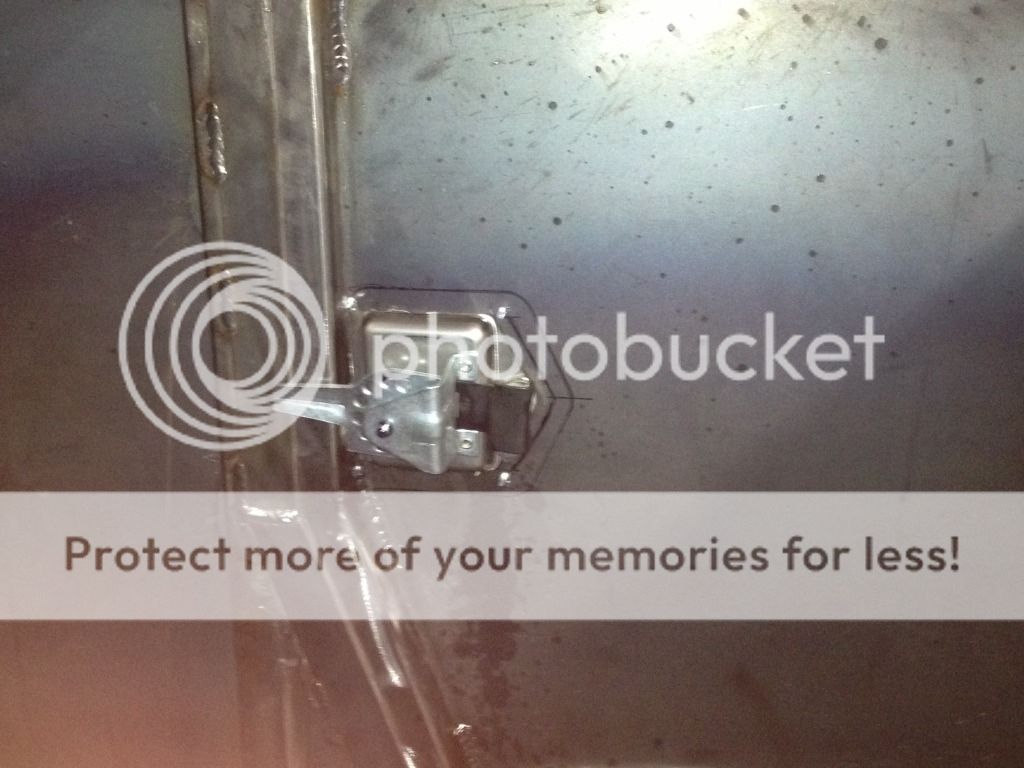

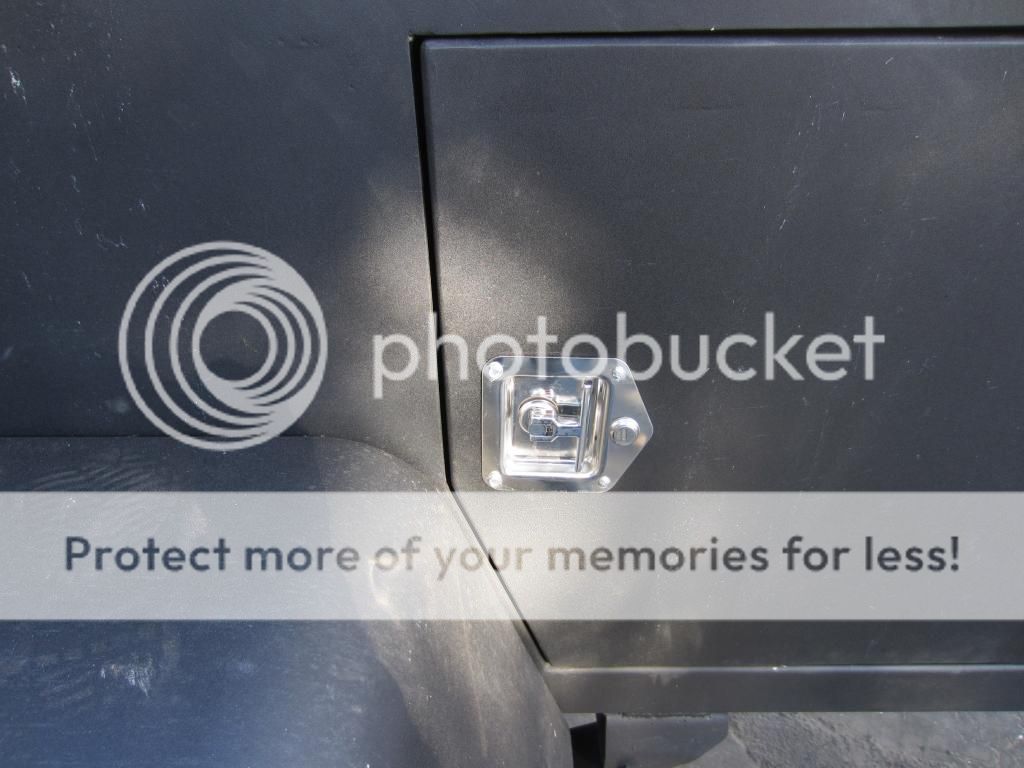

Lockable T-handles on all doors:



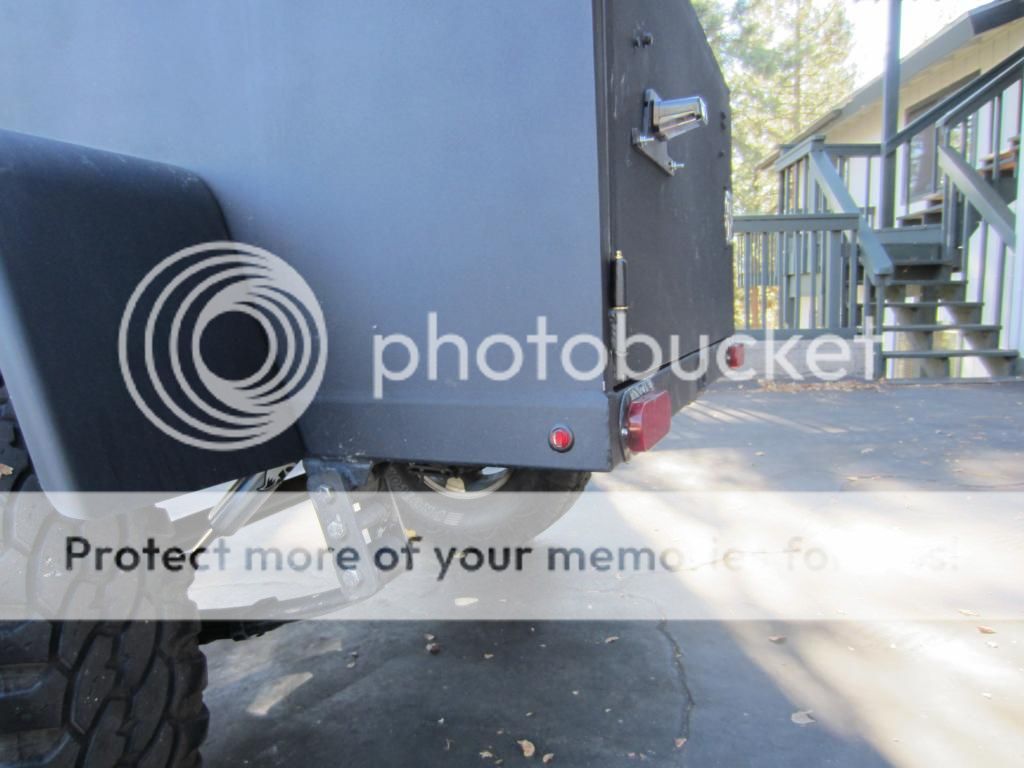

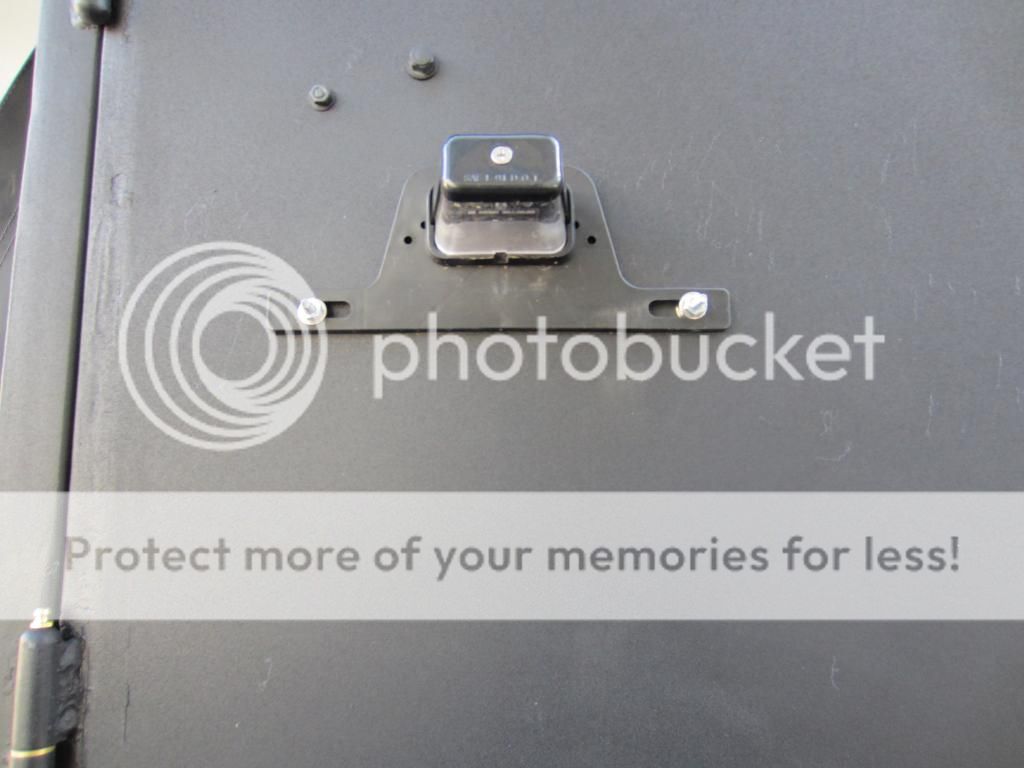

LED license plate bracket:


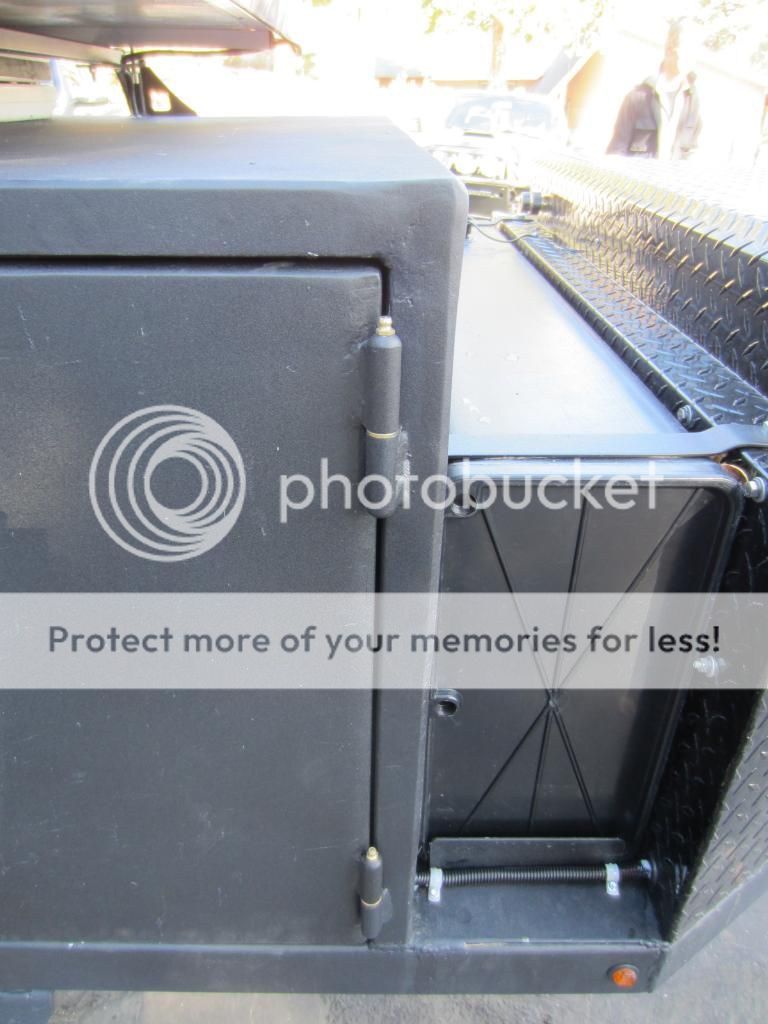

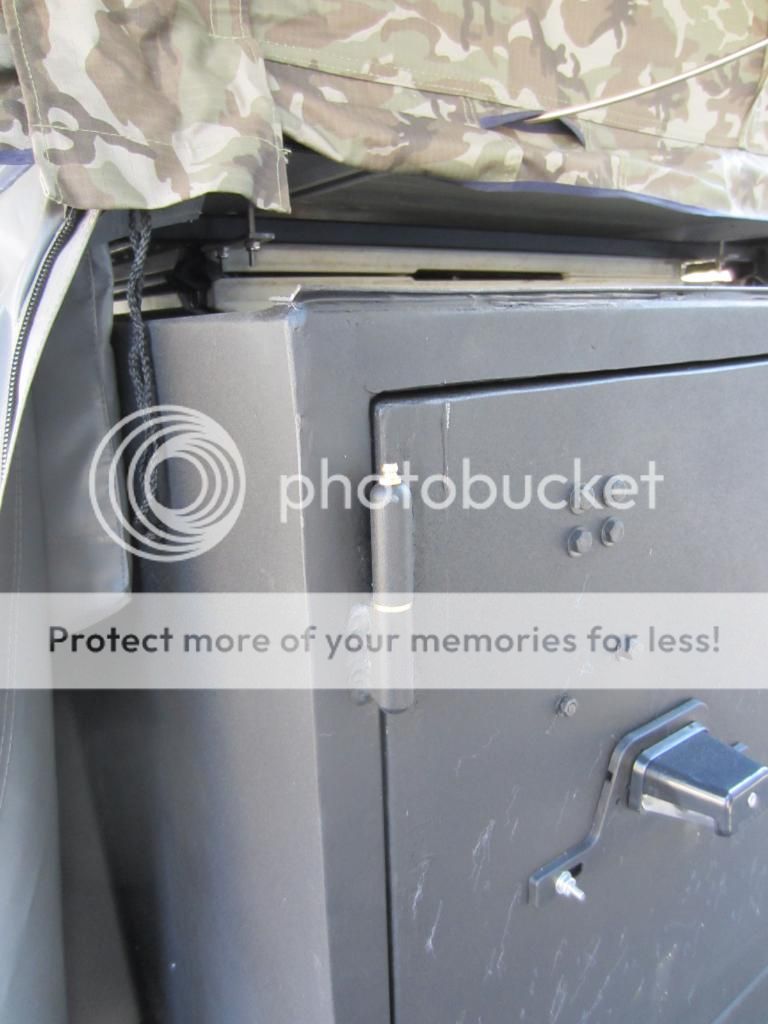

Greasable hinges on all doors:



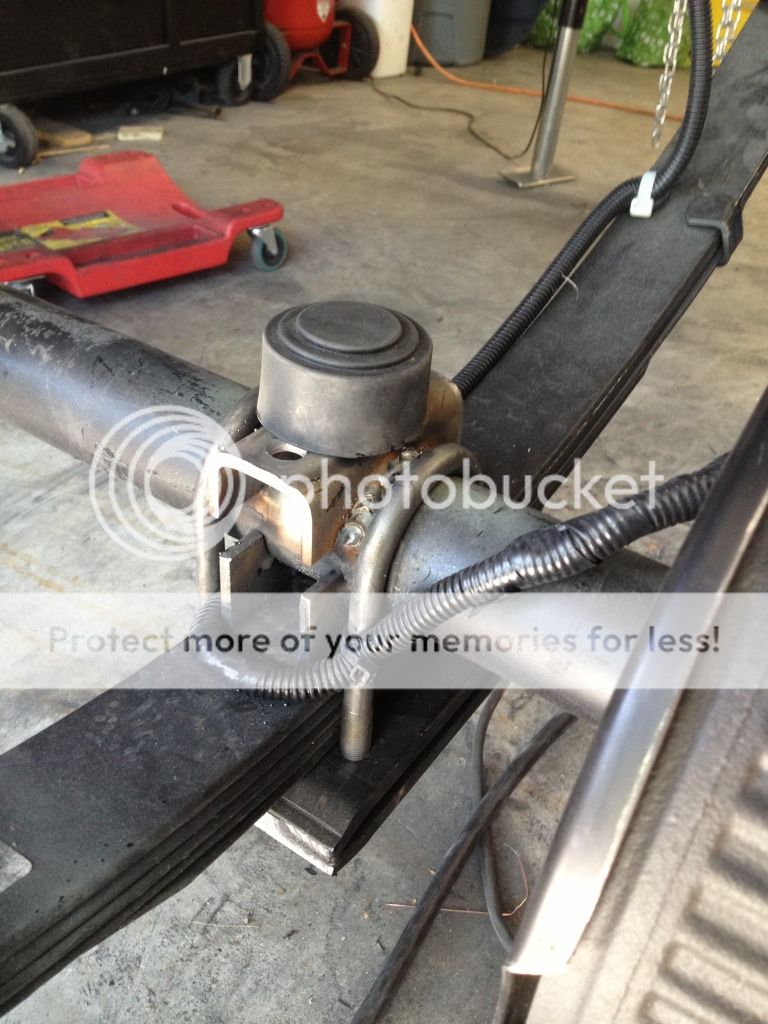

3500 lb 6x5.5 axle with bronze SCS F5's


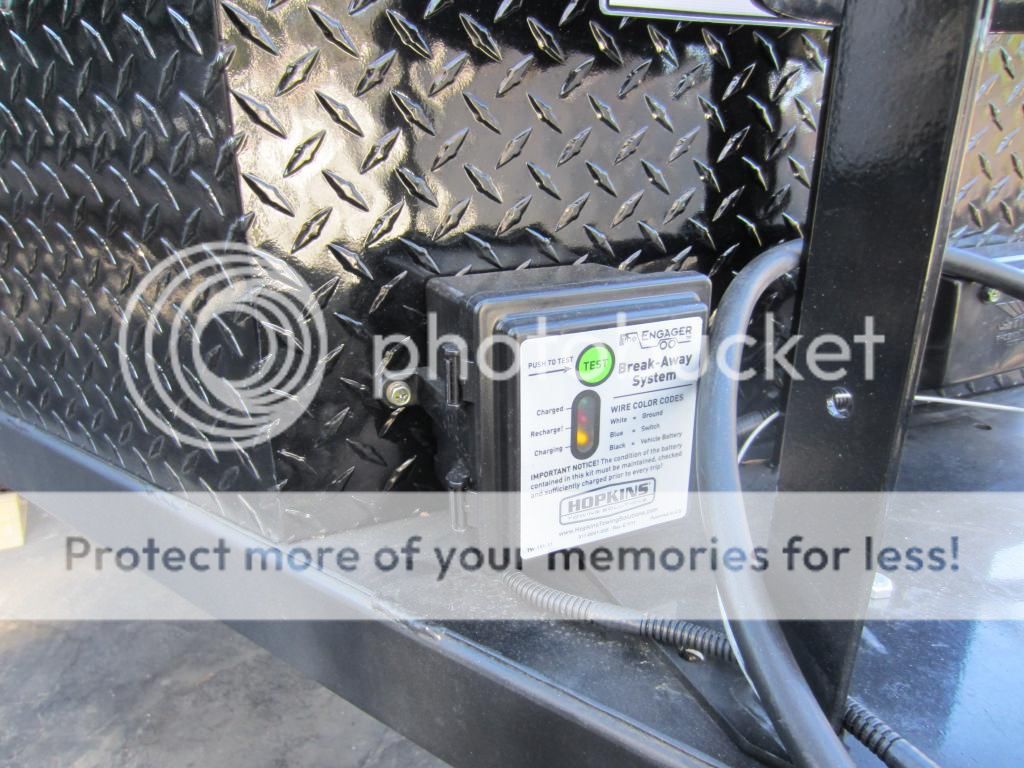

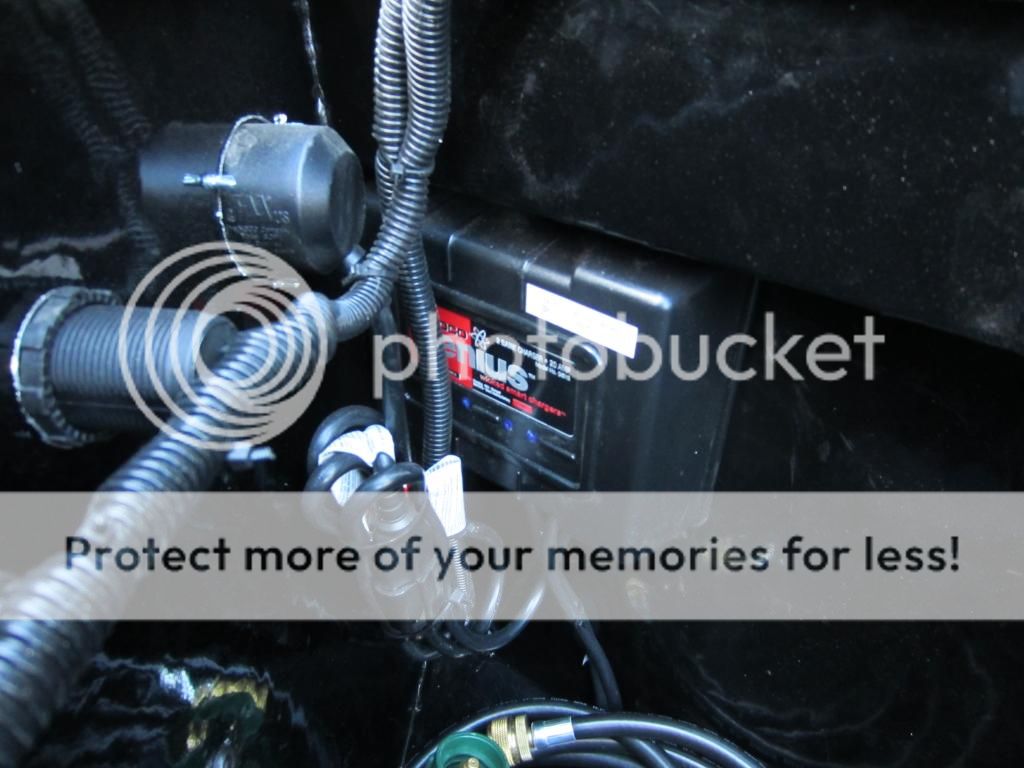

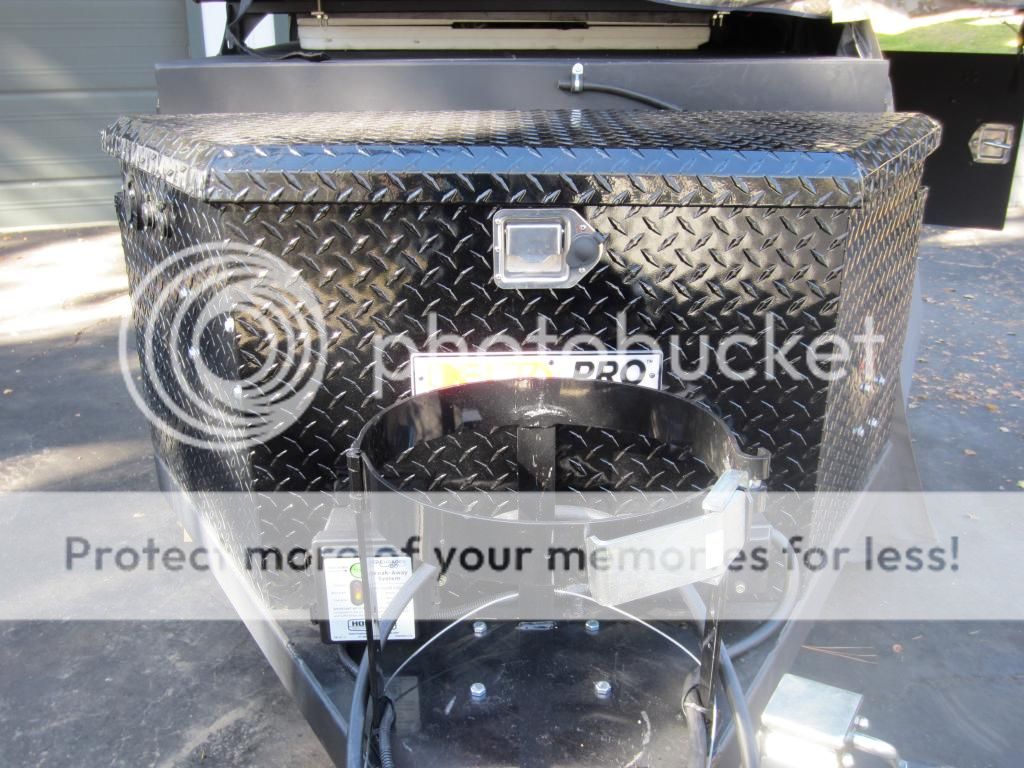

Electric brake setup including 5 amp hour battery backup:



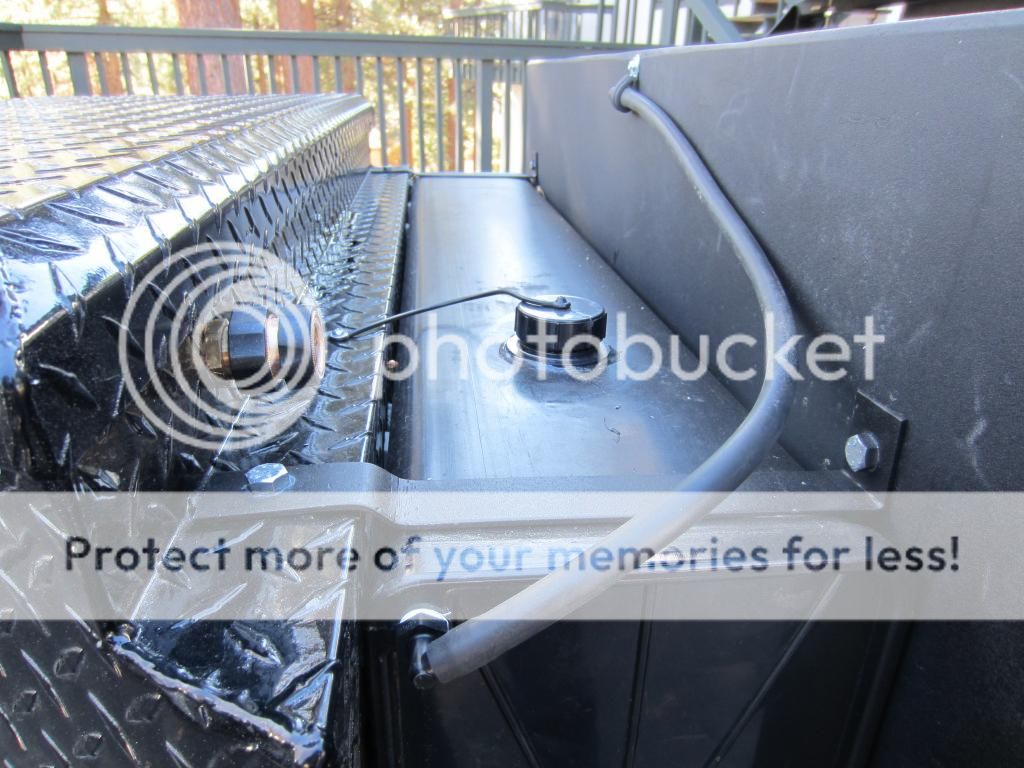

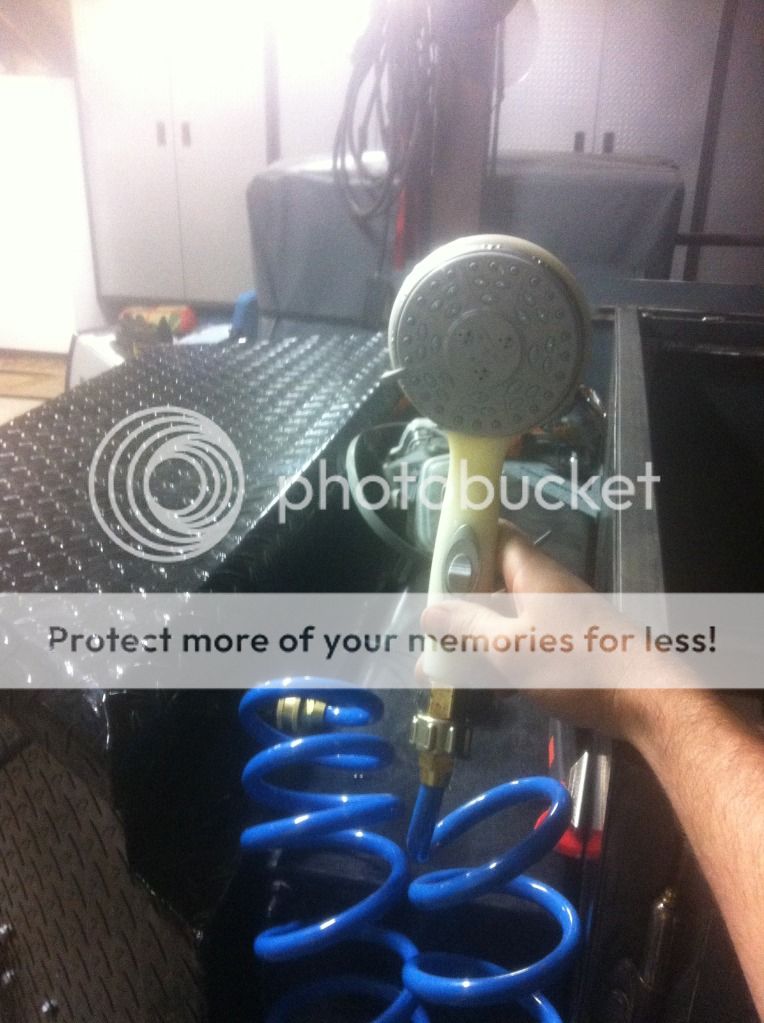

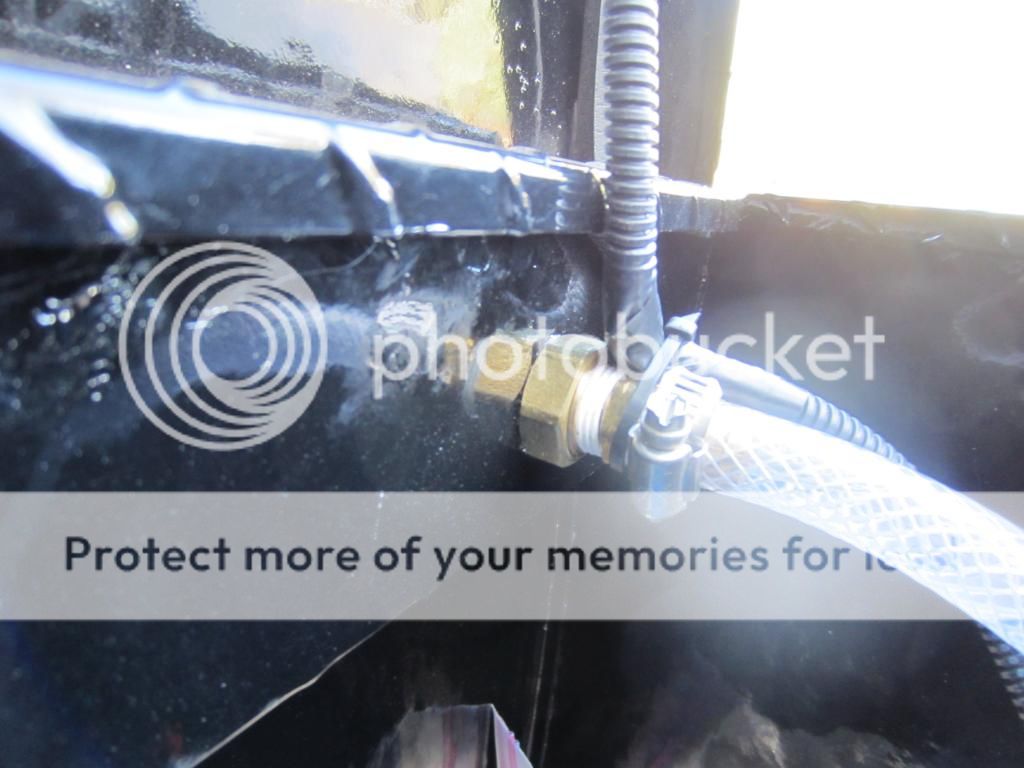

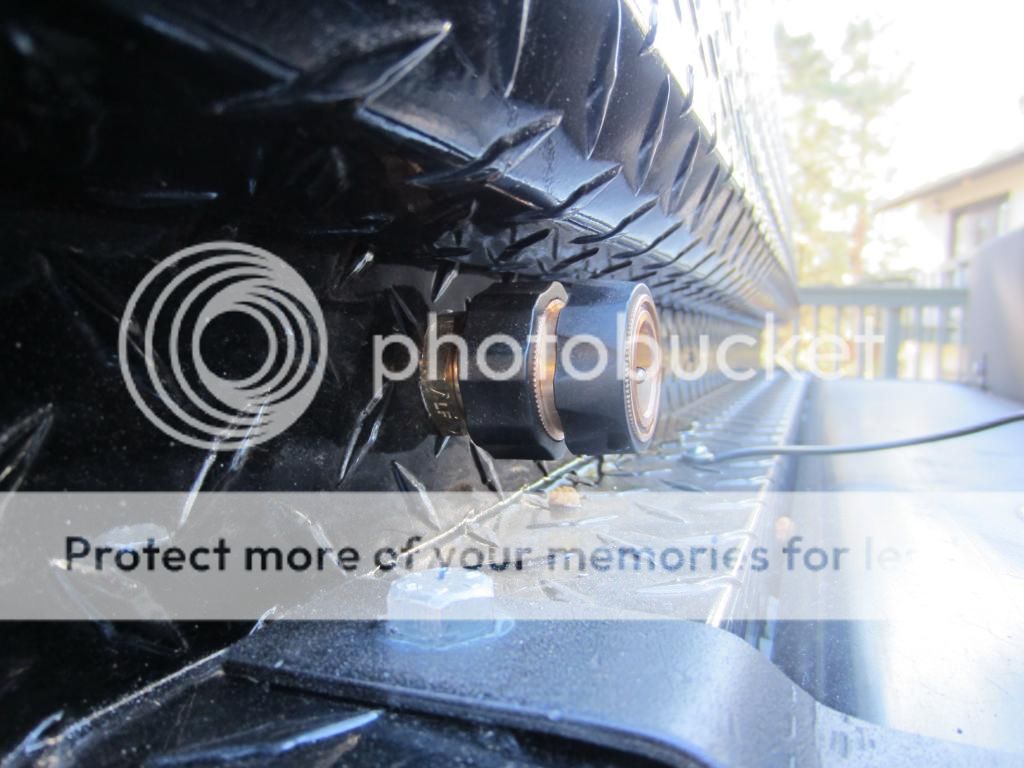

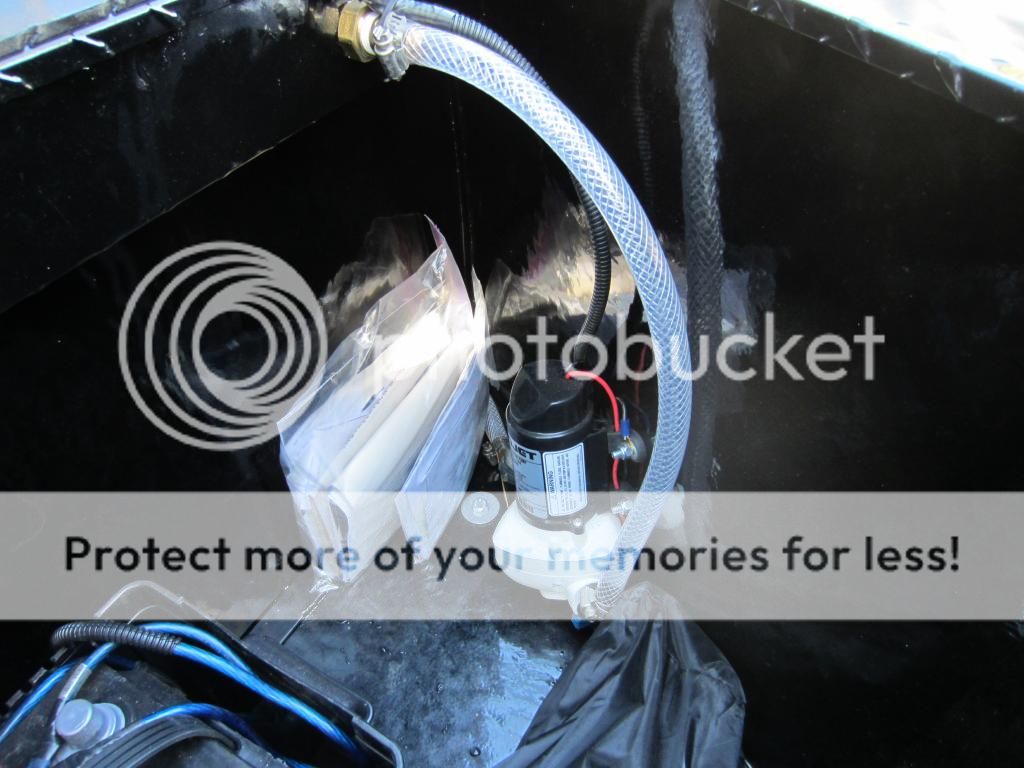

Fresh Water Setup:







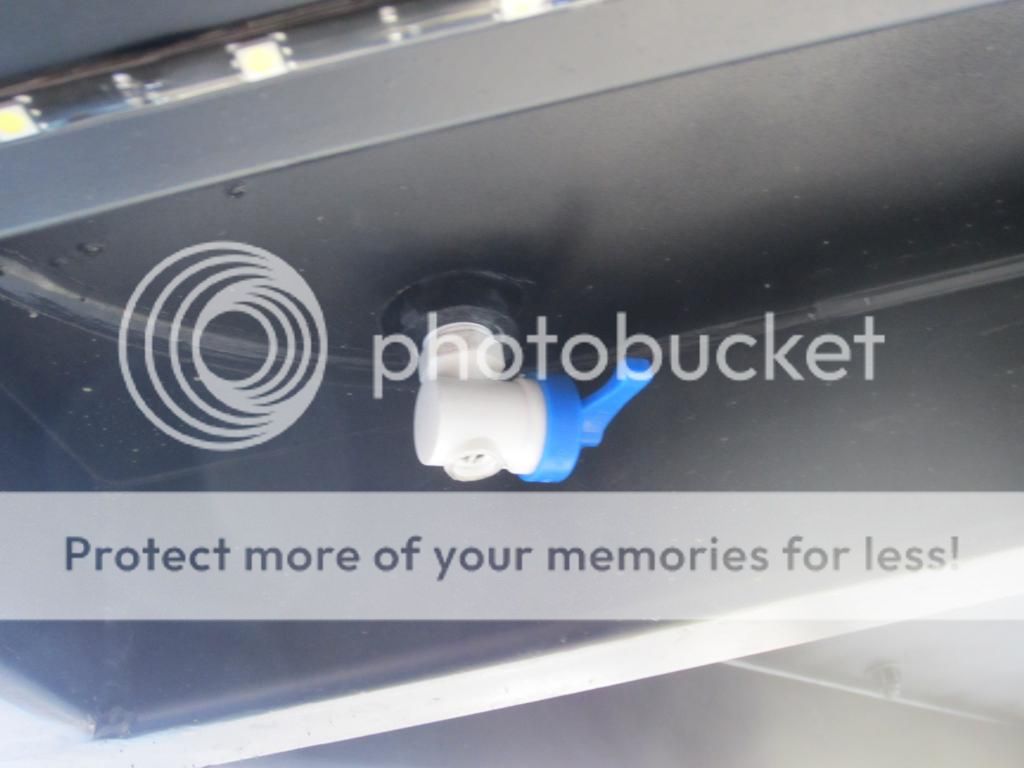

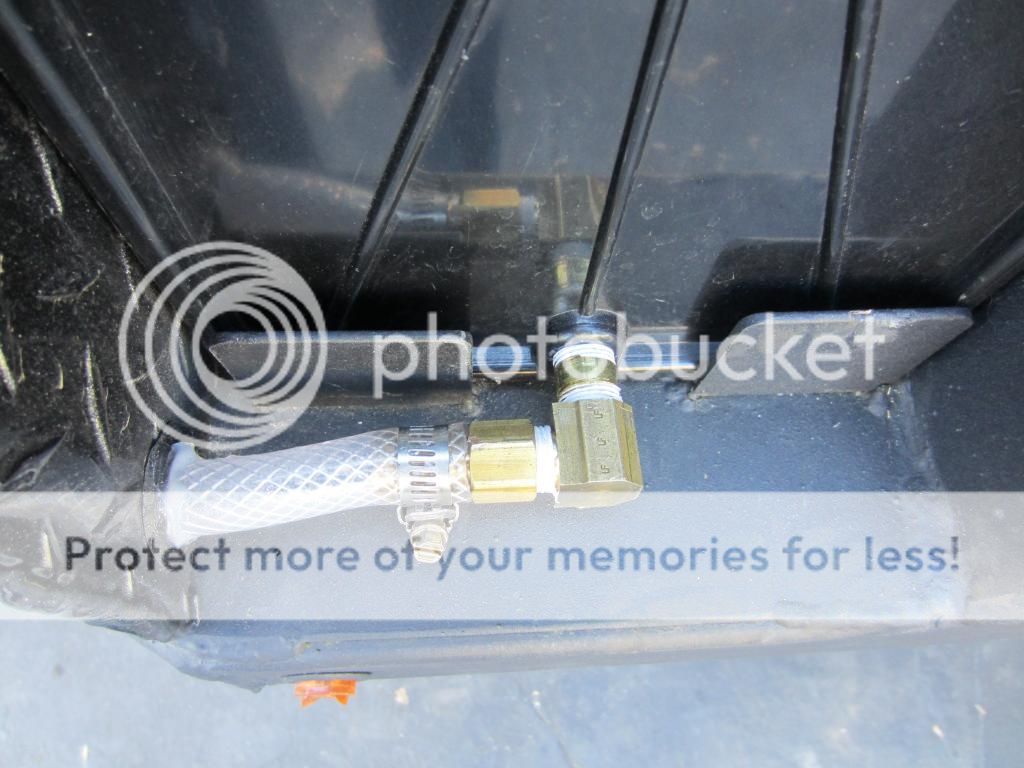

Drain spiggot on water tank:


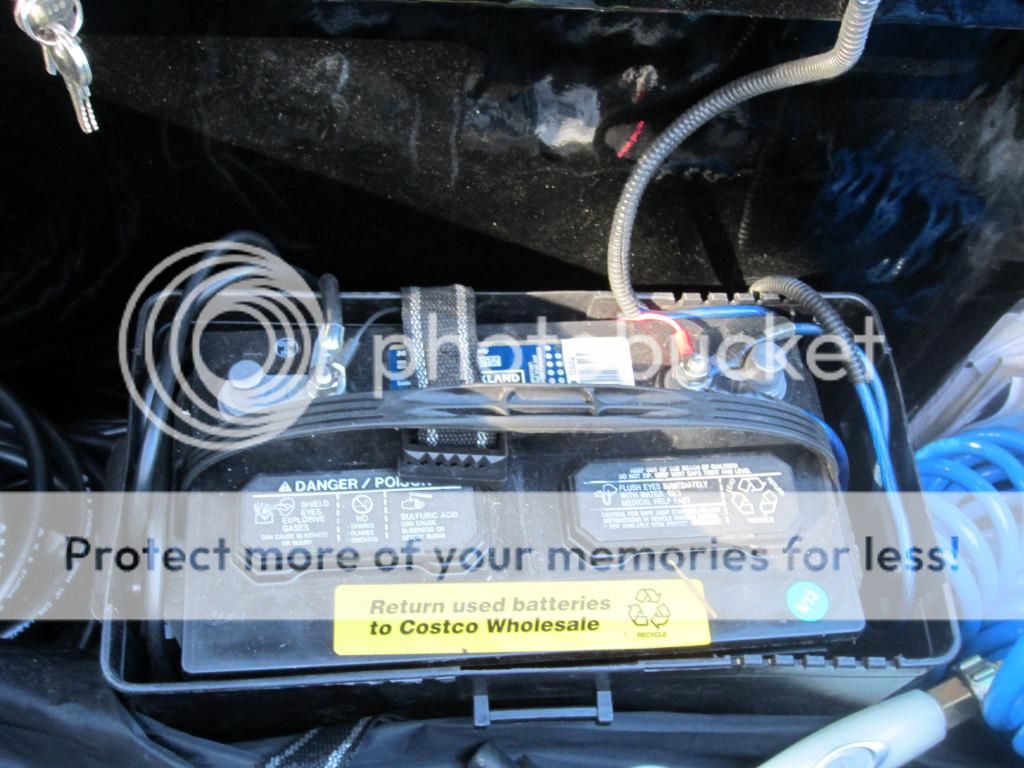

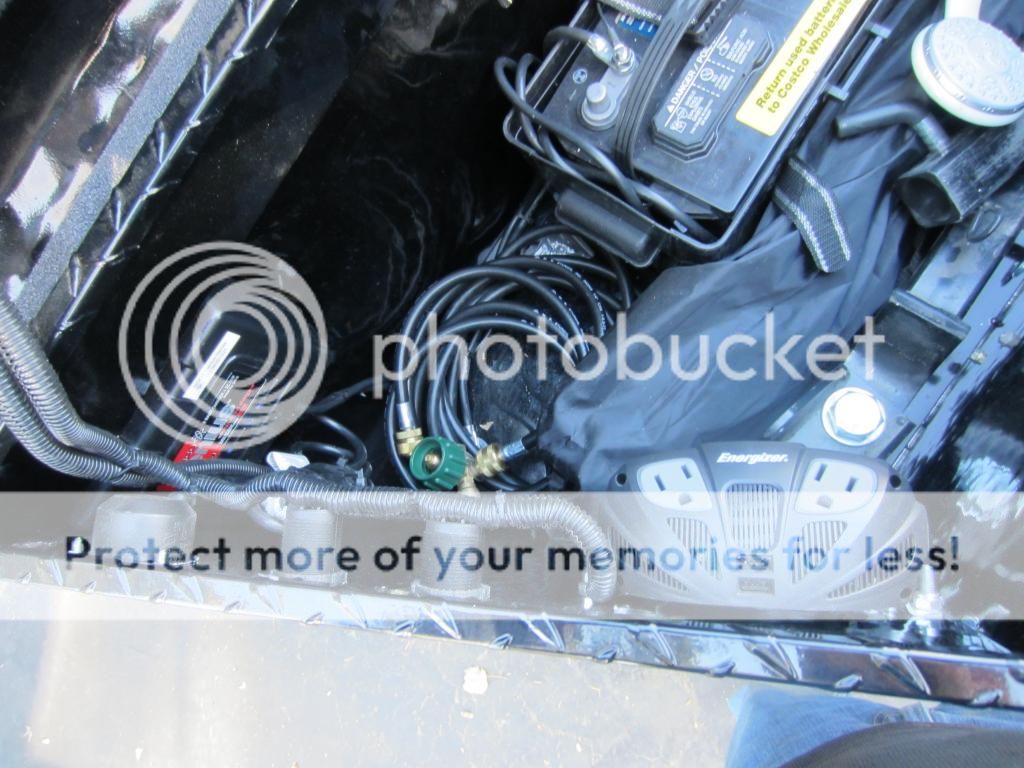

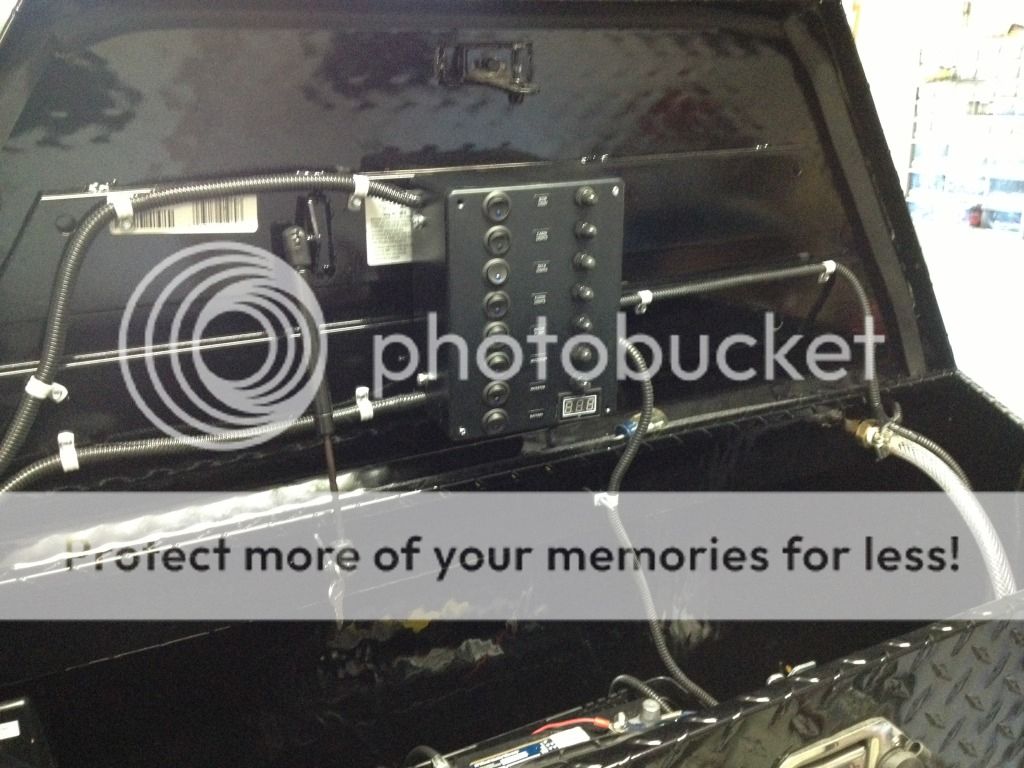

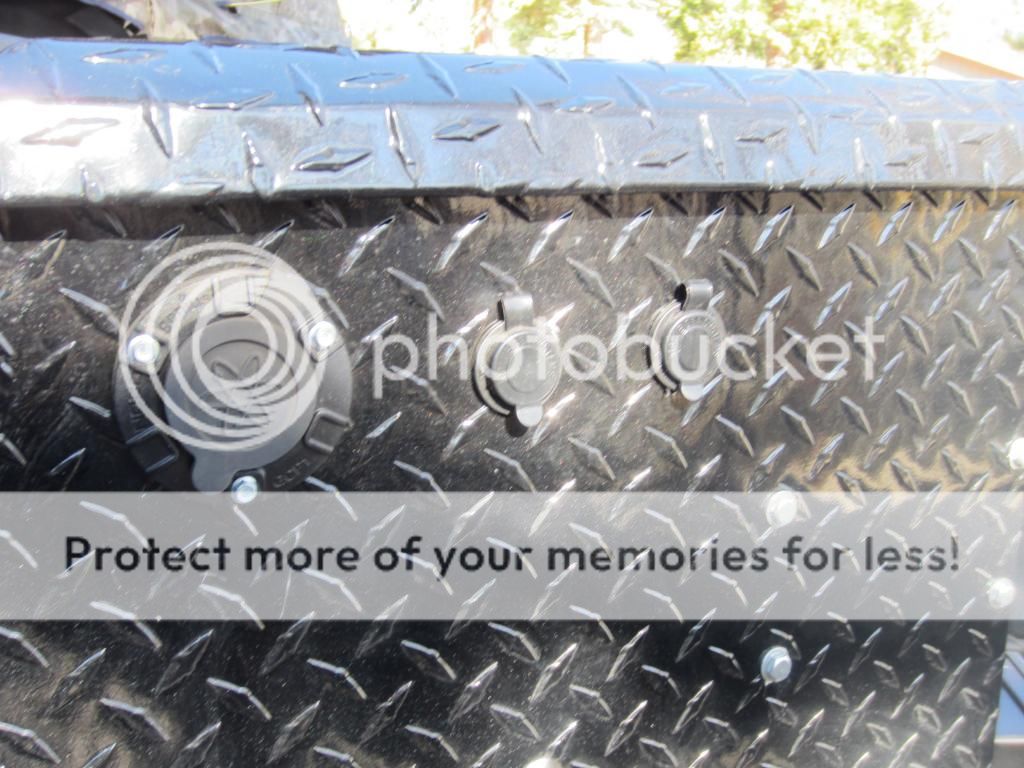

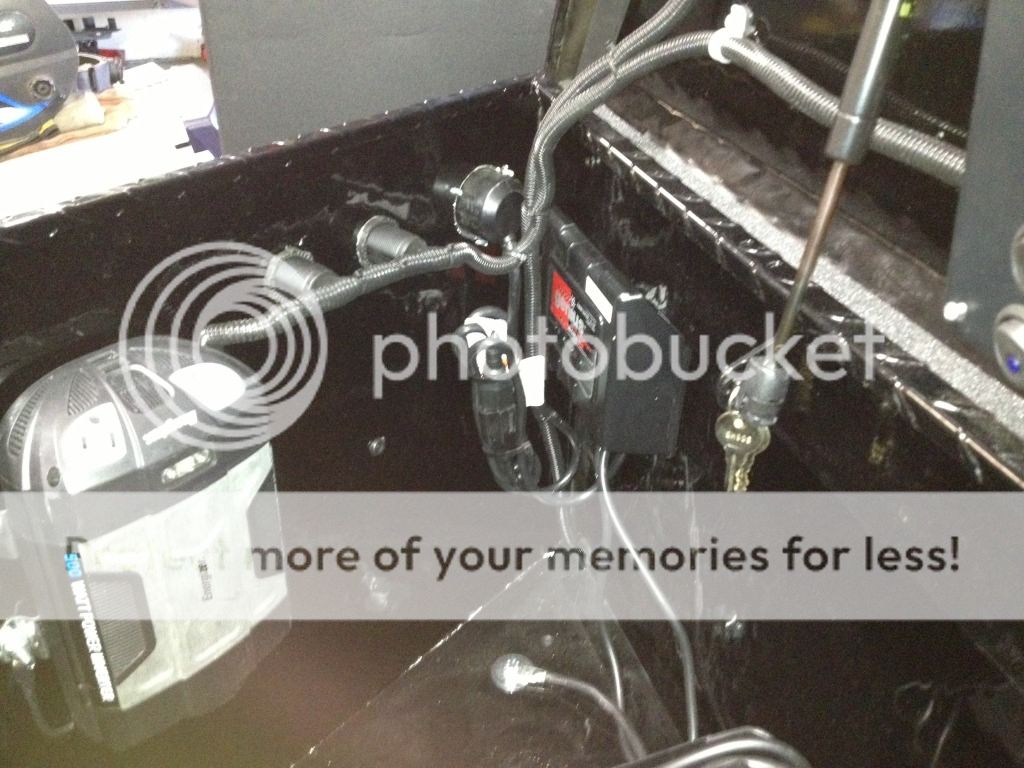

Electrical:










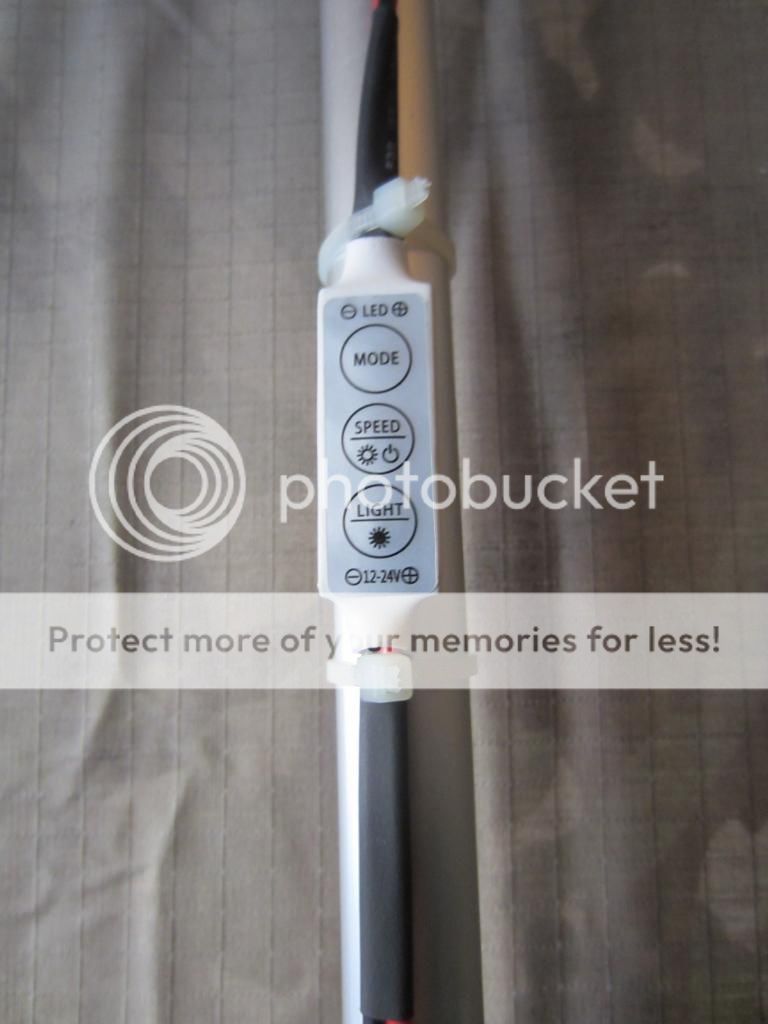

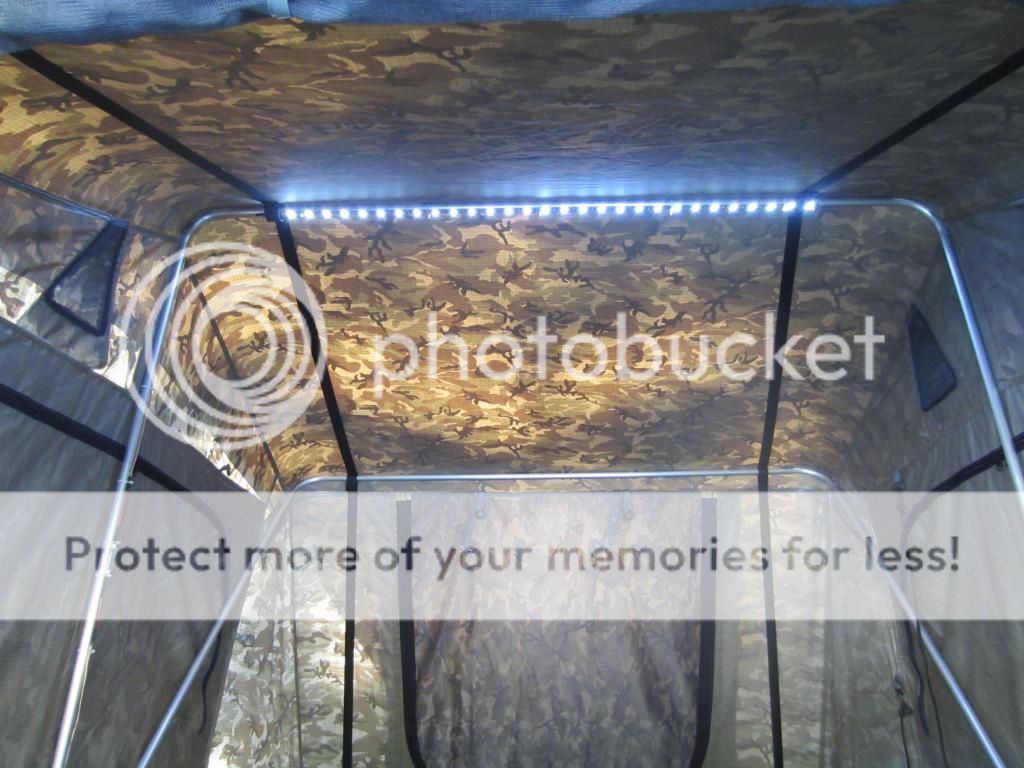

LED lights inside tent with little e-bay switch:



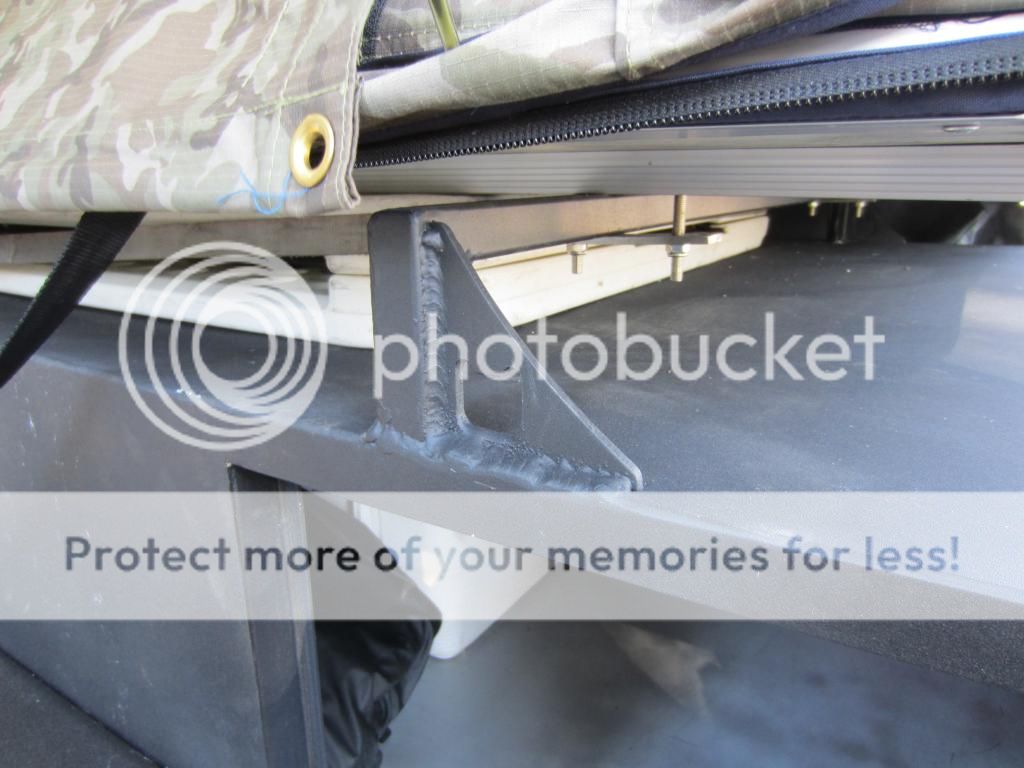

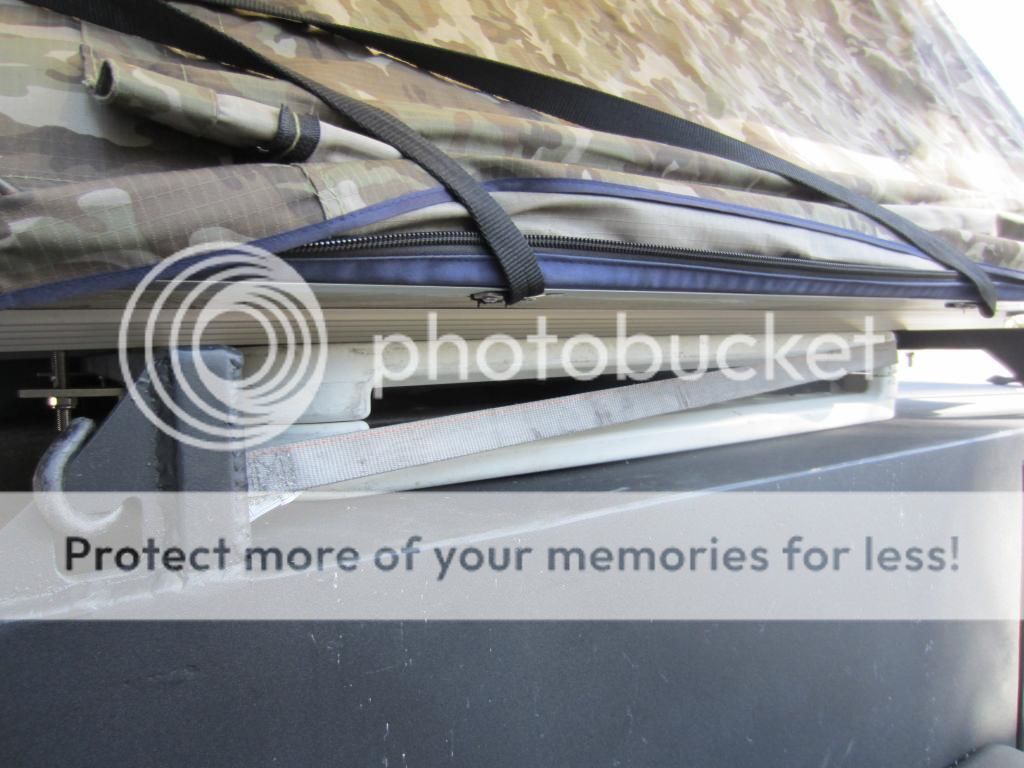

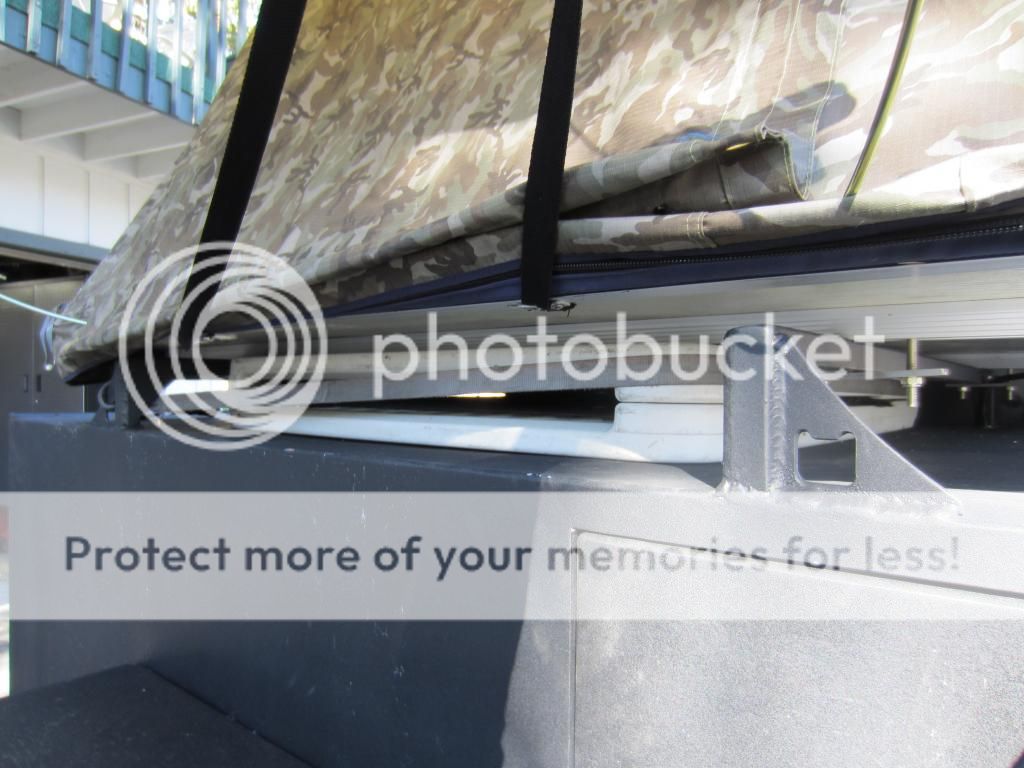

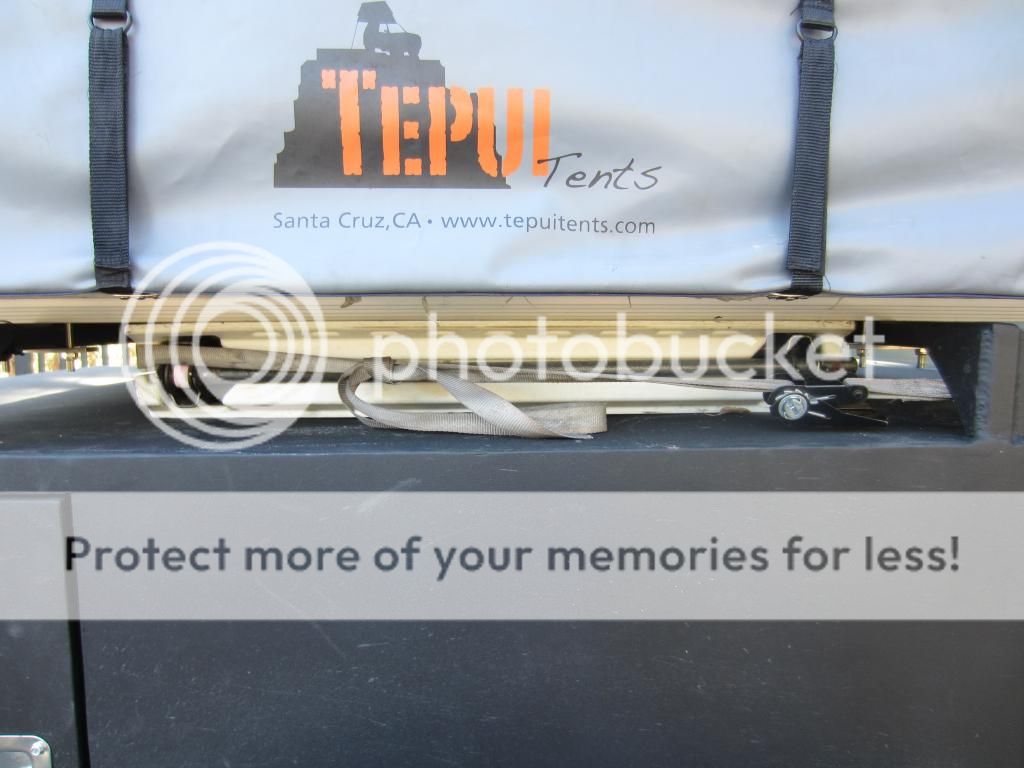

Folding camping table nestled between the roof and tent...like I planned it.




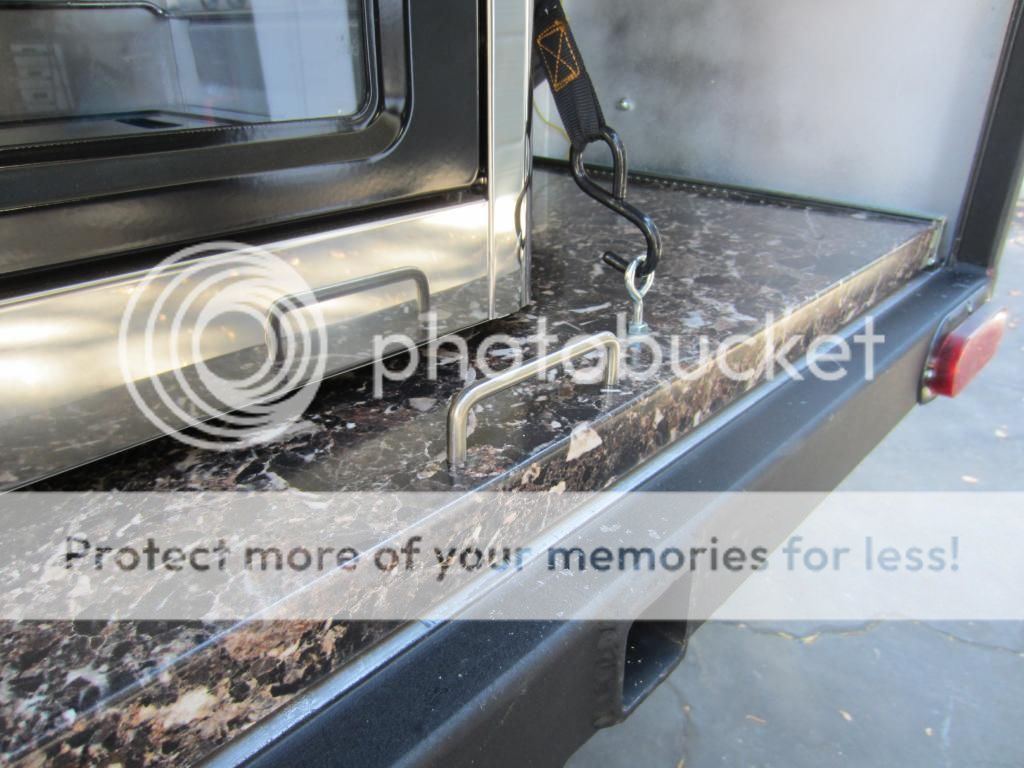

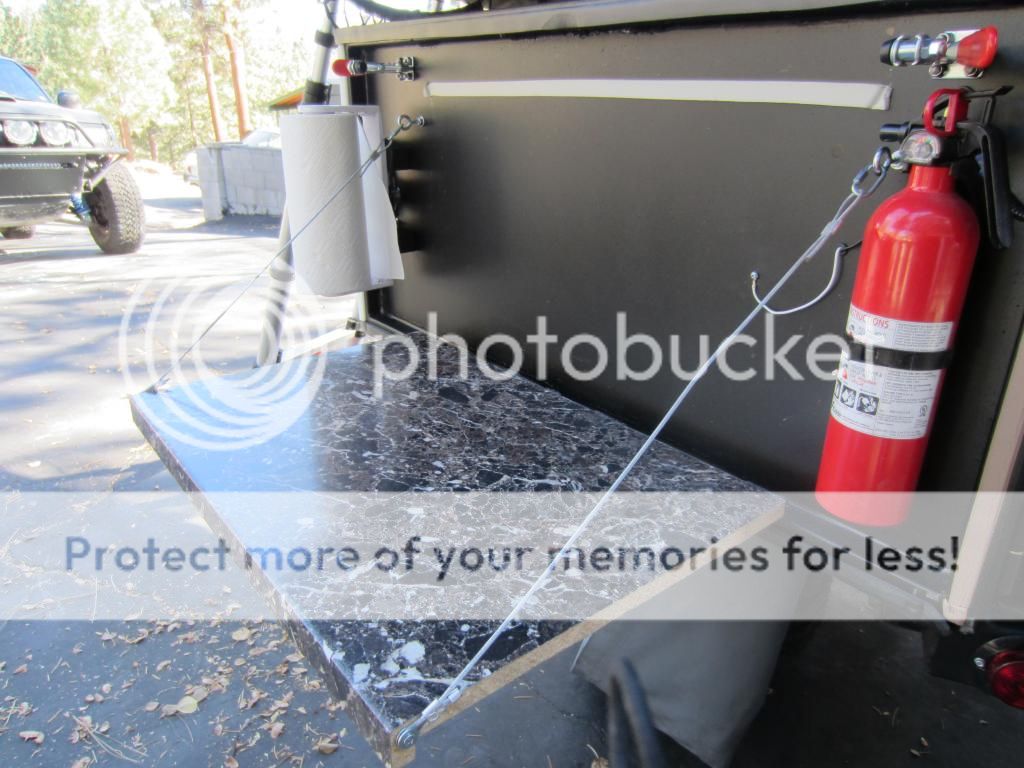

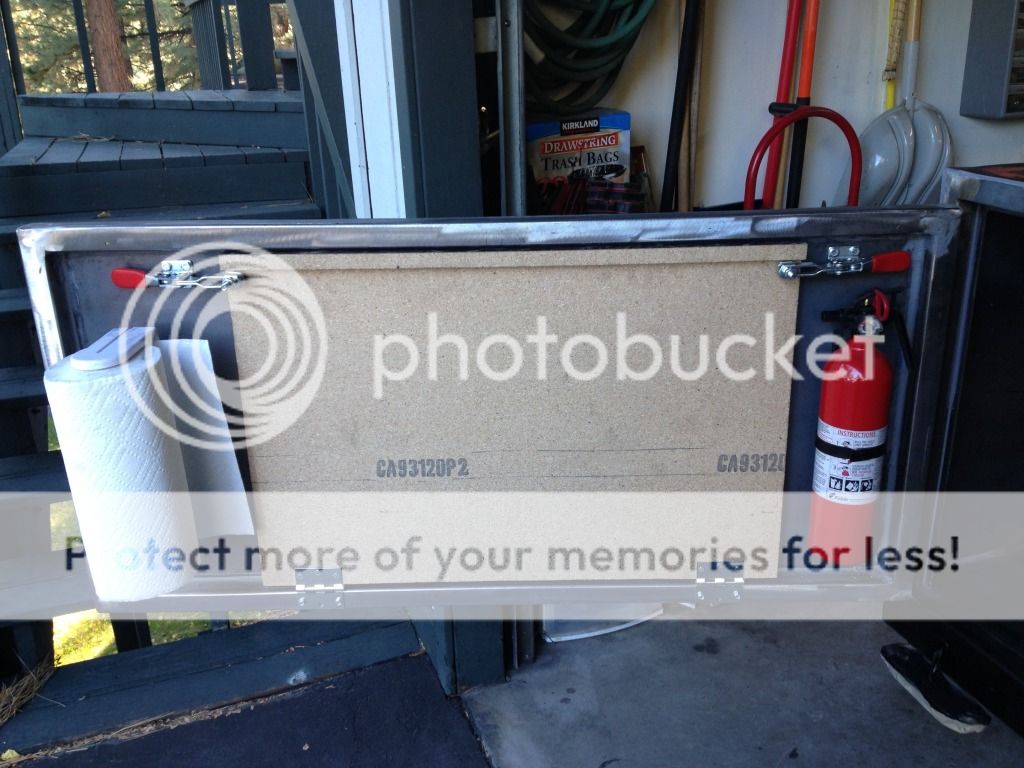

Fold down tailgate table:






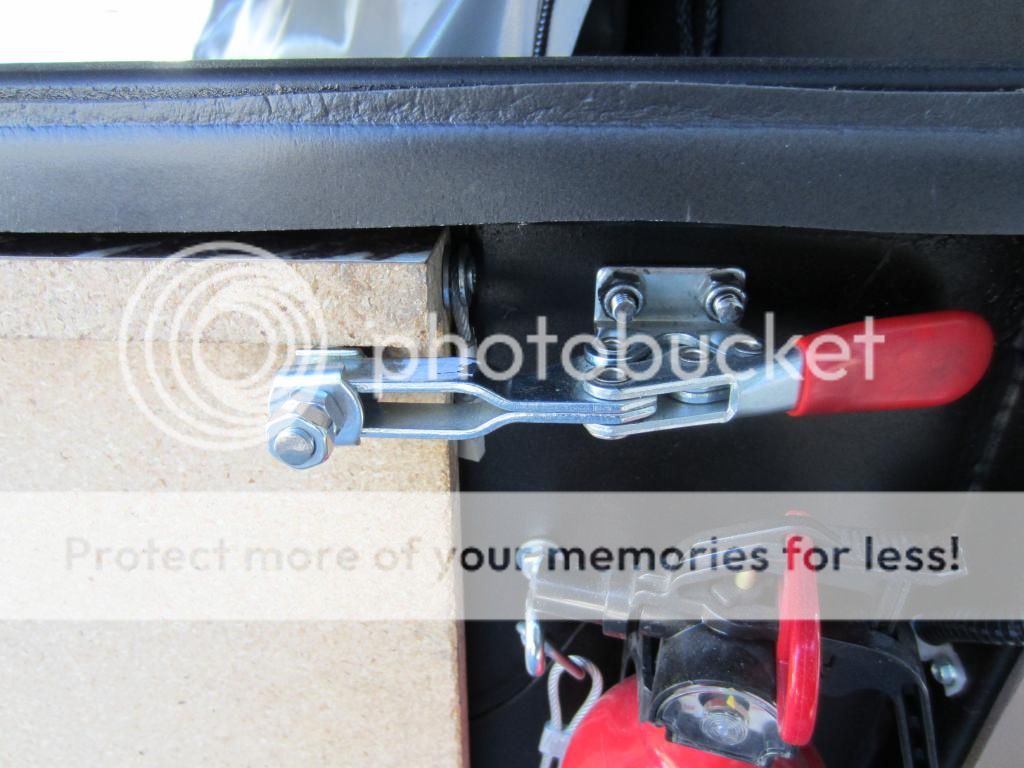

Modified harbor freight clamps to hold table tight to tailgate in transit:


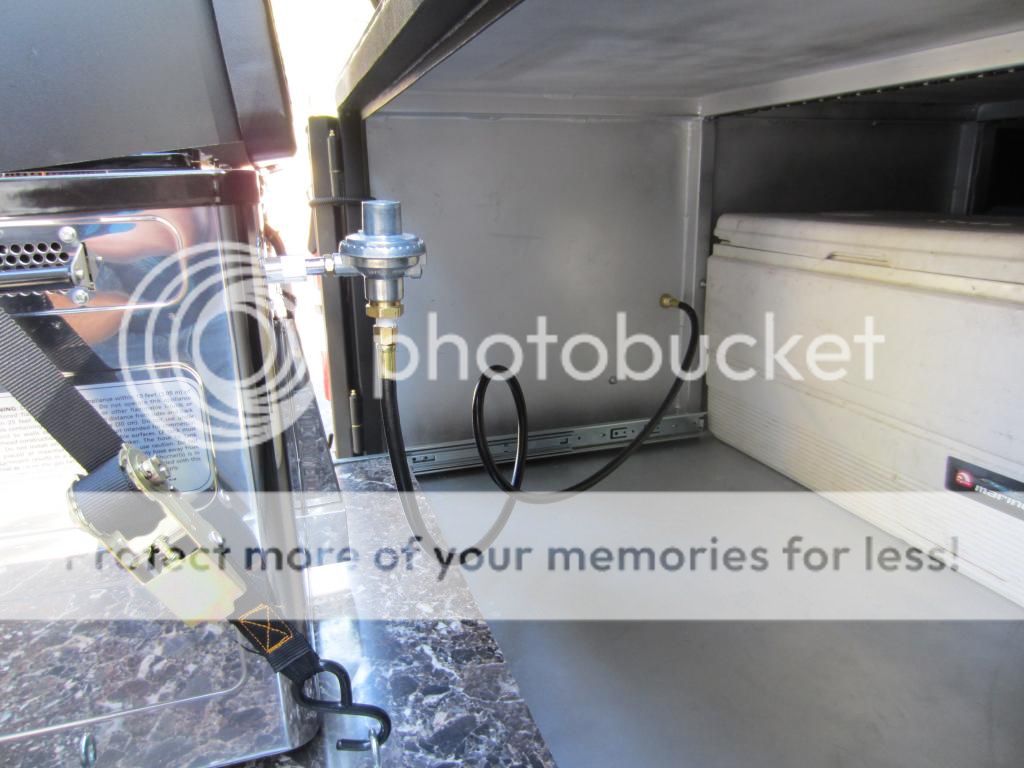

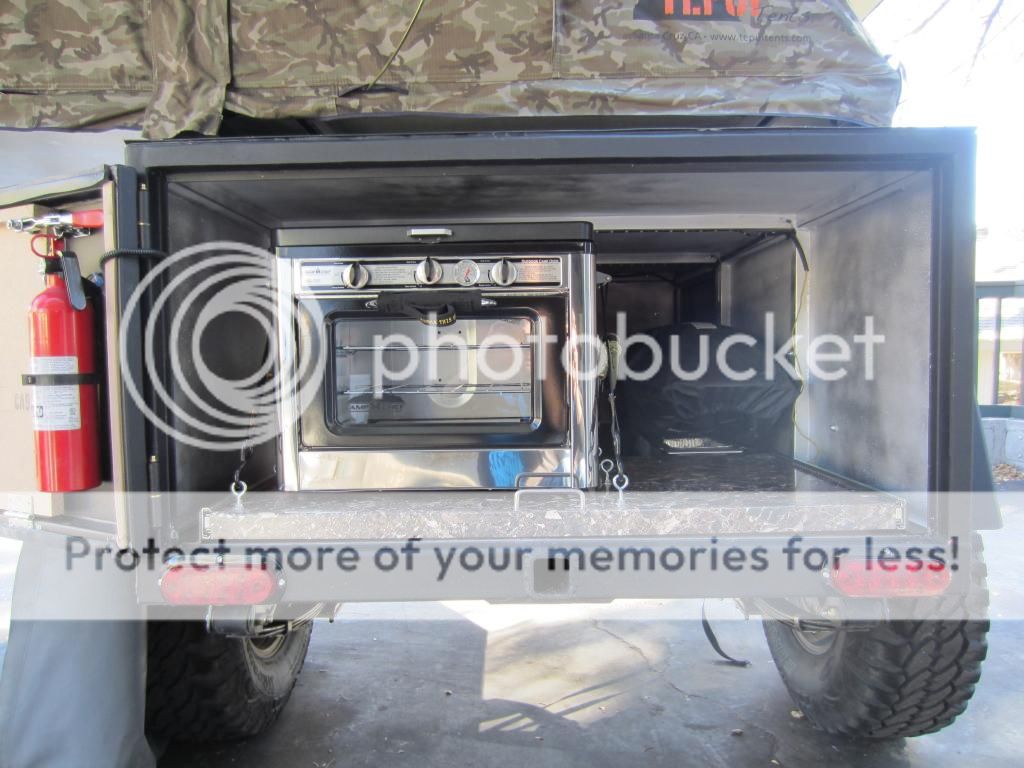

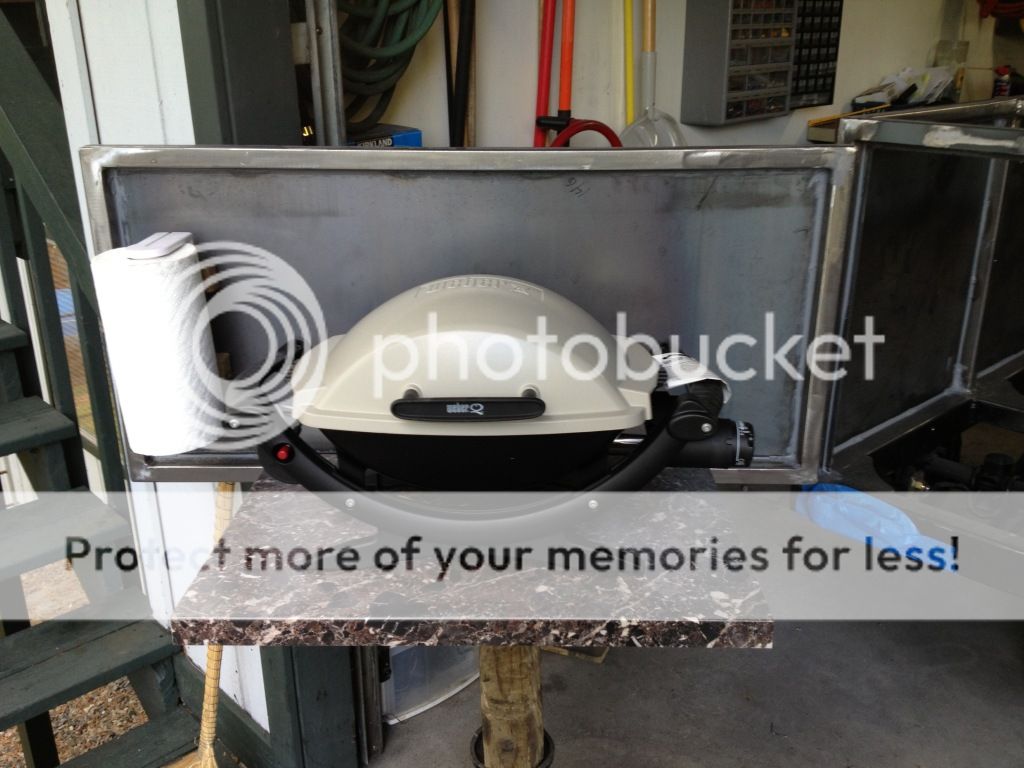

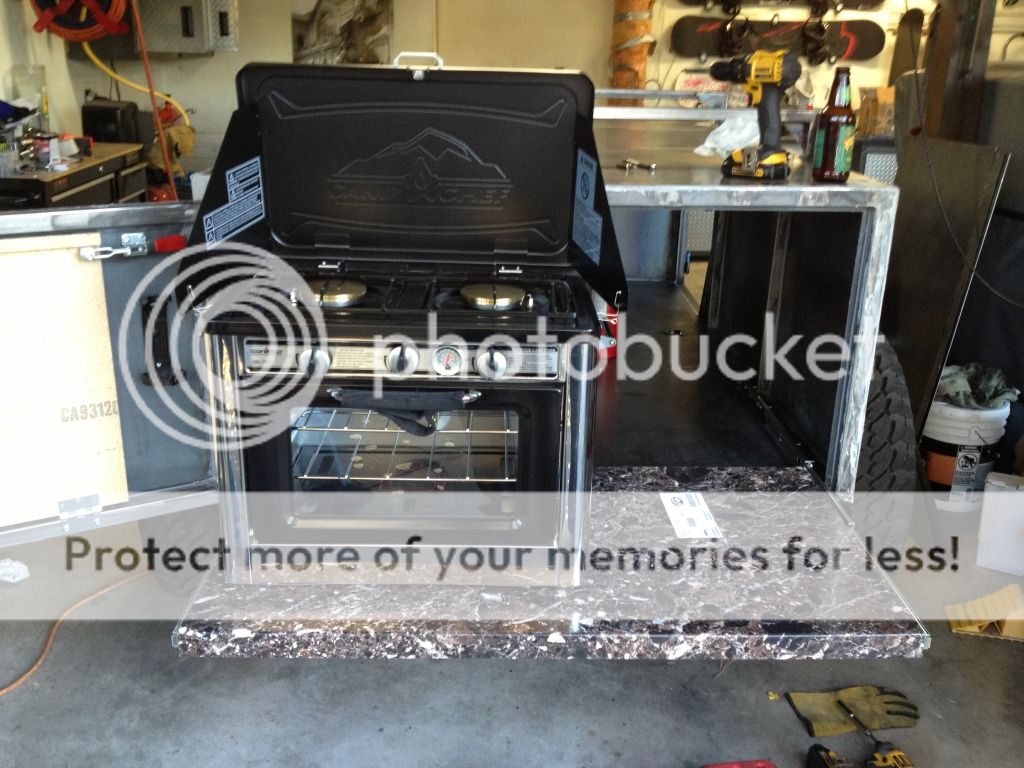

Stove/Oven on slide-out:







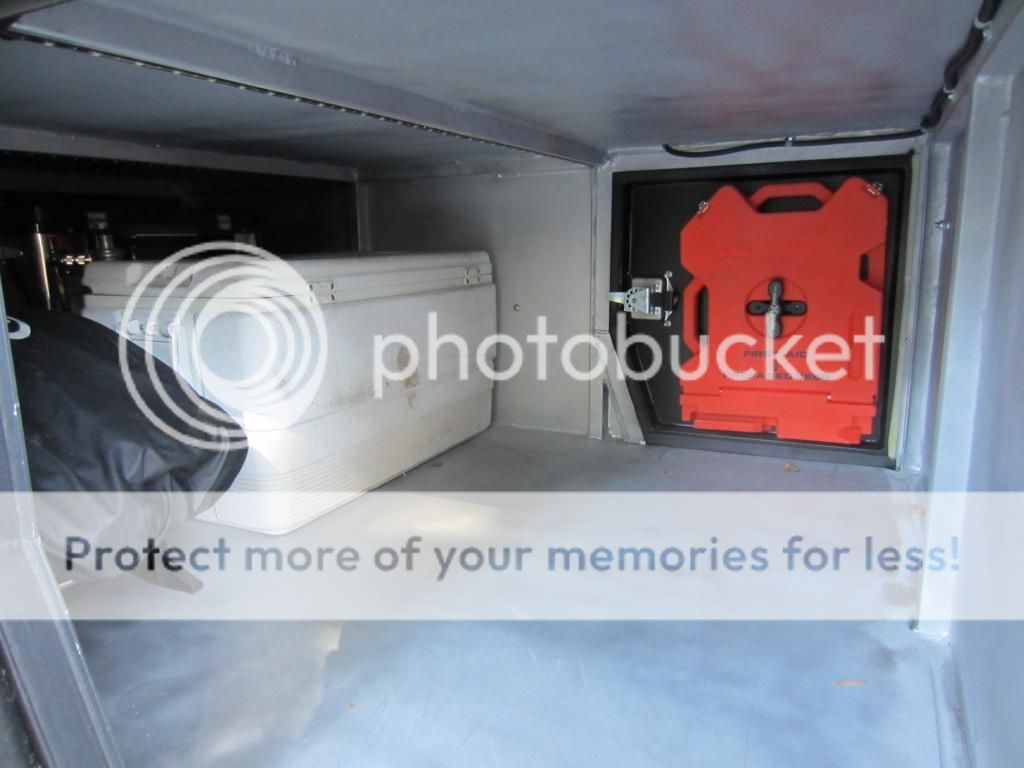

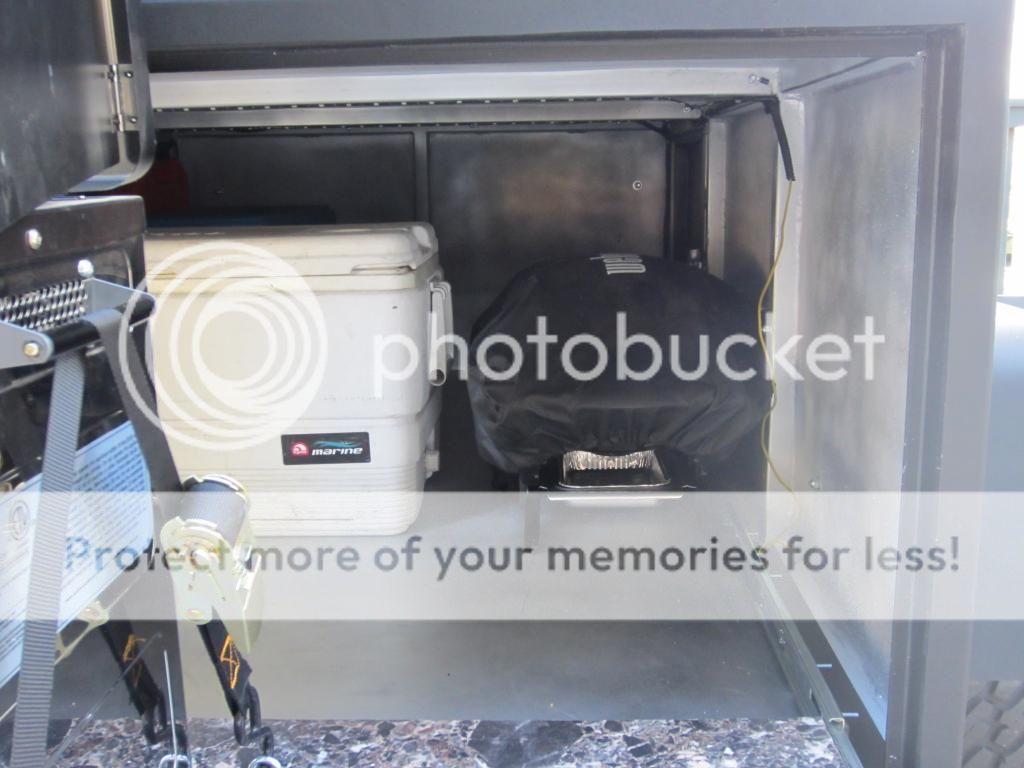

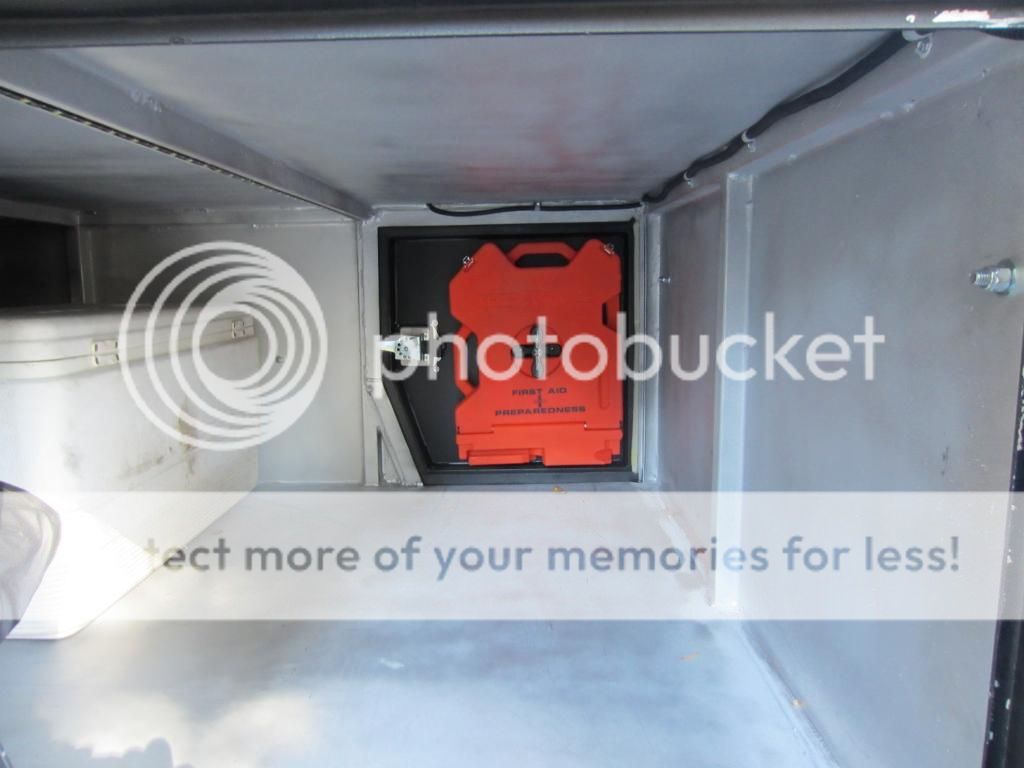

Pleanty of space:



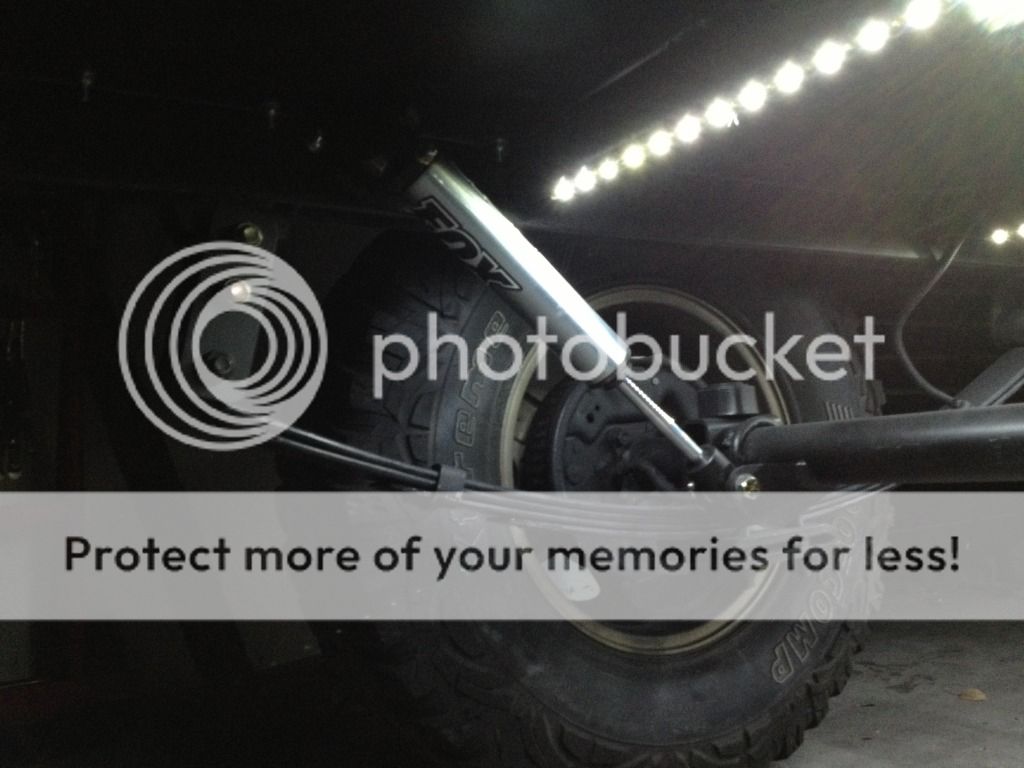

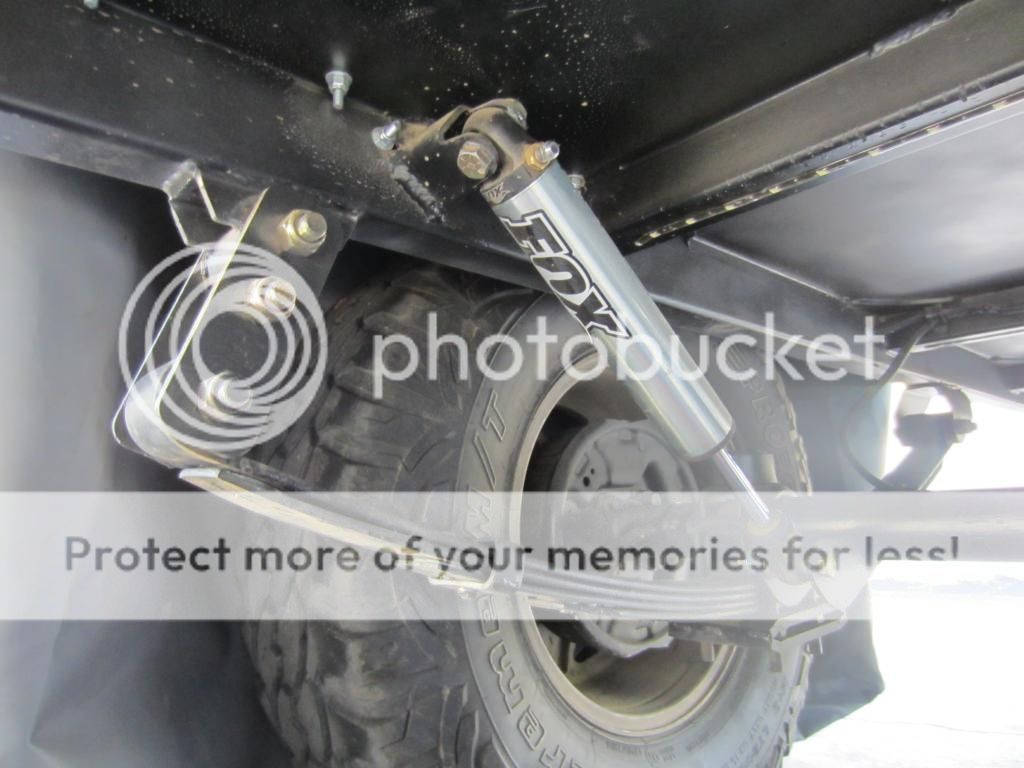

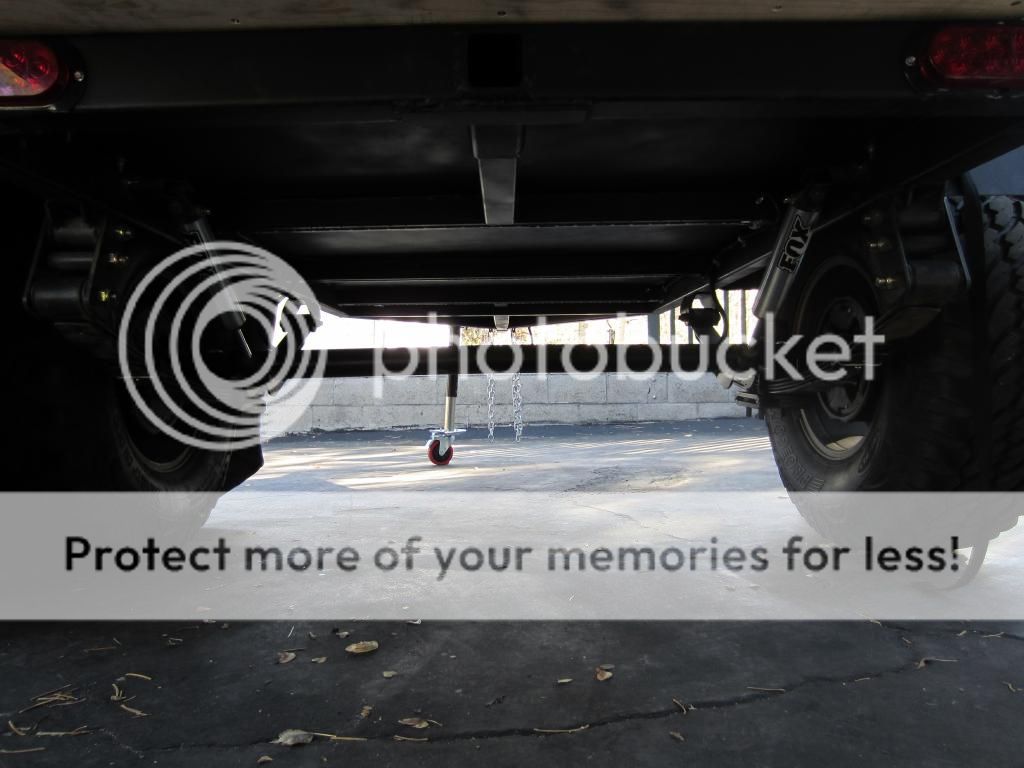

Suspension:
Pro Comp 4" lift springs for the front of a Jeep YJ
WFO Concepts Leaf Spring Hangers (designed to fit a 2" frame and taper out to a 2.5" spring)
WFO Concepts Shackle Hanger (again, designed for a 2" frame)
Homemade 4" shackles
Energy Suspension spring & shackle bushing set (actually designed for a old K5 blazer but the dimensions were exactly what I needed).





  Reply With Quote
Old 08-02-2013, 12:50 PM   #2
Stay Calm, and Fire For Effect
YOTA LOVER is one of the sharper tools in the shedYOTA LOVER is one of the sharper tools in the shedYOTA LOVER is one of the sharper tools in the shedYOTA LOVER is one of the sharper tools in the shedYOTA LOVER is one of the sharper tools in the shedYOTA LOVER is one of the sharper tools in the shedYOTA LOVER is one of the sharper tools in the shedYOTA LOVER is one of the sharper tools in the shedYOTA LOVER is one of the sharper tools in the shedYOTA LOVER is one of the sharper tools in the shedYOTA LOVER is one of the sharper tools in the shed

YOTA LOVER's Avatar
Army: Training NCO, B Btry, 3-197th FA
Name: Chris
Joined: Jul 2012, #82814
Location: NH
Age: 36
Gender: Male
Posts: 3,815
YOTA LOVER's Tacoma Gallery
Quote:
Originally Posted by jberry813 View Post
Well....it's a start anyway


Gotta start somewhere!
  Reply With Quote
Old 08-02-2013, 12:51 PM   #3
Senior Member
nfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shed

nfs257's Avatar
Navy: GSM1
Name: Chris
Joined: Jun 2011, #58691
Location: San Diego
Age: 27
Gender: Male
Posts: 5,657
nfs257's Tacoma Gallery
Sub'd to this epicness as well!!!!!!!!!!!!!
  Reply With Quote
Old 08-02-2013, 01:13 PM   #4
tired
Box Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shed

Box Rocket's Avatar
Name: Adam
Joined: Mar 2010, #32389
Location: Syracuse, Utah
Age: 41
Gender: Guy
Posts: 5,008
Box Rocket's Tacoma Gallery
Subbed I guess although this has to be the most boring start to a build ever.
  Reply With Quote
Old 08-02-2013, 01:15 PM   #5
Stay Calm, and Fire For Effect
YOTA LOVER is one of the sharper tools in the shedYOTA LOVER is one of the sharper tools in the shedYOTA LOVER is one of the sharper tools in the shedYOTA LOVER is one of the sharper tools in the shedYOTA LOVER is one of the sharper tools in the shedYOTA LOVER is one of the sharper tools in the shedYOTA LOVER is one of the sharper tools in the shedYOTA LOVER is one of the sharper tools in the shedYOTA LOVER is one of the sharper tools in the shedYOTA LOVER is one of the sharper tools in the shedYOTA LOVER is one of the sharper tools in the shed

YOTA LOVER's Avatar
Army: Training NCO, B Btry, 3-197th FA
Name: Chris
Joined: Jul 2012, #82814
Location: NH
Age: 36
Gender: Male
Posts: 3,815
YOTA LOVER's Tacoma Gallery
Quote:
Originally Posted by Box Rocket View Post
Subbed I guess although this has to be the most boring start to a build ever.


Throw the man a bone, he doesn't have the years of expertise you've developed.
  Reply With Quote
Old 08-02-2013, 01:20 PM   #6
Senior Member
nfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shednfs257 is one of the sharper tools in the shed

nfs257's Avatar
Navy: GSM1
Name: Chris
Joined: Jun 2011, #58691
Location: San Diego
Age: 27
Gender: Male
Posts: 5,657
nfs257's Tacoma Gallery
Quote:
Originally Posted by Box Rocket View Post
Subbed I guess although this has to be the most boring start to a build ever.



  Reply With Quote
Old 08-02-2013, 01:23 PM   #7
tired
Box Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shed

Box Rocket's Avatar
Name: Adam
Joined: Mar 2010, #32389
Location: Syracuse, Utah
Age: 41
Gender: Guy
Posts: 5,008
Box Rocket's Tacoma Gallery
Quote:
Originally Posted by YOTA LOVER View Post


Throw the man a bone, he doesn't have the years of expertise you've developed.
Sure he does.
  Reply With Quote
Old 08-02-2013, 01:26 PM   #8
Senior Member
Jon850FL is one of the sharper tools in the shedJon850FL is one of the sharper tools in the shedJon850FL is one of the sharper tools in the shedJon850FL is one of the sharper tools in the shedJon850FL is one of the sharper tools in the shedJon850FL is one of the sharper tools in the shedJon850FL is one of the sharper tools in the shedJon850FL is one of the sharper tools in the shedJon850FL is one of the sharper tools in the shedJon850FL is one of the sharper tools in the shedJon850FL is one of the sharper tools in the shed

Jon850FL's Avatar
Name: Jon
Joined: Aug 2011, #60972
Location: DFS, FL
Age: 26
Gender: Male
Posts: 1,343
Jon850FL's Tacoma Gallery
wasnt expecting that.....lol
  Reply With Quote
Old 08-02-2013, 01:35 PM   #9
Road rage is a hobby
Oowen is one of the sharper tools in the shedOowen is one of the sharper tools in the shedOowen is one of the sharper tools in the shedOowen is one of the sharper tools in the shedOowen is one of the sharper tools in the shedOowen is one of the sharper tools in the shedOowen is one of the sharper tools in the shedOowen is one of the sharper tools in the shedOowen is one of the sharper tools in the shedOowen is one of the sharper tools in the shedOowen is one of the sharper tools in the shed
EMS:
Name: Owen
Joined: Nov 2011, #66326
Location: Elko, NV
Gender: Male
Posts: 1,166
Oowen's Tacoma Gallery
Can't wait to see you tow this thing 80 mph through some whoops
  Reply With Quote
Old 08-02-2013, 01:46 PM   #10
jberry813 [OP] jberry813 is offline
The Mad Scientist
jberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shed

jberry813's Avatar
Name: Jason
Joined: Jan 2011, #49636
Location: Lake Tahoe
Age: 32
Gender: Guy
Posts: 11,918
jberry813's Tacoma Gallery
Quote:
Originally Posted by Box Rocket View Post
Subbed I guess although this has to be the most boring start to a build ever.
I thought it was kinda clever


But ok...more.
The trailer will use a standard 3500 lb trailer axle, with some custom goodies for suspension. Will still be leaf sprung, but definitely not trailer leafs.

I'm waiting for a metric shit ton of parts to come in so the simple stuff is getting knocked out now.

Some simple 5" shackles.
Nothing fancy, just 1/4" plate with a 1"x.188 wall DOM sleeve. Got antsy and already painted them too.



And picked up these u-bolt plates. They are 1/4 plate with a built in pseudo skid plate to protect the u-bolts similar to my truck (trailer will be SUA). The plates are designed to mate a standard 2-3/8" round tube axle to 2.5" wide leaf springs.



  Reply With Quote
Old 08-02-2013, 01:56 PM   #12
Senior Member
ian408 is one of the sharper tools in the shedian408 is one of the sharper tools in the shedian408 is one of the sharper tools in the shedian408 is one of the sharper tools in the shedian408 is one of the sharper tools in the shedian408 is one of the sharper tools in the shedian408 is one of the sharper tools in the shedian408 is one of the sharper tools in the shedian408 is one of the sharper tools in the shedian408 is one of the sharper tools in the shedian408 is one of the sharper tools in the shed

ian408's Avatar
Name: Ian
Joined: Nov 2009, #25619
Location: Santa Clara, CA
Gender: Male
Posts: 9,864
ian408's Tacoma Gallery
I thought it was kinda clever too.

Have you looked at the various iterations of the torsion bar axle? Doesn't flex and probably not the greatest for dragging along a trail but they sure pull nice and you get some iteration of suspension too.
  Reply With Quote
Old 08-02-2013, 01:59 PM   #13
curmudgeon
TimmyB is one of the sharper tools in the shedTimmyB is one of the sharper tools in the shedTimmyB is one of the sharper tools in the shedTimmyB is one of the sharper tools in the shedTimmyB is one of the sharper tools in the shedTimmyB is one of the sharper tools in the shedTimmyB is one of the sharper tools in the shedTimmyB is one of the sharper tools in the shedTimmyB is one of the sharper tools in the shedTimmyB is one of the sharper tools in the shedTimmyB is one of the sharper tools in the shed

TimmyB's Avatar
Name: Timmy
Joined: Nov 2012, #90249
Location: Under a rock.
Gender: Male
Posts: 8,386
TimmyB's Tacoma Gallery
  Reply With Quote
Old 08-02-2013, 02:06 PM   #15
jberry813 [OP] jberry813 is offline
The Mad Scientist
jberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shed

jberry813's Avatar
Name: Jason
Joined: Jan 2011, #49636
Location: Lake Tahoe
Age: 32
Gender: Guy
Posts: 11,918
jberry813's Tacoma Gallery
Quote:
Originally Posted by ian408 View Post
I thought it was kinda clever too.

Have you looked at the various iterations of the torsion bar axle? Doesn't flex and probably not the greatest for dragging along a trail but they sure pull nice and you get some iteration of suspension too.

From what I researched, torsions are the wrong type of suspension for an offroad trailer. Shit for travel and the rubber just rips apart. They are great for on-road applications. I had torsions on my old toy hauler.
  Reply With Quote
Old 08-02-2013, 02:10 PM   #16
tired
Box Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shedBox Rocket is one of the sharper tools in the shed

Box Rocket's Avatar
Name: Adam
Joined: Mar 2010, #32389
Location: Syracuse, Utah
Age: 41
Gender: Guy
Posts: 5,008
Box Rocket's Tacoma Gallery
You know I'm just giving you crap.

I know that it's "fashionable" to use trailing arms and airbags on trailers these days. I'm sure they work well and it's nice to just add air to the bags to level it out with a big load. But there are so many more parts that can fail. I think leaf springs are the right choice. Obviously the trailer springs on mine aren't ideal but they work. Running some longer (maybe custom) spring packs like it sounds like you're doing will be sweet and totally worry free.
  Reply With Quote
Old 08-02-2013, 02:15 PM   #17
Ditch Doctor
medic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shed

medic2230's Avatar
EMS:
Name: Murph
Joined: Oct 2008, #9942
Location: Columbus, Ga
Age: 41
Gender: Male
Posts: 6,860
medic2230's Tacoma Gallery
This gonna be one of those long build threads that gets finished in a few years?

On a side note:

I was thinking of using my stock springs off the taco on my trailer. Any reason why I should think of using something different?
  Reply With Quote
Old 08-02-2013, 02:19 PM   #18
jberry813 [OP] jberry813 is offline
The Mad Scientist
jberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shedjberry813 is one of the sharper tools in the shed

jberry813's Avatar
Name: Jason
Joined: Jan 2011, #49636
Location: Lake Tahoe
Age: 32
Gender: Guy
Posts: 11,918
jberry813's Tacoma Gallery
Quote:
Originally Posted by Box Rocket View Post
You know I'm just giving you crap.
I expect nothing less.

Quote:
Originally Posted by medic2230 View Post
This gonna be one of those long build threads that gets finished in a few years?

On a side note:

I was thinking of using my stock springs off the taco on my trailer. Any reason why I should think of using something different?
This is going to be one of those ONGOING build threads. Most likely it will end up like my truck build thread, occasional updates on the vehicle, mostly BS, probably followed by broken parts that get rebuilt to the point of excess, and occasional pictures of random hotties.

IMO the only problem with the stock taco springs is the amount of spring arch. It's almost non-existant. I see no reason why you couldn't do a SOA setup with them.
  Reply With Quote
Old 08-02-2013, 02:24 PM   #19
Ditch Doctor
medic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shedmedic2230 is one of the sharper tools in the shed

medic2230's Avatar
EMS:
Name: Murph
Joined: Oct 2008, #9942
Location: Columbus, Ga
Age: 41
Gender: Male
Posts: 6,860
medic2230's Tacoma Gallery
Quote:
Originally Posted by jberry813 View Post
I expect nothing less.



This is going to be one of those ONGOING build threads. Most likely it will end up like my truck build thread, occasional updates on the vehicle, mostly BS, probably followed by broken parts that get rebuilt to the point of excess, and occasional pictures of random hotties.

IMO the only problem with the stock taco springs is the amount of spring arch. It's almost non-existant. I see no reason why you couldn't do a SOA setup with them.
Sub'd
  Reply With Quote
Old 08-02-2013, 02:54 PM   #20
Senior Member
nelson18matt is one of the sharper tools in the shednelson18matt is one of the sharper tools in the shednelson18matt is one of the sharper tools in the shednelson18matt is one of the sharper tools in the shednelson18matt is one of the sharper tools in the shednelson18matt is one of the sharper tools in the shednelson18matt is one of the sharper tools in the shednelson18matt is one of the sharper tools in the shednelson18matt is one of the sharper tools in the shednelson18matt is one of the sharper tools in the shednelson18matt is one of the sharper tools in the shed

nelson18matt's Avatar
Air Force: Ex-Cone
Joined: Mar 2009, #14939
Location: Arizona
Age: 29
Gender: Dude
Posts: 13,739
nelson18matt's Tacoma Gallery
trailer needs... you buy
