Alternative Bump Stops

So when I lifted my rear I ended up getting a set of Bilstein 5125's in the 10.17" length and they were a little to long and were getting fully compressed before I was on my bump stops, so I needed some new ones but I'm a chepo and didn't want to nearly $200 for a set of bump stops. So I bought a set of Energy Suspension 4 1/2" bump stops and made them work

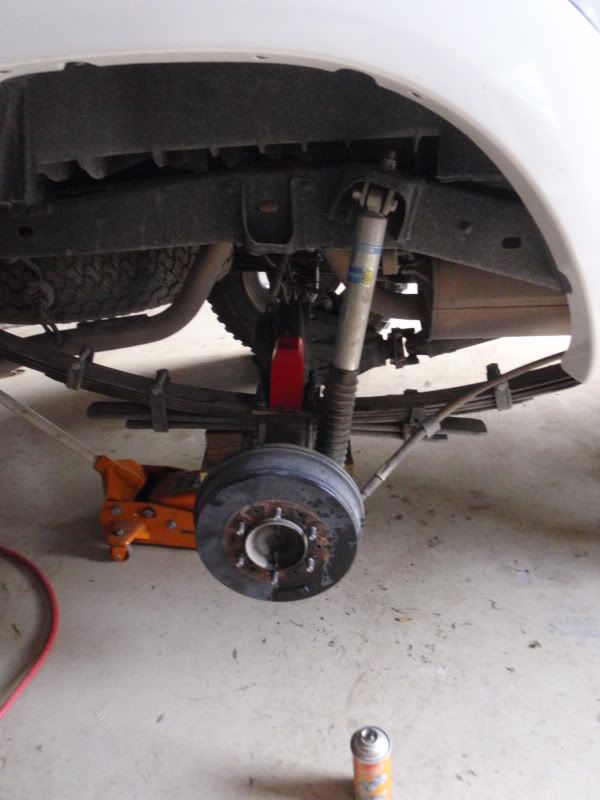

I started with some stock bumps modded to fit with the All Pro flip kit

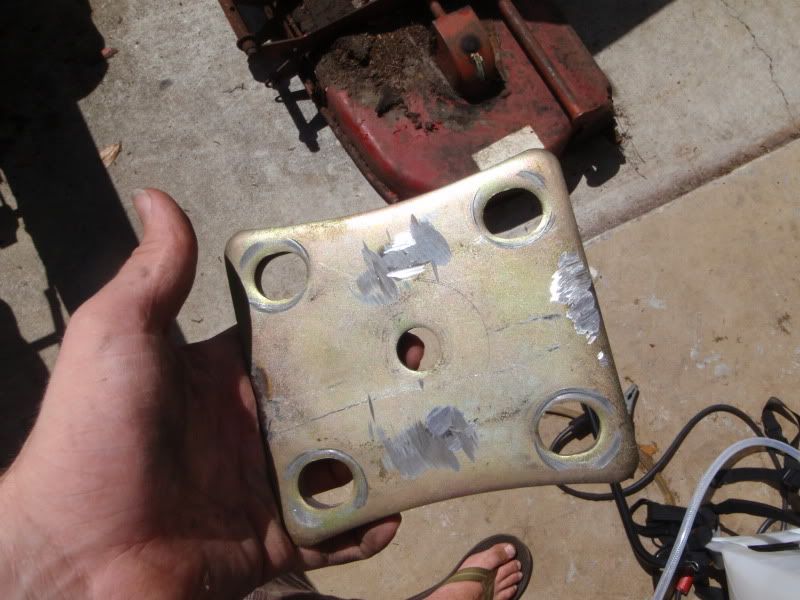

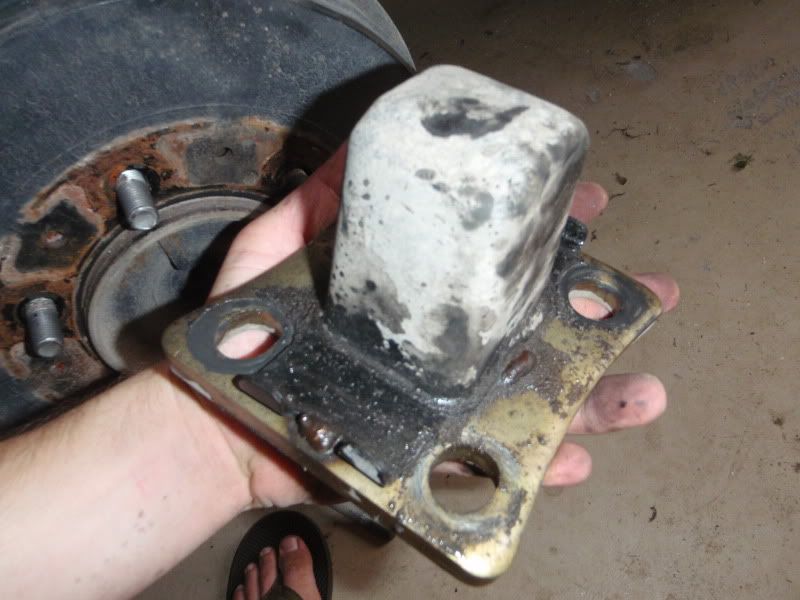

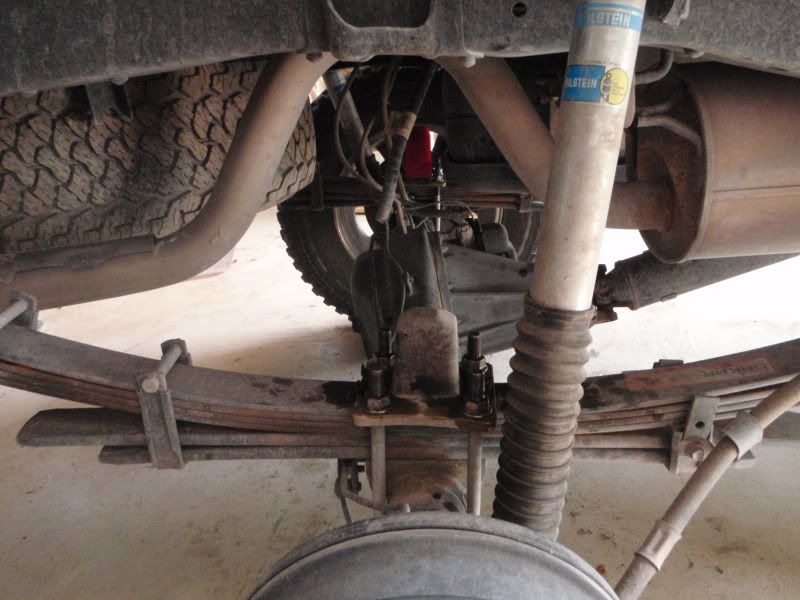

Cut the stock bumps off

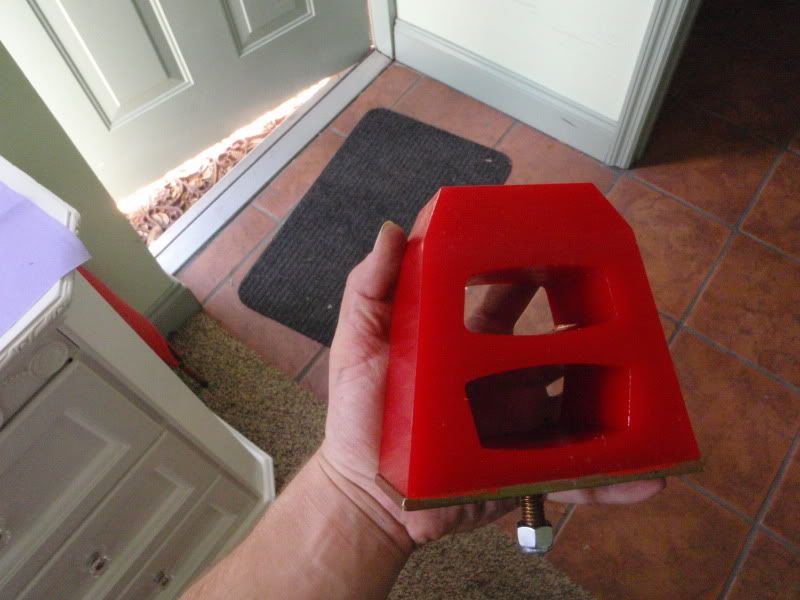

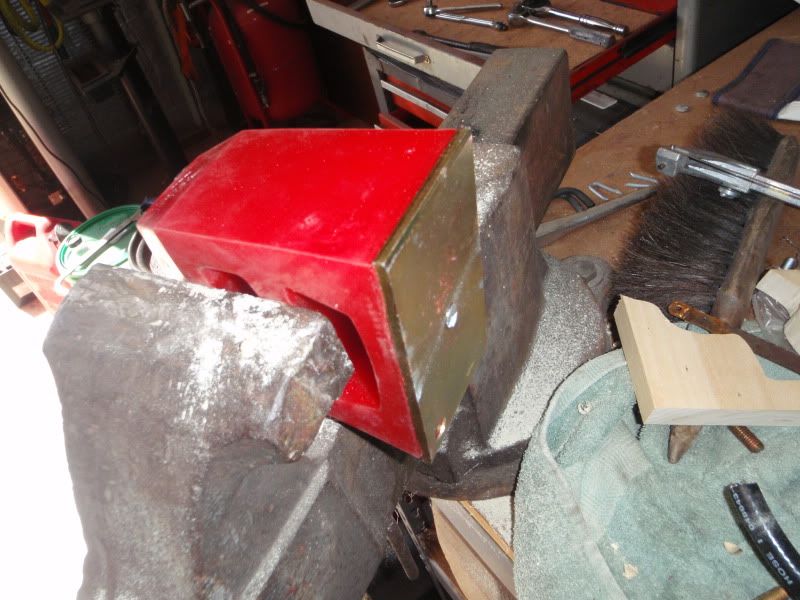

Then took the energy suspension bumps


Cut the bolt off

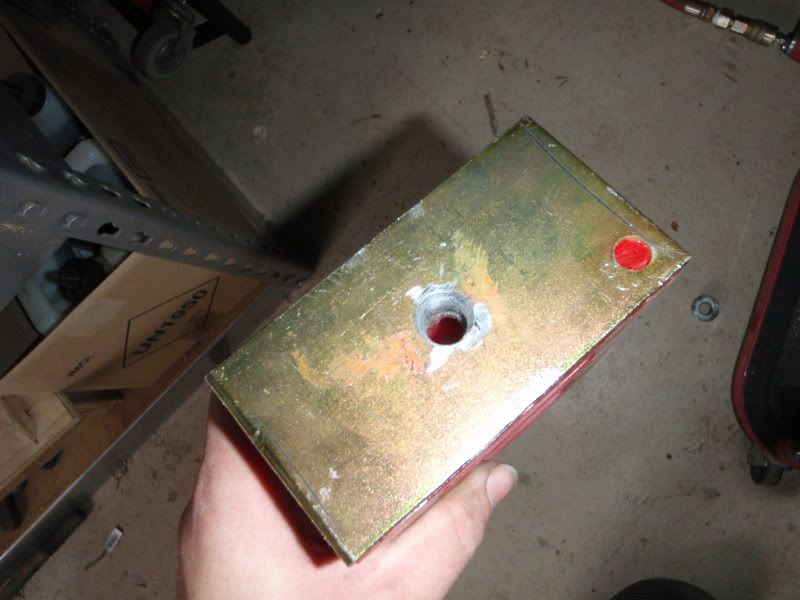

Drilled the center out so the bolt on the leaf pack has room

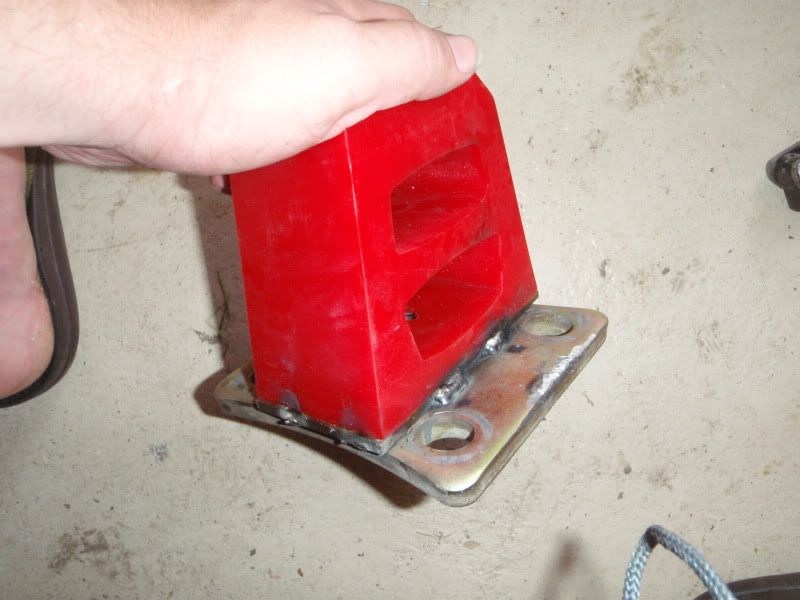

Put a few welds on to hold it all together

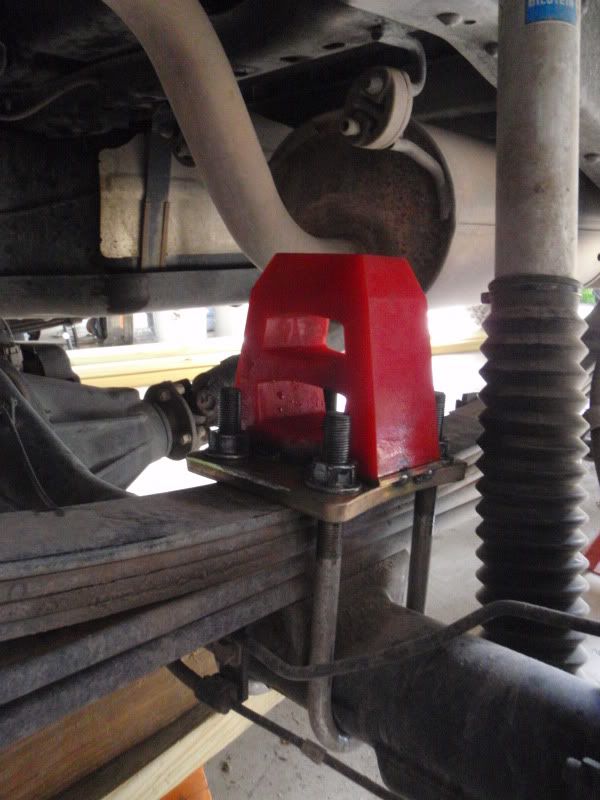

Then mounted them up



I'm very happy with the outcome and I think its a great alternative for those that are on a budget and don't mind a little work. On a side note I also have an extra set of the same Energy bump stops I'd like to get rid of if anyone is interested
