HELP!!! COILOVER ISSUE (PHOTO INCLUDED)

Reply

Thread Tools Search this Thread
Old 07-16-2011, 05:54 AM   #1
g35man [OP] g35man is offline
Senior Member
g35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud of

g35man's Avatar
Name: Jason
Joined: Feb 2010, #32181
Location: Houston, TX
Age: 39
Gender: Male
Posts: 629
g35man's Tacoma Gallery
HELP!!! COILOVER ISSUE (PHOTO INCLUDED)

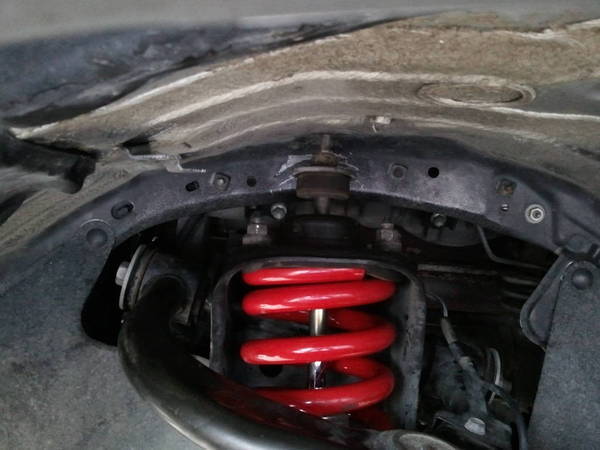

Some fellow Tacomaworld help is needed! I had a offroad store in town put my toytec coil over's onto my 5100's yesterday and this was the end result. Why are my shocks not seated properly? Place does not open till 10am central time to show them whats wrong. I took them the the orginal shock and spring in hand to assemble the ciol over setup. This sucks for now so please help me understand whats my problem.
  Reply With Quote
Old 07-16-2011, 06:09 AM   #2
Max's Canadian Twin
theduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shed

theduck911's Avatar
Name: Max
Joined: Oct 2010, #45374
Location: Northwestern Ontario, Canada
Gender: Male
Posts: 4,316
theduck911's Tacoma Gallery
Looks like you're missing the top spacer, I just uploaded a shot of mine to the live thread for you to compare!
  Reply With Quote
Old 07-16-2011, 06:27 AM   #3
With sufficient thrust, pigs fly just fine.
chris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shed

chris4x4's Avatar
Name: FlimFlubberJAM
Joined: May 2008, #6497
Location: Tenoe, AZ
Gender: Male
Posts: 96,686
chris4x4's Tacoma Gallery
they didnt install the lower washer, and it looks like the spring is upside down.
  Reply With Quote
Old 07-16-2011, 06:32 AM   #4
g35man [OP] g35man is offline
Senior Member
g35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud of

g35man's Avatar
Name: Jason
Joined: Feb 2010, #32181
Location: Houston, TX
Age: 39
Gender: Male
Posts: 629
g35man's Tacoma Gallery
Quote:
Originally Posted by theduck911 View Post
Looks like you're missing the top spacer, I just uploaded a shot of mine to the live thread for you to compare!
Ok thanks. This blows my mind that they are supposed to be professionals!
  Reply With Quote
Old 07-16-2011, 06:34 AM   #5
g35man [OP] g35man is offline
Senior Member
g35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud of

g35man's Avatar
Name: Jason
Joined: Feb 2010, #32181
Location: Houston, TX
Age: 39
Gender: Male
Posts: 629
g35man's Tacoma Gallery
Quote:
Originally Posted by chris4x4 View Post
they didnt install the lower washer, and it looks like the spring is upside down.
Spring is upright but im guessing its alignment is off. Will take it back to them as soon as they open. Thanks for the help!
  Reply With Quote
Old 07-16-2011, 06:40 AM   #6
"the soulless ginger"
PAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shed

PAlittlematty's Avatar
Name: Matt
Joined: Dec 2010, #47260
Location: Beech Creek, PA
Gender: Male
Posts: 5,105
PAlittlematty's Tacoma Gallery
Quote:
Originally Posted by g35man View Post
Spring is upright but im guessing its alignment is off. Will take it back to them as soon as they open. Thanks for the help!
the top of the spring really doesnt have an alignment like the bottom. the washer under the top plate is missing though. thats why the shock shaft is driven therough the bushing and out the top of the top plate. id make sure they put a new bushing under the top plate before they reassemble it. incompitent asses
  Reply With Quote
Old 07-16-2011, 06:41 AM   #7
With sufficient thrust, pigs fly just fine.
chris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shed

chris4x4's Avatar
Name: FlimFlubberJAM
Joined: May 2008, #6497
Location: Tenoe, AZ
Gender: Male
Posts: 96,686
chris4x4's Tacoma Gallery
Quote:
Originally Posted by theduck911 View Post
Looks like you're missing the top spacer, I just uploaded a shot of mine to the live thread for you to compare!
There shouldnt be any spacer. Unless youre using a spacer for more lift. The shock shaft has a washer, then the top plate, then another bushing, and washer. Then the nut. The washers, and bushing hold the assembly to the top plate. In the OP's case, the lower washer was left off.
  Reply With Quote
Old 07-16-2011, 06:42 AM   #8
"the soulless ginger"
PAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shed

PAlittlematty's Avatar
Name: Matt
Joined: Dec 2010, #47260
Location: Beech Creek, PA
Gender: Male
Posts: 5,105
PAlittlematty's Tacoma Gallery
Quote:
Originally Posted by chris4x4 View Post
There shouldnt be any spacer. Unless youre using a spacer for more lift. The shock shaft has a washer, then the top plate, then another bushing, and washer. Then the nut. The washers, and bushing hold the assembly to the top plate. In the OP's case, the lower washer was left off.
+1 i just did an OME lift lastnight so the assembly process is still fresh in my mind
  Reply With Quote
Old 07-16-2011, 06:43 AM   #9
"the soulless ginger"
PAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shed

PAlittlematty's Avatar
Name: Matt
Joined: Dec 2010, #47260
Location: Beech Creek, PA
Gender: Male
Posts: 5,105
PAlittlematty's Tacoma Gallery
and make sure you drive slow and avoid bumps cause essentially that shock could drive up through the fenderwell. correct chris?
  Reply With Quote
Old 07-16-2011, 06:43 AM   #10
With sufficient thrust, pigs fly just fine.
chris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shed

chris4x4's Avatar
Name: FlimFlubberJAM
Joined: May 2008, #6497
Location: Tenoe, AZ
Gender: Male
Posts: 96,686
chris4x4's Tacoma Gallery
The lower diagram has an exploded view of the parts, and how they go together

http://ncttora.com/fsm/05+/data/ilea...a/03900510.pdf
  Reply With Quote
Old 07-16-2011, 06:44 AM   #11
With sufficient thrust, pigs fly just fine.
chris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shed

chris4x4's Avatar
Name: FlimFlubberJAM
Joined: May 2008, #6497
Location: Tenoe, AZ
Gender: Male
Posts: 96,686
chris4x4's Tacoma Gallery
Quote:
Originally Posted by PAlittlematty View Post
and make sure you drive slow and avoid bumps cause essentially that shock could drive up through the fenderwell. correct chris?
Depending on the size if the bump, maybe.
  Reply With Quote
Old 07-16-2011, 06:46 AM   #12
Max's Canadian Twin
theduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shed

theduck911's Avatar
Name: Max
Joined: Oct 2010, #45374
Location: Northwestern Ontario, Canada
Gender: Male
Posts: 4,316
theduck911's Tacoma Gallery
Chris,

I uploaded a photo of mine to the TW Live thread not to long ago, but there's a silver metal top plate that says toytec on mine, came assembled that way!

  Reply With Quote
Old 07-16-2011, 06:51 AM   #13
g35man [OP] g35man is offline
Senior Member
g35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud of

g35man's Avatar
Name: Jason
Joined: Feb 2010, #32181
Location: Houston, TX
Age: 39
Gender: Male
Posts: 629
g35man's Tacoma Gallery
Quote:
Originally Posted by PAlittlematty View Post
and make sure you drive slow and avoid bumps cause essentially that shock could drive up through the fenderwell. correct chris?
The truck is not moving till I can get back to there shop! would have done it all myself if it weren't for me not having a spring compressor. I have installed struts and springs on my G35 but did not want too mess with this big ass truck spring.
  Reply With Quote
Old 07-16-2011, 06:58 AM   #14
With sufficient thrust, pigs fly just fine.
chris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shed

chris4x4's Avatar
Name: FlimFlubberJAM
Joined: May 2008, #6497
Location: Tenoe, AZ
Gender: Male
Posts: 96,686
chris4x4's Tacoma Gallery
Quote:
Originally Posted by theduck911 View Post
Chris,

I uploaded a photo of mine to the TW Live thread not to long ago, but there's a silver metal top plate that says toytec on mine, came assembled that way!
The ones that come pre assembled are different.
  Reply With Quote
Old 07-16-2011, 06:59 AM   #15
Max's Canadian Twin
theduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shedtheduck911 is one of the sharper tools in the shed

theduck911's Avatar
Name: Max
Joined: Oct 2010, #45374
Location: Northwestern Ontario, Canada
Gender: Male
Posts: 4,316
theduck911's Tacoma Gallery
Oh okay, didn't know that!
  Reply With Quote
Old 07-16-2011, 07:01 AM   #16
g35man [OP] g35man is offline
Senior Member
g35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud of

g35man's Avatar
Name: Jason
Joined: Feb 2010, #32181
Location: Houston, TX
Age: 39
Gender: Male
Posts: 629
g35man's Tacoma Gallery
Quote:
Originally Posted by chris4x4 View Post
The ones that come pre assembled are different.
Thats correct.
  Reply With Quote
Old 07-16-2011, 07:01 AM   #17
With sufficient thrust, pigs fly just fine.
chris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shed

chris4x4's Avatar
Name: FlimFlubberJAM
Joined: May 2008, #6497
Location: Tenoe, AZ
Gender: Male
Posts: 96,686
chris4x4's Tacoma Gallery
Quote:
Originally Posted by g35man View Post
The truck is not moving till I can get back to there shop! would have done it all myself if it weren't for me not having a spring compressor. I have installed struts and springs on my G35 but did not want too mess with this big ass truck spring.
You can drive it like that, just take it easy. As long as the top nut is on there, it wont come off.
  Reply With Quote
Old 07-16-2011, 07:04 AM   #18
g35man [OP] g35man is offline
Senior Member
g35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud ofg35man has much to be proud of

g35man's Avatar
Name: Jason
Joined: Feb 2010, #32181
Location: Houston, TX
Age: 39
Gender: Male
Posts: 629
g35man's Tacoma Gallery
Pisses me off! I should be at the beach right now with fellow Tacomaworld guys enjoying fishing, relaxing and drinking beer! No my ass is at home doing nothing!!!!!
  Reply With Quote
Old 07-16-2011, 07:04 AM   #19
With sufficient thrust, pigs fly just fine.
chris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shed

chris4x4's Avatar
Name: FlimFlubberJAM
Joined: May 2008, #6497
Location: Tenoe, AZ
Gender: Male
Posts: 96,686
chris4x4's Tacoma Gallery
Quote:
Originally Posted by g35man View Post
Pisses me off! I should be at the beach right now with fellow Tacomaworld guys enjoying fishing, relaxing and drinking beer! No my ass is at home doing nothing!!!!!
I hear that man.
  Reply With Quote
Old 07-16-2011, 10:27 AM   #20
"the soulless ginger"
PAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shedPAlittlematty is one of the sharper tools in the shed

PAlittlematty's Avatar
Name: Matt
Joined: Dec 2010, #47260
Location: Beech Creek, PA
Gender: Male
Posts: 5,105
PAlittlematty's Tacoma Gallery
Get it fixed?
  Reply With Quote
