Light Racing UCA question

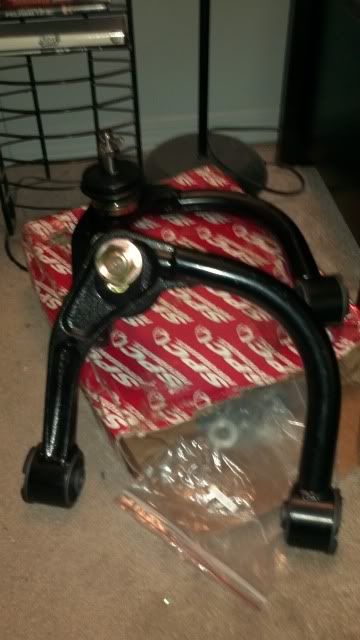

the bolt that attaches the boot to the control arm, in pic, does it have specific torque specs? or just tighten it up
  Reply With Quote
Old 12-30-2011, 10:57 PM   #2
Custom User Title
Zac808 is one of the sharper tools in the shedZac808 is one of the sharper tools in the shedZac808 is one of the sharper tools in the shedZac808 is one of the sharper tools in the shedZac808 is one of the sharper tools in the shedZac808 is one of the sharper tools in the shedZac808 is one of the sharper tools in the shedZac808 is one of the sharper tools in the shedZac808 is one of the sharper tools in the shedZac808 is one of the sharper tools in the shedZac808 is one of the sharper tools in the shed

Zac808's Avatar
Air Force: CSAR
Name: Zac
Joined: Aug 2009, #22040
Location: Viva Las Vegas
Gender: Dude
Posts: 2,820
Zac808's Tacoma Gallery
There is a torque. I will try and find it.

Sent frum mobul fone soe don't freek out about my speling and grahmar.
  Reply With Quote
Old 12-30-2011, 10:58 PM   #3
Senior Member
Banff2007Tacoma is one of the sharper tools in the shedBanff2007Tacoma is one of the sharper tools in the shedBanff2007Tacoma is one of the sharper tools in the shedBanff2007Tacoma is one of the sharper tools in the shedBanff2007Tacoma is one of the sharper tools in the shedBanff2007Tacoma is one of the sharper tools in the shedBanff2007Tacoma is one of the sharper tools in the shedBanff2007Tacoma is one of the sharper tools in the shedBanff2007Tacoma is one of the sharper tools in the shedBanff2007Tacoma is one of the sharper tools in the shedBanff2007Tacoma is one of the sharper tools in the shed

Banff2007Tacoma's Avatar
Name: Dave
Joined: May 2011, #56157
Location: Alberta
Age: 44
Gender: Male
Posts: 1,721
Banff2007Tacoma's Tacoma Gallery
Just got mine so I am interested in the answer as well. Subed.


  Reply With Quote
Old 12-30-2011, 11:18 PM   #4
Custom User Title
Zac808 is one of the sharper tools in the shedZac808 is one of the sharper tools in the shedZac808 is one of the sharper tools in the shedZac808 is one of the sharper tools in the shedZac808 is one of the sharper tools in the shedZac808 is one of the sharper tools in the shedZac808 is one of the sharper tools in the shedZac808 is one of the sharper tools in the shedZac808 is one of the sharper tools in the shedZac808 is one of the sharper tools in the shedZac808 is one of the sharper tools in the shed

Zac808's Avatar
Air Force: CSAR
Name: Zac
Joined: Aug 2009, #22040
Location: Viva Las Vegas
Gender: Dude
Posts: 2,820
Zac808's Tacoma Gallery
Should be on the install instructions. If not use the search. My phone sux at searching.

Sent frum mobul fone soe don't freek out about my speling and grahmar.
  Reply With Quote
Old 12-30-2011, 11:21 PM   #5
Senior Member
jflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shed

jflan's Avatar
Joined: Dec 2008, #11901
Location: Vancouver, WA
Gender: Tranny
Posts: 1,019
jflan's Tacoma Gallery
You should have received an instruction sheet.
I think it's 120 ft lbs......verify that.

I'll attach the .pdf
Attached Files
File Type: pdf LR UCA Installation.pdf (148.8 KB, 328 views)
  Reply With Quote
Old 12-31-2011, 12:12 AM   #6
Senior Member
Banff2007Tacoma is one of the sharper tools in the shedBanff2007Tacoma is one of the sharper tools in the shedBanff2007Tacoma is one of the sharper tools in the shedBanff2007Tacoma is one of the sharper tools in the shedBanff2007Tacoma is one of the sharper tools in the shedBanff2007Tacoma is one of the sharper tools in the shedBanff2007Tacoma is one of the sharper tools in the shedBanff2007Tacoma is one of the sharper tools in the shedBanff2007Tacoma is one of the sharper tools in the shedBanff2007Tacoma is one of the sharper tools in the shedBanff2007Tacoma is one of the sharper tools in the shed

Banff2007Tacoma's Avatar
Name: Dave
Joined: May 2011, #56157
Location: Alberta
Age: 44
Gender: Male
Posts: 1,721
Banff2007Tacoma's Tacoma Gallery
Quote:
Originally Posted by jflan View Post
You should have received an instruction sheet.
I think it's 120 ft lbs......verify that.

I'll attach the .pdf

Ahh yes I did receive that. Thanks.
  Reply With Quote
Old 12-31-2011, 12:18 AM   #7
Senior Member
jflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shed

jflan's Avatar
Joined: Dec 2008, #11901
Location: Vancouver, WA
Gender: Tranny
Posts: 1,019
jflan's Tacoma Gallery
Quote:
Originally Posted by Banff2007Tacoma View Post
Ahh yes I did receive that. Thanks.
It will also show how to "clock" the ball joints.
Most are pulling the BJ all the way outboard, then torquing and turning over to the alignment shop.

So there are two motions that you must understand and get correct on each BJ.
  Reply With Quote
Old 12-31-2011, 01:34 AM   #8
Eman5pt0 [OP] Eman5pt0 is offline
Senior Member
Eman5pt0 has a spectacular aura aboutEman5pt0 has a spectacular aura about
Name: E
Joined: Sep 2009, #23003
Location: NY
Gender: Male
Posts: 332
Eman5pt0's Tacoma Gallery
Baught mine from someone on here they were never used but instructions were not included
Thankss for the pdf
  Reply With Quote
Old 12-31-2011, 01:56 AM   #9
Eman5pt0 [OP] Eman5pt0 is offline
Senior Member
Eman5pt0 has a spectacular aura aboutEman5pt0 has a spectacular aura about
Name: E
Joined: Sep 2009, #23003
Location: NY
Gender: Male
Posts: 332
Eman5pt0's Tacoma Gallery
im confused on how to record the the alignment readings before installing them and how do i know how much caster im going to need ?!
  Reply With Quote
Old 12-31-2011, 02:02 AM   #10
Go home if you don't like guns liquor and whores.
maxamillion2345 is one of the sharper tools in the shedmaxamillion2345 is one of the sharper tools in the shedmaxamillion2345 is one of the sharper tools in the shedmaxamillion2345 is one of the sharper tools in the shedmaxamillion2345 is one of the sharper tools in the shedmaxamillion2345 is one of the sharper tools in the shedmaxamillion2345 is one of the sharper tools in the shedmaxamillion2345 is one of the sharper tools in the shedmaxamillion2345 is one of the sharper tools in the shedmaxamillion2345 is one of the sharper tools in the shedmaxamillion2345 is one of the sharper tools in the shed

maxamillion2345's Avatar
Name: Max
Joined: Feb 2010, #31761
Location: Nevada
Gender: Male
Posts: 7,768
maxamillion2345's Tacoma Gallery
If you have a 6 lug and you have a 2-3" lift face the SPC logo directly out.

If you have a 6 lug and maybe 1" of lift try facing the SPC logo one notch towards the rear of the truck from directly out. That is to say if directly out were 9 o'clock try about 7:30 lol or 145*
  Reply With Quote
Old 12-31-2011, 02:20 AM   #11
Eman5pt0 [OP] Eman5pt0 is offline
Senior Member
Eman5pt0 has a spectacular aura aboutEman5pt0 has a spectacular aura about
Name: E
Joined: Sep 2009, #23003
Location: NY
Gender: Male
Posts: 332
Eman5pt0's Tacoma Gallery
Quote:
Originally Posted by maxamillion2345 View Post
If you have a 6 lug and you have a 2-3" lift face the SPC logo directly out.

If you have a 6 lug and maybe 1" of lift try facing the SPC logo one notch towards the rear of the truck from directly out. That is to say if directly out were 9 o'clock try about 7:30 lol or 145*
thank u sir, going to go at it tomorrow hopefully i will get everything installed and get it to the shop for alignment before they close.
also on the PDF they have a link for video instructions.
  Reply With Quote
Old 02-07-2012, 05:49 PM   #12
Junior Member
jjudd is on a distinguished road
Firefighter:
Name: Justin
Joined: Nov 2011, #66351
Location: Temecula
Gender: Male
Posts: 11
jjudd's Tacoma Gallery
I had alot of confusion with the ball joint positioning in the charts. Hope this helps everyone. This is after talking to SPC directly.

The install paper:
Assume the grey rectangle in the install picture is the special washer (this is because it has to be square in its slot) and the white behind it is the ball joint itself showing the round and square spc logo sides, the front of the truck is to the right in the picture charts for a-g.

SPC LOGO Facing towards the front of the truck will add -2* caster which is essentially your stock UCA as the arm already has 2* more caster than stock. So 0* change

SPC Logo facing the wheel (so perpendicular to the wheel and away from the vehicle) is going to give an additional 2* caster above the stock uca and is the neutral position for the LR UCA. So 2* change from stock

SPC logo towards the rear of the vehicle gives you and additional 4* caster. So a total of 4* change from stock

You can now see where the adjustments in between add up to using the chart if that helped make sense

The camber is adjusted on the control arm itself in the slot the ball joint mounts too and using the vehicle camber adjustment.

One thing they say will help get the uca adjusted best is to wait to torque the uca bolt until the vehicle is physically back on the ground with tires on per the represntative. I came upon the issue when loading the suspension with the jack on the lca then tightening the uca bolt before putting the tires back on and I ended up with more negative caster than before. Doing the above fixed it. All the forums people say to place the spc logo facing out and i would say this is the best start as it is going to fix most issues people have with a 2-3 inch lift but tighten the uca when its on ground with tires!

Justin
  Reply With Quote
Old 02-08-2012, 08:41 PM   #13
Go home if you don't like guns liquor and whores.
maxamillion2345 is one of the sharper tools in the shedmaxamillion2345 is one of the sharper tools in the shedmaxamillion2345 is one of the sharper tools in the shedmaxamillion2345 is one of the sharper tools in the shedmaxamillion2345 is one of the sharper tools in the shedmaxamillion2345 is one of the sharper tools in the shedmaxamillion2345 is one of the sharper tools in the shedmaxamillion2345 is one of the sharper tools in the shedmaxamillion2345 is one of the sharper tools in the shedmaxamillion2345 is one of the sharper tools in the shedmaxamillion2345 is one of the sharper tools in the shed

maxamillion2345's Avatar
Name: Max
Joined: Feb 2010, #31761
Location: Nevada
Gender: Male
Posts: 7,768
maxamillion2345's Tacoma Gallery
Yes tighten the UCA bolt to the frame after you have the truck sitting at ride height on it's own weight. This puts the bushing in a neutral position. If you torque at full droop then you're putting extra strain on the bushing.
  Reply With Quote
