Toytec 1.5 AAL for TSB Install

Short write-up for 1.5 Toytec 1.5 AAL for TSB install with brake line bracket mod and new long version 5100s.

Possibly a good supplement to Relentless Taco's excellent write-up:

http://www.tacomaworld.com/forum/sus...af-w-pics.html

..I used his as a guide, you should too if giving this project a go.

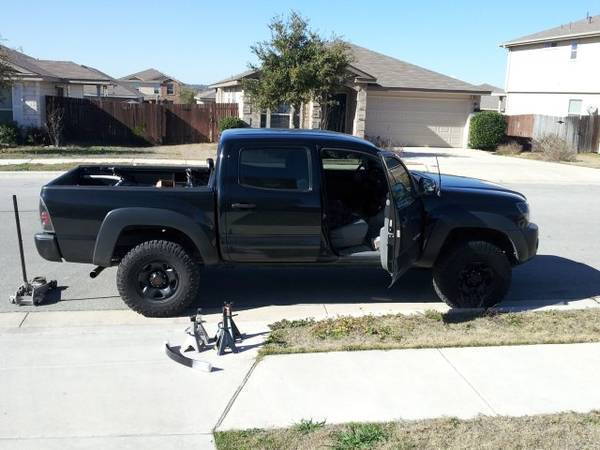

Before shot.. getting my tools together.

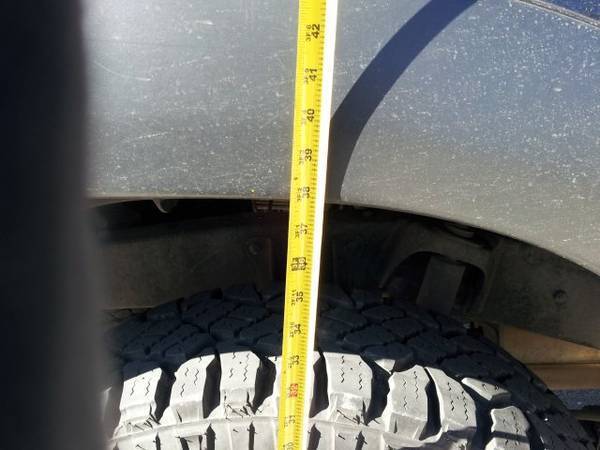

Before: Ground to fender flare driver side - just shy of 38"


Before: Ground to fender flare passenger side - 38"

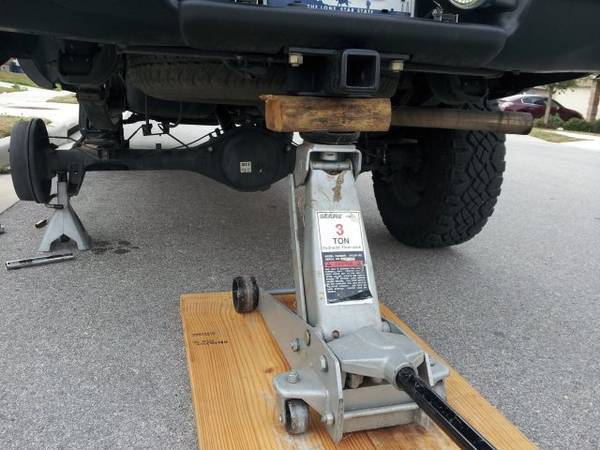

Had to get creative with lifting.

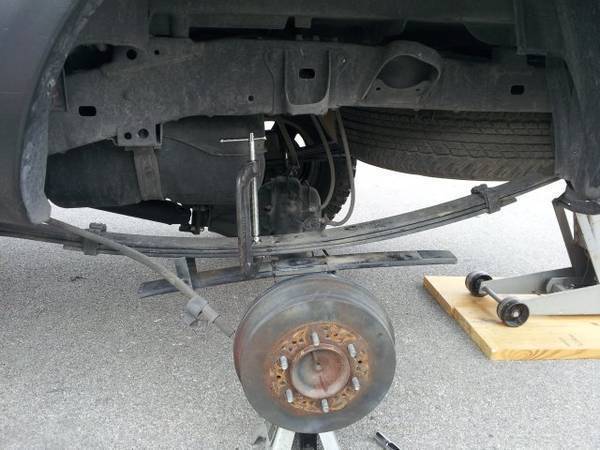

Leaf pack free. I found that vice-grips also work well for compressing the top leaves, in addition to c-clamps. I also experiemented with a ratchet strap to pull the top three leaves towards the chassis to allow for unough space to fit the new AAL, overload leaf and long-ass bolt that needs to go through all of them. Ratchet strap was the ticket for me. I couldnt get enough space without it.

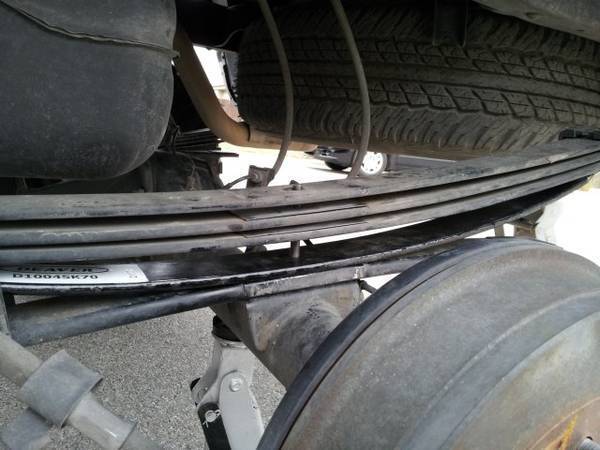

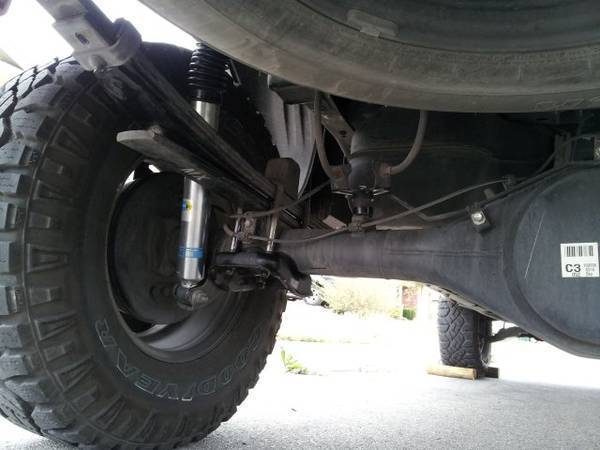

The AAL in and lined up


Secured

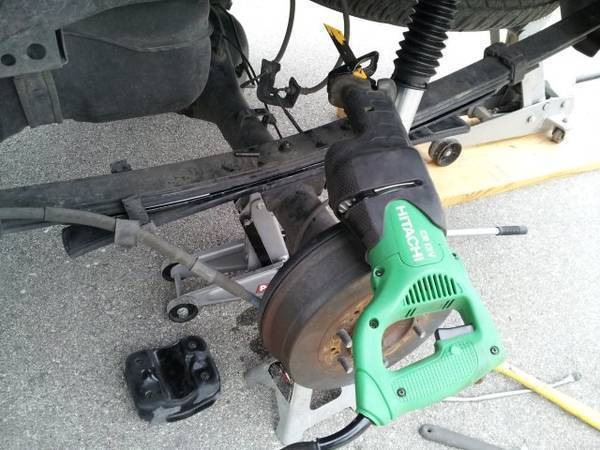

Sawzall to fit the factory bump stop back on... I still need to get taller bump stops to prevent shock bottoming. I'll be taking it easy until then.

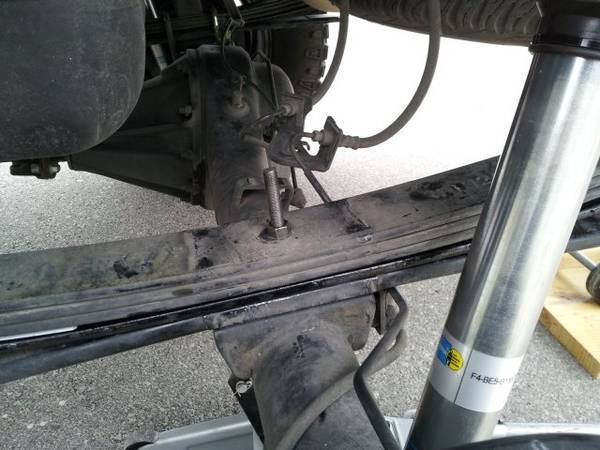

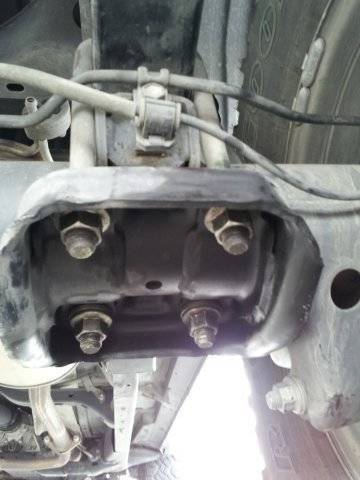

Plenty of threads to spare re-using the stock U-bolts.

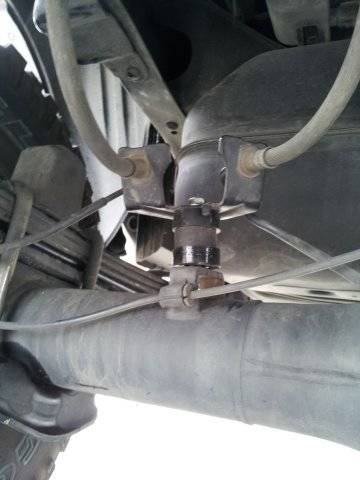

Stacked some old shock bushings and used longer bolt to bring the brake line bracket up a couple inches.

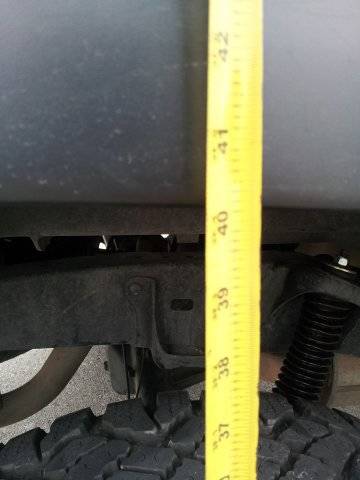

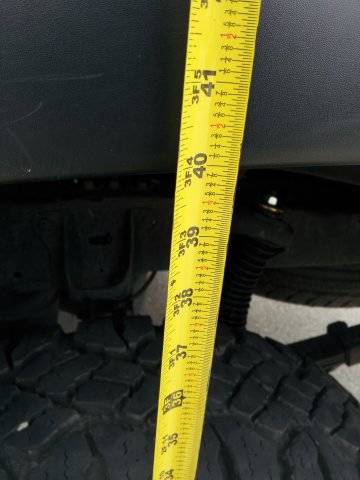

After: Ground to fender flare driver side 40"


After: Ground to fender flare passenger 40 1/4"

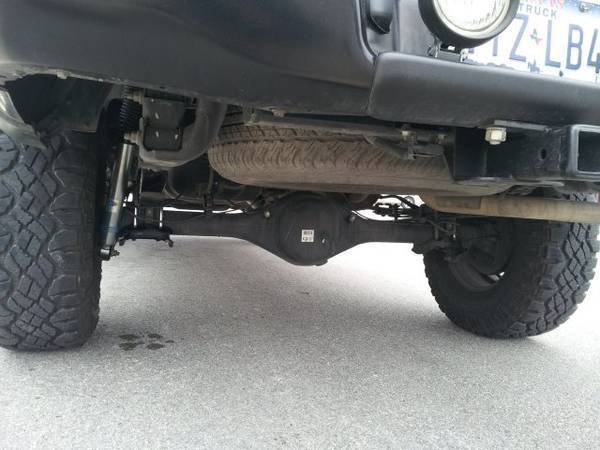

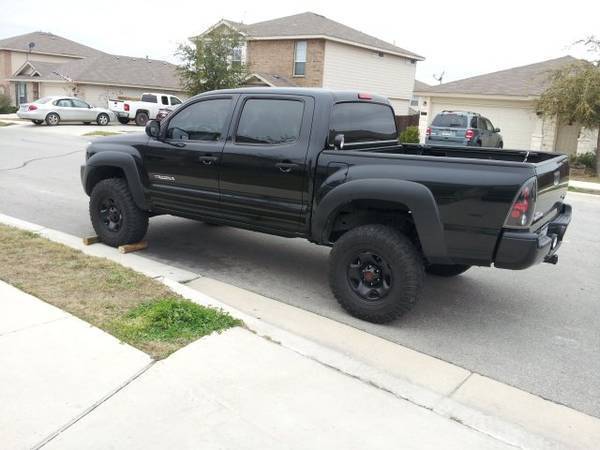

Done






I got rake. Next weekend is 5100's and 885s with dvr trim packer for the front to replace the 1" daystar spaces and TRD Billys I installed long time ago.

  Reply With Quote
Old 01-15-2012, 12:49 PM   #2
Senior Member
jflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shed

jflan's Avatar
Joined: Dec 2008, #11901
Location: Vancouver, WA
Gender: Tranny
Posts: 1,024
jflan's Tacoma Gallery
1. Thanks for taking the time.

2. Always take your dimensions from center of hub (axle) to top of wheel well.
(takes tire diameter out of play)

3. Looks like the end of your AAL is touching the leaf retainer.
  Reply With Quote
Old 01-15-2012, 01:54 PM   #3
Senior Member
JC47 is on a distinguished road
Joined: Dec 2010, #47078
Location: British Columbia
Gender: Male
Posts: 192
JC47's Tacoma Gallery
"Looks like the end of your AAL is touching the leaf retainer"

Yes, this is the problem I have as well. Thanks to jflan and a couple of other members I found out that the end of the new leafs should be no closer than 1-1/2" to those retainers.
  Reply With Quote
Old 01-15-2012, 04:39 PM   #4
lucky [OP] lucky is offline
Senior Member
lucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud of

lucky's Avatar
Army: 13 Fox, FO.  3rd AD, 7th ID, 10th Mtn, 25th ID
Joined: Jun 2008, #7468
Location: NB, TX
Age: 47
Gender: Male
Posts: 246
lucky's Tacoma Gallery
Quote:
Originally Posted by JC47 View Post
"Looks like the end of your AAL is touching the leaf retainer"

Yes, this is the problem I have as well. Thanks to jflan and a couple of other members I found out that the end of the new leafs should be no closer than 1-1/2" to those retainers.
What do I need to do to correct it? What damage am I risking with it being damn near flush to the retainer?
  Reply With Quote
Old 01-15-2012, 07:20 PM   #5
Red
Large is one of the sharper tools in the shedLarge is one of the sharper tools in the shedLarge is one of the sharper tools in the shedLarge is one of the sharper tools in the shedLarge is one of the sharper tools in the shedLarge is one of the sharper tools in the shedLarge is one of the sharper tools in the shedLarge is one of the sharper tools in the shedLarge is one of the sharper tools in the shedLarge is one of the sharper tools in the shedLarge is one of the sharper tools in the shed
Joined: Sep 2011, #63268
Posts: 11,501
Large's Tacoma Gallery
If you look at the AAL, the hole where the centering pin goes is not directly in the middle of the AAL, the white sticker on the AAL is facing towards the cab correct? I put mine towards the tailgate.
  Reply With Quote
Old 01-15-2012, 07:32 PM   #6
Senior Member
rpking is one of the sharper tools in the shedrpking is one of the sharper tools in the shedrpking is one of the sharper tools in the shedrpking is one of the sharper tools in the shedrpking is one of the sharper tools in the shedrpking is one of the sharper tools in the shedrpking is one of the sharper tools in the shedrpking is one of the sharper tools in the shedrpking is one of the sharper tools in the shedrpking is one of the sharper tools in the shedrpking is one of the sharper tools in the shed

rpking's Avatar
Name: Roger
Joined: Jun 2011, #58543
Location: Ohio
Age: 50
Gender: Male
Posts: 202
rpking's Tacoma Gallery
in other words, a guy can put an aal on backwards? I just want to know cause I would like to put an aal on my truck.
  Reply With Quote
Old 01-15-2012, 07:40 PM   #7
Senior Member
JC47 is on a distinguished road
Joined: Dec 2010, #47078
Location: British Columbia
Gender: Male
Posts: 192
JC47's Tacoma Gallery
Quote:
Originally Posted by lucky View Post
What do I need to do to correct it? What damage am I risking with it being damn near flush to the retainer?
I think when the leaf pack flexes, that new leaf you put it could hit the retainer clips which could break the clips and/or affect the way the leaf pack is supposed to work.

The deaver tsb aal is 28" long I believe, with the hole in the center of the leaf (according to jflan). Just make sure they sent you the right one, or you could probably just cut 1-1/2 off each end since you have the desired lift that you wanted. I talked to a few mechanics and guys on here and it doesn't seem to be a problem to cut them, just don't use a torch or anything else that will apply heat to the leaf.
  Reply With Quote
Old 01-16-2012, 07:17 AM   #8
lucky [OP] lucky is offline
Senior Member
lucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud of

lucky's Avatar
Army: 13 Fox, FO.  3rd AD, 7th ID, 10th Mtn, 25th ID
Joined: Jun 2008, #7468
Location: NB, TX
Age: 47
Gender: Male
Posts: 246
lucky's Tacoma Gallery
The AAL I received did not have a centered hole. I did not measure the length before installing. I sent a sperate note to Toytec direclty for clarification. I'll post response.
  Reply With Quote
Old 01-16-2012, 08:01 AM   #9
Senior Member
JC47 is on a distinguished road
Joined: Dec 2010, #47078
Location: British Columbia
Gender: Male
Posts: 192
JC47's Tacoma Gallery
Quote:
Originally Posted by lucky View Post
The AAL I received did not have a centered hole. I did not measure the length before installing. I sent a sperate note to Toytec direclty for clarification. I'll post response.
I think most people put the longer end facing toward the back of the truck if the hole is not centered, but after searching a bit it look like people have put them in the other way around with no problems.
  Reply With Quote
Old 01-16-2012, 10:09 AM   #10
lucky [OP] lucky is offline
Senior Member
lucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud of

lucky's Avatar
Army: 13 Fox, FO.  3rd AD, 7th ID, 10th Mtn, 25th ID
Joined: Jun 2008, #7468
Location: NB, TX
Age: 47
Gender: Male
Posts: 246
lucky's Tacoma Gallery
Thanks all for your responses bringing this issue to my attention. I just got of the phone with Toytec - they accidentally sent the non-TSB AAL. The correct TSB AAL is on the way.

For future reference - TSB AALs are shorter in length and the hole for centering pin is centered lengthwise on the AAL. non-TSB are longer and hole for centering pin is not centered lengthwise and long end should always go to the rear of the truck.

Other notes - part number for non-TSB ends in 70.. it can be seen in my pictures. Part number for TSB AAL ends in 73.

Anyone doing an AAL should double check these things before turning the first wrench.
  Reply With Quote
Old 01-16-2012, 10:21 AM   #11
Senior Member
jflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shed

jflan's Avatar
Joined: Dec 2008, #11901
Location: Vancouver, WA
Gender: Tranny
Posts: 1,024
jflan's Tacoma Gallery
Quote:
Originally Posted by lucky View Post
Thanks all for your responses bringing this issue to my attention. I just got of the phone with Toytec - they accidentally sent the non-TSB AAL. The correct TSB AAL is on the way.

For future reference - TSB AALs are shorter in length and the hole for centering pin is centered lengthwise on the AAL. non-TSB are longer and hole for centering pin is not centered lengthwise and long end should always go to the rear of the truck.

Other notes - part number for non-TSB ends in 70.. it can be seen in my pictures. Part number for TSB AAL ends in 73.

Anyone doing an AAL should double check these things before turning the first wrench.
Glad you got it sorted.

For reference :
My local spring shop said that 1-1/2" clearance from AAL end to spring retainer clip would be "more than enough" clearance.
One of the members here that does a lot of spring work said that even if they were touching, the clip and the AAL move out at roughly the same rate.
As a bare minimum, I would shoot for 1" clearance.

OP, when finished, please report your before and after hub-to-fenderwell dimensions so we can log them into the database.
(I'm kind of curious as to what your current non-TSB AAL + TSB pack dimension is, as well.)
  Reply With Quote
Old 01-16-2012, 03:40 PM   #12
lucky [OP] lucky is offline
Senior Member
lucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud of

lucky's Avatar
Army: 13 Fox, FO.  3rd AD, 7th ID, 10th Mtn, 25th ID
Joined: Jun 2008, #7468
Location: NB, TX
Age: 47
Gender: Male
Posts: 246
lucky's Tacoma Gallery
i intend to switch to the correct AAL once I get it, however, I must say, I like the lift, rake and the ride I'm getting with the wrong AAL kit... I just dont want to break anything from running it. I havent put any load in the back since doing it, but I did intentionally get into some flex situations forcing compression and extension. Seems to be working - flexes good both ways and doesnt appear to be causing any damage to the leaf retainer or the leaf pack... at least not visibly. To be continued...
  Reply With Quote
Old 01-16-2012, 05:14 PM   #13
Senior Member
jflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shed

jflan's Avatar
Joined: Dec 2008, #11901
Location: Vancouver, WA
Gender: Tranny
Posts: 1,024
jflan's Tacoma Gallery
Quote:
Originally Posted by lucky View Post
i intend to switch to the correct AAL once I get it, however, I must say, I like the lift, rake and the ride I'm getting with the wrong AAL kit... I just dont want to break anything from running it. I havent put any load in the back since doing it, but I did intentionally get into some flex situations forcing compression and extension. Seems to be working - flexes good both ways and doesnt appear to be causing any damage to the leaf retainer or the leaf pack... at least not visibly. To be continued...
What is the dimension from center of axle to top of wheel well opening ?
  Reply With Quote
Old 01-16-2012, 07:15 PM   #14
lucky [OP] lucky is offline
Senior Member
lucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud of

lucky's Avatar
Army: 13 Fox, FO.  3rd AD, 7th ID, 10th Mtn, 25th ID
Joined: Jun 2008, #7468
Location: NB, TX
Age: 47
Gender: Male
Posts: 246
lucky's Tacoma Gallery
Quote:
Originally Posted by jflan View Post
What is the dimension from center of axle to top of wheel well opening ?

Right now, appears to be 25". I'll verify the measurement tomorrow - daylight.
  Reply With Quote
Old 01-16-2012, 09:58 PM   #15
Senior Member
JC47 is on a distinguished road
Joined: Dec 2010, #47078
Location: British Columbia
Gender: Male
Posts: 192
JC47's Tacoma Gallery
I just cut my aal's from 36" to 30" tonight and got them installed. I was at 21-1/2" hub to fender, now at 23-1/2" (with a cap). Install was easy except for trying to line the holes back up.

Add a leaf in the back, 5100's with ome 885's up front and the truck drives like a dream, even without a wheel alignment yet. No vibes, no wandering. New wheels and duratracs next.
  Reply With Quote
Old 01-16-2012, 10:10 PM   #16
Senior Member
jflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shedjflan is one of the sharper tools in the shed

jflan's Avatar
Joined: Dec 2008, #11901
Location: Vancouver, WA
Gender: Tranny
Posts: 1,024
jflan's Tacoma Gallery
Quote:
Originally Posted by JC47 View Post
I just cut my aal's from 36" to 30" tonight and got them installed. I was at 21-1/2" hub to fender, now at 23-1/2" (with a cap). Install was easy except for trying to line the holes back up.

Add a leaf in the back, 5100's with ome 885's up front and the truck drives like a dream, even without a wheel alignment yet. No vibes, no wandering. New wheels and duratracs next.
Sounds like a nice lift !
  Reply With Quote
Old 01-17-2012, 04:36 AM   #17
lucky [OP] lucky is offline
Senior Member
lucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud of

lucky's Avatar
Army: 13 Fox, FO.  3rd AD, 7th ID, 10th Mtn, 25th ID
Joined: Jun 2008, #7468
Location: NB, TX
Age: 47
Gender: Male
Posts: 246
lucky's Tacoma Gallery
Quote:
Originally Posted by JC47 View Post
I just cut my aal's from 36" to 30" tonight and got them installed. I was at 21-1/2" hub to fender, now at 23-1/2" (with a cap). Install was easy except for trying to line the holes back up.

Add a leaf in the back, 5100's with ome 885's up front and the truck drives like a dream, even without a wheel alignment yet. No vibes, no wandering. New wheels and duratracs next.

Did your aal originally have rub/friction pads on the ends? Seriously i'm considering cutting mine also, but only around 1 1/2 on the rear to get off the retainer. My replacement aal will be here tomorrow. I'll decide then.
  Reply With Quote
Old 01-17-2012, 06:20 AM   #18
Senior Member
JC47 is on a distinguished road
Joined: Dec 2010, #47078
Location: British Columbia
Gender: Male
Posts: 192
JC47's Tacoma Gallery
No, the leafs they sent me didn't have anything on them. I noticed the existing leaf pack had very thin metal shims between them at center, so on the new aal I added a thin teflon shim as well (not sure if this is necessary). At 30" the aal is now within 1-1/2 of the retainers. If you do cut, just make sure you file down the sharp edge so it doesn't dig into the leaf above it.
  Reply With Quote
Old 01-18-2012, 02:40 PM   #19
lucky [OP] lucky is offline
Senior Member
lucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud oflucky has much to be proud of

lucky's Avatar
Army: 13 Fox, FO.  3rd AD, 7th ID, 10th Mtn, 25th ID
Joined: Jun 2008, #7468
Location: NB, TX
Age: 47
Gender: Male
Posts: 246
lucky's Tacoma Gallery
Lots of deliveries today. Correct 1.5 AAL for TSB from toytec, 885's and trim packer from DSM, and a return shipping label for the non-tsb AAL (guess I wont be cutting the AAL i have on the truck). The agenda for Saturday is set.
  Reply With Quote
Old 01-18-2012, 08:31 PM   #20
Senior Member
JC47 is on a distinguished road
Joined: Dec 2010, #47078
Location: British Columbia
Gender: Male
Posts: 192
JC47's Tacoma Gallery
I was going to put the trim packer on my setup, but I read that it won't work with the 5100's so I left it out. Here is a link:
http://www.tacomaworld.com/forum/sus...er-5100-a.html
