DIY LCA Cam replacement 2005+ Tacoma

This is for removal and replacement of totally seized OE LCA CAM bolts and sleeves ONLY.
I am not covering the removal of OE components that are in the way of LCA bolt removal and installation.



You may be able to get them free once seized thus saving yourself time and money, but if they have been seized greasing them up will only delay the inevitable and they will continue to degrade due to pitting. I recommend replacement of the parts and proper maintenance (continual greasing throughout your trucks lifespan - yes I know it sucks). For those just greasing up the cam bolts: index them, remove all the bolts, clean, lube, and re-install them. Be sure to also clean and grease the inside of the bushings. You should still get an alignment afterwords.

For LCA bushing replacement see here http://www.tacomaworld.com/forum/sus...ml#post3691528

For LCA ball joint replacement see here http://www.tacomaworld.com/forum/sus...ml#post3691540

<<<A front end alignment is highly recommended after you swap CAM bolts and sleeves even if you indexed them>>>


Tools required:


Common Sense
1/2" Impact ratchet
1/2" Ratchet
??? mm impact socket (1/2" drive)
??? mm impact socket (1/2" drive)

PB Blaster or similar
Mobil 1 or similar grease
Gloves
Safety glasses
Grinder and cut off wheels
Sawzall and metal blades
Cutting wax
Aluminum colored sharpie
Cup, water, and Goof Off (or similar)

It's YOUR responsibility to wear the proper PPE and use common sense. This could prove dangerous if the tools required are used in manners they were not designed or intended for. Do not apply torque to the tools past their recommended limit.





Toyota Parts required:



(2) of these






(2) of these






(2) of these

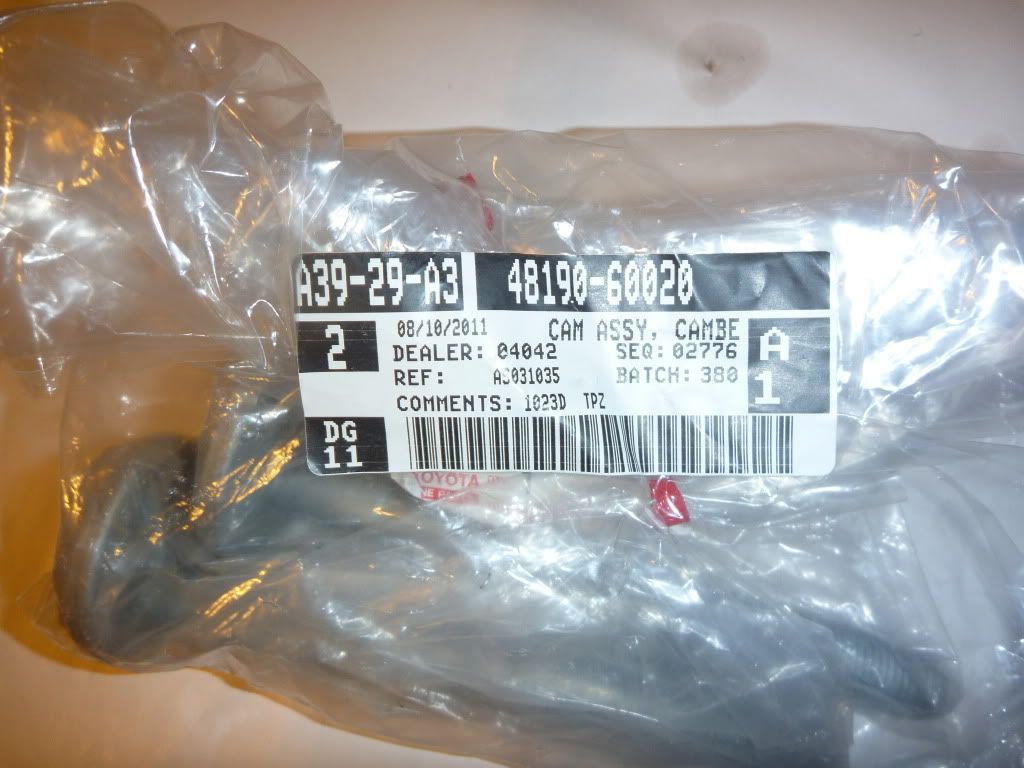

You will need to remove the stickers on the front cams. Do not use anything abrasive. I soaked them in water overnight then cleaned off the adhesive with Goof Off.



The remaining hardware can be reused as long as you cut the LCA's off correctly. IMO there is no need to replace good hardware.



Everything needed for the front:




Everything needed for the rear:







Removal

Note: Lube all threaded bolts, nuts, etc. before attempting to loosen them. I lubed mine up every days for about a week before touching anything.

Step 1: Index the cams by marking them in 2 locations front and rear.

You will still need an alignment, but being able to get them back to close will be safer.

(I didn't take pics of my indexing mine so here is from the install - note I had to transfer the markings to the sides of the new cam)

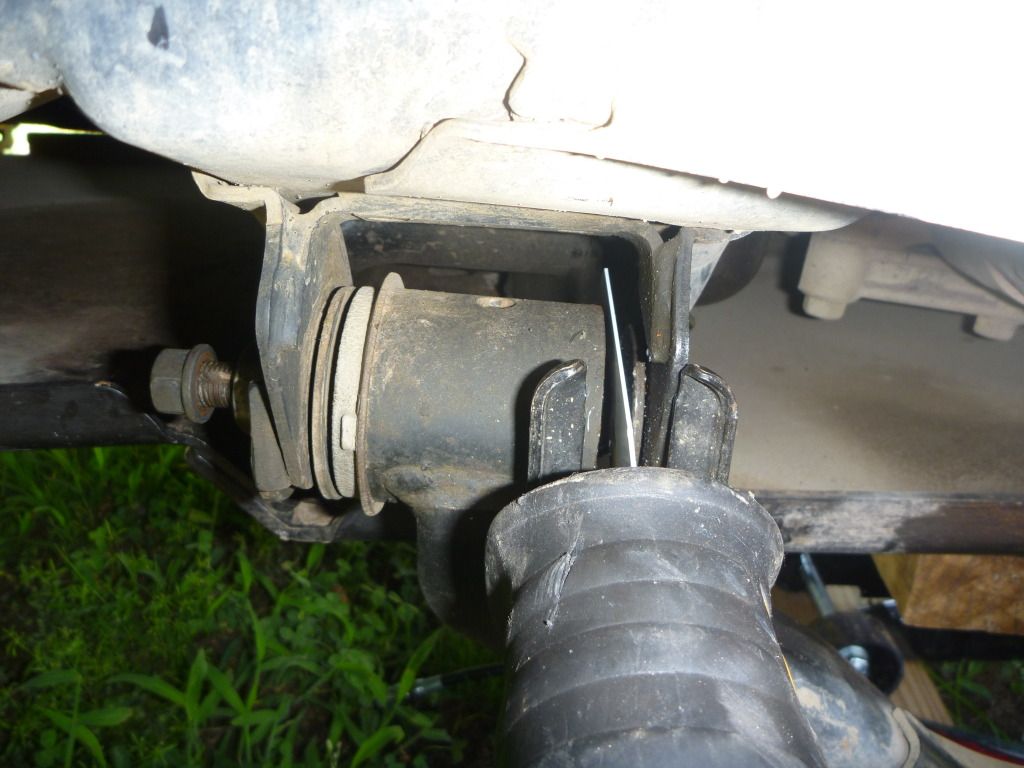

Step 2: Loosen all the nuts and cut the front of the rear bushing. Be careful not to cut into the frame.

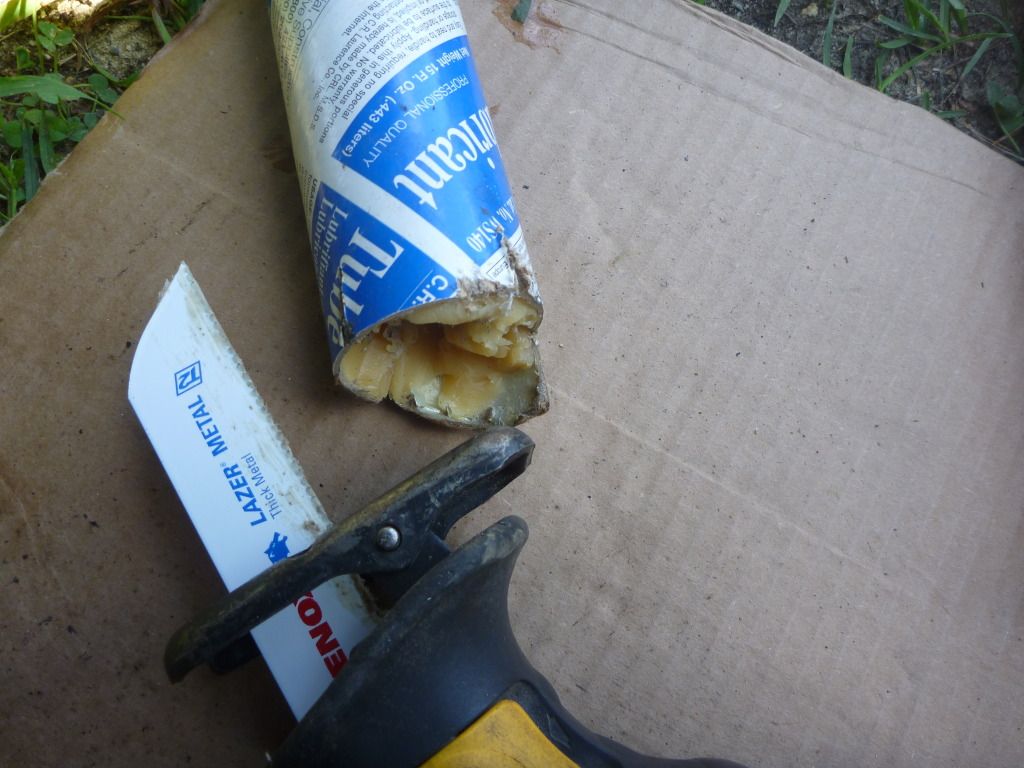

If you want you can try a sawzall, but I found this to be a poor tool for the job. It was time consuming even using high quality Lenox steel blades and wax. I found using cut off wheels to be much quicker although not as safe. Having some smaller cut off wheels (used ones) proved to be key for the final bits of cutting. They can be used where a larger wheel will hit the frame.

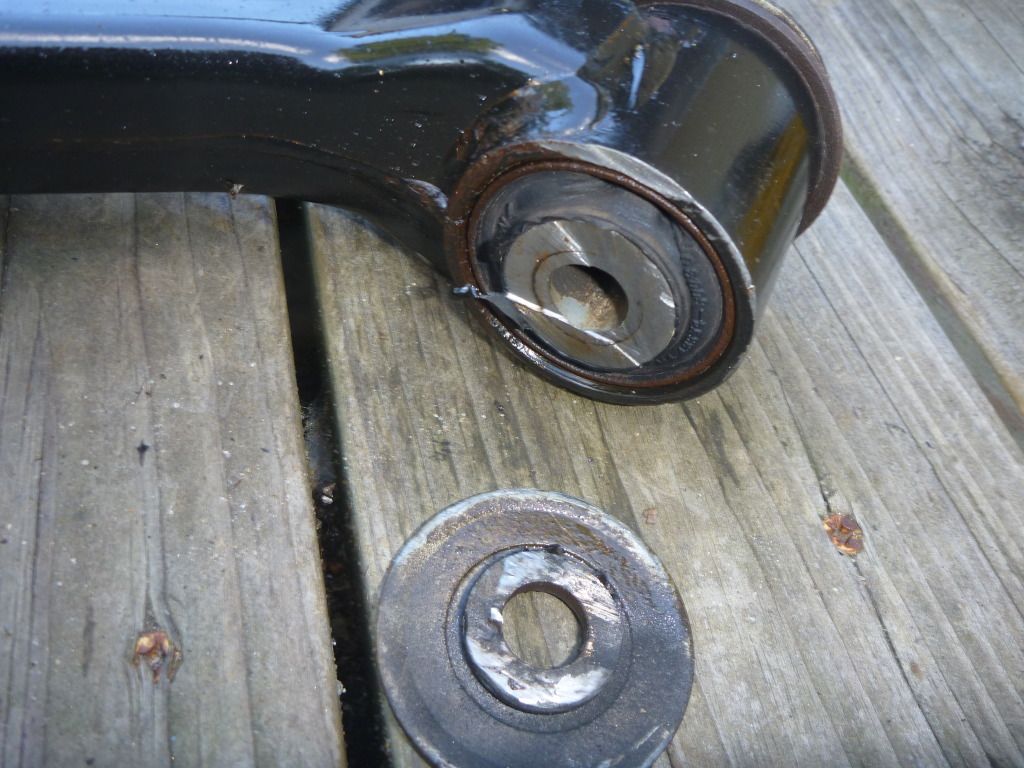

Step 2: Loosen all the nuts and cut the rear of the front bushing. Be careful not to cut into the frame.

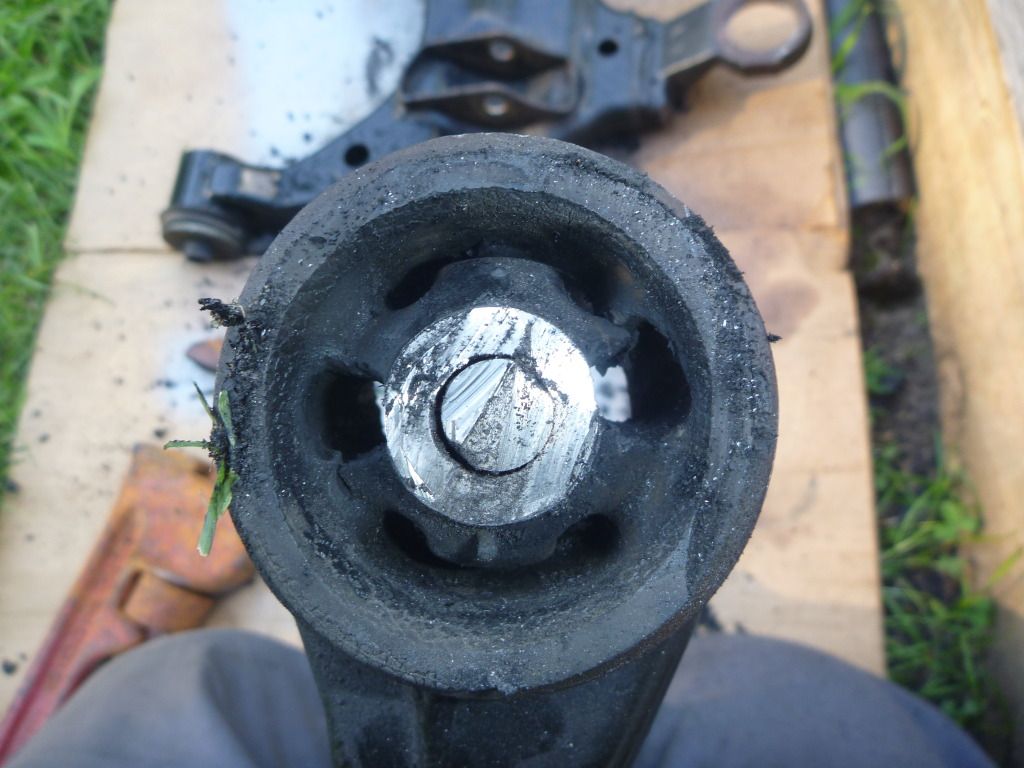

At this point the LCA will come right out. You now need to remove the old bushings in the LCA and put new ones in. See here
http://www.tacomaworld.com/forum/sus...ml#post3691528




  Reply With Quote
Old 05-14-2012, 05:14 PM   #2
XXXX [OP] XXXX is offline
BDUF#
XXXX is one of the sharper tools in the shedXXXX is one of the sharper tools in the shedXXXX is one of the sharper tools in the shedXXXX is one of the sharper tools in the shedXXXX is one of the sharper tools in the shedXXXX is one of the sharper tools in the shedXXXX is one of the sharper tools in the shedXXXX is one of the sharper tools in the shedXXXX is one of the sharper tools in the shedXXXX is one of the sharper tools in the shedXXXX is one of the sharper tools in the shed

XXXX's Avatar
Name: sKiP
Joined: Sep 2011, #62715
Gender: Male
Posts: 23,028
XXXX's Tacoma Gallery
Installation


Step 1: Transfer index marks to new hardware. I usually lay them on a table and use a small framing square.

(Sorry no pics)



Step 2: Install LCA's with pre-lubed bushings

Front



Rear




Step 3: Front LCA

Install sleeve into front LCA mount towards the rear





It will stick out the back of the front LCA mount if you did it right.




Install re-used cam plate to the rear of the front LCA mount




Insert front LCA bolt from front towards rear






Hand tighten. When your done with the rear come back and torque to 110ft# or some shit


Step 4: Rear LCA

Insert lubed bolt from front to back






Install re-used cam tab and nut. Torque to balls ass tight.

  Reply With Quote
