AAL Install. (second gen)

Tools needed:
5mm hex wrench
17mm box wrench (ratcheting prefered)
12mm socket
14mm socket
22mm Deep well socket
6" long 1/4" socket extension
Socket wrench
Torque wrench
6" "C" clamp (or larger)
Hammer
Hack Saw/Sawzall
New centering pins, "U" bolts, and AAL's.

First, Chock the front wheels preventing the truck from rolling.

Jack up the rear of the truck, and secure with Jack Stands about 8" in front of the Leaf spring hangers, then remove the rear wheels.





Remove the rear shock:





Remove the parking brake hangers.



Remove the bolt holding the brake lines to the axel:



Remove "U" bolts, and bump stop:

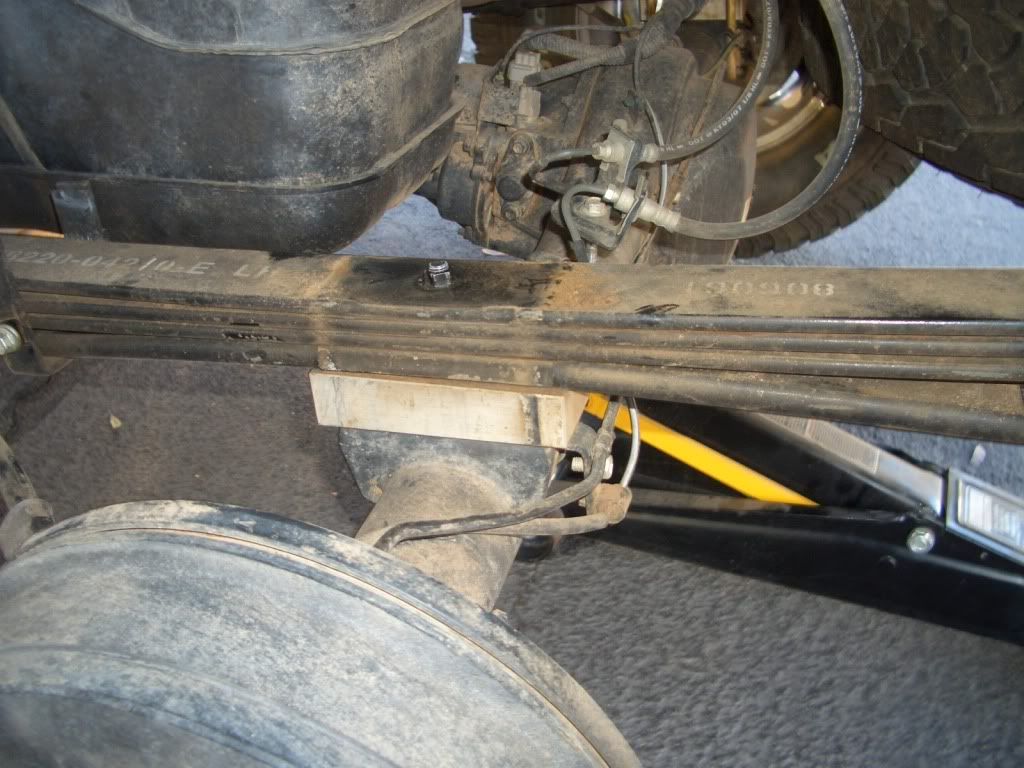

Lower axel, and attach "C" clamp to leaf pack, near the centering pin:



Remove the centering pin, then remove the "C" clamp:



Place the AAL in between the overload leaf, and the main leaves. Useing the 1/4" socket extension, insert into the centering holes in the springs to align them. Using the "C" clamp again, compress the springs, making sure to keep them aligned.



Install the new centering pin, and tighten down snug. No torque value to this, just get it tight.
Then, Cut the excess threads off the centering pin, leaving about 1/4" of thread exposed, then raise axel back into position:





Re install the "U" bolts, and bump stops. Torque "U" bolts to 75 lb-ft



Re connect parking brake and brake line brakets (9 ft-lbs), and rear shocks (75 ft-lbs).





Then, repete for the passenger side.

Center pin diameter is 25/64", and most shops have them in a universal "Cut to fit" length.

Special thanks to PackerfanXD for the help, and for the Teds Hot dogs!
  Reply With Quote
Old 09-28-2009, 01:56 PM   #2
"Let's Ride!"
Padilla1880 has a brilliant futurePadilla1880 has a brilliant futurePadilla1880 has a brilliant futurePadilla1880 has a brilliant futurePadilla1880 has a brilliant futurePadilla1880 has a brilliant futurePadilla1880 has a brilliant futurePadilla1880 has a brilliant futurePadilla1880 has a brilliant futurePadilla1880 has a brilliant futurePadilla1880 has a brilliant future

Padilla1880's Avatar
Name: Daniel
Joined: May 2009, #17365
Location: Temecula, CA
Gender: Male
Posts: 1,168
Padilla1880's Tacoma Gallery
Sweet Chris! Was looking for a write up for future ref.
  Reply With Quote
Old 09-28-2009, 02:00 PM   #4
Adrenaline Addict
Mx SuperFly 25 is one of the sharper tools in the shedMx SuperFly 25 is one of the sharper tools in the shedMx SuperFly 25 is one of the sharper tools in the shedMx SuperFly 25 is one of the sharper tools in the shedMx SuperFly 25 is one of the sharper tools in the shedMx SuperFly 25 is one of the sharper tools in the shedMx SuperFly 25 is one of the sharper tools in the shedMx SuperFly 25 is one of the sharper tools in the shedMx SuperFly 25 is one of the sharper tools in the shedMx SuperFly 25 is one of the sharper tools in the shedMx SuperFly 25 is one of the sharper tools in the shed

Mx SuperFly 25's Avatar
Joined: Jan 2009, #12653
Location: Pencilveineeya
Gender: Dude
Posts: 1,031
Mx SuperFly 25's Tacoma Gallery
great write up chris
  Reply With Quote
Old 09-28-2009, 02:03 PM   #5
chris4x4 [OP] chris4x4 is offline
With sufficient thrust, pigs fly just fine.
chris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shed

chris4x4's Avatar
Name: FlimFlubberJAM
Joined: May 2008, #6497
Location: Tenoe, AZ
Gender: Male
Posts: 96,535
chris4x4's Tacoma Gallery
Thanks, Guys.
  Reply With Quote
Old 09-28-2009, 02:19 PM   #6
Senior Member
2009Silver has much to be proud of2009Silver has much to be proud of2009Silver has much to be proud of2009Silver has much to be proud of2009Silver has much to be proud of2009Silver has much to be proud of2009Silver has much to be proud of2009Silver has much to be proud of2009Silver has much to be proud of

2009Silver's Avatar
Joined: Jul 2009, #20002
Location: Wisconsin
Gender: Male
Posts: 428
2009Silver's Tacoma Gallery
Thank you thank you thank you!!!!
  Reply With Quote
Old 09-28-2009, 02:19 PM   #7
chris4x4 [OP] chris4x4 is offline
With sufficient thrust, pigs fly just fine.
chris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shed

chris4x4's Avatar
Name: FlimFlubberJAM
Joined: May 2008, #6497
Location: Tenoe, AZ
Gender: Male
Posts: 96,535
chris4x4's Tacoma Gallery
Quote:
Originally Posted by 2009Silver View Post
Thank you thank you thank you!!!!
  Reply With Quote
Old 09-28-2009, 02:55 PM   #9
chris4x4 [OP] chris4x4 is offline
With sufficient thrust, pigs fly just fine.
chris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shed

chris4x4's Avatar
Name: FlimFlubberJAM
Joined: May 2008, #6497
Location: Tenoe, AZ
Gender: Male
Posts: 96,535
chris4x4's Tacoma Gallery
Quote:
Originally Posted by Jason'sLawnCare View Post
Great write up. Thanks.

I hope you didn't have to give up a sammich build to use those jackstands.
Unfrotunatly, The Sammich build went south, as it has taken so long, the bread went bad. I may begin a new one.
  Reply With Quote
Old 09-28-2009, 04:43 PM   #11
Senior Member
cmack cmack cmack cmack cmack cmack cmack cmack cmack cmack cmack
Joined: Jun 2009, #18119
Gender: Male
Posts: 3,516
cmack's Tacoma Gallery
Shit. I'm sorry.


Good job on it though, despite my annoyances.
  Reply With Quote
Old 09-28-2009, 05:36 PM   #13
Member
DontTryMe is on a distinguished road

DontTryMe's Avatar
Joined: Jul 2009, #20309
Location: Atlanta,GA
Age: 26
Gender: Male
Posts: 76
DontTryMe's Tacoma Gallery
Nice man! this will come in handy next weekend!
  Reply With Quote
Old 09-28-2009, 05:39 PM   #15
chris4x4 [OP] chris4x4 is offline
With sufficient thrust, pigs fly just fine.
chris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shed

chris4x4's Avatar
Name: FlimFlubberJAM
Joined: May 2008, #6497
Location: Tenoe, AZ
Gender: Male
Posts: 96,535
chris4x4's Tacoma Gallery
Quote:
Originally Posted by LonghornTaco View Post
You know, you make this look so easy that I may just have to get off my lazy ass and finally install the AAL I bought almost a year ago to make the rear match the front...
Its pretty easy. The driver side is the worst, but only as there is 1 more bolt to remove.
  Reply With Quote
Old 09-28-2009, 05:50 PM   #17
chris4x4 [OP] chris4x4 is offline
With sufficient thrust, pigs fly just fine.
chris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shed

chris4x4's Avatar
Name: FlimFlubberJAM
Joined: May 2008, #6497
Location: Tenoe, AZ
Gender: Male
Posts: 96,535
chris4x4's Tacoma Gallery
Quote:
Originally Posted by longhorntaco View Post
i know it's easy... I've already had the leaf apart once (but bought the non-tsb aal first).

Of course, that makes me feel like an even bigger loser, knowing how easy it is...
lmao!
  Reply With Quote
Old 09-28-2009, 05:52 PM   #18
Do you know Tyler Durden?
FearNothing321 is one of the sharper tools in the shedFearNothing321 is one of the sharper tools in the shedFearNothing321 is one of the sharper tools in the shedFearNothing321 is one of the sharper tools in the shedFearNothing321 is one of the sharper tools in the shedFearNothing321 is one of the sharper tools in the shedFearNothing321 is one of the sharper tools in the shedFearNothing321 is one of the sharper tools in the shedFearNothing321 is one of the sharper tools in the shedFearNothing321 is one of the sharper tools in the shedFearNothing321 is one of the sharper tools in the shed

FearNothing321's Avatar
Name: Tony
Joined: Jun 2008, #7539
Location: Tampa Fl / Palm City Fl / Tequesta Fl
Age: 25
Gender: Dude
Posts: 7,038
FearNothing321's Tacoma Gallery
i vote to make this a sticky
  Reply With Quote
Old 09-28-2009, 06:06 PM   #19
chris4x4 [OP] chris4x4 is offline
With sufficient thrust, pigs fly just fine.
chris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shedchris4x4 is one of the sharper tools in the shed

chris4x4's Avatar
Name: FlimFlubberJAM
Joined: May 2008, #6497
Location: Tenoe, AZ
Gender: Male
Posts: 96,535
chris4x4's Tacoma Gallery
Quote:
Originally Posted by FearNothing321 View Post
i vote to make this a sticky
Pm TcBob for that.
  Reply With Quote
Old 09-29-2009, 12:57 AM   #20
Member
Redfox458 will become famous soon enough

Redfox458's Avatar
Joined: Mar 2008, #5361
Posts: 99
Redfox458's Tacoma Gallery
Looks like you re used the U-bolts, but they don't look stock to begin with (looks like you are getting rid of a rear block kit for an AAL). I'm going from stock TSB to the toytec AAL, should I be buying new U-bolts? I only have about of 3/4" of thread left as it is now...
