05+ DRL Enable/Disable Switch

Reply

Thread Tools Search this Thread
Old 11-23-2008, 09:34 AM   #1
007Tacoma [OP] 007Tacoma is offline
I dub thee malicious!
007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed

007Tacoma's Avatar
Name: Mark
Joined: Jan 2007, #643
Location: San Antonio, TX
Age: 33
Gender: Guy
Posts: 6,938
007Tacoma's Tacoma Gallery
Send a message via AIM to 007Tacoma
Exclamation 05+ DRL Enable/Disable Switch

After my write-up on how to install Daytime Running Lights (DRLs) on an 05+ Tacoma, tons of members have been asking me how to disable them via a switch or permanently. Well, it is quite simple.

First, read how to install them here...
05+ DRL (Daytime Running Lights) Install OEM


That will show you how to get to the backside of the computer module underneat the dash. To get to the wiring harness and DRL control module.



On the wiring harness that we install in that tutorial, there is a GREEN wire with a RED stripe coming from the DRL control unit going to the main control unit (see picture below). This wire is the main power for the DRL circuit. If you disable this circuit, you can disable the DRLs without affecting your Hazard lights or your Turn Signals adversely.





The Green wire with the Red strip is going to go from the white connector to the DRL control module. This wire is only one of three wires coming from this particular connector.



I then soldered and heat shrink'ed a wire at each end going to a switch. This way I can enable/disable the DRLs at will.

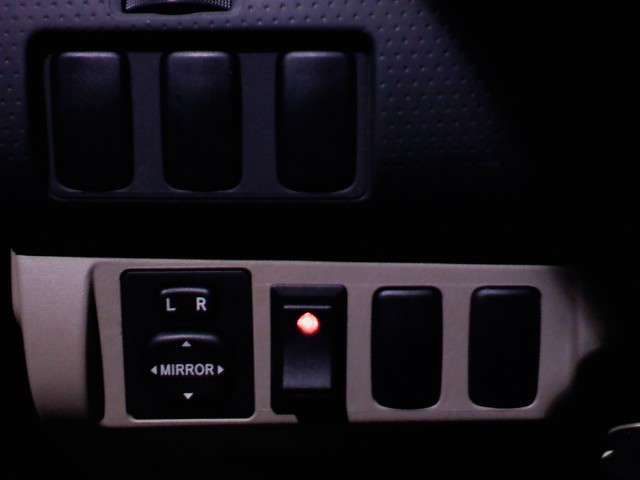

At the moment, I have a very crappy Radio Shack 12v toggle switch controlling the DRLs, but I suggest that you invest in a switch that will look closer to OEM such as one of these:

http://www.oznium.com/gsw-45 ...which was suggested by Keason1*

  Reply With Quote
Old 11-23-2008, 03:38 PM   #2
No Better Friend, No Worse Enemy
Teufel Hunden will become famous soon enoughTeufel Hunden will become famous soon enough

Teufel Hunden's Avatar
Marines: Sergeant, USMC, last unit: 3rd Batt./4th Mar., 7th Mar. Reg., 1st Mar. Div., Twentynine Palms, CA
Joined: Aug 2008, #8415
Location: Northern Virginia
Age: 37
Gender: Dude
Posts: 130
Teufel Hunden's Tacoma Gallery
Great write-up again 007Tacoma! Thanks! I have a question relating to the DRL's that I need help with. I recently installed the DRL kit using your instructions (another great write-up). I have decided that I am going to purchase the Muth heated signal mirrors. My question is, where can I wire the signal lights for the mirrors so that they won't be on all the time, since the front signal lights are now always on for the DRL's? I imagine I will have to use the wires for the rear signal lights, but I do not have a wiring diagram, so I don't know where those are. Do you know where in the dash assembly the wires are located for the rear signal lights? I have a 2009 Tacoma Double-Cab. Thanks in advance for any help that you can give.
  Reply With Quote
Old 11-24-2008, 05:34 AM   #3
007Tacoma [OP] 007Tacoma is offline
I dub thee malicious!
007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed

007Tacoma's Avatar
Name: Mark
Joined: Jan 2007, #643
Location: San Antonio, TX
Age: 33
Gender: Guy
Posts: 6,938
007Tacoma's Tacoma Gallery
Send a message via AIM to 007Tacoma
If I were doing it, I would wire them to the rear lights. Let me see if I can't dig up a wiring diagram for you...
  Reply With Quote
Old 11-25-2008, 07:05 AM   #4
No Better Friend, No Worse Enemy
Teufel Hunden will become famous soon enoughTeufel Hunden will become famous soon enough

Teufel Hunden's Avatar
Marines: Sergeant, USMC, last unit: 3rd Batt./4th Mar., 7th Mar. Reg., 1st Mar. Div., Twentynine Palms, CA
Joined: Aug 2008, #8415
Location: Northern Virginia
Age: 37
Gender: Dude
Posts: 130
Teufel Hunden's Tacoma Gallery
Quote:
Originally Posted by 007Tacoma View Post
If I were doing it, I would wire them to the rear lights. Let me see if I can't dig up a wiring diagram for you...
Thanks! That would be great! I appreciate any help you can give!
  Reply With Quote
Old 11-25-2008, 11:20 AM   #5
007Tacoma [OP] 007Tacoma is offline
I dub thee malicious!
007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed

007Tacoma's Avatar
Name: Mark
Joined: Jan 2007, #643
Location: San Antonio, TX
Age: 33
Gender: Guy
Posts: 6,938
007Tacoma's Tacoma Gallery
Send a message via AIM to 007Tacoma
Tacoma In-Depth Wiring Diagram

Check this FSM (Factory Service Manual) for a wiring diagram...

http://www.ncttora.com/fsm/index.html
  Reply With Quote
Old 11-25-2008, 11:20 AM   #6
007Tacoma [OP] 007Tacoma is offline
I dub thee malicious!
007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed

007Tacoma's Avatar
Name: Mark
Joined: Jan 2007, #643
Location: San Antonio, TX
Age: 33
Gender: Guy
Posts: 6,938
007Tacoma's Tacoma Gallery
Send a message via AIM to 007Tacoma
If that does not work, I can email you a zipped folder of PDF files.
  Reply With Quote
Old 11-25-2008, 11:23 AM   #7
Senior Member
08WhiteTRD is one of the sharper tools in the shed08WhiteTRD is one of the sharper tools in the shed08WhiteTRD is one of the sharper tools in the shed08WhiteTRD is one of the sharper tools in the shed08WhiteTRD is one of the sharper tools in the shed08WhiteTRD is one of the sharper tools in the shed08WhiteTRD is one of the sharper tools in the shed08WhiteTRD is one of the sharper tools in the shed08WhiteTRD is one of the sharper tools in the shed08WhiteTRD is one of the sharper tools in the shed08WhiteTRD is one of the sharper tools in the shed
Air Force:
Name: Ben
Joined: Jun 2008, #7063
Location: NorCal
Gender: Dude
Posts: 934
08WhiteTRD's Tacoma Gallery
You guys just keep adding to my to-do list!!! This is a great write-up and I will have to look into doing this one.
  Reply With Quote
Old 11-25-2008, 03:05 PM   #8
No Better Friend, No Worse Enemy
Teufel Hunden will become famous soon enoughTeufel Hunden will become famous soon enough

Teufel Hunden's Avatar
Marines: Sergeant, USMC, last unit: 3rd Batt./4th Mar., 7th Mar. Reg., 1st Mar. Div., Twentynine Palms, CA
Joined: Aug 2008, #8415
Location: Northern Virginia
Age: 37
Gender: Dude
Posts: 130
Teufel Hunden's Tacoma Gallery
Quote:
Originally Posted by 007Tacoma View Post
If that does not work, I can email you a zipped folder of PDF files.
Thanks! I really appreciate your help! That link worked just fine. One more question though: The latest wiring diagram is for the 2007 model year, I read somewhere in the forum that the wiring for the 2008's and newer are a little different than for the 2007's and older, do you know if this is true? Has the 2007 wiring diagram worked just fine for your 2008?
  Reply With Quote
Old 11-26-2008, 06:27 AM   #9
007Tacoma [OP] 007Tacoma is offline
I dub thee malicious!
007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed

007Tacoma's Avatar
Name: Mark
Joined: Jan 2007, #643
Location: San Antonio, TX
Age: 33
Gender: Guy
Posts: 6,938
007Tacoma's Tacoma Gallery
Send a message via AIM to 007Tacoma
Quote:
Originally Posted by Teufel Hunden View Post
Thanks! I really appreciate your help! That link worked just fine. One more question though: The latest wiring diagram is for the 2007 model year, I read somewhere in the forum that the wiring for the 2008's and newer are a little different than for the 2007's and older, do you know if this is true? Has the 2007 wiring diagram worked just fine for your 2008?
There are a few additions for the 2009 MY, but for the most part (especially the lights) the wiring is going to be the same.
  Reply With Quote
Old 02-17-2009, 01:03 PM   #10
Keep 'em smiling
LEDtoma is on a distinguished road

LEDtoma's Avatar
Joined: Sep 2008, #9490
Location: Stanfield NC
Age: 43
Gender: Male
Posts: 8
LEDtoma's Tacoma Gallery
DRL mod

007Tacoma,
Awesome write-up and thanks. Everysince the '08 Nascar session started and most tracks choose to use the Tundra, I said I have to have those lights. My Taco looks freaking awesome and getting alot of complements here on the East coast. One question though, if I do this "enable/disable mod" will my "parking lot mod" work when the DRL install is disabled?
  Reply With Quote
Old 02-17-2009, 01:23 PM   #11
007Tacoma [OP] 007Tacoma is offline
I dub thee malicious!
007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed

007Tacoma's Avatar
Name: Mark
Joined: Jan 2007, #643
Location: San Antonio, TX
Age: 33
Gender: Guy
Posts: 6,938
007Tacoma's Tacoma Gallery
Send a message via AIM to 007Tacoma
Quote:
Originally Posted by LEDtoma View Post
007Tacoma,
Awesome write-up and thanks. Everysince the '08 Nascar session started and most tracks choose to use the Tundra, I said I have to have those lights. My Taco looks freaking awesome and getting alot of complements here on the East coast. One question though, if I do this "enable/disable mod" will my "parking lot mod" work when the DRL install is disabled?
I have a feeling I may regret asking this, but which "parking lot mod" are you talking about?
  Reply With Quote
Old 02-18-2009, 07:07 AM   #12
Keep 'em smiling
LEDtoma is on a distinguished road

LEDtoma's Avatar
Joined: Sep 2008, #9490
Location: Stanfield NC
Age: 43
Gender: Male
Posts: 8
LEDtoma's Tacoma Gallery
Dis-regard. I did the DRL mod last night and all is well, thanks again. FYI - the "parking light mod" has been in circulation since I bought my '05. Got the write-up from Pb2theMax @ Cardomain.com, so check there. Thanks again for helping tweak the OEM DRL install Toyota should have added! By the way, take a look at this switch, required very little fabrication from the Dremel. I used for my "bed light mod" and choose a double pole so I could have complete control from the cab and still through 12V's to the bed for a switch there. There are single pole non-illuminated...

http://www.jmsonline.net/CONTURA-SWITCH-ON-OFF-ON.htm

PB2theMax - this guy is blessed with talent and knowledge ...
http://www.cardomain.com/ride/832238
  Reply With Quote
Old 03-13-2009, 04:19 PM   #13
Junior Member
JohnMoose is on a distinguished road
Air Force: MSgt, Inflight Refueler, F-15 Crew Chief
Joined: Mar 2009, #14667
Location: AZ
Gender: Male
Posts: 1
JohnMoose's Tacoma Gallery
Disable '09 driving lights

Hello. I'm looking for info about disabling the Daytime Driving Lights on the '09. I've had the truck since Dec, and I can't get the dealer to kill'em.
Thanks
  Reply With Quote
Old 03-16-2009, 06:46 AM   #14
Keep 'em smiling
LEDtoma is on a distinguished road

LEDtoma's Avatar
Joined: Sep 2008, #9490
Location: Stanfield NC
Age: 43
Gender: Male
Posts: 8
LEDtoma's Tacoma Gallery
[quote=JohnMoose;463606]Hello. I'm looking for info about disabling the Daytime Driving Lights on the '09. I've had the truck since Dec, and I can't get the dealer to kill'em.
Thanks[/quote
Life seems funny like that...I wanted DRL's and you didn't. My '05 4Runner Sport came with an auto-lock/un-lock feature that would automatically lock/un-lock all doors after the engine was started or turned off. My dealer gladly$$ charged me to un-install the Toyota OEM relay. I would guess that one install over the other I did were both time consuming, but installing a "kill" switch took me the least amount of time and money on my '05. I'm not sure if the '09 models added more features that would accept the '05 OEM relay I replaced. So please check with 007Tacoma or someone with more schematic background. The rocker switch I installed was just a commodity 12V un-illuminated switch from Radio Shack I mounted under my dash. See 007's write up on the install and good luck.

http://www.radioshack.com/product/in...ductId=3016149

http://www.tacomaworld.com/forum/tec...stall-oem.html
  Reply With Quote
Old 04-26-2009, 03:05 PM   #15
Senior Member
Griztaco is a splendid one to beholdGriztaco is a splendid one to beholdGriztaco is a splendid one to beholdGriztaco is a splendid one to beholdGriztaco is a splendid one to beholdGriztaco is a splendid one to beholdGriztaco is a splendid one to behold
Joined: Mar 2009, #15270
Location: ID
Gender: Male
Posts: 291
Griztaco's Tacoma Gallery
Quote:
I then soldered and heat shrink'ed a wire at each end going to a switch.
How do these wires attach to your switch, my switch has three screws were I can attach only two ends of the wire, so which goes where?
  Reply With Quote
Old 10-21-2009, 05:33 AM   #16
007Tacoma [OP] 007Tacoma is offline
I dub thee malicious!
007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed007Tacoma is one of the sharper tools in the shed

007Tacoma's Avatar
Name: Mark
Joined: Jan 2007, #643
Location: San Antonio, TX
Age: 33
Gender: Guy
Posts: 6,938
007Tacoma's Tacoma Gallery
Send a message via AIM to 007Tacoma
Quote:
Originally Posted by Griztaco View Post
How do these wires attach to your switch, my switch has three screws were I can attach only two ends of the wire, so which goes where?
Sorry it took me so long to respond. I didn't realize that I wasn't subscribed to my own thread!

I didn't attach the third wire as I didn't want the LED on all the time (its pretty bright). There should be model specifications as to which leads you should hook up that came with the switch. If you got the oznium lights, the specifications are on their website.
  Reply With Quote
Old 05-17-2010, 09:40 PM   #17
Junior Member
charliegates is on a distinguished road
Army: 10th BDE 32 AADCOM Darmstadt FRG 84-86
Name: Charlie
Joined: Oct 2009, #24150
Location: Polk County Florida
Gender: Male
Posts: 17
charliegates's Tacoma Gallery
Drl

I just completed the DRL mode for my 2009 DC Tacoma. I did not install the switch as I purchased the wrong switch. However we spliced the power supply for the DRL and tested it several times by shorting it. Everything works fine. I am going to get a switch soon but I would like to thank 007tacoma for his excellent documentation.
  Reply With Quote
Old 05-20-2010, 10:54 AM   #18
Must go to Mountains, Desert
Crom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shed

Crom's Avatar
Name: Mr. Sir
Joined: Jun 2009, #18782
Location: San Diego, CA
Age: 35
Gender: Dude
Posts: 3,556
Crom's Tacoma Gallery
Wow! I searched and searched but I obviously couldn't find this thread. I did it all on my own and made a similar thread here:http://www.tacomaworld.com/forum/lig...alth-mode.html

007Tacoma, Thanks for showing the picture with the harness taken out. I did my work with the harness left in place. It would have been a lot easier to take it out like you did.

Also, I should note the the wiring coloring did change on the 1M plug in the 2009 models, just ever so slightly though. See the link above for details.
  Reply With Quote
Old 06-18-2010, 06:52 AM   #19
Senior Member
Gregman is one of the sharper tools in the shedGregman is one of the sharper tools in the shedGregman is one of the sharper tools in the shedGregman is one of the sharper tools in the shedGregman is one of the sharper tools in the shedGregman is one of the sharper tools in the shedGregman is one of the sharper tools in the shedGregman is one of the sharper tools in the shedGregman is one of the sharper tools in the shedGregman is one of the sharper tools in the shedGregman is one of the sharper tools in the shed

Gregman's Avatar
Joined: Jan 2010, #29166
Location: Freddy Beach, NB
Gender: Male
Posts: 475
Gregman's Tacoma Gallery
I would like to install a switch as described above to disable my DRL.

My low beam headlights and the amber lights are both on when the truck is running but I would prefer to have just the amber lights on and the option to turn those off. (need to have the truck running with the heater and sterio on but no exterior lights, of course this is for stealth parking options with the girlfriend you understand)

So is the modification described in this thread just for the amber lights, or will it also turn off the low beam headlights also?

My '05 came from Florida and I bought it from a used dealer in Canada so I am assuming the DRL mod was installed during or before importing.

Thanks for any advice, I appreciate it.
  Reply With Quote
Old 06-18-2010, 09:25 PM   #20
Must go to Mountains, Desert
Crom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shedCrom is one of the sharper tools in the shed

Crom's Avatar
Name: Mr. Sir
Joined: Jun 2009, #18782
Location: San Diego, CA
Age: 35
Gender: Dude
Posts: 3,556
Crom's Tacoma Gallery
Greg, welcome to the forums! I am afraid that there may be differences between the Canadian version and the U.S. version. The U.S. version does not have low beams on and amber at the same time like yours...

The wire mod in this thread may or may not work for you. But it does however control the amber lights for us.

A wiring diagram for your model and year truck should authoritatively answer your question.
  Reply With Quote
