[HOW-TO]: LED Strip Lighting For Roof Top Tent (RTT)

[HOW-TO]: LED Strip Lighting For Roof Top Tent (RTT)
By: MTD
4/30/14

So I got my Tepui Autana about a month ago and after a couple camping trips of fumbling in the dark (which can be fun sometimes ) I deiced that I was going to install some LED strips to liven the place up. This walk through will go through materials needed, fab of mounts, and installation.


Parts Needed:
  1. 5 Meters of Warm White 5050 LED's - Make sure that you get warm white because the output is much better than the blueish cool white LED's
  2. 22 GA Wire
  3. 2x Rocker Switches
  4. Rocker Switch Holder
  5. Heat Shrink
  6. Female Blade Terminals
  7. GB Wire Surface Mounts
  8. Wire Wrap
  9. 20GA Aluminum sheet - To fab the inside switch mount
  10. ZIP TIES!!! - Every one loves zip ties right!?

Fabrication of Mount:

The switch that goes into the tent can be mounted easily by forming a quick bracket out of sheet metal. you dont need any special tools to do this just a tin snips and some pliers to bend the metal. Drill/cut a hole that is big enough for the switch you have selected then bend the metal into the shape of a box with two rear tabs that overlap, making sure to leave enough clearance for the wires in the back.



Test fit the switch



Next hold the mount with a pliers and drill a hole through the back two overlapping pieces that will be bolted to the tent. You can then take out the center bolt in the hinge and reassemble with the switch mount in place. It worked well for the depth of my mount because the socket used to tighten it down fit in the mount then i could use an extension through the switch hole.




Even after deburing those edeges on that sheet metal I noticed they were sharp so I took some hose i had laying around and slit it so it would slip over the edge. Then I zip tied it to keep it in place.




Instalation/Wiring:

Next we put up the in-tent led strip. Wire side will go to the side that has the switch on it. I found it easiest if you don't peel the back of the strip until it is routed through the fabric loops that hold the tent fabric to the tent poles. I used a zip tie then on the wire end to hold it in place while peeled the back and stuck it up where it belongs.





Now for the fun part if you havent already put the wires from the LED's into the wire warp and neatly zip tie it to the tent pole down to where the swtich is mounted.



When you get to the switch cut your power wire and crimp on a female spade terminal and connect that to one of the switch terminals. The end that you just cut then can have a female terminal crimped on to it and can be run out of the "Hinge" flap out of the tent along with the ground wire. This will be the power cable for the tent. Here is what it looks like, sorry I don't have any intermediate pictures.





You are done with the wiring in the tent then, and it can be folded up. Here is what the switch will look like with the tent folded. There is just enough clearance in my tent where it will not catch on the mattress.



Now it is time to mount the lights for the annex/under the tent. First thing I did was cut the LED strip to the proper length and then stick them down so that they won't get caught by the ladder. I did this first so that I can get the exact wire lengths that I need to make it look clean.

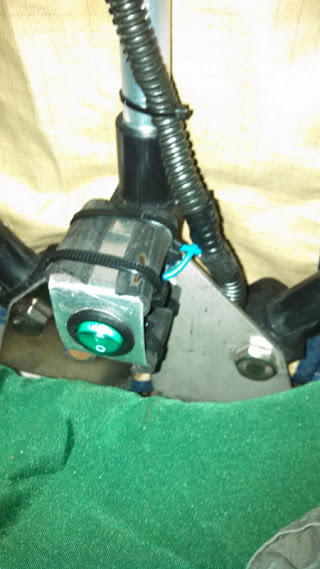

Then it came time to wire them. I mounted my switch using one of the ladder bolts. I ran the exact amount of wire through conduit along the outside of the tent bottom using the stick on wire mounts.







I suggest that you solder and then heat shrink all connections in lue of using butt connectors because it will be much more durable in the long run.

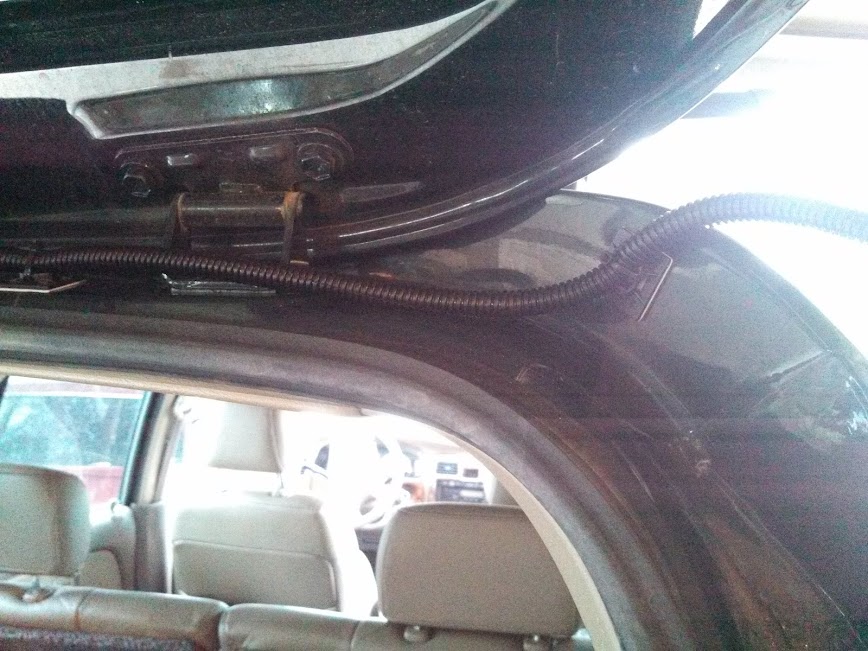

Wiring them to the truck is more application dependent, but for my 3rd Gen 4Runner I ran a power and ground out of the cab through the conduit boot that is on the hatch then up and out to the tent. I used a 2 pin quick connect trailer plug that i got from nappa. make sure with this pulg that the hot side is the insulated pin otherwise you have the potential of blowing fuses if it rubs against the body when not connected to the tent.






Results


Genesis 1:3 NIV

And God said, “Let there be light,” and there was light.







No images of annex lights.... Yet.....
  Reply With Quote
Old 04-30-2014, 07:20 PM   #2
Senior Member
RacecarGuy is one of the sharper tools in the shedRacecarGuy is one of the sharper tools in the shedRacecarGuy is one of the sharper tools in the shedRacecarGuy is one of the sharper tools in the shedRacecarGuy is one of the sharper tools in the shedRacecarGuy is one of the sharper tools in the shedRacecarGuy is one of the sharper tools in the shedRacecarGuy is one of the sharper tools in the shedRacecarGuy is one of the sharper tools in the shedRacecarGuy is one of the sharper tools in the shedRacecarGuy is one of the sharper tools in the shed
Joined: Jul 2012, #82501
Location: Houston, Texas
Gender: Male
Posts: 247
RacecarGuy's Tacoma Gallery
Tagging this for later. Definately interested since my RTT just came in.
  Reply With Quote
Old 05-08-2014, 10:26 AM   #3
mudthedoor [OP] mudthedoor is offline
Sconnie
mudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shed

mudthedoor's Avatar
Name: Alex
Joined: Feb 2011, #50550
Location: Forestville, WI
Age: 22
Gender: Male
Posts: 1,210
mudthedoor's Tacoma Gallery
done
  Reply With Quote
Old 05-08-2014, 10:33 AM   #5
XXXXXXXXXXXXXXXXXXXX
T@co_Pr3runn3r is one of the sharper tools in the shedT@co_Pr3runn3r is one of the sharper tools in the shedT@co_Pr3runn3r is one of the sharper tools in the shedT@co_Pr3runn3r is one of the sharper tools in the shedT@co_Pr3runn3r is one of the sharper tools in the shedT@co_Pr3runn3r is one of the sharper tools in the shedT@co_Pr3runn3r is one of the sharper tools in the shedT@co_Pr3runn3r is one of the sharper tools in the shedT@co_Pr3runn3r is one of the sharper tools in the shedT@co_Pr3runn3r is one of the sharper tools in the shedT@co_Pr3runn3r is one of the sharper tools in the shed

T@co_Pr3runn3r's Avatar
Joined: Jan 2009, #12767
Location: <----------------->
Gender: Male
Posts: 9,736
T@co_Pr3runn3r's Tacoma Gallery
Would be nice to have the need for this cool mod...............as in having an RTT.
  Reply With Quote
Old 05-08-2014, 10:38 AM   #6
Member
abarber11 is a splendid one to beholdabarber11 is a splendid one to beholdabarber11 is a splendid one to beholdabarber11 is a splendid one to beholdabarber11 is a splendid one to beholdabarber11 is a splendid one to beholdabarber11 is a splendid one to behold
Name: Alex
Joined: Jul 2012, #82790
Location: SD
Gender: Male
Posts: 49
abarber11's Tacoma Gallery
I did this with these http://www.amazon.com/gp/product/B00...?ie=UTF8&psc=1

and this

http://www.amazon.com/gp/product/B00...?ie=UTF8&psc=1

2 strips in the tent and 2 strips velcroed under the awning like you did. Its freaking awesome. You can almost tan under those 5050's!! Nice job and good write up.
  Reply With Quote
Old 05-08-2014, 11:34 AM   #7
Bearded Bandit
RigidTaco is one of the sharper tools in the shedRigidTaco is one of the sharper tools in the shedRigidTaco is one of the sharper tools in the shedRigidTaco is one of the sharper tools in the shedRigidTaco is one of the sharper tools in the shedRigidTaco is one of the sharper tools in the shedRigidTaco is one of the sharper tools in the shedRigidTaco is one of the sharper tools in the shedRigidTaco is one of the sharper tools in the shedRigidTaco is one of the sharper tools in the shedRigidTaco is one of the sharper tools in the shed

RigidTaco's Avatar
Joined: Jul 2013, #107465
Location: Calgary
Gender: Male
Posts: 305
RigidTaco's Tacoma Gallery
Sub'd
  Reply With Quote
Old 05-08-2014, 12:10 PM   #8
Senior Member
davidpick is one of the sharper tools in the sheddavidpick is one of the sharper tools in the sheddavidpick is one of the sharper tools in the sheddavidpick is one of the sharper tools in the sheddavidpick is one of the sharper tools in the sheddavidpick is one of the sharper tools in the sheddavidpick is one of the sharper tools in the sheddavidpick is one of the sharper tools in the sheddavidpick is one of the sharper tools in the sheddavidpick is one of the sharper tools in the sheddavidpick is one of the sharper tools in the shed

davidpick's Avatar
Firefighter:
Name: David
Joined: Jan 2010, #29760
Location: Everett, WA
Age: 27
Gender: Male
Posts: 1,730
davidpick's Tacoma Gallery
Very cool. I did a similar mod on my new RTT using waterproof LEDs from vleds.com and lamp wire and a rotary lamp switch.
  Reply With Quote
Old 05-08-2014, 12:42 PM   #9
mudthedoor [OP] mudthedoor is offline
Sconnie
mudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shed

mudthedoor's Avatar
Name: Alex
Joined: Feb 2011, #50550
Location: Forestville, WI
Age: 22
Gender: Male
Posts: 1,210
mudthedoor's Tacoma Gallery
Quote:
Originally Posted by davidpick View Post
Very cool. I did a similar mod on my new RTT using waterproof LEDs from vleds.com and lamp wire and a rotary lamp switch.
Yep the ones I have linked are water proof too its a sweet mod I really am digging it. Does the lamp switch have a dimming fn ? I am going to add a dimmer I think.
  Reply With Quote
Old 05-08-2014, 03:20 PM   #11
Senior Member
JLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shed

JLink's Avatar
Name: Josh
Joined: May 2010, #36795
Location: Ocean, NJ
Age: 26
Gender: Male
Posts: 9,606
JLink's Tacoma Gallery
Nice write up but I don't like the switches you used.
In my opinion an inline switch is a better option because it's lower profile. Less likely to get caught on something and break off. I don't have a picture of the switch I used right now but maybe I'll update this post with it.

I'm interested to see pics of the annex lights since I haven't gotten a chance to install mine.
  Reply With Quote
Old 05-08-2014, 03:44 PM   #12
Bearded Bandit
RigidTaco is one of the sharper tools in the shedRigidTaco is one of the sharper tools in the shedRigidTaco is one of the sharper tools in the shedRigidTaco is one of the sharper tools in the shedRigidTaco is one of the sharper tools in the shedRigidTaco is one of the sharper tools in the shedRigidTaco is one of the sharper tools in the shedRigidTaco is one of the sharper tools in the shedRigidTaco is one of the sharper tools in the shedRigidTaco is one of the sharper tools in the shedRigidTaco is one of the sharper tools in the shed

RigidTaco's Avatar
Joined: Jul 2013, #107465
Location: Calgary
Gender: Male
Posts: 305
RigidTaco's Tacoma Gallery
Quote:
Originally Posted by JLink View Post
Nice write up but I don't like the switches you used.
In my opinion an inline switch is a better option because it's lower profile. Less likely to get caught on something and break off. I don't have a picture of the switch I used right now but maybe I'll update this post with it.

I'm interested to see pics of the annex lights since I haven't gotten a chance to install mine.
Can this be had in a dimmer style?
  Reply With Quote
Old 05-08-2014, 03:55 PM   #13
Senior Member
JLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shedJLink is one of the sharper tools in the shed

JLink's Avatar
Name: Josh
Joined: May 2010, #36795
Location: Ocean, NJ
Age: 26
Gender: Male
Posts: 9,606
JLink's Tacoma Gallery
Quote:
Originally Posted by RigidTaco View Post
Can this be had in a dimmer style?
Probably. I have a dimmer switch for the LEDs on my front bumper.
It's real pricey but here's the link. http://stores.advmonster.com/rotary-...h-beam-bypass/

I'm sure there's other options available


Edit:
Here's something worth trying- http://www.amazon.com/gp/aw/d/B000BQ...&pi=SX200_QL40


And the switch I used is similar to this-
http://www.amazon.com/gp/aw/d/B000FP...ims_6?pi=SS115

I just have it ziptied half way up the hoop that the wires run up.
  Reply With Quote
Old 05-08-2014, 05:01 PM   #14
mudthedoor [OP] mudthedoor is offline
Sconnie
mudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shed

mudthedoor's Avatar
Name: Alex
Joined: Feb 2011, #50550
Location: Forestville, WI
Age: 22
Gender: Male
Posts: 1,210
mudthedoor's Tacoma Gallery
Quote:
Originally Posted by JLink View Post
Nice write up but I don't like the switches you used.
In my opinion an inline switch is a better option because it's lower profile. Less likely to get caught on something and break off. I don't have a picture of the switch I used right now but maybe I'll update this post with it.

I'm interested to see pics of the annex lights since I haven't gotten a chance to install mine.
Haha i don't like the one in the tent either, but it was what I had lying around, will probably end up updating with and inline, but for now its good.

I do like the outside one though, nothing can possibly get caught on that thing and its just right there whenever i need it.
  Reply With Quote
Old 06-04-2014, 09:07 PM   #15
Senior Member
zscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shed

zscott's Avatar
Name: Zach
Joined: Jul 2013, #108365
Location: Utah
Gender: Male
Posts: 792
zscott's Tacoma Gallery
Alright, all you electricity pros. I tried to wire up some bed lights using this method, When I have them wired straight to the battery they light up great and everything is cool. I put a little rocker switch in the side of the bed near the rear and when I run the current through it, the lights are extremely dim. The switch is rated to 16 amps which was pretty standard among the ones I saw.
  Reply With Quote
Old 06-04-2014, 10:32 PM   #16
Senior Member
zscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shed

zscott's Avatar
Name: Zach
Joined: Jul 2013, #108365
Location: Utah
Gender: Male
Posts: 792
zscott's Tacoma Gallery
Must have been a bad switch. Rechecked everything and swapped it out and now it all works like a charm.
  Reply With Quote
Old 06-05-2014, 05:20 AM   #17
mudthedoor [OP] mudthedoor is offline
Sconnie
mudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shedmudthedoor is one of the sharper tools in the shed

mudthedoor's Avatar
Name: Alex
Joined: Feb 2011, #50550
Location: Forestville, WI
Age: 22
Gender: Male
Posts: 1,210
mudthedoor's Tacoma Gallery
Quote:
Originally Posted by zscott View Post
Must have been a bad switch. Rechecked everything and swapped it out and now it all works like a charm.
Haha glad you figured it out Scott!
  Reply With Quote
Old 06-05-2014, 02:06 PM   #18
Senior Member
zscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shedzscott is one of the sharper tools in the shed

zscott's Avatar
Name: Zach
Joined: Jul 2013, #108365
Location: Utah
Gender: Male
Posts: 792
zscott's Tacoma Gallery
Thanks for the writeup
