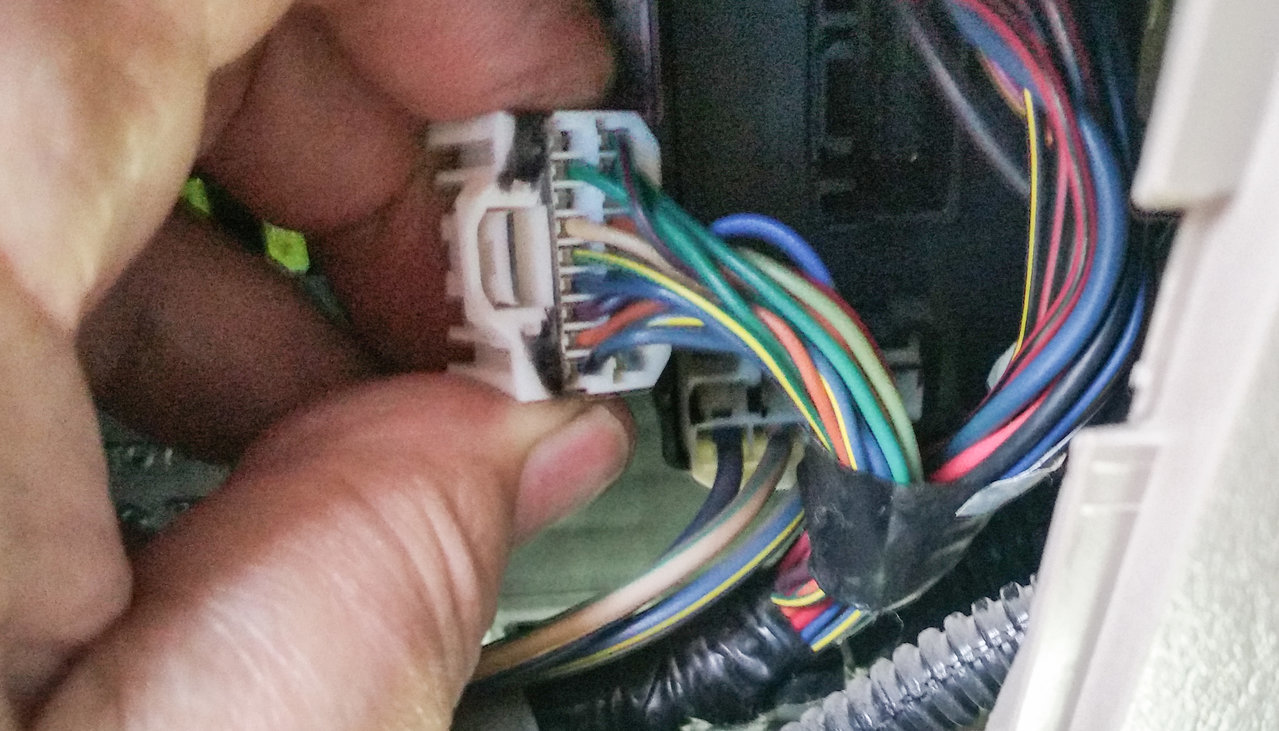

Connector "C1" is right next to the big square 20 AMP fuse. Middle connector. Use a jewelers flat blade, push the tang to the right, and release so you can get to it. The wires need to go to the top LEFT, and 3rd down left. (where there are no wires)
