05-11 Front bumper removal.

Discussion in '2nd Gen. Tacomas (2005-2015)' started by brandonbryan12, Mar 26, 2012.

  1. Mar 26, 2012 at 5:00 PM
    #1
    brandonbryan12

    brandonbryan12 [OP] Member

    Joined:
    Jul 29, 2010
    Member:
    #40960
    Messages:
    23
    Gender:
    Male
    First Name:
    Brandon
    Cranbrook, British Columbia
    OME 885x, Dakar leafs, Elite Offroad front bumper, Pelfreybilt rear bumper, Famous fabrication sliders, RCI skid plates
    I removed my front bumper this weekend and installed an Elite Off-road front bumper. Here's how I removed the front bumper. It was my first time doing this so if there's a better way to do things please chime in:)

    I started out by removing the grill, this is done by removing the 2 screws and 2 clips on the top of the grill. (The picture shows the passenger side clip and screw, its the same on the drivers side)
    http://www.tacomaworld.com/forum/attachment.php?attachmentid=144196&stc=1&d=1332802595

    I didn't have a clip remover so I just used a flat head screw driver to pop up the head of the clip, than pull the clip out.
    http://www.tacomaworld.com/forum/attachment.php?attachmentid=144199&stc=1&d=1332803486

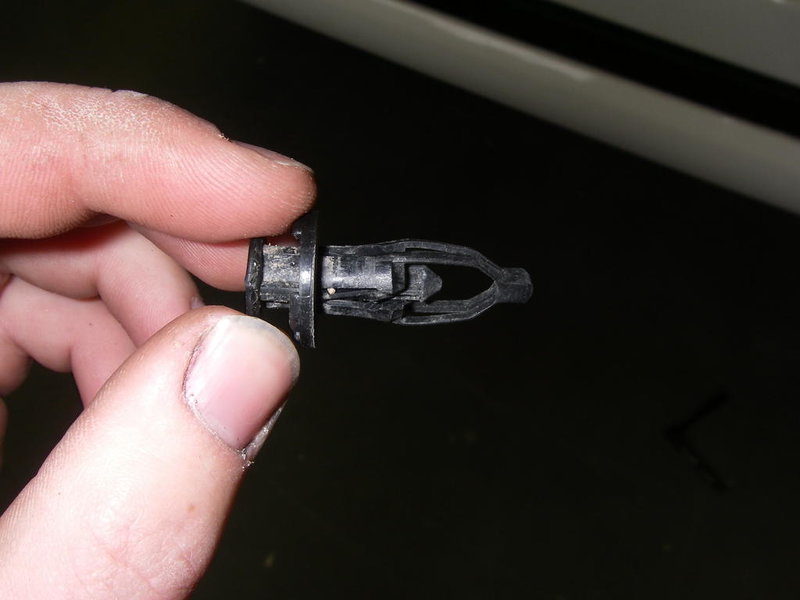

    The removed clip.
    http://www.tacomaworld.com/forum/attachment.php?attachmentid=144200&stc=1&d=1332803603

    Once the 2 screws and 2 clips are removed pull the grill straight up. It is held down by 2 clips so it takes a little force.

    The bumper skin is held in place by 7 clips like the grills clips (3 on top and 4 below the bumper), 6 screws and 2 other clips (little different in style located 1 on each side, inside the wheel wells.

    Remove the 3 clips on top. (2 of the 3 pictured)
    http://www.tacomaworld.com/forum/attachment.php?attachmentid=144202&stc=1&d=1332804294

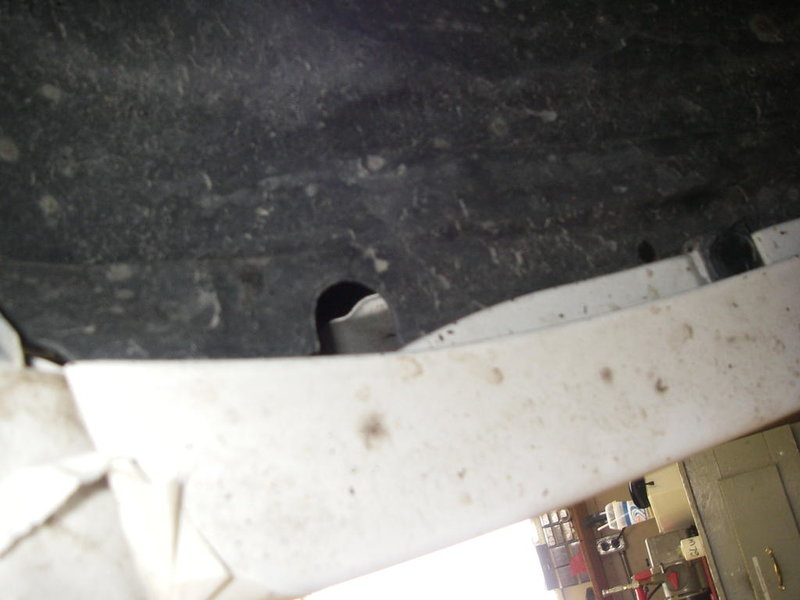

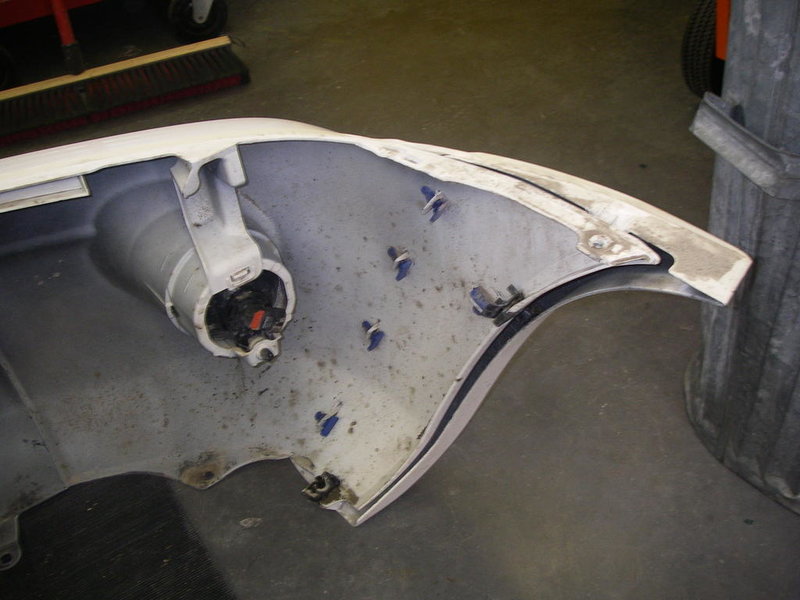

    Remove the 4 clips below the bumper skin. (2 of the 4 pictured)
    http://www.tacomaworld.com/forum/attachment.php?attachmentid=144205&stc=1&d=1332804425

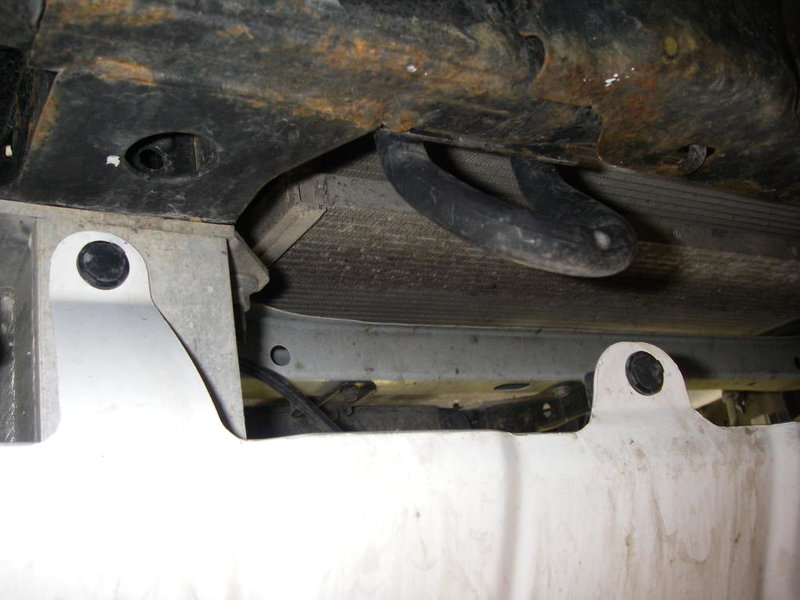

    Remove the 6 screws. (2 below the bumper skin are pictured)
    http://www.tacomaworld.com/forum/attachment.php?attachmentid=144207&stc=1&d=1332804701

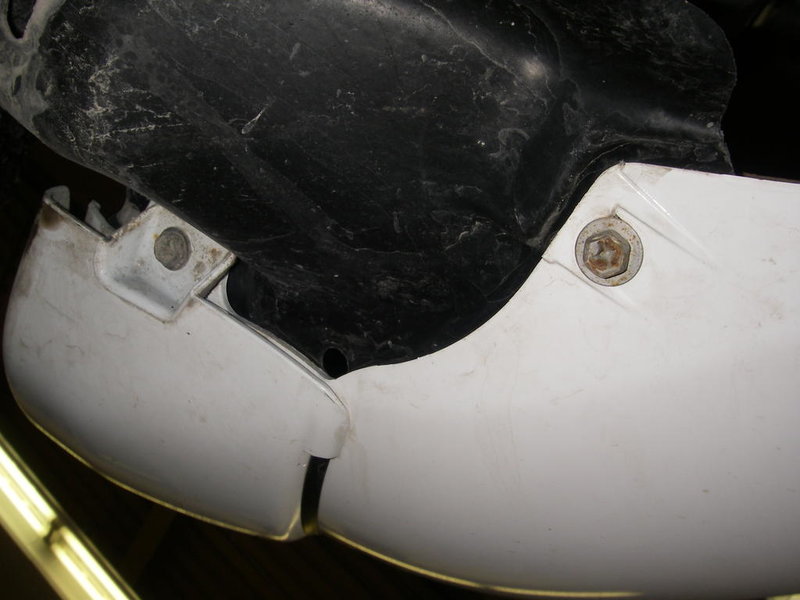

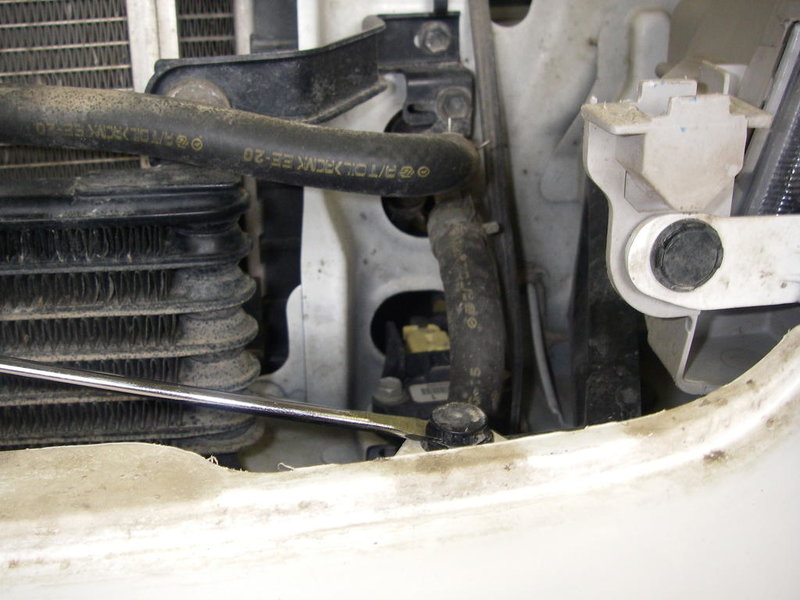

    Here's a picture of the other screw (inside the horse shoe shaped hole) located in the wheel well, the other clip is also in the picture which you'll have to remove.
    http://www.tacomaworld.com/forum/attachment.php?attachmentid=144208&stc=1&d=1332804985

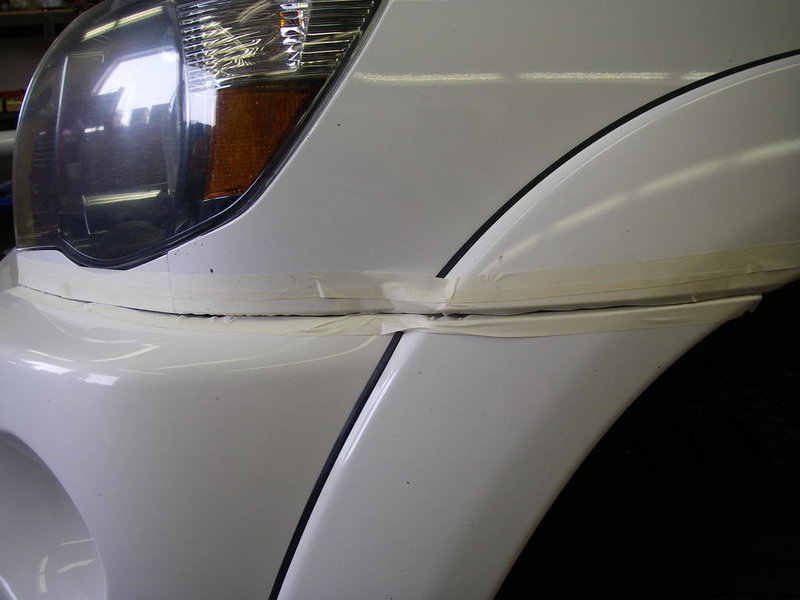

    Tape the bumper and below the headlight to avoid scratches during removal.
    http://www.tacomaworld.com/forum/attachment.php?attachmentid=144209&stc=1&d=1332805235

    Now pull the bottom of the bumper skin upward, than jiggle each side of the bumper until it releases. You gotta hold your teeth right but it'll come off.:D

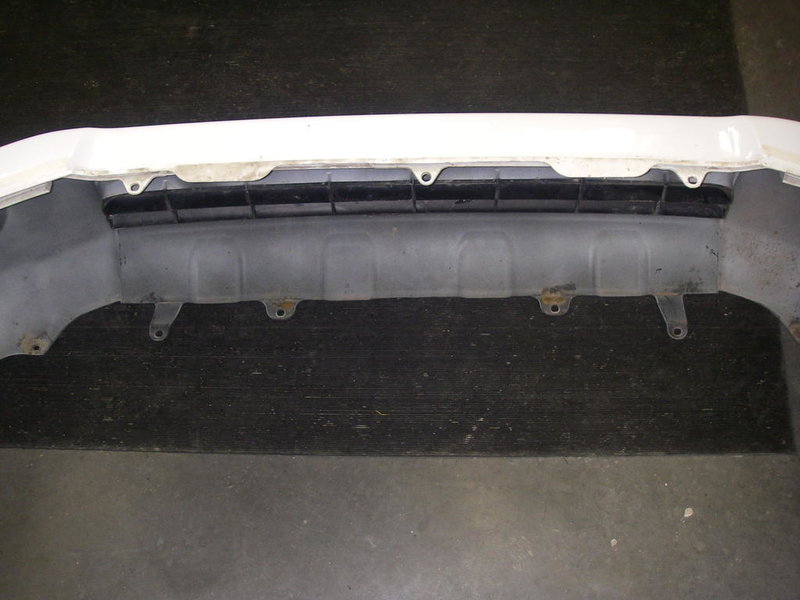

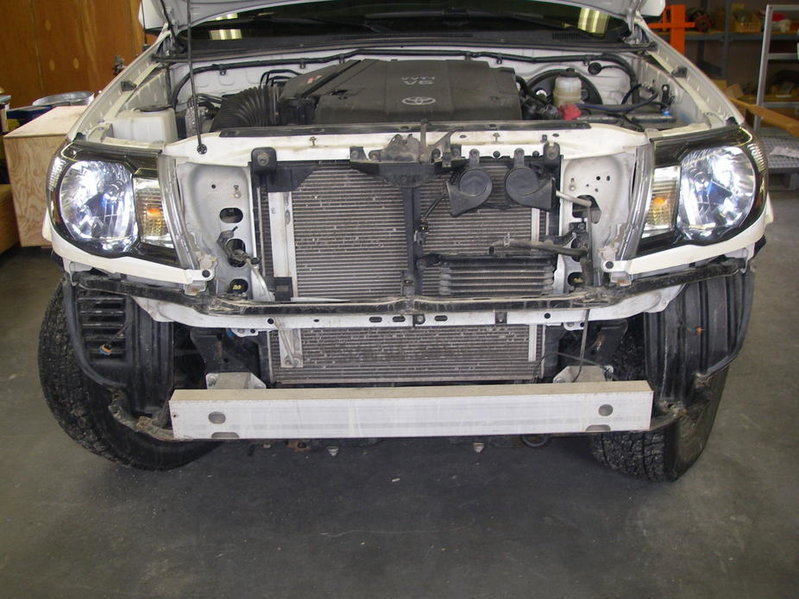

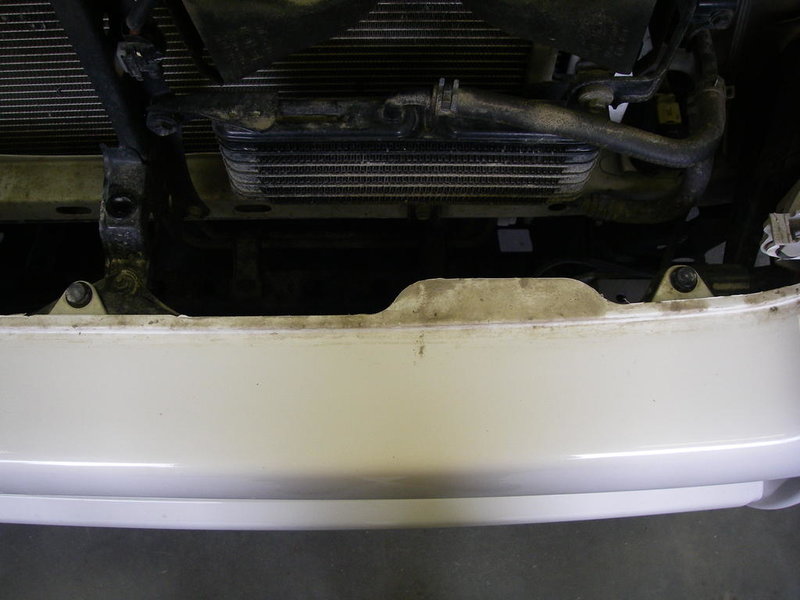

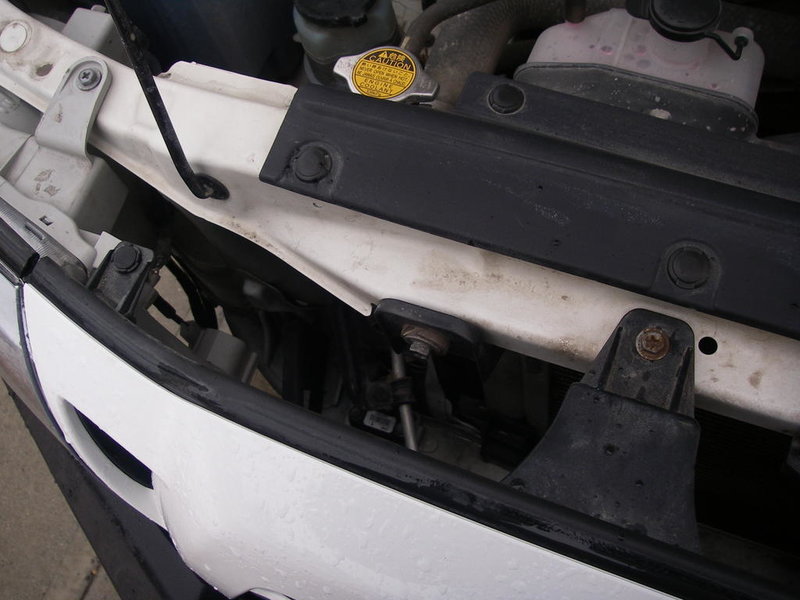

    Here's a few pictures of the bumper after removal.
    http://www.tacomaworld.com/forum/attachment.php?attachmentid=144214&stc=1&d=1332805834

    http://www.tacomaworld.com/forum/attachment.php?attachmentid=144215&stc=1&d=1332805834

    http://www.tacomaworld.com/forum/attachment.php?attachmentid=144216&stc=1&d=1332805834

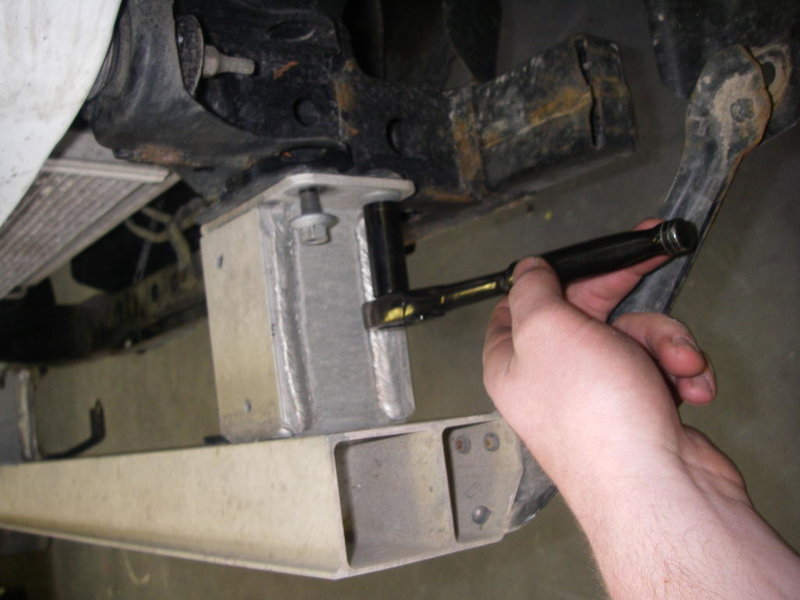

    If you need to remove the bumper sub assembly, remove the 6 nuts.
    http://www.tacomaworld.com/forum/attachment.php?attachmentid=144217&stc=1&d=1332806094

    I had to pound a screwdriver in-between the aluminum sub assembly and the steel frame numerous times on both side to get it to release from the bolts.


    NaZRaQ likes this.
  2. Mar 26, 2012 at 7:07 PM
    #2
    whiteboy

    whiteboy Well-Known Member

    Joined:
    Feb 5, 2012
    Member:
    #72175
    Messages:
    2,371
    Gender:
    Male
    First Name:
    Cody
    Glendale, AZ
    Vehicle:
    '06 TRD sport
    Kings, alcans, 33's blah blah read my build thread in sig
    I'll be doing this in a month or so. Thanks for the write up.

  3. Mar 26, 2012 at 8:27 PM
    #3
    ROGU3 PR3DATOR

    ROGU3 PR3DATOR Space Shuttle Door Gunner

    Joined:
    Aug 9, 2010
    Member:
    #41451
    Messages:
    1,046
    Gender:
    Male
    First Name:
    Jake
    Clearfield Utah
    Vehicle:
    MGM 2011 TRD Off-Road
    Click my Sig Pic for my build thread. Too many to list here.
    Fixed. Im also attaching the PDF I used for doing this when I did this last week. Nice write up though.


    Attached Files:

    NaZRaQ likes this.
  4. Mar 26, 2012 at 8:43 PM
    #4
    907taco

    907taco Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,358
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,
    Nice write up, I wish I had this when I installed my CBI bumper last yr. this will help someone for sure. Rep for you man

  5. Mar 26, 2012 at 8:46 PM
    #5
    907taco

    907taco Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,358
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,
    And your 3rd post to boot!

  6. Sep 3, 2012 at 5:13 PM
    #6
    jdk52

    jdk52 Bro do you even 'Merica?

    Joined:
    Mar 5, 2012
    Member:
    #74223
    Messages:
    833
    Gender:
    Male
    Utah
    Vehicle:
    11 SR5
    3 inch OME lift kit, rear diff breather mod, cb install, sliders, brute force fab front end.
    just what I needed.

  7. Jun 15, 2013 at 8:16 AM
    #7
    normbal

    normbal Well-Known Member

    Joined:
    Nov 10, 2009
    Member:
    #25724
    Messages:
    197
    Gender:
    Male
    First Name:
    Norm
    socialist occupied Maryland
    Vehicle:
    White SR5 long bed
    minor mods. Hood moustache, truckchamp SS oval step-bars, Go Rhino Hitch step, popnlock plus tailgate hoseclamp, Weathertech digitalfit floor mats. Wheel and spare tire locks.
    Post resurrection time...

    Can anyone tell me, is there an easy (easier) way of pulling off the bumper side panel without having to pull the whole bumper?

    Hit a deer a couple years back, had the left quarter panel, bumper, grill, headlight and some other parts replaced - insurance paid - but about a year later a small chip appeared (stone? rock salt?), I used the touch-up paint on it, then another chip, and while in Nashville in March THIS happened:

    [​IMG]

    Don't recall parking in any bushes or hitting anything. I'd LIKE to just take off that panel, hit it with some acetone (I did a little bit, the stuff peels off like a post-it note), rough up the underlying ABS, hit it with some Krylon primer and just lay a coat of white lacquer over it. Anything will look better than it does now.

    Shop that did the work is out of business and I don't want to have to make a hole or two in my schedule to take the thing in to have it worked on, warranty or otherwise.

    Ideas?

    Just mask and have at it?

    Would be a heck of a lot easier getting the part into the garage where I can control the light, dust, wind, rain, interruptions, etc.

    Thanks.

  8. Jun 15, 2013 at 11:50 AM
    #8
    Infra

    Infra Well-Known Member

    Joined:
    Apr 29, 2010
    Member:
    #36238
    Messages:
    2,954
    Gender:
    Male
    First Name:
    Jason
    Az
    Vehicle:
    2010 MGM DCSB 4x4 TRD OR 6spd
    CBI Bushmaster 2.0 rear bumper with swing out tire carrier & fold down camp table, CBI Moab 2.0 front bumper, Warn M8000-S, Icon 2.5 RR CDC Extended travel CO's with 700lb springs, Icon 2.5 RR CDC rear shocks, Icon hydro bumps, Total Chaos uniball UCA's, All Pro Expo leafs, U-bolt flip kit, Softopper, diff breather mod, extended rear brake lines, Grillecraft mesh grille, Elusive Elements behind grille light bar with B.A.M.F. LED light bar brackets, okLEDlightbars.com 20" double row LED light bar, Relentless Fabrication hood cb antenna mount, Wilson Silver Load CB antenna, Uniden 520 Pro XL CB radio, Wet okole seat covers, Weather tech floor liners, Weather tech in channel window deflectors, trasharoo spare tire trash bag carrier, Box Rocket 2nd gen bed rack with (2) 2 gallon gas rotopax mounted on drivers side, (2) 2 gallon water rotopax mounted on passenger side, (1) 3 gallon gas rotopax & (1) 2 gallon gas rotopax mounted on CBI swing out, Avid weld on sliders, Mattgecko LED bed light
    Sub'd for later reference

  9. Jun 15, 2013 at 12:04 PM
    #9
    XXXX

    XXXX Well-Known Member

    Joined:
    Sep 1, 2011
    Member:
    #62715
    Messages:
    20,913
    Gender:
    Male
    First Name:
    sKiP
    Vehicle:
    05 Prius
    see the other posters pics above....I just copied them

    clips are all under the bumper (see the blue ones). if you can reach them by hand while it's mounted have at it. if you can't - Just an FYI the bumper removal is VERY simple to do. Something like 4 screws and a couple clips. I had mine off in less than 30 minutes to put my lower grillcraft in many years ago.

    [​IMG]

  10. Jun 16, 2013 at 10:42 AM
    #10
    normbal

    normbal Well-Known Member

    Joined:
    Nov 10, 2009
    Member:
    #25724
    Messages:
    197
    Gender:
    Male
    First Name:
    Norm
    socialist occupied Maryland
    Vehicle:
    White SR5 long bed
    minor mods. Hood moustache, truckchamp SS oval step-bars, Go Rhino Hitch step, popnlock plus tailgate hoseclamp, Weathertech digitalfit floor mats. Wheel and spare tire locks.
    I saw that picture. Not sure if the clips can be approached from inside the front of the wheel well. It LOOKS like the black splash panel there could be removed first, but just thought I'd ask someone if they'd done it

    Thanks.

  11. Aug 15, 2013 at 10:12 PM
    #11
    pmosin

    pmosin Well-Known Member

    Joined:
    Feb 18, 2011
    Member:
    #51381
    Messages:
    50
    Gender:
    Male
    SoCal
    Vehicle:
    07 Access Cab 4x4 TRD 6spd
    ARE Camper shell
    Thanks for this thread, this guide worked perfectly.

    The original bumper skin on my '07 had been repainted (poorly) by the previous owner, and the clear coat and paint started to self-destruct. I finally got lucky on Craigslist with a user silver bumper skin in very good shape that I found locally for $45.

    Removal and installation of new bumper skin took me 2.5 hours, including cleanup.

    A few extra tips:

    1. Before doing the job, you may want to buy a few extra grill clips, bumper clips, and wheel well "screw" clips. I ended up breaking a few popping them out, many were stiff with dirt/mud. FYI, the grill clips are longer than the bumper clips (at least the ones on the bottom, a bunch of mine were missing from the owner's previous repair).

    Also I think "screw" like clip in the wheel well must be turned 1/2 turn counter-clockwise (so that the "cut" in the top of the screw is vertical) before popping it out.

    2. To remove the fog lamp, just twist the rear connector about 1/4 to 1/2 turn counter-clockwise.

    3. When removing the bumper, on each side near the bumper flares, there is a small metal hook that the bumper plastic clips into. Be careful popping these up and out, because the plastic of the bumper is small and weak in that spot.

    4. To remove the entire fog lamp assembly (easiest after removing the bumper skin altogether), push the tabs in on the black plastic retainer that surrounds the fog lamp adjustment screw (at the bottom of the fog lamp), then while push in the 2 black tabs at the sides of the fog lamp assembly (they stick out into the bumper plastic), push the whole thing out towards the front of the bumper.

    5. Before reassembling, clean all plastic parts well using a good plastic cleaner + protectant like 303 Aerospace Protectant, including all of your bumper clips...how often will you be in here to clean anyway?

    Reassembly works perfectly in reverse order, without headaches.

    I'm attaching some photos of the results.

    Before:

    Bumper removed:

    After:

    Last edited: Aug 15, 2013
    rjbiii likes this.
  12. Aug 20, 2013 at 7:13 PM
    #12
    Got2ryde

    Got2ryde Well-Known Member

    Joined:
    May 1, 2012
    Member:
    #77982
    Messages:
    580
    Gender:
    Male
    First Name:
    Ryder
    Maryland
    Vehicle:
    AC OR 6spd silverstreak
    Off Road tow pac. GTCovers wetskinz seat covers, Direct wired Escort 9500xi, Leer 180 w/ARB awning, bed mat, extra d-rings, rear dif breather relocated, Weathertec mats, Elite front with Warn M8000-s and Rigid D2's, BAMF sliders, ABS killswitch, Kicker Hideaway sub, UltraGauge, ATO rear with flush mount duallys, FJ Trail Team black rims w/Duratracs.
    Subed for good write up. About to install my Elite!!!:D

  13. Aug 21, 2013 at 10:52 AM
    #13
    pmosin

    pmosin Well-Known Member

    Joined:
    Feb 18, 2011
    Member:
    #51381
    Messages:
    50
    Gender:
    Male
    SoCal
    Vehicle:
    07 Access Cab 4x4 TRD 6spd
    ARE Camper shell
    FYI, I was looking thru a few online Tacoma fiches and I had trouble finding where the bumper clips and grill clips are listed. Finally tracked down a fiche that shows it clearly:

    http://www.villagetoyotaparts.com/s...=2007&ukey_driveLine=6162&searchString=bumper

    Part #52161C AKA 52161-02020 AKA 52161-0K040 AKA 52161-16010

    They sell 'em on Amazon and Ebay as well for less, like here, 20 pcs for $6.50 + free ship:
    http://www.ebay.com/itm/20x-Rear-Bu...Parts_Accessories&hash=item484d457283&vxp=mtr

  14. Jul 4, 2014 at 7:49 AM
    #14
    jasclair

    jasclair Well-Known Member

    Joined:
    Apr 6, 2014
    Member:
    #127120
    Messages:
    847
    Gender:
    Male
    First Name:
    joshua
    Bend oregon
    Current: BHLM, plasti dip badges/bumper, Satoshi homer taco style grille, custom TRD, pack rack Marshall fab, window tint,interior paint job, ome lift,wheels spacer, white light interior, retrofit headlights.
  15. Jul 4, 2014 at 10:19 AM
    #15
    XXXX

    XXXX Well-Known Member

    Joined:
    Sep 1, 2011
    Member:
    #62715
    Messages:
    20,913
    Gender:
    Male
    First Name:
    sKiP
    Vehicle:
    05 Prius

    No need to post in necro threads to sub to them.

    Go to "thread tools" at the top right and click on it. A drop down window will appear. Click on "subscribe".

  16. Sep 16, 2014 at 10:15 PM
    #16
    BigD91

    BigD91 Well-Known Member

    Joined:
    Feb 8, 2012
    Member:
    #72455
    Messages:
    108
    Gender:
    Male
    First Name:
    Andrew
    Bay Area
    Vehicle:
    08 Double Cab 4x4 TRD Sport
    Great right up thanks!

  17. Nov 5, 2016 at 8:08 AM
    #17
    NaZRaQ

    NaZRaQ Well-Known Member

    Joined:
    Jul 22, 2014
    Member:
    #134452
    Messages:
    285
    Gender:
    Male
    First Name:
    Zee
    Denver
    Vehicle:
    08 TRD off road DCSB
    great write up, I'll removing stock to install a pelfrey bumper this weekend.

  18. Nov 5, 2016 at 8:59 AM
    #18
    BR Pipke

    BR Pipke Well-Known Member

    Joined:
    Sep 22, 2016
    Member:
    #197988
    Messages:
    50
    Gender:
    Male
    Drayton Valley Canada
    11 TRD short box 6speed std with 3" lift bilstein 5100 struts pro comp UCA AFE air cleaner and throttle spacer ultra rims 265-70/18 dual exhaust

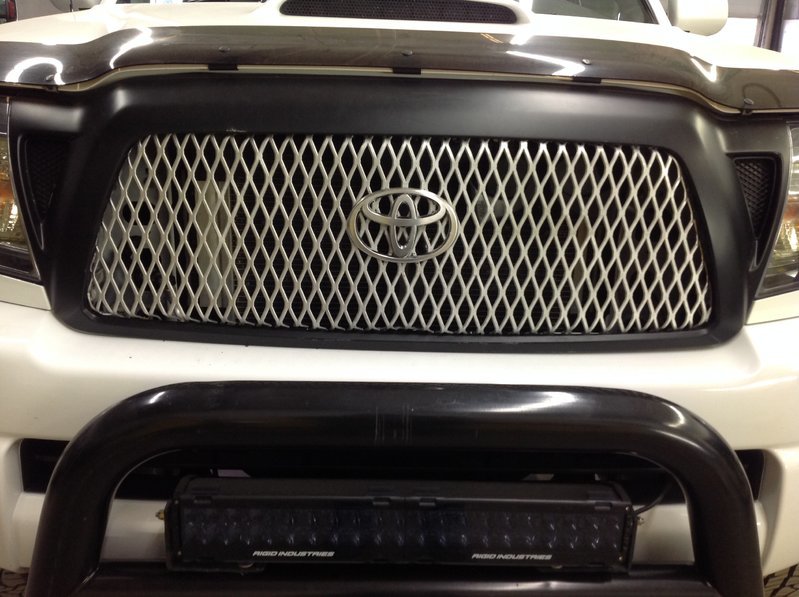

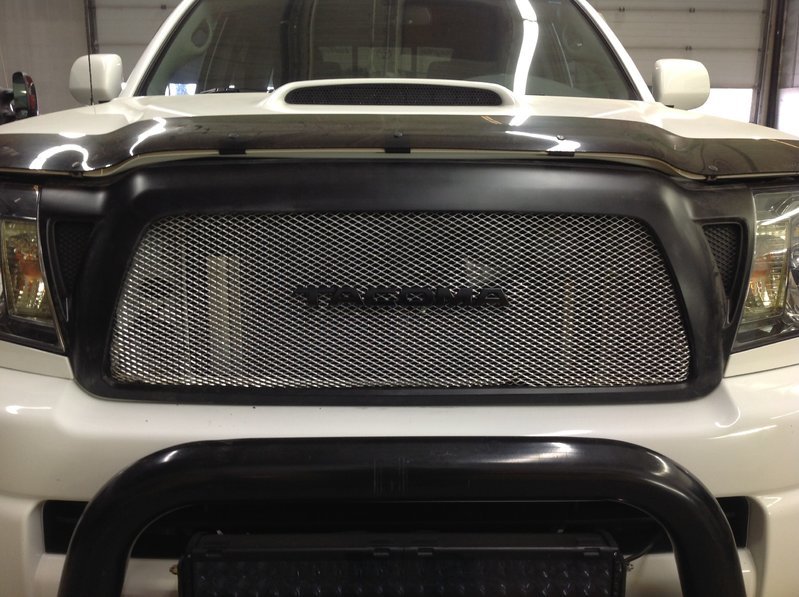

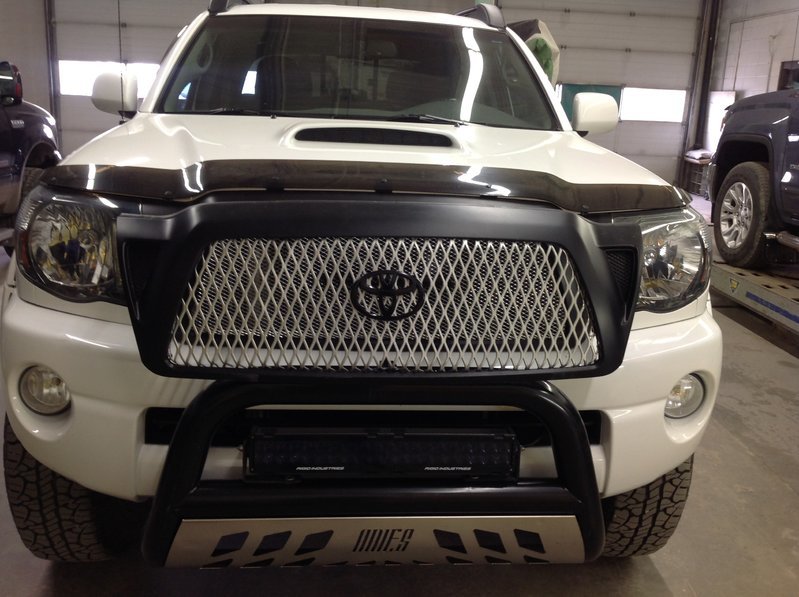

    IMG_5383.jpg Some of my grille optionIMG_5385.jpg IMG_5384.jpg
