05+ OEM Hitch Installation Instructions

Discussion in 'Towing' started by The Yellow Dart, Sep 1, 2010.

  1. Sep 1, 2010 at 4:39 PM
    #1
    The Yellow Dart

    The Yellow Dart [OP] Well-Known Member

    Joined:
    Mar 9, 2010
    Member:
    #32865
    Messages:
    407
    Gender:
    Male
    First Name:
    Nick
    Seattle
    Vehicle:
    07 //SR5 4x4
    OME 2.5" Lift, TC UCAs, LEER Cap, Sleeping platform, PA20-TOY
    I recently purchased an OEM receiver hitch from a guy on Craigslist. It came with all the parts necessary.

    The shop wanted $400 to install the thing, so I'm not even going to ask the dealer how much they would charge. From what I understand, the installation is pretty simple, since there is no drilling required, and using standard metric tools and a torque wrench -- but it's best to have a couple buddies help with lifting the bumper and holding the hitch in place.

    My question is, can anyone point me in the right direction for an installation guide, or writeup about how to install an OEM hitch? I'd like to do it right the first time, and not make my friends stand around all day while I figure out the process. I'd also like to make sure I have the proper torque adjustments, so the damn thing doesn't come off while I'm pulling something through the Cascades.

    I've searched the site and Google, but I can't seem to find anything about the installation process.

    Thanks for any help. I'll write up a synopsis when I get it on.

  2. Sep 1, 2010 at 5:37 PM
    #2
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    30,845
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Actually you might want to ask your dealer... $400 sounds absolutely ridiculous. At the most it'll take an hour for a shop to do. Did your hitch come with the mounting hardware or do you have to buy that separately?

  3. Sep 1, 2010 at 10:09 PM
    #3
    The Yellow Dart

    The Yellow Dart [OP] Well-Known Member

    Joined:
    Mar 9, 2010
    Member:
    #32865
    Messages:
    407
    Gender:
    Male
    First Name:
    Nick
    Seattle
    Vehicle:
    07 //SR5 4x4
    OME 2.5" Lift, TC UCAs, LEER Cap, Sleeping platform, PA20-TOY
    It came with the mounting hardware.

    Seriously, all that needs to be done is take off the bumper, put on the hitch, then re-attach the bumper. It shouldn't be that much.

  4. Sep 2, 2010 at 9:30 AM
    #4
    Barnone

    Barnone Guest

  5. Sep 2, 2010 at 9:37 AM
    #5
    Uncharted

    Uncharted Well-Known Member

    Joined:
    May 21, 2009
    Member:
    #17500
    Messages:
    175
    Gender:
    Male
    Phoenix, AZ
    Vehicle:
    08 Taco
    Icon Extended Travel C/O's, TC UCA's, 285/70/17 Hankook Dynapro MT's, 17" XD Revolvers, Avid Off Road Sliders, Toytec TSB AAL, Rear 5100's, All Pro Front Bumper & Skids, Color Matched Grill, Grillcraft Upper, BHLM, Tinted Taillights, Lightforce 240's.
    I picked up a hitch just like you did. The whole installation process was really simple. One of my buddies and I did it in a couple hours(no more than 3). There are two little spots that you have to grind off to get the brackets to release IIRC. I'll see if i can find the old brackets and take a picture of them for you. It honestly wasn't very hard but just took a little bit of time.

  6. Sep 2, 2010 at 9:50 AM
    #6
    Uncharted

    Uncharted Well-Known Member

    Joined:
    May 21, 2009
    Member:
    #17500
    Messages:
    175
    Gender:
    Male
    Phoenix, AZ
    Vehicle:
    08 Taco
    Icon Extended Travel C/O's, TC UCA's, 285/70/17 Hankook Dynapro MT's, 17" XD Revolvers, Avid Off Road Sliders, Toytec TSB AAL, Rear 5100's, All Pro Front Bumper & Skids, Color Matched Grill, Grillcraft Upper, BHLM, Tinted Taillights, Lightforce 240's.

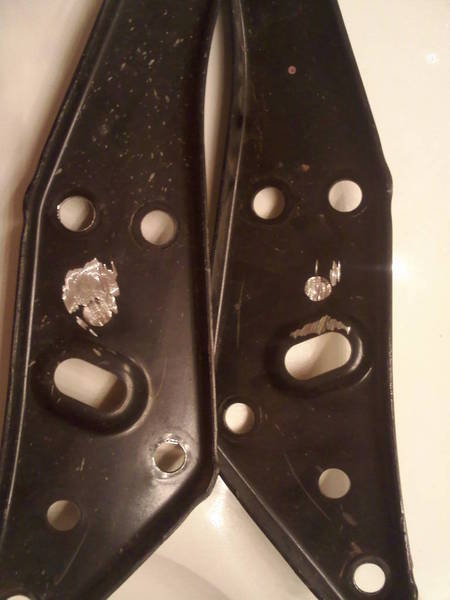

    Here's a couple photos of where you have to grind off. I can't remember why you have to grind them but I'm pretty sure you do.
    [​IMG]

    [​IMG]

  7. Sep 2, 2010 at 10:28 AM
    #7
    asus611

    asus611 Well-Known Member

    Joined:
    Jan 22, 2010
    Member:
    #29821
    Messages:
    232
    Gender:
    Male
    CA
    Vehicle:
    03 Double Cab Prerunner
    PM sent.

  8. Sep 2, 2010 at 10:36 AM
    #8
    The Yellow Dart

    The Yellow Dart [OP] Well-Known Member

    Joined:
    Mar 9, 2010
    Member:
    #32865
    Messages:
    407
    Gender:
    Male
    First Name:
    Nick
    Seattle
    Vehicle:
    07 //SR5 4x4
    OME 2.5" Lift, TC UCAs, LEER Cap, Sleeping platform, PA20-TOY
    Thanks for all the help, everyone.

    I had a dentist appointment this morning, so I couldn't snap any pics. I'll try and get some tomorrow.

    Oswego -- I might be able to do that with the bumper plates. Unless I wreck them for some reason.

  9. Sep 2, 2010 at 11:08 AM
    #9
    RLDTACO

    RLDTACO Well-Known Member

    Joined:
    Aug 2, 2010
    Member:
    #41121
    Messages:
    11,983
    Gender:
    Male
    First Name:
    Bob
    Houston Tx.
    Vehicle:
    2010 DCLB PreRunner SR5
    Debadged,Tailgate theft mod,Extra D-rings,OEM bed mat,TRD exhaust, 5100 Billys@ 4 corners set@ 0 with Eibach springs, rear TSB springs.N-Fab tube Steps. TRD FJ SE wheels and Michelin LTX A/T 2's
    If you go to "Customtacos.com" website and look in the tech section under Exterior/Body Tech 2005+ you will find instuctions for oem receiver hitch. You don't have to remove bumper, just change out the brackets supplied with hitch one side at a time. Then raise hitch up to brackets (I used a floor jack) and bolt together. I installed mine in about two hours and I am no Mr. Goodwrench. good luck!
    Bob

  10. Sep 2, 2010 at 11:13 AM
    #10
    The Yellow Dart

    The Yellow Dart [OP] Well-Known Member

    Joined:
    Mar 9, 2010
    Member:
    #32865
    Messages:
    407
    Gender:
    Male
    First Name:
    Nick
    Seattle
    Vehicle:
    07 //SR5 4x4
    OME 2.5" Lift, TC UCAs, LEER Cap, Sleeping platform, PA20-TOY
    ^^^ Thanks Bob!

  11. Sep 2, 2010 at 11:13 AM
    #11
    Uncharted

    Uncharted Well-Known Member

    Joined:
    May 21, 2009
    Member:
    #17500
    Messages:
    175
    Gender:
    Male
    Phoenix, AZ
    Vehicle:
    08 Taco
    Icon Extended Travel C/O's, TC UCA's, 285/70/17 Hankook Dynapro MT's, 17" XD Revolvers, Avid Off Road Sliders, Toytec TSB AAL, Rear 5100's, All Pro Front Bumper & Skids, Color Matched Grill, Grillcraft Upper, BHLM, Tinted Taillights, Lightforce 240's.
    Those are the stock brackets that hold on the bumper without a hitch. If you don't a have hitch then these are what connects your bumper to the frame.

  12. Sep 2, 2010 at 12:10 PM
    #12
    RLDTACO

    RLDTACO Well-Known Member

    Joined:
    Aug 2, 2010
    Member:
    #41121
    Messages:
    11,983
    Gender:
    Male
    First Name:
    Bob
    Houston Tx.
    Vehicle:
    2010 DCLB PreRunner SR5
    Debadged,Tailgate theft mod,Extra D-rings,OEM bed mat,TRD exhaust, 5100 Billys@ 4 corners set@ 0 with Eibach springs, rear TSB springs.N-Fab tube Steps. TRD FJ SE wheels and Michelin LTX A/T 2's
    Oswego, If you need a set of brackets for the stock bumper, I have a set off my 2010 I will send you. Just pay me for shipping. Send me a PM if you are interested.
    Bob

  13. Sep 15, 2010 at 10:10 PM
    #13
    Bodete

    Bodete Well-Known Member

    Joined:
    Jun 3, 2009
    Member:
    #18009
    Messages:
    79
    Gender:
    Male
    Missouri
    Vehicle:
    2009 SR5 DC LB 4x4
    Eibach springs w/ 5100 Bilstein shocks set to "0", Rear TSB
