06 Tacoma with VIP 3200 GBS missing wiring harness

Discussion in '2nd Gen. Tacomas (2005-2015)' started by backtrix, Jun 26, 2021.

  1. Jun 26, 2021 at 10:38 AM
    #1
    backtrix

    backtrix [OP] Member

    Joined:
    Jan 23, 2011
    Member:
    #49780
    Messages:
    20
    Gender:
    Male
    First Name:
    Marc
    Vehicle:
    06 Double Cab TRD OR
    I have an 06 tacoma double cab and it came installed with a VIP 3200+ with a glass break sensor. The other day I was pulled apart the dash and saw that my GBS is not connected. I also cannot find any wire harness behind it to plug in. Is there a separated wire harness that I need to connected to the system? The system otherwise works with all the tests I've done. Trying to decide if it I should just take out the sensor altogether since its not doing anything or if there is an easy fix. Thanks

  2. Jun 26, 2021 at 11:13 AM
    #2
    backtrix

    backtrix [OP] Member

    Joined:
    Jan 23, 2011
    Member:
    #49780
    Messages:
    20
    Gender:
    Male
    First Name:
    Marc
    Vehicle:
    06 Double Cab TRD OR

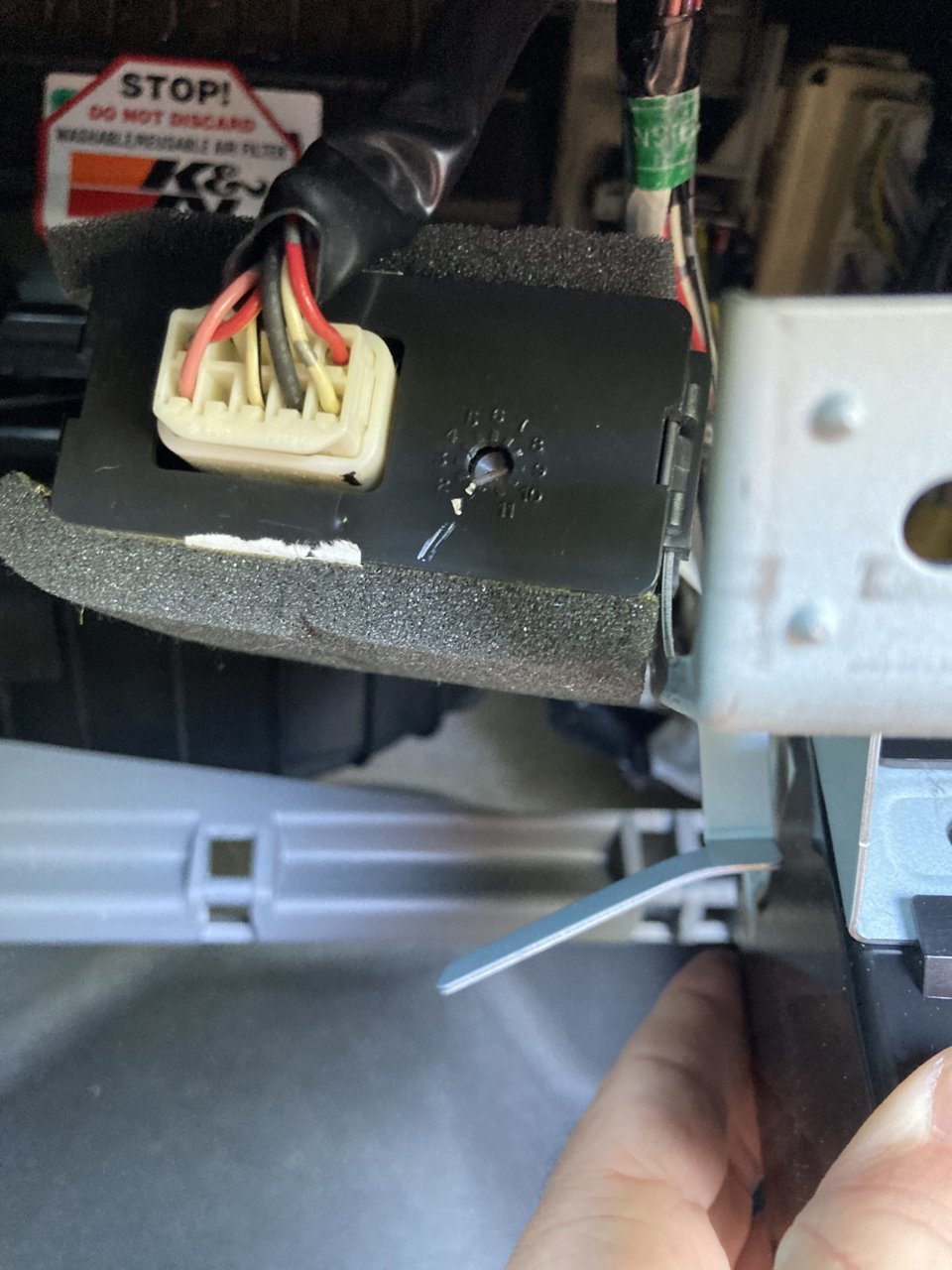

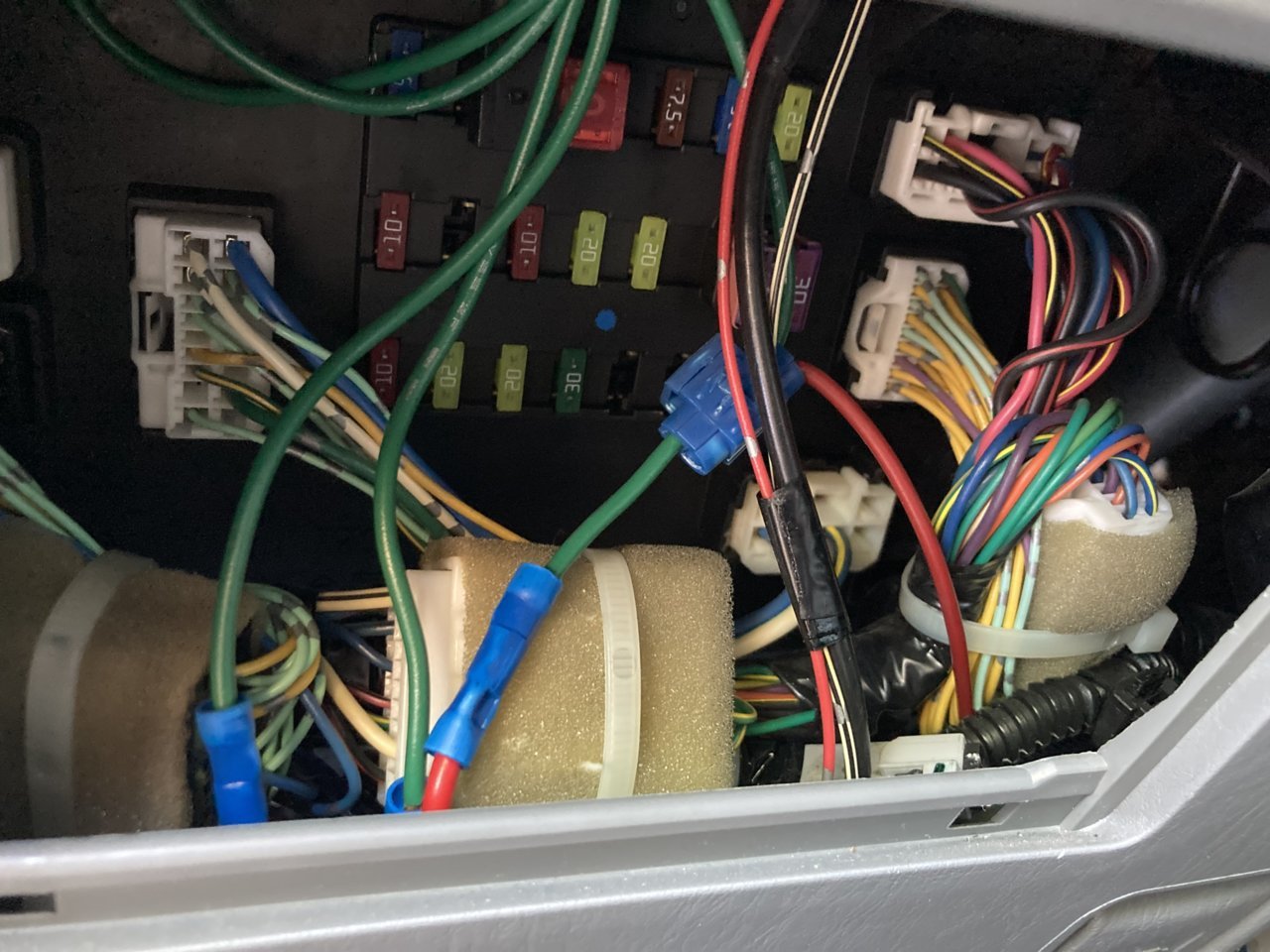

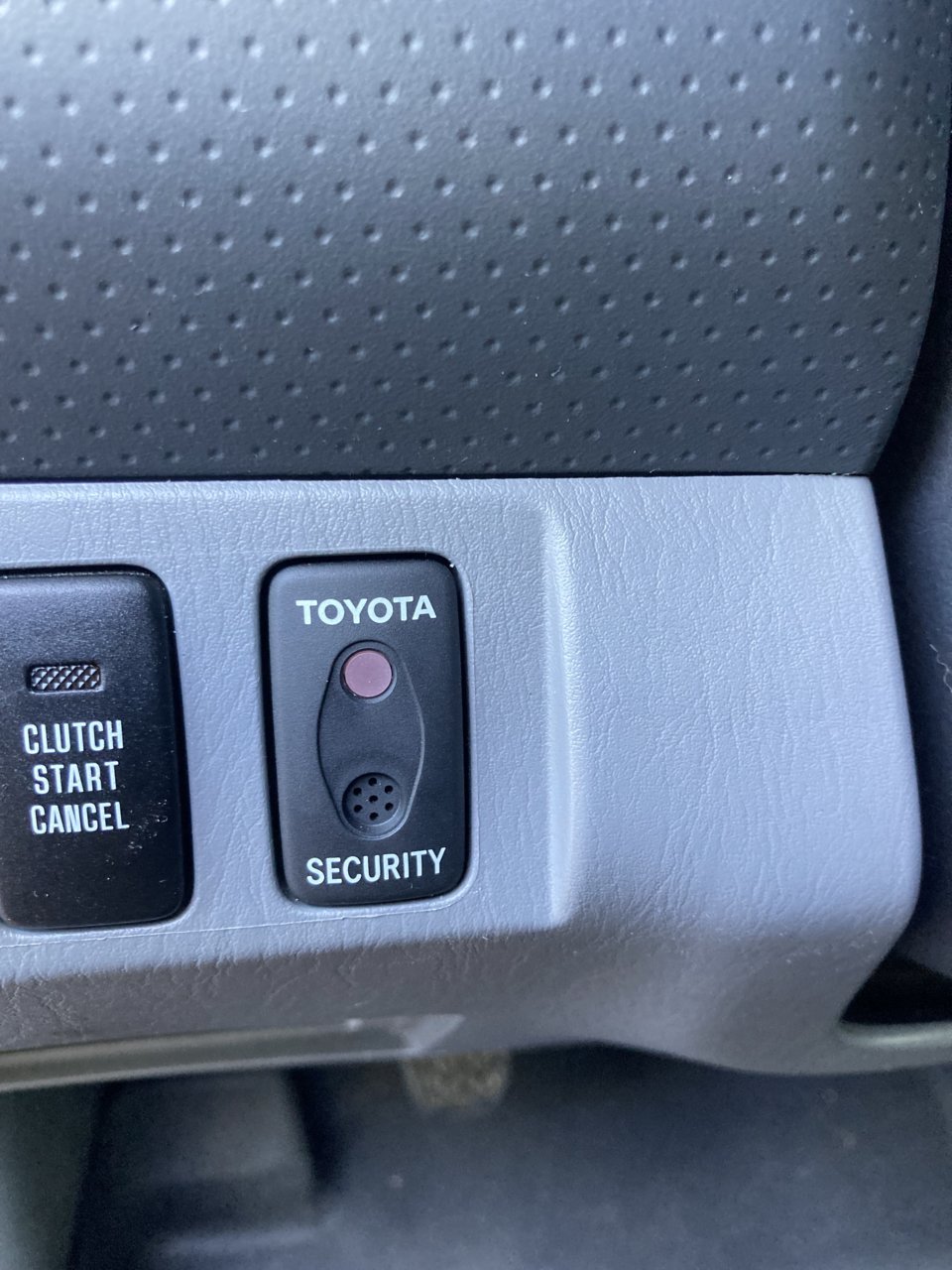

    Here are some photos of the system. The GBS module is there. Does anyone know where that harness is or what wires may have just been cut and I need to splice. Thanks.


  3. Jun 26, 2021 at 2:21 PM
    #3
    blu92in99

    blu92in99 Hates everyone, equally

    Joined:
    Aug 8, 2017
    Member:
    #226282
    Messages:
    1,186
    Gender:
    Male
    First Name:
    Justin
    Elk Grove, Ca
  4. Jun 26, 2021 at 2:32 PM
    #4
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,809
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

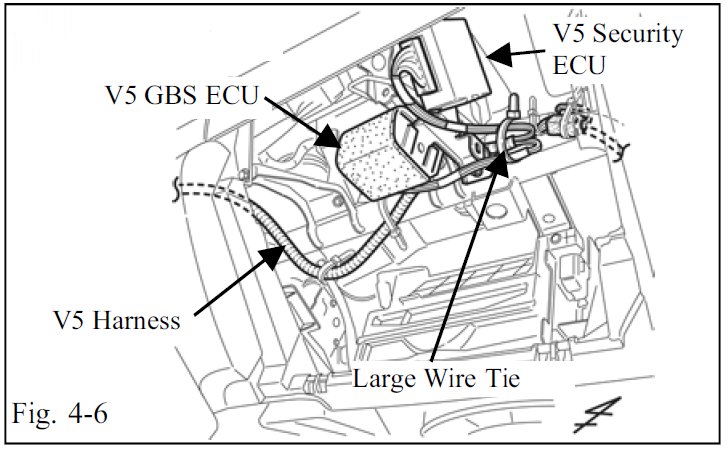

    Attached Files:

  5. Jun 26, 2021 at 2:52 PM
    #5
    backtrix

    backtrix [OP] Member

    Joined:
    Jan 23, 2011
    Member:
    #49780
    Messages:
    20
    Gender:
    Male
    First Name:
    Marc
    Vehicle:
    06 Double Cab TRD OR
    Thanks for the reply's. I actually just went to the dealer and the tech couldn't figure out why they didn't connected it in the first place. gave me the wiring diagram and connector diagram. looks like they never added any of the wires or connector it and just threw it in there.

  6. Jun 26, 2021 at 3:04 PM
    #6
    backtrix

    backtrix [OP] Member

    Joined:
    Jan 23, 2011
    Member:
    #49780
    Messages:
    20
    Gender:
    Male
    First Name:
    Marc
    Vehicle:
    06 Double Cab TRD OR
    im guessing the connector is probably buried behind the dash somewhere along the wiring harness. that's going to be a fun project for another day
