09+ rear backup camera tailgate handle install on 05

Discussion in '2nd Gen. Tacomas (2005-2015)' started by yosh2000, Jul 31, 2010.

  1. Jul 31, 2010 at 4:14 PM
    #1
    yosh2000

    yosh2000 [OP] Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,925
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    for all you 05-08 guys that are looking to do this, here are a few pics that will hopefully help you out.

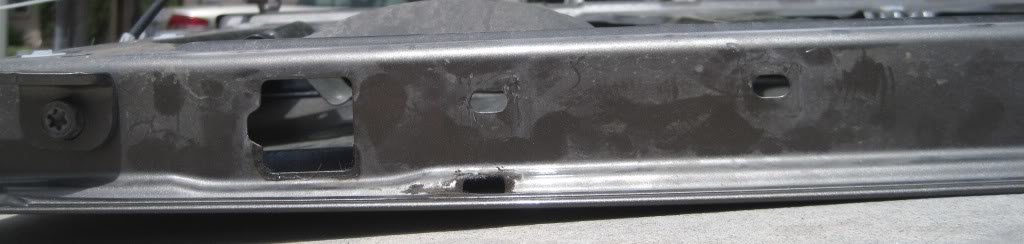

    here are the holes that you will need to cut out of your tailgate if you want an OEM like install.
    [​IMG]

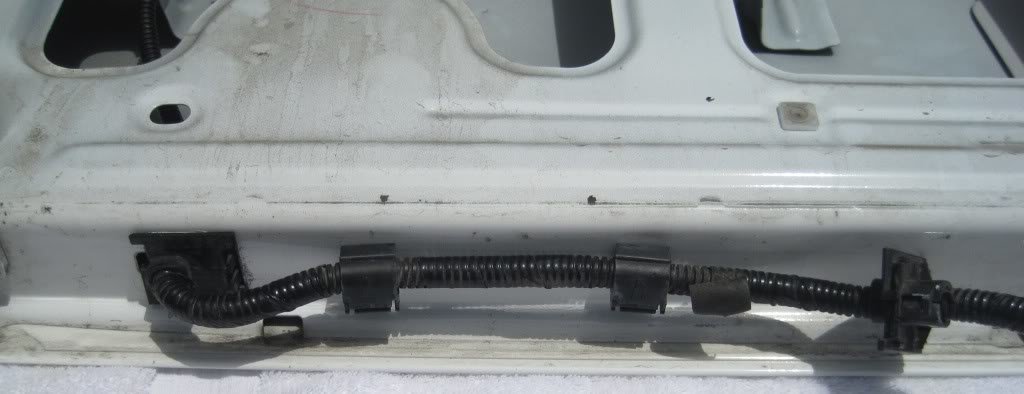

    here is the harness (PN 82182-04010) installed on my 05 tailgate after i cut the above holes to match.
    [​IMG]

    here is the inside of the tailgate w/ the handle and wiring securely attached. i simply taped the loom to some zip ties and zip tied them to the tailgate.
    [​IMG]

    i'll update w/ some more pics when i run all the wiring if you guys would like.

  2. Jul 31, 2010 at 10:55 PM
    #2
    supercrawler

    supercrawler Member

    Joined:
    Mar 23, 2008
    Member:
    #5470
    Messages:
    8
    Gggggggggggggreat!!

  3. Jul 31, 2010 at 11:36 PM
    #3
    hawkeye12

    hawkeye12 Go Pack Go!

    Joined:
    Jul 9, 2010
    Member:
    #39991
    Messages:
    415
    Gender:
    Male
    First Name:
    Bryce
    Raleigh, NC
    Vehicle:
    10 Black DC SB Tacoma TRD Sport
    Smittybilt nerf bars
    Nice first post, two years later!
    :D
    Late Welcome to TW!

  4. Jul 31, 2010 at 11:57 PM
    #4
    iSTIZO99

    iSTIZO99 Well-Known Member

    Joined:
    Jun 3, 2010
    Member:
    #38297
    Messages:
    1,785
    Gender:
    Male
    First Name:
    Mike
    Jax, FL
    Vehicle:
    2010 TRD Sport 4x4 DC/SB
    Nice! I'm interested in seeing the wiring. :popcorn:

  5. Aug 18, 2010 at 8:33 PM
    #5
    BadBrad

    BadBrad Member

    Joined:
    Jun 23, 2010
    Member:
    #39371
    Messages:
    12
    Gender:
    Male
    First Name:
    Brad
    Knoxville, TN
    Vehicle:
    05 White TRD Sport
    Billet Grill, Husky Liners, TRD Seat covers, 18" Enkei rims, Ranch camper top with roof rack, Cab roof rack,
    Where did you get the camera? How much? I just got an 05 and want to do this to mine too.

  6. Aug 18, 2010 at 8:34 PM
    #6
    yosh2000

    yosh2000 [OP] Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,925
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    got it off a guy what had a rolled truck...$50! every once in awhile they pop up on CL or egay...there are also aftermarket ones that are supposed to be better, but i couldnt pass up the OEM cam and handle for $50, so im good!

  7. Feb 13, 2011 at 11:26 AM
    #7
    MJonaGS32

    MJonaGS32 MJ on a GS

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    10,567
    Gender:
    Male
    First Name:
    MJ
    SF Bay Area (East)
    Vehicle:
    07 Mid-Travel 4x4 DCSB 6spd
    Kings Mid Travel, BAMF bed rack, RTT, dual battery, OBA, ARB locker, 4.56 gears
    I'm gonna get ready to do this sometime soon. Any update on this Yosh?

  8. Feb 13, 2011 at 11:29 AM
    #8
    HomerTaco

    HomerTaco Grill Sergeant Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    32,418
    Gender:
    Male
    First Name:
    Craig
    Bucks County Pa.
    Vehicle:
    four sticks, dual cases, zero fucks...
    Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill with 12-15 front-end swap/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad mini / Safari Snorkel / Auto-pilot mode / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust re-route / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift / Inchworm 4.7 crawlbox / twin stick FJ t-case / Davez off-road triple-stick kit/
    On my list...
    :popcorn:
    subbed for the pic's

  9. Feb 14, 2011 at 7:57 AM
    #9
    yosh2000

    yosh2000 [OP] Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,925
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    running the wires was too simple to even take pics. i picked up one of those 5 wire wires (not sure the name) from home depot and ran it from the tailgate to the mirror. then power/ground/signal wire from the truck to mirror...too easy!!

    let me know if anyone needs the wire callouts, a member here shared that info and i've made it a google doc for everyone.

  10. Feb 14, 2011 at 9:48 AM
    #10
    MJonaGS32

    MJonaGS32 MJ on a GS

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    10,567
    Gender:
    Male
    First Name:
    MJ
    SF Bay Area (East)
    Vehicle:
    07 Mid-Travel 4x4 DCSB 6spd
    Kings Mid Travel, BAMF bed rack, RTT, dual battery, OBA, ARB locker, 4.56 gears
    Ahh that's right. I forgot that you had given that to me already. :D

  11. Mar 22, 2011 at 10:04 AM
    #11
    1gr8ftoy

    1gr8ftoy Member

    Joined:
    Mar 22, 2011
    Member:
    #53486
    Messages:
    5
    Gender:
    Male
    Riverside, CA
    Vehicle:
    06 4WD Access Cab TRD Off-Road
    How do I access the Google Doc? I am hopefully going to pickup one of these camera's this week and would like to install it this weekend.

  12. Apr 4, 2011 at 10:08 PM
    #12
    crsuperjet

    crsuperjet New Member

    Joined:
    Mar 31, 2011
    Member:
    #54113
    Messages:
    2
    Gender:
    Male
    Los Angeles
    Vehicle:
    2008 TRD Crew Cab 4x4
    Any chance on getting the wire call out specs/


    Thanks

    Jerry

  13. Feb 9, 2012 at 1:46 PM
    #13
    TRDsport253

    TRDsport253 Well-Known Member

    Joined:
    Nov 15, 2009
    Member:
    #25945
    Messages:
    1,667
    Gender:
    Male
    Fife, Wa
    Vehicle:
    05 PreRunner TRDsport
    TRD Cold air TRD Cat-back
    what's that 5 wire wires thing called? I'm looking at getting one.

  14. Feb 9, 2012 at 7:49 PM
    #14
    yosh2000

    yosh2000 [OP] Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,925
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    oh i dont know dude...its just a gray outershell, with several wires inside. just go to home depot or lowes and ask the wire guys....they will know what you need.

  15. Feb 9, 2012 at 7:55 PM
    #15
    memario1214

    memario1214 Vivid Illumination Vendor

    Joined:
    Oct 1, 2009
    Member:
    #23628
    Messages:
    13,773
    Gender:
    Male
    First Name:
    Colton
    Gillette, WY
    Vehicle:
    05 Dub Cab TRD Sport 4x4
    Yeah, I gots boost
    The problem im having is getting a connection to go into the end of the harness that runs through the tailgate... any tips on that?

  16. Feb 9, 2012 at 8:14 PM
    #16
    yosh2000

    yosh2000 [OP] Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,925
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    not sure exactly what you mean. if you mean finding a plug, you really dont need it. here are the pinouts for the camera, just solder to those lines and you should be good. if i am not giving you what you need, help me understand and i'll see what i can do!

    T19
    -------
    | 1 2 |
    | 3 4 |
    --------
    T19: Camera
    -----------
    1 CV- (White) Camera Video Negative
    2 CV+ (Red) Camera Video Positive
    3 CGND (Blue) Camera GND (Shield)
    4 CB+ (Black) Camera Power

  17. Feb 9, 2012 at 8:38 PM
    #17
    memario1214

    memario1214 Vivid Illumination Vendor

    Joined:
    Oct 1, 2009
    Member:
    #23628
    Messages:
    13,773
    Gender:
    Male
    First Name:
    Colton
    Gillette, WY
    Vehicle:
    05 Dub Cab TRD Sport 4x4
    Yeah, I gots boost
    Stupidity was my main trait just there... Just cut off the end of what I have and solder everything! Duh... (not thinking on my part) I am wiring mine to a double din HU though, so I will have to do a few extra things. Black goes to the reverse trigger yeah? I really don't know how to wire this up and was just going to play it by ear when I got there. If you have the know how though, I'll gladly pick your brain for it.

  18. Feb 9, 2012 at 8:43 PM
    #18
    memario1214

    memario1214 Vivid Illumination Vendor

    Joined:
    Oct 1, 2009
    Member:
    #23628
    Messages:
    13,773
    Gender:
    Male
    First Name:
    Colton
    Gillette, WY
    Vehicle:
    05 Dub Cab TRD Sport 4x4
    Yeah, I gots boost
  19. Feb 9, 2012 at 8:49 PM
    #19
    yosh2000

    yosh2000 [OP] Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,925
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    well...there you go!! WAY better writeup than mine!!

  20. Feb 18, 2012 at 2:32 PM
    #20
    ppleasants

    ppleasants Well-Known Member

    Joined:
    Apr 26, 2010
    Member:
    #36058
    Messages:
    115
    Gender:
    Male
    virginia
    Vehicle:
    05 TRD Sport Doublecab Longbed
    5100's set at 2.5", toytec AAL, DIY AUX port, broken mirror fix, temp/compass fix (twice), rattle-can gunmetal sport rims, debadged doors, fog-light anytime mod, DTRL mod, rear differential breather mod, drop in K&N air filter
    I just finished all the wiring for mine and when I went to test it I'm not getting anything from the mirror. I just ran 4 wires from the camera to the mirror and then for the other 3 wires in the mirror harness: red went to reverse wire by the dead pedal and green and white wires tapped into the matching wires from the compass/temp display. Any idea what I did wrong?

    EDIT: my tap into the reverse wire was faulty... works great now
