1 Hour Spring Clamps

Discussion in 'Suspension' started by 4WD, May 18, 2012.

  1. May 18, 2012 at 10:04 PM
    #1
    4WD

    4WD [OP] cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    23,950
    Gender:
    Male
    First Name:
    Doug
    Lakeside, Ca / Gardnerville, Nevada
    Vehicle:
    No Truck..well, maybe
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now
    I don't know if this MOD has appeared here before , but no matter,

    after building a leaf pack or doing an AAL its always a good idea to add a little "sidewall" support.. Now most if not all clamps are done at the factory by way of drilling a hole & driving a huge ass rivett thru the clampbase & thru the spring/overload sometimes tension by way of a hole drilled thru top of clamp with a nut & bolt....

    These things seem to loosen up around the rivett in not much time allowing it to add to the other rattles & noises that drive us all batshit after awhile...

    So I came up with a cheap clamp MOD that so far seems to be holding up out there in the dez being mobbed by a couple guys I turned loose with them a few weeks back.

    Now I know this could be done alot cleaner, & alot prettier but that just ain't how we roll at OMD . (well, sometimes we're pretty:D)

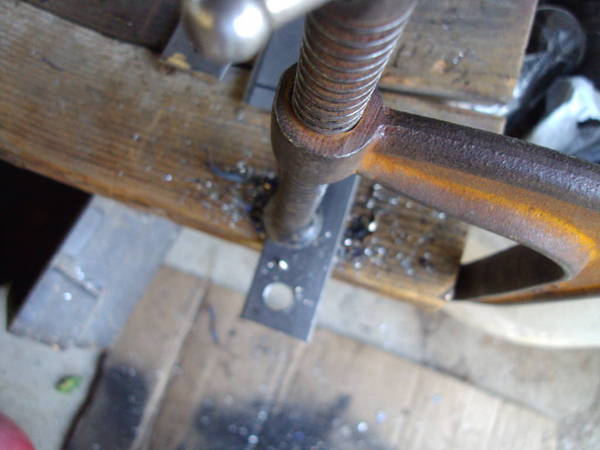

    With a little 3/8" galvanized all-thread, a handful of nuts & washers, some 3/16" flat steel , we're going to help keep the leafs in place on the cheap...but cheap = shit if it doesn't work right ?....


    [​IMG]
    [​IMG]

    Last edited: Jun 3, 2014
  2. May 18, 2012 at 10:09 PM
    #2
    4WD

    4WD [OP] cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    23,950
    Gender:
    Male
    First Name:
    Doug
    Lakeside, Ca / Gardnerville, Nevada
    Vehicle:
    No Truck..well, maybe
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now

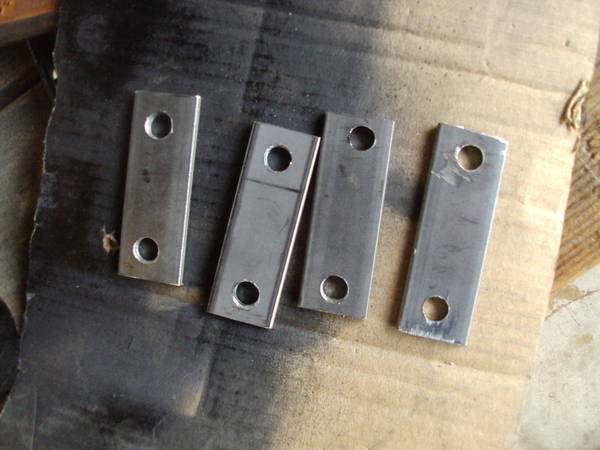

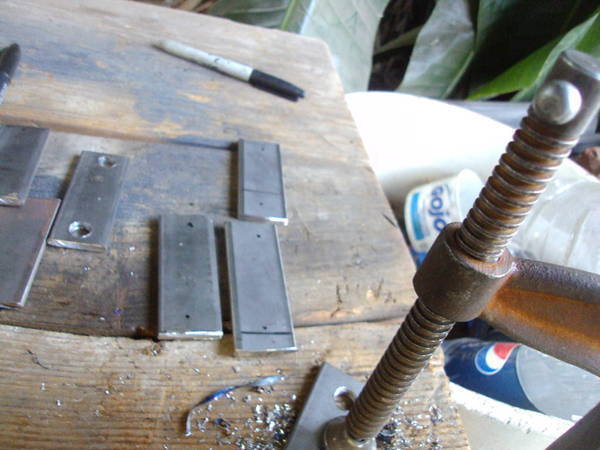

    The steel was cut at about 3.5" long pieces & I haven't measured the distance between the holes but I will in a bit....



    [​IMG]

  3. May 18, 2012 at 10:17 PM
    #3
    SnowroxKT

    SnowroxKT AK SnowroxKT

    Joined:
    Dec 11, 2011
    Member:
    #68604
    Messages:
    3,960
    Gender:
    Male
    First Name:
    Kyle
    Anchorage Alaska
    Vehicle:
    Roxy '95 Manual 4x4
    SAS locked geared
    Curious if you use nylocks and leave them a hair loose or snug them up good and lock-washer 'em or??? I would probably nylock or threadlocker it. What sayest thou OMD? :D

  4. May 18, 2012 at 10:58 PM
    #4
    4WD

    4WD [OP] cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    23,950
    Gender:
    Male
    First Name:
    Doug
    Lakeside, Ca / Gardnerville, Nevada
    Vehicle:
    No Truck..well, maybe
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now

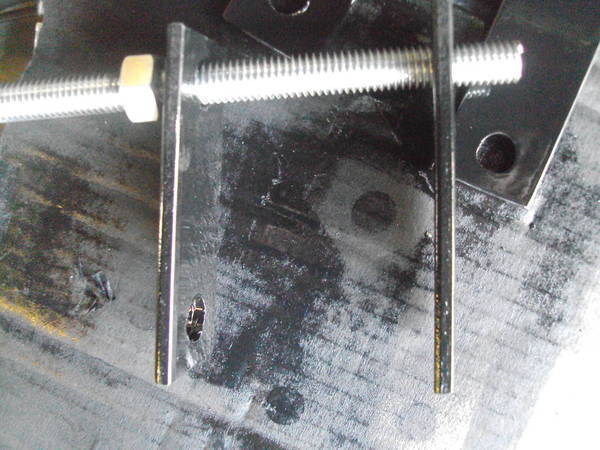

    I used 7/16" All Thread , which is a little over kill really, I'll use 3/8" for now on & save some $$$ (besides the ones that are being R&D'd are 3/8")....



    [​IMG]

    [​IMG]

    Last edited: Jun 3, 2014
  5. May 18, 2012 at 11:15 PM
    #5
    4WD

    4WD [OP] cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    23,950
    Gender:
    Male
    First Name:
    Doug
    Lakeside, Ca / Gardnerville, Nevada
    Vehicle:
    No Truck..well, maybe
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now
    Hey Thanks Brock !!....:wave::D

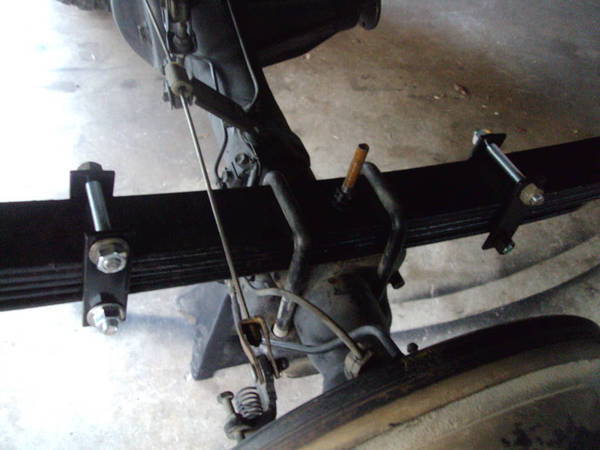

    Ya know I thought about nylocks & aircraft grade 8 anodized bolts too, but seeing how 16 nylocks would be needed (at about .30-.40 cents per nut, & I know for a fact that the bolts would be almost $2.00 each , just got some) & the whole on-the-cheap concept would be out the door...

    [​IMG]

    [​IMG]

  6. May 18, 2012 at 11:21 PM
    #6
    SnowroxKT

    SnowroxKT AK SnowroxKT

    Joined:
    Dec 11, 2011
    Member:
    #68604
    Messages:
    3,960
    Gender:
    Male
    First Name:
    Kyle
    Anchorage Alaska
    Vehicle:
    Roxy '95 Manual 4x4
    SAS locked geared
    Understood! yeah those buggers are expensive... Love your spring refurb thread too. Hows your truck coming?

    Although I get my hardware at "Fastener's" they sell to all the big guys and are generally at LEAST half of lowes/home depot and like 75% off True Value. Just fyi ;)

  7. May 18, 2012 at 11:24 PM
    #7
    4WD

    4WD [OP] cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    23,950
    Gender:
    Male
    First Name:
    Doug
    Lakeside, Ca / Gardnerville, Nevada
    Vehicle:
    No Truck..well, maybe
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now
    So for as far as keeping tight its just flat washered both sides & if you lok in pic you'll notice a slight warping of the clamp ends over & around the spring, this is how tight you want to get these, no more, no less.. It's tight on the pack w/tension but not so tight that thread stretch occurrs & the whole mess loosens up....



    [​IMG]

  8. May 18, 2012 at 11:29 PM
    #8
    4WD

    4WD [OP] cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    23,950
    Gender:
    Male
    First Name:
    Doug
    Lakeside, Ca / Gardnerville, Nevada
    Vehicle:
    No Truck..well, maybe
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now
    Thanks dude..!! Almost have enough to get a rebuilt trans w/3 year warranty, damn I'm stoked, its been about 8 months without it on the road....:)

    & yeah, even better if you get material xheaper for sure...

  9. May 18, 2012 at 11:33 PM
    #9
    dad32509

    dad32509 Thinking of something clever

    Joined:
    Sep 27, 2011
    Member:
    #64230
    Messages:
    3,115
    Gender:
    Male
    First Name:
    Dave
    San Diego
    Vehicle:
    Blacked out 05
    5100's front and back, OME 885x's, LR UCA's, OMD rear springs, Pioneer AVH-P2300DVD, HVAC Green led's MOD, Blacked out bumper, Plastidip emblems, custom front tube bumper, 32" combo led bar, rigid duallys, otrattw switches, my own Satoshi grille, shorty antenna, Spyder LED halo headlights. csjumper2003 map/dome, 3rd brake, DTRL white/amber and parking LED's. Pelfreybilt IFS skid, Cab mount chop, sliders and rear light bar w/blitzpro 5LR dust light. Uniden CB, Magnaflow 18" exhaust, Rear tire carrier, sway bar removed, spidertrax 1.25" spacers, Wheelers 16" Alloys w/265/75r16 Goodyear DuraTracs
    Bad ass Doug!:thumbsup:

  10. May 18, 2012 at 11:56 PM
    #10
    4WD

    4WD [OP] cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    23,950
    Gender:
    Male
    First Name:
    Doug
    Lakeside, Ca / Gardnerville, Nevada
    Vehicle:
    No Truck..well, maybe
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now
    Hi Dave & thanks ...:)

  11. May 18, 2012 at 11:57 PM
    #11
    4WD

    4WD [OP] cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    23,950
    Gender:
    Male
    First Name:
    Doug
    Lakeside, Ca / Gardnerville, Nevada
    Vehicle:
    No Truck..well, maybe
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now
    Ok, that about sums it up, back in a bit with cost of MOD...

  12. May 18, 2012 at 11:59 PM
    #12
    BAMFTACO

    BAMFTACO Pabst Blue Ribbon on ice

    Joined:
    Feb 3, 2010
    Member:
    #30639
    Messages:
    10,306
    Gender:
    Male
    First Name:
    JUAN
    Malibu, CA
    Vehicle:
    Taco
    Lift- king 2.5 with light racing uppers,tc coil bucket gusset, timbern bumps ,defined extended shackles with shackle brace. Armor- tire gate, custom tube bumper, kr fab rear bumper,trail gear wiy 78 in sliders Performance-intake manifold spacer, vibrant resonator as muffler, hps silicone hoses Random stuff- kenwood head unit,b&m t shifter, hood bug deflector, rear dust lights with custom bed bar and hi lift mount.
    Nice that's a good idea so simple also

  13. May 19, 2012 at 12:11 AM
    #13
    6spd

    6spd Well-Known Member

    Joined:
    Feb 4, 2012
    Member:
    #72162
    Messages:
    873
    Gender:
    Male
    san diego
    Vehicle:
    2012 4x4
    what is the purpose of these clamps? to prevent the leafs from spreading from the centerbolt(pivot point)? is there anything preventing these clamps from sliding towards the axle?

    I'm just playing devil's advocate here...

    also, why not get correct sized bolts vs. cutting all threads(unless its cheaper for all threads)?

  14. May 19, 2012 at 12:19 AM
    #14
    4WD

    4WD [OP] cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    23,950
    Gender:
    Male
    First Name:
    Doug
    Lakeside, Ca / Gardnerville, Nevada
    Vehicle:
    No Truck..well, maybe
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now
    OK. this is how it breaks down...

    1 stick of flat 1 & 1/4"x 3/16"x36" - $7.98

    Zinc'd 7/16"x36" - $3.71

    around $7 or $8.00 for nuts & washers (theres alot of them)

    So you can figure under $25 for both sides..

    easy,cheap, & functional... I like it...:)
    [​IMG]

  15. May 19, 2012 at 12:24 AM
    #15
    4WD

    4WD [OP] cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    23,950
    Gender:
    Male
    First Name:
    Doug
    Lakeside, Ca / Gardnerville, Nevada
    Vehicle:
    No Truck..well, maybe
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now

    Hey like I said in the 1st post...

    Now I know this could be done alot cleaner, & alot prettier but that just ain't how we roll at OMD

    :D:D You can go any way you want with it , I'm doing it hillbilly, cause at the end of the day thats what works (& being in Lakeside)

  16. May 19, 2012 at 12:34 AM
    #16
    4WD

    4WD [OP] cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    23,950
    Gender:
    Male
    First Name:
    Doug
    Lakeside, Ca / Gardnerville, Nevada
    Vehicle:
    No Truck..well, maybe
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now
    You could also leave enough allthread to double nut, its just the concept, it can be implemented alot of diff. ways ,thats the beauty...

  17. May 19, 2012 at 12:34 AM
    #17
    4WD

    4WD [OP] cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    23,950
    Gender:
    Male
    First Name:
    Doug
    Lakeside, Ca / Gardnerville, Nevada
    Vehicle:
    No Truck..well, maybe
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now
    I gotta ditch this sig pick, its freaking me out...

  18. May 19, 2012 at 12:37 AM
    #18
    SnowroxKT

    SnowroxKT AK SnowroxKT

    Joined:
    Dec 11, 2011
    Member:
    #68604
    Messages:
    3,960
    Gender:
    Male
    First Name:
    Kyle
    Anchorage Alaska
    Vehicle:
    Roxy '95 Manual 4x4
    SAS locked geared
    me too :eek: :eek:

  19. May 19, 2012 at 12:40 AM
    #19
    4WD

    4WD [OP] cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    23,950
    Gender:
    Male
    First Name:
    Doug
    Lakeside, Ca / Gardnerville, Nevada
    Vehicle:
    No Truck..well, maybe
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now
    fixed....:D

  20. May 19, 2012 at 6:00 AM
    #20
    wolftree

    wolftree Well-Known Member

    Joined:
    Oct 9, 2011
    Member:
    #64877
    Messages:
    684
    Gender:
    Male
    First Name:
    Rick
    Ohio
    Vehicle:
    2011 Tacoma 4x4 Regular cab automatic trans,
    Rear Leaf TSB, Bilstein 5100s, extra leaf added
    Doug,

    I wonder what spring dynamics would be affected were you to re-use the old U-bolts for the clamps. You would need to extend the threads and use only one steel plate to clamp on the bottom side? The rest of the hardware would come from the re-used U-bolts. Mounting the clamps close to the axle, there should not be much springing action there.
