1 inch rear blocks - pinion angle

hey all! due to the dumbass lift laws in maryland, i removed 3 inch rear blocks from my trd 1st gen and went down to 1, (which was well needed due to nosedive and them being 3 inch blocks lol) but the 1 inch blocks we swapped were bone flat not accounting for the change in pinion angle (front was 6 inch of lift and rear was taken from 8-6 from block removal) this caused tension on my rear carrier bearing which blew my rear diff. i need new 1 inch blocks that have the lower angle in the front (i believe it’s 1/4 smaller) or (2 degree angle blocks?)but can’t seem to find one with a detailed enough description/photos of the angle. please help



Try Amazon. You may have to get a 2 degree shim to add to the block if you can't find a 1" block with a 2 degree angle.

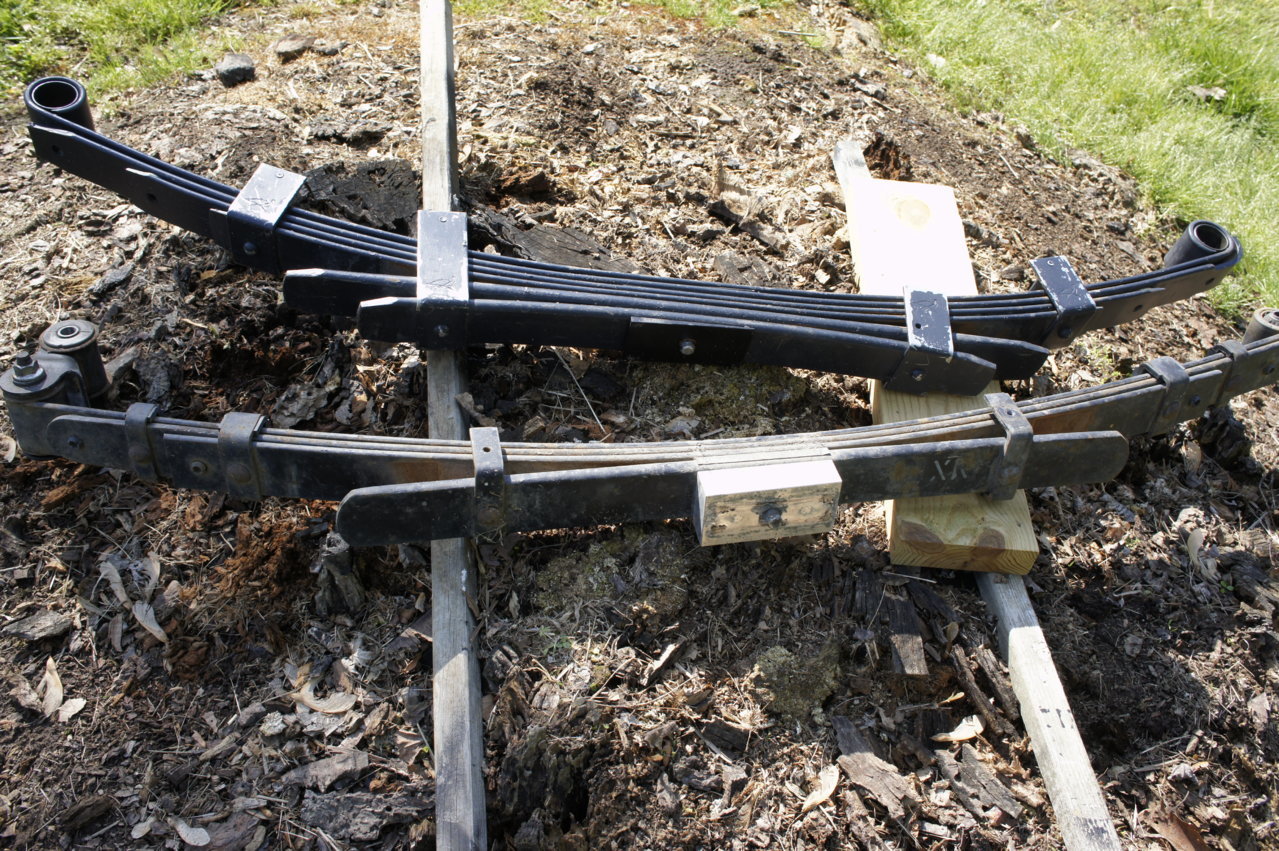

Block will look something like below.



i tried Amazon, rough country, and skyjacker maybe i’m crazy can only find one that says it in the description or photos, and it says a month to get to me.



You can also add a 2* to your leaf pack with a new center bolt and set on the flat 1” block. It will achieve the sam purpose. I personally don’t like the slip in shims as they give a little less center pin into the axle pad.



Will these work?



A member here sells blocks with the angle built in, check with @mjbtaco to see what his lead time is.



Low range off-road offers a 1 inch taper block:
http://www.lowrangeoffroad.com/toyo...-parts/toyota-tacoma-block-and-ubolt-kit.html



hey yall thanks so much for ur input! i ended up going with shims (i did not want to do this) i spent another week looking for blocks and was so distraught i just bought the shims and welded them to the blocks to add a little more security to my anxiety of them sliding out which is practically impossible now u less i lose my blocks completely. my pinion angle is set now and rear axel is holding perfect.
