1000w Inverter Installation almost complete

Discussion in '2nd Gen. Tacomas (2005-2015)' started by SHAKE JONES, Jan 15, 2012.

  1. Jan 15, 2012 at 2:33 PM
    #1
    SHAKE JONES

    SHAKE JONES [OP] Active Member

    Joined:
    Dec 20, 2011
    Member:
    #69109
    Messages:
    43
    Gender:
    Male
    First Name:
    Wyatt
    Western NC
    Vehicle:
    12 DCSB OR
    Listed in order of installation: OEM door sill protectors, 20% tint, Fog Light Mod, 1000w Inverter under driver seat, seat covers, vent shades, Plasti Dip front emblem and chrome grill surround
    I got my 1000w power inverter a little over a week ago and today was the first chance I had to start putting it in. Here is what I got done today.

    [​IMG]
    Found some 4ga wire from an amp install kit in the garage and decided to cut the center of an existing grommet out in the firewall and run the power wire through there.

    [​IMG]

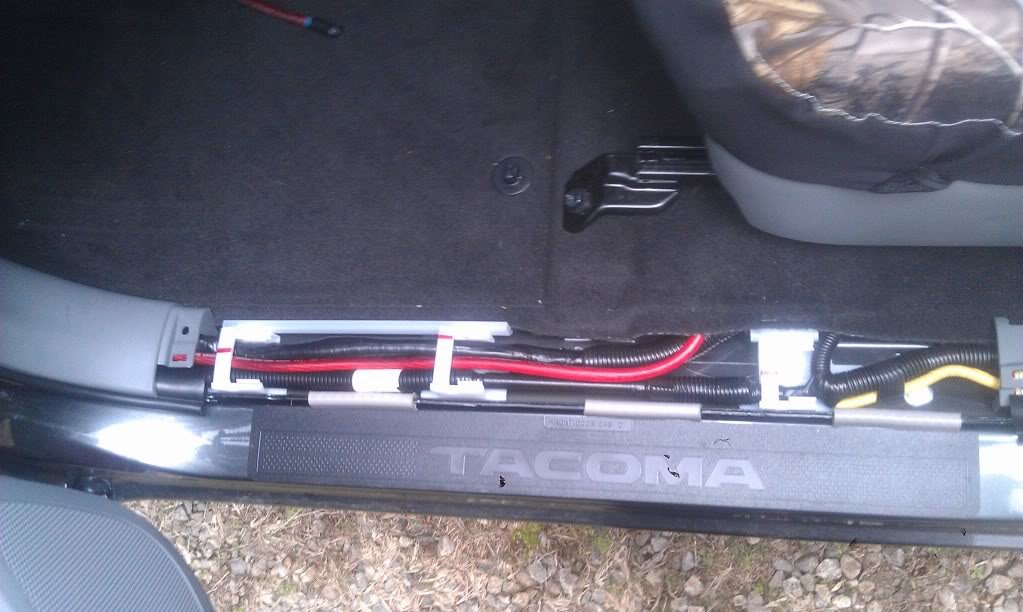

    Ran the wire behind the kick panel and under the driver side wiring raceway.

    [​IMG]

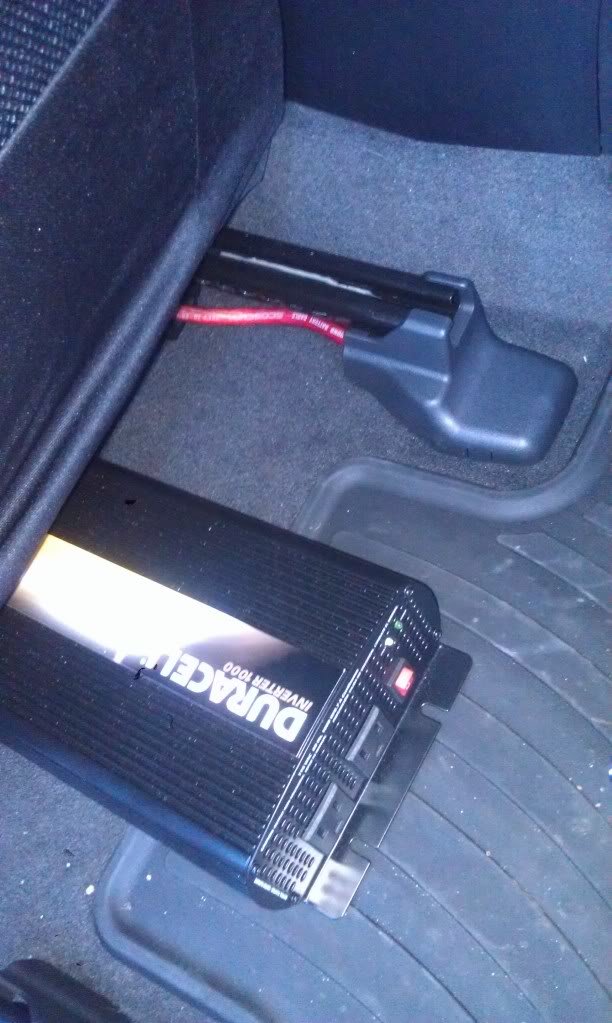

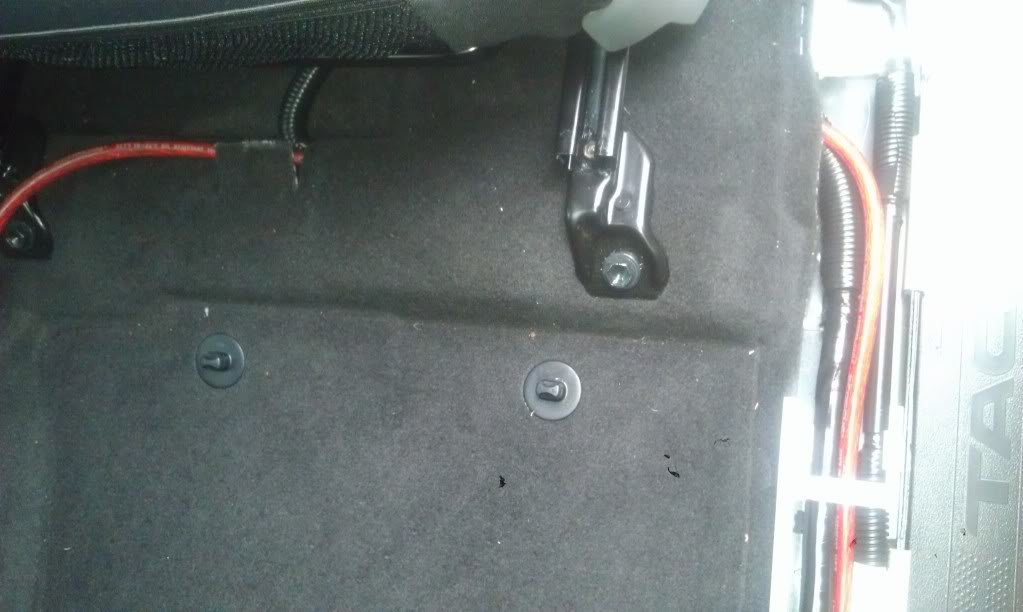

    I then ran the wire under the carpet to the existing slit where the wires for the seat come out.

    [​IMG]
    I cut off the excess wire and have a couple feet left over for the ground wire. I chose to ground it to the rear driver side seat bolt closest to the center console.

    [​IMG]

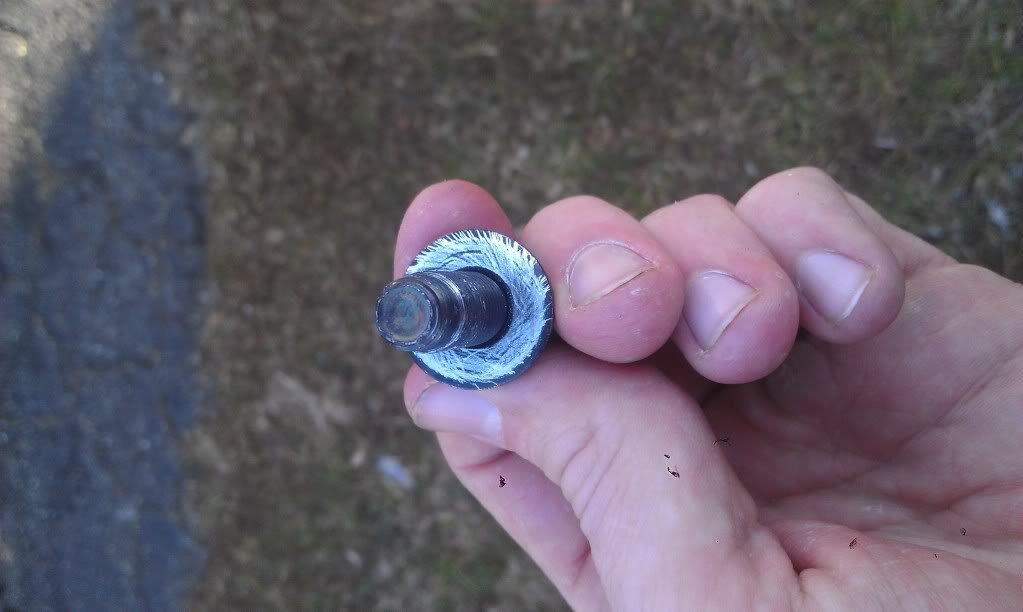

    I scratched as must paint off the bottom of the bolt as I could to get the best connection.

    [​IMG]

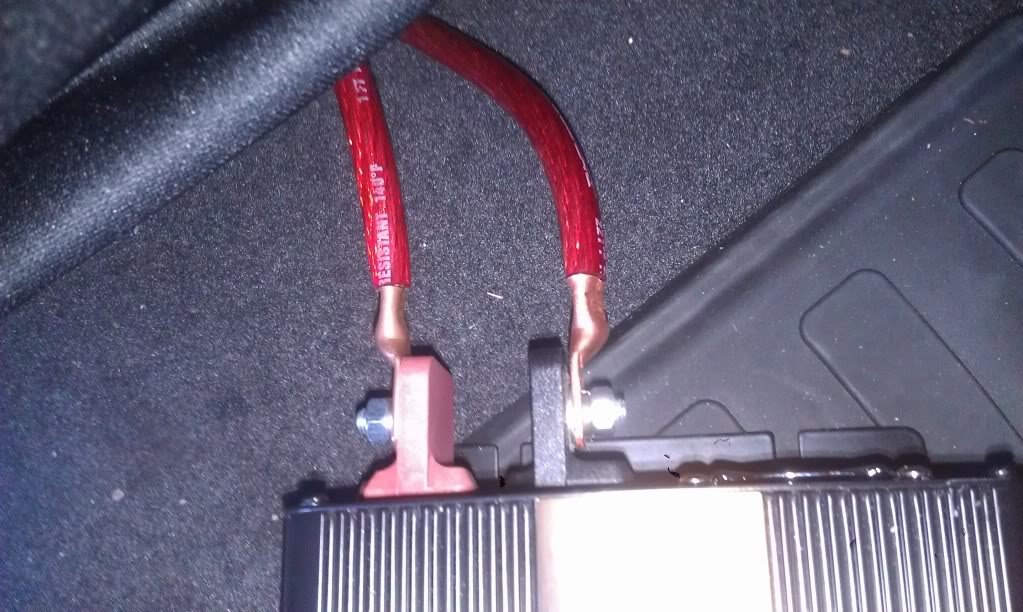

    I connected the ground wire and then put the bolt cover back on.

    [​IMG]

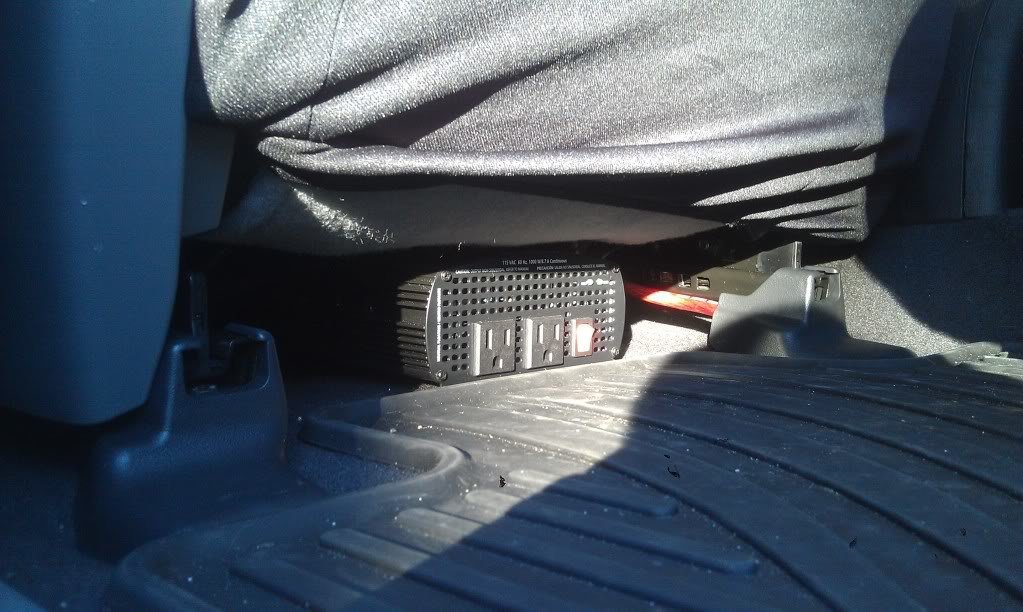

    And this is where it sits for now.

    I added a 100amp inline fuse at the firewall and everything is working excellent right now. Hopefully in the next week or two I will be relocating the outlets and power switch. I would like to put one outlet on the rear of the center console, and the other outlet and power switch under the dash near the front cup holders.
