12-15 AlphaRex Pro-Series Headlights DRL

Discussion in '2nd Gen. Tacomas (2005-2015)' started by BigRed2513, Aug 15, 2022.

  1. Aug 15, 2022 at 5:58 PM
    #1
    BigRed2513

    BigRed2513 [OP] Active Member

    Joined:
    Aug 8, 2022
    Member:
    #403110
    Messages:
    37
    First Name:
    Grant
    Whistler, B.C., Canada
    Vehicle:
    2014 TRD Sport DCLB Super White
    Has anyone tired to wire in the AlphaRex DRL harness into the factory DRL wire, as it would then power on/off from the light stalk on the steering column?

    AlphaRex instructs you to wire DRL into IGN fuse so it comes on once the car is powered on. I would like the ability to turn headlights completely off via steering column light stalk.

    Just want to see if anyone has tried this method with success.

    Thanks for the help!

  2. Aug 15, 2022 at 6:07 PM
    #2
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    13,046
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    I don't think so, the switch is all just inputs for the Body ECU. You could maybe use the DRL input to the turn signal flasher with a relay but I'm not sure if it's a pull up or pull down signal.

  3. Aug 16, 2022 at 5:22 PM
    #3
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,761
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

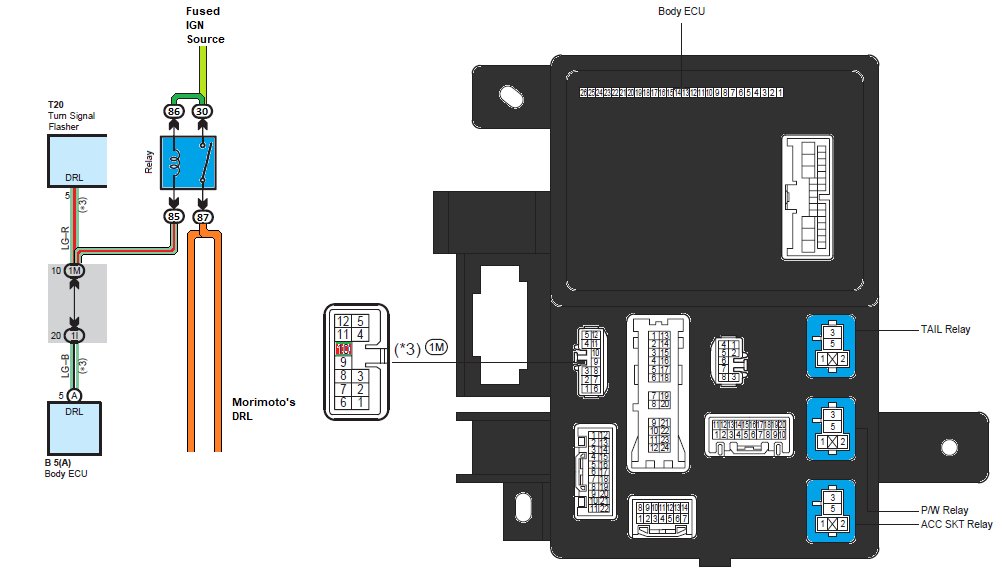

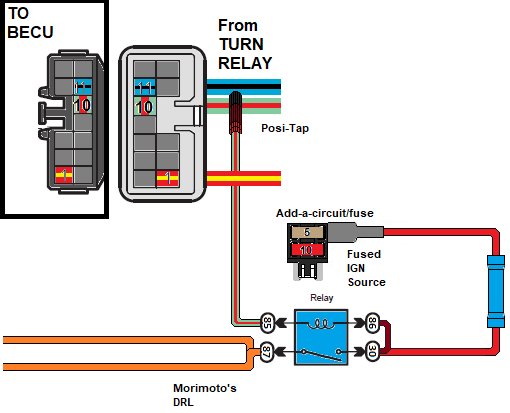

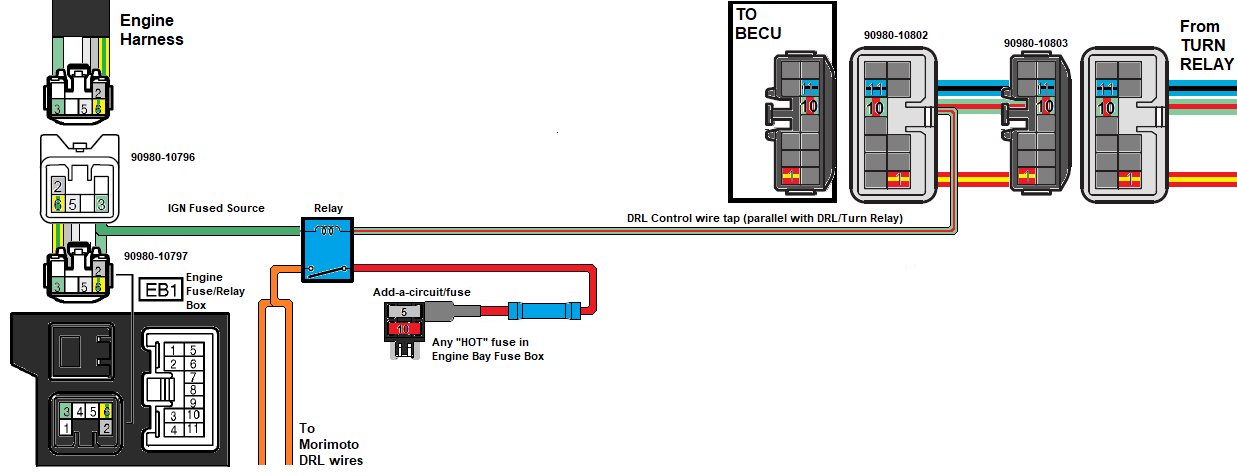

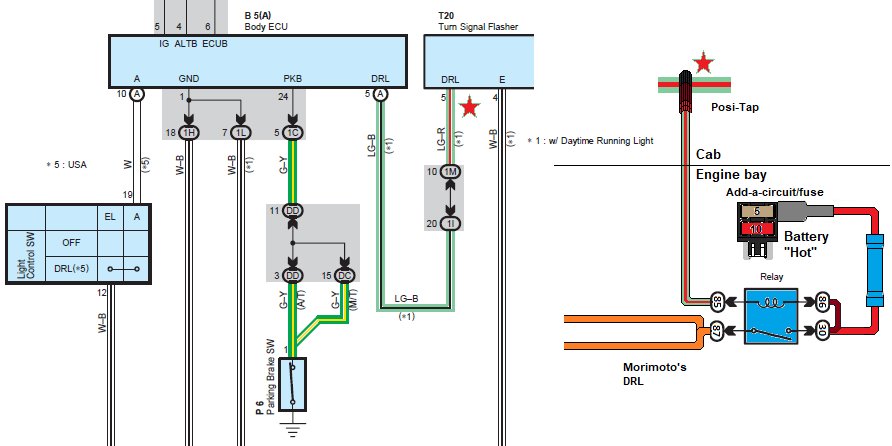

    By adding a fuse, relay and wires and tapping into the DRL control wire on the main body ECU.
    Or

    Last edited: Aug 16, 2022
    Dm93, Dekoy909 and TnShooter like this.
  4. Aug 16, 2022 at 6:37 PM
    #4
    BigRed2513

    BigRed2513 [OP] Active Member

    Joined:
    Aug 8, 2022
    Member:
    #403110
    Messages:
    37
    First Name:
    Grant
    Whistler, B.C., Canada
    Vehicle:
    2014 TRD Sport DCLB Super White
    Have you tried this with success?

  5. Aug 16, 2022 at 7:03 PM
    #5
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,761
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    It's just a suggestion...

    Last edited: Aug 16, 2022
    BigRed2513[OP] and Dm93 like this.
  6. Aug 16, 2022 at 7:06 PM
    #6
    BigRed2513

    BigRed2513 [OP] Active Member

    Joined:
    Aug 8, 2022
    Member:
    #403110
    Messages:
    37
    First Name:
    Grant
    Whistler, B.C., Canada
    Vehicle:
    2014 TRD Sport DCLB Super White
    Thank you sir! I will take this into consideration!

  7. Aug 16, 2022 at 7:12 PM
    #7
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,761
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Location of 1M:
    Wire is like 22 awg.
    Detail:

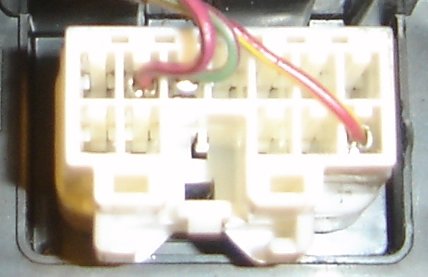

    Turn signal wires will different color, DRL will be same (green w red stripe)

    BigRed2513[OP] and Dm93 like this.
  8. Aug 16, 2022 at 8:26 PM
    #8
    Kyle14Taco

    Kyle14Taco Winter Soldier

    Joined:
    Jan 12, 2022
    Member:
    #387077
    Messages:
    147
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2014 Tacoma SR5 4X4
    3 inch lift
    I have a white 2014 as well, and have been looking at this headlights. Mind posting a photo once you have them on? and letting me know how the output is. Appreciate it!

  9. Aug 16, 2022 at 8:56 PM
    #9
    InfernoTRDPro

    InfernoTRDPro Well-Known Member

    Joined:
    Jul 11, 2022
    Member:
    #401130
    Messages:
    255
    Charlotte, NC
    Vehicle:
    2015 TRD Pro 4x4
    "OEM+"
    Im curious if this wiring mod would work as well!

  10. Sep 17, 2022 at 3:34 PM
    #10
    BigRed2513

    BigRed2513 [OP] Active Member

    Joined:
    Aug 8, 2022
    Member:
    #403110
    Messages:
    37
    First Name:
    Grant
    Whistler, B.C., Canada
    Vehicle:
    2014 TRD Sport DCLB Super White

    Is 1M inside the cab? By the fuse box to left of steering wheel?

  11. Sep 17, 2022 at 3:35 PM
    #11
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,761
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Behind the fuse box...

  12. Sep 18, 2022 at 10:56 AM
    #12
    BigRed2513

    BigRed2513 [OP] Active Member

    Joined:
    Aug 8, 2022
    Member:
    #403110
    Messages:
    37
    First Name:
    Grant
    Whistler, B.C., Canada
    Vehicle:
    2014 TRD Sport DCLB Super White

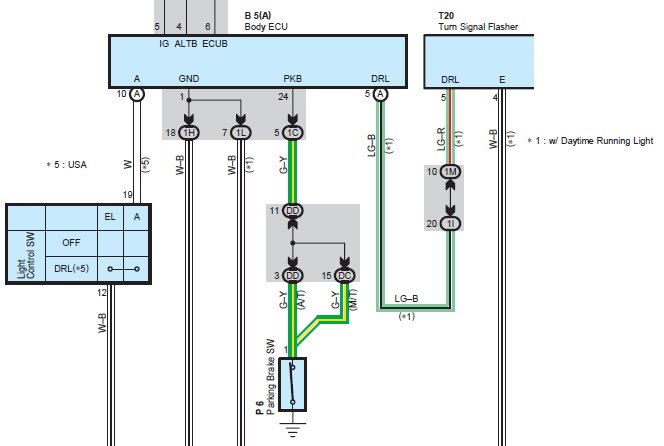

    Just tried tapping into the green/red DRL wire, had a current through my new tapped line, but the DRL won’t turn on. They will come on in parking lights and full headlights, but not DRL signal.
    I even took the tap out and still have no power in the DRL wire.
    Any thoughts on this?

  13. Sep 18, 2022 at 11:50 AM
    #13
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,761
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Is the Taco ON (engine) and parking brake released?

    BigRed2513[OP] likes this.
  14. Sep 18, 2022 at 12:04 PM
    #14
    BigRed2513

    BigRed2513 [OP] Active Member

    Joined:
    Aug 8, 2022
    Member:
    #403110
    Messages:
    37
    First Name:
    Grant
    Whistler, B.C., Canada
    Vehicle:
    2014 TRD Sport DCLB Super White
    You are genius of your kind!
    Parking brake sensor…didn’t know the corresponded

  15. Sep 18, 2022 at 12:16 PM
    #15
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,761
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Happens a lot here.:)
    Pics as you get done?

  16. Sep 18, 2022 at 1:54 PM
    #16
    BigRed2513

    BigRed2513 [OP] Active Member

    Joined:
    Aug 8, 2022
    Member:
    #403110
    Messages:
    37
    First Name:
    Grant
    Whistler, B.C., Canada
    Vehicle:
    2014 TRD Sport DCLB Super White

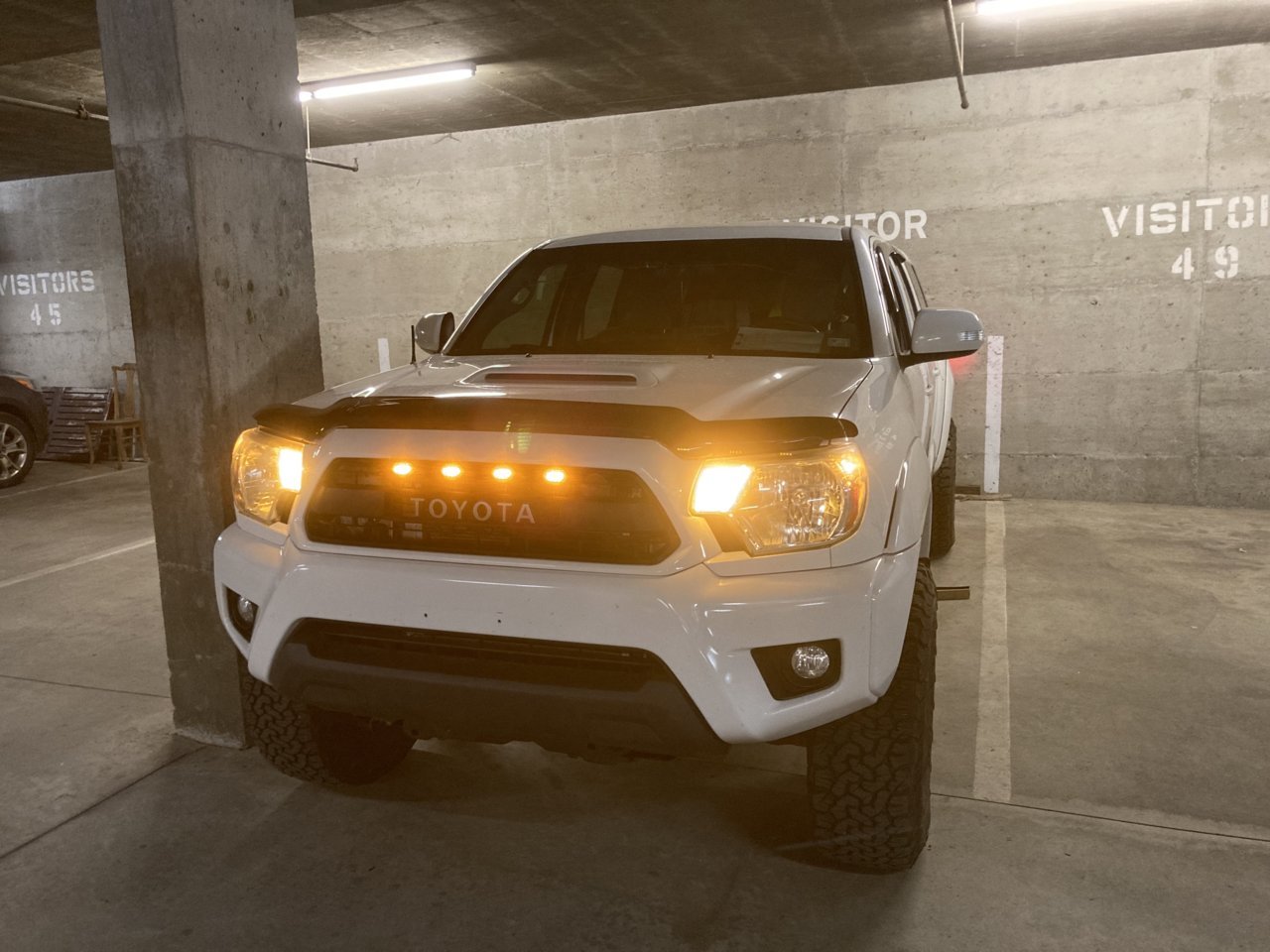

    Got grill lights wired up on really with DRL wire as positive trigger source….
    Works amazing through all light sequences expect for halogen low beams (all bulbs on)….the grill lights turn off but DRL/turn signals stay on.
    My wiring is as follows:
    Positive grill lights -> 87 relay
    Negative grill lights -> grounded
    86+30 relay -> battery positive
    DRL trigger -> 85 relay

    any thoughts why grill lights turn off when final click on light stalk?

  17. Sep 18, 2022 at 2:13 PM
    #17
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,761
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    OEM DRL turn OFF when LOW Beams are selected.
    The aftermarket headlights DRL's might get juice from parking circuit also.

    BigRed2513[OP] likes this.
  18. Sep 18, 2022 at 8:18 PM
    #18
    BigRed2513

    BigRed2513 [OP] Active Member

    Joined:
    Aug 8, 2022
    Member:
    #403110
    Messages:
    37
    First Name:
    Grant
    Whistler, B.C., Canada
    Vehicle:
    2014 TRD Sport DCLB Super White
    Wired up grill lights to turn on with parking lights....wanted to have them on with DRL, but seems like they would turn off once halogen low beams are activated.

    Was able to run a new DRL tapped wire from cab into engine, so I may be able to wire Aplha-Rex's to be switched on with light stalk. We will see...

    to be continued


  19. Sep 19, 2022 at 12:34 PM
    #19
    sentientprogram

    sentientprogram Well-Known Member

    Joined:
    Sep 29, 2013
    Member:
    #113495
    Messages:
    396
    Gender:
    Male
    I have morimotos but same concept. I tapped into the fog light circuit instead

    InfernoTRDPro likes this.
  20. Sep 19, 2022 at 2:34 PM
    #20
    PMK

    PMK Well-Known Member

    Joined:
    Feb 27, 2010
    Member:
    #32186
    Messages:
    1,366
    Gender:
    Male
    Florida
    Vehicle:
    10 DCLB TRD Sport
    White, debadged, Mudflaps removed, ICON 2.5 in front, 2.0 in rear, all 4 corners have reservoirs, Spidertrax wheel spacers all around, BAMF bolt on sliders, Avid lightbar, oem transmission cooler converted to power steering cooler, aftermarket transmission cooler eliminating all oem transmission cooler stuff, remote mounted spin on transmission fluid filter TrueTrac rear differential, rear diff housing vented and filtered into left side bed box, URD MAF calibrator, Volant intake scoop into oem airbox, second filter removed, airbox internals smoothed, blended and polished throttle body, NST intake manifold spacer, Wet Okolee set covers, WeatherTech Digital Fit mats, inexpensive JVC single DIN, Scangage, AVS Stepshield door sill protectors, Doug Thorley Long Tube Headers, URD Y pipe with O2 sims.
    Big Red, I cautiously will say, and yours may be different, I have a 2010 and installed the Alpharex Crystral LED headlights.

    Mine came with a little black box as part of the Alphrex wire harness. Initially, I attempted to keep it simple, using the oem DTRL wires to do oem style DTRL. Pretty much did not work as planned.

    I did call Alpharex and spoke with the rep. Pretty much, the black box needed to be wired up as they say. I wound up find a +12v power and switched +12v power in the underhood fuse / relay box.

    The operation of the Alpharex lights do that sequential thing when doing door locks, followed by white DTRL and white sequential LEDs on to illuminate the front of the truck when approaching in a parking lot, etc.

    Then, once started, and DTRL illuminate, depending upon if headlights are on or off, you get either bright or dimmed DTRL.

    There is also a pretty long delay when locking the doors before the white parking lot lights go off.

    Overall pretty content with mine. Better light output than my worn oem (replaced several times) oem halogen lights.
