12v Bed Outlet Install Write-Up

Discussion in '2nd Gen. Tacomas (2005-2015)' started by rkfoote, Jun 22, 2015.

  1. Dec 4, 2017 at 2:35 PM
    #21
    DavidM310

    DavidM310 Well-Known Member

    Joined:
    Jun 6, 2017
    Member:
    #220899
    Messages:
    493
    Gender:
    Male
    Temple, Texas
    Vehicle:
    2017 Tacoma/2015 4Runner/2015 IS250
    Hello,

    Ran across your thread while searching for ideas for 12v power to the bed of the truck.

    How did you wire your rocker switch to turn USB/Voltage meter on/off? I also want to have these accessories off since I don't want them drawing power from battery overnight.

    The current plan:

    -4 gauge wire from battery with 100A circuit breaker to the bed of the truck where it will connect to a 6 circuit fuse block with negative bus.
    -12 volt accessory port (cig lighter)
    -4.2A dual USB plug
    -Voltage meter

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  2. Dec 5, 2017 at 11:19 AM
    #22
    rkfoote

    rkfoote [OP] Active Member

    Joined:
    Oct 24, 2011
    Member:
    #65755
    Messages:
    42
    Gender:
    Male
    First Name:
    Richard
    Portland, OR
    LED Hood Scoop
    The rocker switch is inline to the USB and voltage meter.
    Basically:
    subPanel(+ 3Amp) > Rocker > USB/Voltage
    subPanel(-) > USB/Voltage

    If I were to do it again, i wouldn't put in a USB, I'd put in 2x 12v power ports and use a cig->USB adapter. That way you can upgrade later easily (and I find myself wanting 2 power and rarely use the USB).

  3. May 6, 2018 at 6:06 PM
    #23
    SteveSmokeman

    SteveSmokeman Member

    Joined:
    May 6, 2018
    Member:
    #252705
    Messages:
    16
    Gender:
    Male
    First Name:
    Steve
    Vehicle:
    '18 Tacoma TRD OR - Mag Grey MT
    OP, where did you find a good grounding point near the back of the bed?

  4. May 6, 2018 at 9:45 PM
    #24
    rkfoote

    rkfoote [OP] Active Member

    Joined:
    Oct 24, 2011
    Member:
    #65755
    Messages:
    42
    Gender:
    Male
    First Name:
    Richard
    Portland, OR
    LED Hood Scoop
    Didn't end up grounding in the back, I ran two 10 gauge wires (POS and NEG) straight to the battery (with a 40 amp fuse on the POS at the battery).

    SteveSmokeman likes this.
  5. Jul 4, 2018 at 9:56 AM
    #25
    Tacomavkk

    Tacomavkk Well-Known Member

    Joined:
    Jan 7, 2018
    Member:
    #240613
    Messages:
    278
    Gender:
    Male
    Woodinville, WA
    Vehicle:
    2018 TRD Off-road DCSB Quicksand
    Great install and write up!

    How did you drill into the bed for the outlets? Did you use a hole saw?

    I'm doing this myself and actually have the wires routed from the battery ready to go and was wondering where to put the fuse box. Was originally thinking of inside the cubby but was having second thoughts and saw this thread.

    Also, is there risk of water corroding the fusebox at that location? Has it held up these few years?

    Thanks!



  6. Jul 4, 2018 at 11:11 AM
    #26
    rkfoote

    rkfoote [OP] Active Member

    Joined:
    Oct 24, 2011
    Member:
    #65755
    Messages:
    42
    Gender:
    Male
    First Name:
    Richard
    Portland, OR
    LED Hood Scoop
    I used a forstner bit. I like them better than hole saws.
    I placed the fuse box on the outside of the cubby (between the cubby and the 110v) mounted to the side of the cubby. It's high enough that I've never had any water issues or corrosion since installed.

    Traded the truck in last week, so now get to do it again on the new rig.

    Boomkanani likes this.
  7. Jul 4, 2018 at 4:05 PM
    #27
    Tacomavkk

    Tacomavkk Well-Known Member

    Joined:
    Jan 7, 2018
    Member:
    #240613
    Messages:
    278
    Gender:
    Male
    Woodinville, WA
    Vehicle:
    2018 TRD Off-road DCSB Quicksand
    Cool, Thanks. I have some forstner bits but I think they are for woodworking. What kind of forstner did you use to drill into the bed? I've tried my forstner on plastic and they didn't work too well which is why I'm drilling into this ( so to speak ).

  8. Jul 4, 2018 at 4:14 PM
    #28
    WATaco

    WATaco Well-Known Member

    Joined:
    Jan 26, 2015
    Member:
    #147290
    Messages:
    336
    Gender:
    Male
    First Name:
    Ed
    Seattle-ish, WA
    Vehicle:
    '14 Tacoma ORD
    Leer, AllPro sliders, Prinsu, OME, JBA UCA

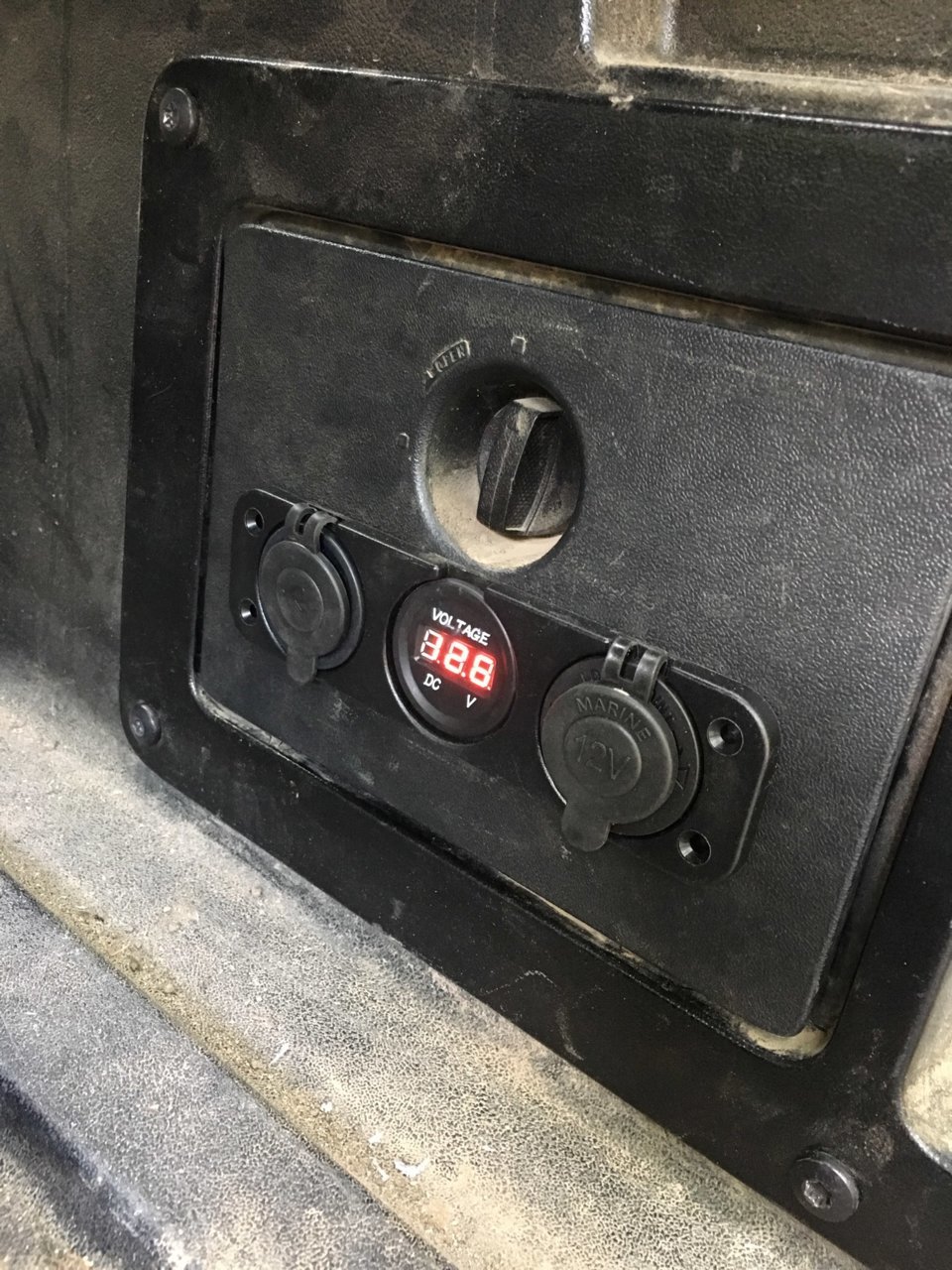

    I put my fuse box inside the cubby to provide it a bit of protection and installed the outlets in the cubby door, which is replaceable. I marked the holes and pre-drilled the center w 1/16th bit, then used a paddle bit. Worked well.


    helix66, gsubioguy, PzTank and 3 others like this.
  9. Jul 4, 2018 at 4:20 PM
    #29
    rkfoote

    rkfoote [OP] Active Member

    Joined:
    Oct 24, 2011
    Member:
    #65755
    Messages:
    42
    Gender:
    Male
    First Name:
    Richard
    Portland, OR
    LED Hood Scoop
    The bed itself is more like fiberglass than plastic. Using the cubby is nice if you don't mind losing the storage space.
    If I had to do it again (and will soon) I'd dump the USB and voltage and just have 3 12v ports.

    Tacomavkk likes this.
  10. Jul 4, 2018 at 4:23 PM
    #30
    Tacomavkk

    Tacomavkk Well-Known Member

    Joined:
    Jan 7, 2018
    Member:
    #240613
    Messages:
    278
    Gender:
    Male
    Woodinville, WA
    Vehicle:
    2018 TRD Off-road DCSB Quicksand
    Thanks Guys, I'll have to think about which way to go. The advantage of outside is that routing wires becomes easier while with inside the cubby you'd have to drill a hole to accommodate new wires as needed.

  11. Jul 4, 2018 at 4:39 PM
    #31
    WATaco

    WATaco Well-Known Member

    Joined:
    Jan 26, 2015
    Member:
    #147290
    Messages:
    336
    Gender:
    Male
    First Name:
    Ed
    Seattle-ish, WA
    Vehicle:
    '14 Tacoma ORD
    Leer, AllPro sliders, Prinsu, OME, JBA UCA
    Correct - i did have to drill a hole in the side of the cubby, which also seems to be more fiberglass than plastic. I ran two 8ga wires inside of 3/4" convoluted tubing to protect it, so I drilled a 1/2" hole. When the tubing was compressed a bit it made a tight fit, and I used a zip-tie around it on the inside of the cubby to prevent it from falling out.

  12. Jul 27, 2018 at 9:40 AM
    #32
    Tnronin

    Tnronin Two things in this world smell like fish!

    Joined:
    Jun 29, 2018
    Member:
    #257867
    Messages:
    322
    Gender:
    Male
    First Name:
    Mitchell
    Cookeville TN area
    Vehicle:
    2006 DCSB OFFROAD
    Great write up!
    I'm going to do something along these lines but I'm going to do a 12VDC terminals for a compressor so I don't have to pop the hood every time I might need it. Heavy duty switch with a in-line fuse.
    I might even put some bed lights in the side cubby.

    fake4x4 likes this.
  13. Jul 17, 2019 at 1:37 PM
    #33
    magjordan33

    magjordan33 New Member

    Joined:
    Jul 17, 2019
    Member:
    #299515
    Messages:
    1
    Gender:
    Male
    First Name:
    Jordan
    Vehicle:
    2015 Tacoma SR5
    How did you run your wire from the battery to the bed? What route did you take? Looks awesome

    fake4x4 likes this.
  14. Jan 13, 2020 at 7:20 AM
    #34
    nutz4nautical

    nutz4nautical Member

    Joined:
    Oct 10, 2019
    Member:
    #307630
    Messages:
    5
    Gender:
    Male
    Vehicle:
    2008 Blue Access Cab - Base
    i have decided to do the same thing generally speaking. i am going to put in a 12V outlet, USB charger and Bed lighting. i have decided to go with a pin switch for when i open my hard top bed cover, the lights will come on. they are cheap on Amazon.

    i have opted for #12 wire to allow for voltage drop and to allow myself some wiggle room if i wanted to run my air compressor and forget to turn something off, etc.

    i like how you accessed the bed using the storage pocket. i want to do that, but cant figure out how to get the pocket out of its place. it looks like it wants to pop out with a butter knife wedged in there. how did you do that?

  15. Oct 20, 2020 at 8:48 PM
    #35
    sodaryl

    sodaryl Well-Known Member

    Joined:
    Feb 9, 2016
    Member:
    #177678
    Messages:
    341
    Gender:
    Male
    First Name:
    Daryl
    Vancouver, BC
    Vehicle:
    2016 Blazing Blue DCSB M/T Sport
    -Relentless Off-Road sliders -265/70r17 Wrangler Duratracs -Diamondback HD -CCG Mesh grill -Pop & Lock PL8535 -BPF Heavy-Duty Front Tow Hook
    I'm also doing something similar so this thread is great, thanks for the writeups! Super pumped about the idea to mount the fuse block on the outside of the cubby, that's going to make wiring so much easier.

    Has anybody found a good place to ground to in the back? At this point I've only got enough wire for a + feed from the battery.

  16. Oct 23, 2020 at 1:11 PM
    #36
    tamer

    tamer hamerworx.com

    Joined:
    Aug 21, 2008
    Member:
    #8674
    Messages:
    847
    Gender:
    Male
    NorCal
    Vehicle:
    2015 TRD OR AC, MGM, 4x4, 6spd MT
    Have you had any issues with the fuse panel getting dirty where you have it mounted?

    arctic04trd likes this.
  17. Oct 23, 2020 at 7:23 PM
    #37
    arctic04trd

    arctic04trd VA7XTE

    Joined:
    Nov 23, 2015
    Member:
    #170508
    Messages:
    880
    Gender:
    Male
    British Columbia
    Vehicle:
    2010 DCLB
    My thoughts exactly. Curious on this....

  18. Nov 23, 2020 at 8:57 AM
    #38
    EvergreenOffroad

    EvergreenOffroad Well-Known Member

    Joined:
    Jul 18, 2019
    Member:
    #299609
    Messages:
    297
    Gender:
    Male
    First Name:
    Jacob
    Auburn, Wa
    Vehicle:
    2018 TRD OFF-ROAD
    Currently planning on doing something similar. I have seen OP post that he just ran an inline fused wire straight to the battery, while some people are running a 100amp breaker, and am curious as to the advantage or the larger breaker. In the bed I will be running a dedicated plug for my ARB fridge wired to the fuse 6 spot fuse block, as well as one of these Amazon panels that has a standard 12v cigarette plug a couple USB plugs, voltage meter, and rocker switch. I will also be running a diesel heater, likely plugged into the cigarette lighter while running overnight. Looking to see what size wire I should be running to my battery(which is a 27 group X2 power from Batteries Plus). Also, if the 100amp breaker is overkill and I am fine to run fused wire, and if so, what size fuse should be inline going from the fuse panel in the bed to the battery. Thanks all!

  19. May 20, 2021 at 11:08 AM
    #39
    sdpnoy

    sdpnoy Well-Known Member

    Joined:
    Sep 9, 2017
    Member:
    #229566
    Messages:
    118
    Vehicle:
    2020 TRD 4x4 OR DCSB
    Bravo OP! Thank you!

  20. Jun 12, 2021 at 12:45 PM
    #40
    Guami54

    Guami54 Well-Known Member

    Joined:
    Mar 10, 2021
    Member:
    #358808
    Messages:
    45
    Gender:
    Male
    First Name:
    Lawrence
    Oregon
    Vehicle:
    2016 Blue TRD Sport
    - Body Armour Front bumper -10k Smitty Built winch w/ Synthetic Line - 20" Rigid Behind Grill Light - Genesis Dual Battery - Switch Pro 9100 W/ Power Tray - TRD Pro Grill w/ Amber Raptor Lights - Injen Air Intake - ARB Single Compressor w/ underhood mount - King 2.5 Front & Rear Shocks - Total Choas Tubular Control Arms - Expedition Essentials 3TPAM - Miday Radio -Rago Fab center Console Rack - Dessert Does it seat jackets - Grey Gear Seat Molle Rack - Molle Roof Rack Interior - Prinsu Access Cab Roof Rack w/ ROAM Cases - Cali Raised 38" Dual Light Bar - Prinsu Handles w/ lights - Deaver Stage 3 leaf pack - Uptop Truss Rack - BAMF Hammer Hangers - Archive Garage Ubolt Flip -Diode Dynamic Ditch Lights - Ikamper 2.0 - x2 Rotopax 4 Gal - x4 Maxtacks - 10 lbs propane power tank mount - Uptop Highlift Jack Mount - x2 Heretic Amber chase Lights in rear - Lensun Solar Panel 110W hooked to Battery - Tacoma Beast Black Smoke Tail lights And I'm sure there's more that I'm missing that I'll eventually add.

    I gotta say your setup is hands down the most clean, and thorough one I've seen so far. Basically I see that you have the fuse panel in the rear attached to your outlet obviously, but since I'm new to all of this wiring stuff I want to ensure I don't screw anything up. Basically my question is what exactly do you have attached to what, if you have the patience could you please break it down like you were explaining it to a toddler, lol. (degrading to myself I know, but I really don't wanna see my lovely rig up in a pile of smoke and ash). And secondly with this set up would you be able to install the DECKED system in the back and still have access to the outlets? Thank you for your time good sirs.
