1983 Toyota Pickup

Discussion in 'Other Builds' started by cab4you26, Nov 18, 2013.

  1. Apr 26, 2014 at 1:56 PM
    #81
    cab4you26

    cab4you26 [OP] Well-Known Member

    Joined:
    Sep 14, 2009
    Member:
    #22756
    Messages:
    358
    Gender:
    Male
    First Name:
    Corey
    VA
    Vehicle:
    97 Tacoma, 5spd 2.7L
    Wheelers Offroad black steel wheels, 12 disc changer, spray in bedliner, Black UWS toolbox, Kelly Safari TSR's, Dynomax Super Turbo

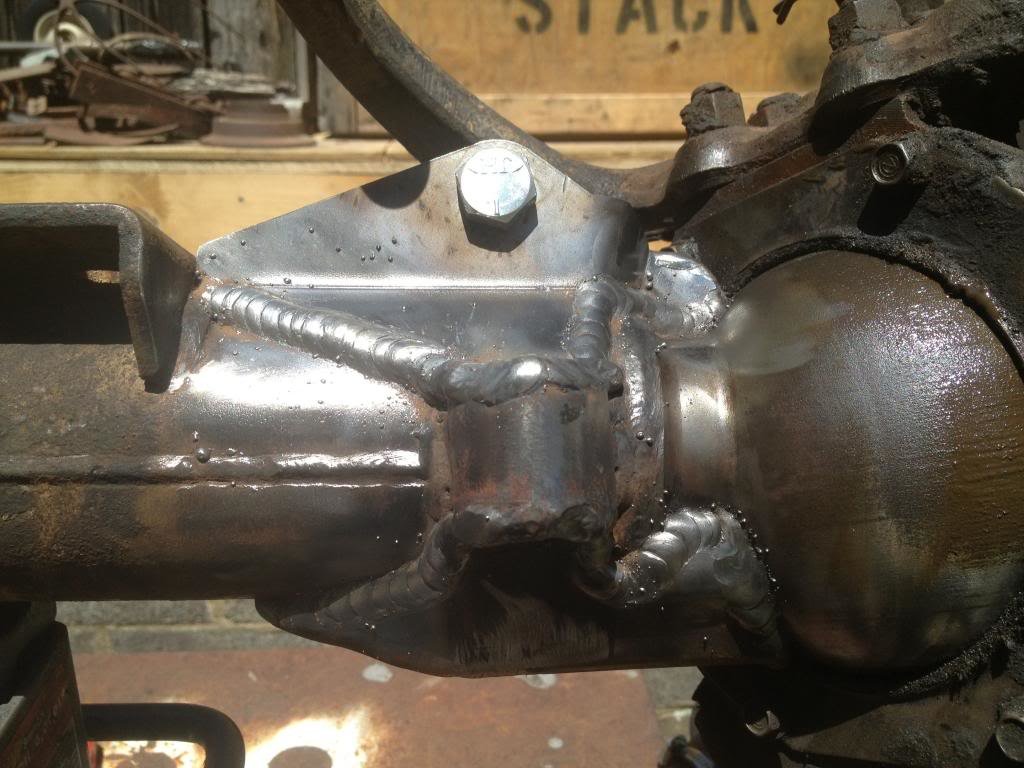

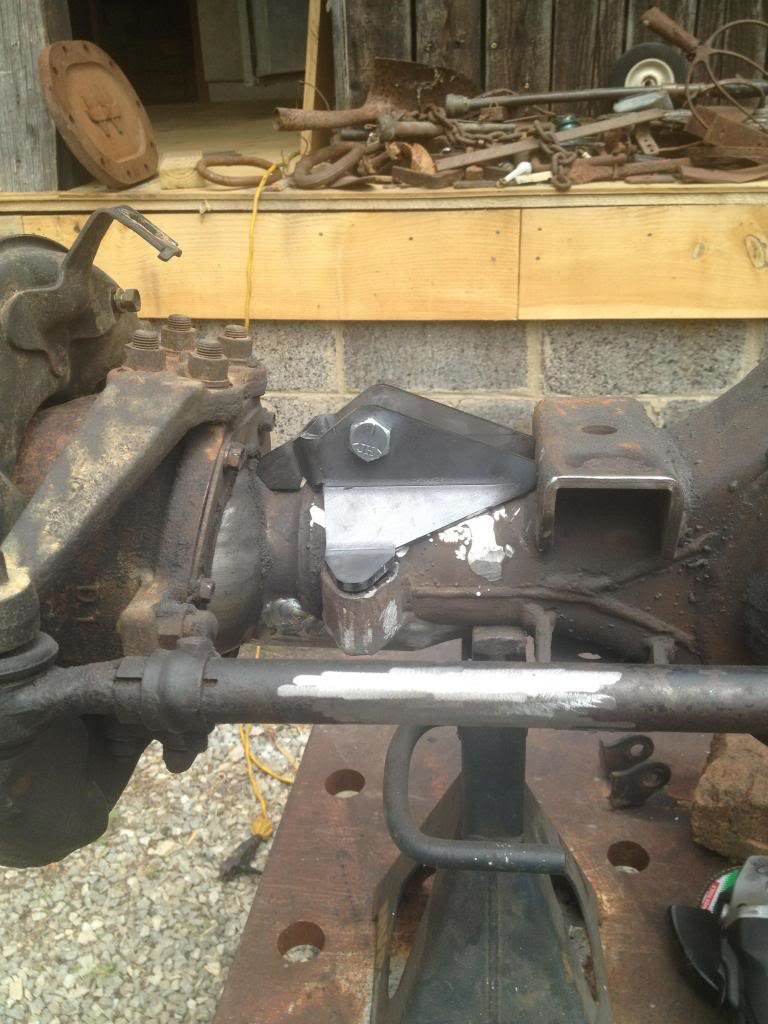

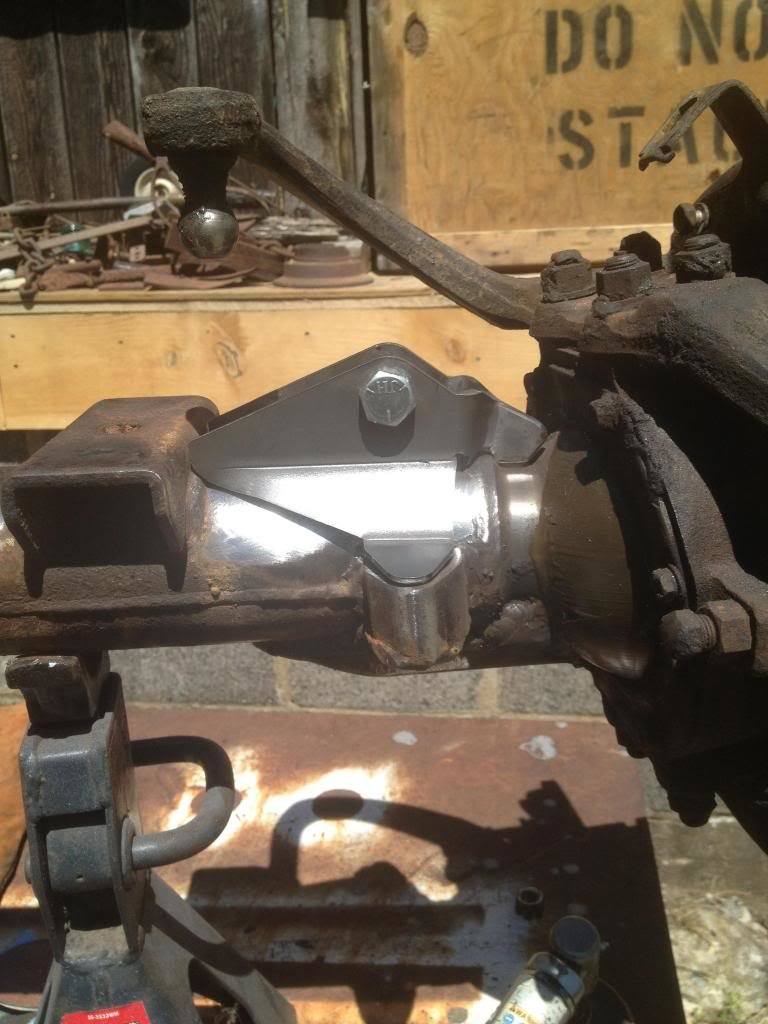

    Finally finished all my knuckle gussets. It took me about 3hrs per gusset. Making sure the knuckle would clear the gusset and my welds took quite a bit of time.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    So now i'm ready to start tearing it down and do the rebuild/paint. I also started tearing apart my 83 dash in order to start on my floors and dash swap.

    [​IMG]

  2. Apr 26, 2014 at 5:16 PM
    #82
    toyotaman29

    toyotaman29 Well-Known Member

    Joined:
    Aug 31, 2012
    Member:
    #85919
    Messages:
    479
    Gender:
    Male
    First Name:
    Darrell
    North Carolina
    Vehicle:
    05 double cab SR5 4x4
    TRD air filter, exhaust tip, tinted windows, upgraded grill, OEM LED tail lights, LED DTRL'S, Matts 123 skid plate, 4Runner Mirrors, 17 inch OEM 4runner wheels

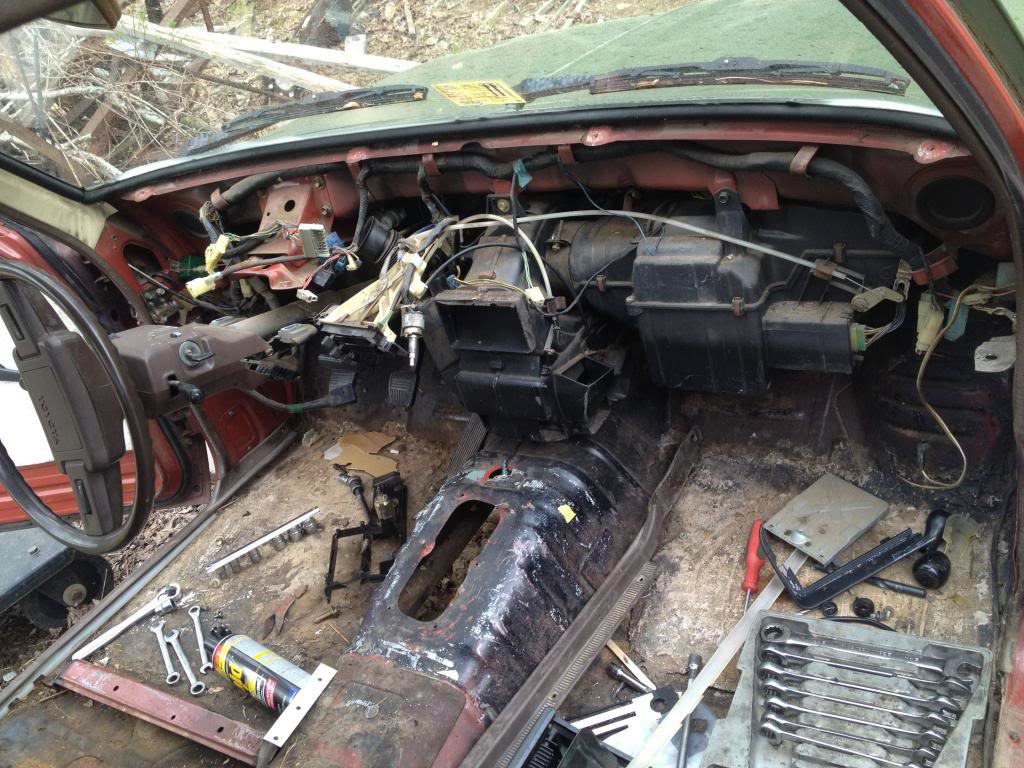

    Looking good, nice welds man.... will the dash from the parts truck work or what are you planning on using?

  3. Apr 26, 2014 at 5:39 PM
    #83
    cab4you26

    cab4you26 [OP] Well-Known Member

    Joined:
    Sep 14, 2009
    Member:
    #22756
    Messages:
    358
    Gender:
    Male
    First Name:
    Corey
    VA
    Vehicle:
    97 Tacoma, 5spd 2.7L
    Wheelers Offroad black steel wheels, 12 disc changer, spray in bedliner, Black UWS toolbox, Kelly Safari TSR's, Dynomax Super Turbo
    Thanks! I need a lot of practice, though. Welding vertical is a big PITA. The pictures don't show how crappy the welds looks for the steering stops lol.

    And I'm going to try and use the Tacoma dash. I know one guy on the Marlin forum has done it. They are both the same length at 52in. The steering column on the 83 is farther towards the center, though. But if someone else can do it, I don't see why I can't. I may also try and use the floor from the Tacoma cab.

  4. Apr 27, 2014 at 12:51 PM
    #84
    cab4you26

    cab4you26 [OP] Well-Known Member

    Joined:
    Sep 14, 2009
    Member:
    #22756
    Messages:
    358
    Gender:
    Male
    First Name:
    Corey
    VA
    Vehicle:
    97 Tacoma, 5spd 2.7L
    Wheelers Offroad black steel wheels, 12 disc changer, spray in bedliner, Black UWS toolbox, Kelly Safari TSR's, Dynomax Super Turbo

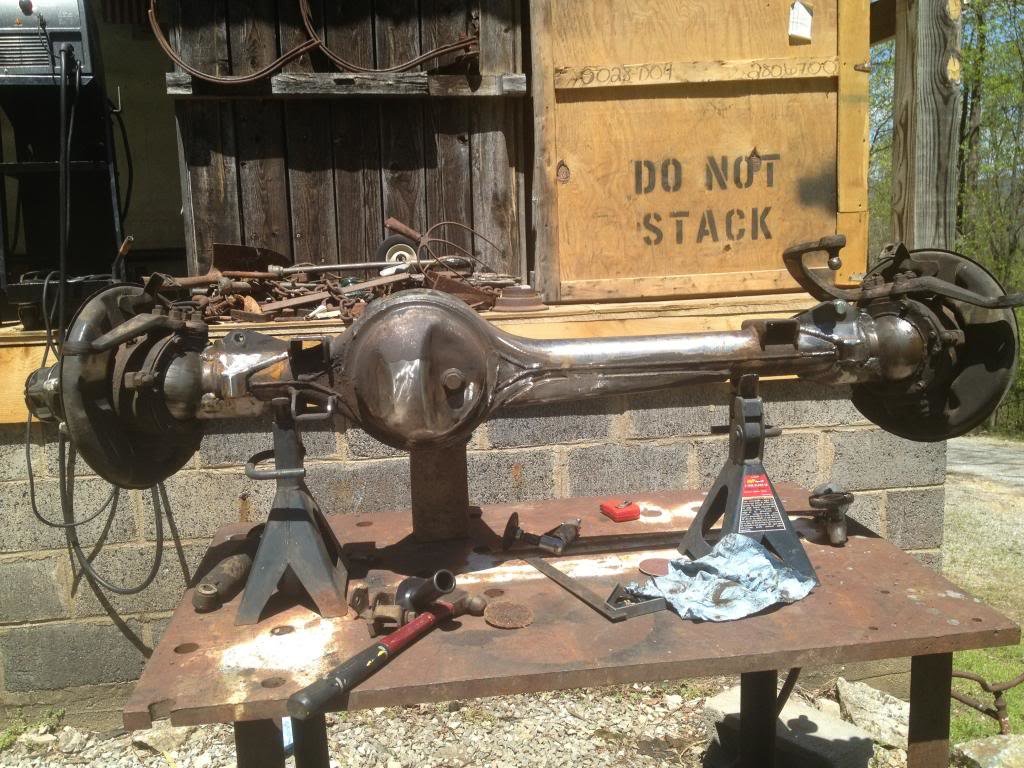

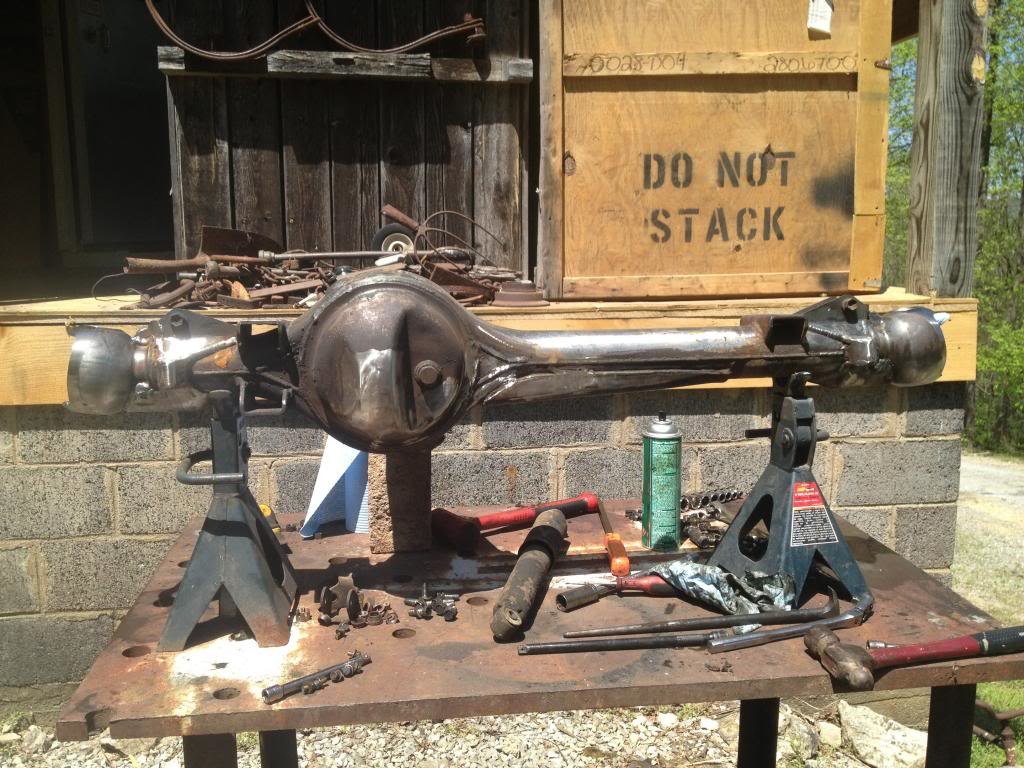

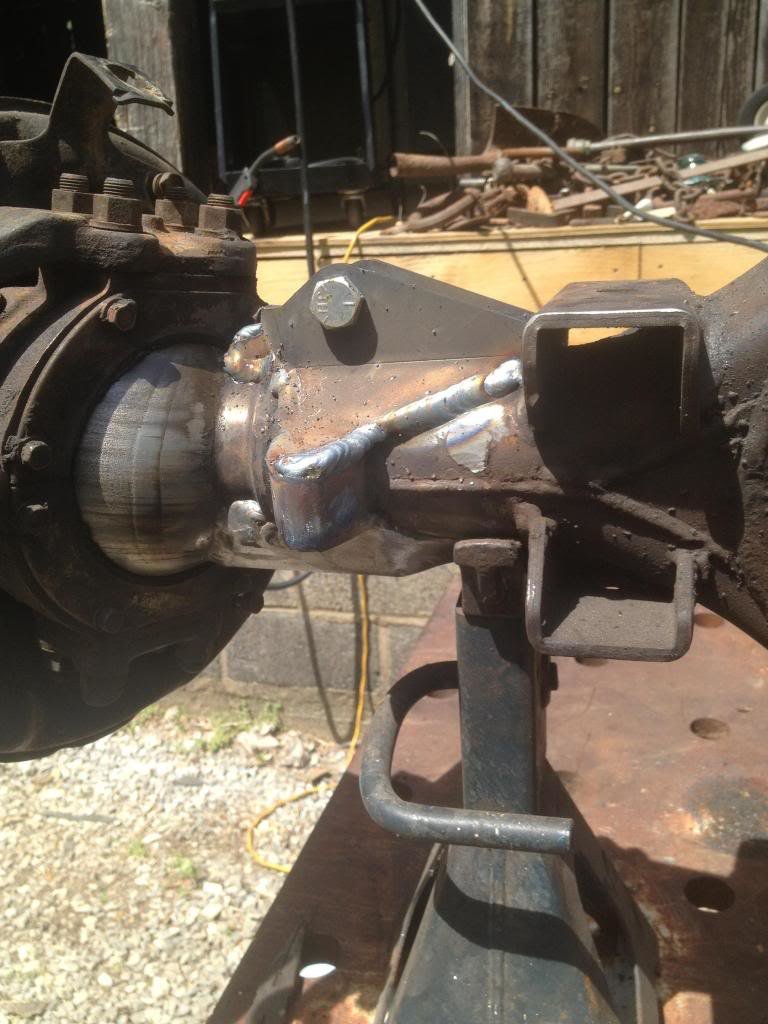

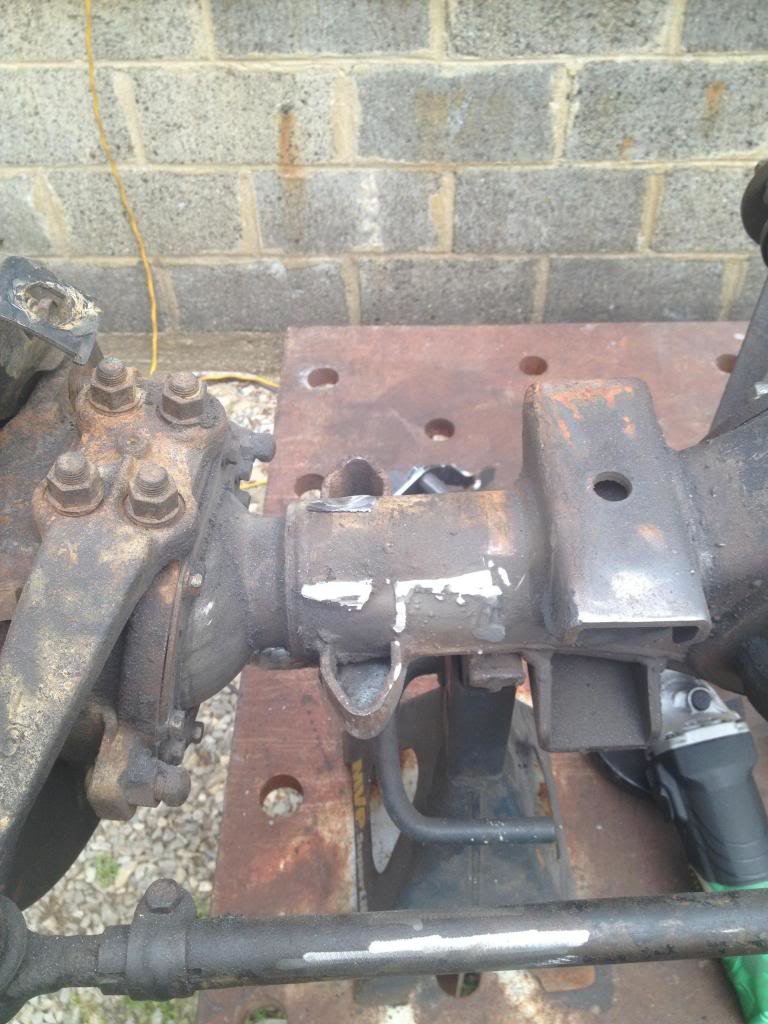

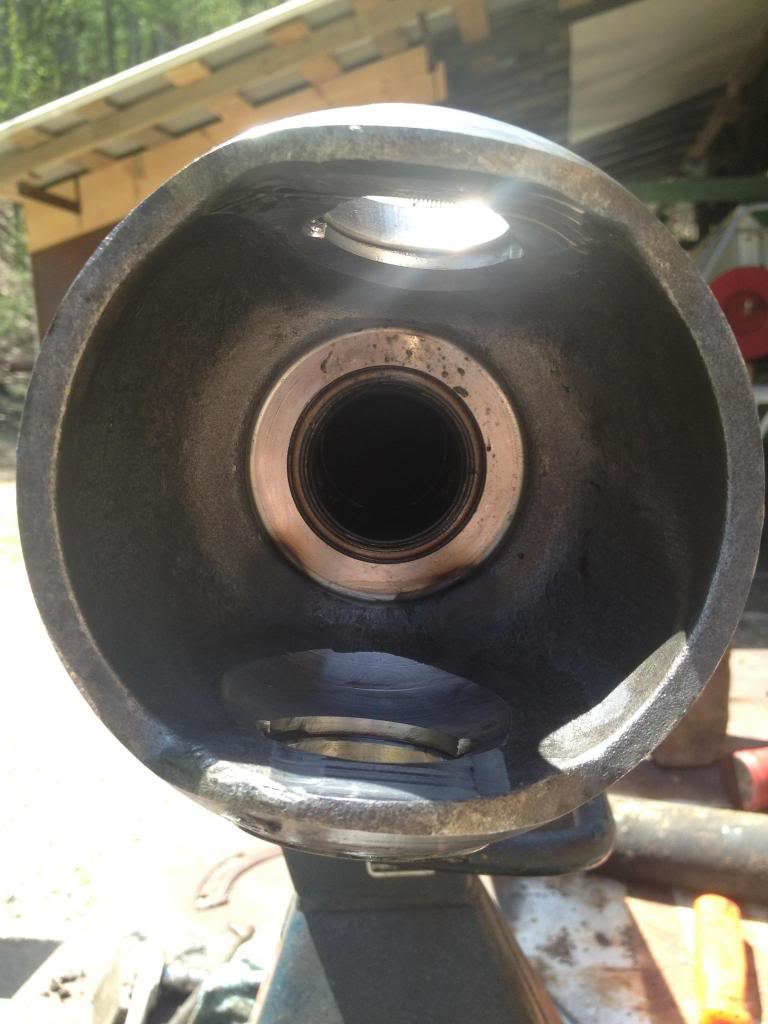

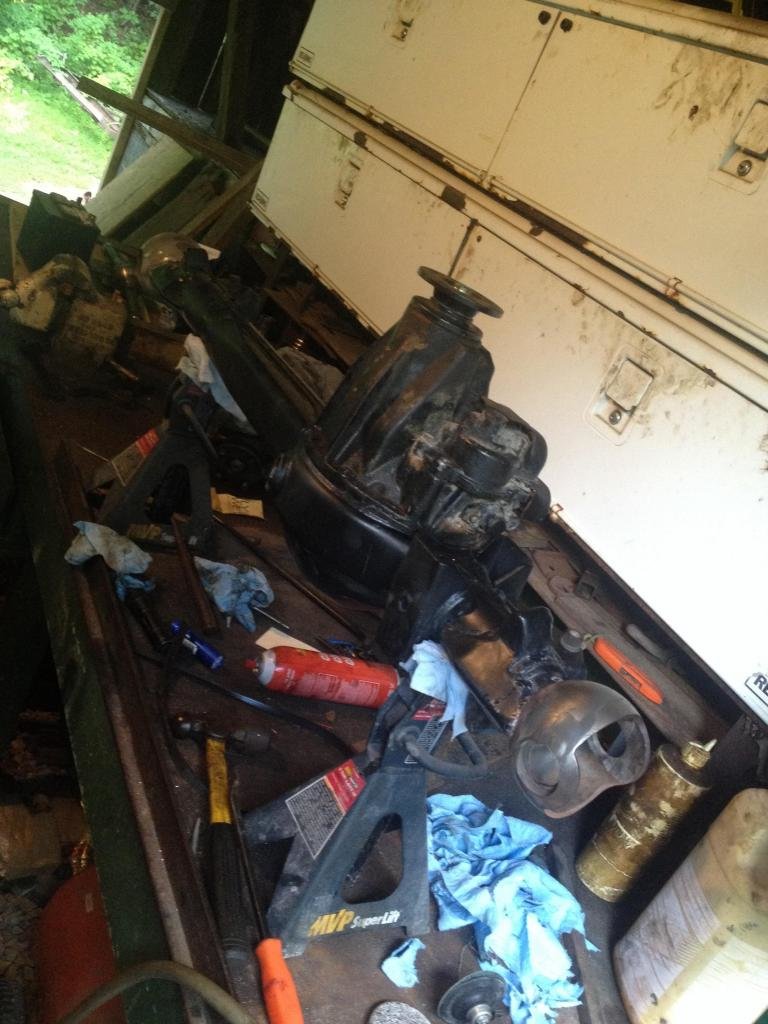

    Made a little bit of progress on the front axle today. Got both sides torn down before work.

    [​IMG]

    [​IMG]

    [​IMG]

    And I really hope I didn't warp my housing :/

    [​IMG]

    [​IMG]

    I left the axle assembled in hopes it would help transfer the heat and to check clearances.. Hopefully everything works out okay when I put it back together.

    Also, is there some sort of axle alignment tool for re-installing shafts? It seems like the inner axle seal could get damaged when putting the axle back in the housing..

  5. Apr 29, 2014 at 8:28 PM
    #85
    cab4you26

    cab4you26 [OP] Well-Known Member

    Joined:
    Sep 14, 2009
    Member:
    #22756
    Messages:
    358
    Gender:
    Male
    First Name:
    Corey
    VA
    Vehicle:
    97 Tacoma, 5spd 2.7L
    Wheelers Offroad black steel wheels, 12 disc changer, spray in bedliner, Black UWS toolbox, Kelly Safari TSR's, Dynomax Super Turbo

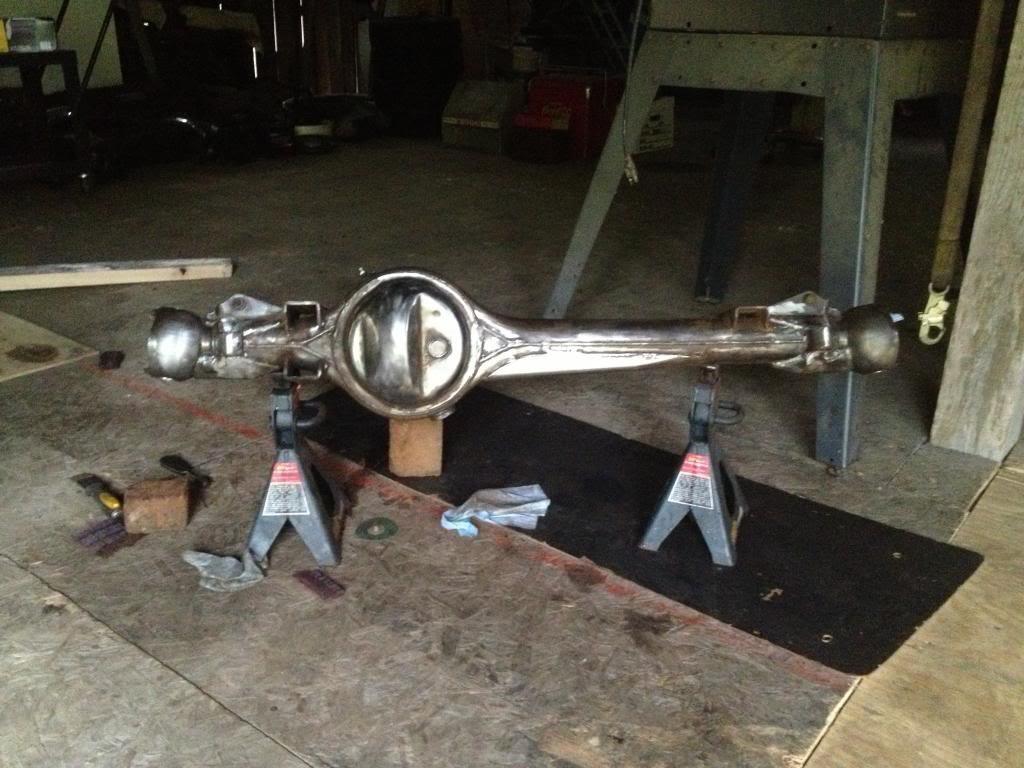

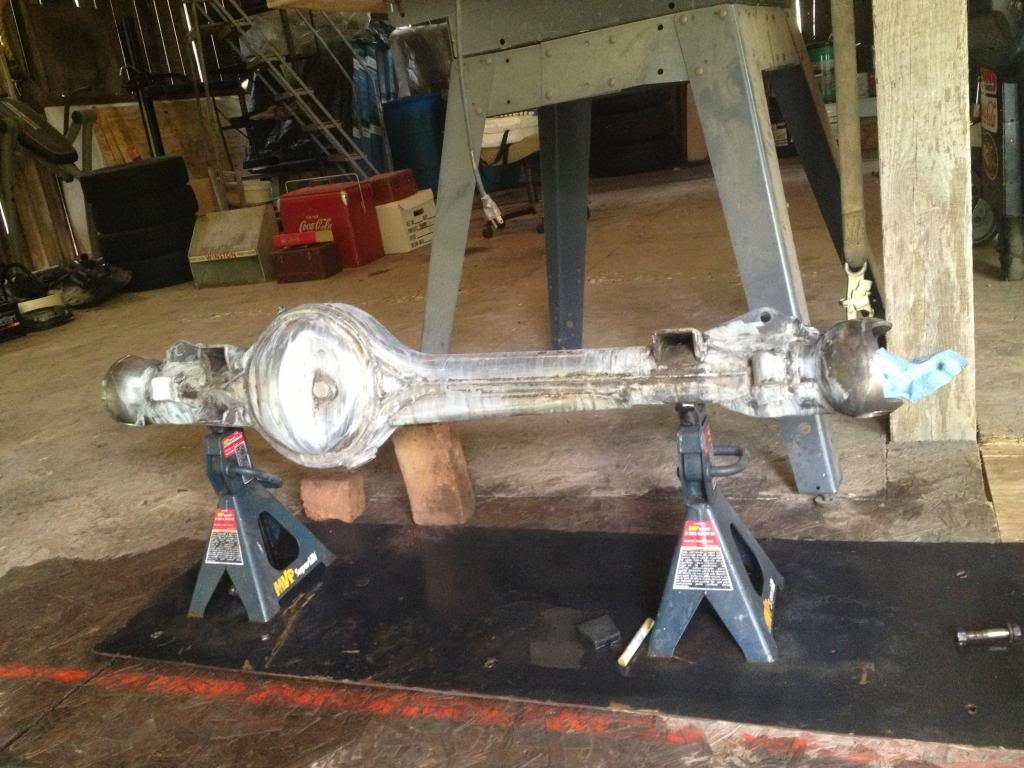

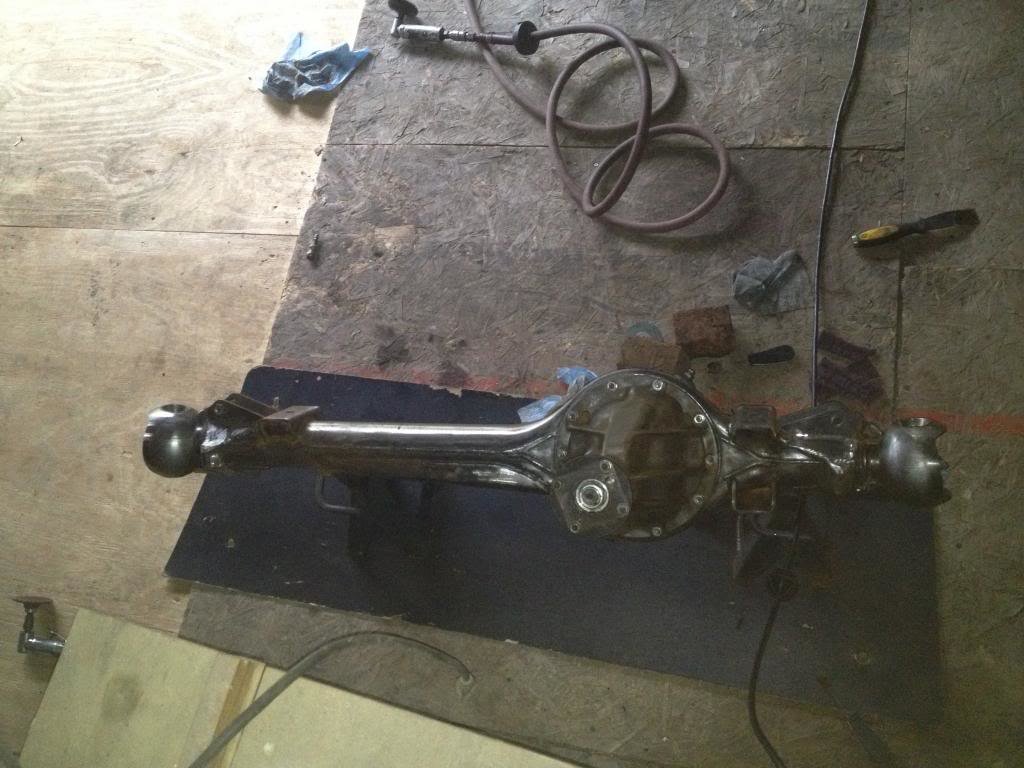

    Had a little bit of time today so I managed to clean up the axle housing. I should be able to paint it tomorrow. I still need to clean up the knuckles, spindles, and whatnot. Oh and finals are finally over so I should have a brief period of time where I can put out some work until summer classes start. Then I will have 00 life.

    [​IMG]

    [​IMG]

    Cleaning the housing was a much bigger pain than I thought it'd be. Took me 3.5 hours. It seemed like every little nook and cranny had something to share.

    Last edited: Apr 30, 2014
  6. Apr 30, 2014 at 6:25 PM
    #86
    cab4you26

    cab4you26 [OP] Well-Known Member

    Joined:
    Sep 14, 2009
    Member:
    #22756
    Messages:
    358
    Gender:
    Male
    First Name:
    Corey
    VA
    Vehicle:
    97 Tacoma, 5spd 2.7L
    Wheelers Offroad black steel wheels, 12 disc changer, spray in bedliner, Black UWS toolbox, Kelly Safari TSR's, Dynomax Super Turbo

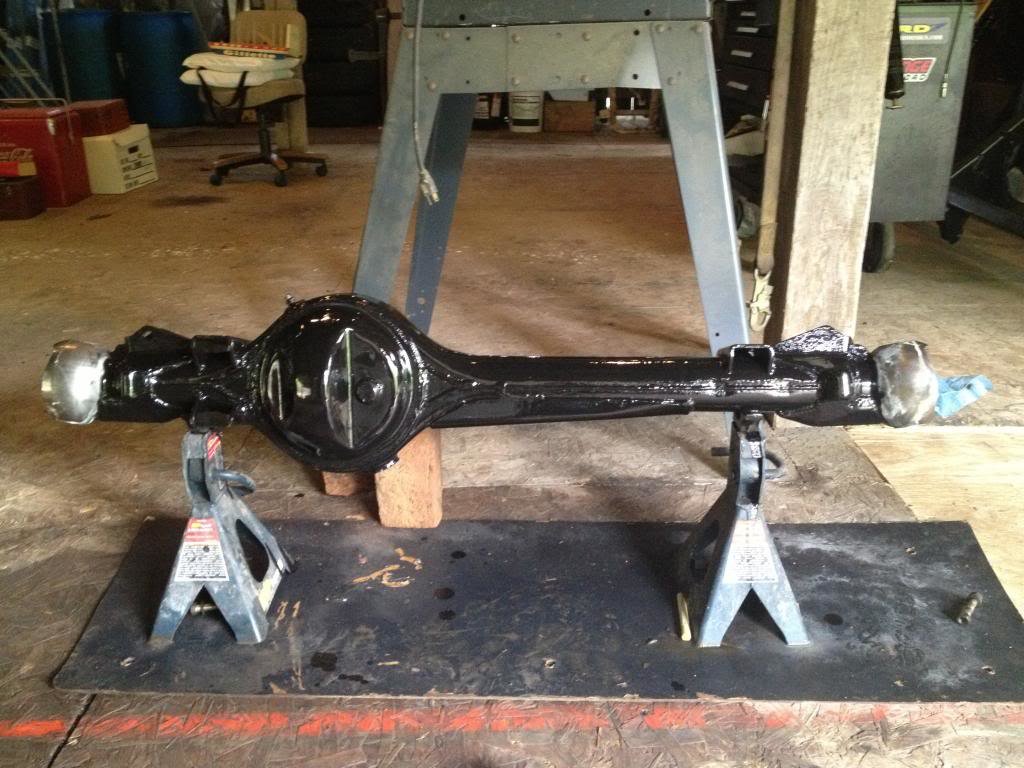

    Today I applied Metal Ready to the axle housing and layed down the first coat of POR 15. I also sold my 22r, and I'm waiting on the machine shop to get me a quote on making some pieces to align my knuckles.

    "Bone dry" Metal Ready applied:

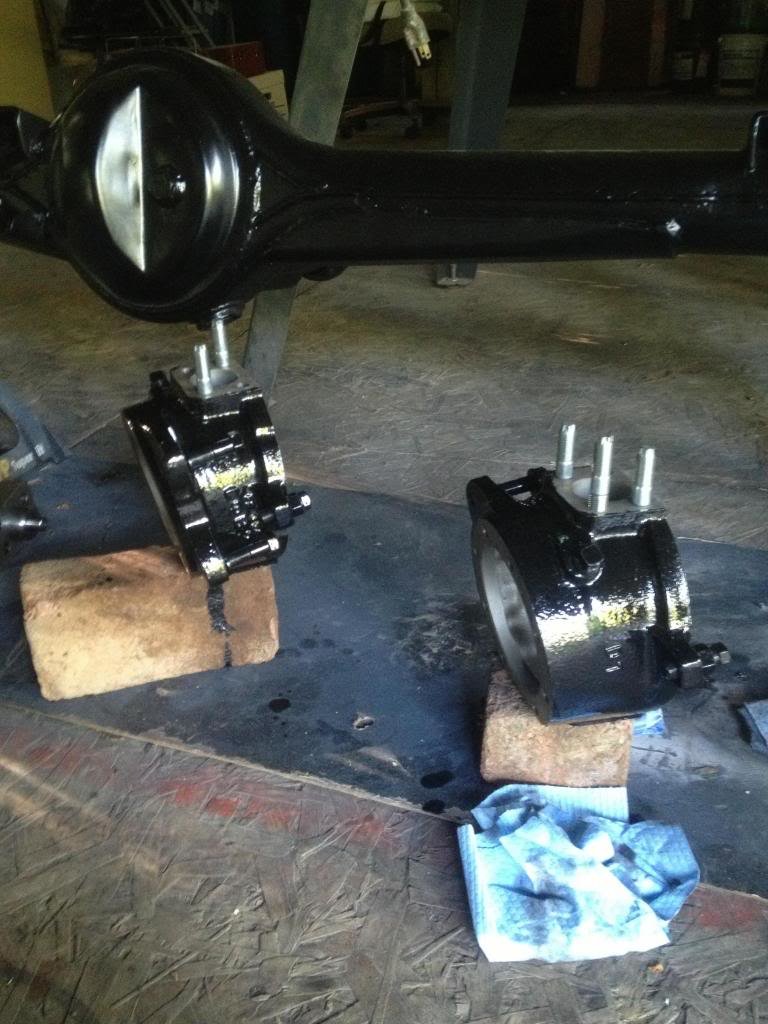

    [​IMG]

    1st coat POR 15 applied:
    [​IMG]

  7. May 5, 2014 at 1:26 PM
    #87
    cab4you26

    cab4you26 [OP] Well-Known Member

    Joined:
    Sep 14, 2009
    Member:
    #22756
    Messages:
    358
    Gender:
    Male
    First Name:
    Corey
    VA
    Vehicle:
    97 Tacoma, 5spd 2.7L
    Wheelers Offroad black steel wheels, 12 disc changer, spray in bedliner, Black UWS toolbox, Kelly Safari TSR's, Dynomax Super Turbo
    I got a quote from the machine shop for the alignment tool and he said it'd cost $1200.00 to make! for a dummy bushing and shaft! i told the guy made out of steel.....not gold. So that plan is a no-go. So the guy that sells them on Pirate had one left, but I told him no because I bought an air dryer the other day for the compressor to help with using the sand blaster. It's from Ingersoll rand and it's a dryer/regulator combo. I also ordered my motor mounts today from Chilkat along with the oil pan, pickup tube, etc. I finished the POR 15 and top coated my front axle housing and sand blasted my knuckles, too.

    [​IMG]

    [​IMG]

    [​IMG]

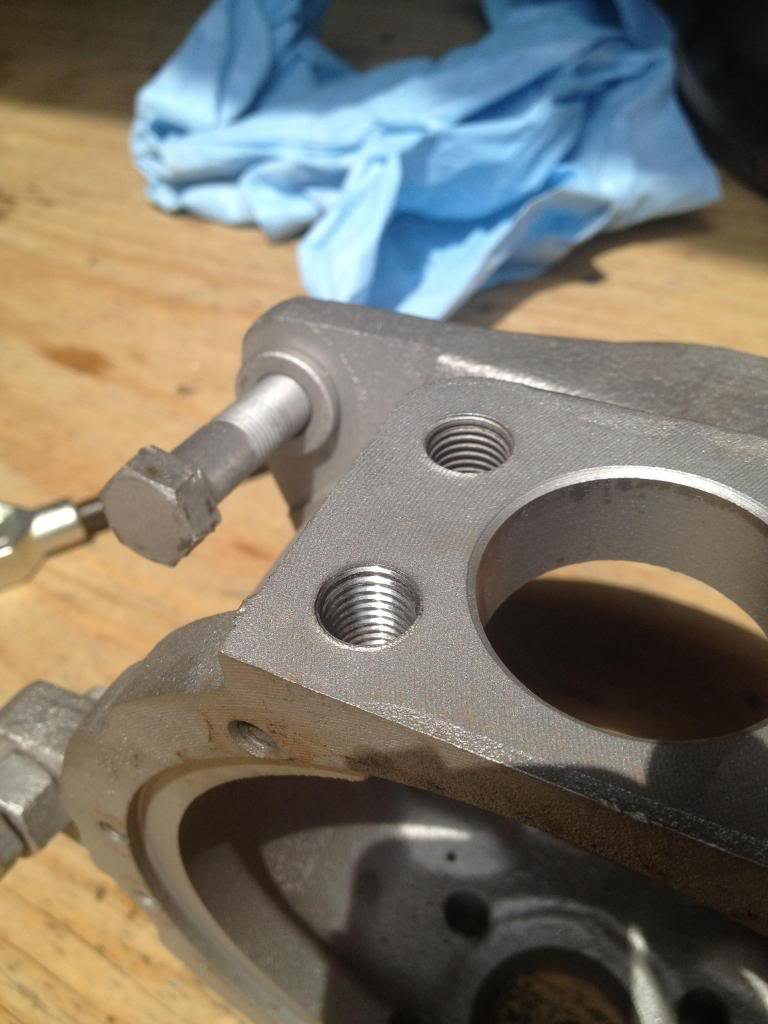

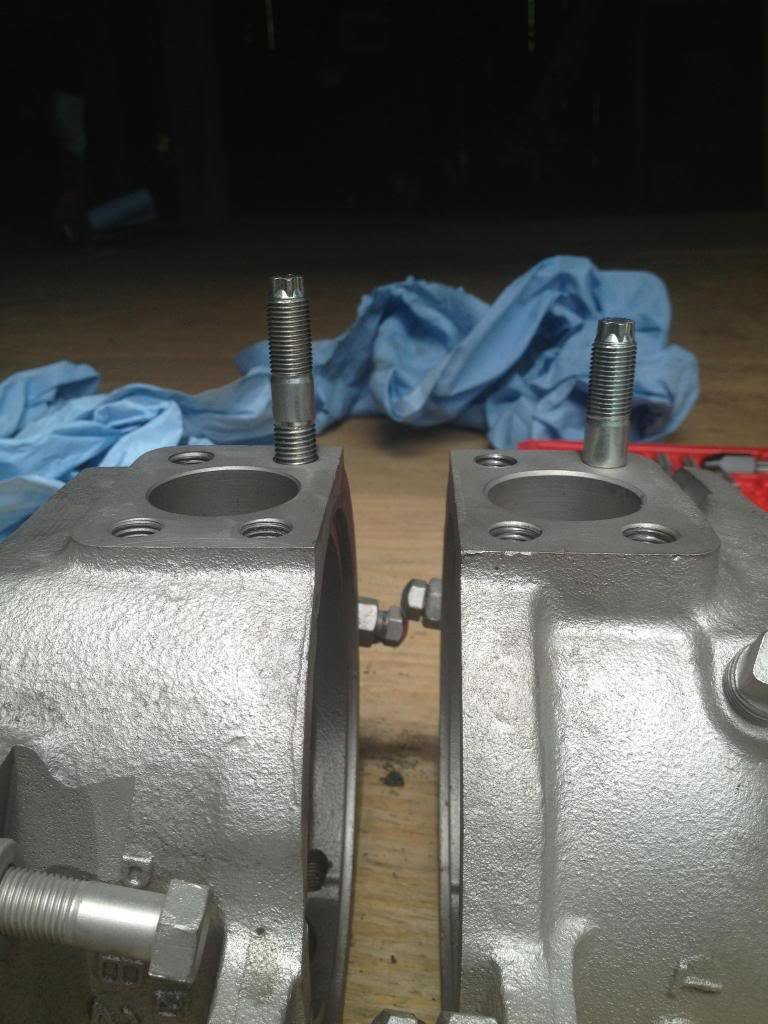

    And when I went to see if my new studs would thread into the knuckles I could only get one thread in. When I blasted my knuckles all the excess grease migrated into the old bolt holes. I went to the store to get a tap and ended up getting a whole tap/die set. I'm glad I got it because I've already used three of the taps to chase threads on the knuckles.

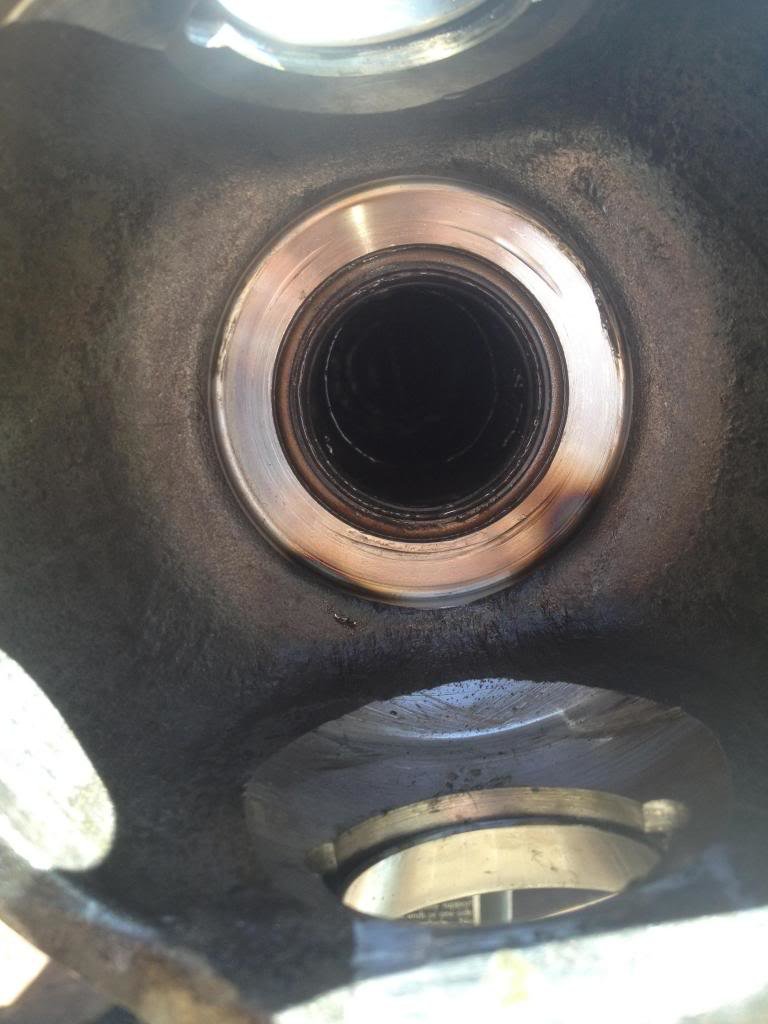

    In this picture you can see how far down the new stud threaded into the non-chased threads vs chased threads.

    [​IMG]

    And how the chased threads look vs non chased.

    [​IMG]

    I barely finished chasing all the threads before I came into work. I managed to coat them in Metal Ready, too, before work so they'll be ready to paint tomorrow!

    Last edited: May 5, 2014
  8. May 5, 2014 at 5:10 PM
    #88
    toyotaman29

    toyotaman29 Well-Known Member

    Joined:
    Aug 31, 2012
    Member:
    #85919
    Messages:
    479
    Gender:
    Male
    First Name:
    Darrell
    North Carolina
    Vehicle:
    05 double cab SR5 4x4
    TRD air filter, exhaust tip, tinted windows, upgraded grill, OEM LED tail lights, LED DTRL'S, Matts 123 skid plate, 4Runner Mirrors, 17 inch OEM 4runner wheels
    Looks like new.... good job man, The sand blaster and tap & die set will be good tools to have, later.

  9. May 8, 2014 at 6:42 AM
    #89
    cab4you26

    cab4you26 [OP] Well-Known Member

    Joined:
    Sep 14, 2009
    Member:
    #22756
    Messages:
    358
    Gender:
    Male
    First Name:
    Corey
    VA
    Vehicle:
    97 Tacoma, 5spd 2.7L
    Wheelers Offroad black steel wheels, 12 disc changer, spray in bedliner, Black UWS toolbox, Kelly Safari TSR's, Dynomax Super Turbo
    The past couple days I have finished my knuckles, removed bearing races (Any tips for installing the new races into the axle?), went to the junkyard and picked up some wheels, doors, headlight trim, and headlight buckets.

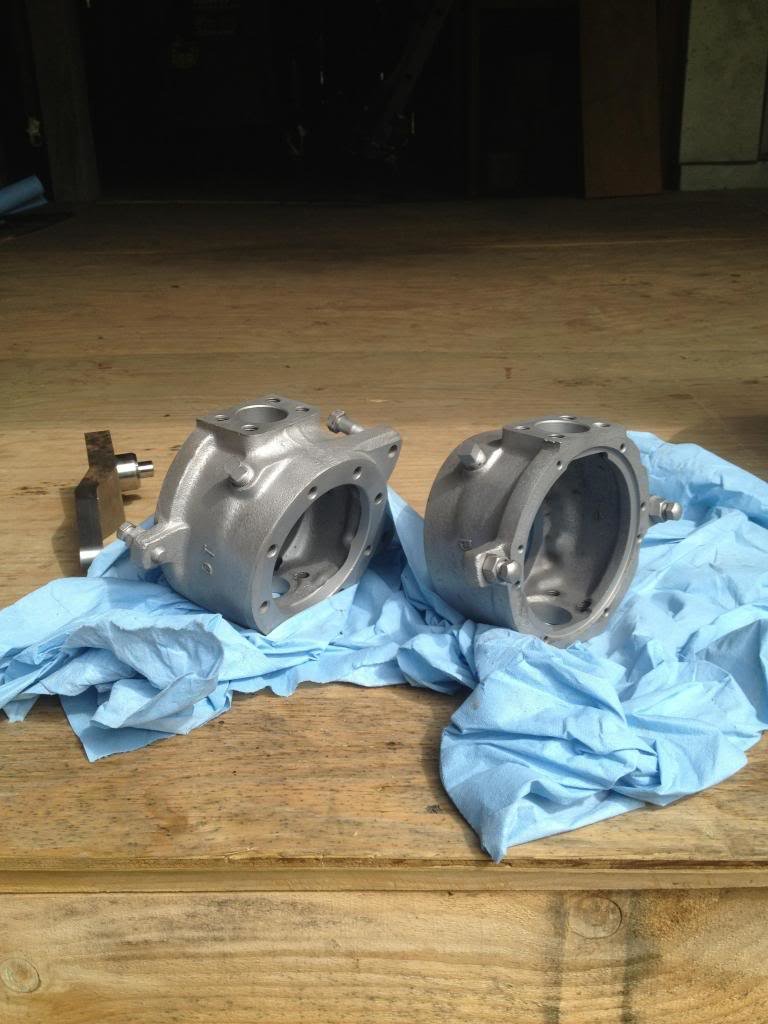

    Por15, primer, and painted knuckles:

    [​IMG]

    Junkyard finds:

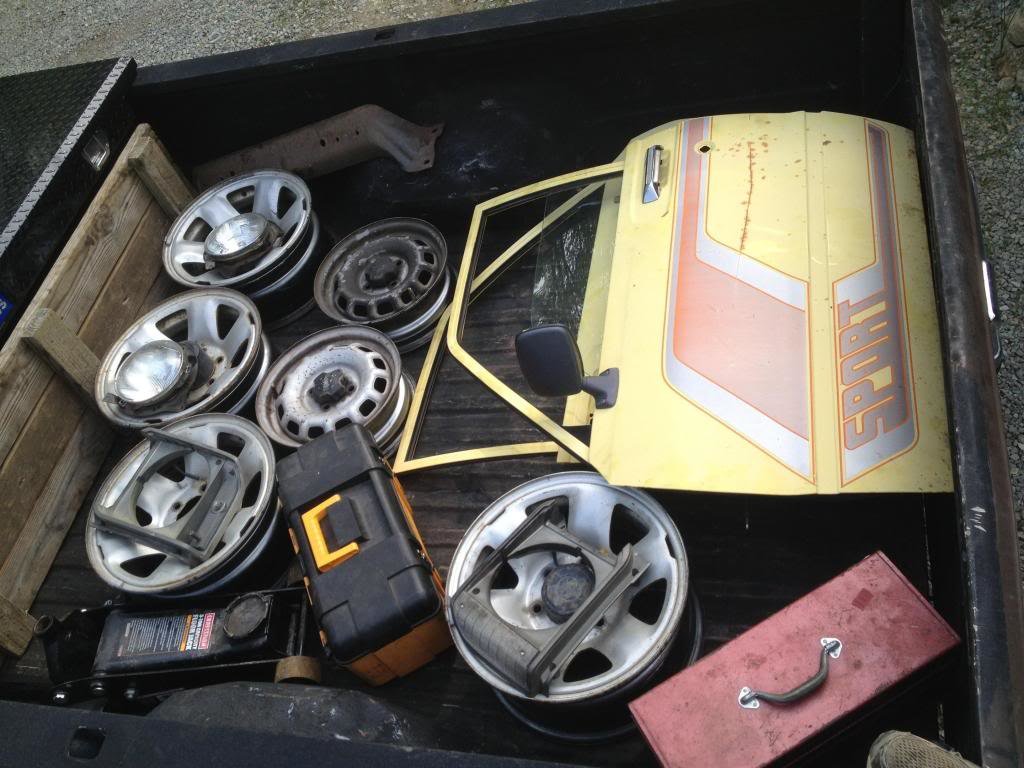

    [​IMG]

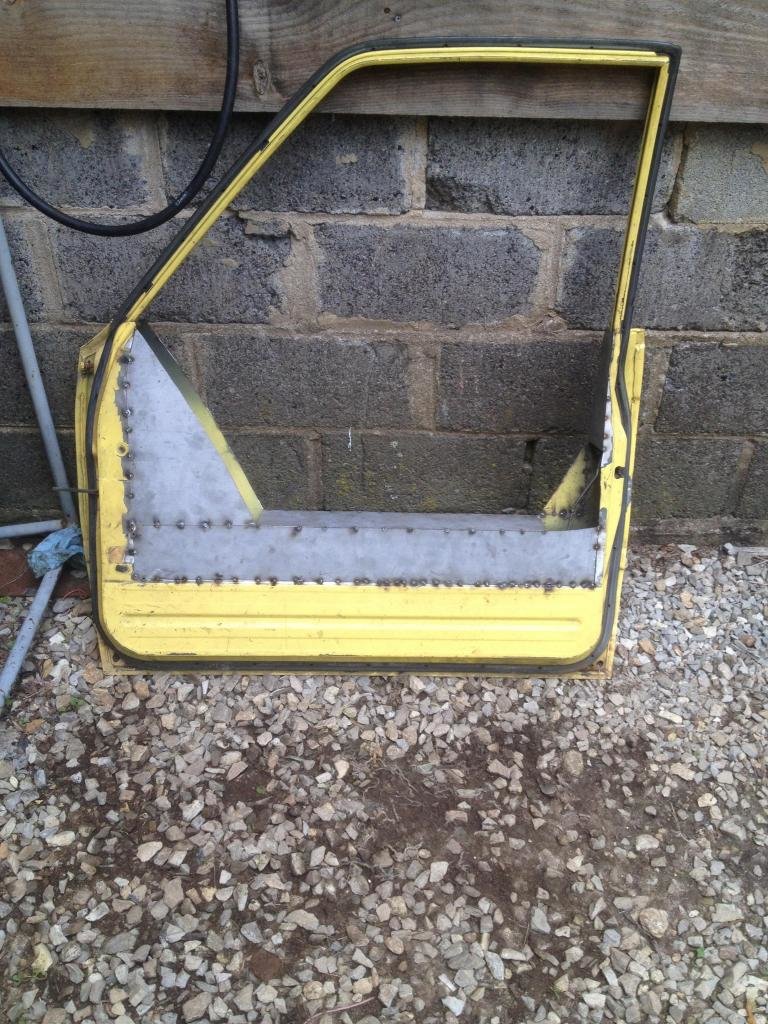

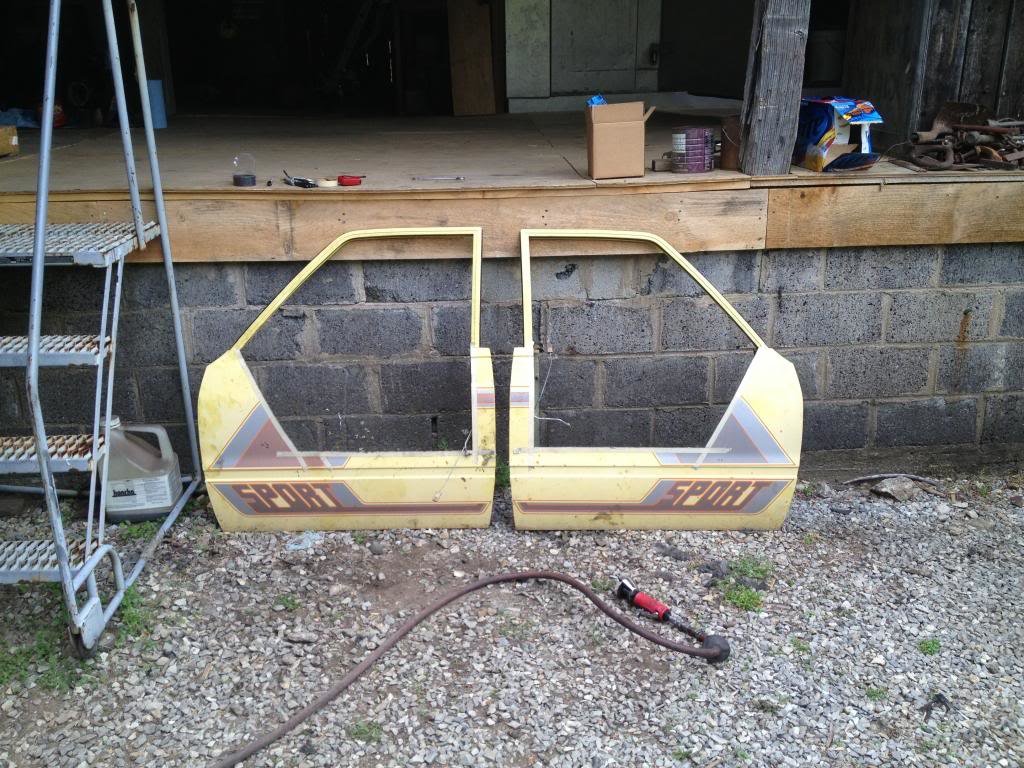

    And I started working on the spare doors:

    [​IMG]

    [​IMG]

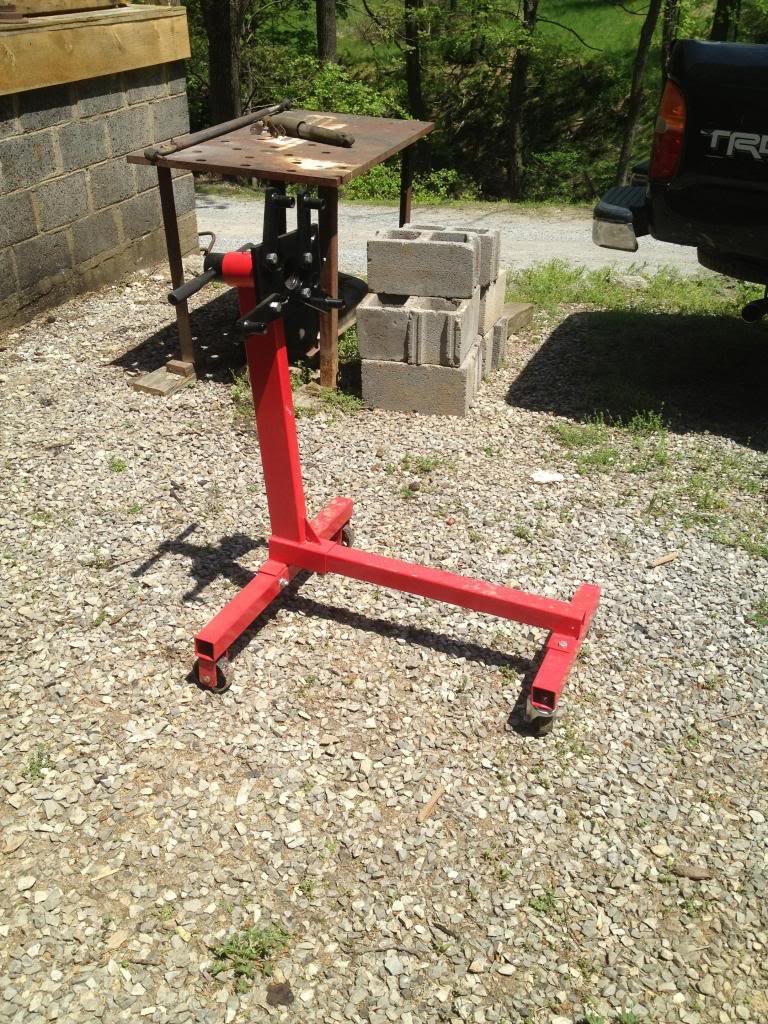

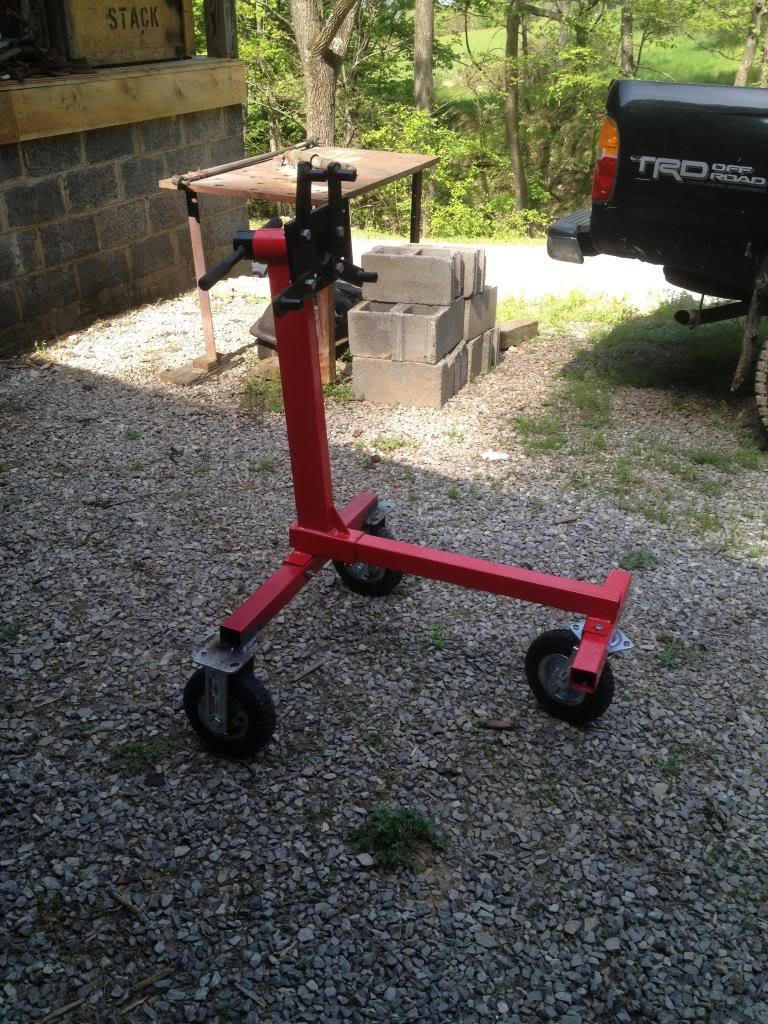

    I also finished up another project: Lifting my engine stand. Now it's ready to play in the rocks!

    [​IMG]

    [​IMG]

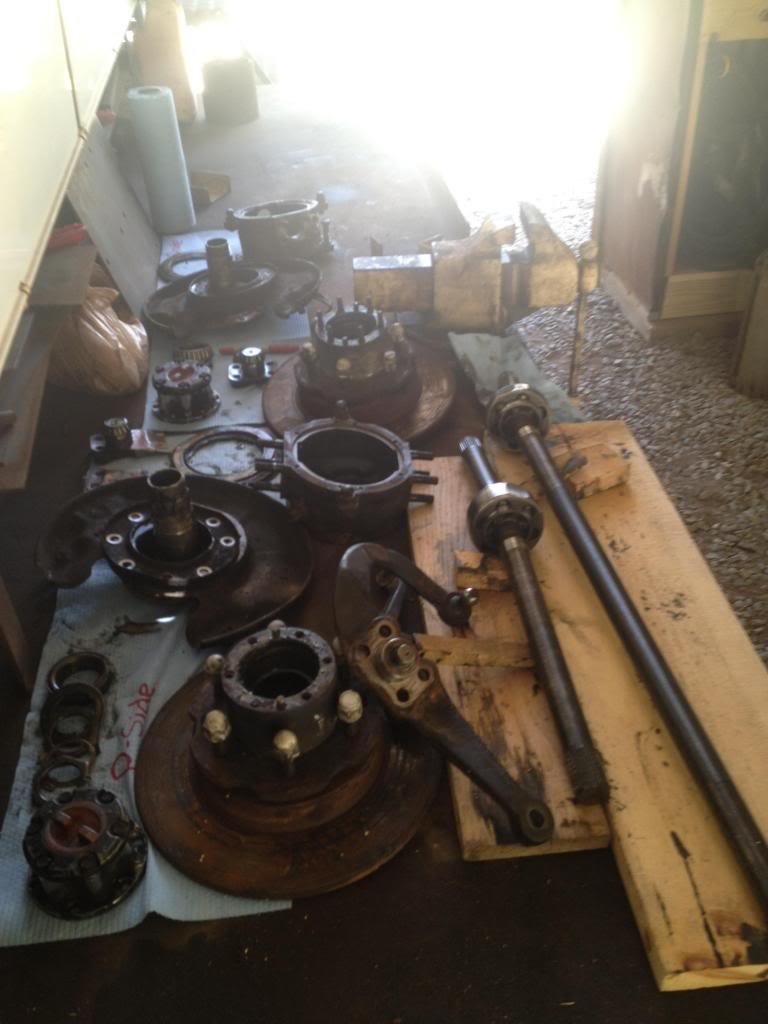

    That's it for now. I still need to clean up my locking hubs, blast and paint the wheel hubs, get new wheel studs, vented rotors, v6 calipers, and then I should be ready to put it all back together.

  10. May 25, 2014 at 12:09 PM
    #90
    09dcsb

    09dcsb Well-Known Member

    Joined:
    Jul 27, 2013
    Member:
    #109166
    Messages:
    170
    Gender:
    Male
    First Name:
    Mike
    uvalde,tx
    Vehicle:
    09 dcsb
    maine truck rack, huskyliners, bhlm, marathon seat covers, camo ventvisors, k&n filter, lift and tires coming soon to a Tacoma near me
    I may be a little late but try throwing your bearing races in the freezer overnight. They get cold and shrink, then they drive in easier

  11. May 25, 2014 at 12:17 PM
    #91
    Ahshiet

    Ahshiet Well-Known Member

    Joined:
    Sep 5, 2009
    Member:
    #22303
    Messages:
    5,548
    Gender:
    Male
    Maui,Hawaii
    Vehicle:
    09 MG Sport DC 4x4
    Set #1 16x10 ion alloy wheel 31x12.5 super swampers Set#2 17x9 KMC Diesel black 305/65/17 M/T ATZ baja Set#3 TRD offroad wheels painted wrinkle black with H/T tire 275/70/16 Set#4 Weld racing 16x12 Typhoon with 305/70/16 BF KO tires Set#5 Weld racing 16.5x12 36x16 fun country Set#6 TRD rugged edition wheels 305/75/16 baja claws Set#7 16x10 procomp steel "beadlooks" 33x12.50 TSL Boggers Spider track spacers in front Wet Okole black seat covers fronts with pockets,back and armrest HIDs high Lexus projector fogs h11 hid 3500k Toyota bed mat black trd exhaust Fujita intake black Xrunner badges carbon fiber door sills Alpine double din 2 8" bazookas (modded) 2 Alpine type-r 8's in tubes Rockford fosgate 1500w silverstar blinker bulbs front and back Led lic plate bulbs Led dome light Led map lights Black eBay headlights VHT night shade tails and 3rd brake light Custom made rear fog lights(next to 3rd brake light) Sticker bombed bed walls and pass. A-pill
    Those doors was a nice find! Wish I had a set sport doors for my 2wd

  12. Jun 2, 2014 at 6:11 PM
    #92
    cab4you26

    cab4you26 [OP] Well-Known Member

    Joined:
    Sep 14, 2009
    Member:
    #22756
    Messages:
    358
    Gender:
    Male
    First Name:
    Corey
    VA
    Vehicle:
    97 Tacoma, 5spd 2.7L
    Wheelers Offroad black steel wheels, 12 disc changer, spray in bedliner, Black UWS toolbox, Kelly Safari TSR's, Dynomax Super Turbo
    Thanks for the bearing race advice. I haven't updated in awhile. School, work, and fixing my daily drivers has taken up most of my time. It seems like as soon as I fix my car, my truck breaks down. My car had a bent wheel for the longest time so I hadn't been driving it, finally got a 13in wheel and tire for it. I began driving it because my f150 has a leaking rear main seal and a CEL, until my tags ran out on my car. So i filled the f150 up the other day with some oil, found time to go to the DMV, and on my way up the MF'n throttle cable breaks on the highway. So my stepdad couldn't come get me, and I didn't want to pay a tow truck to come get me. So this is what I came up with:

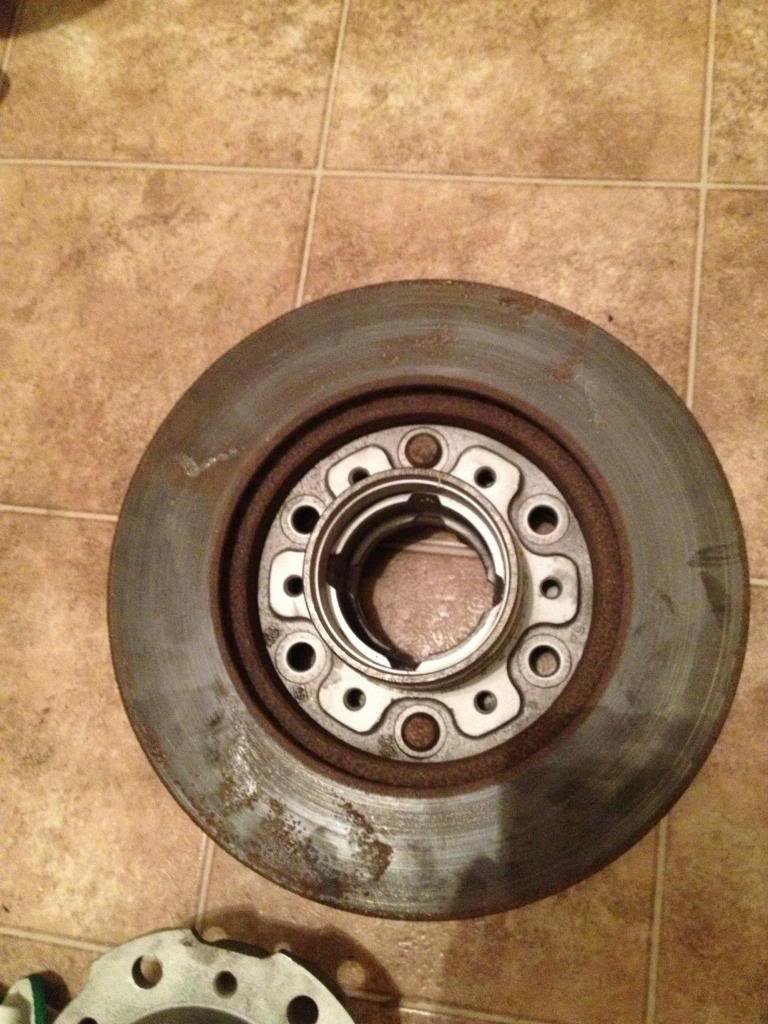

    [​IMG]

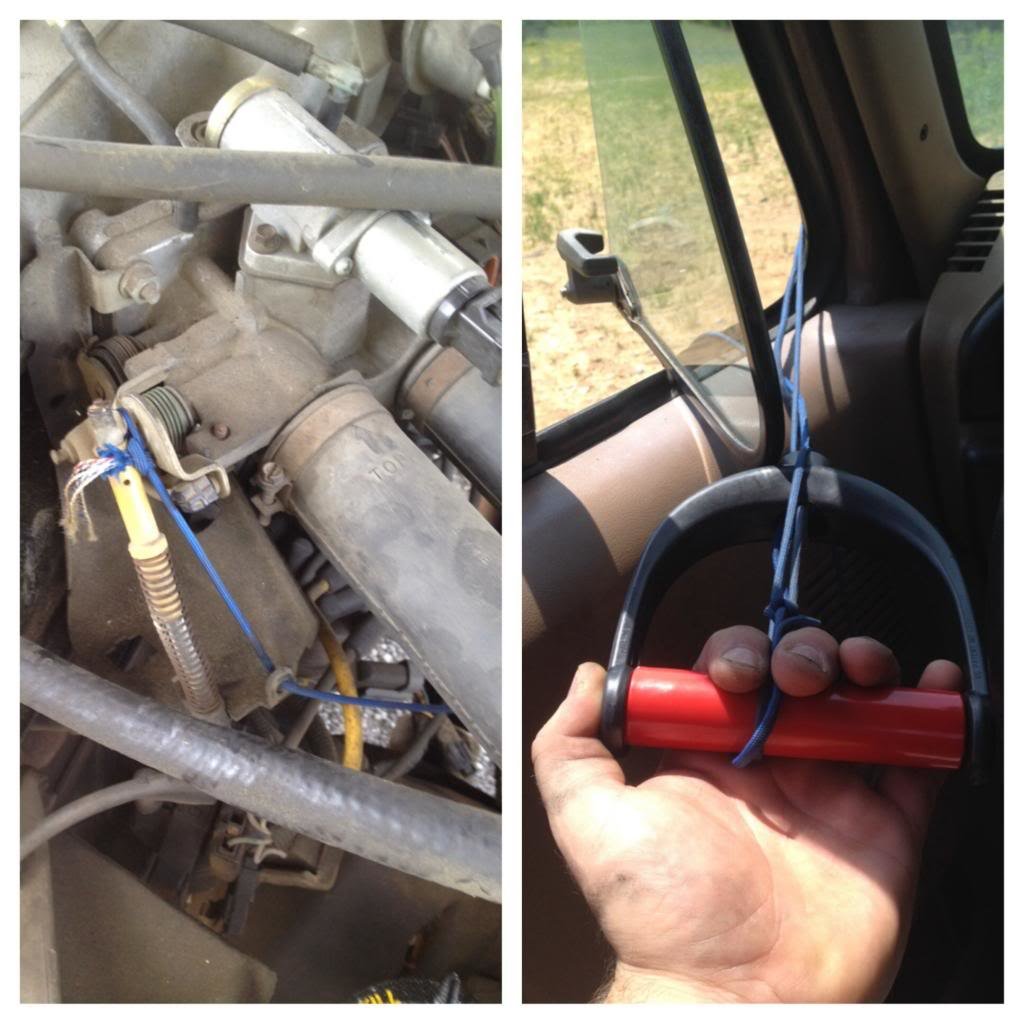

    I had some 550 cord in my tool box, and a resistance band behind the seat of my truck. Tied the cord to the throttle body thing where the original cable goes, ran it to the cab and then tied the handle from my resistance band to it. Drove it about 20 miles like that all the way home. Very interesting to say the least...

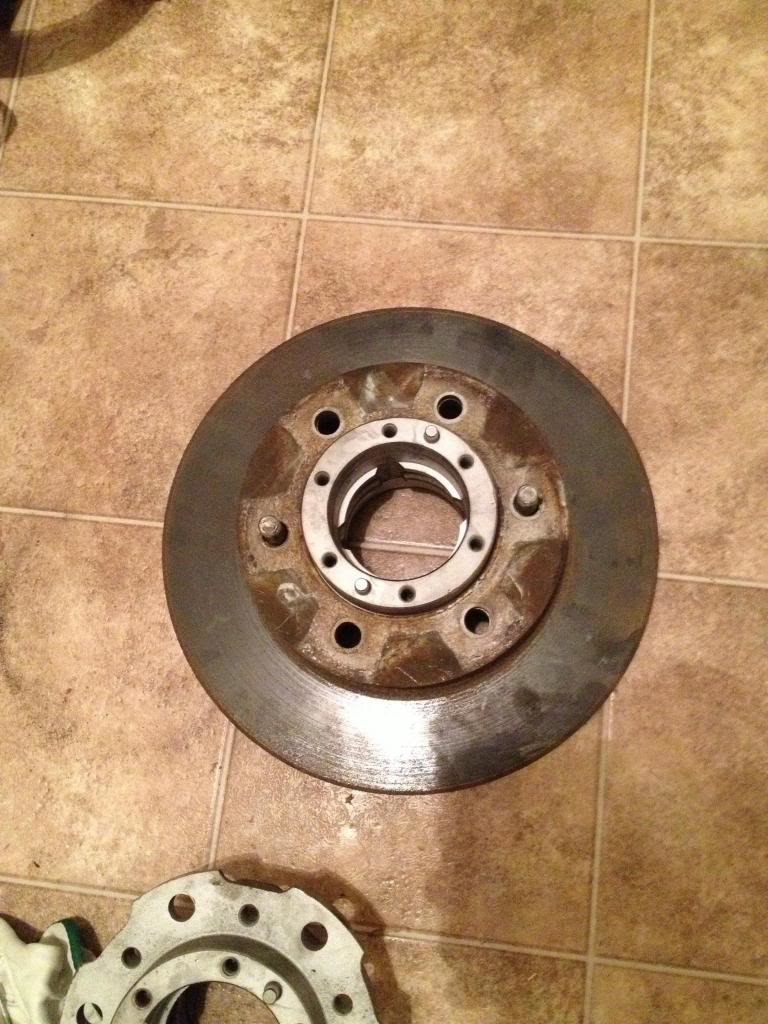

    As far as truck progress goes.... I got some IFS hubs, rear axle, and a steering box. Blasted, turned down, installed races, and painted the hubs, got the drums off the rear axle (that was a big PITA). That's about it. I still haven't gotten my sand blaster working. The air dryer I bought didn't come with a mount so I had to make one. Haven't really messed with anything since I finished the air dryer mount. I did order gears and a setup kit for my rear e-locker. I've pretty much decided I want a selectable locker for the front. I've come to the conclusion that with a selectable I will likely be spending around 1-1.5k when it's all said and done. So I may just say screw it and go with Marlins HP e-locker and be done with it, but that would be a ways down the road. Anyway, on to the pictures....

    [​IMG]

    [​IMG]

    IFS hubs blasted and turned down.

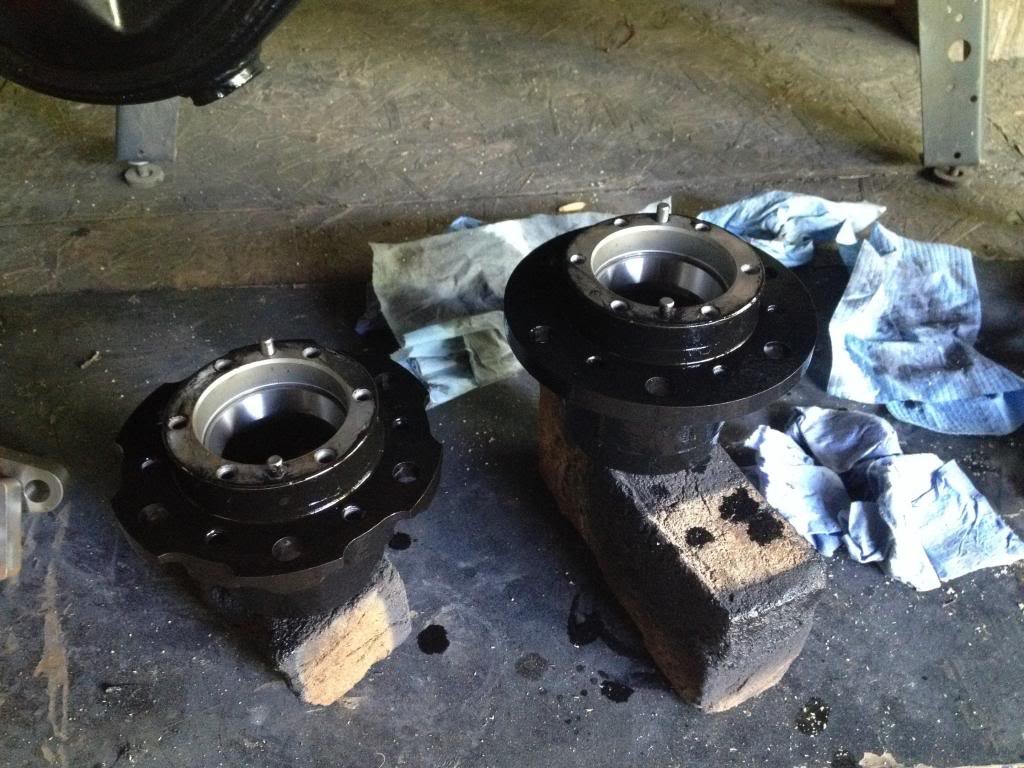

    [​IMG]

    IFS hubs painted with races installed

    [​IMG]

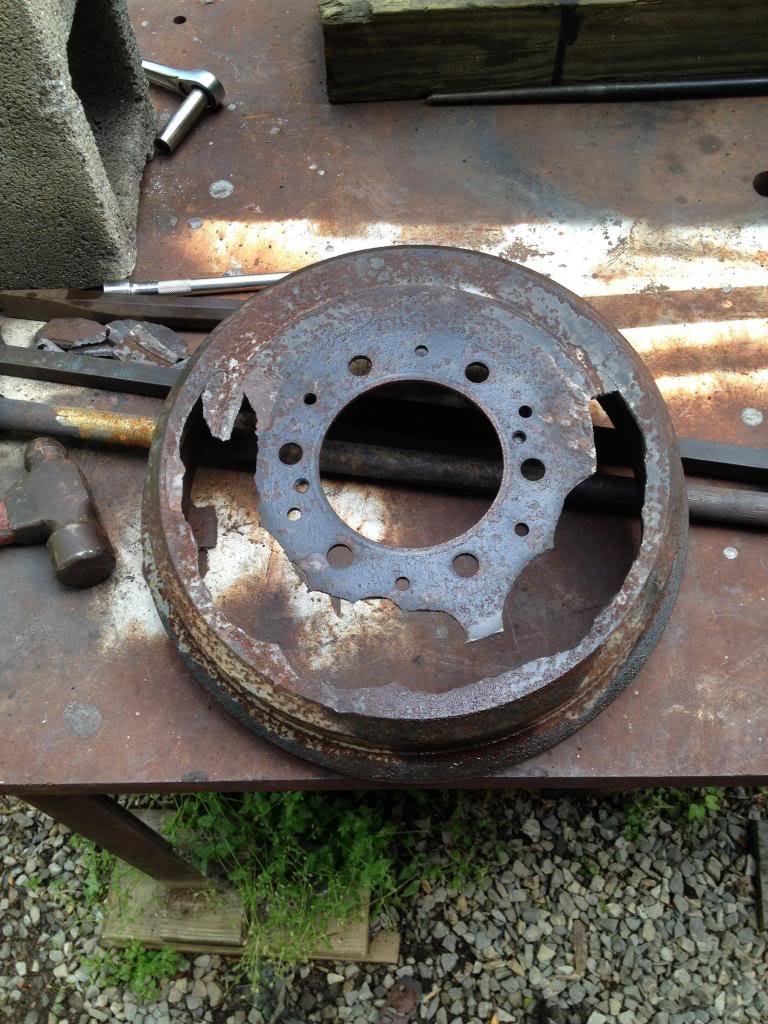

    Getting the drums off the IFS rear was a big PITA. I wasn't kidding...

    [​IMG]

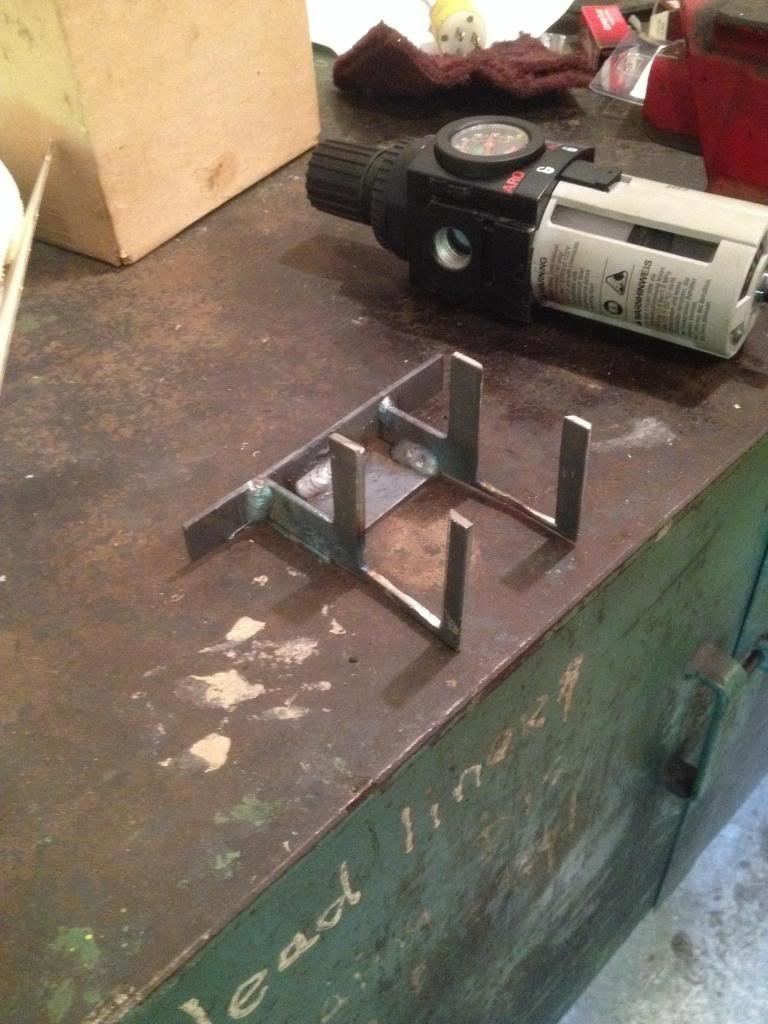

    [​IMG]

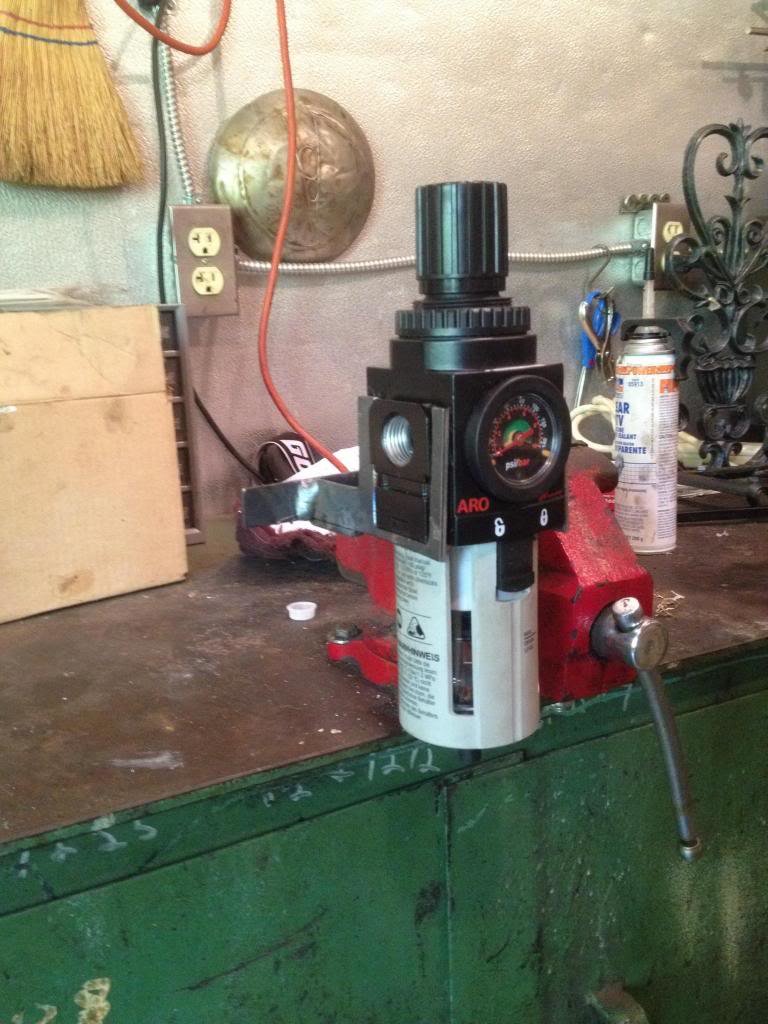

    Air dryer mount

    [​IMG]

    Parts, patiently waiting to be installed!

  13. Aug 24, 2014 at 9:13 AM
    #93
    cab4you26

    cab4you26 [OP] Well-Known Member

    Joined:
    Sep 14, 2009
    Member:
    #22756
    Messages:
    358
    Gender:
    Male
    First Name:
    Corey
    VA
    Vehicle:
    97 Tacoma, 5spd 2.7L
    Wheelers Offroad black steel wheels, 12 disc changer, spray in bedliner, Black UWS toolbox, Kelly Safari TSR's, Dynomax Super Turbo
    I haven't updated this in awhile mainly because I haven't got much done on it. Up until now I've been trying to get my other vehicles in good shape. My F150 has had a rear main seal leak. So my neighbor let me use his lift and I put a oil pan gasket, RMS, flywheel, clutch, slave cylinder, and shifter bushing kit in it. The crank had a slight fingernail-catching groove in it from the old seal. I tried pushing the new one in past the groove, and the awesome part about it is after I got it all back together, the new RMS leaks worse than before. So out comes the tranny again......one day.

    As for the Toyota progress, this is what I've got done so far.

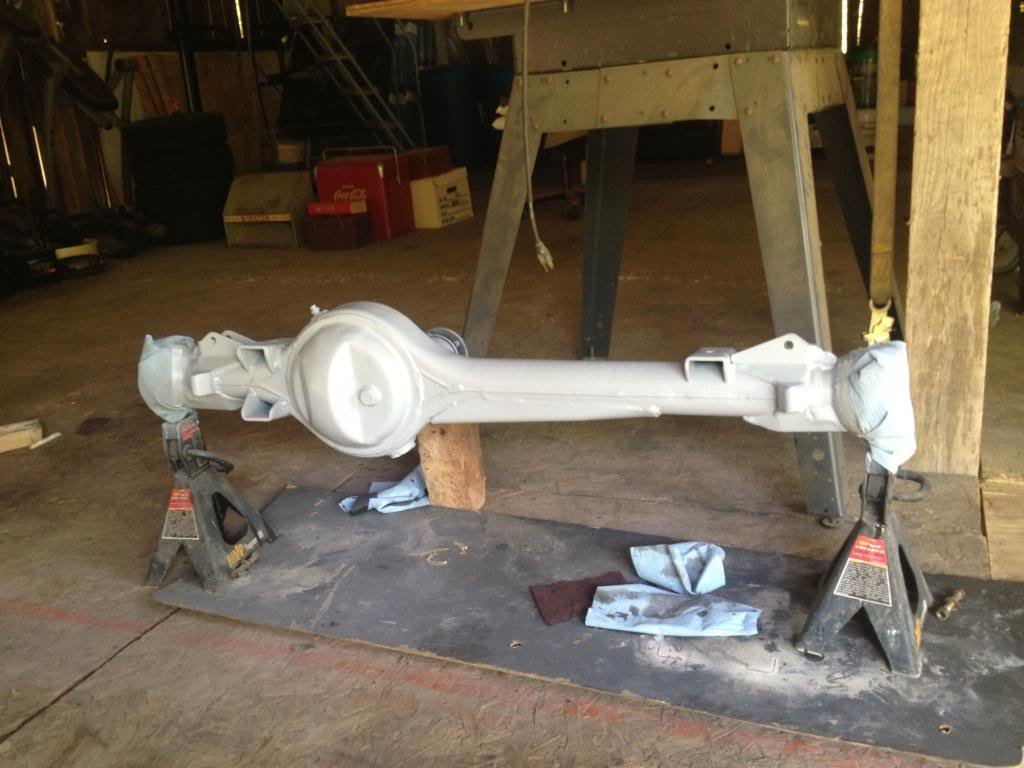

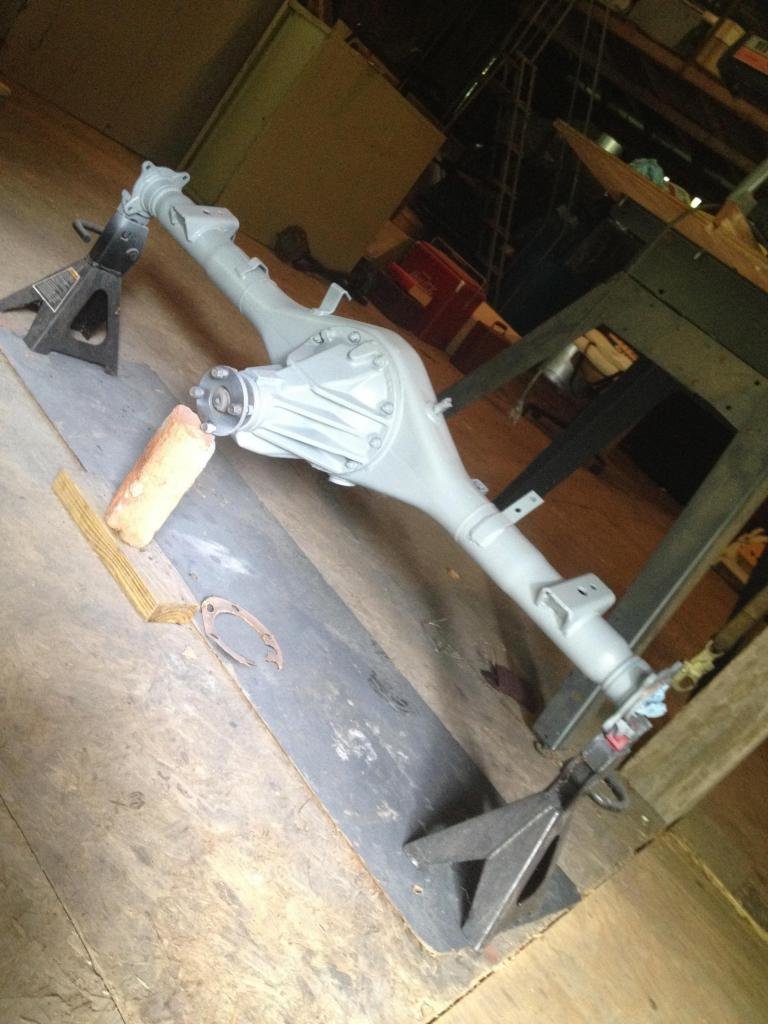

    - Sandblasted and painted rear axle. I'm still waiting on a rebuild kit so I can throw the shafts back in it. I got some rear disk brackets off a member from YT for IFS calipers, however, I'm going to try and locate calipers with an incorporated e-brake that way I don't have to use a transfer case e-brake. If I can't....no big deal. I'm also going to wait to put gears and a locker in the rear for the time being that way I can get a rolling chassis and get the engine, tranny, etc. mounted. I will just temporarily run one driveshaft if it comes down to it.
    - Front axle is modified for front e-locker.
    - Gears are currently being set up in the e-locker by a friend.

    - Worked on half doors, however, I'm still toying ideas for an inside door latch. I'm thinking of getting some clutch/brake cable off a bike or motorcycle that way I can put the latch where I want it. I also want to sandblast the inside of the doors that way I can put POR15 on it before putting the rest of the metal on.

    I also picked up what I thought was a W56 tranny, only to find out it is a G54. It did come with a transfercase, front driveshaft, and crossmember, though. I'm probably not going to use any of it except the transfer case. So if anyone is interested let me know. For the tranny, I decided I'm going to use the W59 in the tacoma, and get an adapter for the cases from Marlin. I will have spent about the same money to find a W56 to use with the 3rz as I will have spent on Marlin's adapter. Not only that, but heresay says the W59 is stronger than the W56, and it has the same amount of miles on it as the 3rz. Makes sense to me to just use the W59.

    [​IMG]

    I don't have pics of it painted black, but you get the idea.

    [​IMG]

    [​IMG]

    [​IMG]

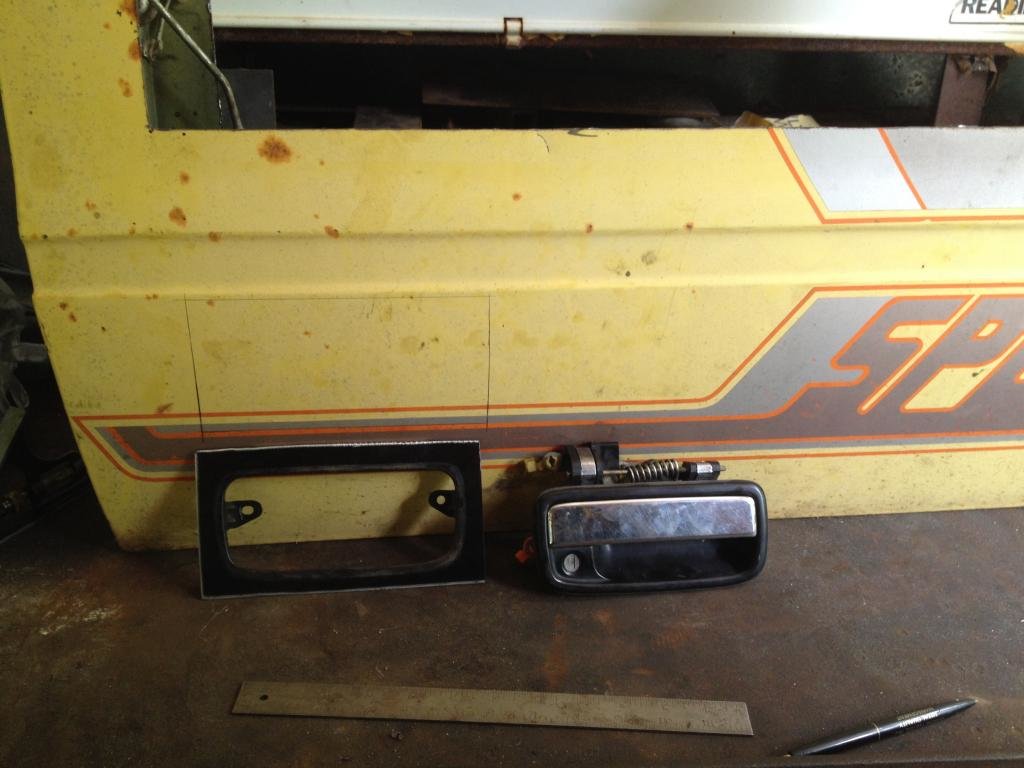

    The latch and bracket came off the parts Tacoma.

    [​IMG]

    [​IMG]

    Last edited: Aug 24, 2014
  14. Aug 24, 2014 at 2:49 PM
    #94
    toyotaman29

    toyotaman29 Well-Known Member

    Joined:
    Aug 31, 2012
    Member:
    #85919
    Messages:
    479
    Gender:
    Male
    First Name:
    Darrell
    North Carolina
    Vehicle:
    05 double cab SR5 4x4
    TRD air filter, exhaust tip, tinted windows, upgraded grill, OEM LED tail lights, LED DTRL'S, Matts 123 skid plate, 4Runner Mirrors, 17 inch OEM 4runner wheels
    Hey Corey, looks like it's coming together very good, you might want to check out a sleeve and rear seal repair kit for the F150, check them out on youtube, keep us updated, later....

  15. Aug 27, 2014 at 2:06 PM
    #95
    cab4you26

    cab4you26 [OP] Well-Known Member

    Joined:
    Sep 14, 2009
    Member:
    #22756
    Messages:
    358
    Gender:
    Male
    First Name:
    Corey
    VA
    Vehicle:
    97 Tacoma, 5spd 2.7L
    Wheelers Offroad black steel wheels, 12 disc changer, spray in bedliner, Black UWS toolbox, Kelly Safari TSR's, Dynomax Super Turbo

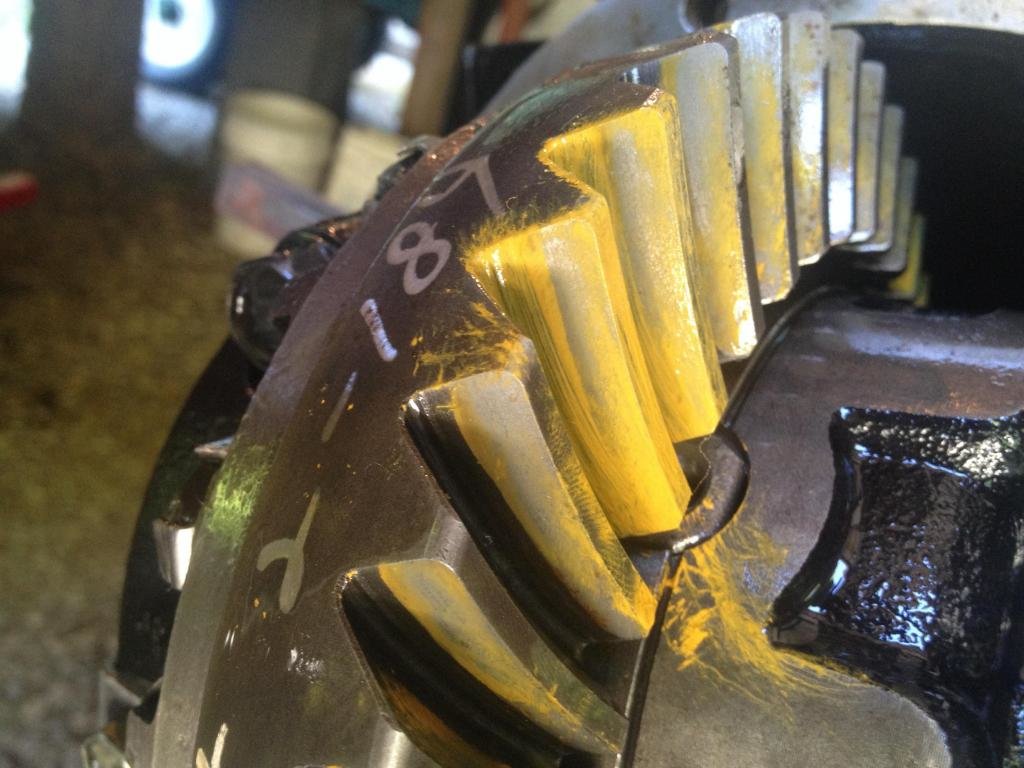

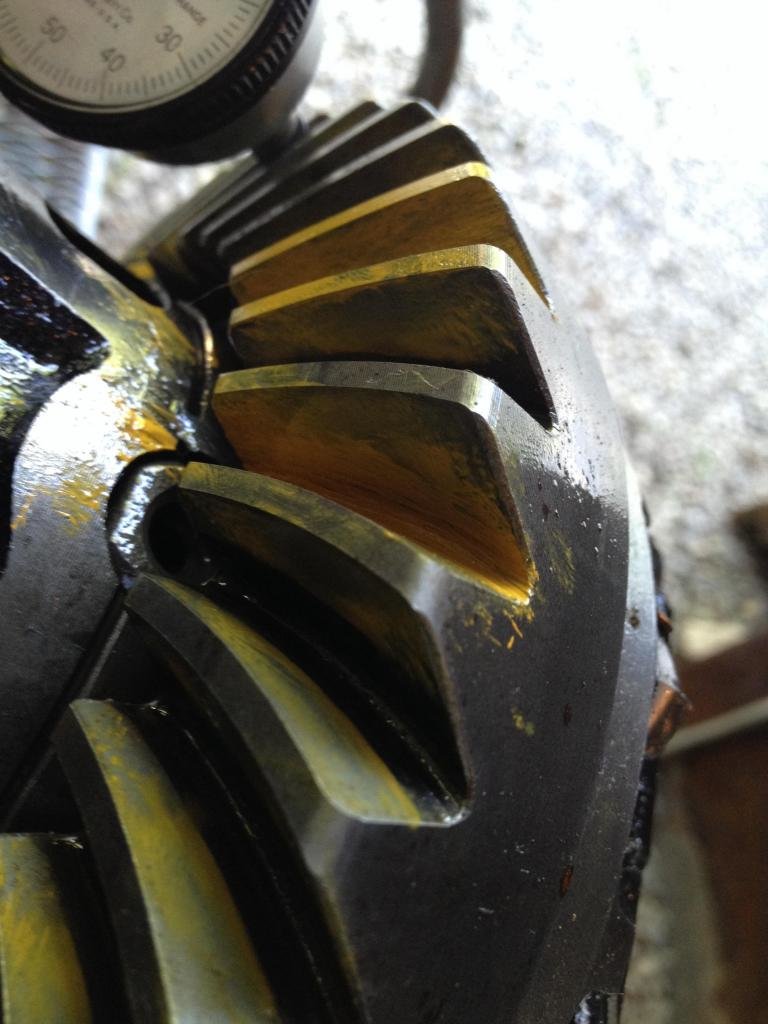

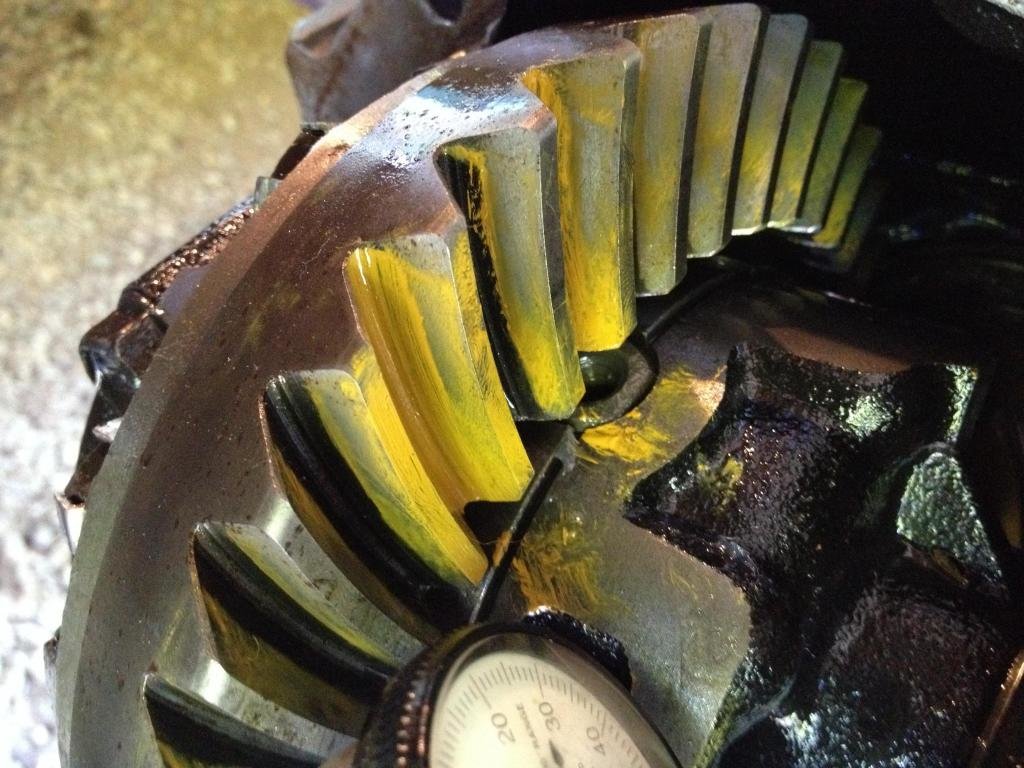

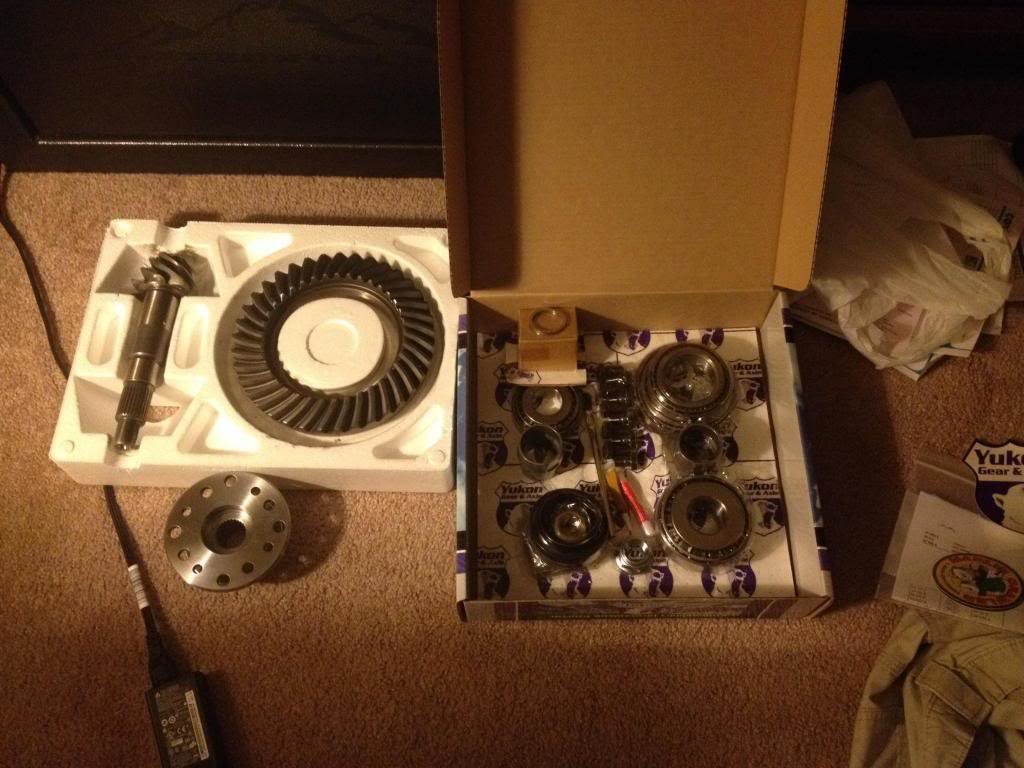

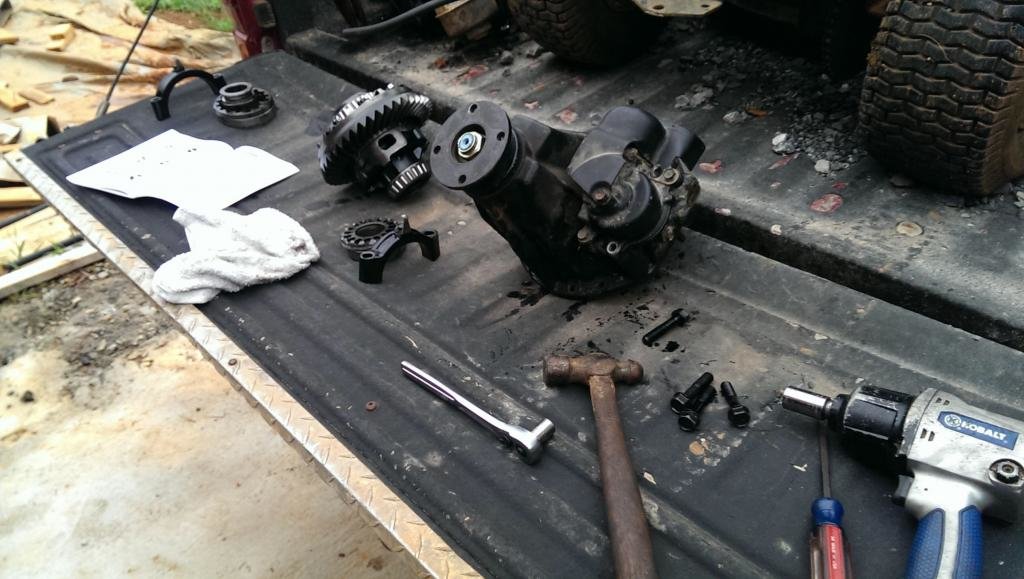

    I received my e-locker back today setup with 5.29s. I'm less than pleased with the result. I payed a friend to set them up an right now I'm not sure what to do. I think I'm going to just try and set them up myself. I have never set up gears, but I've done a lot of reading and I feel like I can do it if I take my time. In my opinion the contact patch makes me think the pinion is too shallow on the ring gear. It is difficult to see the pattern but the pinion isn't touching anywhere on the lower half of the ring gear. Just the top half.. And I put two indicators on the ring gear and both measured 0.029 backlash. Idk what the preload on the bearings is as I don't have the proper wrench to check it. Here are some pictures and a video.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  16. Sep 23, 2014 at 6:17 AM
    #96
    Gear Head

    Gear Head Well-Known Member

    Joined:
    Oct 27, 2012
    Member:
    #89921
    Messages:
    3,739
    Gender:
    Male
    First Name:
    Jacob
    Winston Salem, NC
    Vehicle:
    82 Pickup
    The usual toyota parts..
    Hahaha damn dude, I was scrolling through your build and I literally just got done doing everything you're doing. Seriously, go look at my thread haha. Nice to find another first gen build that is actually active on TW.

  17. Sep 23, 2014 at 6:24 AM
    #97
    Gear Head

    Gear Head Well-Known Member

    Joined:
    Oct 27, 2012
    Member:
    #89921
    Messages:
    3,739
    Gender:
    Male
    First Name:
    Jacob
    Winston Salem, NC
    Vehicle:
    82 Pickup
    The usual toyota parts..
    Just watched the vid of your backlash... DO NOT RUN THAT!! That's insanely loose! It's supposed to be .006-.010. And honestly, as far off as that is, tightening it up will probably help bring your pattern down towards the toe.

  18. Sep 23, 2014 at 4:32 PM
    #98
    Dwill817

    Dwill817 Well-Known Member

    Joined:
    Jul 26, 2011
    Member:
    #60590
    Messages:
    960
    Gender:
    Male
    First Name:
    Drew
    Alabama
    Vehicle:
    1981 Toyota Pickup 4x4
    I'm building mine! :brianr:

    I just never update with techincal crap.. Lol

  19. Sep 24, 2014 at 9:50 AM
    #99
    Gear Head

    Gear Head Well-Known Member

    Joined:
    Oct 27, 2012
    Member:
    #89921
    Messages:
    3,739
    Gender:
    Male
    First Name:
    Jacob
    Winston Salem, NC
    Vehicle:
    82 Pickup
    The usual toyota parts..
    Haha yeah yeah. What's the point of a build if you don't put everything in it? Gotta have some meat to read! Funny I say that.. I put all kinds of shit in mine and nobody ever posts lol

  20. Sep 24, 2014 at 3:18 PM
    #100
    Dwill817

    Dwill817 Well-Known Member

    Joined:
    Jul 26, 2011
    Member:
    #60590
    Messages:
    960
    Gender:
    Male
    First Name:
    Drew
    Alabama
    Vehicle:
    1981 Toyota Pickup 4x4
    That's why! I don't feel like making a project take double the time to post it on a forum where not many care. Besides, I'm building my truck for myself not for anyone's approval. I just like forums to meet people for riding and talking with people with the same interests.

    I feel like we've seen a million RUF/Chevy 63 swaps like we did, so anything I add is not important because I just copied someone else.
