1995-early 1997 Tacoma Wiper Motor Source

Discussion in '1st Gen. Tacomas (1995-2004)' started by GunInstructordotcom, Apr 1, 2025.

  1. Apr 1, 2025 at 11:28 AM
    #1
    GunInstructordotcom

    GunInstructordotcom [OP] New Member

    Joined:
    Jan 14, 2022
    Member:
    #387312
    Messages:
    3
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    1996 White Tacoma 4WD V6 Manual
    I have looked for a rebuilt wiper motor for my 1996 Tacoma for several years now. I hate buying used motors because they can be as tired or nearly as tired as my 300,000 mile motor. None were available from the mega-rebuilder company Cardone. Then it dawned on me to look for other model 1996 Toyota motors. Voila! The Cardone rebuilt 1996 Camry motor is nearly identical. I bought it from Parts Geek a few weeks ago. Five lug electrical plug, casing, mounting bolt pattern, are all identical. The only differences are the rebuilt motor comes with a short lever bolted on the threaded shaft which has to be taken off, and the rubber boot shield from the old motor has to be reused, which slides on the shaft. Other models of 1996 Toyotas may have the same "unobtainium" wiper motor as well. I may be ignorant and this is common knowledge to 1995-1997 Tacoma owners, but I thought I would pass this information along.

    ControlCar, Speedytech7 and Wulf like this.
  2. Apr 1, 2025 at 3:00 PM
    #2
    ControlCar

    ControlCar My Moto: Help & Learn…period.

    Joined:
    Jul 22, 2023
    Member:
    #429578
    Messages:
    3,413
    Gender:
    Male
    First Name:
    Steven
    Sugar Land TX
    Vehicle:
    1996 Taco 2.4L 2wd Automatic
    Clock Volt meter/LSPV Delete/Hyundai 16’s/FP gauge/after 9months of wrenching ZERO oil leaks
    pix would be stellar!!!!!
    if possible
    1996 owner here!!!!

  3. Apr 1, 2025 at 5:03 PM
    #3
    GunInstructordotcom

    GunInstructordotcom [OP] New Member

    Joined:
    Jan 14, 2022
    Member:
    #387312
    Messages:
    3
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    1996 White Tacoma 4WD V6 Manual

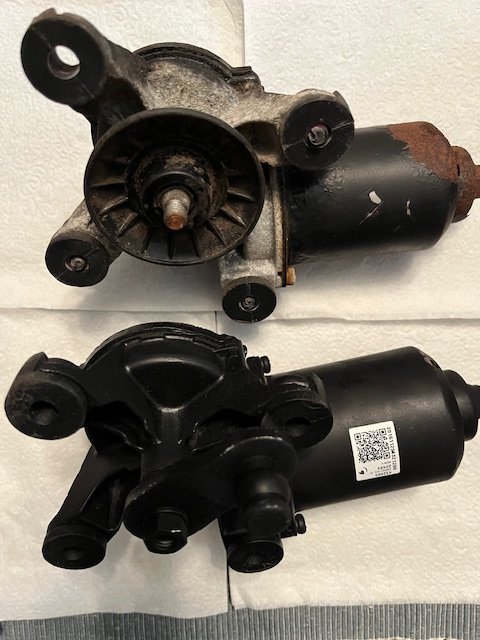

    Here you go.

    ControlCar likes this.
  4. Apr 1, 2025 at 5:06 PM
    #4
    GunInstructordotcom

    GunInstructordotcom [OP] New Member

    Joined:
    Jan 14, 2022
    Member:
    #387312
    Messages:
    3
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    1996 White Tacoma 4WD V6 Manual

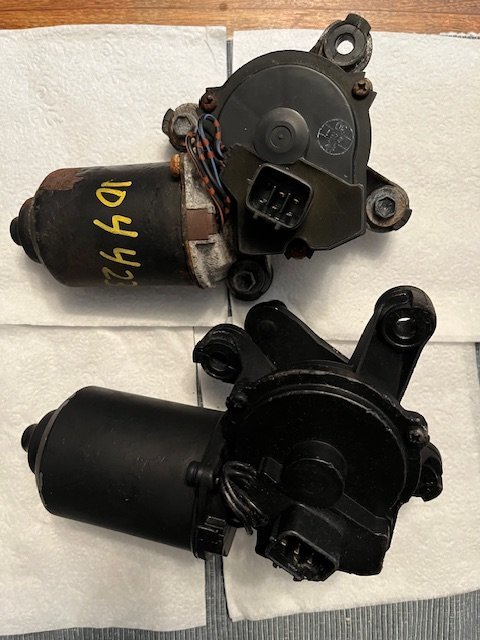

    These are the motors for the wipers with intermittent, low and high. So the plug is five male connectors, two in the top row and three in the bottom row, with the top left connector blank.

  5. Apr 1, 2025 at 5:59 PM
    #5
    ControlCar

    ControlCar My Moto: Help & Learn…period.

    Joined:
    Jul 22, 2023
    Member:
    #429578
    Messages:
    3,413
    Gender:
    Male
    First Name:
    Steven
    Sugar Land TX
    Vehicle:
    1996 Taco 2.4L 2wd Automatic
    Clock Volt meter/LSPV Delete/Hyundai 16’s/FP gauge/after 9months of wrenching ZERO oil leaks
    Thanks my man!!!!!
    Excellent information
