1GR-FE ALUMINUM INTAKE MANIFOLDS

Discussion in 'Performance and Tuning' started by TRfknD, Sep 15, 2012.

  1. Sep 16, 2012 at 7:27 PM
    #81
    toon714

    toon714 Well-Known Member

    Joined:
    Sep 15, 2010
    Member:
    #43323
    Messages:
    491
    Gender:
    Male
    First Name:
    toon
    So. Cali to H-town
    Vehicle:
    2010 turbo lowered prerunner
    garret Gt 35R front mount turbo, TR lowering kit, Work wheels, all the go fast goodies!
    lol. :D
    dont be :jellydance:

    wheres ur friends 4000hp veyron?
    i wanna see pics of that.... lol

  2. Sep 16, 2012 at 7:29 PM
    #82
    SoCaltaco65

    SoCaltaco65 Well-Known Member

    Joined:
    May 10, 2011
    Member:
    #56389
    Messages:
    6,939
    Gender:
    Male
    Vehicle:
    2011 DCSB 4x4 Offroad TRD
    Harbor Freight 110v welder garage fab parts.
    This thread will go down a darkened path that will net a lock...

  3. Sep 16, 2012 at 7:32 PM
    #83
    toon714

    toon714 Well-Known Member

    Joined:
    Sep 15, 2010
    Member:
    #43323
    Messages:
    491
    Gender:
    Male
    First Name:
    toon
    So. Cali to H-town
    Vehicle:
    2010 turbo lowered prerunner
    garret Gt 35R front mount turbo, TR lowering kit, Work wheels, all the go fast goodies!
    looking forward to the bad ass intake manifold gabe!!
    u got some mad skills behind welding sir. :)
    also thank you for taking the task to make a 1gr intake manifold.

    i cant wait to get mine!

  4. Sep 17, 2012 at 12:04 AM
    #84
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,214
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    A 20B swap was my dream but the car had to go. I do miss it a lot. If I were to get another I would probably drop an LS engine in there. Rotaries are badass but you need some serious coin to rebuild them when they go.

    Anyway good luck with the manifold. It is a work of art.

  5. Sep 17, 2012 at 12:21 AM
    #85
    BAMFTACO

    BAMFTACO Pabst Blue Ribbon on ice

    Joined:
    Feb 3, 2010
    Member:
    #30639
    Messages:
    9,751
    Gender:
    Male
    First Name:
    JUAN
    Malibu, CA
    Vehicle:
    Taco
    Lift- stock suspension with light racing uppers,tc coil bucket gusset, timbern bumps ,defined extended shackles with shackle brace. Armor- custom tube bumper, kr fab rear bumper,trail gear wiy 78 in sliders Performance-intake manifold spacer, vibrant resonator Random stuff- kenwood head unit,b&m t shifter, hood bug deflector.
    Braaaaaaaap

  6. Sep 17, 2012 at 12:23 AM
    #86
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,214
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    You can take that to the bank.

  7. Sep 17, 2012 at 5:27 PM
    #87
    00goobs

    00goobs Member

    Joined:
    Sep 16, 2012
    Member:
    #87047
    Messages:
    9
    Gender:
    Male
    First Name:
    Gabe
    Spring, TX
    Vehicle:
    Experimental
    Woohoo, my intake doesn't suck (performance wise). It also seems to have no benefit either. Because I am using the stock sized runners, the restriction is the size of the flange and lower plenum. With the lower intake, both top intakes flowed 230 +/- 5% cfm per runner. Same results without the lower as is expected from the size of the flange I used. The neck/taper from the 2" pipe to the stock flange is where the bottle neck is and explains the flow bench results. I didn't need him to write it out for me, so no prints to scan. It flowed 72% capacity of his flow bench which he said is comparable to older performance intakes and some of the newer LSx stock intakes. So, in theory you could do the math to figure out the capability of the stock intake HP wise and calculate the need for a ported/custom intake set up.

    Normally, I weld and port the flanges and leave the head work to the owner, so the bottleneck would be at the head. Because of the lower intake and the way it attaches to the head, I only made the top section.

  8. Sep 17, 2012 at 5:49 PM
    #88
    00goobs

    00goobs Member

    Joined:
    Sep 16, 2012
    Member:
    #87047
    Messages:
    9
    Gender:
    Male
    First Name:
    Gabe
    Spring, TX
    Vehicle:
    Experimental
    The flanges I had made are 2mm bigger around the area of the port, but I welded them and port matched them to the stock lower intake manifold to keep them uniformed.

  9. Sep 17, 2012 at 8:00 PM
    #89
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,477
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    Would be interesting to check a stock intake and compare it to the total flow requirements of the manifold running all 6. Of course it wouldn't be 230*6, but it would be more than 230... I'd think the total flow requirement of the engine running at max intake capacity would be around 500.

  10. Sep 17, 2012 at 9:37 PM
    #90
    Bobber Bill

    Bobber Bill Well-Known Member

    Joined:
    Oct 3, 2011
    Member:
    #64554
    Messages:
    1,140
    Gender:
    Male
    So what's next?

  11. Sep 17, 2012 at 10:04 PM
    #91
    00goobs

    00goobs Member

    Joined:
    Sep 16, 2012
    Member:
    #87047
    Messages:
    9
    Gender:
    Male
    First Name:
    Gabe
    Spring, TX
    Vehicle:
    Experimental
    I'm making one more with shorter runners and velocity stacks. The NA truck is going to dyno both and stock and tune accordingly. I may port the stock lower intake and NOT fill the gap on my flanges to increase the cross section of the entire runner. I'm all about doing a bit of work to get results.

    Also, these were individual runner measurements. Just for a little FYI, a friend's $4k heads on a stroked 347 Ford with 2.2" valves flow 330cfm at max lift. There may not even be a bottleneck at the intake on the 1GR... The dyno will tell if the runner length makes the difference. Then, the ported intake vs. the stock and first run intake at the dyno will show if it's worth having...

    I've made intakes for lesser cars, so this would be nice to see the difference on NA, turbo crazy guy's taco and hopefully the 2rz I intaked and tuned...

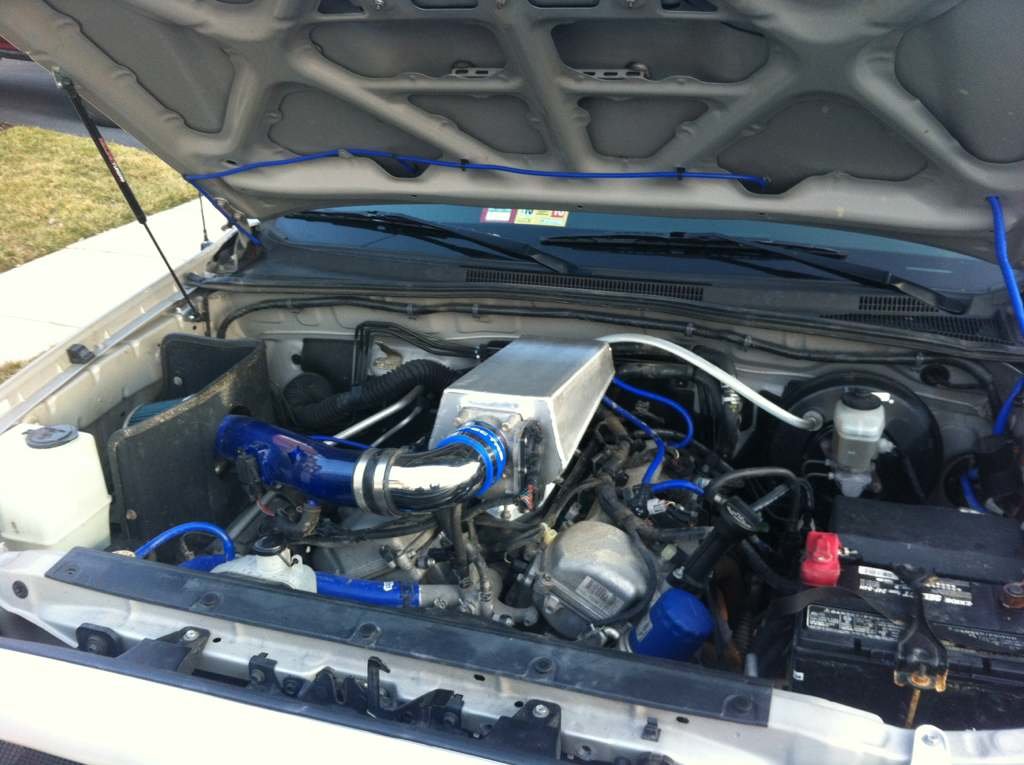

    ImageUploadedByTapatalk HD1347945021.669702.jpg

  12. Oct 18, 2012 at 11:04 AM
    #92
    TRfknD

    TRfknD [OP] Active Member

    Joined:
    Sep 15, 2012
    Member:
    #86981
    Messages:
    33
    Gender:
    Male
    The Woodlands, TX / 671
    Vehicle:
    96 Turbo Taco
    BOOSTED @ 17PSI 415hp / 345tq
    Just FYI...Gabe is still working on the intake manifolds for the 1GR-FE motors. I was able to take my 2rz Turbo Tacoma to the dyno in the mean time. Gabe wired and tuned the megasquirt and custom made the intake manifold. First two pulls were done at 15psi and 3rd pull was done at 17psi. I like the results! :D

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  13. Oct 18, 2012 at 11:11 AM
    #93
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,974
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Those are some damn good numbers coming out of that 2rz! Turbo FTW!

    Gabe and I were discussing some ways to greatly improve upon the original design, for the 1GR. I should have my spare engine up and running soon, so he will have it in the engine bay, to make things easier.

  14. Oct 18, 2012 at 11:24 AM
    #94
    cgs2k2

    cgs2k2 Ohio Member

    Joined:
    Apr 24, 2010
    Member:
    #35923
    Messages:
    2,281
    Gender:
    Male
    Vehicle:
    2006 AC 4x4 OR
    holy shit

  15. Oct 18, 2012 at 11:32 AM
    #95
    tinker_troy

    tinker_troy Well-Known Member

    Joined:
    Sep 17, 2007
    Member:
    #2718
    Messages:
    9,130
    Gender:
    Male
    WA
  16. Oct 18, 2012 at 12:06 PM
    #96
    TRfknD

    TRfknD [OP] Active Member

    Joined:
    Sep 15, 2012
    Member:
    #86981
    Messages:
    33
    Gender:
    Male
    The Woodlands, TX / 671
    Vehicle:
    96 Turbo Taco
    BOOSTED @ 17PSI 415hp / 345tq

    Cool bro! I would love to see your 1GR-FE run on the 1/4 mile. Gabe is already discussing how we can hit the 500hp mark! lol

    Can't wait to see yours run!

  17. Oct 18, 2012 at 12:20 PM
    #97
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,974
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    On your engine, 500 is nothing for it. ;) What kind and size turbo are you running?

  18. Oct 18, 2012 at 12:25 PM
    #98
    TRfknD

    TRfknD [OP] Active Member

    Joined:
    Sep 15, 2012
    Member:
    #86981
    Messages:
    33
    Gender:
    Male
    The Woodlands, TX / 671
    Vehicle:
    96 Turbo Taco
    BOOSTED @ 17PSI 415hp / 345tq
    Running the Garrett 60-1 t3/t4 w/ a/r .63

  19. Oct 18, 2012 at 1:06 PM
    #99
    Lucario Runner

    Lucario Runner Resident SUV racer

    Joined:
    Jun 29, 2011
    Member:
    #59067
    Messages:
    2,024
    Gender:
    Male
    First Name:
    Robert
    San Antonio, TX
    Vehicle:
    06 Toyota 4Runner
    AFE stage II intake, APR X1, URD 70mm Throttle Valve (ported and knife edged), NST intake manifold spacer, URD spec U headers, Denso IKH20, URD fuel pump, APR fuel rail, URD Y pipe, Greddy sandwich cooler plate, Earls oil cooler, FJ TRD shocks, Cusco front and rear sway bars, LC Engineering sway bushings, ES rear track rod bushings, Carbotech pads, Stoptech ss brake lines, Stoptech slotted rotors, Limited Grill, Painted hatch cover by me, Painted valve covers by me, Cobra CB, TRD rad and oil cap, Escort 8500, Autometer oil psi and temp gauges, Flexpod, Pioneer 400w speakers.
    Can't wait for the intake manifold on my truck! With numbers like that in a truck that small it must move along real nice.

  20. Oct 18, 2012 at 1:29 PM
    #100
    TRfknD

    TRfknD [OP] Active Member

    Joined:
    Sep 15, 2012
    Member:
    #86981
    Messages:
    33
    Gender:
    Male
    The Woodlands, TX / 671
    Vehicle:
    96 Turbo Taco
    BOOSTED @ 17PSI 415hp / 345tq
    It moves a bit quicker...lol;)
