1GR-FE Camshaft Position/Timing

Discussion in 'Performance and Tuning' started by FinnJ, Sep 3, 2017.

  1. Sep 3, 2017 at 6:25 AM
    #1
    FinnJ

    FinnJ [OP] Well-Known Member

    Joined:
    Sep 22, 2016
    Member:
    #197981
    Messages:
    687
    Gender:
    Male
    Finland
    Vehicle:
    2007 FJ Cruiser 6M/T
    TRD SC, UCON, CNG conversion, RC 6" (lifted 4"/3" air suspension) w/FOX 2.5, 315/70R17 Duratracs, RECARO seats, etc.
    I have got code P0012 (Camshaft Position "A" - Timing Over-Retarded (Bank 1)) several times lately. The Bank 1 Oil Control Valve was clean, worked ok and impedance was within specs, OCV filter was completely clean, camshaft chain was tight and not jumped. Engine runs well.

    But which sensor can say where is the camshaft going, how the ECU knows it? There is no position sensors for them, only for the crankshaft.

  2. Sep 3, 2017 at 9:25 AM
    #2
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    26,028
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    The first sensor. The one on the timing cover, is for the camshaft. Passenger side.

  3. Sep 3, 2017 at 10:59 AM
    #3
    FinnJ

    FinnJ [OP] Well-Known Member

    Joined:
    Sep 22, 2016
    Member:
    #197981
    Messages:
    687
    Gender:
    Male
    Finland
    Vehicle:
    2007 FJ Cruiser 6M/T
    TRD SC, UCON, CNG conversion, RC 6" (lifted 4"/3" air suspension) w/FOX 2.5, 315/70R17 Duratracs, RECARO seats, etc.
    Last edited: Sep 3, 2017
  4. Sep 3, 2017 at 1:38 PM
    #4
    Blacktaco2042

    Blacktaco2042 Well-Known Member

    Joined:
    Jun 11, 2014
    Member:
    #131732
    Messages:
    876
    Gender:
    Male
    wisconsin
    supercharger/trd cat back 3inch lift 265/75/16 duratracs bumper guard led bar
    It's possible it's a stretched timing chain. It's common on the 05to 08 Tacoma and runners and fj

  5. Sep 4, 2017 at 1:20 PM
    #5
    FinnJ

    FinnJ [OP] Well-Known Member

    Joined:
    Sep 22, 2016
    Member:
    #197981
    Messages:
    687
    Gender:
    Male
    Finland
    Vehicle:
    2007 FJ Cruiser 6M/T
    TRD SC, UCON, CNG conversion, RC 6" (lifted 4"/3" air suspension) w/FOX 2.5, 315/70R17 Duratracs, RECARO seats, etc.
    The valve timing was ok, all the marks were at their place when the crank was 0°.

    Would the OCV be faulty even if the resistance and working (testing with +12V battery) is ok?

  6. Sep 4, 2017 at 3:46 PM
    #6
    Blacktaco2042

    Blacktaco2042 Well-Known Member

    Joined:
    Jun 11, 2014
    Member:
    #131732
    Messages:
    876
    Gender:
    Male
    wisconsin
    supercharger/trd cat back 3inch lift 265/75/16 duratracs bumper guard led bar
    It's possible..I have seen the cam gear go bad also

  7. Sep 24, 2017 at 10:11 AM
    #7
    FinnJ

    FinnJ [OP] Well-Known Member

    Joined:
    Sep 22, 2016
    Member:
    #197981
    Messages:
    687
    Gender:
    Male
    Finland
    Vehicle:
    2007 FJ Cruiser 6M/T
    TRD SC, UCON, CNG conversion, RC 6" (lifted 4"/3" air suspension) w/FOX 2.5, 315/70R17 Duratracs, RECARO seats, etc.
    Seems like it was faulty. I don't remember how it looked last time and then I had anything to compare, but now I had, ordered a new OCV:
    [​IMG]
    And as you can see, the piston is not completely returned. Hopefully P0012 is gone now.

    hresendiz25 likes this.
  8. Sep 24, 2017 at 4:23 PM
    #8
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    26,028
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Interesting find. Did it fix the issue?

  9. Sep 25, 2017 at 12:02 PM
    #9
    FinnJ

    FinnJ [OP] Well-Known Member

    Joined:
    Sep 22, 2016
    Member:
    #197981
    Messages:
    687
    Gender:
    Male
    Finland
    Vehicle:
    2007 FJ Cruiser 6M/T
    TRD SC, UCON, CNG conversion, RC 6" (lifted 4"/3" air suspension) w/FOX 2.5, 315/70R17 Duratracs, RECARO seats, etc.
    So far so good, no pending any codes now.

  10. Sep 25, 2017 at 12:20 PM
    #10
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    26,028
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Good deal.

  11. Nov 2, 2017 at 5:59 AM
    #11
    12tinker

    12tinker Well-Known Member

    Joined:
    Oct 4, 2009
    Member:
    #23790
    Messages:
    90
    Gender:
    Male
    First Name:
    dan
    MA
    Vehicle:
    08 Off Road
    engine swap (stuck valve @260K)
    Hello FinnJ,

    Great you posted your issue about code P0012! I've been doing exhausting research of troubleshooting this on my '08 Taco 1GRFE. In how many miles did you see the code?

    I'm also getting code P0012 (Camshaft Position "A" - Timing Over-Retarded (Bank 1), and now P0022 for Bank 2. The 0012 came in twice over the last 10K miles, now 0022 comes and goes, but no more 0012. Engine has 210,000 miles and runs like day one, with no difference when tripping a code. Thinking it might be a stretched chain as both cams are retarded. I did inspect the OCV's, clean, but will have to see if they are fully retracted. I hear springs get weak on Ford units. Wouldn't a not retracting spring like yours cause an over advanced condition?

    How are you doing with codes now? I plan on doing the chain regardless. I took a look under the tensioner inspection plate and see its extended 5 notches viewing underneath with an inspection mirror. I wonder how extended it would be with a new chain or at the end of travel. real EZ to get at, just 4 10mm bolts.

    Anybody out there see stretched chains? I just watched a Youtube video on a guy with a Four Runner had an 0016 code that found a stretched chain.

    Dan
    12Tinker

  12. Dec 18, 2017 at 11:53 AM
    #12
    12tinker

    12tinker Well-Known Member

    Joined:
    Oct 4, 2009
    Member:
    #23790
    Messages:
    90
    Gender:
    Male
    First Name:
    dan
    MA
    Vehicle:
    08 Off Road
    engine swap (stuck valve @260K)
    OK, an update and back to this after 225,000 mi...

    I was getting a 0012, then a 0022 (over advanced) not retarded, but perhaps I am, ha as I stated a retarded condition in my previous post.

    I haven't seen these codes come back for a few thousand miles now, but thinking my oil control solenoids return springs are just getting worn out and not letting oil pressure push back the cam phasers and will try this cheap replacement 1st. I would think a stretched chain would result in overly retarded condition that would not go away. Oil pressure is in spec and using correct oil viscosity with no sludge seen.

    SR-71A and NLMOOmar like this.
  13. Oct 8, 2018 at 7:55 PM
    #13
    morelia

    morelia Well-Known Member

    Joined:
    Mar 4, 2014
    Member:
    #124591
    Messages:
    100
    Gender:
    Male
    conroeeee
    k&n intake. hid kit sound system

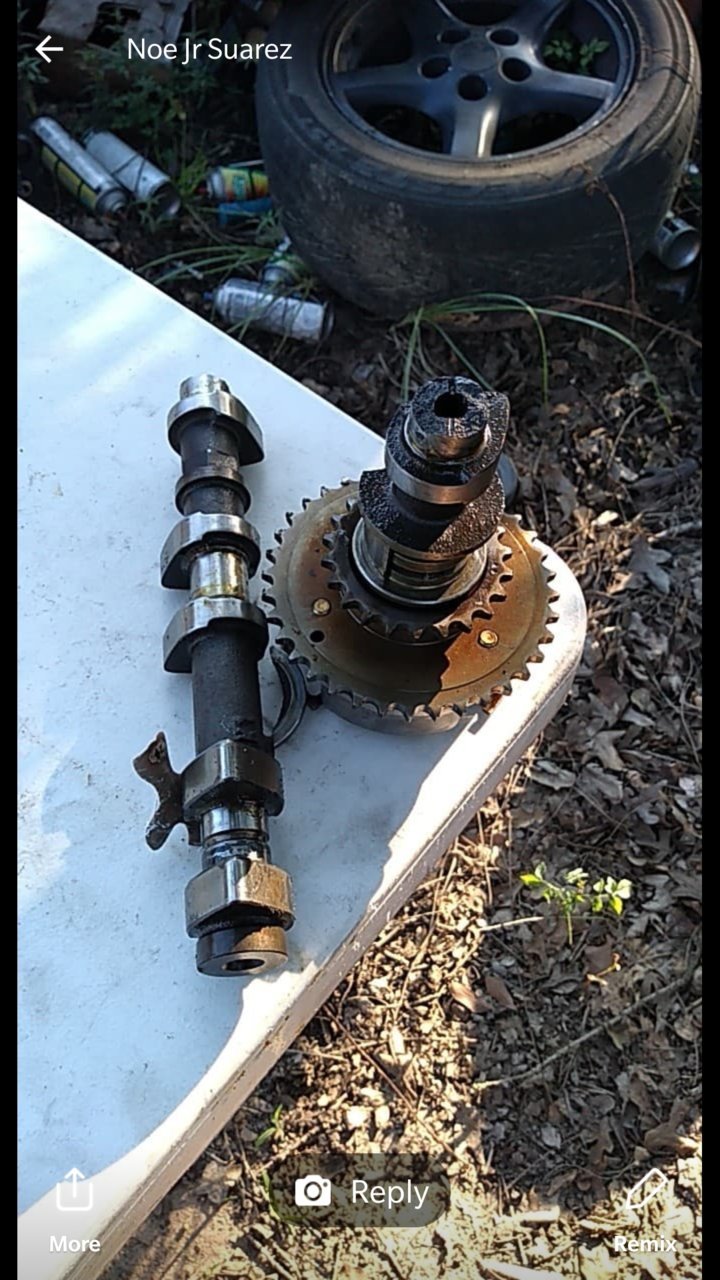

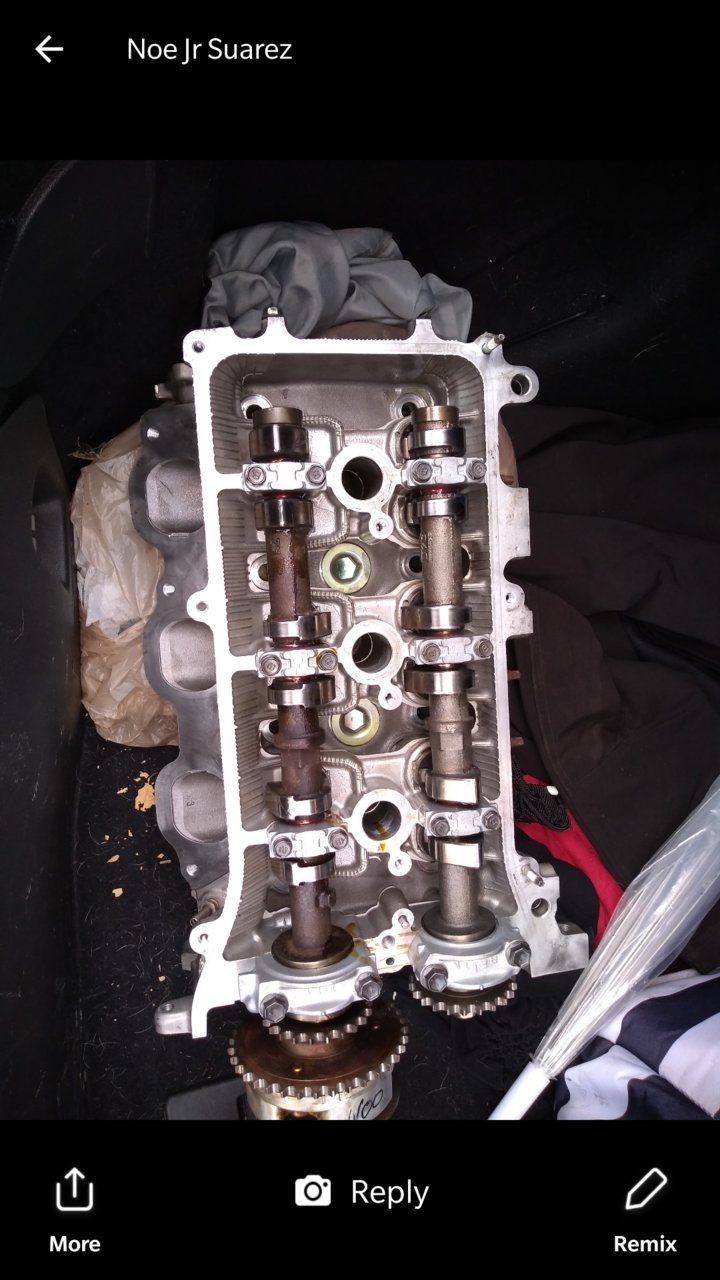

    Any fix for this? Did a head gasket change at 220k .p0012 code. Changed ocv cleared the filter next to the dipstick . Had a cam brake after installing everything . The truck is in Conroe tx if anyone wants to waste their time as well .


  14. Oct 8, 2018 at 8:49 PM
    #14
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    26,028
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    :eek: Oh man. I empathize with you.

  15. Oct 12, 2018 at 4:39 PM
    #15
    morelia

    morelia Well-Known Member

    Joined:
    Mar 4, 2014
    Member:
    #124591
    Messages:
    100
    Gender:
    Male
    conroeeee
    k&n intake. hid kit sound system
    Still haven't figured it out. Checked the timing 3x already .

  16. Nov 3, 2018 at 2:55 AM
    #16
    FinnJ

    FinnJ [OP] Well-Known Member

    Joined:
    Sep 22, 2016
    Member:
    #197981
    Messages:
    687
    Gender:
    Male
    Finland
    Vehicle:
    2007 FJ Cruiser 6M/T
    TRD SC, UCON, CNG conversion, RC 6" (lifted 4"/3" air suspension) w/FOX 2.5, 315/70R17 Duratracs, RECARO seats, etc.
    Both of them?

  17. Nov 6, 2018 at 3:51 PM
    #17
    morelia

    morelia Well-Known Member

    Joined:
    Mar 4, 2014
    Member:
    #124591
    Messages:
    100
    Gender:
    Male
    conroeeee
    k&n intake. hid kit sound system
    They are different

  18. Nov 7, 2018 at 12:16 PM
    #18
    FinnJ

    FinnJ [OP] Well-Known Member

    Joined:
    Sep 22, 2016
    Member:
    #197981
    Messages:
    687
    Gender:
    Male
    Finland
    Vehicle:
    2007 FJ Cruiser 6M/T
    TRD SC, UCON, CNG conversion, RC 6" (lifted 4"/3" air suspension) w/FOX 2.5, 315/70R17 Duratracs, RECARO seats, etc.
    Yes, right and left is with different part number. But did you changed both?

  19. Nov 7, 2018 at 1:11 PM
    #19
    morelia

    morelia Well-Known Member

    Joined:
    Mar 4, 2014
    Member:
    #124591
    Messages:
    100
    Gender:
    Male
    conroeeee
    k&n intake. hid kit sound system
    No since the code is just p0012 for bank one not bank two where the other sensoir is
