1GRFE Engine Swap

Discussion in '2nd Gen. Tacomas (2005-2015)' started by lucky, Feb 20, 2010.

  1. Feb 20, 2010 at 6:50 AM
    #1
    lucky

    lucky [OP] Well-Known Member

    Joined:
    Jun 21, 2008
    Member:
    #7468
    Messages:
    338
    Gender:
    Male
    NB, TX
    Vehicle:
    07 PreRunner
    TRD 2 CAI Firestone Ride-Rite TSB Leafs Toytec AAL 5100's and OME Blue LED dash
    Swapping my crippled 2007 1GRFE for a 2009 1GRFE from totaled truck with 1200 miles. See this thread for history on why I'm installing new engine:
    http://www.tacomaworld.com/forum/2nd-gen-tacomas/73107-sounds-like-bad-pulley-wish.html

    It took me and a buddy 12 hours to pull the original and completely stick and bolt up the new one. Of course there where around 18, 12oz cold adult beverages involved in this procedure.

    The removal and reinstall of the engine wasnt that difficult. Doing it in my sloped driveway was. It would have been much easier with a full size lift, level ground and extra room to move around.

    SOme of the challenges along the way -

    Transmission has single frame mount at output shaft, the front of the tranny and all the weight is supported by its connection to the engine block. That made alignment for the reinstall a little tricky. Also, the single tranny connection to the crossmember is a soft mount that can move in any direction around 1/2 inch. There is one allignment dowl on bell housing, and one on the block. When the tranny and engine can twist and move independantly in any direction, it makes it tough to get the allinment when each are supported on seperate jacks.

    Engine block lift points required some creativity. Although there may be a Toyota lift hook kit, there is for the 3.4 V-6, I couldnt locate such a kit for the 1GRFE. I'll post pics of my solution later. It worked nicely.

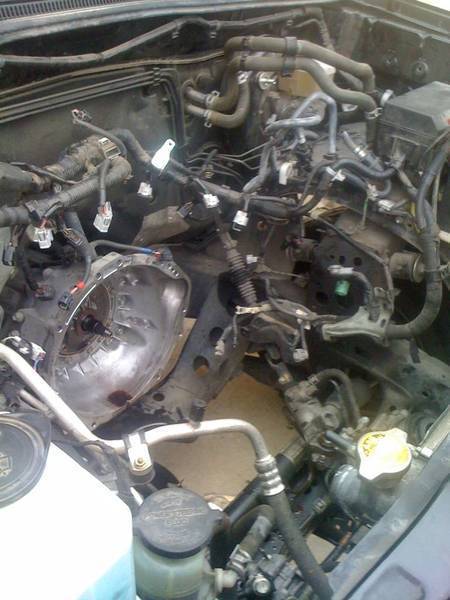

    I took around 60 pics. I'll sort through and post the best ones. Heres a few for now, I need to get busy reconnecting the harness and all belt driven components, intake, etc...today. I should have it running by the end of the day. Must also restock adult beverage inventory before proceeding.

  2. Feb 20, 2010 at 6:57 AM
    #2
    lucky

    lucky [OP] Well-Known Member

    Joined:
    Jun 21, 2008
    Member:
    #7468
    Messages:
    338
    Gender:
    Male
    NB, TX
    Vehicle:
    07 PreRunner
    TRD 2 CAI Firestone Ride-Rite TSB Leafs Toytec AAL 5100's and OME Blue LED dash
  3. Feb 20, 2010 at 7:01 AM
    #3
    07trd4x4

    07trd4x4 Well-Known Member

    Joined:
    Jun 7, 2009
    Member:
    #18143
    Messages:
    13,573
    Gender:
    Male
    First Name:
    Greg
    Sacramento CA
    Vehicle:
    LX470
    Woo. I want to see more

  4. Feb 20, 2010 at 7:13 AM
    #4
    Packman73

    Packman73 ^^^^ 3%er ^^^^

    Joined:
    Aug 24, 2008
    Member:
    #8741
    Messages:
    8,372
    Gender:
    Male
    First Name:
    Matt
    The free state of Arizona
    Vehicle:
    2007 TRD Off Road
    Bilstein 5100's (front set @ .85"), OME 885's, chris4x4 anti-Taco-lean spacer on driver's side, Total Chaos UCAs, Rear Leaf Spring TSB, Toytec AALs, Black FJ TT Wheels, BFG 285/75R 16 AT Tires, TRD Exhaust, Viper Alarm, Fog Light Mod, De-badged, Blue LED Dome Light, EZ Clamped Tailgate, Wet Okoles, Satoshi Grill, 5% Tint, Engine Tick Fix, Black Rear Bumper, Black Center Valence, Exhaust Cut At Axle, Thanks for all the help chris4x4!
  5. Feb 20, 2010 at 7:19 AM
    #5
    MAXTacoma

    MAXTacoma Well-Known Member

    Joined:
    Feb 15, 2007
    Member:
    #917
    Messages:
    4,339
    Gender:
    Male
    Vehicle:
    Lexus GS 350
    Subscribed

  6. Feb 20, 2010 at 7:22 AM
    #6
    jandrews

    jandrews Carolina Alliance Southwest Region Ambassador

    Joined:
    Jun 7, 2009
    Member:
    #18122
    Messages:
    12,180
    Gender:
    Male
    Vehicle:
    '09 FourDubDee TRD OR
    A-TRUCK, Fat Kid in the Bed, Custom Pinstriping, Ported and Polished Muffler Bearing, Hi-Performance Bed Mat
    Subbed. Every one of those 60+ pics better end up in here :D

  7. Feb 20, 2010 at 10:59 AM
    #7
    TheOtherGuy

    TheOtherGuy Well-Known Member

    Joined:
    Sep 20, 2009
    Member:
    #23056
    Messages:
    165
    Gender:
    Male
    Cajun Country
    Vehicle:
    05 Access 4x4
    Maybe I missed a previous thread, but what happened to your original engine?

  8. Feb 21, 2010 at 5:13 AM
    #8
    HankB

    HankB Well-Known Member

    Joined:
    Oct 25, 2009
    Member:
    #24871
    Messages:
    200
    Gender:
    Male
    First Name:
    Hank
    near Chicago
    Vehicle:
    06 Preruner TRD Off Road
    bone stock
    Did you consider pulling the trans with the engine and mating the trans to the replacement engine outside the car? That's often done to avoid the difficulty you encountered, but I don't know how much additional stuff you have to remove to make that happen. I wonder what the factory manual says.

  9. Feb 21, 2010 at 5:35 AM
    #9
    lucky

    lucky [OP] Well-Known Member

    Joined:
    Jun 21, 2008
    Member:
    #7468
    Messages:
    338
    Gender:
    Male
    NB, TX
    Vehicle:
    07 PreRunner
    TRD 2 CAI Firestone Ride-Rite TSB Leafs Toytec AAL 5100's and OME Blue LED dash
  10. Feb 21, 2010 at 5:38 AM
    #10
    lucky

    lucky [OP] Well-Known Member

    Joined:
    Jun 21, 2008
    Member:
    #7468
    Messages:
    338
    Gender:
    Male
    NB, TX
    Vehicle:
    07 PreRunner
    TRD 2 CAI Firestone Ride-Rite TSB Leafs Toytec AAL 5100's and OME Blue LED dash
    Yep, new engine on the pallet. Intake ports were adequately protected and entire pallet was shrink-wrapped during shipping.

  11. Feb 21, 2010 at 6:00 AM
    #11
    lucky

    lucky [OP] Well-Known Member

    Joined:
    Jun 21, 2008
    Member:
    #7468
    Messages:
    338
    Gender:
    Male
    NB, TX
    Vehicle:
    07 PreRunner
    TRD 2 CAI Firestone Ride-Rite TSB Leafs Toytec AAL 5100's and OME Blue LED dash
    That method did cross my mind as I was planning this out, then I crawled under and saw everything that had to be disconnected. I opted out. What I learned while pulling the engine was clearance from the radiator was limited, but rather than remove radiator, I put a sheet of plywood in front of it in case the engine tried to swing towards it. That saved me the cost of replacing the radiator, b/c the engine was radiator bound with every lift of the jack.

    The original engine was stripped down pretty far - all pulleys, timing cover; the new engine was more complete, so there was even less clearance going back in. Anyone attempting this in the future, I would recommend removing the radiator if you dont have some plywood you can cut to place in front of it for protection.

    I did consider dropping the trans due to the difficulty I was having alligning the new engine, but luckily we were able to get it alligned.

    This is how I did it... The starter bolts are a little longer than the bell housing bolts, but the same thread/pitch. I used one temporarily to pull the bell hsg and block closer together, the actual bolts wont reach if the dowels are not set. With one starter bolt partially started in a block/bell hsg hole, it allowed me to finally get the allignment right and get the other bolts started - its easy to get one hole alligned with a longer bolt - then pivoting the engine and trans on that one point. Once everything was pulling up close, I replaced the starter bolt with the actual bell hsg bolt.

  12. Feb 21, 2010 at 6:14 AM
    #12
    lucky

    lucky [OP] Well-Known Member

    Joined:
    Jun 21, 2008
    Member:
    #7468
    Messages:
    338
    Gender:
    Male
    NB, TX
    Vehicle:
    07 PreRunner
    TRD 2 CAI Firestone Ride-Rite TSB Leafs Toytec AAL 5100's and OME Blue LED dash
    Thanks. $2950 shipped. Had to pay an additional $50 to have lift-gate delivery to my house. Dont have a loading dock at home...

    I have to say that although the company I got it through did provide a carfax from the donor truck to validate mileage, something everyone needs to pay close attention to when buying an engine from a salvage truck sight/unseen, is the amount of time since the truck was reported totaled. That info is on the carfax, it was on mine.

    The donor truck was bought new in Feb 2009, it was totaled in Mar 2009. Miles reported at registration, 256/ Miles reported at time of total, 1200. The truck/engine had been sitting for almost a year. The external surfaces of the engine have aged considerably. On the outside it does not look like a 1200 mile, 1 month used engine. I'm going to have a talk with the vendor on Monday. I'm a little disappointed considering the pics on their website show nice shiney engines - thats what I was expecting mine to be - It aint.

  13. Feb 21, 2010 at 6:24 AM
    #13
    lucky

    lucky [OP] Well-Known Member

    Joined:
    Jun 21, 2008
    Member:
    #7468
    Messages:
    338
    Gender:
    Male
    NB, TX
    Vehicle:
    07 PreRunner
    TRD 2 CAI Firestone Ride-Rite TSB Leafs Toytec AAL 5100's and OME Blue LED dash
    Close up of the poor cosmetic condition of the valve cover. I wish I hadnt sold mine to Coupe...

    [​IMG]

  14. Feb 21, 2010 at 7:10 AM
    #14
    86ceeten

    86ceeten Well-Known Member

    Joined:
    Aug 23, 2009
    Member:
    #21621
    Messages:
    223
    Gender:
    Male
    First Name:
    Brian
    NW Florida
    Vehicle:
    08 TRD Off Road PreRunner
    Limo tint, 18x10 Diamo Karat, Toyo 285-60's, Rear TSB, 5100's all around, front at 2.5", Debadged, Sound System (evolving)
    Man that whole ordeal sucks. I sure hope this doesn't become more wide spread. Toyotas reputation for bulletproof vehicles is the only reason I spent the extra money over a Nissan. Although, if mine ever pukes out of warranty, it's getting a LSX!!

  15. Feb 21, 2010 at 8:22 AM
    #15
    PA452

    PA452 Well-Known Member

    Joined:
    Apr 28, 2007
    Member:
    #1445
    Messages:
    665
    Gender:
    Male
    Western PA
    Vehicle:
    15 Access TRD Offroad, V6, 5spd Auto, 4x4
    Looking forward to seeing the rest of the pics.

  16. Feb 21, 2010 at 12:24 PM
    #16
    Kyouto42

    Kyouto42 Iron Beard

    Joined:
    Aug 18, 2008
    Member:
    #8614
    Messages:
    9,243
    Gender:
    Male
    First Name:
    Jake
    Ahwatukee, AZ
    Vehicle:
    BSP '10 4x4 TRD Off-Road DC
    See build thread in signature
    Looks fun :D sorta lol... I bet it was a pita to try and align the torque converter with it out like that... make sure to hit the splines right or you'll be pulling it all right back out... Not sure on the toyota's, but the old 700r4's (for sbc and such) have 2 sets of splines... it'd be easy to miss-align it and think it's all the way in.. crank it and strip it.

  17. Feb 21, 2010 at 5:20 PM
    #17
    lucky

    lucky [OP] Well-Known Member

    Joined:
    Jun 21, 2008
    Member:
    #7468
    Messages:
    338
    Gender:
    Male
    NB, TX
    Vehicle:
    07 PreRunner
    TRD 2 CAI Firestone Ride-Rite TSB Leafs Toytec AAL 5100's and OME Blue LED dash
    Yeah, no doubt. I took some special pics for the Fram, stand by....

  18. Feb 21, 2010 at 5:34 PM
    #18
    lucky

    lucky [OP] Well-Known Member

    Joined:
    Jun 21, 2008
    Member:
    #7468
    Messages:
    338
    Gender:
    Male
    NB, TX
    Vehicle:
    07 PreRunner
    TRD 2 CAI Firestone Ride-Rite TSB Leafs Toytec AAL 5100's and OME Blue LED dash

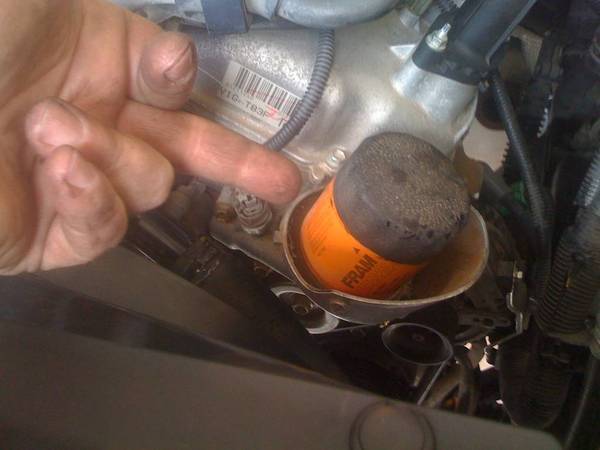

    The POS Fram


    [​IMG]

    My new filter until I get a Mann or Amsoil dual..


    [​IMG]

  19. Feb 21, 2010 at 5:37 PM
    #19
    4low2go

    4low2go Well-Known Member

    Joined:
    Dec 2, 2009
    Member:
    #26896
    Messages:
    731
    Gender:
    Male
    Coatesville, PA
    Vehicle:
    10 RC 4x4 5sp MGM
    Curt hitch, OBX Shift
    Great job :thumbsup:. Why is it that engine swaps always go better with :cheers:

  20. Feb 21, 2010 at 5:41 PM
    #20
    lucky

    lucky [OP] Well-Known Member

    Joined:
    Jun 21, 2008
    Member:
    #7468
    Messages:
    338
    Gender:
    Male
    NB, TX
    Vehicle:
    07 PreRunner
    TRD 2 CAI Firestone Ride-Rite TSB Leafs Toytec AAL 5100's and OME Blue LED dash
    At 430 pm Central time, Feb 21, 2010, the new 1GRFE came to life. First turn of the key and it fired up. Its running great. It ran around 1000 rpm for a few minutes, warming up as usual, then dropped to around 700 and idled a smooth as butter. The swap was successful.
