1st Gen Lighting Adjustment

Discussion in 'Lighting' started by 186000mps, Jan 17, 2012.

  1. Jan 17, 2012 at 6:58 AM
    #1
    186000mps

    186000mps [OP] ..Slingin' up mud and we're scarying off bunnies..

    Joined:
    Aug 29, 2011
    Member:
    #62581
    Messages:
    777
    Gender:
    Male
    First Name:
    Charles
    Wimberley, TX
    Vehicle:
    01 Tacoma V6 4WD
    Bilstein 5100's, Toytec front adjustable coilover kit, Exporear leafs, Fox resi rears, Slotted & Drilled front rotors, 33x12.50 BFG ATs on Outlaw II 15 x 10s, Bushwacker cutout flares, K&N cold air intake with aluminum sheathing water baffles, ARB bumper with XD9000 winch with wireless remote, IPF 900XS lights, Flowmaster cat-back exhaust, Rhino bed liner, UWS gullwing toolbox with tools and recovery gear. 48" Hi-Lift Jack secured under toolbox.
    Since I've thrown sandbags in the back for the winter, I've adjusted my headlamps for the season.
    According to the manual, the lamps should be angled 0.4 degrees down from horizontal. They mention a .823" drop for a distance from wall of 9.84', of course conversions from metric.
    I laid this out in Cad based on the 0.4 degree angle to find the distance for an even 1" drop. the result is 11.94' (11 15/16") which is close enough to 12'.
    So that's a little more manageable, 1" drop = 12' away.
    Also, the small hex adjustment screw requires a 4mm socket. Turning towards the drivers side(counter-clockwise) lowers the beam, turning towards passenger's side (clockwise) raises the beam. It is also recommended if you need to lower the beam, go past the point and tighten back to desired level.

    ***01.27.12**
    Since this post, I found I had to adjust the beams to slightly lower than 1" at 12' to effective illuminate the road due to a 3" lift. The above works great for non-lifted trucks.
    On the hex head, the 4mm fits well, however, I had to scotchbrite the hexhead a little to knock some rust off to fit the socket properly.

    Driver's side headlamp adjustment screw
    [​IMG]

    Passenger's side headlamp adjustment screw
    [​IMG]

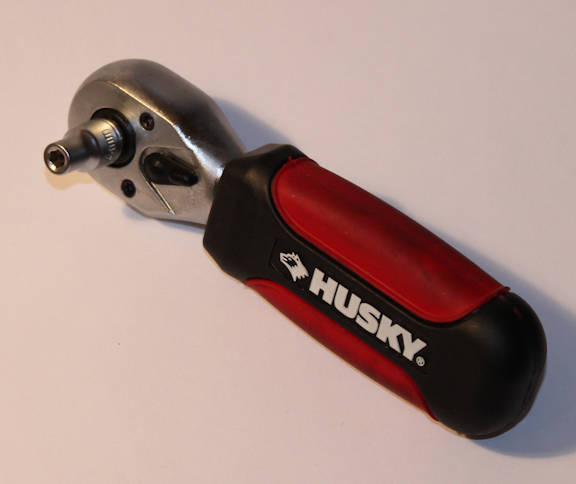

    A stubby socket wrench like this works well.
    [​IMG]

  2. Jan 17, 2012 at 7:03 AM
    #2
    Jdaniel1274

    Jdaniel1274 Well-Known Member

    Joined:
    Dec 6, 2010
    Member:
    #47259
    Messages:
    538
    Gender:
    Male
    First Name:
    Daniel
    Orange County, Ca
    Vehicle:
    01 DC TRD 4X4
    PIAA lights, OMD leaf spring mod, magna flow muffler, oil filter relocation kit
    Thank you for the Post! Need to adjust my headlights, way to high.

  3. Jan 17, 2012 at 8:35 AM
    #3
    Box Rocket

    Box Rocket just trying to help

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    6,033
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff
    Could someone post a photo of where the adjustment screw is on the headlight housing? Would be good for future reference. Thanks.

  4. Jan 17, 2012 at 8:51 AM
    #4
    186000mps

    186000mps [OP] ..Slingin' up mud and we're scarying off bunnies..

    Joined:
    Aug 29, 2011
    Member:
    #62581
    Messages:
    777
    Gender:
    Male
    First Name:
    Charles
    Wimberley, TX
    Vehicle:
    01 Tacoma V6 4WD
    Bilstein 5100's, Toytec front adjustable coilover kit, Exporear leafs, Fox resi rears, Slotted & Drilled front rotors, 33x12.50 BFG ATs on Outlaw II 15 x 10s, Bushwacker cutout flares, K&N cold air intake with aluminum sheathing water baffles, ARB bumper with XD9000 winch with wireless remote, IPF 900XS lights, Flowmaster cat-back exhaust, Rhino bed liner, UWS gullwing toolbox with tools and recovery gear. 48" Hi-Lift Jack secured under toolbox.
    I'll go shoot a picture and add it to the post

  5. Jan 18, 2012 at 8:59 AM
    #5
    Box Rocket

    Box Rocket just trying to help

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    6,033
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff
    Thank you sir.

  6. Jan 18, 2012 at 9:08 AM
    #6
    Ohbrian

    Ohbrian Taco Roja

    Joined:
    Nov 25, 2011
    Member:
    #67664
    Messages:
    209
    Gender:
    Male
    First Name:
    Brian
    Fremont, CA
    Vehicle:
    04 PreRunner
    Eclipse head unit,scratched paint,ripped seat, black chaos 6 rims, Bilstein 5100's, top plate spacers, AAL, Midget antenna, Bakflip G2 cover, 14" Magnaflow, 400W inverter, LR UCA's
    Thanks for that.

  7. Jan 28, 2012 at 6:36 AM
    #7
    Afraz

    Afraz Well-Known Member

    Joined:
    Dec 17, 2011
    Member:
    #68884
    Messages:
    105
    Gender:
    Male
    Toronto
    Vehicle:
    03 Double Cab TRD
    Projector H.I.D
    If onkly my aftermarket headlights had these adjusters in them :(

  8. Nov 21, 2012 at 3:42 PM
    #8
    ExOkie

    ExOkie Well-Known Member

    Joined:
    Dec 27, 2011
    Member:
    #69486
    Messages:
    142
    Gender:
    Male
    First Name:
    Gary
    Denver Metro
    Vehicle:
    02 Red TRD
    Deckplate Mod, Airaid Intake Hose and Filter Kit, Leer 100R Camper Shell, WeatherTech floor mats, WeatherTech bug deflector, WeatherTech window deflectors
    Definitely Thanks for this. My shade tree mechanic friends wanted to take off the grill surround and started dismantling the headlight assembly till I told them to STOP and checked TW.

    My headlights were way too high (spring sag I'm sure). Didn't do it scientifically. Just pulled up on a level floor about 3 feet from a white wall and marked the high point for both headlights then started adjusting them down. We went down about 1.5" each then waited for dark to try them. We had to bring them back up just a hair and now they're fine!

    Once again Thanks!

  9. Jun 7, 2013 at 2:29 PM
    #9
    jdintexas

    jdintexas Member

    Joined:
    Aug 11, 2012
    Member:
    #84543
    Messages:
    6
    Gender:
    Male
    First Name:
    JD
    Texas
    Vehicle:
    2007 Prerunner V6
    none yet
    If a light ( left or right ) is moving a little chances are you may need to keep adjusting.
    My left light was wobbly. When I turned my light on for adjustment it was out of alignment with the right.
    After adjusting the left to be even with the right ( while shining on the wall )
    the left light no longer was loose.
