1st Gen Sub Install in Xtra Cab

Discussion in 'Audio & Video' started by Rusty White Taco, Aug 10, 2010.

  1. Aug 10, 2010 at 9:19 AM
    #1
    Rusty White Taco

    Rusty White Taco [OP] Active Member

    Joined:
    Jul 14, 2010
    Member:
    #40173
    Messages:
    41
    Gender:
    Male
    Central Coast, CA
    Vehicle:
    04 4x4 Xtra Cab TRD Offroad SR5
    Debadged, Front 5100s at 2.5, 1" rear shackle lift, 5125s in the rear, trimmed exhaust pipe
    First off, I got too caught up in the installation to take pictures of the install in-process, so unfortunately, all I have is some after pictures. I did this about a year ago, but I only joined TW recently and figured I'd share...

    Aside from good sound, the most important thing was to keep the truck looking stock and keep the back seats 100% functional. This led me to the concept of putting in a box in the passenger side storage area. I started doing a fiberglass bottom with MDF sides, but I quickly realized that I'm no good with fiberglass, so I ditched that part of the concept. I ended up building the sides/top out of MDF and bolting it directly to the metal under the shelf (first, I removed the shelf sheet metal). I've done similar things with other cars (i.e. spare tire well) without sacrificing sound quality, so I was ok with the compromise and was happy to stop fumbling with fiberglass. The internal volume of the enclosure is about 0.55 cubic feet, which is close enough for the Kenwood shallow mount 8" sub (KFC-XW800), which requires 0.50 cubic feet.

    As for the amplifiers, I used something I've never used before. I was in the car audio business for quite a few years, but I've been out of it for quite some time. When researching, I learned that there have been a lot of advances with Class D amplifiers, so, due to space considerations (wanting to mount the amplifiers under the seats), a Class D amplifier seemed like a good choice (small package, high power, high efficiency). I went with a Kenwood Excelon XR-1S for the sub, and a Kenwood Excelon XR-4S for the mids/highs. Wow, I'm thoroughly impressed. These things are tiny, but they really pump out the sound.

    I replaced the factory speakers with Infiniti Kappa 6x8 all the way around. For the rears, they were the coaxial 682.9cf and for the front, they were the component 680.9cs. The head unit is an Eclipse AVN52D with GPS, Ipod, and Bluetooth. I also Dynamatted the entire cab, which made a huge difference.

    Anyway, here are some pics:

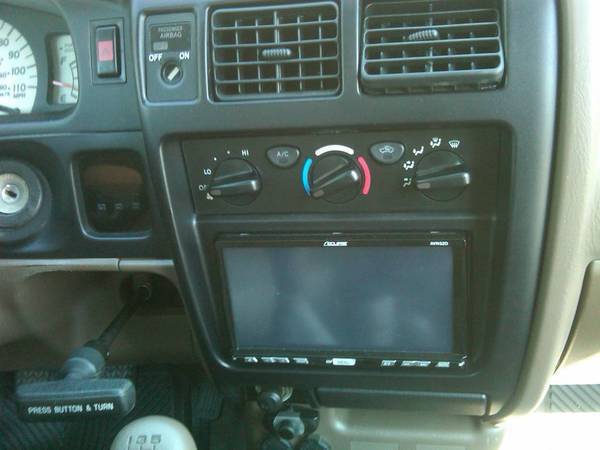

    Head unit
    [​IMG]

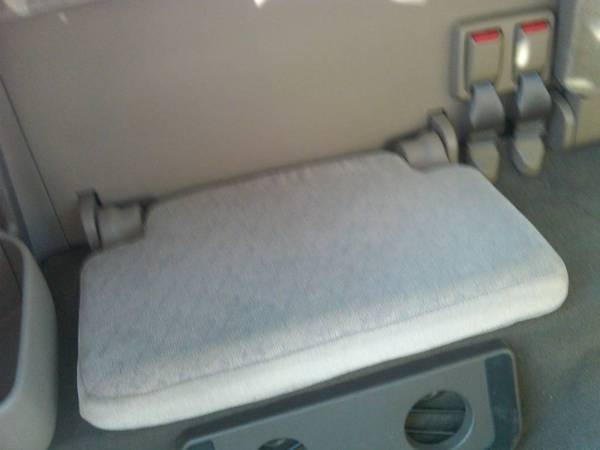

    Seat Down
    [​IMG]

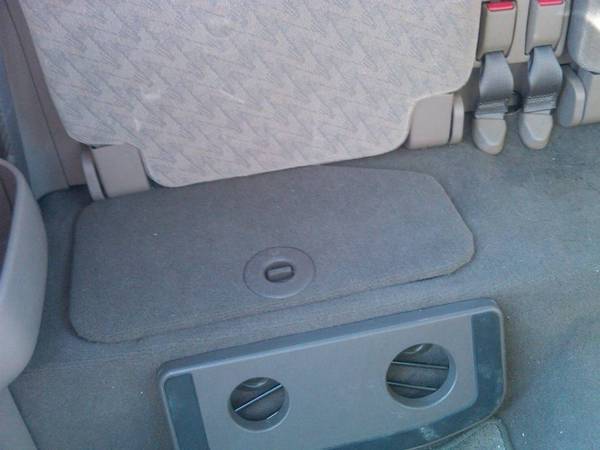

    Seat Up
    [​IMG]

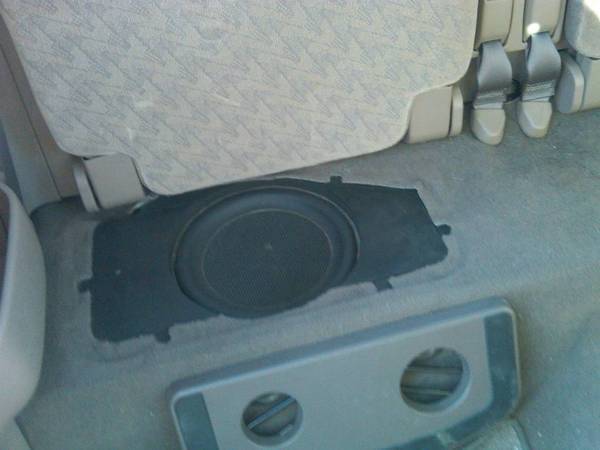

    Cover off
    [​IMG]

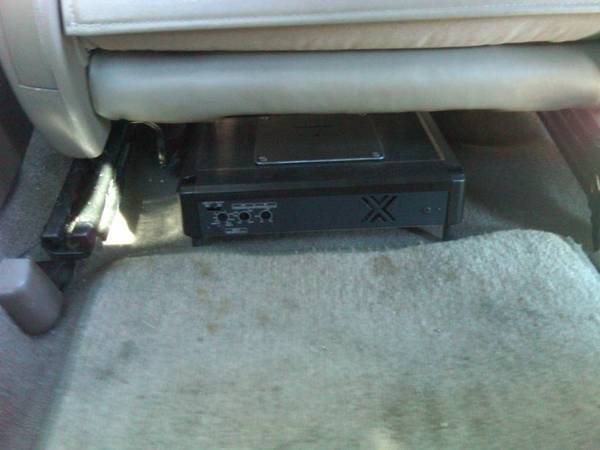

    Sub Amp
    [​IMG]

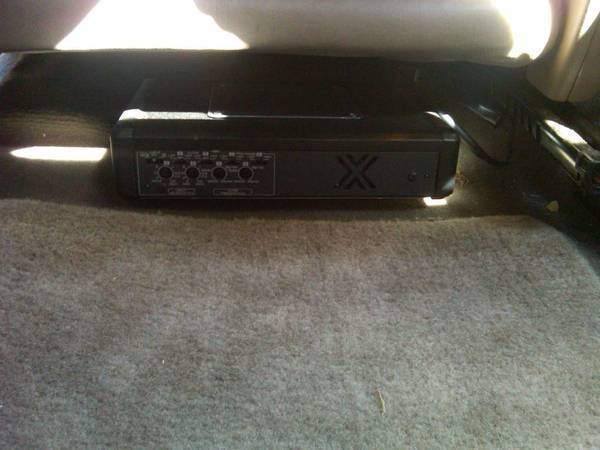

    Mids/Highs Amp
    [​IMG]

    Oh, and it sounds AWESOME!!!

  2. Aug 10, 2010 at 9:36 AM
    #2
    JLee

    JLee The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,419
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Nice clean install I'm currently working on fiber glassing 10" boxes out of the back site panels where the back speakers are. i will be doing a write up when I'm finished.

  3. Aug 10, 2010 at 2:28 PM
    #3
    Rusty White Taco

    Rusty White Taco [OP] Active Member

    Joined:
    Jul 14, 2010
    Member:
    #40173
    Messages:
    41
    Gender:
    Male
    Central Coast, CA
    Vehicle:
    04 4x4 Xtra Cab TRD Offroad SR5
    Debadged, Front 5100s at 2.5, 1" rear shackle lift, 5125s in the rear, trimmed exhaust pipe
    Thanks man! Fiberglass is quite an art. Good luck. Looking forward to the write-up.

  4. Dec 10, 2010 at 7:38 AM
    #4
    Whitfield

    Whitfield Well-Known Member

    Joined:
    Mar 21, 2009
    Member:
    #14979
    Messages:
    290
    Gender:
    Male
    Central Virginia
    Vehicle:
    99 TRD X-cab on 35's / 96 X-cab on 33's
    Bobbed Left front ~ Ok not really but I bought it crashed from the kids dad 4-CHEAP. Frame Swap and 04 Clip + 6" lift ~ Woo Hoo!!!
    Nice install! Just what i was looking for as I can't afford to sacrafice any seat space.

  5. Dec 10, 2010 at 9:32 AM
    #5
    Mr Marv

    Mr Marv Well-Known Member Vendor

    Joined:
    Mar 6, 2007
    Member:
    #1009
    Messages:
    746
    Gender:
    Male
    First Name:
    Marv
    Monterey Bay California
    Very nice stealth install! :)

  6. Dec 10, 2010 at 1:29 PM
    #6
    pidro_el_pirata

    pidro_el_pirata Lean Mean MPG Machine (best = 27)

    Joined:
    Sep 18, 2008
    Member:
    #9333
    Messages:
    316
    Gender:
    Male
    First Name:
    Stefan
    Central Coast, CA, US
    Vehicle:
    '00 SR5 (4-cyl, 2WD)
    Already done: mats, bed cover, CB radio, sub and deck, red dash lights to match deck, chrome rims, towing kit, aftermarket horn, deck plate mod, K&N drop in filter. On the way: automatic locks w/alarm, powered windows, scan gauge...
    Wow that's kickass. Wish you had taken pics of the process :( I have a bigass sub sitting behind me in my xtra cab. Would love to have that seat back. Unfortunately I use the storage space for first aid kit, rope, gloves, flares, and the spare tire kit. Subscribed.

  7. Dec 10, 2010 at 1:34 PM
    #7
    woodygg

    woodygg Well-Known Member

    Joined:
    Mar 18, 2010
    Member:
    #33462
    Messages:
    1,716
    Gender:
    Male
    So Cal
    Vehicle:
    04 DC Tacoma 4x4
    that's the way to go! for the best sq, you don't want to use your back speakers anyway - and if you can build some decent boxes to put in that space, you'd be making great use of the xtra cab space. love to see pics of what you're doing...

  8. Dec 11, 2010 at 12:49 AM
    #8
    shampoop

    shampoop Well-Known Member

    Joined:
    Feb 3, 2010
    Member:
    #30685
    Messages:
    588
    Gender:
    Male
    southwest WA
    Vehicle:
    03 tacoma extracab v6 5spd trd 4x4
    Nice install. Too bad that's where i like to keep my liquor. :p

  9. Feb 23, 2011 at 9:56 AM
    #9
    Scott78

    Scott78 Well-Known Member

    Joined:
    Oct 27, 2010
    Member:
    #45292
    Messages:
    367
    Gender:
    Male
    First Name:
    Scott
    Vacaville, CA
    Vehicle:
    '13 STI Hatch\\
    Any issues with the 682.9's fitting in the back? I'm looking at getting them as well, probably for the front too. Crutchfield says they'll fit. I just don't want to have to cut much out. They said the same thing about the speakers I put in the door of my 2000 Reg Cab, (can't remember the brand) and I had to hack part of the inside of the door out, they mounted fine just too tall. I don't want to deal with that again with the kappas.

  10. Feb 23, 2011 at 10:03 AM
    #10
    Scott78

    Scott78 Well-Known Member

    Joined:
    Oct 27, 2010
    Member:
    #45292
    Messages:
    367
    Gender:
    Male
    First Name:
    Scott
    Vacaville, CA
    Vehicle:
    '13 STI Hatch\\
    Also where did you put the tweeters for the 680's? Would you mind posting pictures of them?

  11. Feb 23, 2011 at 10:34 AM
    #11
    Madjik_Man

    Madjik_Man The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,522
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab 4x4 TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    You should produce and sell these.

    I'd buy one in a heartbeat.

  12. Feb 24, 2011 at 1:32 PM
    #12
    Rusty White Taco

    Rusty White Taco [OP] Active Member

    Joined:
    Jul 14, 2010
    Member:
    #40173
    Messages:
    41
    Gender:
    Male
    Central Coast, CA
    Vehicle:
    04 4x4 Xtra Cab TRD Offroad SR5
    Debadged, Front 5100s at 2.5, 1" rear shackle lift, 5125s in the rear, trimmed exhaust pipe
    Nope, no issues at all. They fit perfectly. The toughest part, as you may already know, is getting the panels off cleanly, but I had already done that because I dynamatted the entire cab.

    I put the tweeters in the factory tweeter location, using the factory tweeter grills. It took a little "customization" to get them in properly, but it wasn't too bad, plus it looks 100% stock. There's not much that a picture can show you without removing the panel, but let me know if you want a pic of the stock tweeter locations.

    Thanks, that makes me feel good. I'd love to produce them, but it would be more work than I'm willing to bite off. Tell you what, if the existing sub blows, I'll redo the enclosure and create a template that I'll use to produce them, but that's a big "if".

  13. Feb 25, 2011 at 11:12 AM
    #13
    Scott78

    Scott78 Well-Known Member

    Joined:
    Oct 27, 2010
    Member:
    #45292
    Messages:
    367
    Gender:
    Male
    First Name:
    Scott
    Vacaville, CA
    Vehicle:
    '13 STI Hatch\\
    I'm great at looking like a jackass. "I put the tweeters in the stock hole" I guess I should have looked a little more closely at the truck I'm buying. I didn't realize they had stock ones. I remembered installing speakers in my 2000 shorty that didn't have them, but it was a base model. So that explains it. Thanks for the info. And yeah, bad ass sub box, I would buy one as well. Thanks for the info

  14. Feb 25, 2011 at 1:03 PM
    #14
    Madjik_Man

    Madjik_Man The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,522
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab 4x4 TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    *prays your existing sub blows*


    :p

  15. Mar 1, 2011 at 5:20 AM
    #15
    Scott78

    Scott78 Well-Known Member

    Joined:
    Oct 27, 2010
    Member:
    #45292
    Messages:
    367
    Gender:
    Male
    First Name:
    Scott
    Vacaville, CA
    Vehicle:
    '13 STI Hatch\\
    I just ordered a Kenwood Excelon XR-4S, got it for $300 with shipping to AK. I think it was a fair deal, average price after searching around. Funny thing is I still haven't picked up the truck. Plans changed and instead of flying out this morning, I don't leave until Sunday. Still looking for the best deal on speakers. I think I may copy you on that too.

    How much dynomat did you use? I've helped friends put it in their vehicles but I've never used it in any of mine. I may do that this time around. It's pretty damn pricey though!

  16. May 25, 2011 at 2:42 PM
    #16
    Rusty White Taco

    Rusty White Taco [OP] Active Member

    Joined:
    Jul 14, 2010
    Member:
    #40173
    Messages:
    41
    Gender:
    Male
    Central Coast, CA
    Vehicle:
    04 4x4 Xtra Cab TRD Offroad SR5
    Debadged, Front 5100s at 2.5, 1" rear shackle lift, 5125s in the rear, trimmed exhaust pipe
    Sorry for the delay in my response; I haven't been on TW for a while. If I remember correctly, I used a little bit more than the amount included in the "36 ft. Dynamat Xtreme Bulk Pack". If you search around, you can get a deal; I think I paid about $150 for that...

  17. Jul 14, 2011 at 10:16 PM
    #17
    acidfly

    acidfly Well-Known Member

    Joined:
    Jun 20, 2009
    Member:
    #18706
    Messages:
    291
    Gender:
    Male
    First Name:
    Kevin
    Kitsap, Wa
    Toytec 3" lift, 4.88 gears, ARB locker, Elite front/rear bumper with sliders, Fully LineXed, Custom bedrack
    Subbed for future reference

  18. Jul 15, 2011 at 10:53 AM
    #18
    andoskyy

    andoskyy Well-Known Member

    Joined:
    Jun 3, 2011
    Member:
    #57665
    Messages:
    78
    Gender:
    Male
    I made one of these as well.

    Still have to smooth things out, but very happy with the result. Sounds pretty good for an 8" sub.

    I'd be interested and willing to build more of these and ship them out. Now that I have the template, I could probably produce them pretty quickly.

    PM me if you're interested.

    -Andrew


  19. Jul 15, 2011 at 7:50 PM
    #19
    Madjik_Man

    Madjik_Man The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,522
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab 4x4 TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    Just returned your PM.

    If I go ahead with this my kid, whose seat sits atop that space, is going to have a sore butt :D

  20. Aug 22, 2011 at 11:52 AM
    #20
    LBCdan

    LBCdan I got tiger blood.. WINNING

    Joined:
    Aug 24, 2010
    Member:
    #42169
    Messages:
    869
    Gender:
    Male
    First Name:
    Dan
    Long Beach , CA
    Vehicle:
    2012 MGM DCSB TRD SPORT
    Pioneer 4000NEX , grab handle GPS mount, Bakflip tonneau, OME 885, Bilstein 5100s, Wheelers 1.5" AAL
    How is the angle with the double-din? It seems like it would be hard to see if you are sitting straight up.
