1st Gen Tacoma 12" OSR Outboard Shock Relocation - Outside Frame Rails

Discussion in '1st Gen. Tacomas (1995-2004)' started by ARCHIVE, Oct 18, 2018.

Page 5 of 26
  1. Oct 25, 2018 at 1:51 PM
    #81
    TMFF

    #81
    TMFF Well-Known Member

    Joined:
    Dec 7, 2011
    Member:
    #68368
    Messages:
    2,576
    Gender:
    Male
    First Name:
    Tim
    Thornton, CO
    Vehicle:
    01/02 DCLB
    Stuff and junk and things...

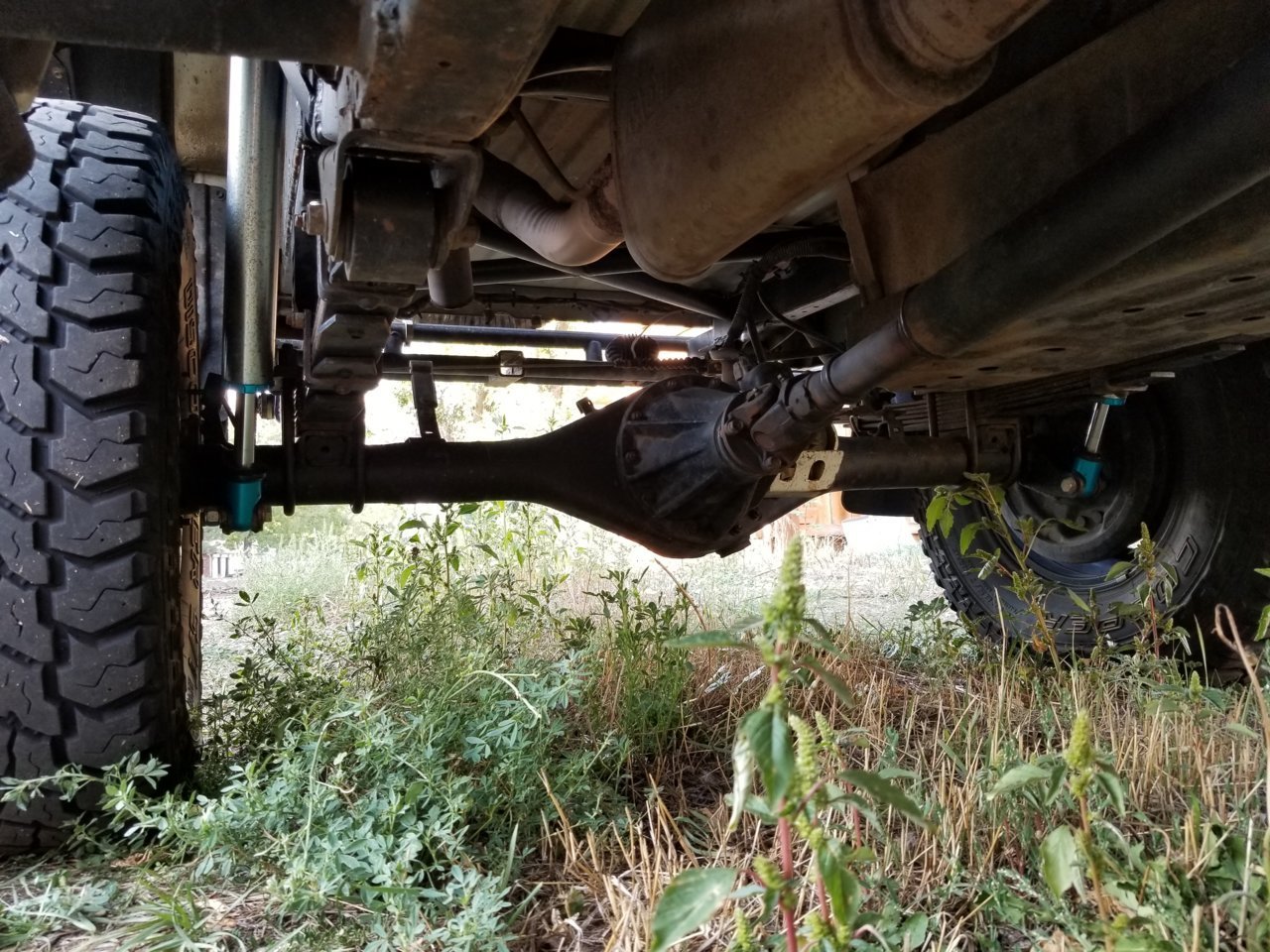

    Of the axle, it's fairly low but I have only hit it a few times while wheeling. I could move it up 1" or so since the leaf pack doesn't bump that high when it's all put together VS just the main leaf to cycle it.

    Here is a old pic of when I first finished it.


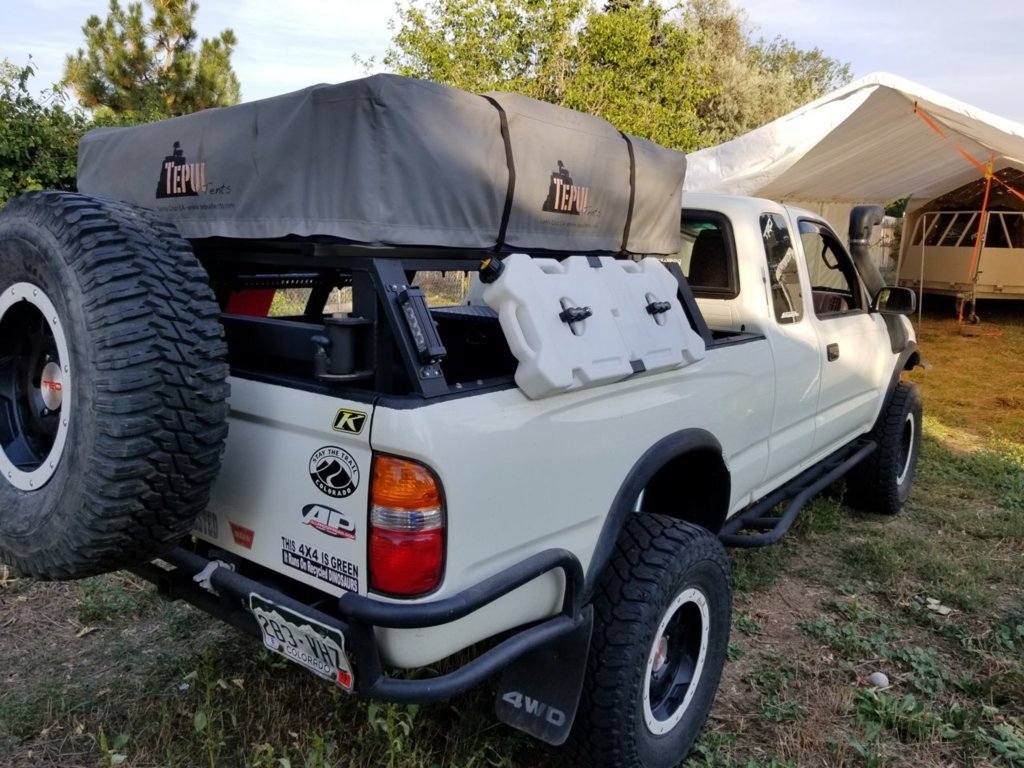

    Fairly current setup.



    A 10" shock like @Squeaky Penguin is running is more than enough length with bolt in leafs for the rear of a 1st gen. Make it a 2.5 with a resi clicker and your good to go even with an LT front suspension for 95% of the weekend warriors on TW.

    It mostly started in TTORA many years ago.

    TMFF, Oct 25, 2018
    #81
    blue.yota, Rocan, chrslefty and 4 others like this.
  2. Oct 25, 2018 at 2:10 PM
    #82
    Willbeck

    #82
    Willbeck Well-Known Member

    Joined:
    Feb 8, 2015
    Member:
    #148190
    Messages:
    1,588
    Gender:
    Male
    First Name:
    Will
    Huntington Beach
    Vehicle:
    00 Reg Cab 4x4
    Bug deflector
    You have a first gen though, yours is already "flipped" lol

    Willbeck, Oct 25, 2018
    #82
  3. Oct 25, 2018 at 3:16 PM
    #83
    erice

    #83
    erice Well-Known Member

    Joined:
    Nov 9, 2014
    Member:
    #142008
    Messages:
    1,084
    Gender:
    Male
    First Name:
    Eric
    San Diego
    Well then, I flipped it back lol

    erice, Oct 25, 2018
    #83
  4. Oct 25, 2018 at 3:21 PM
    #84
    ARCHIVE

    #84
    ARCHIVE [OP] Well-Known Member Vendor

    Joined:
    Oct 29, 2015
    Member:
    #168099
    Messages:
    2,233
    Gender:
    Male
    First Name:
    Eric
    Orchard Park, NY (Buffalo)
    Vehicle:
    '05 Taco, '22 Tundra, '91 Cummins
    2.5" Fox relocation * Hammer hanger * Archive MD springs
    Looks good thanks for posting pics and link

    ARCHIVE, Oct 25, 2018
    #84
  5. Oct 26, 2018 at 9:48 AM
    #85
    chrslefty

    #85
    chrslefty Well-Known Member

    Joined:
    Apr 20, 2012
    Member:
    #77258
    Messages:
    2,982
    Gender:
    Male
    First Name:
    chris
    Mesa az
    Vehicle:
    01 trd
    Stockish
    Subbed. I needs more shock !!

    chrslefty, Oct 26, 2018
    #85
    LukeCC and ARCHIVE[OP] like this.
  6. Oct 28, 2018 at 3:12 PM
    #86
    ARCHIVE

    #86
    ARCHIVE [OP] Well-Known Member Vendor

    Joined:
    Oct 29, 2015
    Member:
    #168099
    Messages:
    2,233
    Gender:
    Male
    First Name:
    Eric
    Orchard Park, NY (Buffalo)
    Vehicle:
    '05 Taco, '22 Tundra, '91 Cummins
    2.5" Fox relocation * Hammer hanger * Archive MD springs

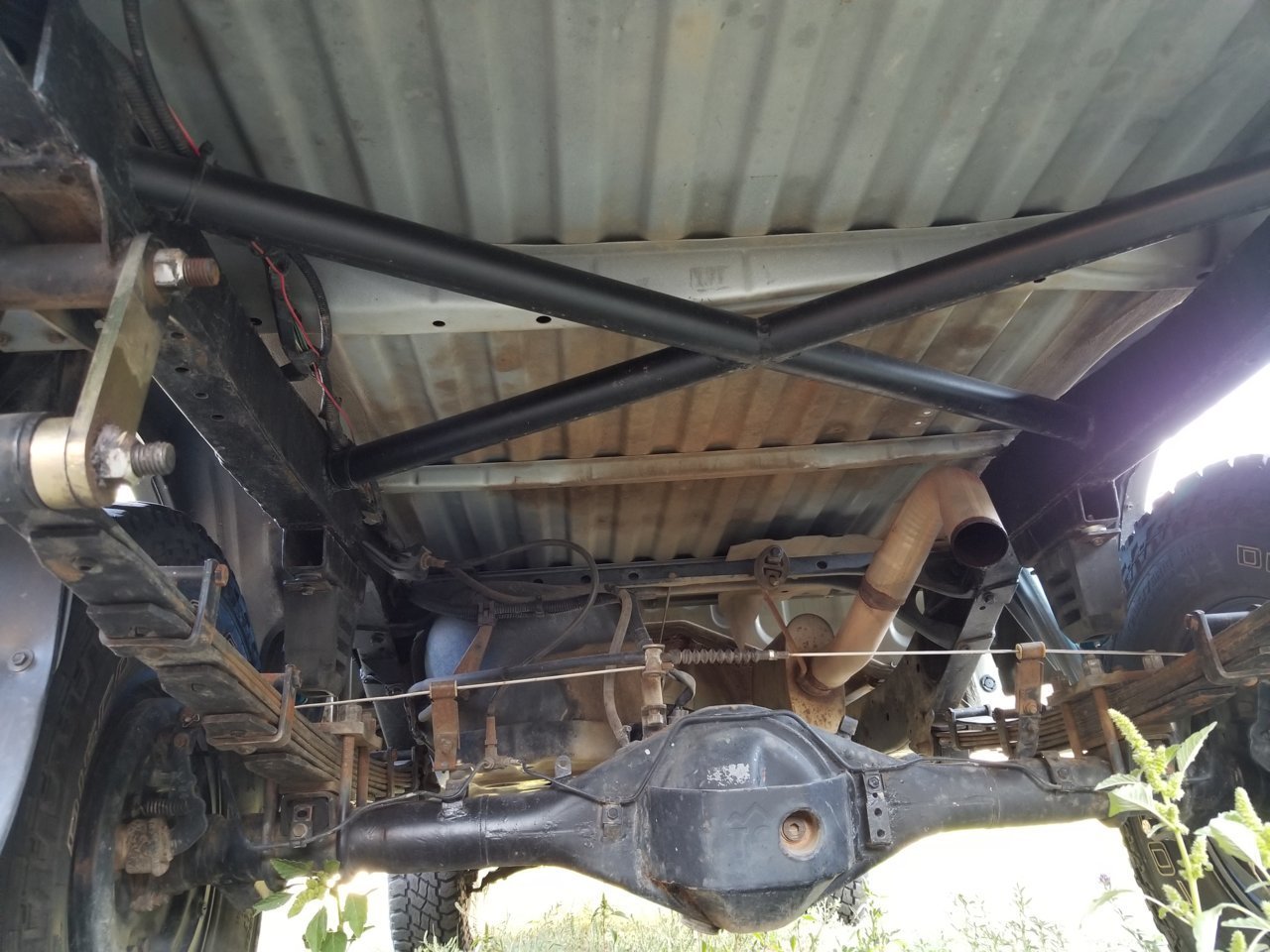

    Thought I would post lotsoftoys 1st gen with TC relocation, because it gives an indication of what to expect with shocks outboard. Specs:
    -285/75-16 on TRD, looks like spacers on the rear
    -Total chaos rear shock relocate with piggyback resi kings.
    -all pro expo leaf packs with u bolt flips and 6 inch shackles

    With the kit I'm working on, I'm definitely trying to build in plenty of bump travel. Looking at the TC kit as installed here with lift springs, 6" shackles, and what appears to be 2.0x10" King, I'm surprised it doesn't have more bump travel.

    Eric


    ARCHIVE, Oct 28, 2018
    #86
    970btu likes this.
  7. Oct 28, 2018 at 3:29 PM
    #87
    Willbeck

    #87
    Willbeck Well-Known Member

    Joined:
    Feb 8, 2015
    Member:
    #148190
    Messages:
    1,588
    Gender:
    Male
    First Name:
    Will
    Huntington Beach
    Vehicle:
    00 Reg Cab 4x4
    Bug deflector
    He’s welded new bump mounts to the frame, in addition to very long aftermarket rubber bump stops. It does appear to have less up travel than mine, which is odd as I don’t have a ton of lift.

    Willbeck, Oct 28, 2018
    #87
  8. Oct 28, 2018 at 3:37 PM
    #88
    ARCHIVE

    #88
    ARCHIVE [OP] Well-Known Member Vendor

    Joined:
    Oct 29, 2015
    Member:
    #168099
    Messages:
    2,233
    Gender:
    Male
    First Name:
    Eric
    Orchard Park, NY (Buffalo)
    Vehicle:
    '05 Taco, '22 Tundra, '91 Cummins
    2.5" Fox relocation * Hammer hanger * Archive MD springs
    I'd say the bump tube welded to the frame is a little taller than factory brackets that hang down which he removed. I like the cross brace and boxing

    I'm probably buying a frame to get better acquainted with the 1st gen, and I'm thinking of making a frame boxing kit for inboard side of frame, anyone interested?

    ARCHIVE, Oct 28, 2018
    #88
    ChargedSHOTaco, eimkeith, BikerinBlak909 and 6 others like this.
  9. Oct 28, 2018 at 3:46 PM
    #89
    desertjunkie760

    #89
    desertjunkie760 @DesertJunkie760 (IG)

    Joined:
    Apr 11, 2016
    Member:
    #183963
    Messages:
    9,138
    Gender:
    Male
    First Name:
    Shane
    Vehicle:
    2011 MGM DCSB TRD Sport 4x4
    Check My Sig.
    You planning on something for 2nd gens too?? :D:boink:

    desertjunkie760, Oct 28, 2018
    #89
    erice and ARCHIVE[QUOTED][OP] like this.
  10. Oct 28, 2018 at 3:49 PM
    #90
    Blackdawg

    #90
    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    81,586
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    The Trifecta of Taco's
    ALL OF THEM!...Then some more.
    If it's better than the dam trail gear box kit. Hell yess

    Blackdawg, Oct 28, 2018
    #90
    erice, Silver02Taco, chrslefty and 2 others like this.
  11. Oct 28, 2018 at 3:56 PM
    #91
    Prayn4surf

    #91
    Prayn4surf 20 minutes late

    Joined:
    Jan 6, 2017
    Member:
    #206776
    Messages:
    6,014
    Gender:
    Male
    Socal
    Vehicle:
    2004 Tacoma xtra cab
    Yes

    Prayn4surf, Oct 28, 2018
    #91
    erice, Willbeck and ARCHIVE[QUOTED][OP] like this.
  12. Oct 28, 2018 at 4:06 PM
    #92
    Squeaky Penguin

    #92
    Squeaky Penguin Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    10,058
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
    What's wrong with the TG kit? Mine fit perfect.

    Squeaky Penguin, Oct 28, 2018
    #92
    Willbeck likes this.
  13. Oct 28, 2018 at 4:09 PM
    #93
    ARCHIVE

    #93
    ARCHIVE [OP] Well-Known Member Vendor

    Joined:
    Oct 29, 2015
    Member:
    #168099
    Messages:
    2,233
    Gender:
    Male
    First Name:
    Eric
    Orchard Park, NY (Buffalo)
    Vehicle:
    '05 Taco, '22 Tundra, '91 Cummins
    2.5" Fox relocation * Hammer hanger * Archive MD springs
    @Squeaky Penguin Is Trail Gear's a box kit? I read into the TG as an exterior plate since they call them reinforcement plates

    Last edited: Oct 28, 2018
    ARCHIVE, Oct 28, 2018
    #93
  14. Oct 28, 2018 at 5:04 PM
    #94
    Squeaky Penguin

    #94
    Squeaky Penguin Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    10,058
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
    They have both.

    Squeaky Penguin, Oct 28, 2018
    #94
    erice, ARCHIVE[QUOTED][OP] and Willbeck like this.
  15. Oct 28, 2018 at 5:42 PM
    #95
    Willbeck

    #95
    Willbeck Well-Known Member

    Joined:
    Feb 8, 2015
    Member:
    #148190
    Messages:
    1,588
    Gender:
    Male
    First Name:
    Will
    Huntington Beach
    Vehicle:
    00 Reg Cab 4x4
    Bug deflector
    YES. Mine will need to be boxed and cross braced since I won’t be able to do frame reinforcement plates, and I’ll need the extra strength for when I finally do a swing out rear bumper

    Willbeck, Oct 28, 2018
    #95
    erice and ARCHIVE[QUOTED][OP] like this.
  16. Oct 28, 2018 at 6:01 PM
    #96
    ARCHIVE

    #96
    ARCHIVE [OP] Well-Known Member Vendor

    Joined:
    Oct 29, 2015
    Member:
    #168099
    Messages:
    2,233
    Gender:
    Male
    First Name:
    Eric
    Orchard Park, NY (Buffalo)
    Vehicle:
    '05 Taco, '22 Tundra, '91 Cummins
    2.5" Fox relocation * Hammer hanger * Archive MD springs
    I was thinking a tube between the factory frame close offs at the bump brackets would be a good addition, if a frame doesn't get boxed. Personally I don't think boxing is critical

    ARCHIVE, Oct 28, 2018
    #96
    Willbeck[QUOTED] likes this.
  17. Oct 28, 2018 at 6:03 PM
    #97
    Willbeck

    #97
    Willbeck Well-Known Member

    Joined:
    Feb 8, 2015
    Member:
    #148190
    Messages:
    1,588
    Gender:
    Male
    First Name:
    Will
    Huntington Beach
    Vehicle:
    00 Reg Cab 4x4
    Bug deflector
    Agreed. If I box mine I’ll run an x-brace like @lotsoftoys truck. Better rigidity that way

    Willbeck, Oct 28, 2018
    #97
    erice and ARCHIVE[QUOTED][OP] like this.
  18. Oct 28, 2018 at 6:19 PM
    #98
    ARCHIVE

    #98
    ARCHIVE [OP] Well-Known Member Vendor

    Joined:
    Oct 29, 2015
    Member:
    #168099
    Messages:
    2,233
    Gender:
    Male
    First Name:
    Eric
    Orchard Park, NY (Buffalo)
    Vehicle:
    '05 Taco, '22 Tundra, '91 Cummins
    2.5" Fox relocation * Hammer hanger * Archive MD springs
    I like that as I said above. The thing that most boxing kits don't do that drives me nuts is they don't go under the cab at least somewhat.

    On 1sties, the frame is actually boxed to behind the cab, I'd try to make boxing plates go down and connect to factory box. The fuel tank cross member would have to be cut and welded to plates.

    ARCHIVE, Oct 28, 2018
    #98
    erice and Willbeck[QUOTED] like this.
  19. Oct 28, 2018 at 6:52 PM
    #99
    lotsoftoys

    #99
    lotsoftoys pavement is boring....

    Joined:
    Apr 22, 2010
    Member:
    #35790
    Messages:
    7,299
    Gender:
    Male
    First Name:
    Jace
    Denver
    Vehicle:
    98 lifted panda taco
    bunch of crap
    Was stupid beefy once that was in.

    lotsoftoys, Oct 28, 2018
    #99
    Willbeck[QUOTED] likes this.
  20. Oct 28, 2018 at 8:24 PM
    #100
    defythemall

    #100
    defythemall Well-Known Member

    Joined:
    Feb 18, 2016
    Member:
    #178650
    Messages:
    189
    Gender:
    Male
    San diego
    Vehicle:
    01 RC 4wd, 03 DC 4wd
    Subd

    defythemall, Oct 28, 2018
    #100
