1st gen tacoma trd !

Discussion in '1st Gen. Tacomas (1995-2004)' started by Markster, Feb 7, 2017.

  1. Feb 7, 2017 at 1:38 PM
    #1
    Markster

    Markster [OP] Member

    Joined:
    Feb 7, 2017
    Member:
    #209902
    Messages:
    6
    Gender:
    Male
    First Name:
    Mark
    Vehicle:
    1st gen tacoma trd
    My question is I have a 2000 tacoma trd and it dosen't have a locking rear diff ! What makes my trd off road a trd off road

    Last edited: Feb 7, 2017
  2. Feb 7, 2017 at 2:19 PM
    #2
    tan4x4

    tan4x4 Well-Known Member

    Joined:
    Nov 30, 2011
    Member:
    #67982
    Messages:
    3,807
    Gender:
    Male
    First Name:
    Rick
    Folsom, CA
    Vehicle:
    99 Tacoma EC 4x4 2.7L Auto
    Bilsteins, OME 881's, 3-leaf AAL, Detroit TruTrac, Tundra brake swap, Michelin LTX AT2, Tranny skidplate, TC skidplate, CBI rear bumper, TG sliders, UltraGauge, PowerTank, Reverse Camera
    If you have an automatic, and 4-cyl, the elocker is not included in the TRD package.
    You do get progressive front springs, and bilstein shocks. Not sure what else.

  3. Feb 7, 2017 at 2:30 PM
    #3
    harper7

    harper7 Well-Known Member

    Joined:
    Jun 16, 2011
    Member:
    #58360
    Messages:
    142
    Gender:
    Male
    First Name:
    Gary
    Tulsa/Claremore OK
    Vehicle:
    00 Imperial Jade 4x4 TRD,01 TRD 5sp
    I've read 4 bangers didn't get the rr locking diff.Here's what else you should have with the TRD package on the sticker.

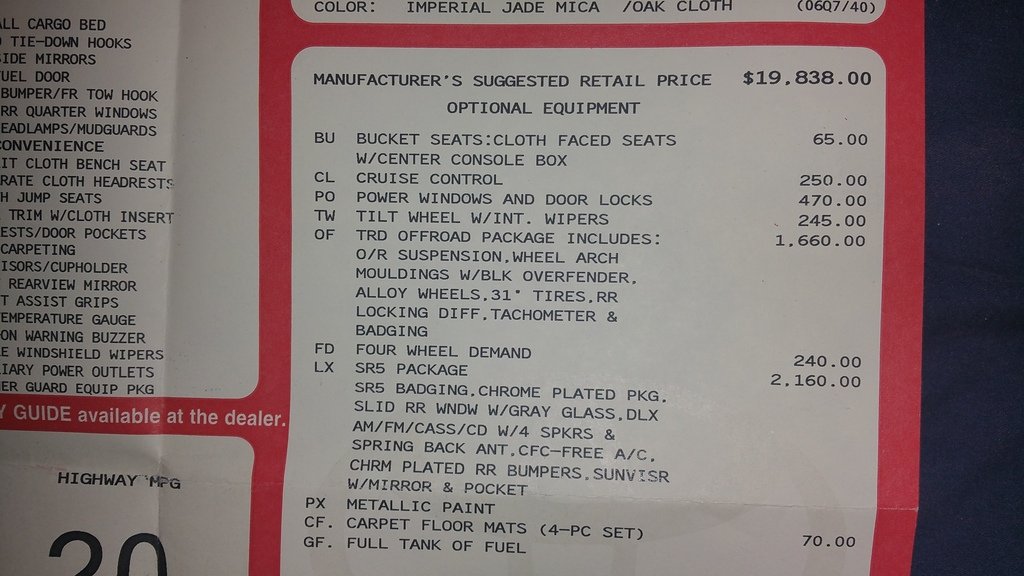

    Here's from my 2000 TRD monroney window sticker. Does anybody know what the option FD - Four Wheel Demand for $240 is??


  4. Feb 7, 2017 at 2:31 PM
    #4
    Markster

    Markster [OP] Member

    Joined:
    Feb 7, 2017
    Member:
    #209902
    Messages:
    6
    Gender:
    Male
    First Name:
    Mark
    Vehicle:
    1st gen tacoma trd
    Thanks for the redponse ! Mine is an automatic but is a V6. How complacated or expansive to make it a locker ?

  5. Feb 7, 2017 at 2:38 PM
    #5
    frizzman

    frizzman Well-Known Member

    Joined:
    Sep 25, 2013
    Member:
    #113212
    Messages:
    5,348
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    04 XCab 4x4 TRD/OR
    OME 2.5,Tundra 17s,Falken Wildpeak AT3W hitch w/ 7-pin, ARE cap, JVC HU w/BT, HID/LED lights
    Are you the original owner or a second/third/etc owner? stickers don't mean anything and we've seen a lot of sellers put them on and unsuspecting buyers do not know.

    you have to buy the locking rear axle and various electronic bits to make it work

  6. Feb 7, 2017 at 2:38 PM
    #6
    harper7

    harper7 Well-Known Member

    Joined:
    Jun 16, 2011
    Member:
    #58360
    Messages:
    142
    Gender:
    Male
    First Name:
    Gary
    Tulsa/Claremore OK
    Vehicle:
    00 Imperial Jade 4x4 TRD,01 TRD 5sp
    That more then likely means that somebody just bought the $80 TRD stickers and put them on it.You can get up underneath and look just in case somebody took the locking diff switch out.(highly unlikely)

    You would have to find a oem one, rear axle and diff in the classifieds or a junk yard(fairly rare),maybe ebay. Or you can get an ARB or other aftermarket. I had ARB front and rear on my last truck and actually liked them better as it seemed to be quicker engagement and disengagement.

    This site contains affiliate links for which the site may be compensated.
    #6
  7. Feb 7, 2017 at 2:44 PM
    #7
    Markster

    Markster [OP] Member

    Joined:
    Feb 7, 2017
    Member:
    #209902
    Messages:
    6
    Gender:
    Male
    First Name:
    Mark
    Vehicle:
    1st gen tacoma trd
    I'm not that worried about it I was just wondering if the 2000's even had the locking diff option

  8. Feb 7, 2017 at 2:47 PM
    #8
    Markster

    Markster [OP] Member

    Joined:
    Feb 7, 2017
    Member:
    #209902
    Messages:
    6
    Gender:
    Male
    First Name:
    Mark
    Vehicle:
    1st gen tacoma trd
    I was thinking That I would rather have a LSD anyway because I like the snow anybody go that route ?

  9. Feb 7, 2017 at 2:47 PM
    #9
    PROseur

    PROseur Well-Known Member

    Joined:
    Dec 9, 2015
    Member:
    #171837
    Messages:
    10,576
    First Name:
    Pussy
    Vehicle:
    2012 FJC TTSE/ 2001 Taliban Poverty DCSB/ 2017 6MT PRO / 2018 2.7L SR Utility
    YES

    Joe D and shakerhood like this.
  10. Feb 7, 2017 at 2:50 PM
    #10
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    23,828
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 SCv6 AutoTrans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Total Chaos Sprindle Gussets Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Black 17x8 Konig Countersteer Type X 285/70r17 Falken A/T3w Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000 Kelvin SAE Driving Lights with Clear Lenses on the Bumper Morimoto D2S Projectors XB35 Ballasts + 4300K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Dometic CFX 55im Fridge/Freezer Alpha II Hardshell RTT Badland Custom Bed Rack Denso 210-0461 105 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Haltech IC-7 Display with Mako Dash Insert Haltech Elite 2500 Standalone ECU Magnuson MP62 Supercharger w/URD 2.2" Pulley Doug Thorley Headers Denso 650cc Fuel Injectors Aeromotive Stealth 340 Fuel Pump TransGo A340F Reprogramming Shift Kit OEM ECU Delete Full A340F Trans Control with the Haltech 2500 ECU 2.5" Magnaflow Hi-Flow CAT Magnaflow 18" Muffler w/Vibrant Resonator 13WL Brake Calipers with OEM Rotors & Pads Braided Steel Brake Lines Kenwood TM-71A Dual Band Ham Radio STI-CO Flex Whip VFH/UHF 1/4 Wave Antenna Midland MTX275 GMRS Radio w/Roof Mount Antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    If you have the v6, it probably means a previous owner just slapped on a pair of stickers on the sides.

    Which side of your rear diff has the drain plug on it? Is it on the drivers side?

    1st gens came with two very different rear axle assemblies. The TRD elocker rear diff has its drain plug on the drivers side of the diff.

  11. Feb 7, 2017 at 8:34 PM
    #11
    Markster

    Markster [OP] Member

    Joined:
    Feb 7, 2017
    Member:
    #209902
    Messages:
    6
    Gender:
    Male
    First Name:
    Mark
    Vehicle:
    1st gen tacoma trd
    Thanks alot I'll check that out

  12. Feb 7, 2017 at 8:44 PM
    #12
    jacobrippey

    jacobrippey It’s always Taco Tuesday Instagram #rippstik

    Joined:
    Apr 26, 2014
    Member:
    #128494
    Messages:
    920
    Gender:
    Male
    First Name:
    Jacob
    Surprise, Arizona. USA
    Vehicle:
    2004 Tacoma DC 4wd
    Find me on Instagram: @rippstik
    I added a trd off-road elocker to mine. From my experience, the easiest route is acquiring:
    1) elocker housing
    2) 3rd member with elocker
    3) wiring harness from 12v guy
    4) 8 pin rocker switch.

    ...and don't forget to make sure the front and rear diffs match, gearing wise.

  13. Feb 7, 2017 at 8:49 PM
    #13
    Matic

    Matic The "OFG" Baby!!!

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    26,677
    Gender:
    Male
    First Name:
    Tricky Dick
    Easley, SC
    Vehicle:
    1 owner 2002 TRD, SR5, DC, 2.7. Full OME suspension, STT pro's.
    OME 881 coils with OME nitrochargers shocks up front. TC UCA's OME Dakars with extra leaf in the rear. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate. 2019 Jeep JLUR.
    I'm curious if you have been under the truck to look at the rear axle at all?

    Markster[OP] likes this.
  14. Feb 7, 2017 at 8:55 PM
    #14
    Ice Horse

    Ice Horse Stalking horse

    Joined:
    Sep 26, 2012
    Member:
    #87761
    Messages:
    16,392
    Gender:
    Female
    First Name:
    Lauren
    Florida
    Vehicle:
    Two 1998’s and a 2025. All TRD Offroads.
    ADS Racing Shocks 2.5" Extended Travel Coilovers with Reservoirs, 3 inch All Pro rear suspension kit, factory E-locker, Trail Gear sliders and front stinger bumper, CBI Offroad rear tube bumper, XRC8 Winch, 33 inch BFG KM2's, 16 inch Ivan Stewart Wheels, Uniden CB radio, flip up license plate, white tail lights, LED front signals, Tundra front brake upgrade, new radio, rock lights, sub woofer, remote start, satoshi grille with Prius emblem, Rigid DOT/SAE Fog Lights, 12" Light Bar
    Four Wheel Demand = Four Wheel Drive maybe?

  15. Feb 7, 2017 at 8:58 PM
    #15
    shakerhood

    shakerhood Well-Known Member

    Joined:
    Aug 9, 2015
    Member:
    #161370
    Messages:
    37,103
    Gender:
    Male
    Southern Ohio
    Vehicle:
    2017 MGM DCSB Off Road, 6 Speed MT, P&T
    I think that may have been Push Button 4 Wheel Drive.

  16. Feb 7, 2017 at 8:59 PM
    #16
    DustStorm4x4

    DustStorm4x4 BBC 2020

    Joined:
    Jul 2, 2015
    Member:
    #158634
    Messages:
    8,931
    Gender:
    Male
    U S A
    Vehicle:
    04 Jeep LJ
    Probably is the tcase with the button and not just the plain j shift.

  17. Feb 7, 2017 at 9:00 PM
    #17
    DustStorm4x4

    DustStorm4x4 BBC 2020

    Joined:
    Jul 2, 2015
    Member:
    #158634
    Messages:
    8,931
    Gender:
    Male
    U S A
    Vehicle:
    04 Jeep LJ
    :annoyed: Beat me to it

    shakerhood[QUOTED] likes this.
  18. Feb 7, 2017 at 9:04 PM
    #18
    Ice Horse

    Ice Horse Stalking horse

    Joined:
    Sep 26, 2012
    Member:
    #87761
    Messages:
    16,392
    Gender:
    Female
    First Name:
    Lauren
    Florida
    Vehicle:
    Two 1998’s and a 2025. All TRD Offroads.
    ADS Racing Shocks 2.5" Extended Travel Coilovers with Reservoirs, 3 inch All Pro rear suspension kit, factory E-locker, Trail Gear sliders and front stinger bumper, CBI Offroad rear tube bumper, XRC8 Winch, 33 inch BFG KM2's, 16 inch Ivan Stewart Wheels, Uniden CB radio, flip up license plate, white tail lights, LED front signals, Tundra front brake upgrade, new radio, rock lights, sub woofer, remote start, satoshi grille with Prius emblem, Rigid DOT/SAE Fog Lights, 12" Light Bar
    Ah that makes sense. What year did they start doing that? I know my 98 has the j-shift

  19. Feb 7, 2017 at 9:37 PM
    #19
    shakerhood

    shakerhood Well-Known Member

    Joined:
    Aug 9, 2015
    Member:
    #161370
    Messages:
    37,103
    Gender:
    Male
    Southern Ohio
    Vehicle:
    2017 MGM DCSB Off Road, 6 Speed MT, P&T
    My 2000 also had a J Shift, but I do recall that Four Wheel Demand being an option but not sure which year it first started.

  20. Feb 8, 2017 at 1:10 AM
    #20
    roosterburm

    roosterburm Well-Known Member

    Joined:
    Oct 10, 2016
    Member:
    #199421
    Messages:
    116
    Gender:
    Male
    First Name:
    Ross
    Vehicle:
    2002 Tacoma Double Cab 4 x 4 TRD
    3" Toytec with bilsteins American racing 15' wheels 32'' Goodyear MTR's Daystar super shackles
    I woulda had to haggle em down on the full tank of fuel charge....
