1st Gen Toyota Part Numbers & Prices

Discussion in '1st Gen. Tacomas (1995-2004)' started by mechanicjon, Aug 7, 2018.

  1. Sep 1, 2019 at 7:49 AM
    #101
    GQ7227

    GQ7227 mw survivor

    Joined:
    Dec 6, 2018
    Member:
    #275019
    Messages:
    30,887
    Gender:
    Male
    First Name:
    J A Y
    309km east of Hazard ...the good life
    Vehicle:
    '97 black SR5 0g ~ MT @ 176k ...
    black woolWax, green IFC, borlaCB, custom Line-X PC drums, skid, nuts, hooks, 1/4 silver frame...
    in case you did not have this one listed already

    3.4 cap,ventilation part # 1223562010 .... MSRP $13.65

    mechanicjon [OP] likes this.
  2. Sep 1, 2019 at 10:08 AM
    #102
    CS_AR

    CS_AR Well-Known Member

    Joined:
    Apr 3, 2019
    Member:
    #289019
    Messages:
    7,419
    Gender:
    Male
    Vehicle:
    1999 Tacoma PreRunner TRD
    Everything but the driveshaft. B03A - 410
    I appreciate all the effort people are putting into this thread.

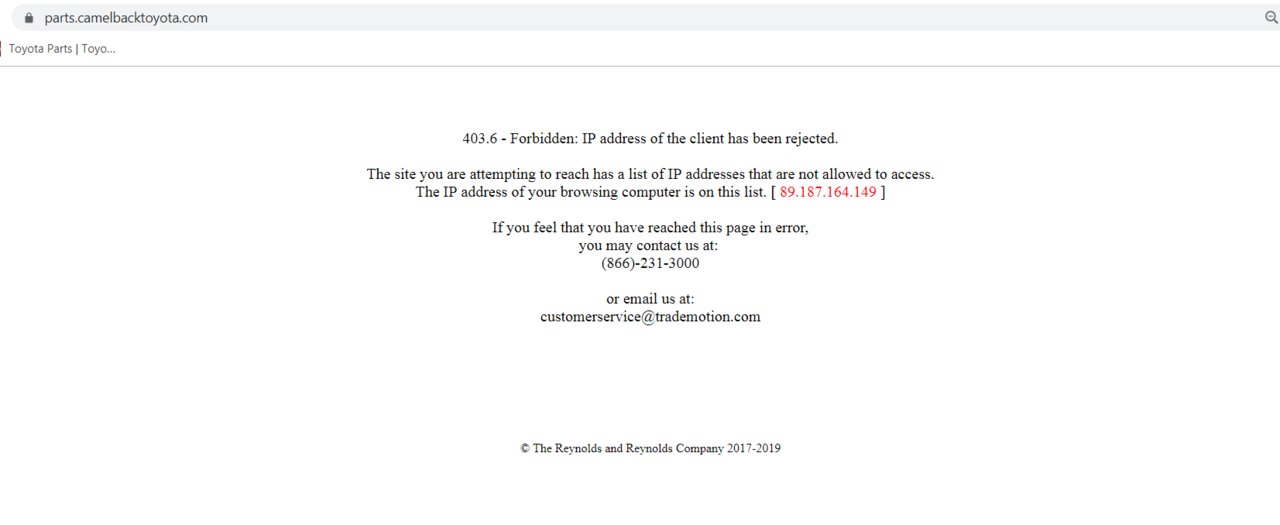

    Though I chuckle when I get the following error when attempting to access Camelback's site.

    They sure don't like people who work behind a common "hide NAT" as part of their computer's VPN for security. LOL.




    GQ7227 likes this.
  3. Sep 15, 2019 at 9:52 AM
    #103
    lmhp1985

    lmhp1985 Well-Known Member

    Joined:
    Oct 9, 2017
    Member:
    #232478
    Messages:
    69
    Gender:
    Male
    Boston MA
    Vehicle:
    2004 Tacoma Silver
    What’s the difference in between this 3 thermostat
    A13. Thermostat 82°C/180°F Stock90916-03075$19.31

    A13. Thermostat 76°C/170°F 90916-03107 $29.42

    A14. TRD Thermostat 71°C/160°F00602-17621-001 16340-SP010 $65.00

    I’ Not mechanical inclined

  4. Sep 15, 2019 at 10:46 AM
    #104
    0xDEADBEEF

    0xDEADBEEF Well-Known Member

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    10,157
    Kansas City
    Vehicle:
    2000 4WD MT Single Cab
    Rust, dents, miles, extra metal.
    They open at 3 different temperatures. 180, 170 and 160.

  5. Oct 3, 2019 at 9:32 AM
    #105
    zooma-loom

    zooma-loom Well-Known Member

    Joined:
    Oct 3, 2019
    Member:
    #306965
    Messages:
    123
    Gender:
    Male
    RIGHT out of sight of SCOTTSDALE, AZ
    Vehicle:
    1997 Tacoma, Ext Cab, 4x4, 3RZ, A/T, Manual locking hubs
    Thanks for the helpful info posted here

    GQ7227 likes this.
  6. Nov 6, 2019 at 8:18 AM
    #106
    GQ7227

    GQ7227 mw survivor

    Joined:
    Dec 6, 2018
    Member:
    #275019
    Messages:
    30,887
    Gender:
    Male
    First Name:
    J A Y
    309km east of Hazard ...the good life
    Vehicle:
    '97 black SR5 0g ~ MT @ 176k ...
    black woolWax, green IFC, borlaCB, custom Line-X PC drums, skid, nuts, hooks, 1/4 silver frame...

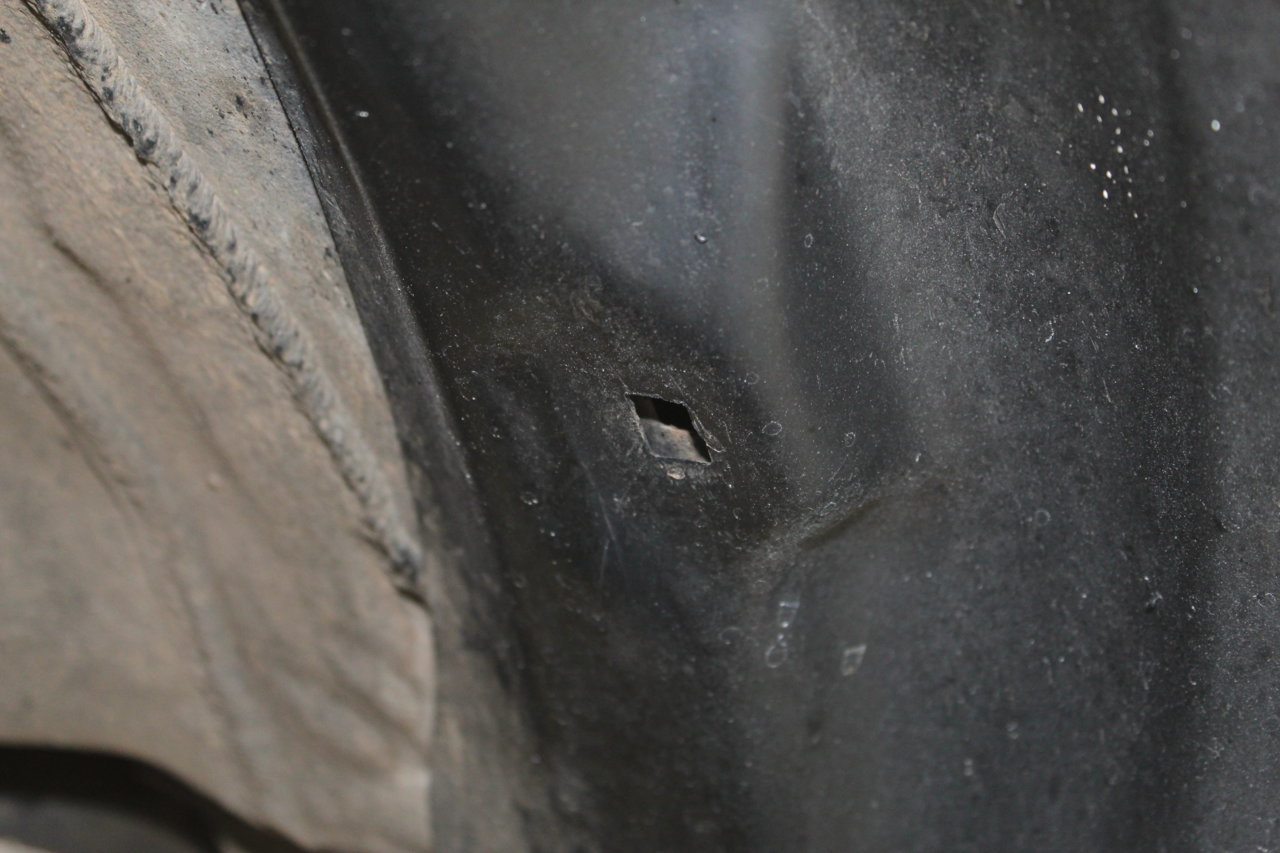

    i am needing help in identifying this piece i found missing in the driver wheel well, probably one of any assorted clips or plugs or grommets
    and part # if its been found already
    not sure when mine disappeared or how, and i am not sure what is behind this area! until i have to take the liners out and get up close and personal with it at some later point


    Last edited: Nov 6, 2019
  7. Nov 6, 2019 at 9:06 AM
    #107
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,378
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    90189-06157
    Search google with number

    GQ7227 likes this.
  8. Nov 6, 2019 at 9:11 AM
    #108
    GQ7227

    GQ7227 mw survivor

    Joined:
    Dec 6, 2018
    Member:
    #275019
    Messages:
    30,887
    Gender:
    Male
    First Name:
    J A Y
    309km east of Hazard ...the good life
    Vehicle:
    '97 black SR5 0g ~ MT @ 176k ...
    black woolWax, green IFC, borlaCB, custom Line-X PC drums, skid, nuts, hooks, 1/4 silver frame...
    Last edited: Nov 6, 2019
    CS_AR likes this.
  9. Nov 6, 2019 at 3:40 PM
    #109
    jnossoff

    jnossoff 2000 EC Pre-Runnerwith Leer 122 Camper shell

    Joined:
    Jan 1, 2014
    Member:
    #119667
    Messages:
    280
    Gender:
    Male
    First Name:
    Joel
    Albuquerque NM
    Vehicle:
    2000 PreRunner SR5 TRD
    "Fender Liner (and) Mud Guard (and Fender Trim/Flare) Screw Grommets for Toyota 90189-06157 USA Seller" at eBay 10 for $6.57, free shipping. Search eBay with:
    Fender Liner Mud Guard Screw Grommets For Toyota 90189-06157 USA Seller
    Square hole in fender sheet metal accepts the press-in grommet.Holds the liner to the sheet metal.

    Grommet accepts "Toyota 90159-60393 Screw, with washer tapp". Screw secures the following to sheet metal in fender:
    -Fender Liner
    -Mud Guard (OEM or aftermarket)
    -Fender Trim/Flare
    Grommet fastens liner to fender. Screw can be fastened directly into grommet over liner OR holding fender trim/flare to liner and fender OR holding holding mudguard to liner and fender OR holding mudguard AND fender trim/flare to liner and fender.

    When pricing any part at any Dealer, check the shipping cost, then head directly to eBay!

    My grommet at eBay from eBay vendor NorthStarDistributingUSA. Likely have the screws also.Direct site is. Northstarautosupply.com

    Last edited: Nov 6, 2019
    GQ7227 likes this.
  10. Nov 6, 2019 at 3:51 PM
    #110
    jnossoff

    jnossoff 2000 EC Pre-Runnerwith Leer 122 Camper shell

    Joined:
    Jan 1, 2014
    Member:
    #119667
    Messages:
    280
    Gender:
    Male
    First Name:
    Joel
    Albuquerque NM
    Vehicle:
    2000 PreRunner SR5 TRD
    Last edited by a moderator: Mar 9, 2021
  11. Nov 6, 2019 at 4:08 PM
    #111
    jnossoff

    jnossoff 2000 EC Pre-Runnerwith Leer 122 Camper shell

    Joined:
    Jan 1, 2014
    Member:
    #119667
    Messages:
    280
    Gender:
    Male
    First Name:
    Joel
    Albuquerque NM
    Vehicle:
    2000 PreRunner SR5 TRD
    Also, when you search for the SCREW part number, Toyota 90159-60393 you may find a "bolt", with a drawing that looks nothing like the screw. Be assured, that part number is a screw, not a bolt.
    The GROMMET is really only necessary to fasten the liner to the metal fender, but the screw allows you to fasten mud flaps and/or fender trim to the grommet/fender.

    GQ7227 and cruiserguy like this.
  12. Nov 6, 2019 at 4:19 PM
    #112
    GQ7227

    GQ7227 mw survivor

    Joined:
    Dec 6, 2018
    Member:
    #275019
    Messages:
    30,887
    Gender:
    Male
    First Name:
    J A Y
    309km east of Hazard ...the good life
    Vehicle:
    '97 black SR5 0g ~ MT @ 176k ...
    black woolWax, green IFC, borlaCB, custom Line-X PC drums, skid, nuts, hooks, 1/4 silver frame...

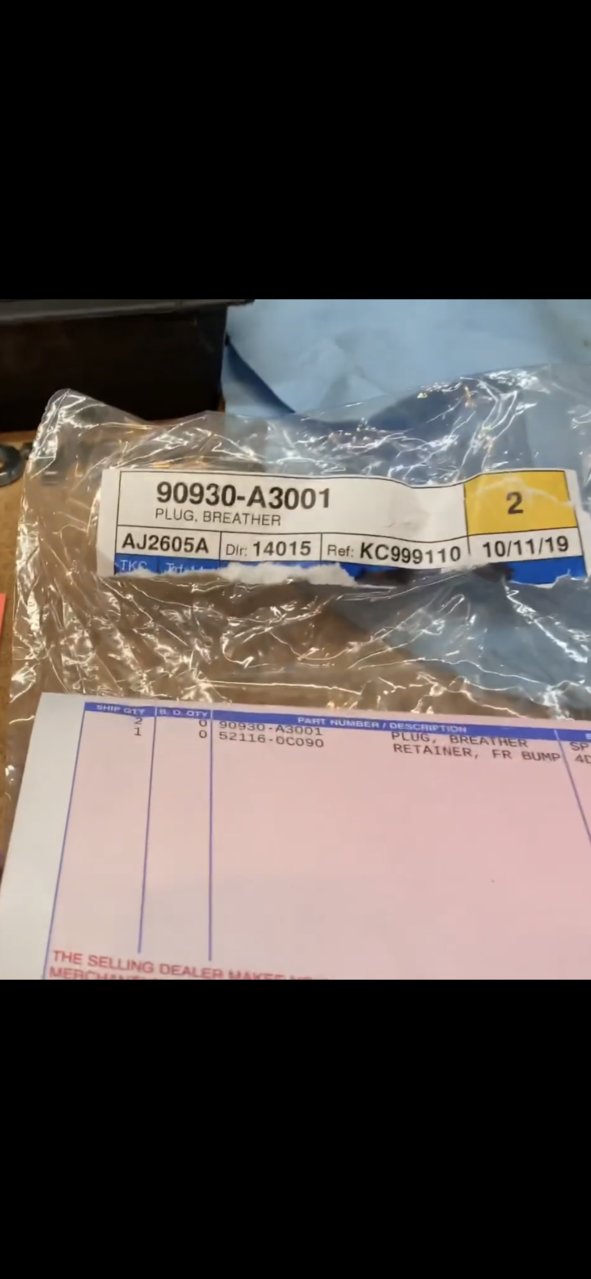

    i could not find the rear diff vent breather part on this list or did i overlook it

  13. Nov 6, 2019 at 4:43 PM
    #113
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,378
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Don't think that was is in the main list. I have updated it.

    GQ7227 likes this.
  14. Nov 6, 2019 at 7:45 PM
    #114
    jnossoff

    jnossoff 2000 EC Pre-Runnerwith Leer 122 Camper shell

    Joined:
    Jan 1, 2014
    Member:
    #119667
    Messages:
    280
    Gender:
    Male
    First Name:
    Joel
    Albuquerque NM
    Vehicle:
    2000 PreRunner SR5 TRD
    We know we all want to get the best price when we purchase parts for our Tacos.When purchasing on-line, be certain to include "Shipping and Handling" charges in your comparisons.
    For example: 10 small screws @ 0.87 each = $8.70 "Freight": $18.56 TOTAL $25.92 [$2.59 each]

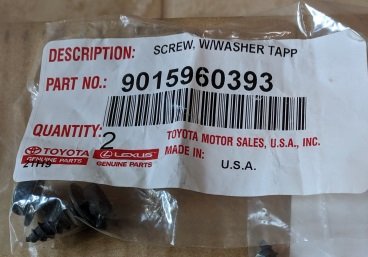

    The screws, 5 packages of 2 screws each:

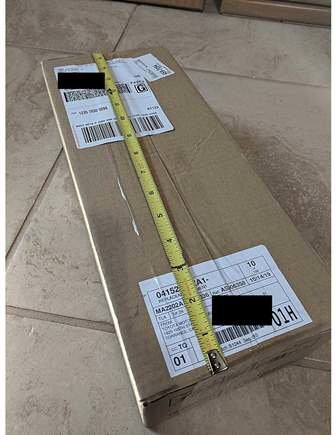

    The Packaging-A classic example of wasteful over-packaging. Sent overnight FedEx. Customer is given no other shipping options.To their credit they re-used a carton from another Toyota part.
    Screws package_Redacted.jpg

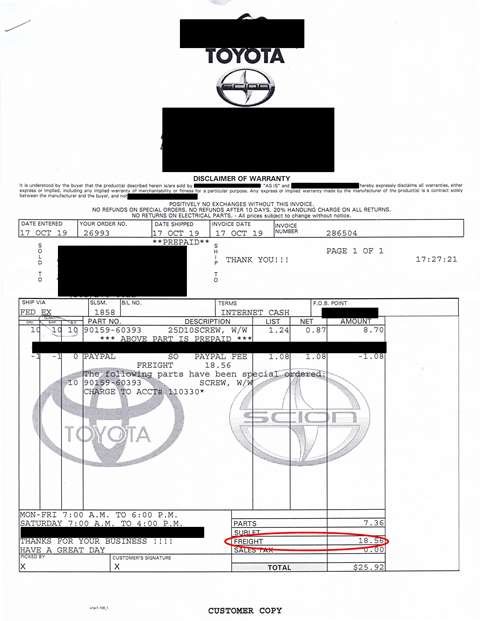

    The Invoice:
    Screw 90159-60393 Invoice_Redacted.jpg



    CS_AR and GQ7227 like this.
  15. Nov 7, 2019 at 11:01 AM
    #115
    TWJLee

    TWJLee Well-Known Member

    Joined:
    Dec 7, 2018
    Member:
    #275158
    Messages:
    293
    Gender:
    Male
    First Name:
    Jay
    Midwest
    Vehicle:
    2003 Tacoma AC 3.4 4x4 auto TRD 2004 Tacoma DC TRD 103k. 2002 4Runner Limited 235k 2020 Tundra DC LmTD 2020 F150 5.0
    2003 Bilsteins 5100’s 17”s off gen3. New frame, sweet deal truck. 2004 new frame low mile deal 2002 T4R exceptionalism Tundra GFC 33’s Borla Pro XS F150 33’s Magnaflow 2” RC level
    2004-
    should be the same, used in 2003, 2002 so far
    $10 at local dealer after requesting price match


    mechanicjon [OP] and GQ7227 like this.
  16. Nov 7, 2019 at 11:18 AM
    #116
    GQ7227

    GQ7227 mw survivor

    Joined:
    Dec 6, 2018
    Member:
    #275019
    Messages:
    30,887
    Gender:
    Male
    First Name:
    J A Y
    309km east of Hazard ...the good life
    Vehicle:
    '97 black SR5 0g ~ MT @ 176k ...
    black woolWax, green IFC, borlaCB, custom Line-X PC drums, skid, nuts, hooks, 1/4 silver frame...

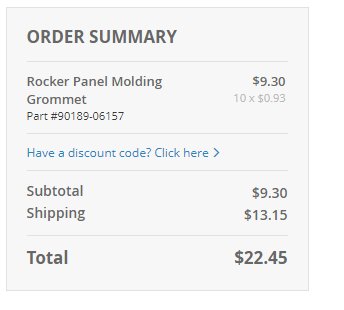

    as far as i know Camelback has a $20 flat rate unless its oversized, they used to have free shipping over $100 i think awhile ago but was told they discontinued it and slashed prices some to make up for it :notsure:

    maybe i should order all new replacements of these screws (how many would i need? i have not yet counted them) because i don't know if they are going to snap when i have to take all the liners off for a pending paint refresh, scratch removal and undercoating at Ming one of these months when its ready to go

  17. Nov 7, 2019 at 12:17 PM
    #117
    CS_AR

    CS_AR Well-Known Member

    Joined:
    Apr 3, 2019
    Member:
    #289019
    Messages:
    7,419
    Gender:
    Male
    Vehicle:
    1999 Tacoma PreRunner TRD
    Everything but the driveshaft. B03A - 410
  18. Nov 7, 2019 at 12:22 PM
    #118
    jnossoff

    jnossoff 2000 EC Pre-Runnerwith Leer 122 Camper shell

    Joined:
    Jan 1, 2014
    Member:
    #119667
    Messages:
    280
    Gender:
    Male
    First Name:
    Joel
    Albuquerque NM
    Vehicle:
    2000 PreRunner SR5 TRD
    Screws simply unscrew so no chance they will snap off. Grommets function as nuts for the screws. With screw inserted, springy clips will NOT retract.
    TOYOTA 90189-06157 Fender Liner Hood Mudguard Screw Grommets Clips-photos.jpg

    CS_AR and GQ7227 like this.
  19. Dec 14, 2019 at 2:34 PM
    #119
    GQ7227

    GQ7227 mw survivor

    Joined:
    Dec 6, 2018
    Member:
    #275019
    Messages:
    30,887
    Gender:
    Male
    First Name:
    J A Y
    309km east of Hazard ...the good life
    Vehicle:
    '97 black SR5 0g ~ MT @ 176k ...
    black woolWax, green IFC, borlaCB, custom Line-X PC drums, skid, nuts, hooks, 1/4 silver frame...

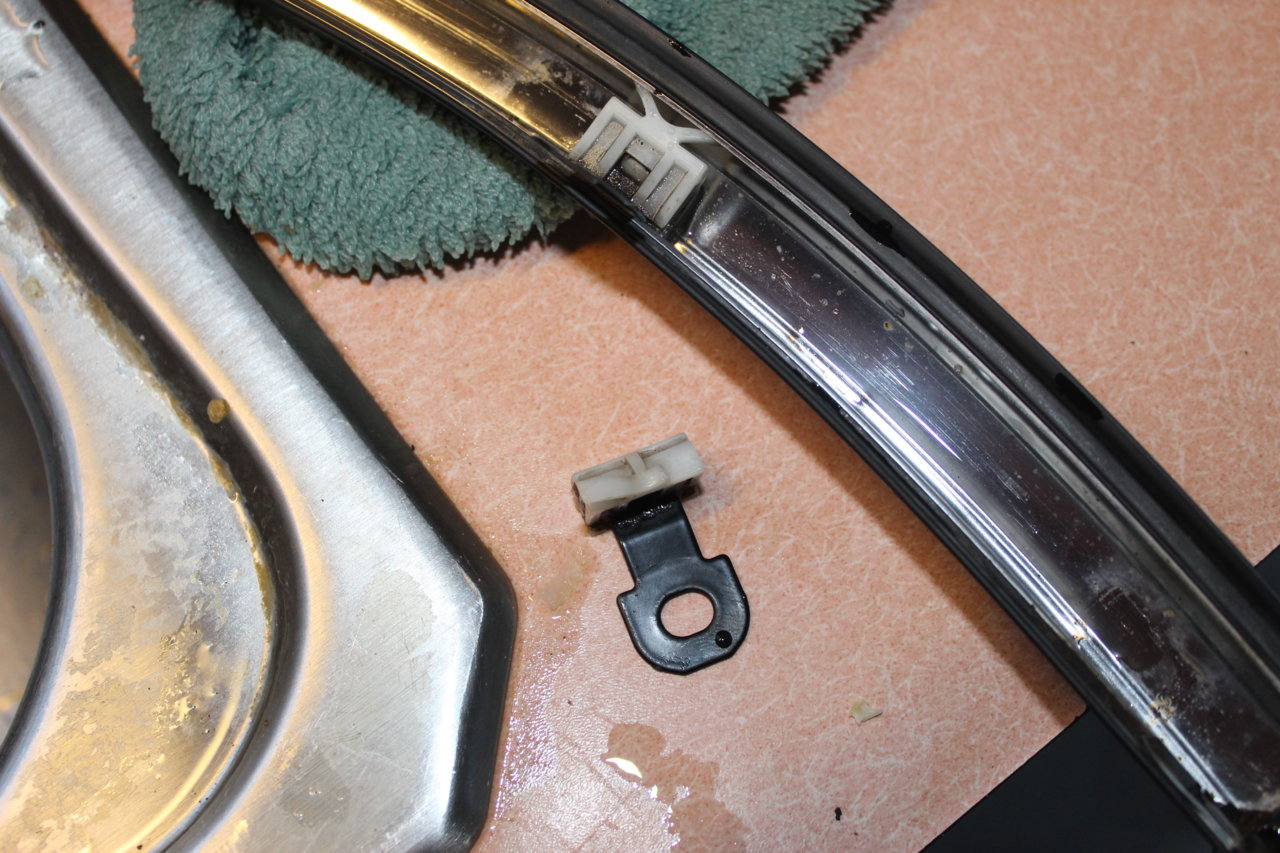

    do you have a part# for this wheel opening molding clip thingbob that broke on my cleaning these out
    looks like they just snap on in there


    molding clip broken.jpg

    Last edited: Dec 15, 2019
  20. Dec 14, 2019 at 10:53 PM
    #120
    jnossoff

    jnossoff 2000 EC Pre-Runnerwith Leer 122 Camper shell

    Joined:
    Jan 1, 2014
    Member:
    #119667
    Messages:
    280
    Gender:
    Male
    First Name:
    Joel
    Albuquerque NM
    Vehicle:
    2000 PreRunner SR5 TRD
    These are not familiar to me. Best to identify the year and model Tacoma; See if the part number for the wheel molding/flare is on that item, then search a parts list/diagram for that year and model, for that part number. The fastener part number may be adjacent to the part number you do have, on the parts list and/or the diagram.
    Good Luck!

    GQ7227 likes this.
