1st Gen U bolt flip kit install

Discussion in '1st Gen. Tacomas (1995-2004)' started by JLee, May 13, 2011.

  1. May 13, 2011 at 12:12 PM
    #1
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    16,765
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    You don't see this install too much on 1st Gen Tacoma's due to the shock mount relocation.
    So here's how I did it now you don't have to do it the way I did you can just use the shock upper mounts and weld new lower mounts to the axle if you like.

    Tools
    1/2 drive socket wrench and a breaker bar (1/2" impact gun and air ratchet are helpful but not required)
    17mm & 19mm sockets (Impact sockets if the Impact gun is used)
    Torque wrench
    Angle grinder with a wire wheel to clean the metal
    Angle locater
    2 Jack stands
    Floor jack
    220v Welder


    Items Needed

    Lower shock mount tabs
    Primer & paint
    PB Blaster (Spray all bolts the day before the install)
    "Upper shock mounts and a cross-member if relocating the uppers"
    U-bolt flip kit
    Grade 8 bolts for the lower shock mounts

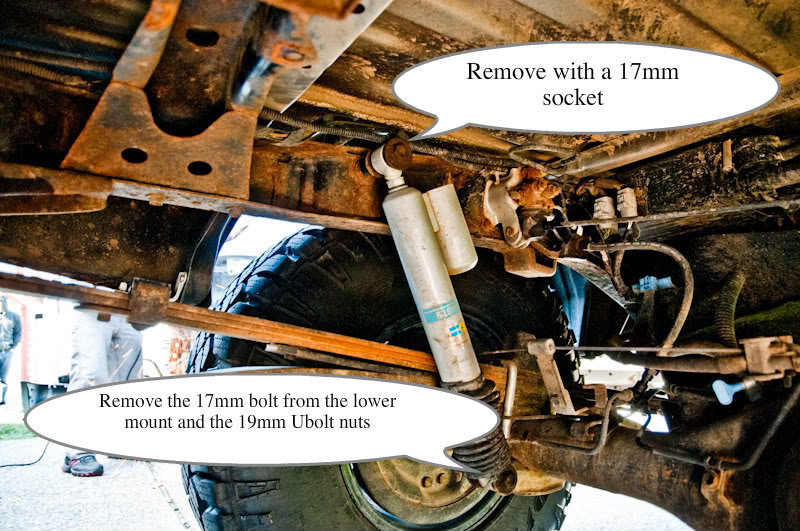

    1. Break lug nuts Jack up the truck and support the frame with the jack stands
    2. Take the floor jack and support the the Diff (pumpkin) of the rear axle
    3. Remove wheels
    4. Do this for driver and passenger side
    [​IMG]

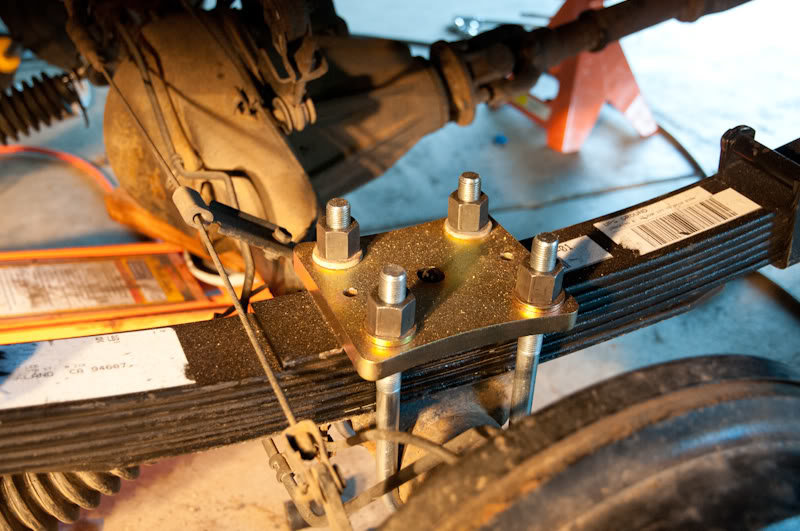

    5 Install the U-bolt flip kit as shown and snug down the bolts in a Cris cross pattern. Then take the torque wrench and torque the bolts to 90flbs
    (Note: not all flip kits are alike so it might not be a 19mm nut)
    [​IMG]

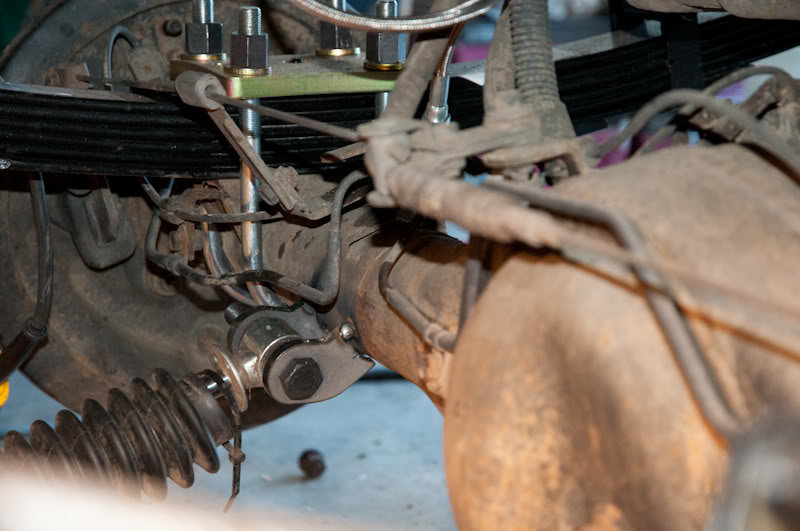

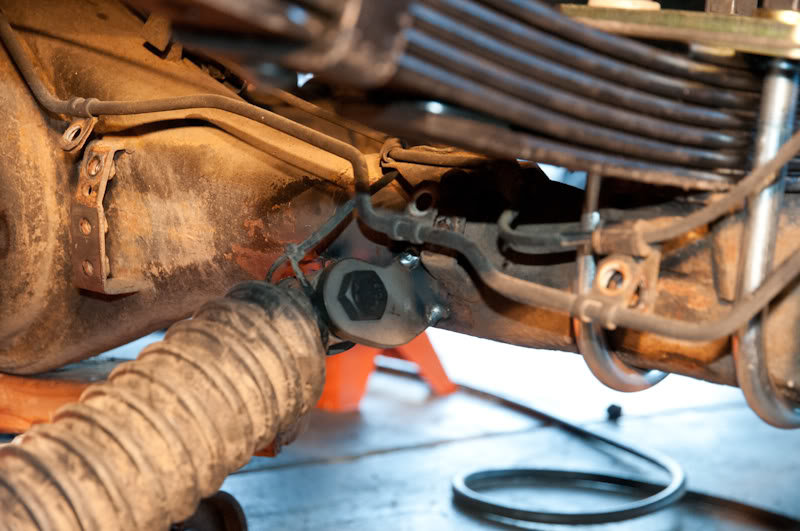

    6. Now it's time to install your lower shock mounts.Grind off all pint and rust on the axle where your going to mount your shock. This is where it gets tricky if your just doing the lowers it's simpler just mount the shock in the upper mounts and attach the lower tabs to the shock hold the shock in place keeping the left and right of the shock as close to 90 degrees as possible. Then tack the tabs into place when both sides are tacked and you like the placement check your angles one more time then remove the shocks and burn in the welds. Paint the bare metal and reinstall your shocks. And re-torque the u-bolts after 100~ miles and again after 500 or so
    [​IMG]

    Note: if your keeping the stock mounts then you would want longer shock mounting tabs because the ones i used would put a steeper angle on your shocks.

    Angled Shocks

    There is many ways to do this I went with the rear of the axle because i still drive the truck 90% of the time on the street and wanted it street drivable. but you can mount yours how ever you want.


    If you want to go the route I went do all 4 steps listed above and grind off all the paint from the 3" mark to the 5" mark from your U-bolts. Then grind all the paint off the inside of the frame rails for the cross member install.

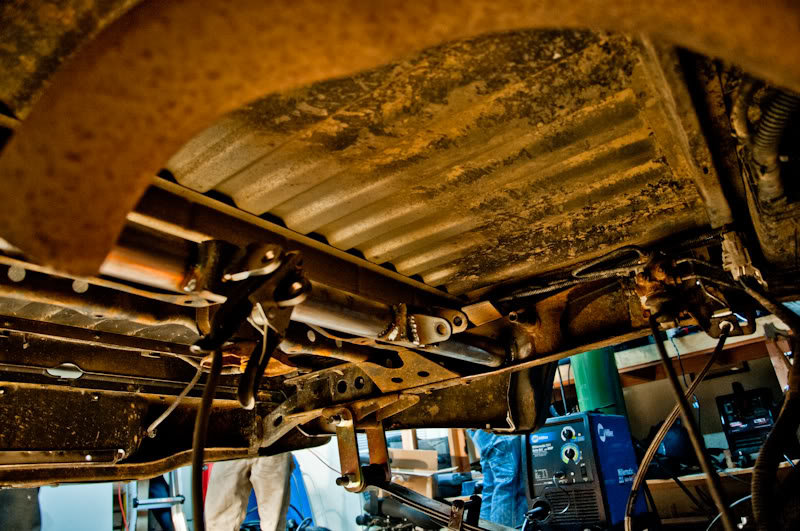

    6.1 I placed my cross member just back far enough so the mounting points of the upper shock mounts matched up with the stock rear putting my shock mounts at 30 degrees off the back of the axle. The cross member was constructed out of 2" .120 wall HREW tubing and the mounting locations were 3/16th plate steel 4 pieces cut 2"x1" and 2 cut to 2"x3". the 2x1's were welded to the 2x3 making a U shape then tacked to the cross member as seen in the picture. I did not measure the location of the upper shock mounts. I used the angle locator to find my location i just took the shock tabs and mounted them to the shocks wedged the cross member in place and held the shocks at the angle i wanted. I ended up mounting them 3 1/2" from the U-bolts on the lowers. And the shocks at 30 degrees towards the rear of the axle and 20 degrees angled in. Tack everything in place and check your angles.

    (Note with your axle at full droop when your tacking your shocks check the length of shock tube exposed. You should have at least 2 1/2" of travel left in your shock or you with max them out when you flex. I have not measured the shock to wheel travel of this setup yet but it's not 1" to 1" when I get the measurements I'll update it)



    [​IMG]

    [​IMG]

    [​IMG]


    7 Once everything is tacked and you re-check all your angles go ahead and burn everything in. After it cools prime and paint all bare metal and re-install your shocks.

    And re-torque the u-bolts after 100~ miles and again after 500 or so

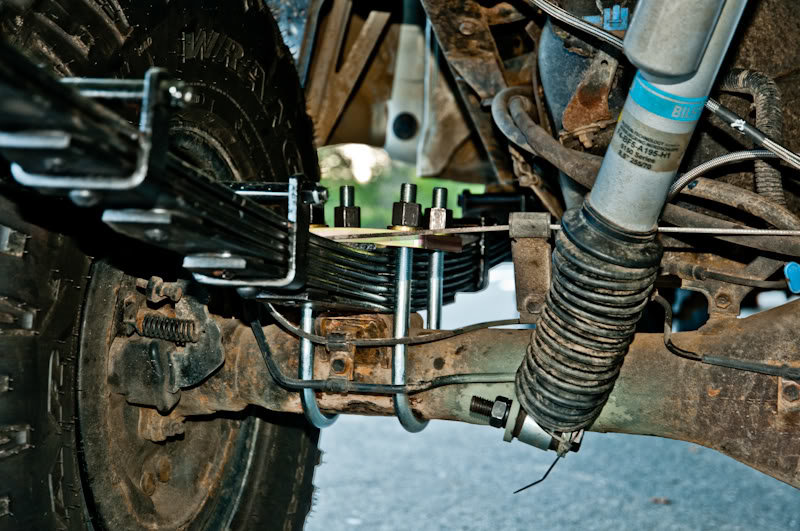

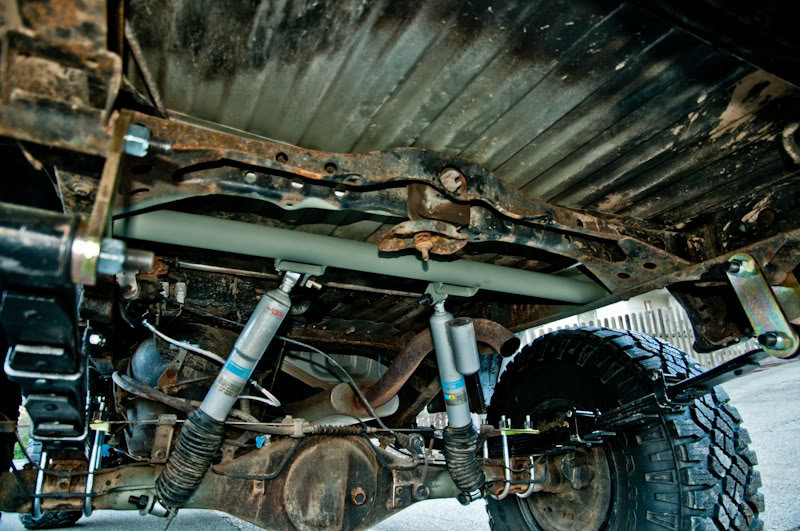

    Finished! [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    I will add instructions on the bump stops when i get some pictures.

  2. May 13, 2011 at 12:15 PM
    #2
    707tothe907

    707tothe907 Superior Member

    Joined:
    Oct 28, 2010
    Member:
    #45372
    Messages:
    2,694
    Gender:
    Male
    First Name:
    Jake
    Chico NorCal
    Vehicle:
    05 DCSB Off Road
    Awesome write up.

  3. May 13, 2011 at 12:18 PM
    #3
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    16,765
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.

    Thanks man Ive been getting a lot of PM's asking how I did mine so i figured I could do a write up and send a link If I'm asked.

  4. May 13, 2011 at 12:53 PM
    #4
    Sheepdog

    Sheepdog Well-Known Member

    Joined:
    Aug 19, 2009
    Member:
    #21447
    Messages:
    1,135
    Gender:
    Male
    First Name:
    Gary
    San Diego, CA
    Vehicle:
    Black 2002 Tacoma Xtra Cab, 4x4, TRD, SR5
    Eibach/Bilsteins, Beefed shackles, Bushwacker Cut-Outs, Custom roll bar, TG Sliders, Elite Front Bumper, XRC8 Winch
    I read on your build thread that you're thinking of reangling your shocks so they're l l instead of / \. You still planning on doing that?

  5. May 13, 2011 at 12:56 PM
    #5
    Slodgetto

    Slodgetto Über Posre

    Joined:
    Jan 18, 2011
    Member:
    #49483
    Messages:
    9,288
    First Name:
    Silas
    Vehicle:
    Dirty Terc
    Scratches, dents, and junkyard parts.
    Great writ-up man!! :thumbsup:

  6. May 13, 2011 at 1:00 PM
    #6
    01Tac0ma

    01Tac0ma Bash Fabriction & Off-Road

    Joined:
    Jun 11, 2010
    Member:
    #38782
    Messages:
    6,260
    Gender:
    Male
    First Name:
    Chad
    West Columbia, SC
    Vehicle:
    SAS 01 TRD 4x4
    Look at build!
    sub'd Good Job JLee, I've been wanting to do something similar just didnt know exactly what!

  7. May 13, 2011 at 1:13 PM
    #7
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    16,765
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.

    No that was before I did this i was going to go l l route but I did some more reading and went /\ and love it.

  8. May 13, 2011 at 2:06 PM
    #8
    malander

    malander That's some tight butthole

    Joined:
    May 6, 2010
    Member:
    #36656
    Messages:
    2,424
    Gender:
    Male
    First Name:
    max
    Missouri
    Vehicle:
    01 limited trd 4x4
    deck plate mod,jba cat back,bilstein 5100's,ome 883 springs, Allpro expos, allpro U-bolt flip kit, 10" Bilstien 5150 shocks, custom lower shock mounts
    Once again it looks great. I'll be getting the flip kit with my expos in the next coupla months :D

  9. May 13, 2011 at 2:32 PM
    #9
    tsab916

    tsab916 Well-Known Member

    Joined:
    Aug 24, 2010
    Member:
    #42144
    Messages:
    264
    Gender:
    Male
    Sacramento
    Vehicle:
    02 DC 4x4
    I know this might be a dumb question but I seach and all I could find is u bolt flip kit forsake...

    So here's my quesion: what's the benefits of installing a flip kit?

  10. May 13, 2011 at 2:36 PM
    #10
    Snowman

    Snowman I have a problem for your solution…

    Joined:
    Sep 8, 2010
    Member:
    #42917
    Messages:
    2,909
    First Name:
    Craig
    Somewhere in Canada
    Vehicle:
    Check out my build
    And dont forget to retorque the u-bolts after 100~ miles and again after 500 or so. They stretch a bit.

  11. May 13, 2011 at 3:29 PM
    #11
    capetaco12

    capetaco12 .<>./

    Joined:
    Mar 29, 2011
    Member:
    #53984
    Messages:
    3,691
    Gender:
    Male
    Cleveland Ledge, MA
    Vehicle:
    33's,armor,crawler,dents, ect
    OME lift CBI sliders, front bumper homemade rear bumper 33x12.50 m/t Gears Aussie locker inchworm crawlbox Homemade flat belly
    MOAR ground clearence:D

  12. May 13, 2011 at 3:38 PM
    #12
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    16,765
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.

    Yes this ^ forgot to mention that I'm adding that [​IMG]

  13. May 13, 2011 at 3:57 PM
    #13
    4WD

    4WD cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    23,950
    Gender:
    Male
    First Name:
    Doug
    Lakeside, Ca / Gardnerville, Nevada
    Vehicle:
    No Truck..well, maybe
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now
    Good write up on your MODS Jerry, but dude you need to clean off that rust scale on undercarriage & hit it hard with some undercoating .unless its just Clay stains I see (possibly this cause I'm old & blind)

  14. May 13, 2011 at 4:19 PM
    #14
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    16,765
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Thanks yeah it a mix of clay and rust I've been meaning to get it all off.

  15. May 13, 2011 at 6:07 PM
    #15
    ozark705

    ozark705 "f*#@ it, dude. let's go bowling"

    Joined:
    Aug 6, 2010
    Member:
    #41333
    Messages:
    135
    Gender:
    Male
    Mid-MO
    Vehicle:
    03 4x4 DBL Cab SR5
    Gray Wire mod, Deckplate Mod w/aFe dry filter, anti-axle wrap u-bolt mod, fog light mod, LED interior lighting mod, & seafoam enthusiast
    JLee, awesome write yet again! Well done~

  16. May 13, 2011 at 7:39 PM
    #16
    alove0750

    alove0750 Well-Known Member

    Joined:
    Mar 30, 2010
    Member:
    #34294
    Messages:
    1,375
    Gender:
    Male
    First Name:
    Adam
    Concord, nc
    Vehicle:
    01 Tacoma Pre-runner
    Bilstein 5100's and OME 882's in the front AAL and Bilstein 5125's in the rear Converted to 4x4, with 97 front diff with manual hubs 4.56 Yukons front and rear Custom front bumper, sliders and under-belly skid by MOBS Fab in Concord,NC with built in hella's and 8000lb smitty
    Great write up!

  17. Nov 19, 2012 at 9:05 AM
    #17
    DD03SR5

    DD03SR5 Well-Known Member

    Joined:
    Nov 20, 2009
    Member:
    #26269
    Messages:
    188
    Gender:
    Male
    First Name:
    Derek
    Ontario,Canada
    Vehicle:
    03 SR5 4X4
    Deckplate,5100's,eibach's,Wheelers AAL,
    do you think my rear 5100's have enough travel to do this, or should i stick witht he stock config. I have the AP flip kit and @ shock mounts already i just want to make sure i do it right

  18. Nov 19, 2012 at 9:27 AM
    #18
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    57,084
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    no you'll need the 10'' shock at least since you moving the mounting points..i mean i guess you could bu you'd over extend them..

  19. Nov 19, 2012 at 9:29 AM
    #19
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    16,765
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    I don't even need to reply to my threads ^

  20. Nov 19, 2012 at 9:33 AM
    #20
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    57,084
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    haha!!

















    true..:anonymous:...
