1st generation Tacoma door will not unlock- *SOLVED*

Discussion in '1st Gen. Tacomas (1995-2004)' started by Markcal, Jan 9, 2017.

  1. Apr 2, 2017 at 6:13 AM
    #21
    glenn27

    glenn27 Well-Known Member

    Joined:
    Apr 2, 2011
    Member:
    #54201
    Messages:
    81
    Gender:
    Male
    Central Virginia
    Vehicle:
    2002 Toyota Tacoma SR5 TRD package/Xtend cab
    Picked up the part Thursday at work, and box of the little 'push clips' for the door panel.....
    Replacement work to commence (hopefully) this weekend....will be somewhat slow, however, as I'm still recovering from some back surgery, so I'll be working off the little roller stool.

    glenn

    lucky13don likes this.
  2. Apr 5, 2017 at 4:16 PM
    #22
    glenn27

    glenn27 Well-Known Member

    Joined:
    Apr 2, 2011
    Member:
    #54201
    Messages:
    81
    Gender:
    Male
    Central Virginia
    Vehicle:
    2002 Toyota Tacoma SR5 TRD package/Xtend cab

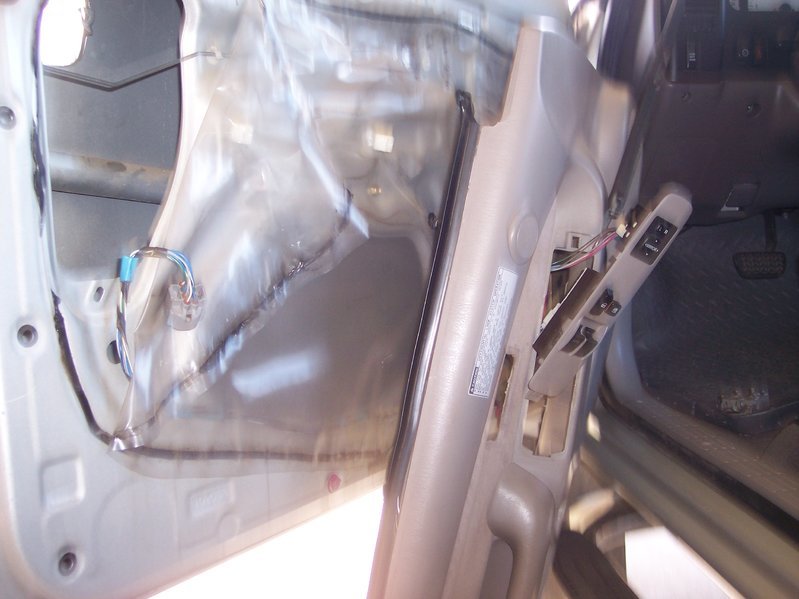

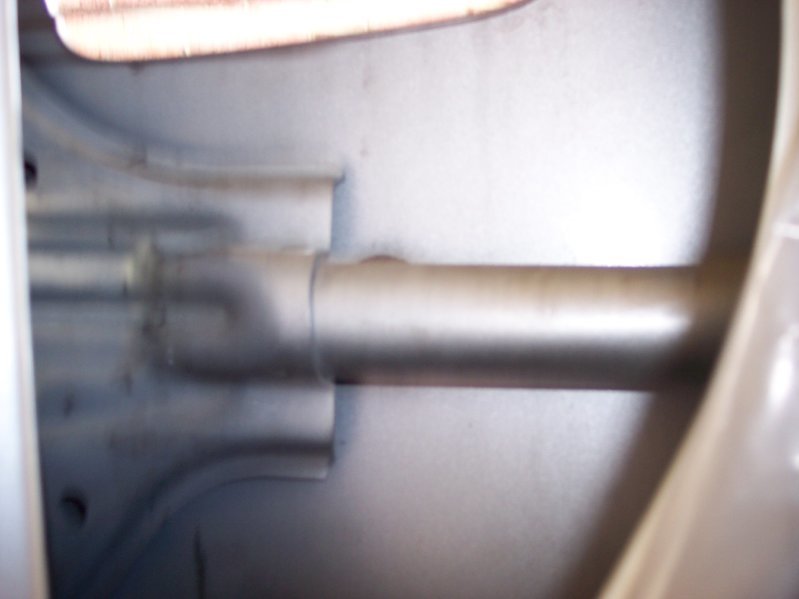

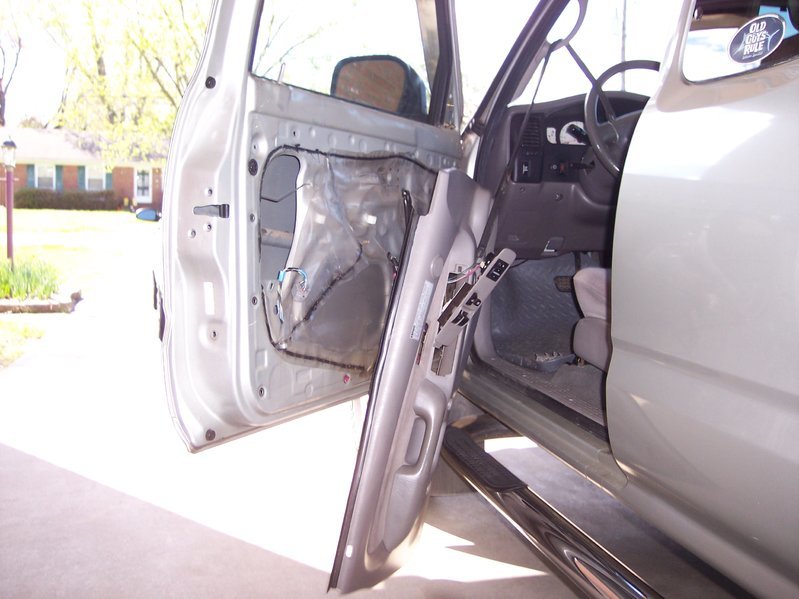

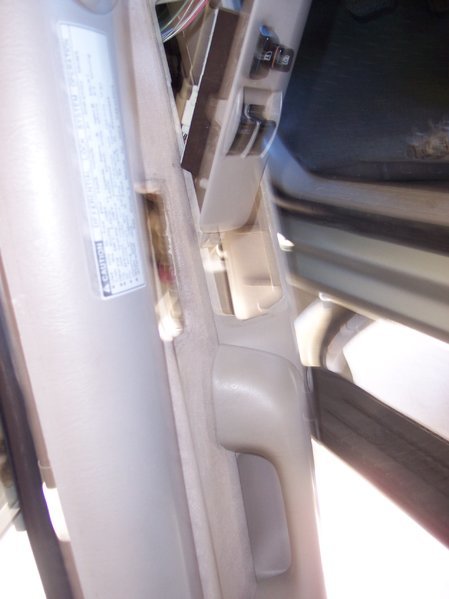

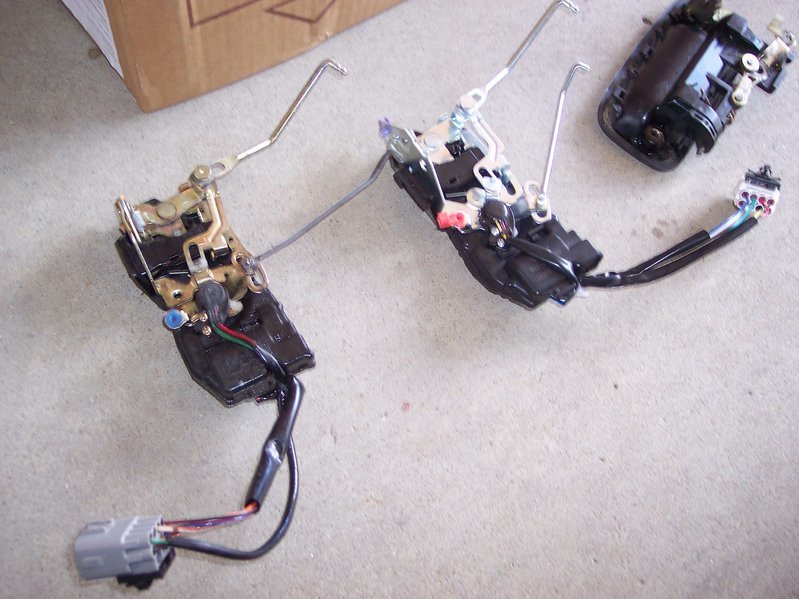

    Done deal==2-1/2 hours under my carport on a warm Saturday afternoon. Sitting on my little roller-stool made it a lot easier on my back (recent surgery)....tagged the wires and connections, and went to town. hardest part was getting the very top most plastic retainer clip off the linkage--I didn't have a replacement for that one.........Pulled the outside door handle and lock cylinder, turn it over and the linkage popped loose..:thumbsup::thumbsup: Before doing anything to the outer door surface--I put a heavy layer of duck- tape all around the handle to avoid scratches--worked good. Couple of pic's==I know guys like mechanical things....

    BTW--if this happens to you--don't be afraid of it, as I was at first--I did a little research, and some videos--and just went for it--saved a bundle--and satisfied that I can still 'do' the small things. You'll ride easy!

    glenn
    glenn fla tripruck repair 137.jpg fla tripruck repair 138.jpg fla tripruck repair 140.jpgfla tripruck repair 138.jpg fla tripruck repair 140.jpg fla tripruck repair 141.jpg[/ATTACH] fla tripruck repair 138.jpg fla tripruck repair 140.jpg fla tripruck repair 144.jpg

    aeok18109 and lucky13don like this.
  3. Apr 9, 2017 at 5:03 AM
    #23
    glenn27

    glenn27 Well-Known Member

    Joined:
    Apr 2, 2011
    Member:
    #54201
    Messages:
    81
    Gender:
    Male
    Central Virginia
    Vehicle:
    2002 Toyota Tacoma SR5 TRD package/Xtend cab
    BTW--forgo to mention this--the above after-market part was identical (with plastic clips and wire harness included to original OEM part. I know some stuff is NOT the same--you have to make it work--but this was identical (except not worn out)
    :cheers::cheers:
    glenn

  4. Apr 27, 2017 at 9:32 AM
    #24
    Mr Chips

    Mr Chips Member

    Joined:
    Apr 26, 2017
    Member:
    #217403
    Messages:
    15
    Gender:
    Male
    Vehicle:
    Toyota Tacoma 2.4L L4 DOHC
    THanks for the comment.
    Where do you spray?
    Can't pull my button up but the inside and outside handles work. So it might be a lobe issue rather than spring. But thanks to the spring fix.

  5. May 1, 2017 at 12:03 PM
    #25
    Taco_4x4_Guy_

    Taco_4x4_Guy_ Member

    Joined:
    Mar 6, 2017
    Member:
    #212504
    Messages:
    111
    Gender:
    Male
    USA
    Vehicle:
    2017 Toyota Tacoma DC TRD Off Road Premium
    3" Toytech Lift, Toyota Billstein Shocks, TRD Pro Grill, 18" Fuel Rims with 285 65 R18 Cooper Discovery SST Tires.
    I spray it in the key hole and put my key back in the key hole and gently work it till it pops loose again.

  6. May 31, 2017 at 8:00 PM
    #26
    Knuckledragger

    Knuckledragger Member

    Joined:
    May 2, 2017
    Member:
    #217943
    Messages:
    7
    Gender:
    Male
    First Name:
    Ryan
    Vehicle:
    White 2003 Gen 1 xtra cab
    So where can I buy that little replacement spring? I've looked at Lowes, and Menards. They don't have the variety that they once did. I'll be checking Menards next. I've taken my door apart twice. If I apply a slight amount of pressure on the tab where the spring is held my locks work as they should. This tells me that the spring is tired and the problem should be fixed with a good strong replacement spring.

  7. May 31, 2017 at 8:55 PM
    #27
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    8,861
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Tacoma 4dr SR5 TRD Prerunner
    Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 240K and going strong.
    Try Ace Hardware

  8. Jul 31, 2017 at 6:36 AM
    #28
    L_hampton14

    L_hampton14 Unknown Member

    Joined:
    Jul 16, 2017
    Member:
    #224181
    Messages:
    202
    Gender:
    Male
    First Name:
    Levi
    KS -> VA
    Vehicle:
    2001 Silver TRD
    5100s w/ toytec coils All-pro leafs w/ 5125s
    I just had this problem last weekend and stumbled across this video. However most of the threads I came across the problem was the spring like in the video. Once I got my door open, I found that the plastic guide that sits on the lock arm that swings the arm that actuates the latch in and out of action had broken off. After several hours of searching online and visiting three separate auto parts stores, I determined it was impossible to find what I needed. Ended up going to the junkyard and it took all of five minutes to pull the part I needed, but not before someone took advantage of the fact my door was unlocked and snagged my Surefire flashlight and Ipod.

  9. Nov 13, 2017 at 8:36 PM
    #29
    x2468

    x2468 Well-Known Member

    Joined:
    Jul 19, 2009
    Member:
    #19879
    Messages:
    1,768
    Gender:
    Male
    Vermont
    Vehicle:
    '02 TRD 4wd V6 Xcab Sr5
    So I have a problem with my passenger side lock, the key Will not unlock it. It's stuck. It had begun to get a bit stiff over the past year, and would pop a couple times as I turned it, but now it won't budge. Will the graphite spray fix that?

  10. Nov 15, 2017 at 6:53 PM
    #30
    tony2018

    tony2018 Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123866
    Messages:
    5,075
    Gender:
    Male
    As you were trying to lean in with the camera, I was angling myself to try to view in the corner. Too hilarious.

  11. Jun 8, 2018 at 8:22 AM
    #31
    ThunderOne

    ThunderOne ColoradoTinyJohnson

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    9,369
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    PlastiDERP
    @tcBob please un-sticky. Too many stickies in the first gen section.

    xtremewlr likes this.
  12. May 14, 2019 at 9:49 AM
    #32
    01GreenTacoma

    01GreenTacoma Well-Known Member

    Joined:
    Jan 9, 2017
    Member:
    #207086
    Messages:
    850
    Gender:
    Male
    Mine had this happen yesterday on the passenger side. Looks like I’m going to have to remove he passenger seat to get my panel off and door open. I am hoping mine is only the spring.

  13. Nov 2, 2019 at 12:39 PM
    #33
    2000TacoAvery

    2000TacoAvery Member

    Joined:
    Sep 20, 2019
    Member:
    #305872
    Messages:
    15
    Gender:
    Male
    First Name:
    Avery
    Vehicle:
    2000 Tacoma extended cab
    Headlights
    I know this sounds crazy but check out rockauto.com they have parts for a good price that will take care of that... I was just looking to see if there was a easier/less expensive route to the solution. I turn 16 Tuesday and this is my first truck. I plan on doing a lift and tires this summer since the last 3 summers I’ve been saving to buy a truck and somehow came up with a decent truck for it’s age and only had to pay about half. Hopefully this little 4 cylinder with 230,000 miles will hold to Toyota’s name!

  14. Feb 9, 2020 at 2:01 AM
    #34
    2Runner

    2Runner Well-Known Member

    Joined:
    Jan 20, 2020
    Member:
    #316661
    Messages:
    360
    First Name:
    Scott
    So Cal
    Vehicle:
    2002 Regular Cab MT 2WD
    Just to add my experience to this sticky,

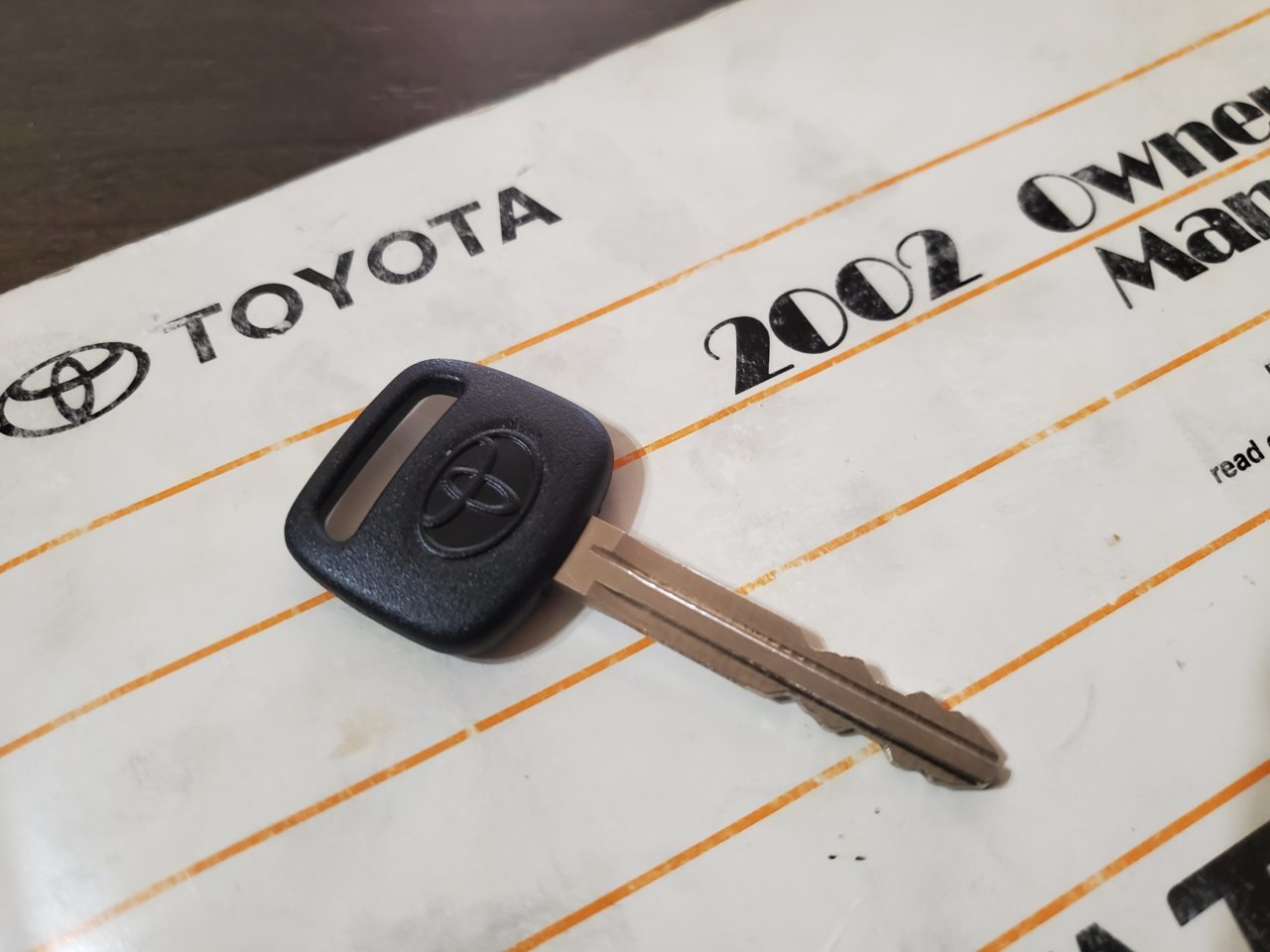

    When I got my truck the passenger side would not unlock from the outside with an old worn non oem key. I wanted an extra key and went to the dealer to get an oem key cut with my vin# and key code, and to my delight I found this solved my problem!!


  15. Feb 9, 2020 at 5:38 PM
    #35
    Abuck69

    Abuck69 Active Member

    Joined:
    Feb 7, 2020
    Member:
    #318574
    Messages:
    28
    Gender:
    Male
    Vehicle:
    1999 Tacoma 4x4 V6
    How
    Much??

  16. Feb 9, 2020 at 5:52 PM
    #36
    2Runner

    2Runner Well-Known Member

    Joined:
    Jan 20, 2020
    Member:
    #316661
    Messages:
    360
    First Name:
    Scott
    So Cal
    Vehicle:
    2002 Regular Cab MT 2WD
    My oem key? $18.

    The guy actually cut a non oem first and brought it out to me, and I said I was at the dealership for oem specifically so he gave me both for the same price! He said the oem ones break at the key ring portion so they dont use them normally and told him I will be careful with it!

  17. Feb 9, 2020 at 9:23 PM
    #37
    Abuck69

    Abuck69 Active Member

    Joined:
    Feb 7, 2020
    Member:
    #318574
    Messages:
    28
    Gender:
    Male
    Vehicle:
    1999 Tacoma 4x4 V6
    Too add to the door issues... My passenger door would not open from the outside, and was hard to unlock using the inside door lock knob as well. I watched the video about the spring being broken, but I have power doors and found no spring. Did not matter, the problem was the outside door handle has two tabs ( plastic) that push down and over metal ones on the inside door mechanism. The metal tabs were bent and when you open the door, the plastic handle just get caught inside. You have to remove the handle assembly and straighten the metal tabs. I cleaned and lubed mine. Works better than the drivers door of course. I am gonna pull the drivers door soon. If, someone needs help or pics let me know.


  18. Mar 3, 2020 at 7:55 AM
    #38
    phx70

    phx70 Well-Known Member

    Joined:
    Oct 16, 2019
    Member:
    #308175
    Messages:
    98
    Gender:
    Male
    First Name:
    Joe
    Scottsdale Arizona
    Vehicle:
    1999 Tacoma SR5 4WD 3RZ AT Sunfire Red Pearl

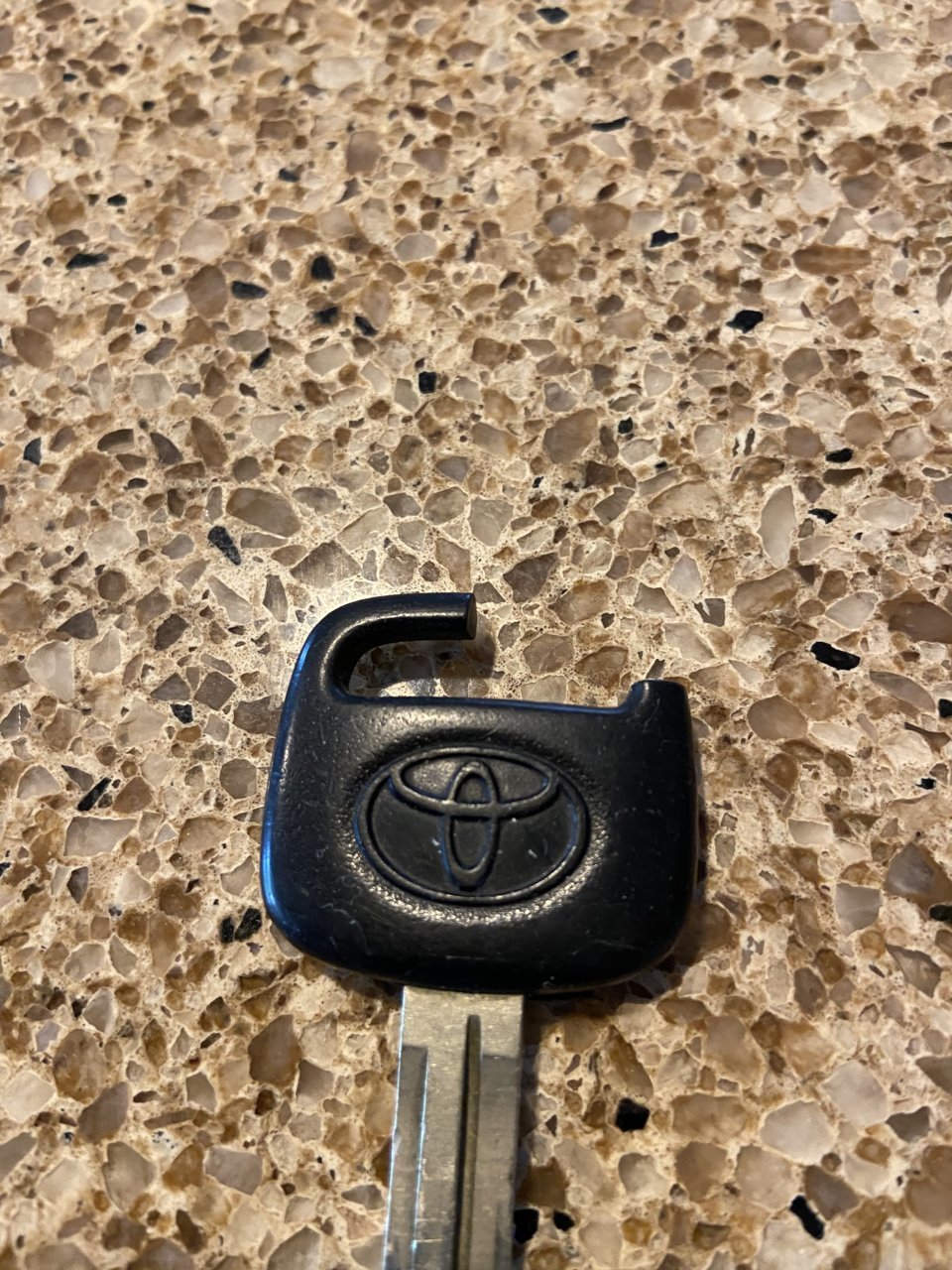

    Yep. That’s why I use the all metal one nowAF88DA72-1660-4A71-B8A1-DB6EFCFA5294.jpg

    Space Man Spiff likes this.
  19. Mar 3, 2020 at 9:58 AM
    #39
    2Runner

    2Runner Well-Known Member

    Joined:
    Jan 20, 2020
    Member:
    #316661
    Messages:
    360
    First Name:
    Scott
    So Cal
    Vehicle:
    2002 Regular Cab MT 2WD
    How did you manage to break it?!

  20. Mar 3, 2020 at 10:05 AM
    #40
    phx70

    phx70 Well-Known Member

    Joined:
    Oct 16, 2019
    Member:
    #308175
    Messages:
    98
    Gender:
    Male
    First Name:
    Joe
    Scottsdale Arizona
    Vehicle:
    1999 Tacoma SR5 4WD 3RZ AT Sunfire Red Pearl
    I think it just broke due to age and fell off the key ring.
