20-23 Anytime front/backup camera

Discussion in '3rd Gen. Tacomas (2016-2023)' started by bigssa, Oct 17, 2022.

Page 5 of 5
  1. Jul 30, 2024 at 10:38 AM
    #81
    bigssa

    #81
    bigssa [OP] Well-Known Member

    Joined:
    Jul 29, 2022
    Member:
    #402414
    Messages:
    61
    Gender:
    Male
    Charleston, SC
    Vehicle:
    2022 MGM DCLB SR5 RWD
    You should not use the same relay because it will cause interference with the video signal.

    bigssa, Jul 30, 2024
    #81
    kisstoo[QUOTED] likes this.
  2. Aug 7, 2024 at 12:41 AM
    #82
    haboob_chaser

    #82
    haboob_chaser New Member

    Joined:
    Jul 10, 2024
    Member:
    #453041
    Messages:
    1
    Vehicle:
    2023 Tacoma TRD OR

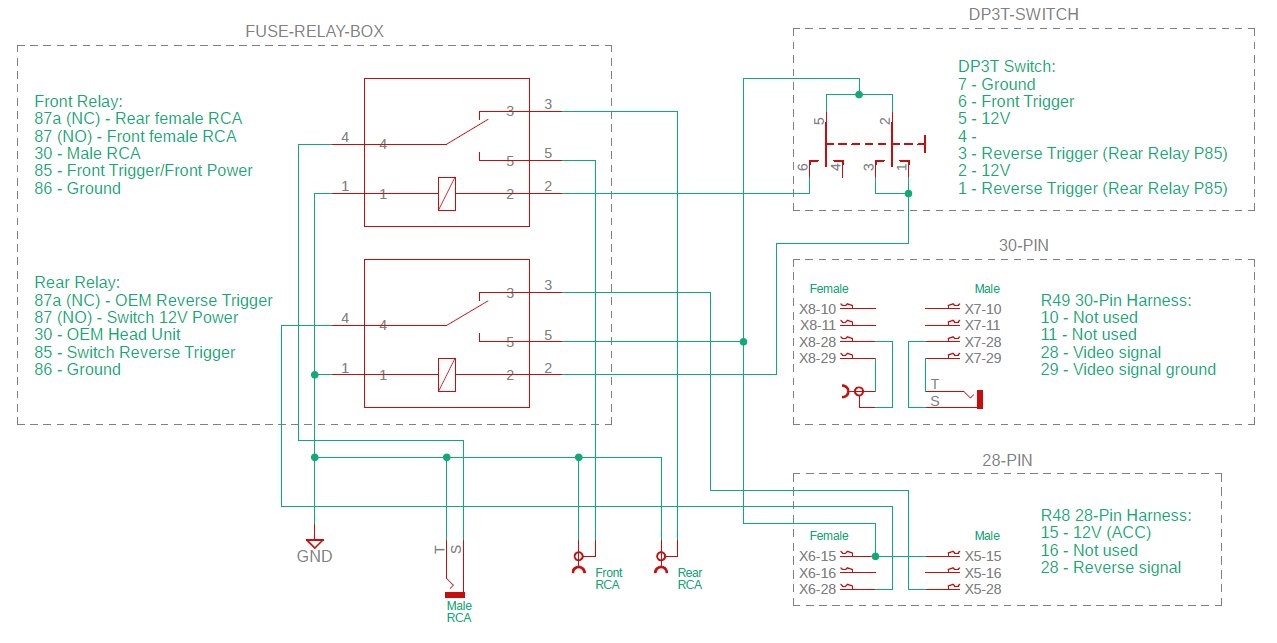

    I am trying to understand why pins 1 and 3 on the switch are connected. Wouldn't this mean the reverse trigger is sending power to the relays coil regardless of which direction the switch is in?


    haboob_chaser, Aug 7, 2024
    #82
  3. Dec 25, 2024 at 6:51 PM
    #83
    Fireme

    #83
    Fireme Well-Known Member

    Joined:
    Dec 9, 2023
    Member:
    #439183
    Messages:
    178
    Gender:
    Male
    First Name:
    Bill
    St.JoMo
    Vehicle:
    2023 LR DCSBOR
    265/75-16 KO2, 16”trd beadlock, 23 OEM Pro Fox sus, OEM roof bar, seat spacer, sequencing mirror indicators, RC tri fold bed cover, weathertech mats. Homemade bam bed sleeping platform.
    Anyone convert a 2014-2019, anytime wire harness to a 2020-2023 harness. Or have one to swap? I bought one off market and just found out if was the 1st of the 3rd gen. The plugs are different!

    Fireme, Dec 25, 2024
    #83
  4. Apr 22, 2025 at 11:35 AM
    #84
    ToyotaTruck2019

    #84
    ToyotaTruck2019 New Member

    Joined:
    Feb 23, 2022
    Member:
    #390980
    Messages:
    1
    Gender:
    Male
    Hi forum,

    Does somebody have the wiring diagram for this 30-pin connector?

    Thanks in advance


    [​IMG]

    ToyotaTruck2019, Apr 22, 2025
    #84
