2001 Tacoma prerunner ls 400 swap

I got a question I'm trying to get things figured out before I start getting things together. I've been reading around and coming to understand ls400 and transmission can be swap in. So no I'm wondering do if I use stand alone do I need one conversation harnesses or could I just use the one from Donner car plug in everything. Was also think about getting cluster .

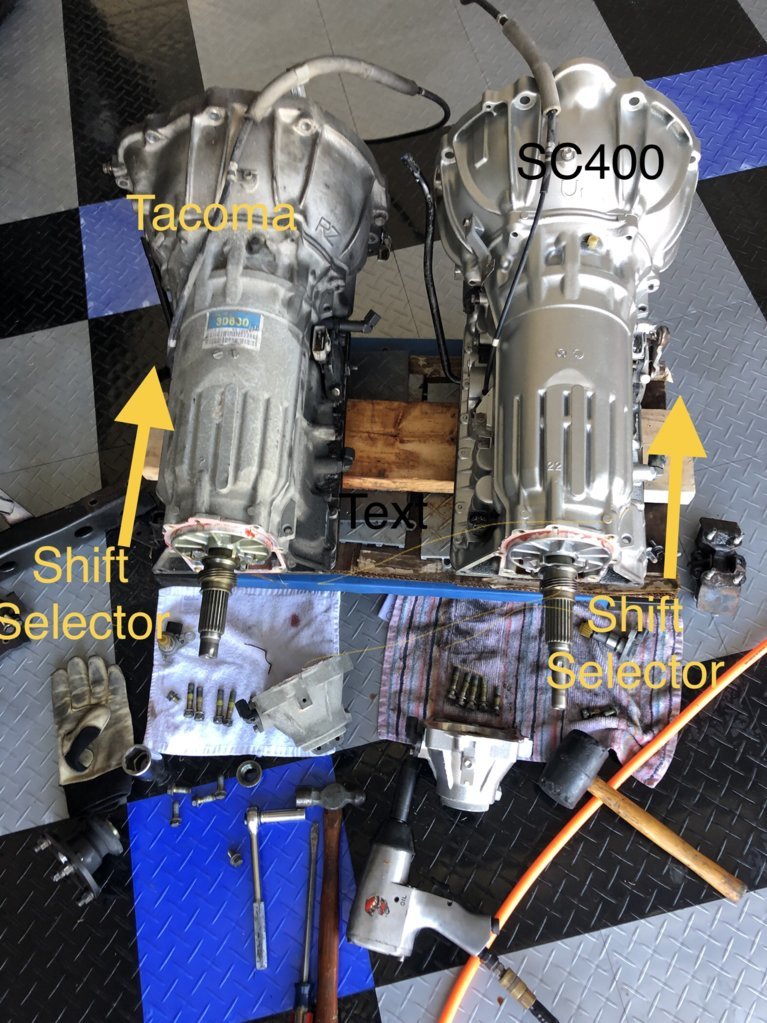

What happened to the turbo?, single cab? currently a 4cly?, yes you can swap in the auto from the donor LS400 you will need the shift shaft out of your old trans, or modify shift link in your shifter. No the gauge cluster swap not a good idea, whether you go standalone ($500-$600) or fully integrated conversion ($1900-$2200) its your choice, everybody loves pics



What about the output shaft can the 400 work or swap it with old Tran



The output shaft will work just trim off extension, see pics above.



Awesome okay now I get it because I want use the motor n trans ment for it.



Can someone post wire pic for the starter, im still trying to figure out how I will connect it to my taco



In my truck there is a 4 pin connector under the fuse box, 3 of the wires went to the alternator the last one (black) went to the start solenoid or commonly known as the start trigger wire, but i went fully integrated, if you do standalone the harness you buy will have the relays and start trigger wire in it. Not sure what direction your going in, your questions are direct but your plan is not clear, GL.
R/

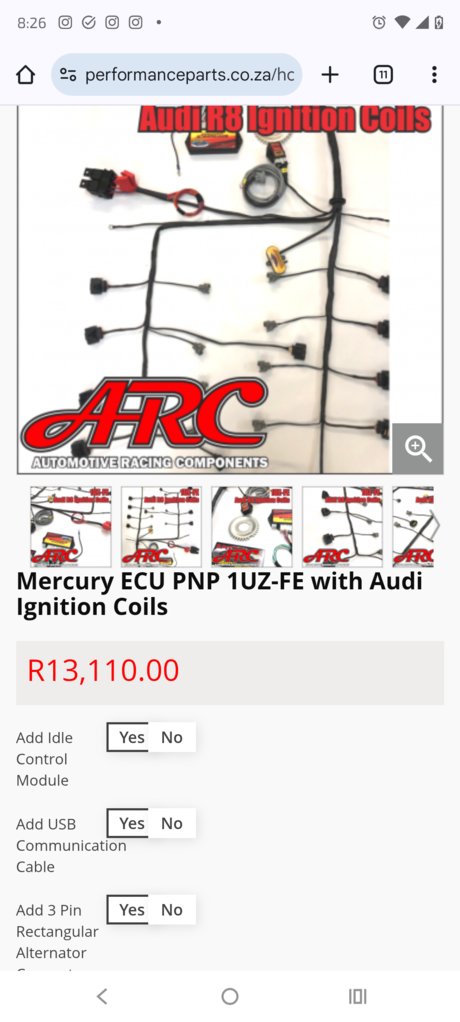

I'm going with this I've been doing a lot research but the only thing I'm not getting exactly how I can connect the starter to ignition. I got sc 400 95
