2002 Double Cab Driver Window Issues

Discussion in '1st Gen. Tacomas (1995-2004)' started by SubparFortheCourse, Dec 5, 2023.

  1. Dec 5, 2023 at 6:18 PM
    #1
    SubparFortheCourse

    SubparFortheCourse [OP] New Member

    Joined:
    Dec 5, 2023
    Member:
    #438962
    Messages:
    4
    Gender:
    Male

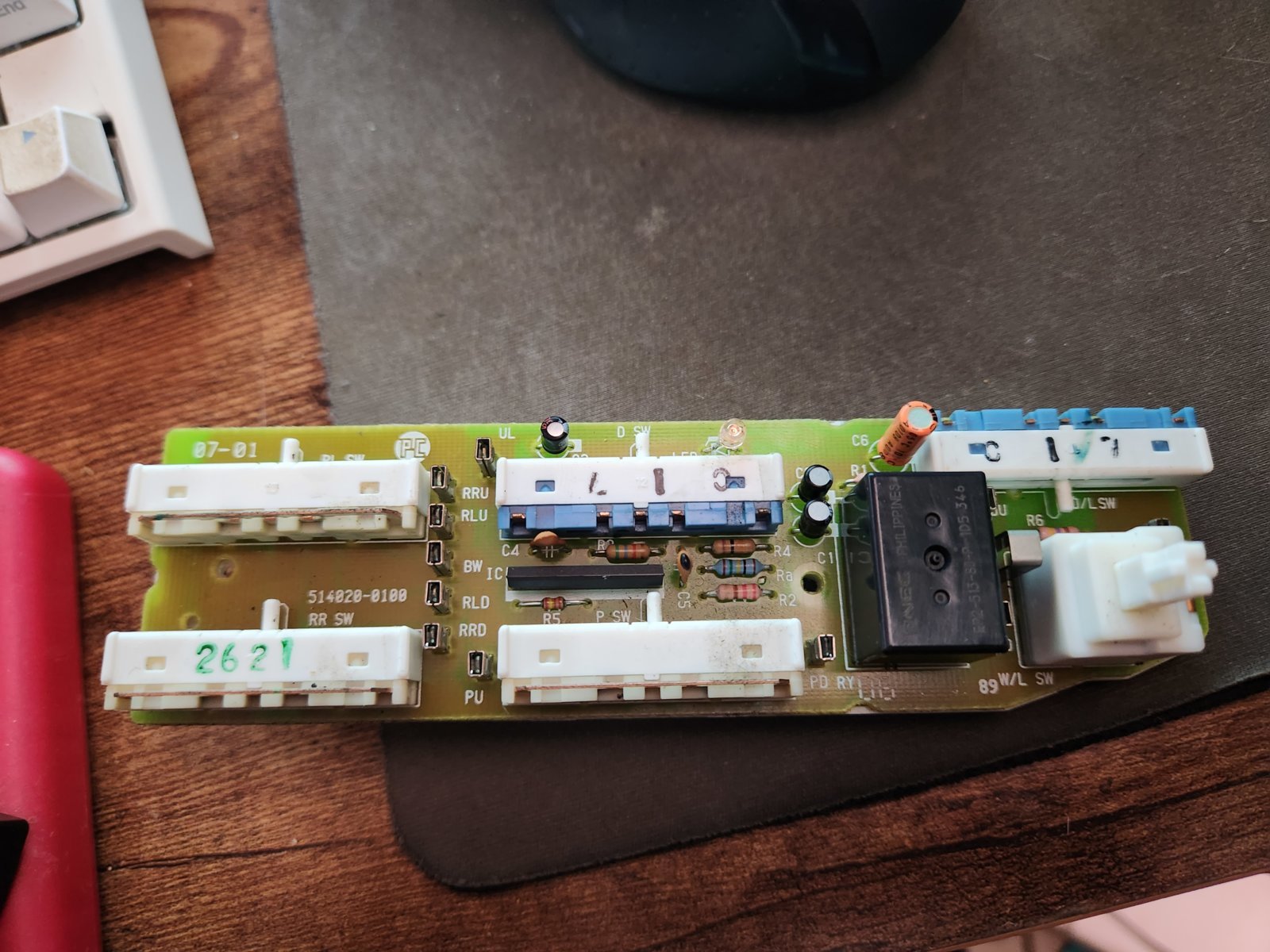

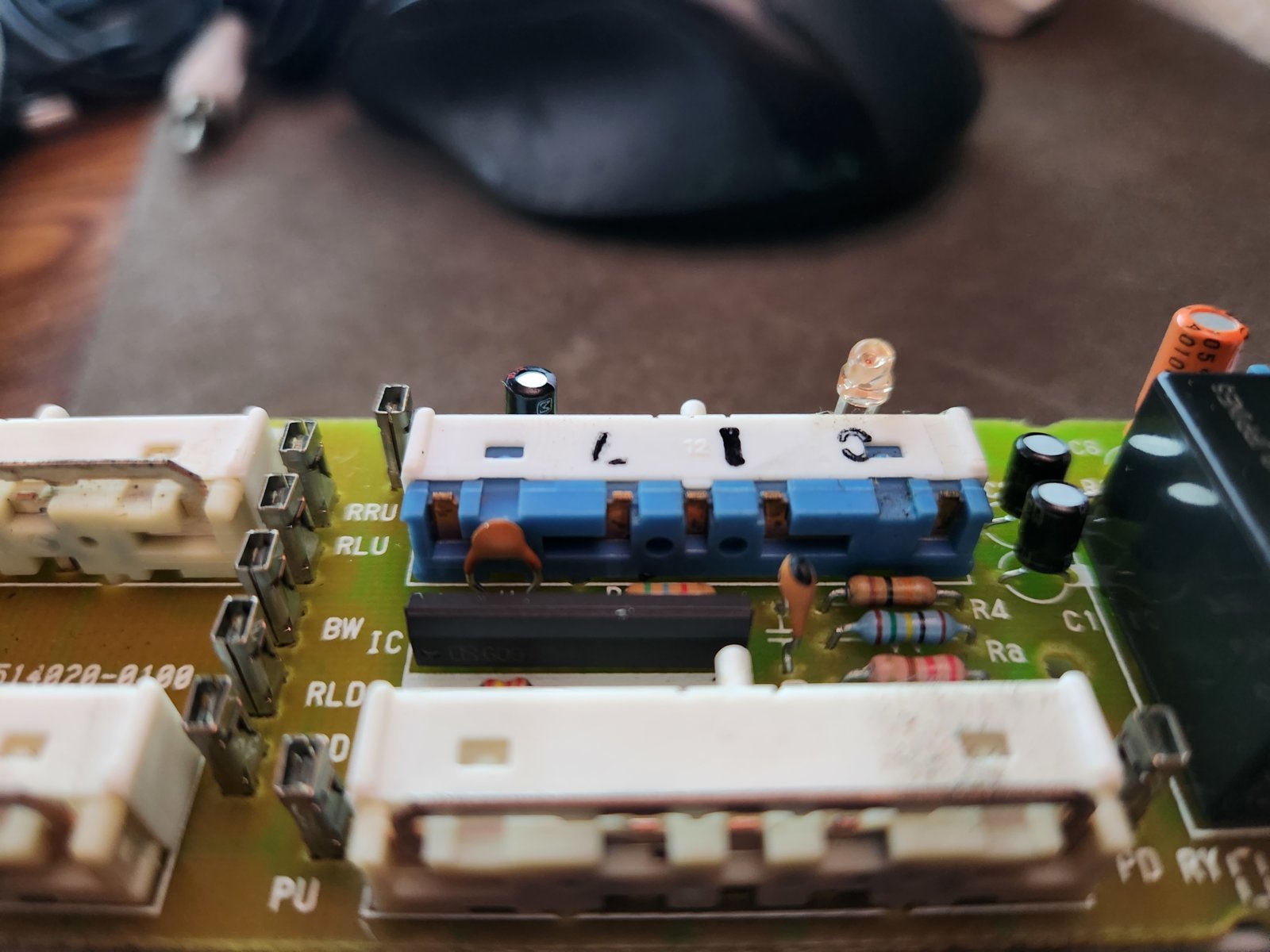

    Hey everyone, first post here but long time lurker. I've owned my 2002 Double Cab Taco since it was brand new, and I've never had any issues with it... until last week. Recently, My driver window has decided it's going to make it's own work schedule. It rolls down just fine, but will roll up intermittently. Sometimes 4 or 5 inches at a time, other times barely a half inch. And I have to wait almost 30 seconds - 1 minute between attempts to get it to roll up the next inch or so. I've tested power through the door harness and that's all good. I have a BNIB window motor & regulator waiting to go in, but I figured before doing that, I should give the switches a check. I browsed the forums here and noticed other people have had the same or similar issues and solved it by cleaning the switch contacts. Unfortunately, it seems like my window switch was just... built different? It doesn't look like any of the photos posted here by other members. I'm not sure what to do from here and I'm hoping the collective knowledge from everyone here can maybe point me in the right direction. I've attached pictures of the disassembled switch so hopefully someone can tell me what's going on. Please save me from the madness!

    20231205_160625.jpg 20231205_160700.jpg

  2. Dec 5, 2023 at 6:36 PM
    #2
    ChargedSHOTaco

    ChargedSHOTaco Well-Known Member

    Joined:
    Aug 19, 2012
    Member:
    #85118
    Messages:
    793
    Gender:
    Male
    Window regulator

    ControlCar likes this.
  3. Dec 15, 2023 at 7:52 PM
    #3
    sanjim76

    sanjim76 Member

    Joined:
    Feb 8, 2019
    Member:
    #282277
    Messages:
    18
    Gender:
    Male
    First Name:
    Jim
    Vehicle:
    Tacoma 4 dr.
    I'm having the same problem with my 2002 double cab. Anyone have an answer.

  4. Dec 15, 2023 at 8:14 PM
    #4
    ControlCar

    ControlCar My Moto: Help & Learn…period.

    Joined:
    Jul 22, 2023
    Member:
    #429578
    Messages:
    3,146
    Gender:
    Male
    First Name:
    Steven
    Sugar Land TX
    Vehicle:
    1996 Taco 2.4L 2wd Automatic
    Clock Volt meter/LSPV Delete/Hyundai 16’s/FP gauge/after 9months of wrenching ZERO oil leaks
    Well OP already has the part
    But sanjim
    Take off door card
    Peel back moisture plastic with that putty on it
    Tape window to door frame
    Take out motor/regulator

    many times the motor has a plate that can be removed. Take off carefully
    Many times a simple cleaning with barely damp rag/compressed air will clean the brushes(magnets)/brush contacts. You will see dust come out just by blowing into motor.
    I’m 3 for 4 on fixing the issue, multiple manufacturers
    Plenty vids out there too
    GL
    To both!

  5. May 10, 2024 at 5:10 PM
    #5
    SubparFortheCourse

    SubparFortheCourse [OP] New Member

    Joined:
    Dec 5, 2023
    Member:
    #438962
    Messages:
    4
    Gender:
    Male
    In completely forgot to update this! Turns out the problem was just the window regulator. Picked one up from Amazon and had things going in under 30 minutesn
